House plan Lotus (3128)
Modern Single storey house plan, 2 bedrooms, large shower stall, large kitchen island, natural light

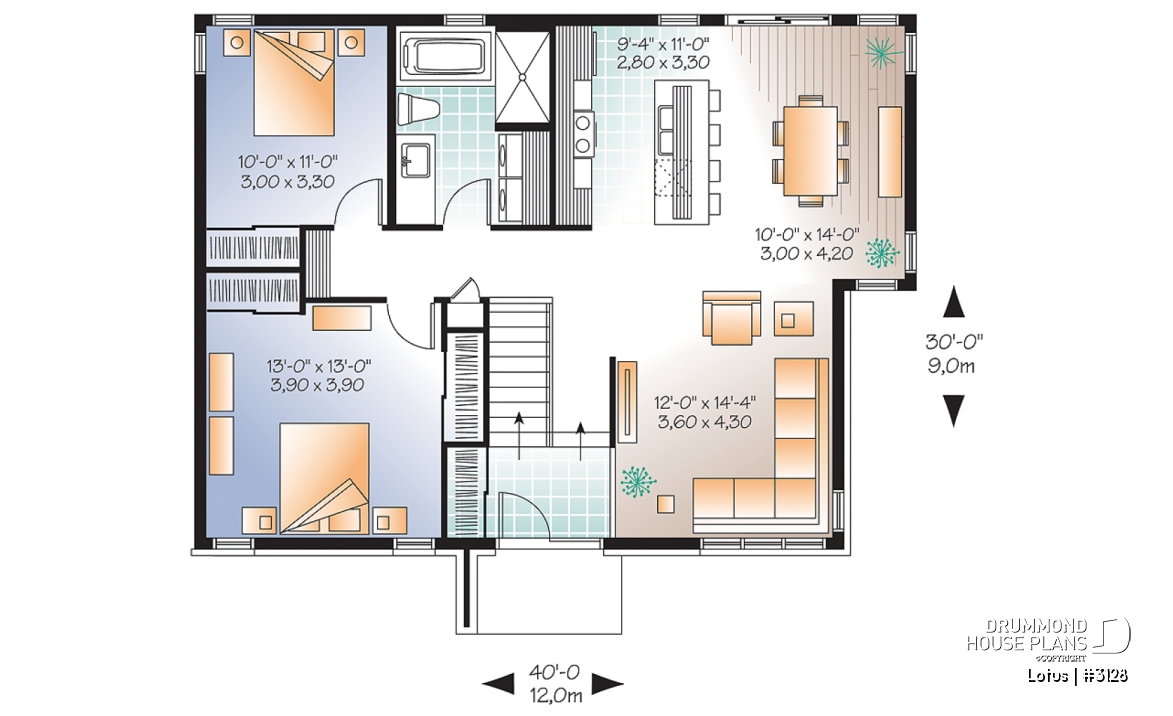

View the size of the rooms and height of the ceilings

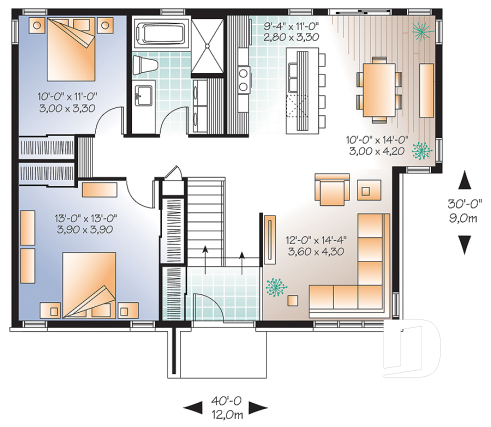

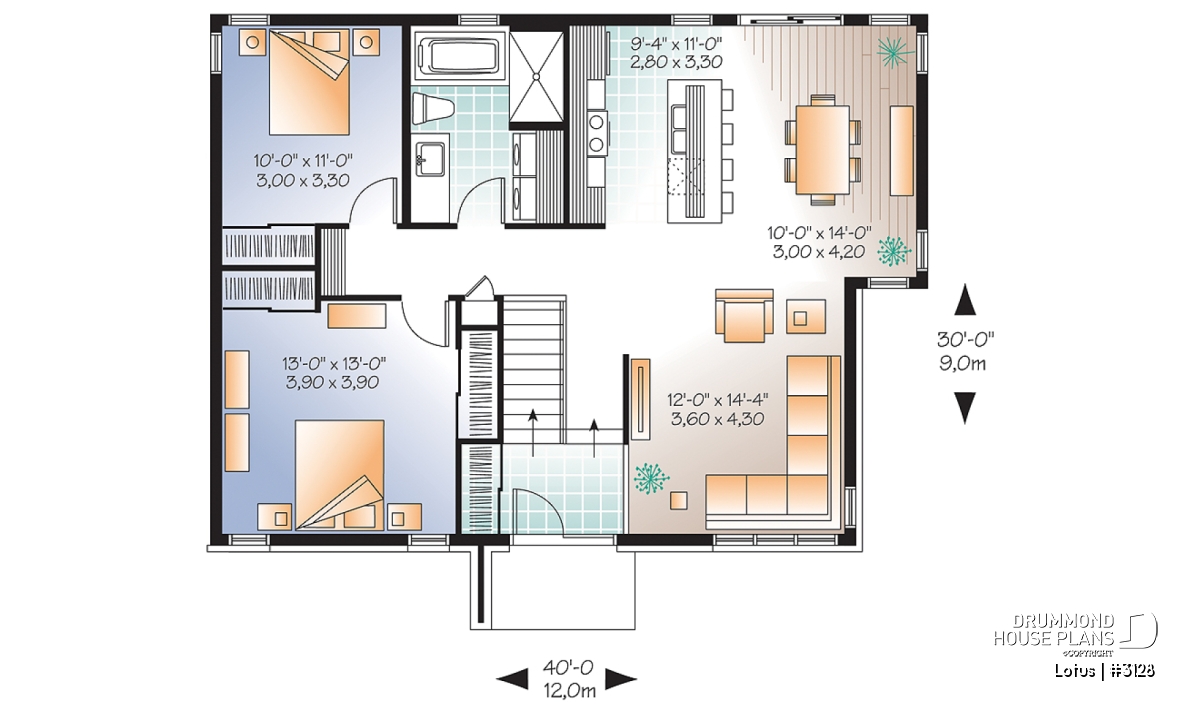

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 13'0" | ~ 8'0" |
| Bedroom | 10'0" x 11'0" | ~ 8'0" |
| Bathroom/laundry room | 8'6" x 11'6" | ~ 8'0" |
| Kitchen | 9'4" x 11'0" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Dining room | 10'0" x 14'0" | ~ 8'0" |
| Living room | 12'0" x 14'4" | ~ 8'0" |
| Covered porch | 8'0" x 4'4" | N/A |
| Deck | 8'0" x 4'0" | N/A |
General specifications
| Total living area | 1146 sq.ft. |
| 1st level | 1146 sq.ft. |
| Width | 40'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 18'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications

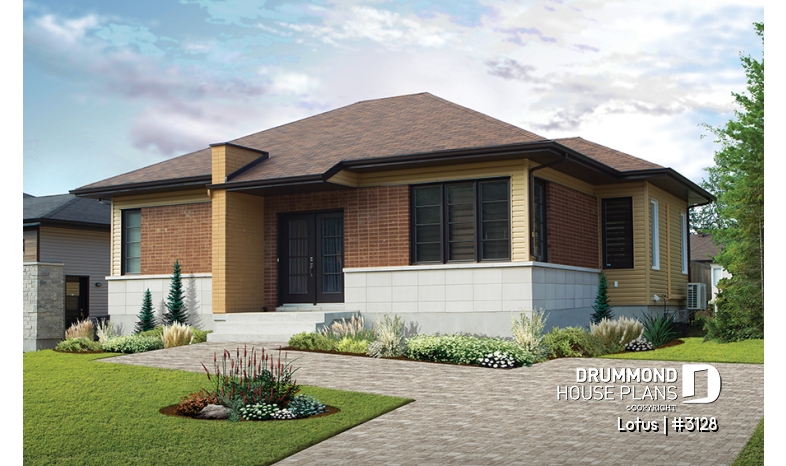

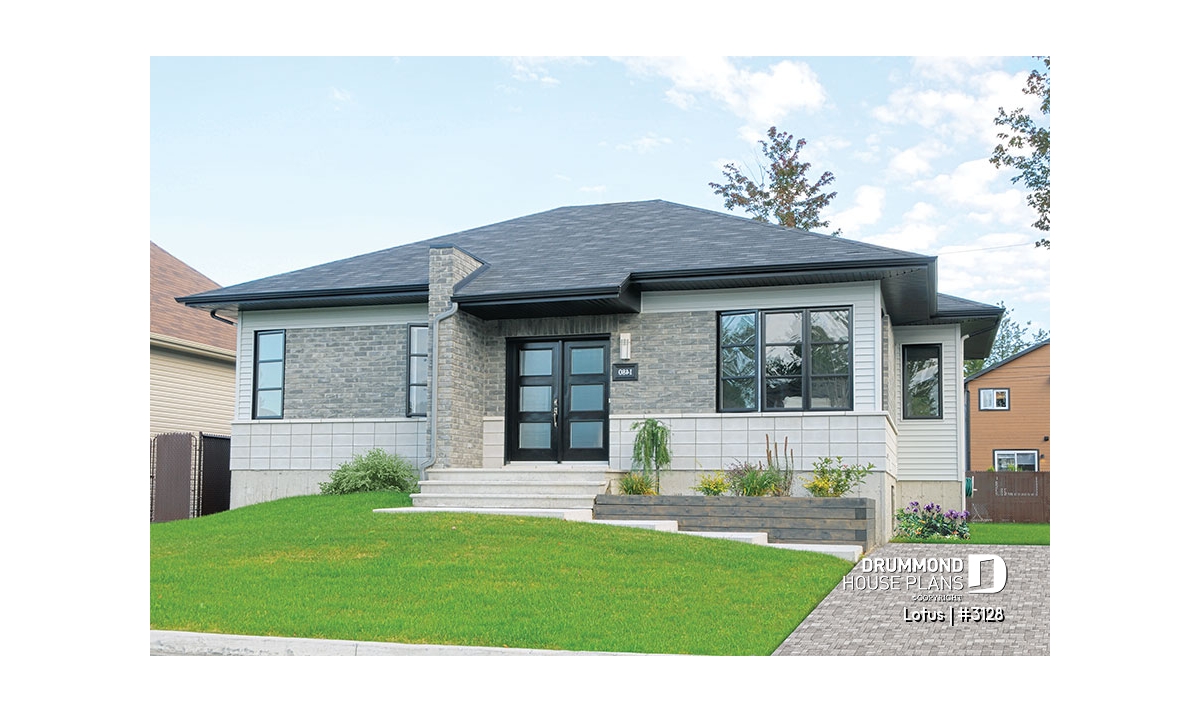

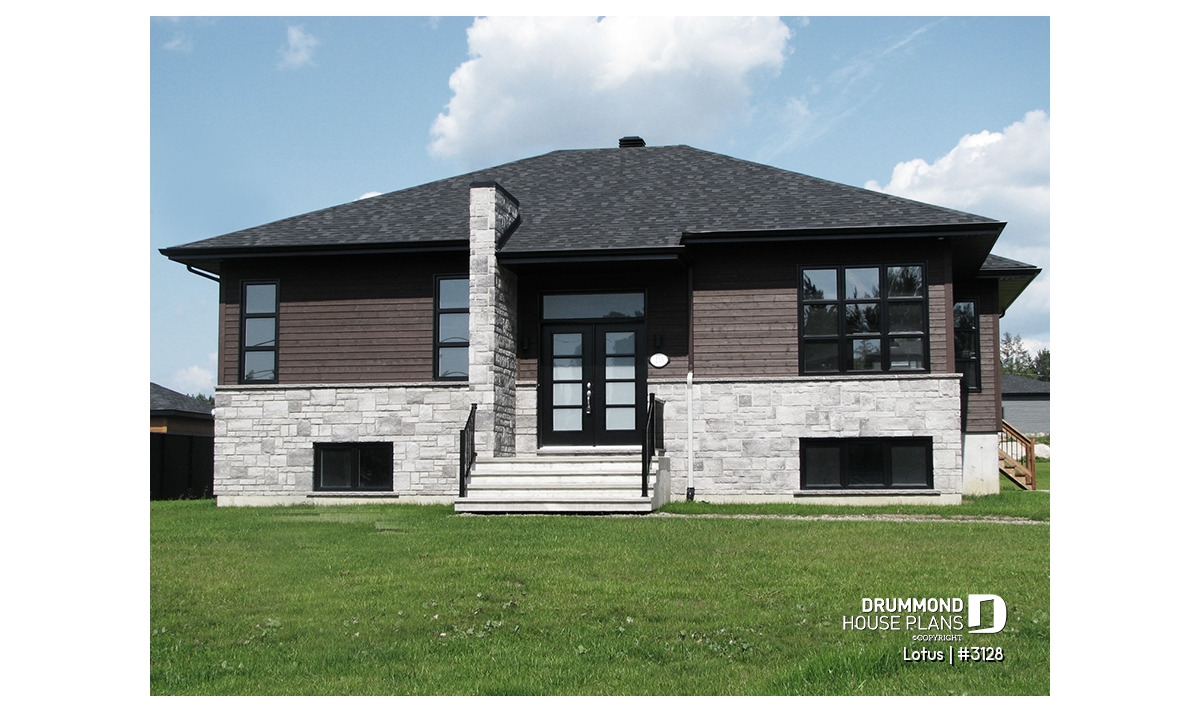

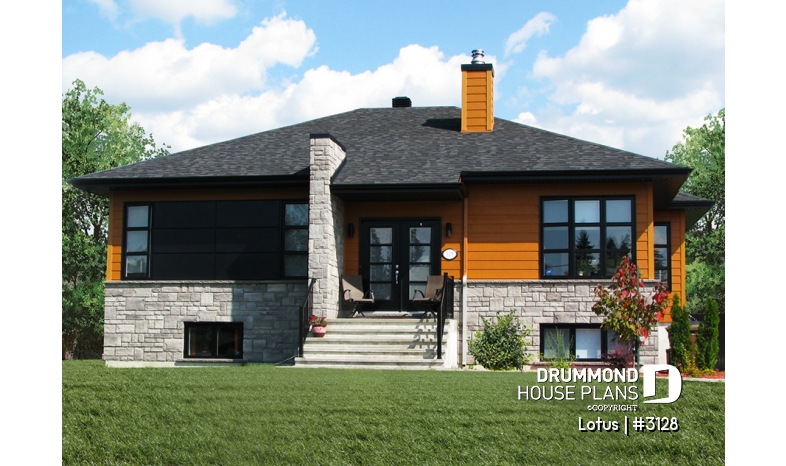

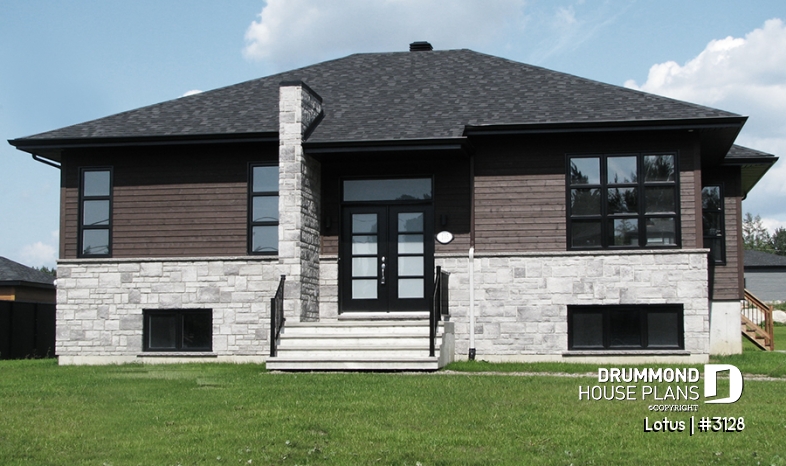

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

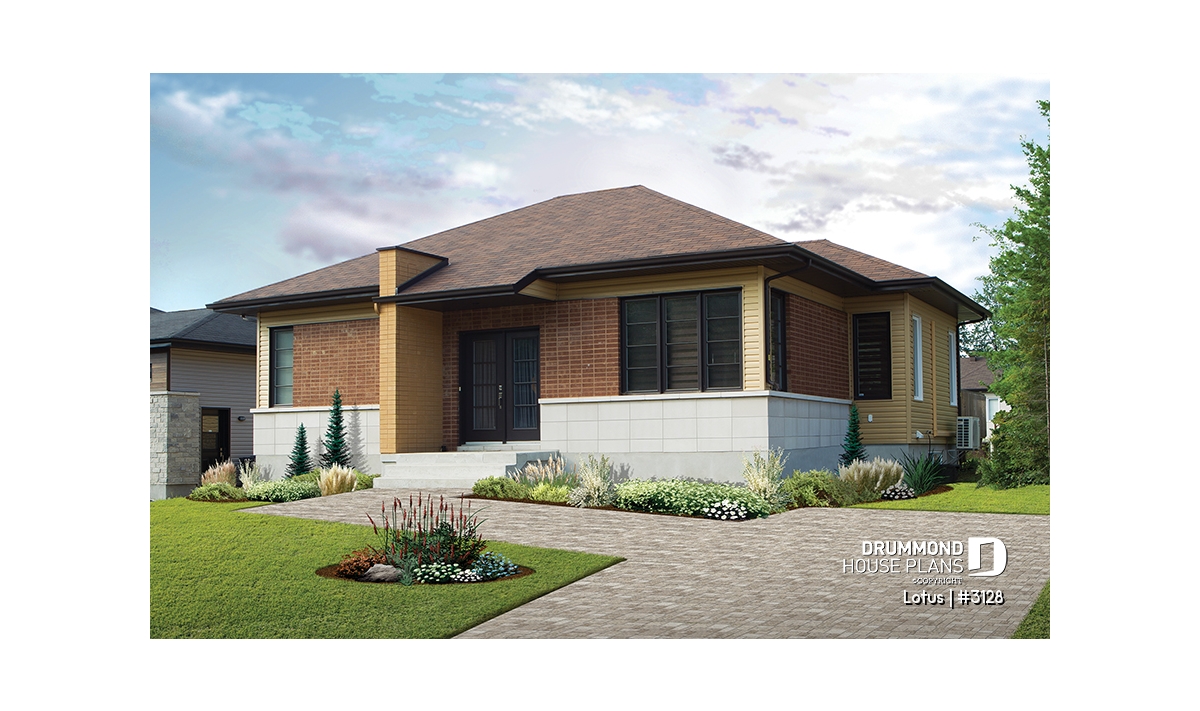

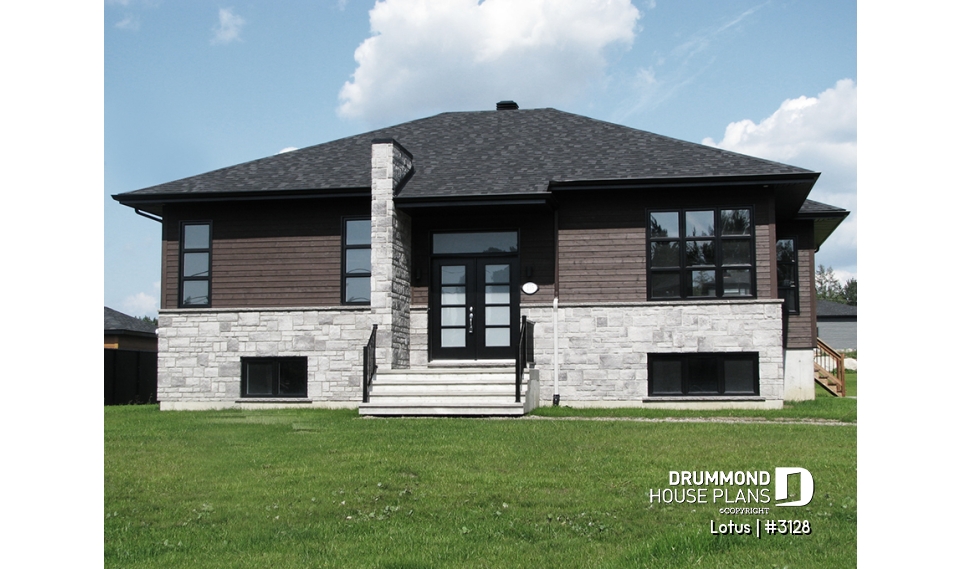

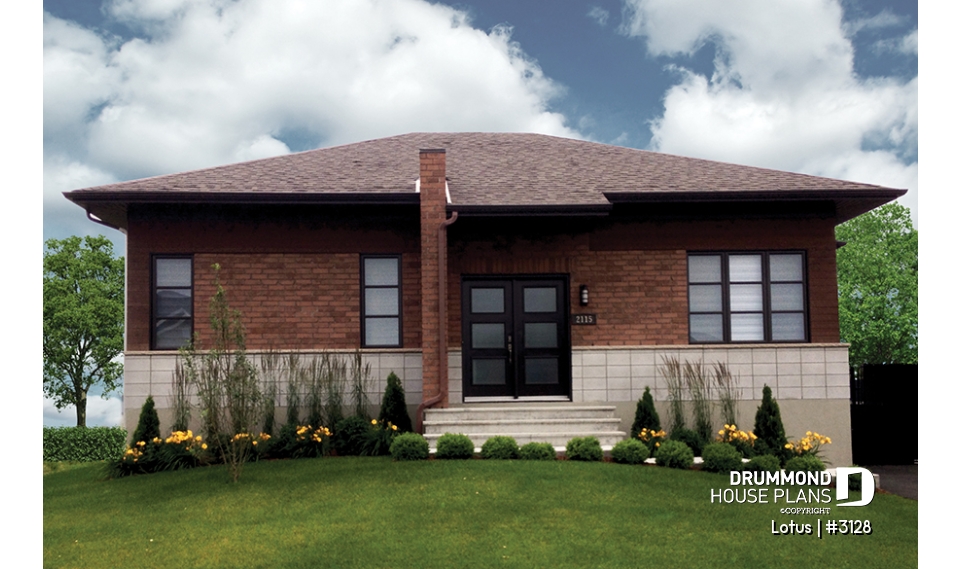

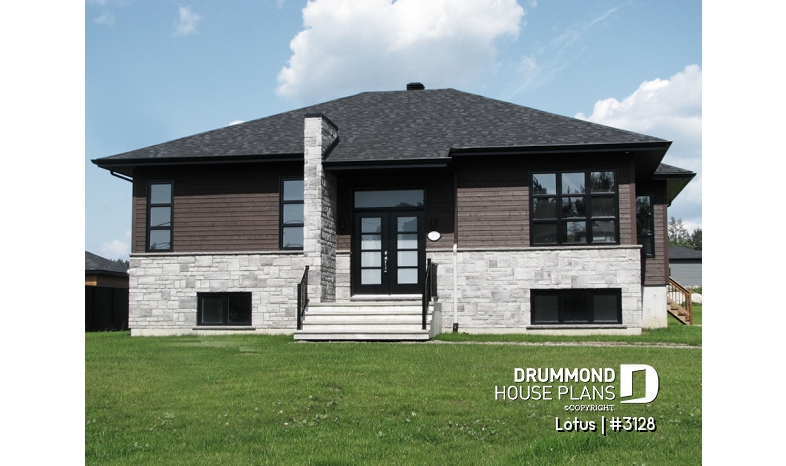

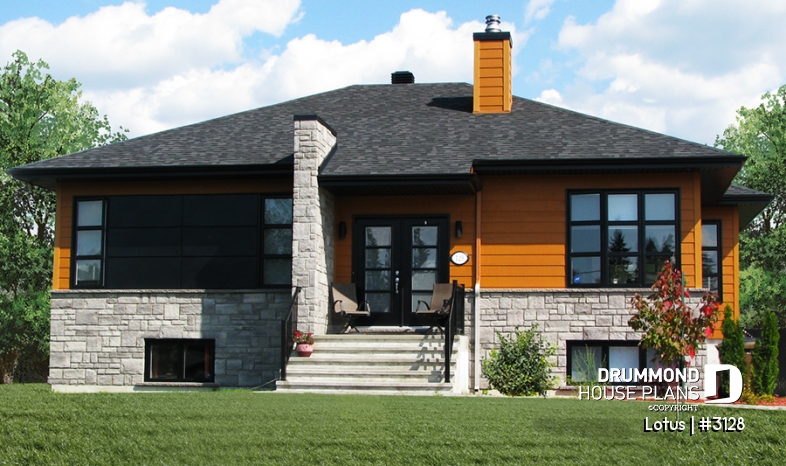

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

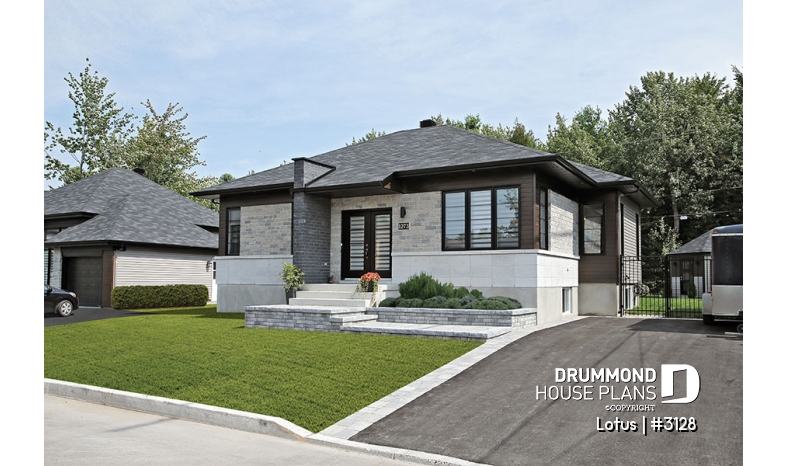

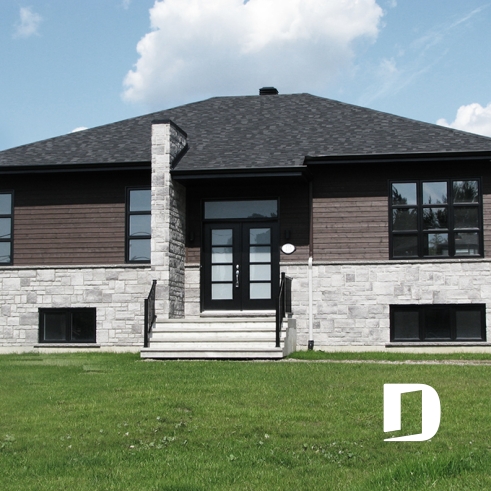

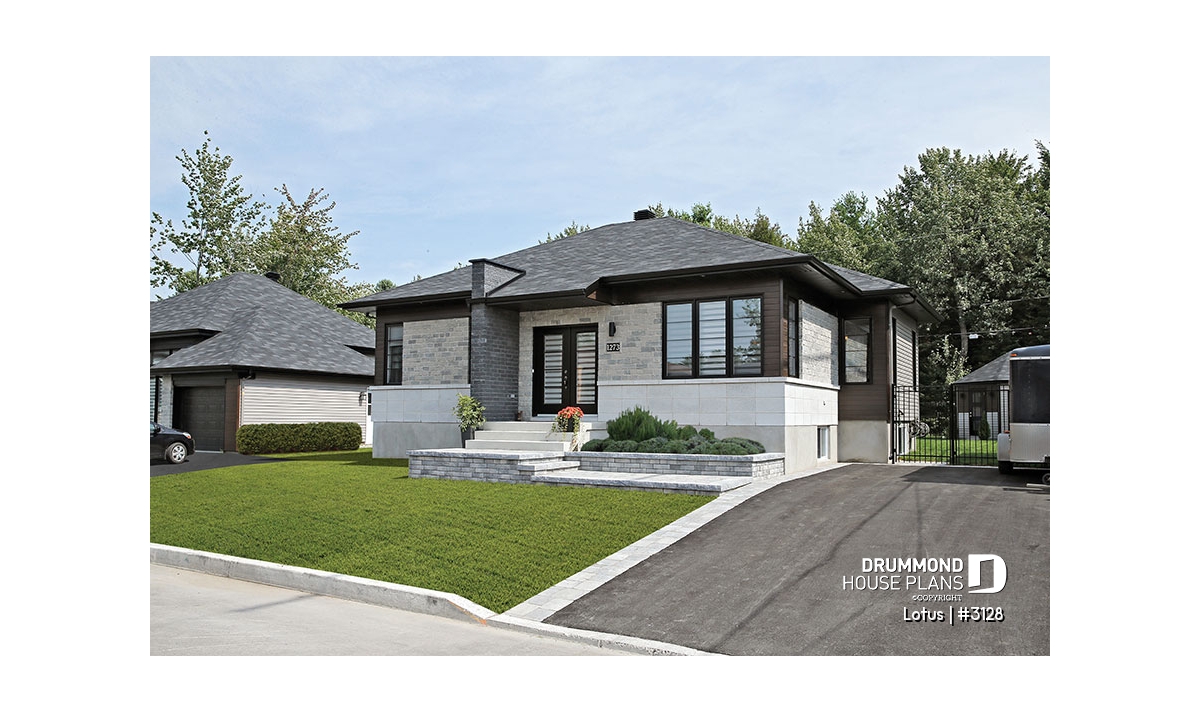

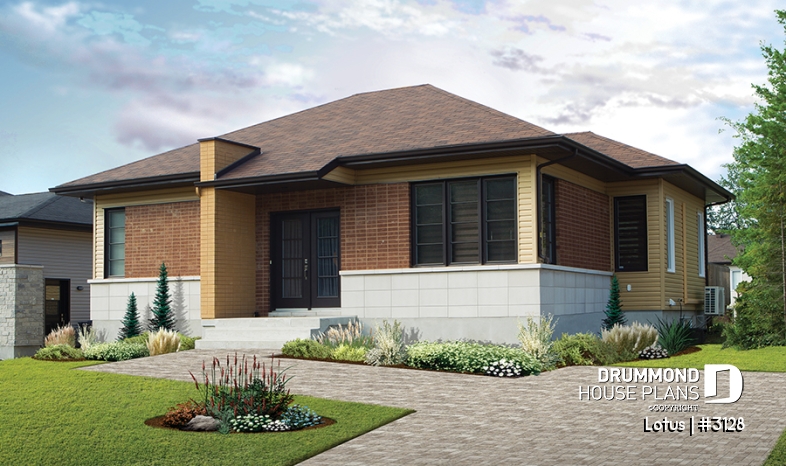

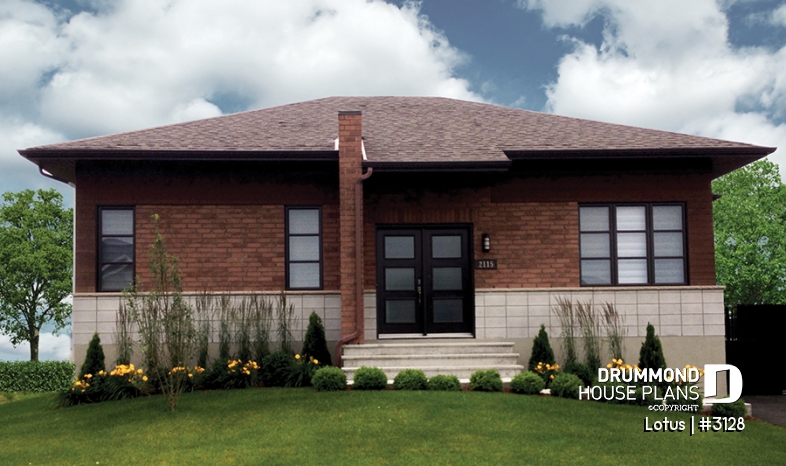

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

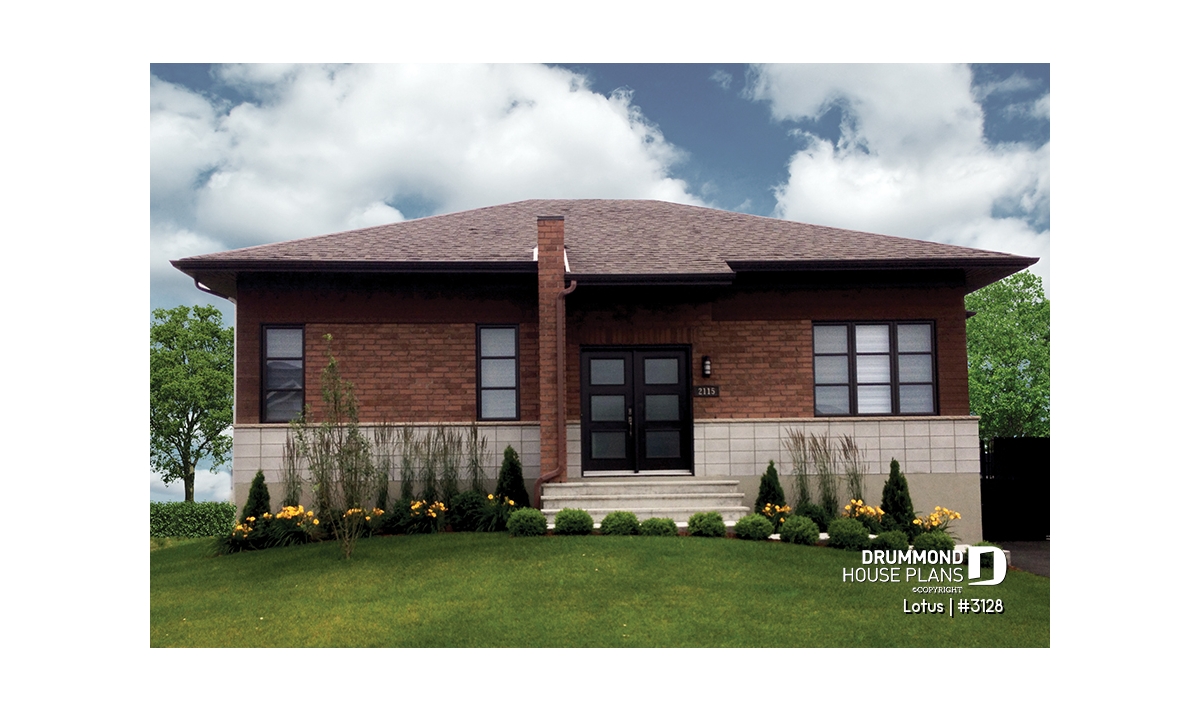

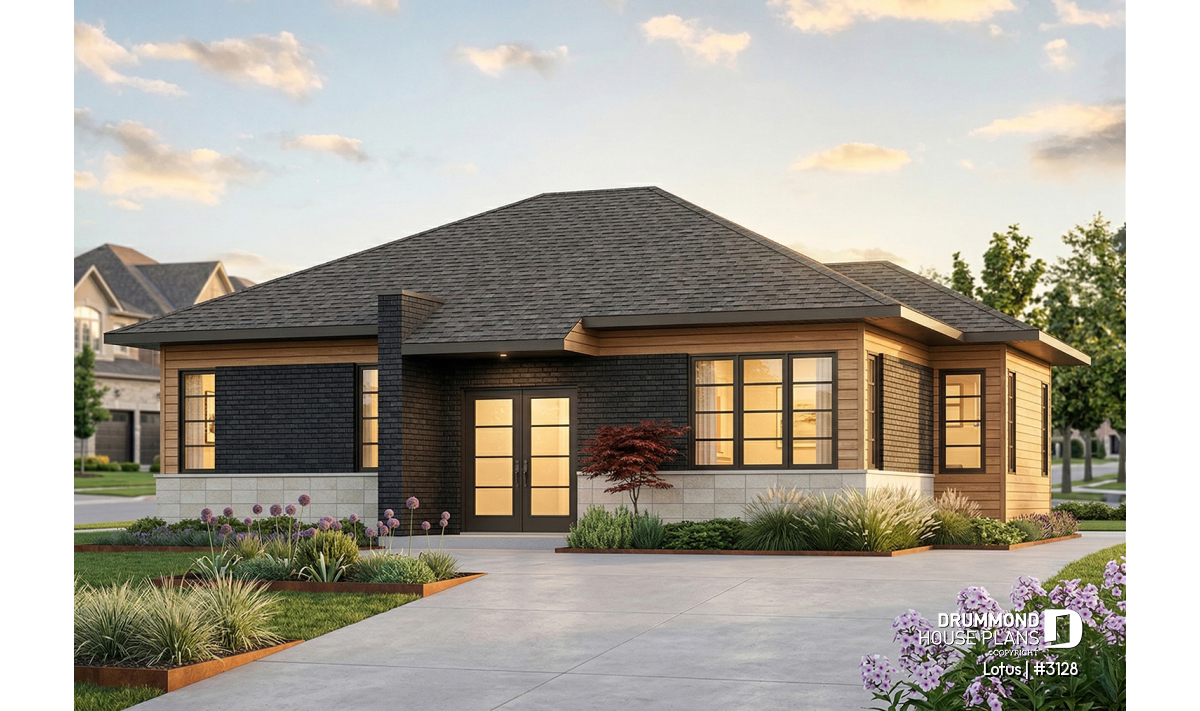

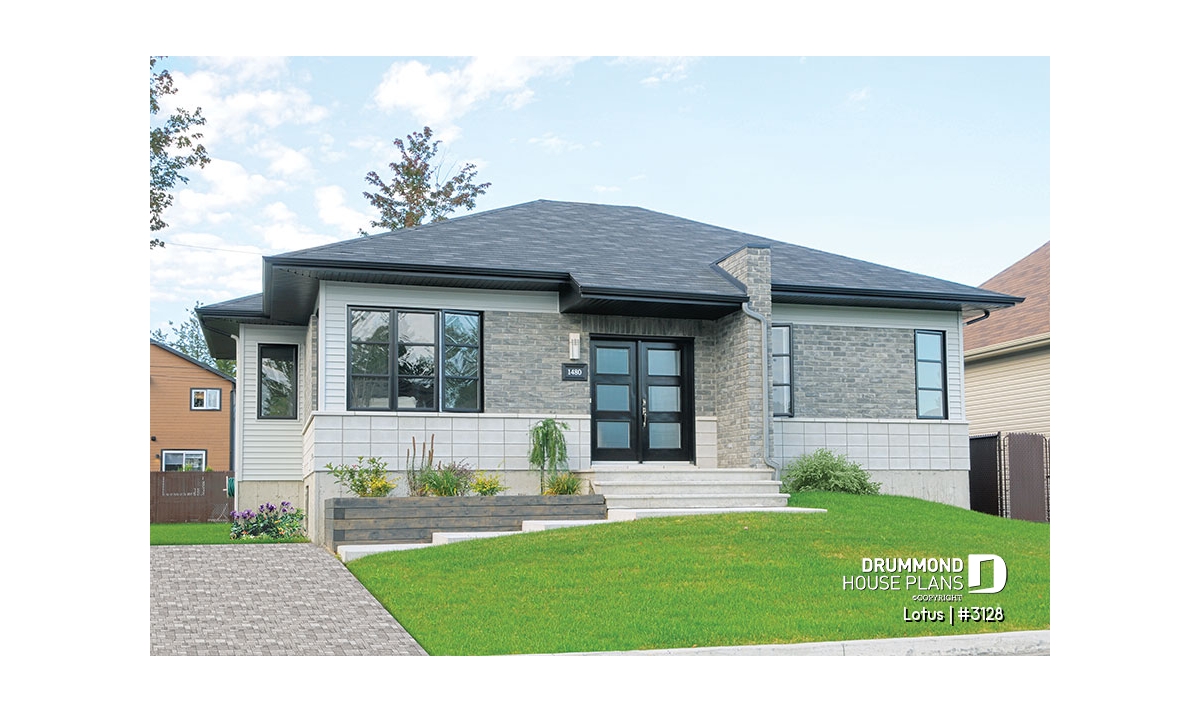

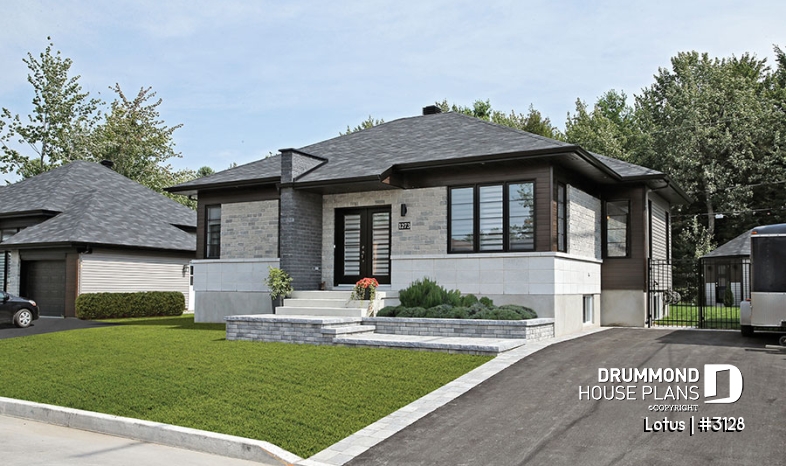

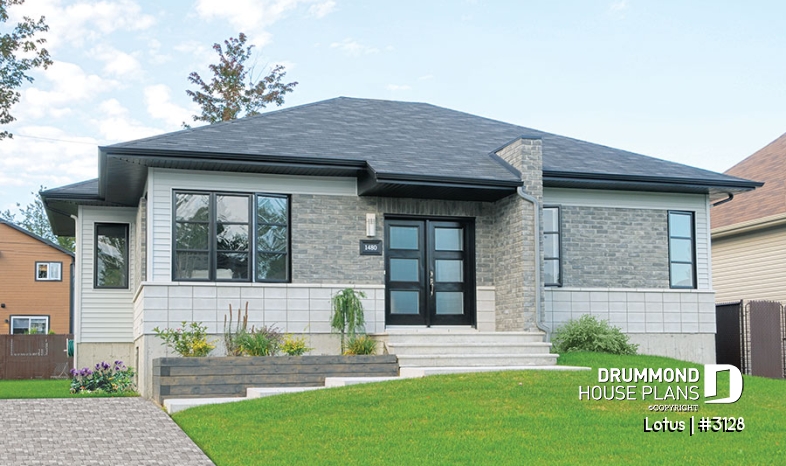

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

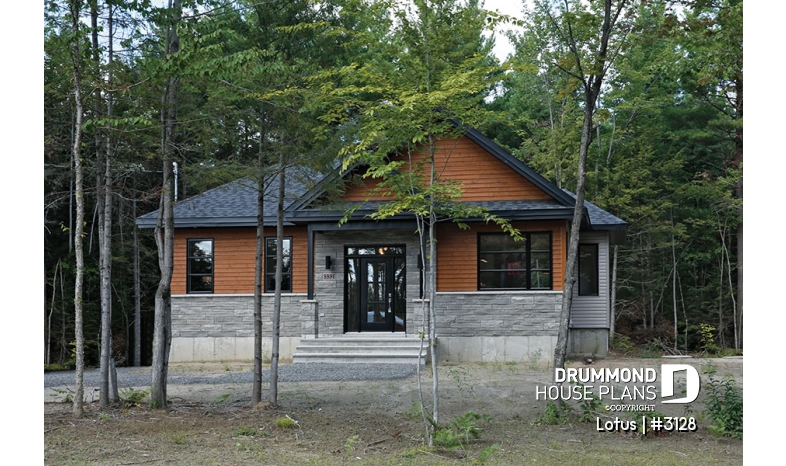

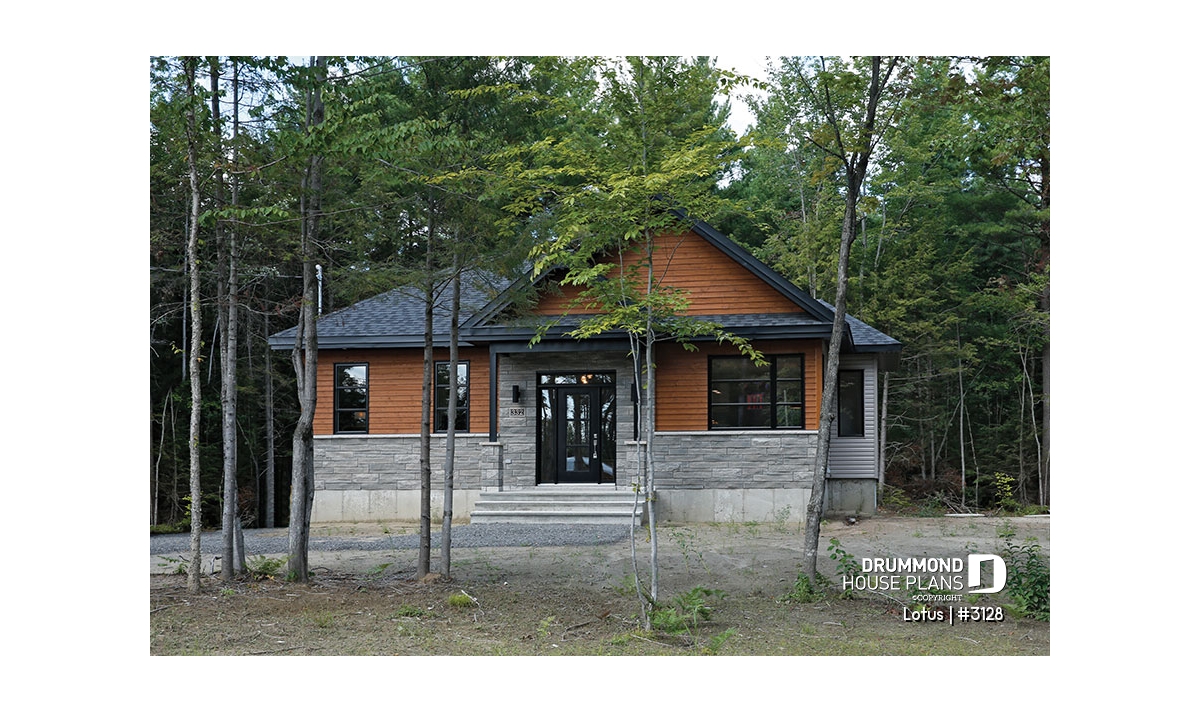

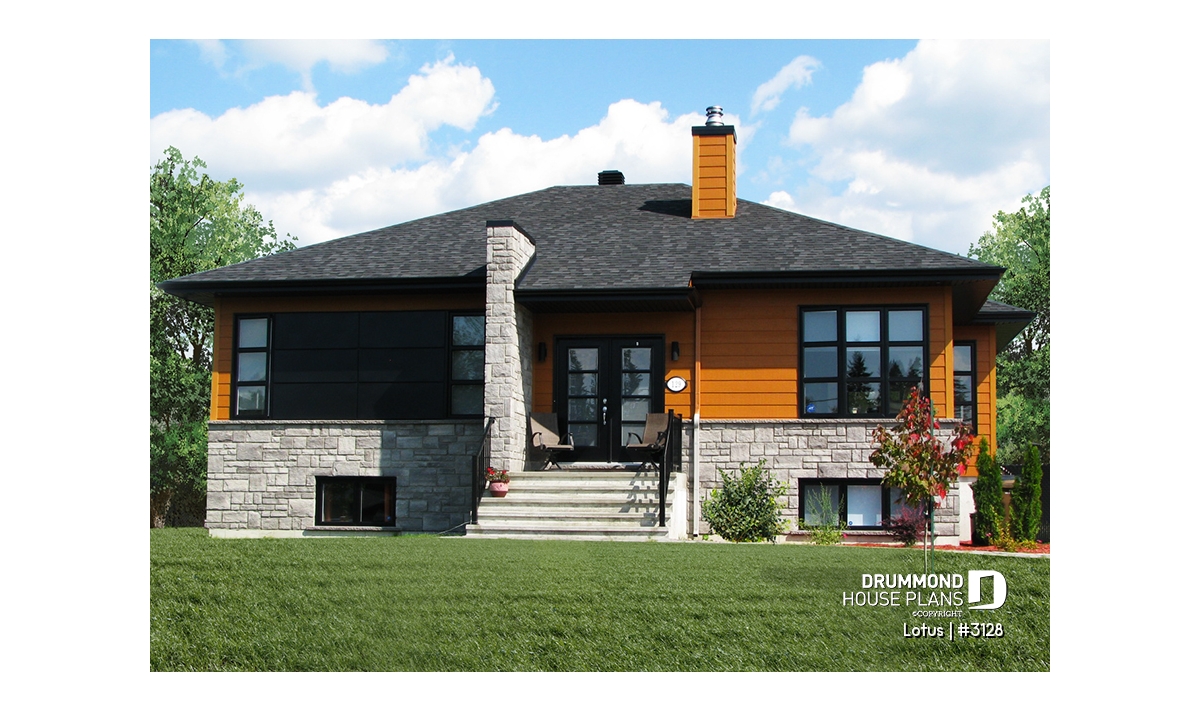

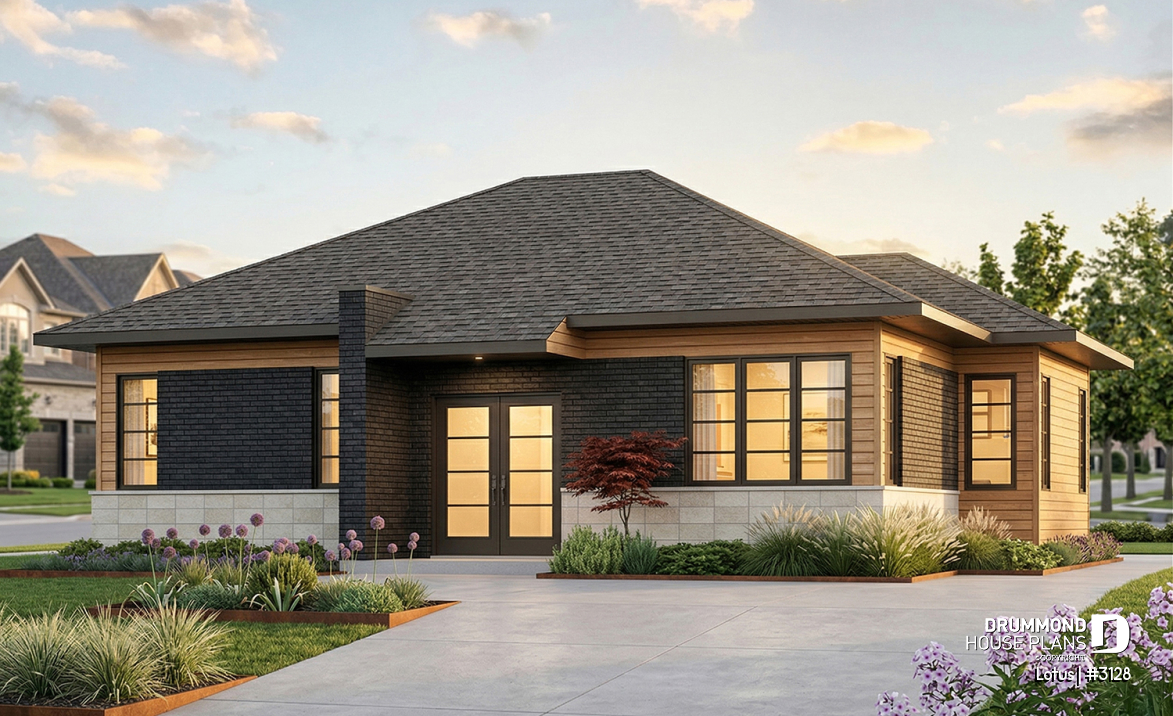

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

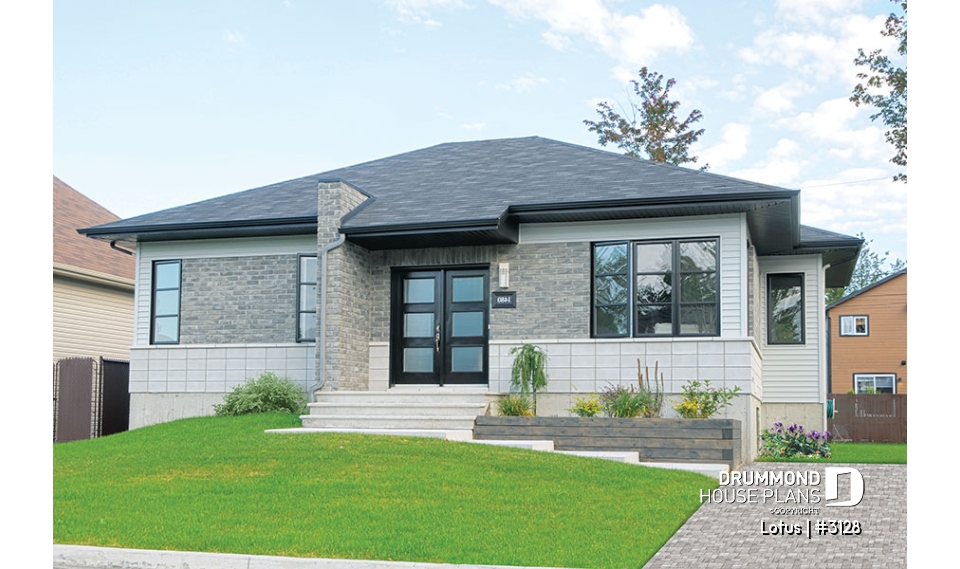

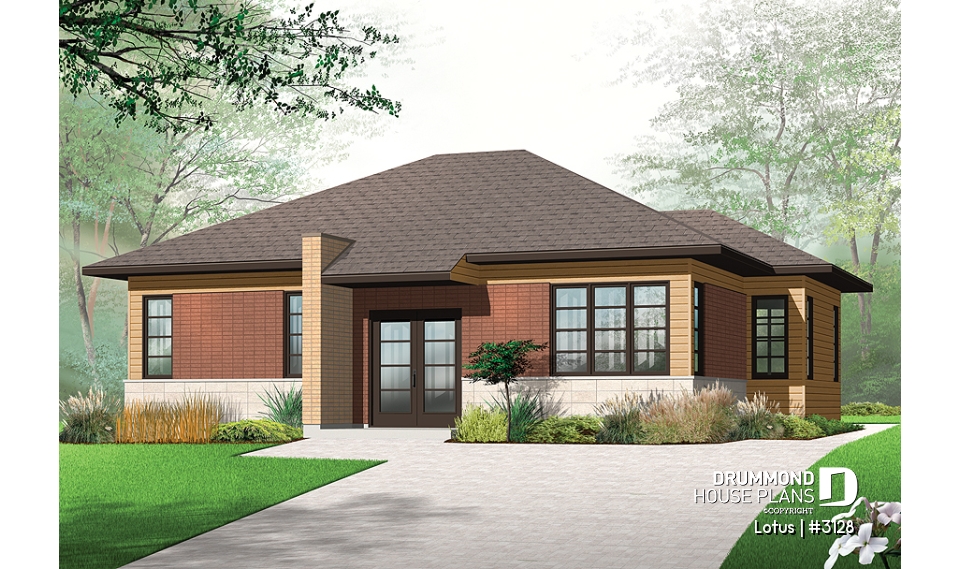

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

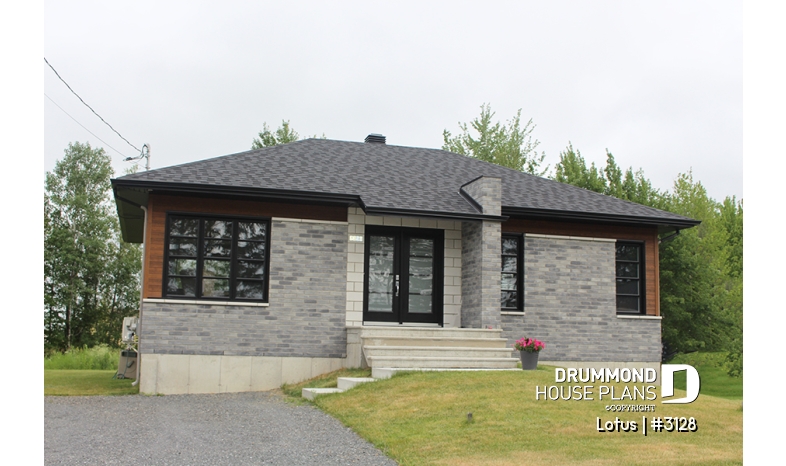

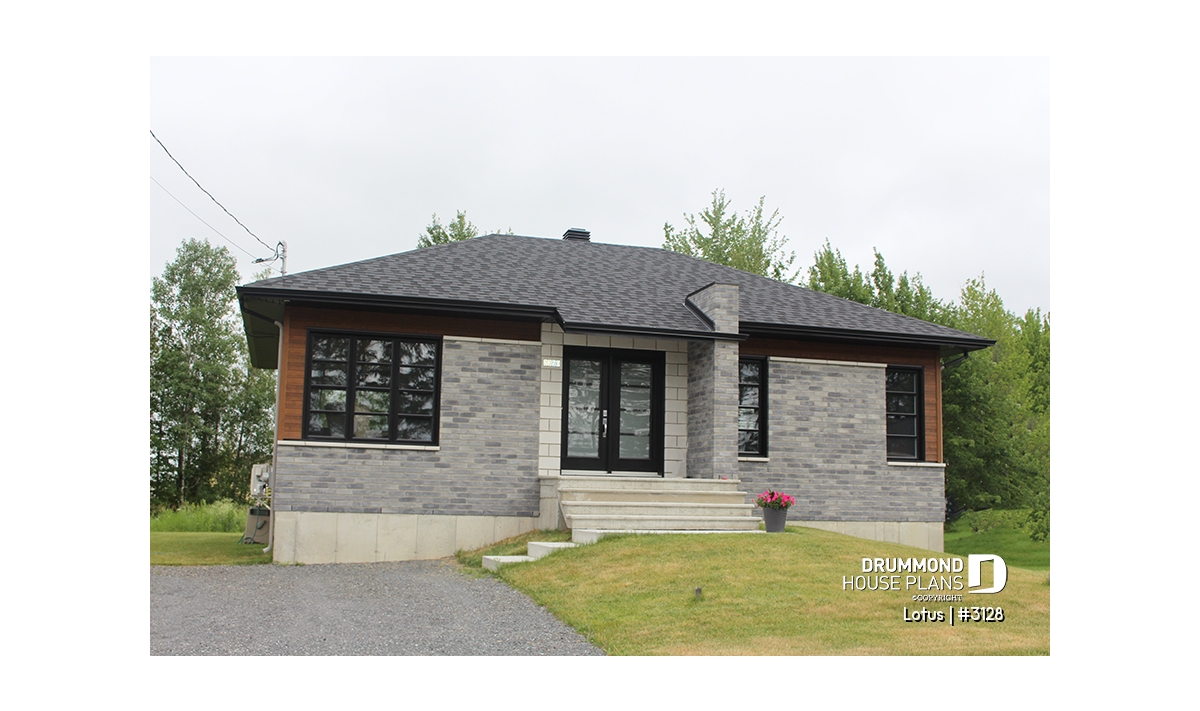

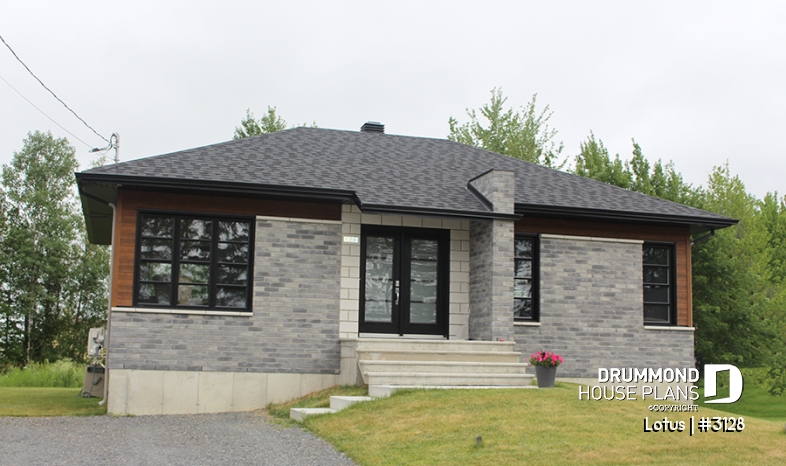

Right reading reverse
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Modern Single-Story House Plan with Flexible Basement – Lotus (#3128)
The Lotus house plan (#3128) is a thoughtfully designed single-story home featuring a contemporary architectural approach defined by clean lines, balanced proportions and efficient use of space. With 1,146 square feet on the main floor and an additional 1,146 square feet of unfinished basement, this residential design offers both immediate comfort and long-term adaptability.
Upon entry, the home welcomes you with a split-entry layout that clearly defines the transition into the living space. A generously sized coat closet near the entrance provides practical storage and keeps the main areas organized. From there, the layout opens into a bright, open-concept living area where the kitchen, dining space and living room flow seamlessly together. Large windows throughout this zone allow natural light to fill the interior, creating an inviting and airy atmosphere.

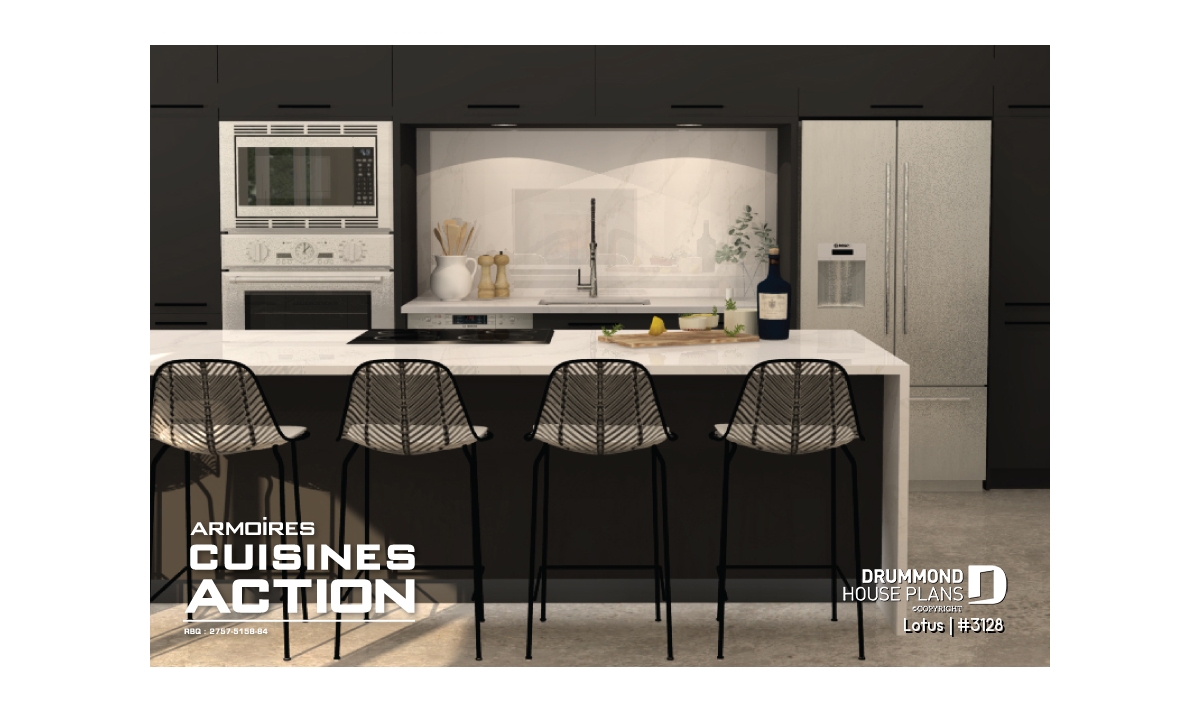

The kitchen is designed for everyday functionality, featuring a spacious central island that comfortably seats up to four people. This island serves as a natural gathering point while maintaining excellent circulation. Adjacent to the kitchen, the dining area offers ample room for a table seating six, making it well suited for both daily meals and casual entertaining.
The Lotus (#3128) includes two bedrooms of comfortable size, each offering generous closet space. The primary bedroom stands out with two separate closets, providing added storage and convenience. A full bathroom on the main floor is equipped with a 5' x 3' standalone shower, along with a dedicated laundry area, an appreciated feature for efficient daily routines.
The unfinished basement, matching the main level at 1,146 square feet, significantly enhances the home’s versatility. This lower level offers the opportunity to add future living areas such as additional bedrooms, a family room, storage spaces or other functional zones, depending on evolving needs.
With its contemporary design, bright open layout and substantial expansion potential, the Lotus house plan (#3128) delivers a smart, well-balanced residential solution. It is ideal for homeowners seeking a modern single-story home that combines comfort, efficiency and flexibility for the future.
Distinctive elements
Contemporary single-story house plan with clean, streamlined architectural lines.
Split-entry layout with a generously sized coat closet at the entrance.
Open and bright living area with abundant windows throughout the main living spaces.
Functional kitchen featuring a large central island with seating for up to four people.
Dining area designed to comfortably accommodate a table for six.
Two well-sized bedrooms with ample closet space, including two closets in the primary bedroom.
Full bathroom on the main floor with a 5' x 3' separate shower and a laundry area.
Unfinished basement offering flexible space for future needs.
Plan feature(s)
Panoramic view, Gound floor laundry room, Island, Separate bath and shower
Plan architectural style(s)
. Contemporary, . Modern / Design, . Mid-century
