House plan Promenade (90108)
Environmentally friendly house plan, 1 to 5 beds, home office, 2 family rooms, kids' secret room
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Porch | 16'0" x 4'4" | N/A |
| Foyer | 7'7" x 11'5" | ~ 9'0" |
| Storage room | 7'8" x 1'6" | N/A |
| Home office | 8'10" x 11'5" | ~ 9'0" |
| Bedroom | 12'1" x 12'0" | ~ 9'0" |
| Walk-in closet | 8'2" x 6'0" | ~ 9'0" |
| Covered porch | 10'0" x 10'0" | ~ 9'4" |
| Full bathroom | 8'6" x 11'5" | ~ 9'0" |
| Shower | 5'0" x 3'0" | N/A |
| Linen | 1'8" x 1'10" | N/A |
| Kitchen | 14'0" x 11'10" | ~ 9'0" |
| Kitchen island | 7'4" x 3'0" | N/A |
| Pantry | 5'0" x 4'0" | ~ 9'0" |
| Dining room | 16'1" x 8'4" | ~ 14'8" |
| Living room | 16'1" x 10'4" | ~ 14'8" |
| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Great room or Family room | 15'6" x 10'0" | ~ 8'0" |
| Mechanical room | 10'3" x 11'5" | ~ 8'0" |
| Bedroom | 11'6" x 9'8" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
| Bedroom | 11'5" x 11'5" | ~ 8'0" |
| Closet | 9'0" x 2'0" | ~ 8'0" |
| Full bathroom | 8'6" x 11'5" | ~ 8'0" |
| Laundry room | 8'0" x 5'10" | ~ 8'0" |
| Linen | 2'0" x 1'10" | N/A |
| Linen | 5'10" x 1'2" | N/A |
| Storage | 6'0" x 5'3" | ~ 8'0" |
| Storage | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 2502 sq.ft. |
| 1st level | 1251 sq.ft. |
| Basement | 1251 sq.ft. |
| Width | 42'0" |
| Depth | 32'8" |
| Ridge height from top of foundation | 18'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Other available foundations (a fee may apply) | Full Basement, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
In synergism with nature
House plan PROMENADE (#90108) was designed for land facing EAST. The concept of this house is to always have a connection with nature. No matter which direction you take, you will always be facing a window.

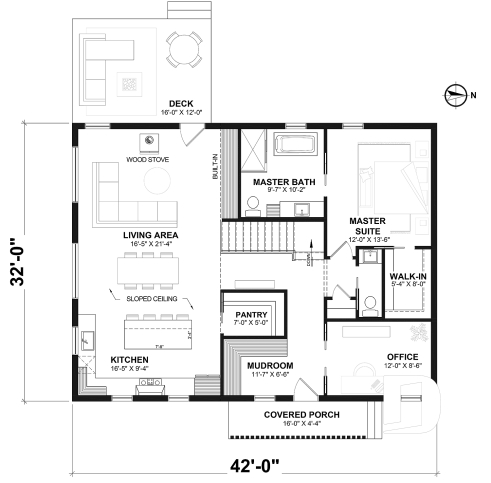

Upon entering the house, there is an open vestibule as well as access to the office. If you work from home and need to receive clients, this setup is perfect for you! This room can also easily be transformed into a bedroom. On the ground floor, there is also the master bedroom with its large "walk-in" closet, a full bathroom, a large kitchen and a dining room. In addition, there is also a living room that communicates with a covered terrace to extend the evenings outside.

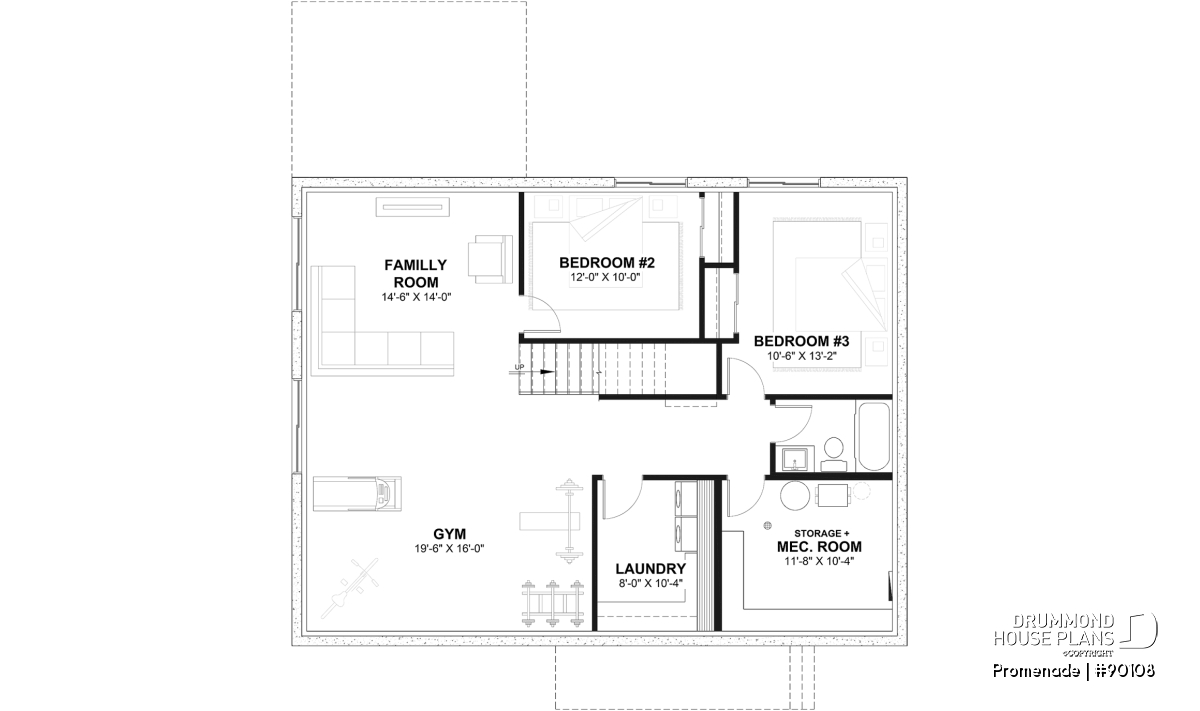

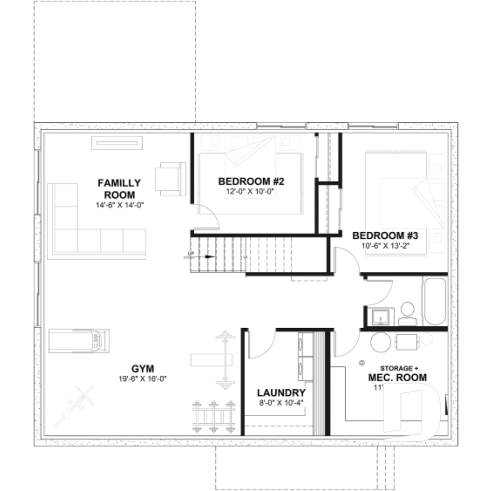

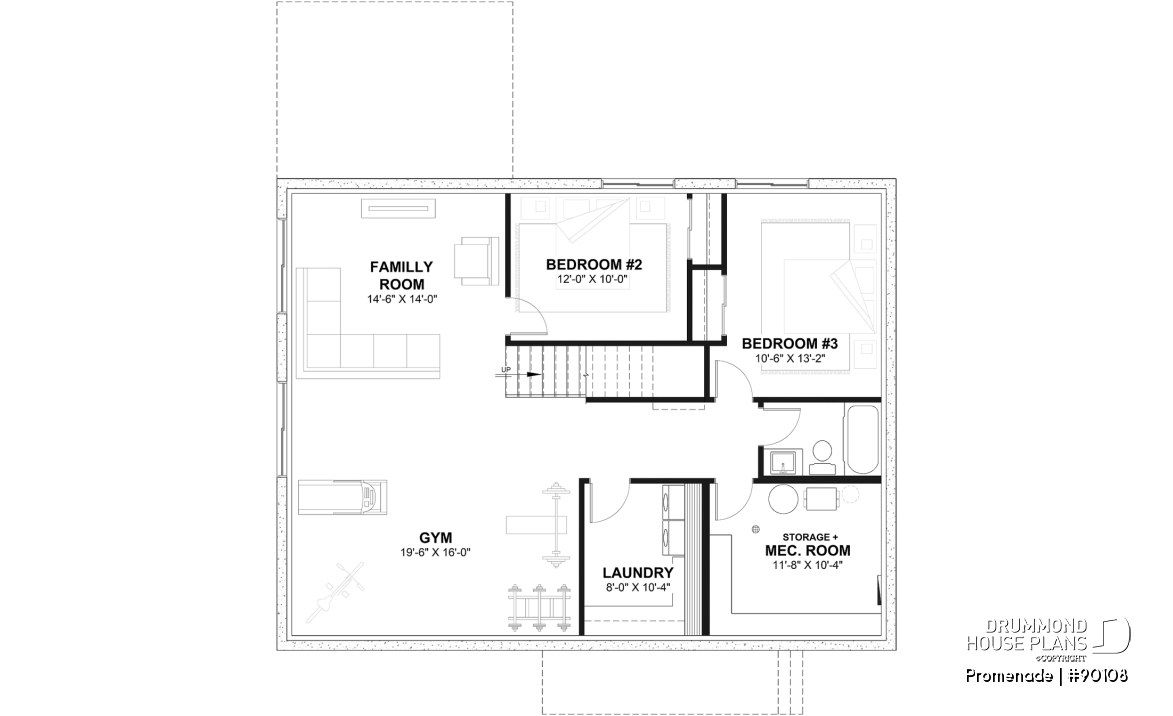

In the basement, there are two bedrooms which communicate with each other through a secret room. Yes, yes, a secret room! Who wouldn't have dreamed of having this in their home as a kid? We also find on this floor a bathroom, a laundry room, a family room, a mechanical room and lots of storage.
Promenade is perfect for nature lovers who feel a constant need to relate to it.
Ecological house plan
There are many elements that can be added to a home to make it eco-friendly. For all the plans in our ecological collection, we identify the intended orientation of the house on the ground (see the logo in the image). In addition, all the plans in this collection include a wall section specific to this type of construction. Therefore, to ensure superior insulation, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. This is a 100% recycled material that perfectly hugs each of the cavities in the wall for optimal insulation. You have questions? Please contact our customer service.
Distinctive elements
Modern ecological house plan.
Depending on the layout of the office and the basement, you could integrate up to 5 bedrooms.
Front entrance located near the office.
Office that can be used as a nursery or bedroom # 2 as well.
Parents bedroom with walk-in closet.
Open concept family area with central wood fireplace.
Slope ceiling in the living room.
Sheltered rear porch accessible from the living room.
Large pantry in the kitchen which has plenty of counter space.
Proposed basement: 2 bedrooms and family room (or bedroom # 5), full bathroom and laundry room with laundry chute.
A small secret room is accessible by the 2 children's bedrooms.
---
To ensure superior insulation for each of our ecological homes, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. It is a 100% recycled material that perfectly hugs each of the wall cavities for optimal insulation.
*For more information or to buy a traditional construction version, please contact our customer service.
Plan feature(s)
Sloped ceiling, Office / Study / Den, Double sinks, Pantry, Shelves, Walk-in master bed., Deck, Laundry chute, Fireplace
Plan architectural style(s)
. Contemporary, . Mid-century, . Modern / Design
