PUR 4 (90101-V3)
Ecological 3 bedroom house plans with garage and a greenhouse pour your veggies!

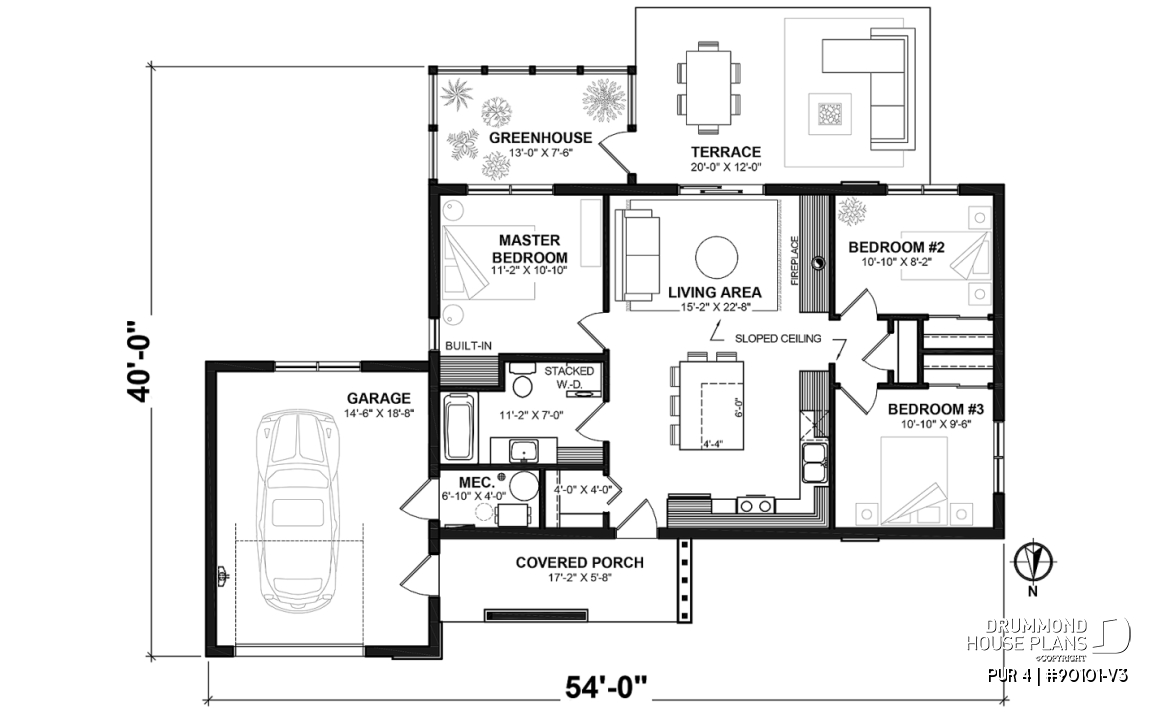

View the size of the rooms and height of the ceilings

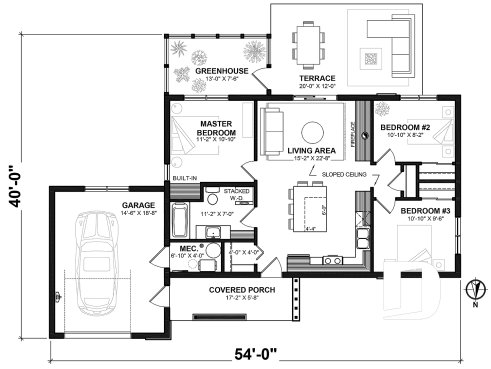

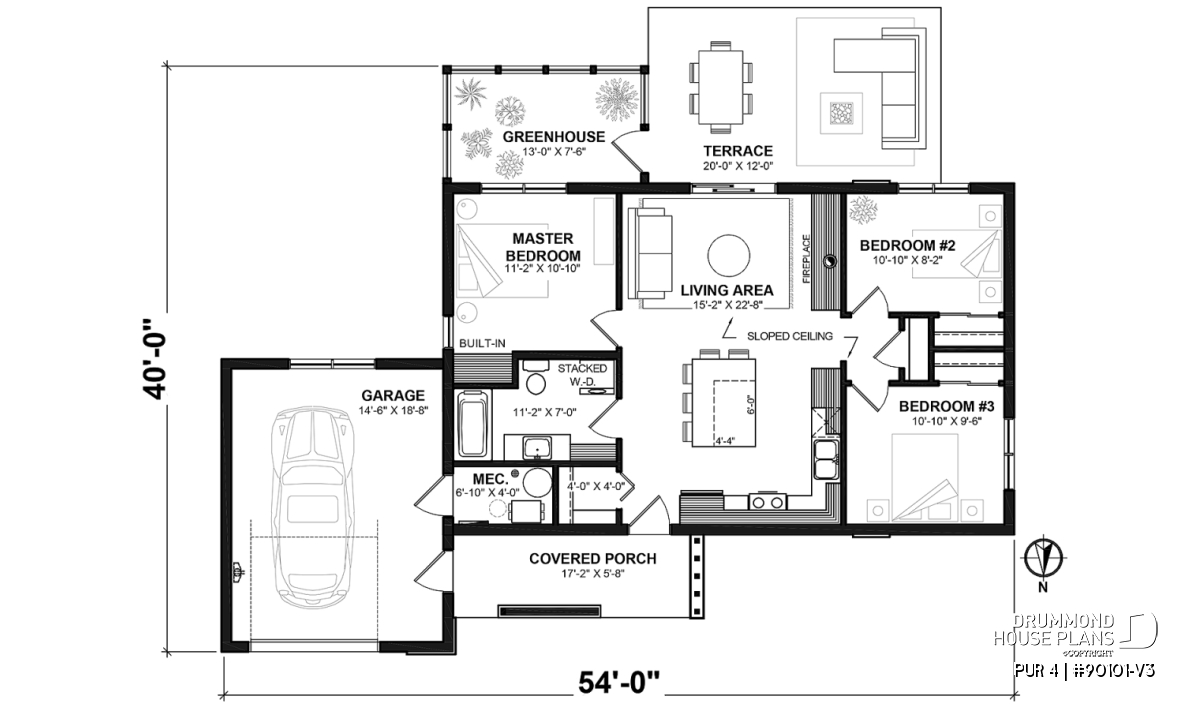

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'0" x 10'9" | ~ 12'6" |
| Bedroom | 10'2" x 9'4" | ~ 7'0" |
| Bedroom | 10'2" x 8'0" | ~ 10'6" |
| Kitchen/dining room | 10'11" x 11'0" | ~ 8'0" |
| Foyer | 4'1" x 5'6" | ~ 8'0" |
| Closet | 3'10" x 3'0" | ~ 8'0" |
| Interior garden | 13'0" x 7'6" | ~ 12'6" |
| Porch | 16'0" x 5'8" | N/A |
| Mechanical room | 7'9" x 3'11" | ~ 8'0" |
| Bathroom | 11'0" x 7'1" | ~ 10'0" |
| Linen | 3'0" x 1'4" | N/A |
| Living room | 15'0" x 8'5" | ~ 12'6" |
| Covered deck | 20'0" x 16'0" | N/A |
| Garage | 14'5" x 18'5" | ~ 9'8" |
General specifications
| Total living area | 1048 sq.ft. |
| 1st level | 1048 sq.ft. |
| Width | 54'2" |
| Depth | 40'0" |
| Ridge height from top of foundation | 15'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
House plan for a minimalist and evolving lifestyle
Created for an orientation to the north, the PUR 4 tiny home plan (# 90101-V3) has everything to meet your minimalist needs! The base of this house corresponds to the mini house PUR 3 (# 90101-V2) which contains a kitchen and dining room, a living room, 3 bedrooms, a bathroom, a mechanical room and even a mezzanine and a greenhouse. This cozy home is on a budget while including all the essentials of a home.

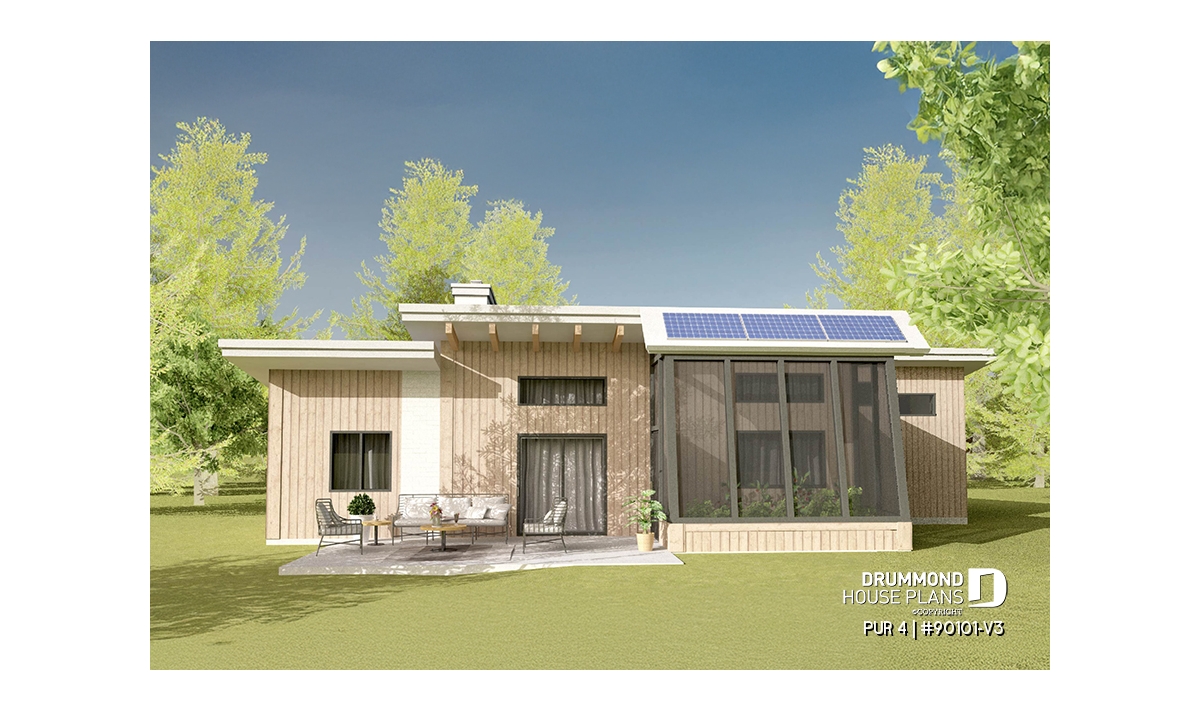

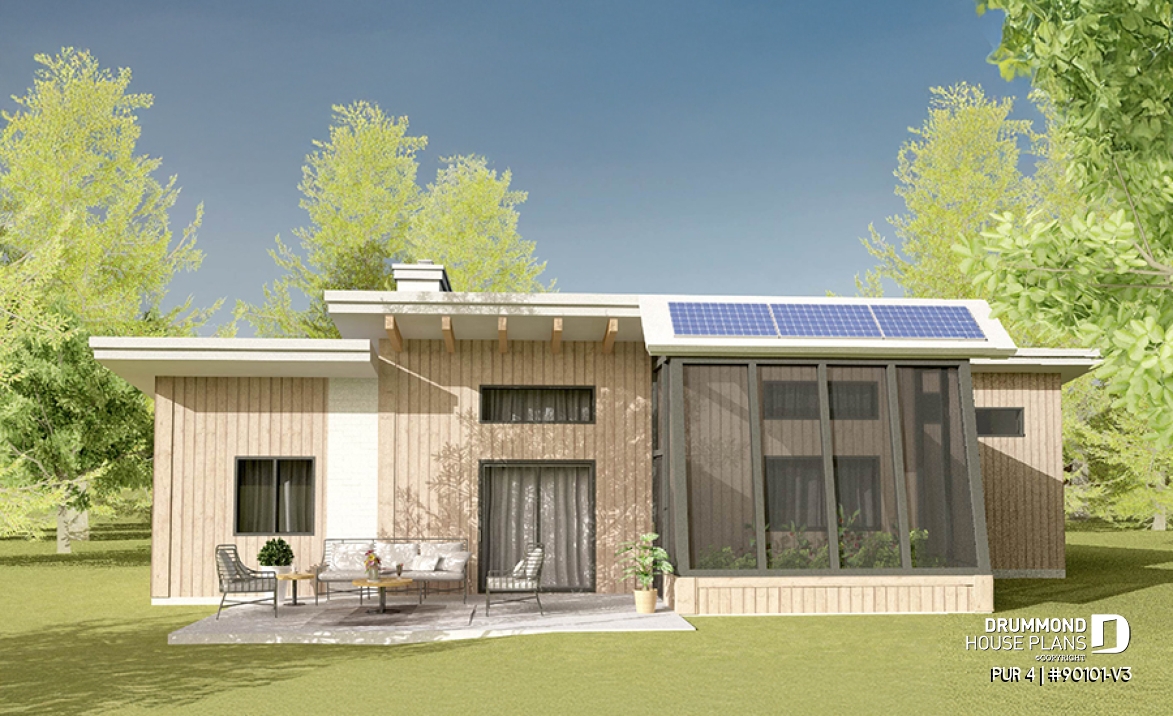

To this model we have added a garage as can be seen in the house. Your car can sleep warm or you can use this space to DIY small projects and maintain your greenhouse. At the same time as adding the garage, you can also add solar panels to the roof of the greenhouse to be more energy self-sufficient.
Obviously, you can add the different evolutions in any order you like and when you want. The evolving concept of the different versions of the PUR house is perfect to evolve according to your needs and your budget. This concept then allows you to build your dream home over time and avoid a lot of mistakes and compromises since everything is thought out in advance!
Ecological house plan
There are many elements that can be added to a home to make it eco-friendly. For all the plans in our ecological collection, we identify the intended orientation of the house on the ground (see the logo in the image). In addition, all the plans in this collection include a wall section specific to this type of construction. Therefore, to ensure superior insulation, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. This is a 100% recycled material that perfectly hugs each of the cavities in the wall for optimal insulation. You have questions? Please contact our customer service.
Distinctive elements
Plan with ecological thinking:
wall composition with better energy efficiency.
House that can adapt to narrow land.
Small three bedroom ecological and contemporary house plan with garage.
Master bedroom overlooking the sunroom.
Small reading nook above master bedroom, overlooking the fireplace.
Open floor plan concept with computer desk.
Full bathroom with stacked washer and dryer.
---
To ensure superior insulation for each of our ecological homes, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. It is a 100% recycled material that perfectly hugs each of the wall cavities for optimal insulation.
* For more information or to buy a traditional construction version, please contact our customer service.
Plan feature(s)
Planning desk, Fireplace, Sloped ceiling, Greenhouse, Mezzanine, Open floor layout, Built-ins
Plan architectural style(s)
. Modern / Design, . Cottage, chalet, cabin, . Mid-century, . Modern rustic, . Contemporary
