1904 (Great Escape)

Affordable small 2 bedroom cabin plan, wood stove, open concept, low budget construction

Bedrooms

1, 2

Bath(s)

1

Half B.

-

Living area

480 sq.ft.

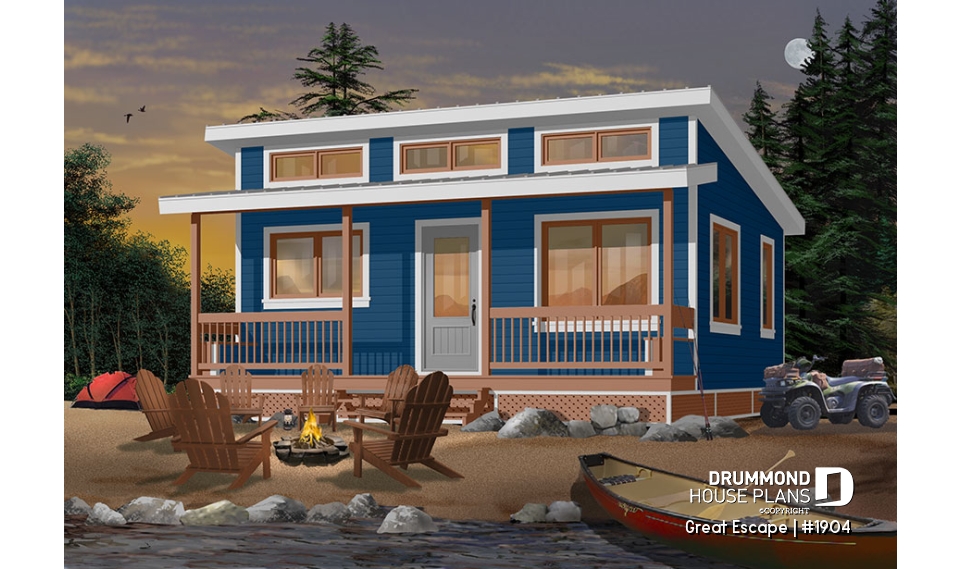

  • Color version 1 - Front - Affordable small 2 bedroom cabin plan, wood stove, open concept, low budget construction - Great Escape

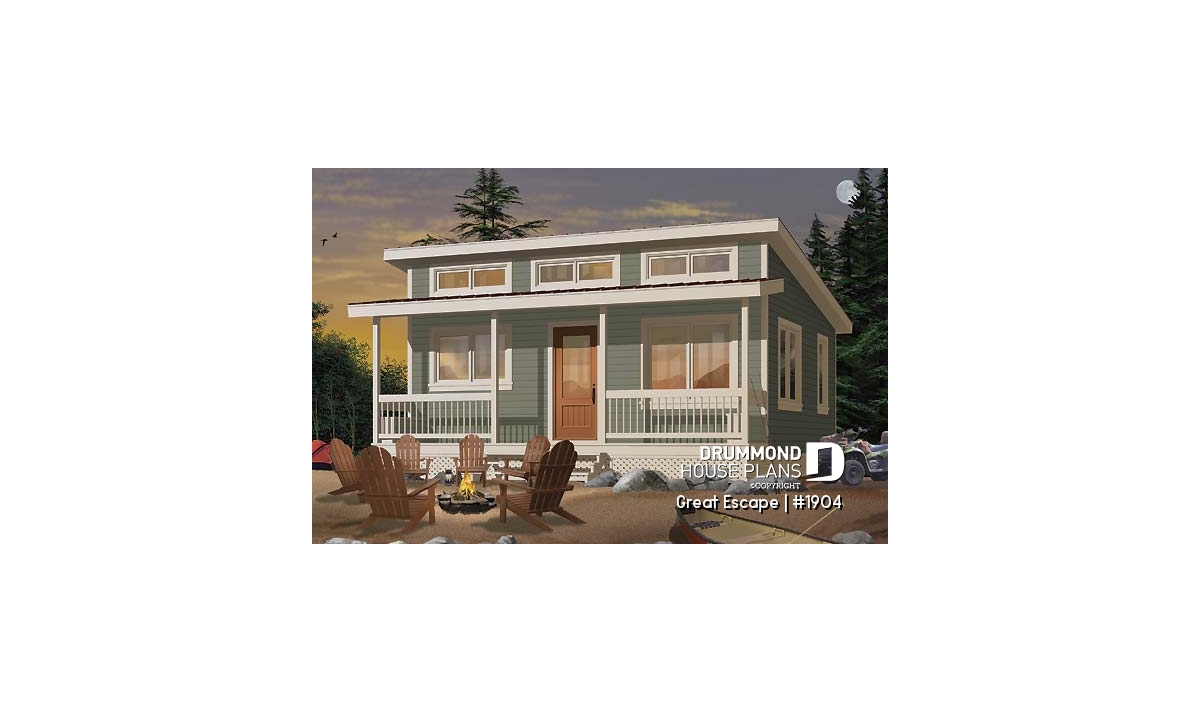

  • front - ORIGINAL MODEL - Great Escape

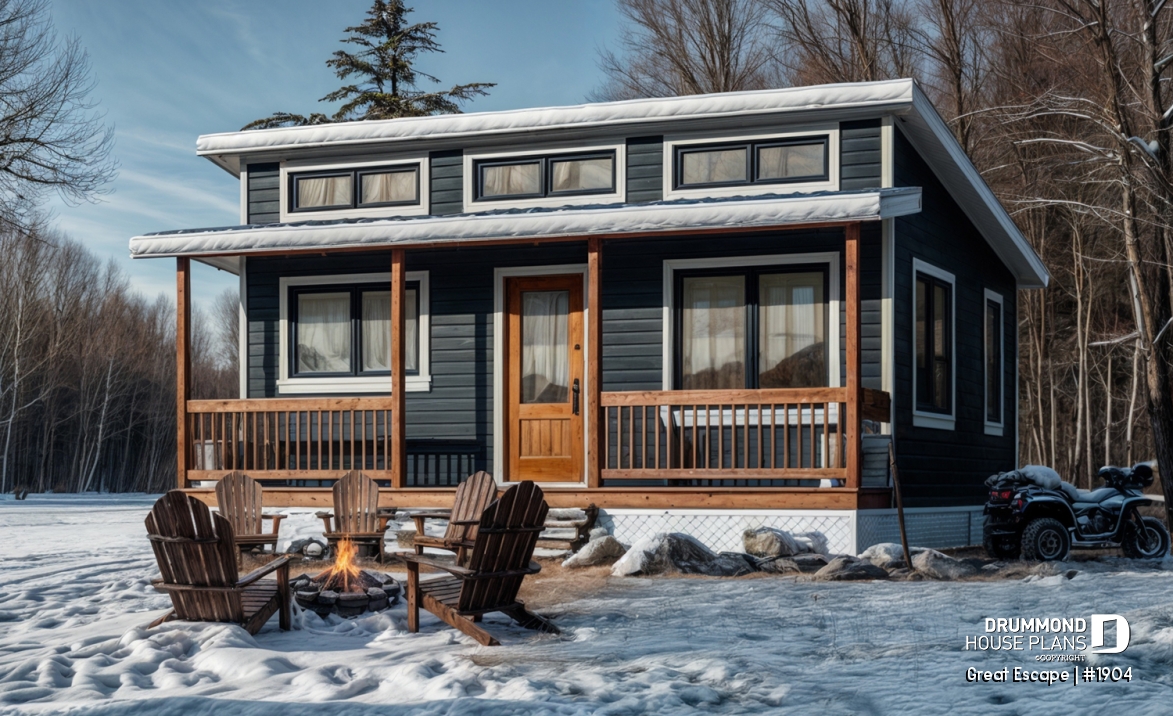

  • front - BASE MODEL - Great Escape

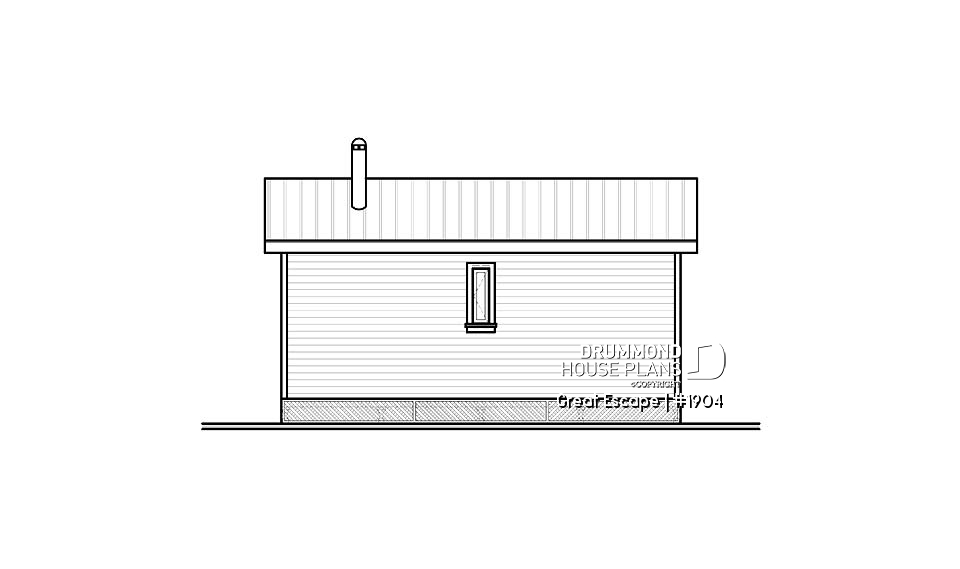

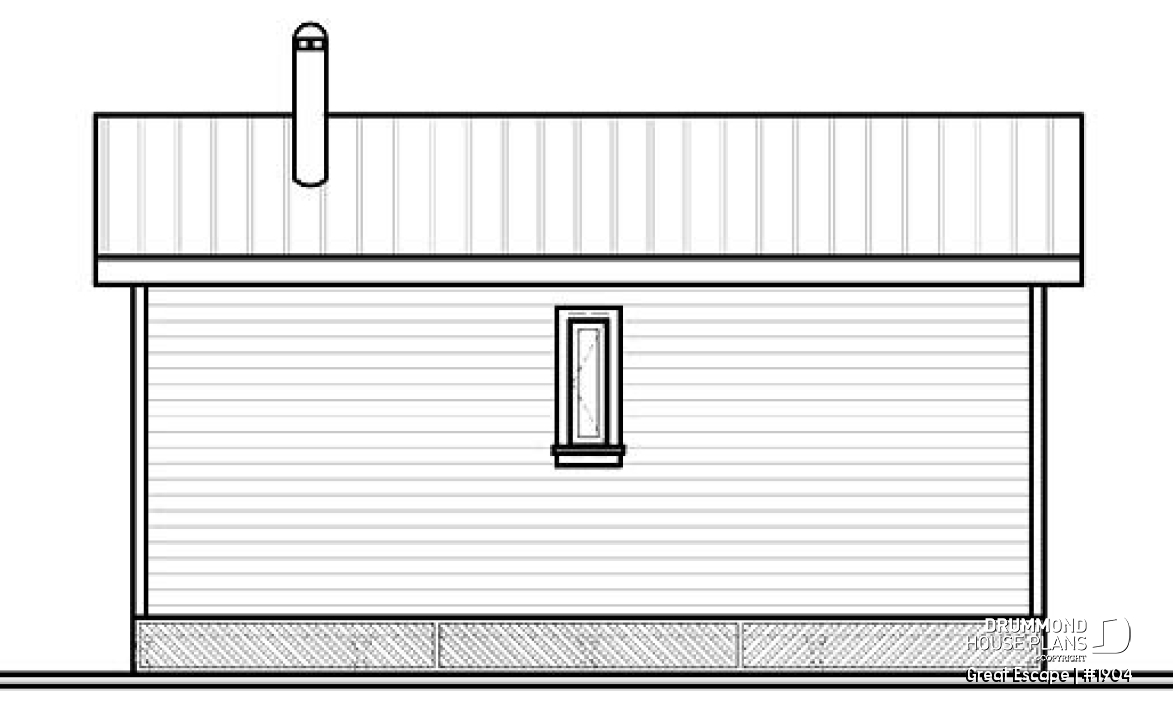

  • rear elevation - Great Escape

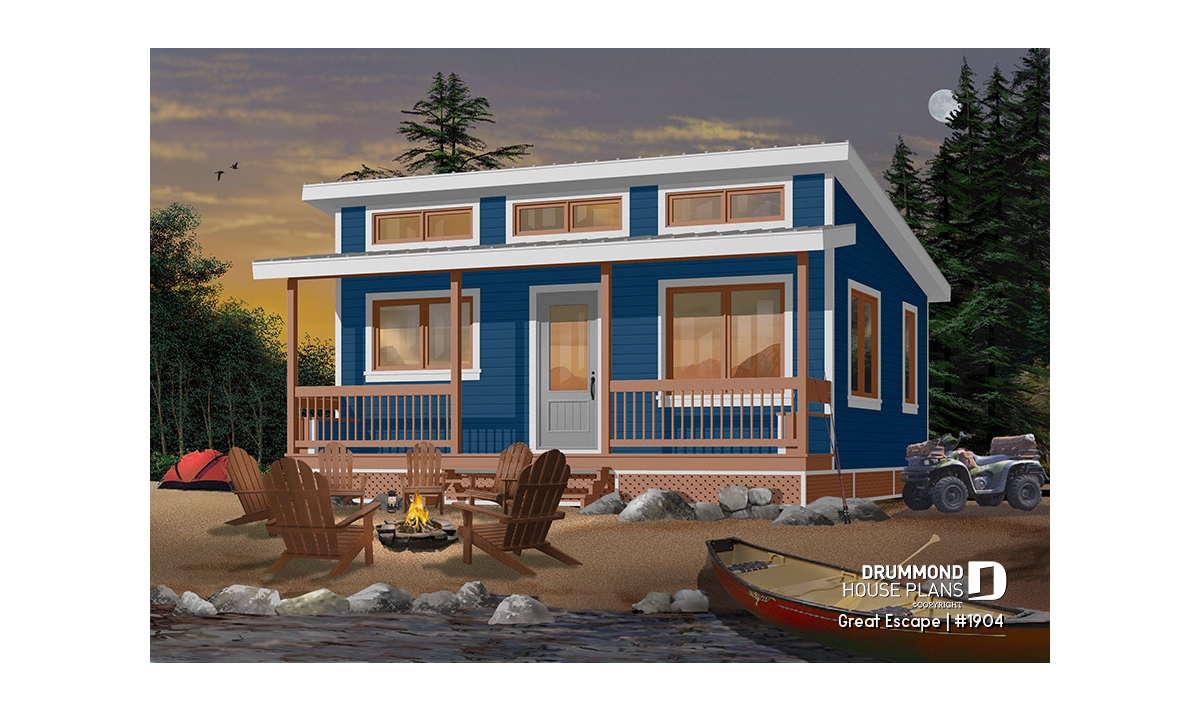

  • Color version 1 - Front - Great Escape
  • Color version 2 - Front - Great Escape
  • Color version 3 - Front - Great Escape

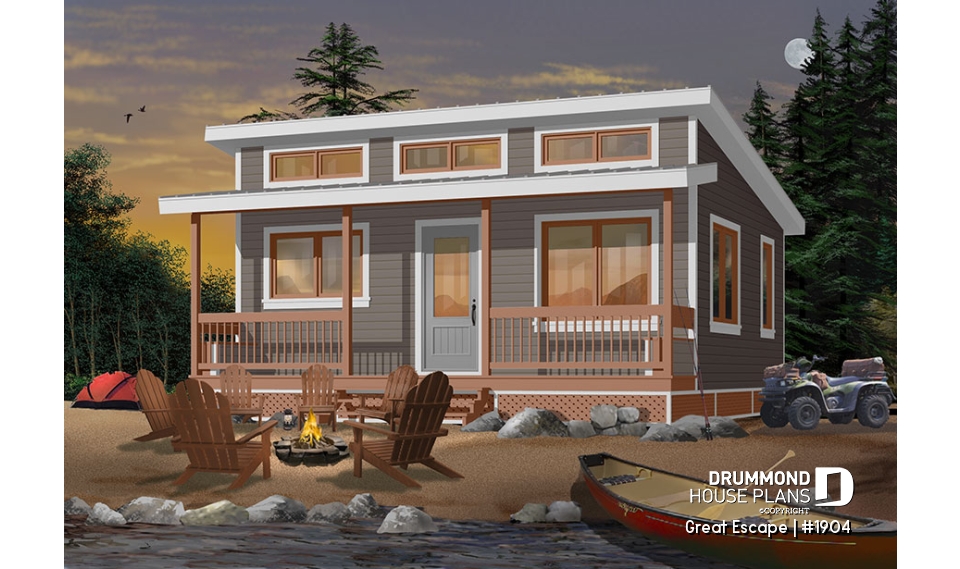

  • Color version 4 - Front - Great Escape
  • Color version 4 - Front - Great Escape

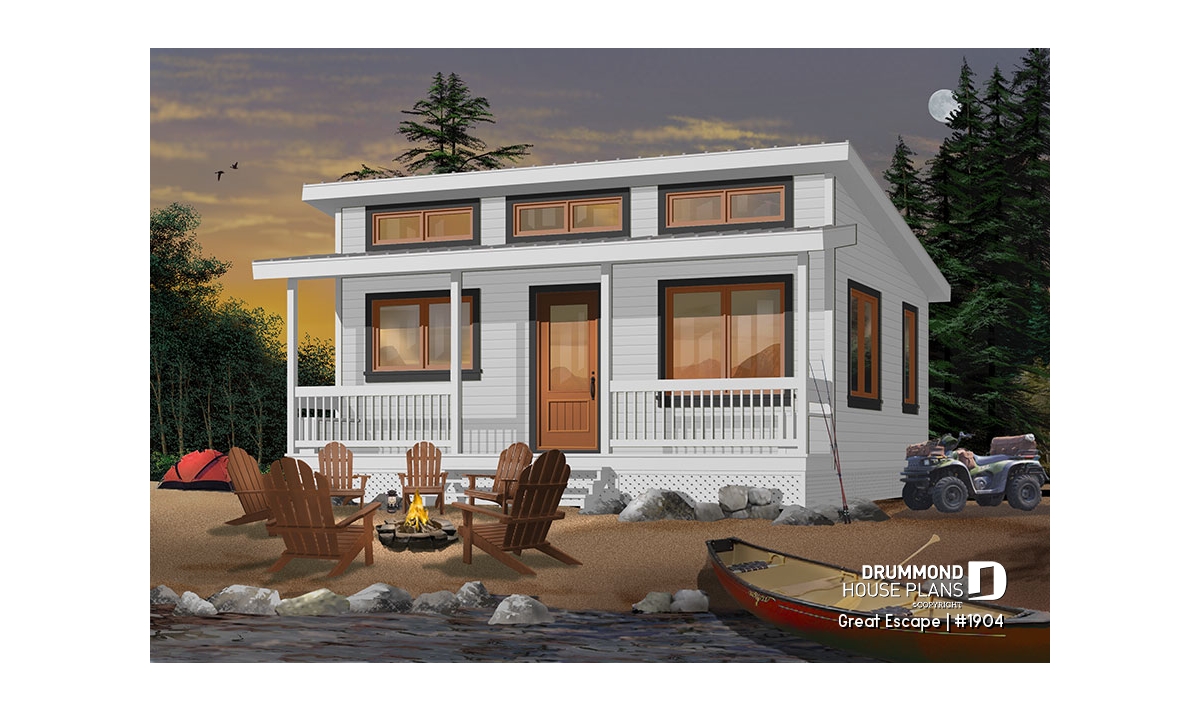

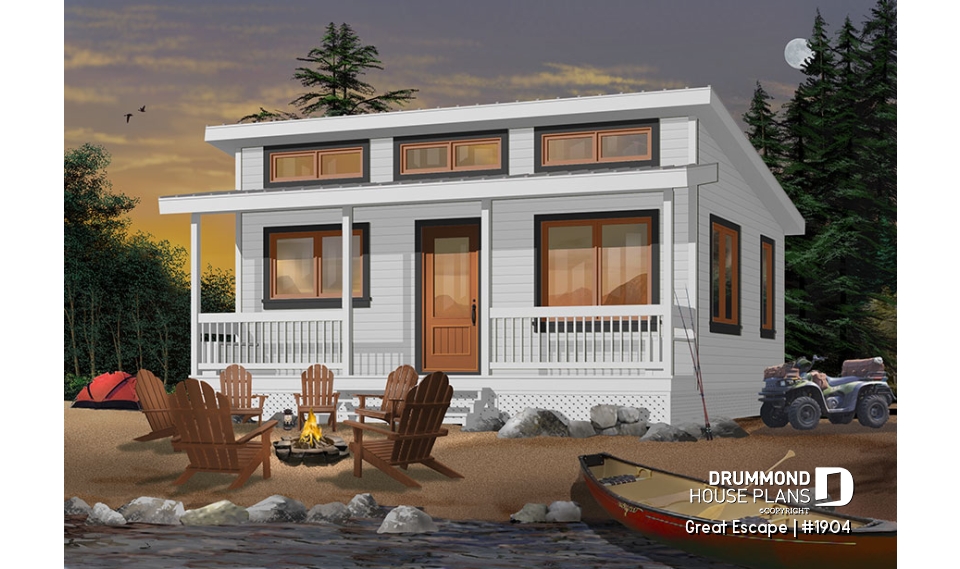

  • Color version 5 - Front - Great Escape
  • Color version 5 - Front - Great Escape

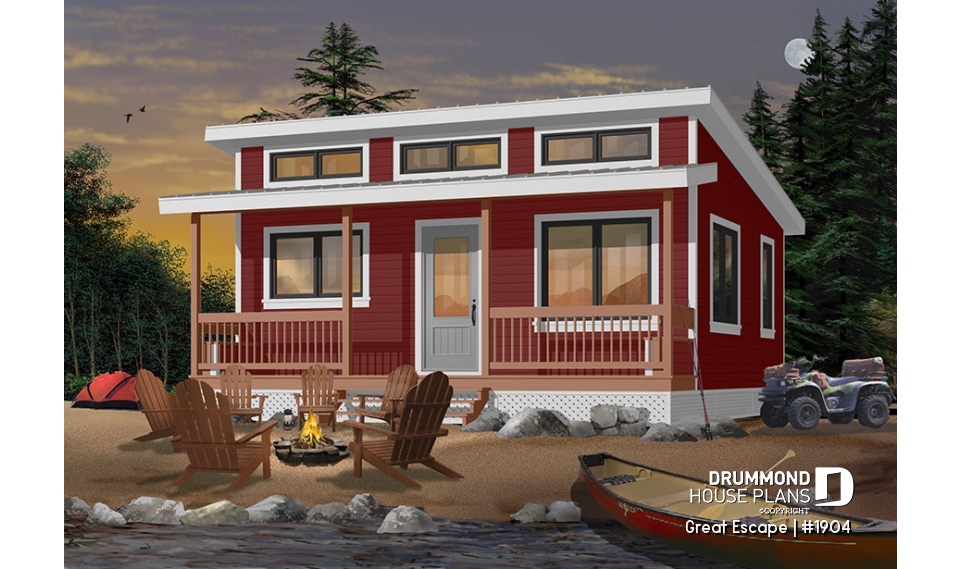

  • Color version 7 - Front - Great Escape

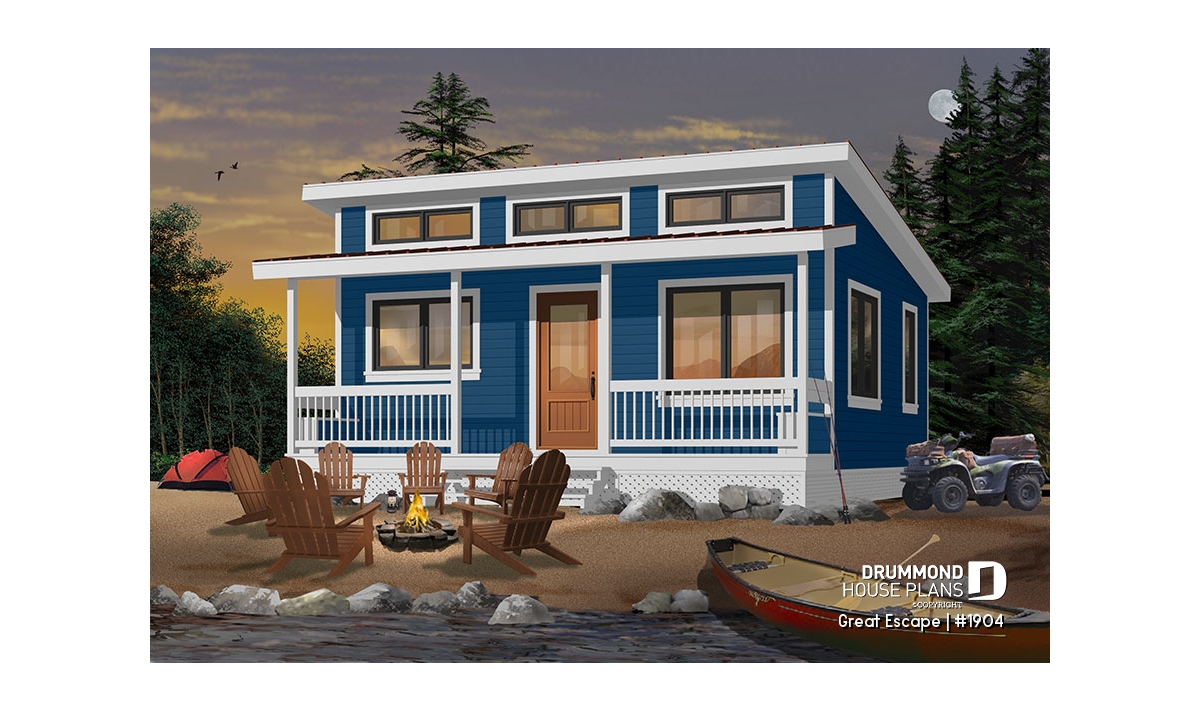

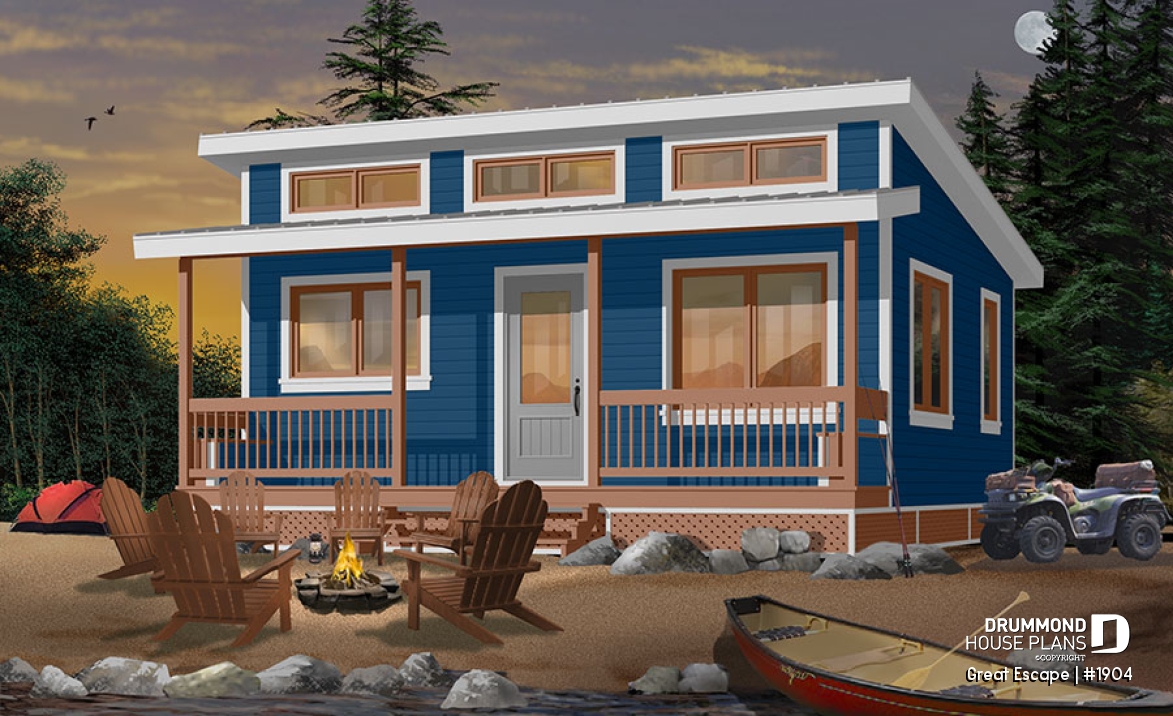

Color version 1 - Front

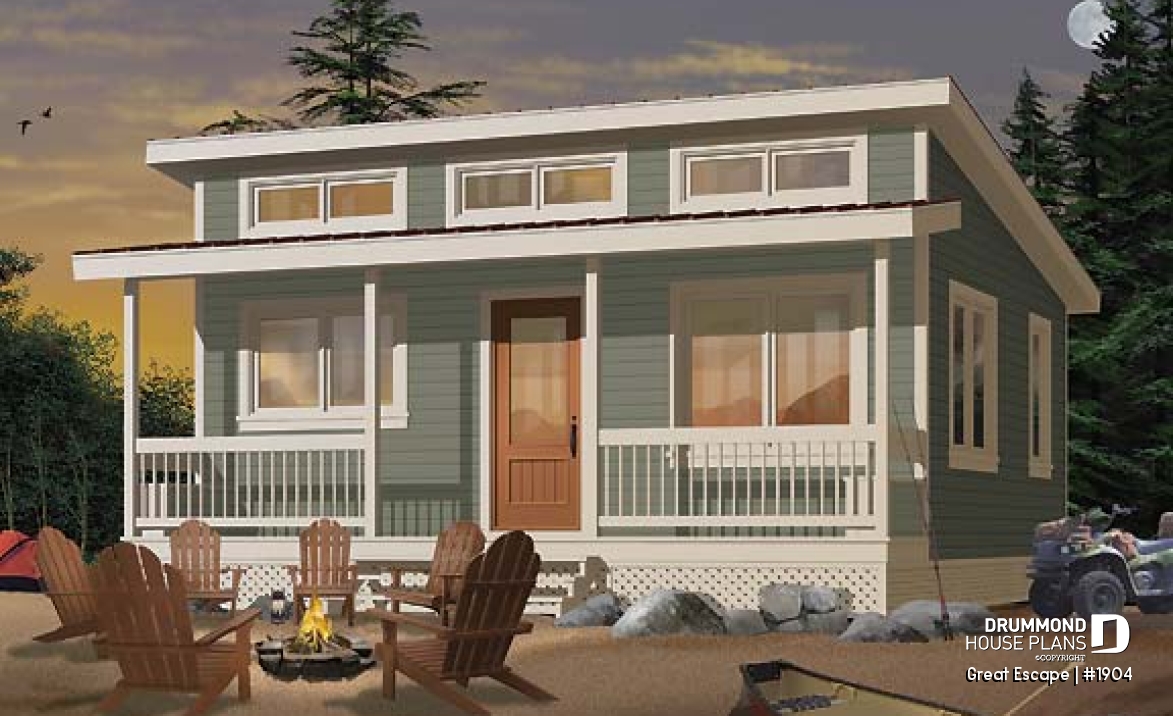

front - ORIGINAL MODEL

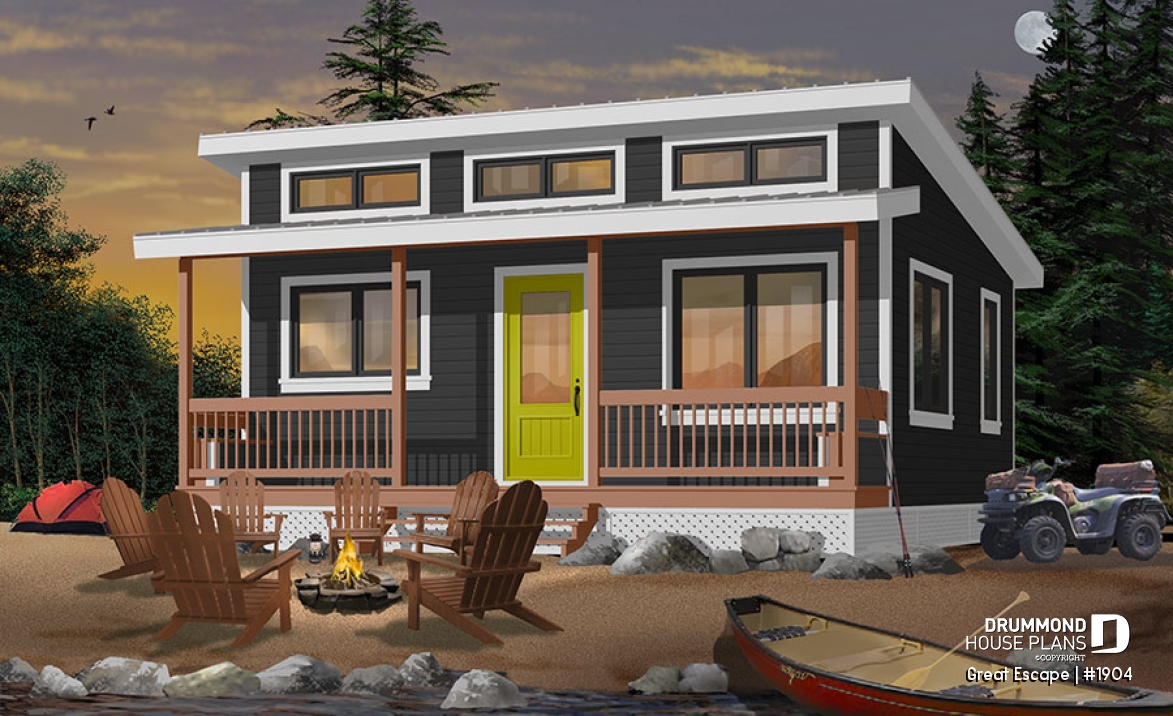

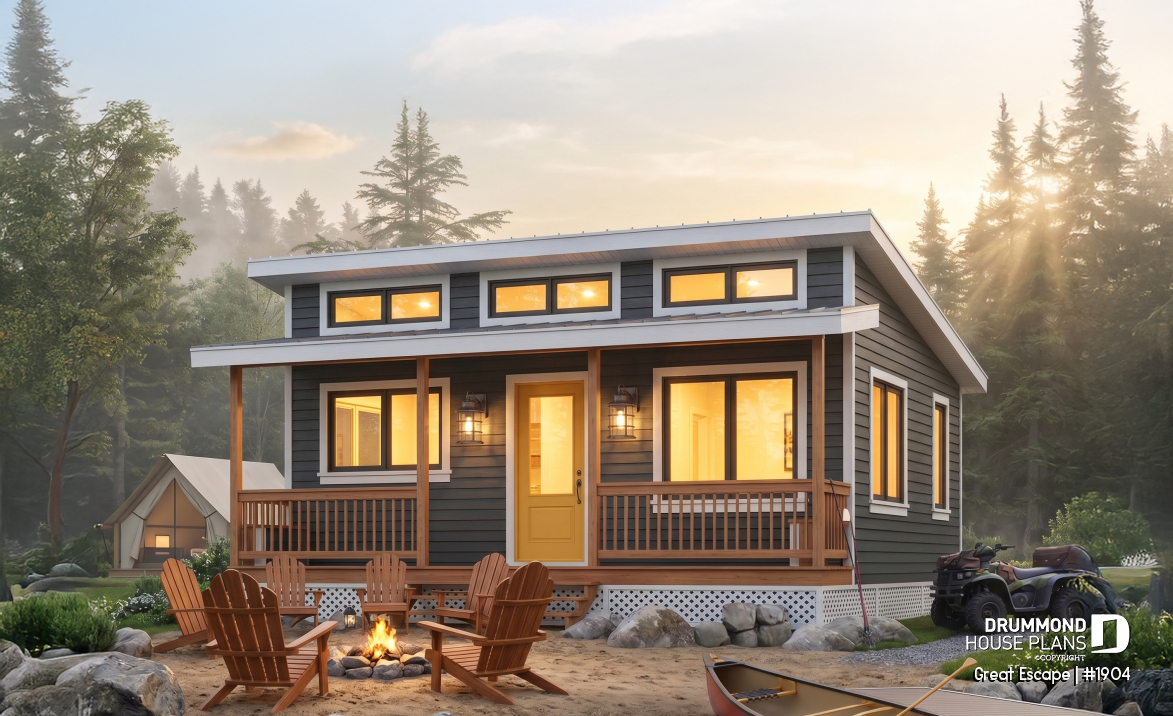

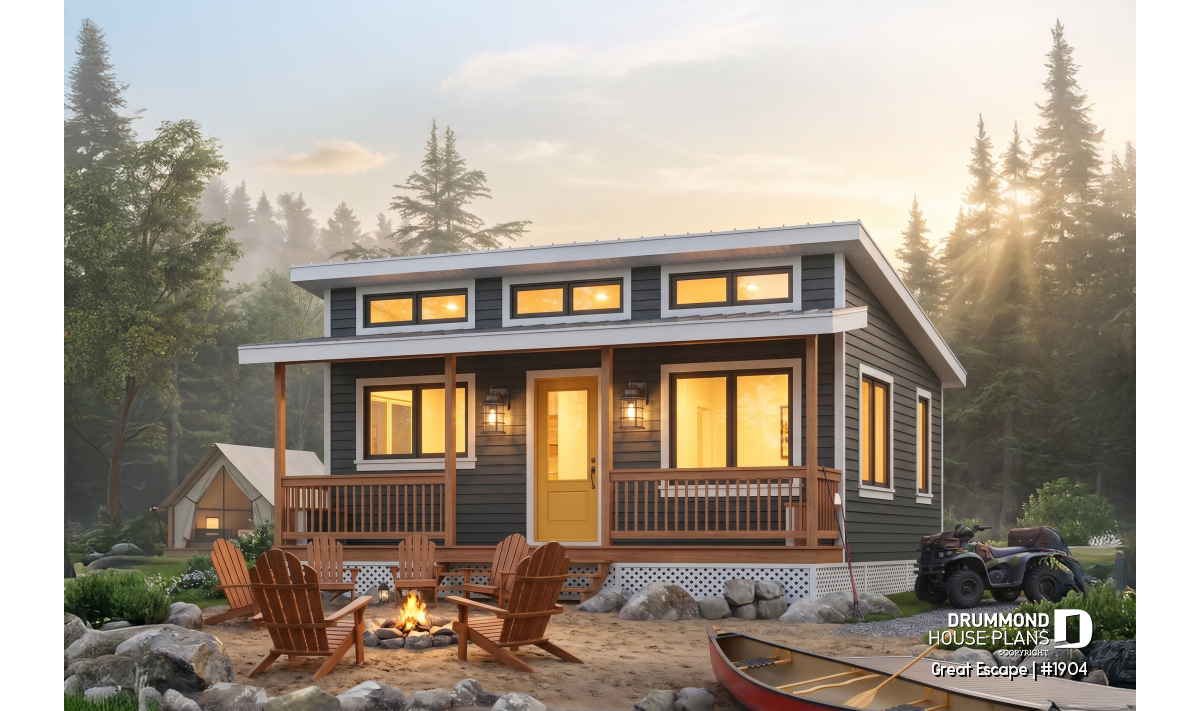

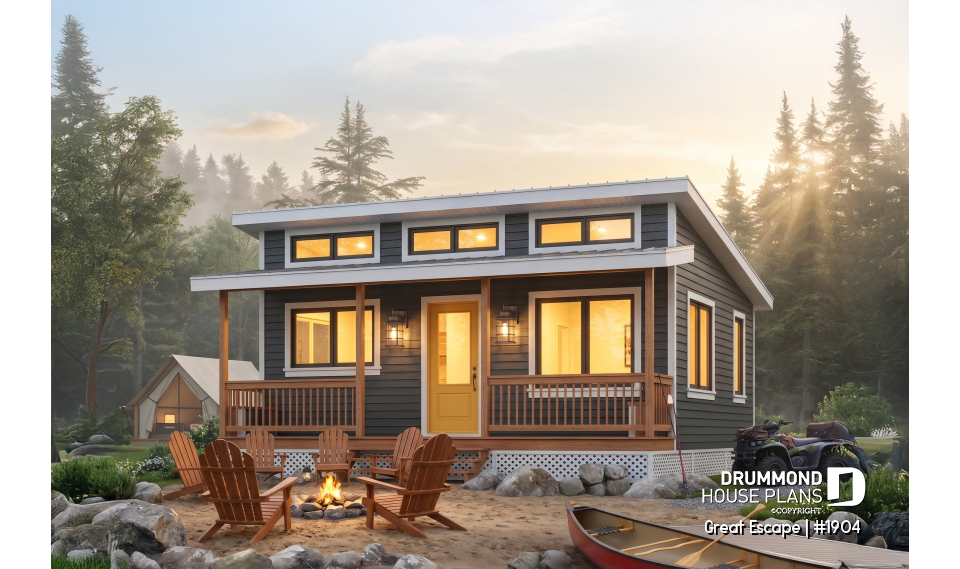

front - BASE MODEL

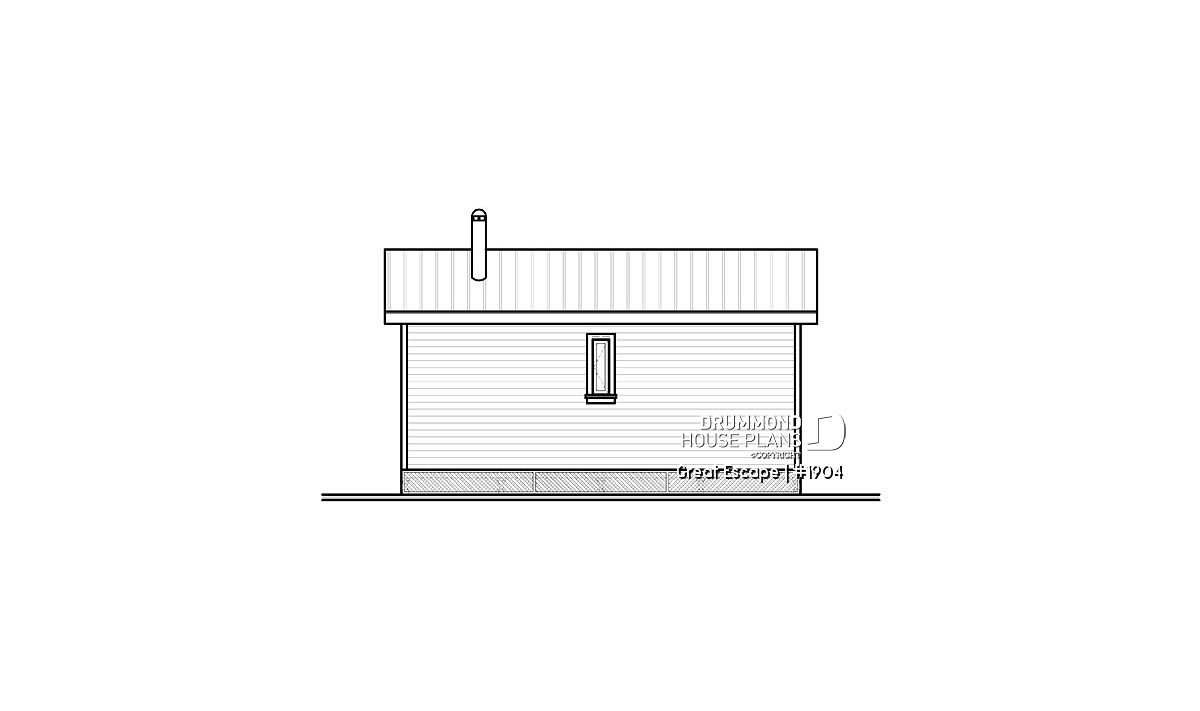

rear elevation

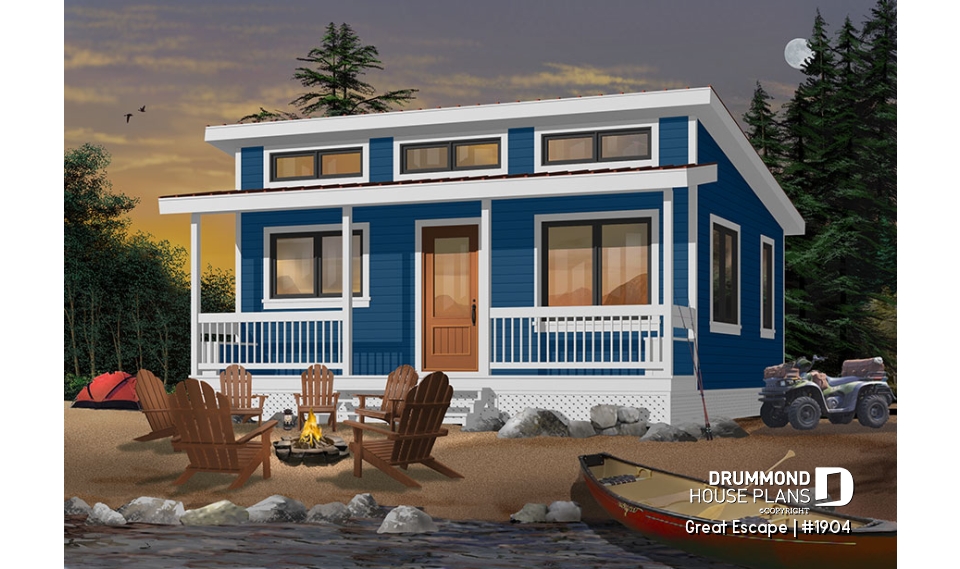

Color version 1 - Front

Color version 2 - Front

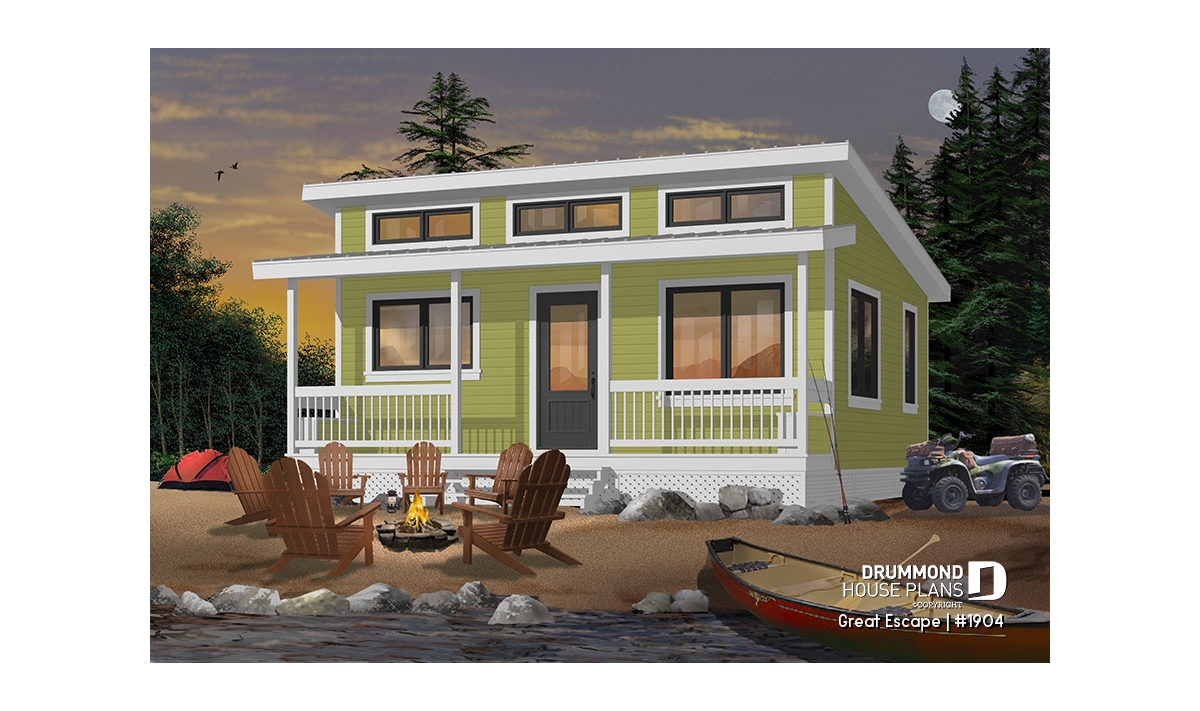

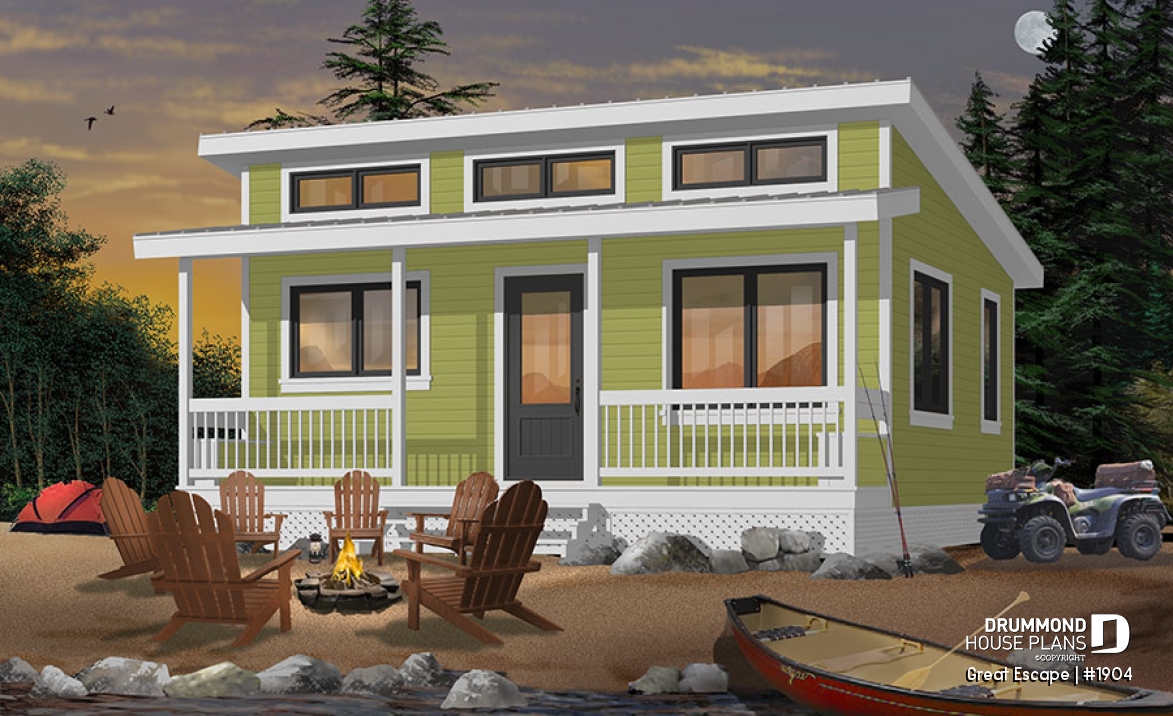

Color version 3 - Front

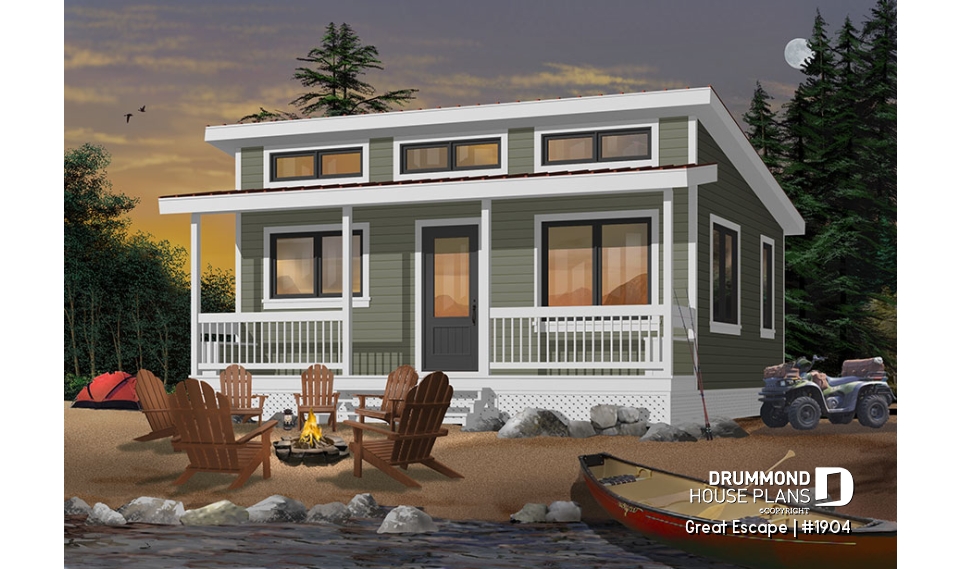

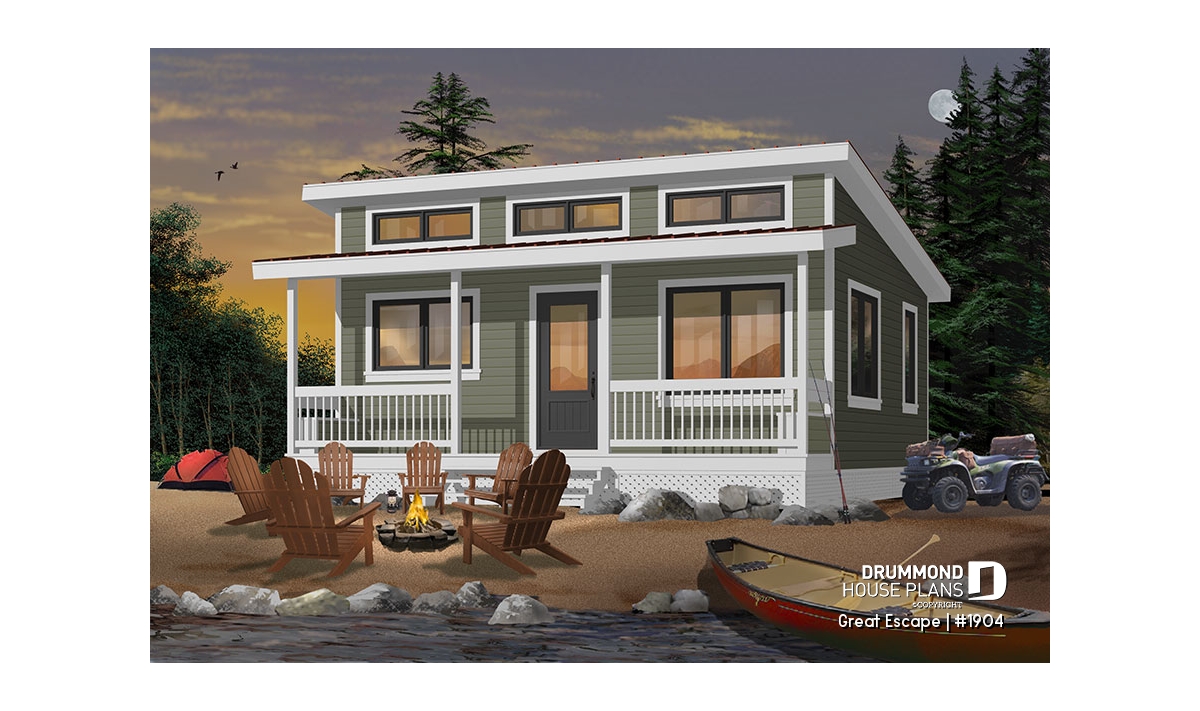

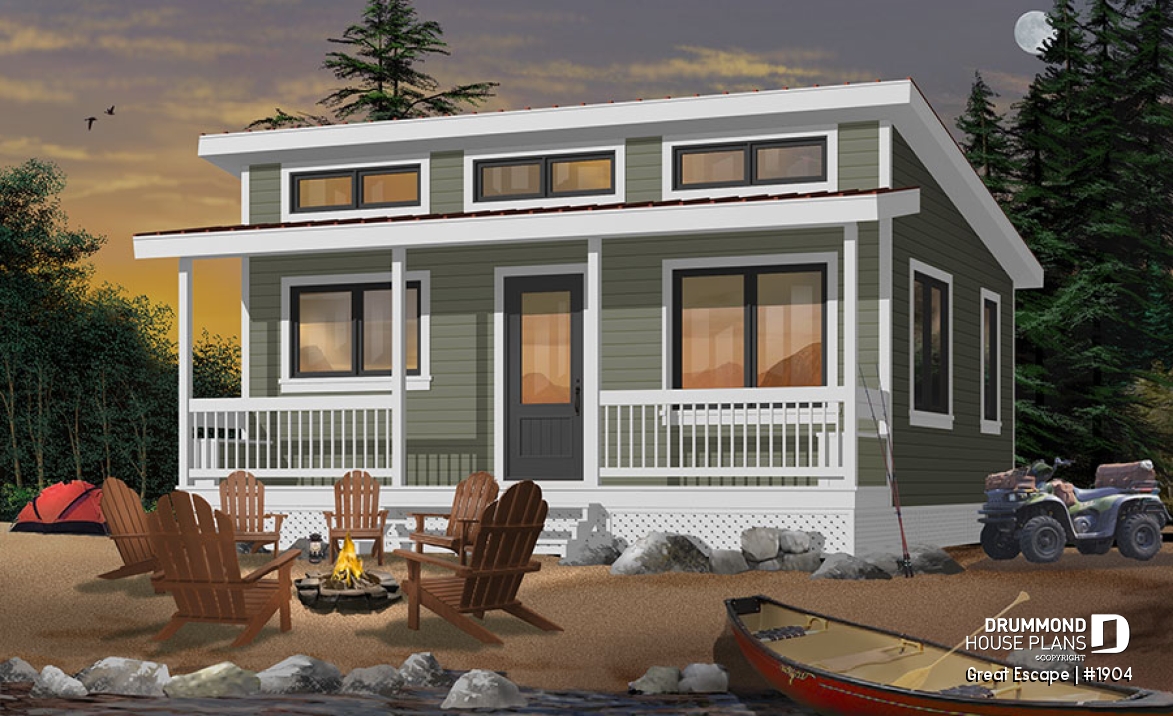

Color version 4 - Front

Color version 4 - Front

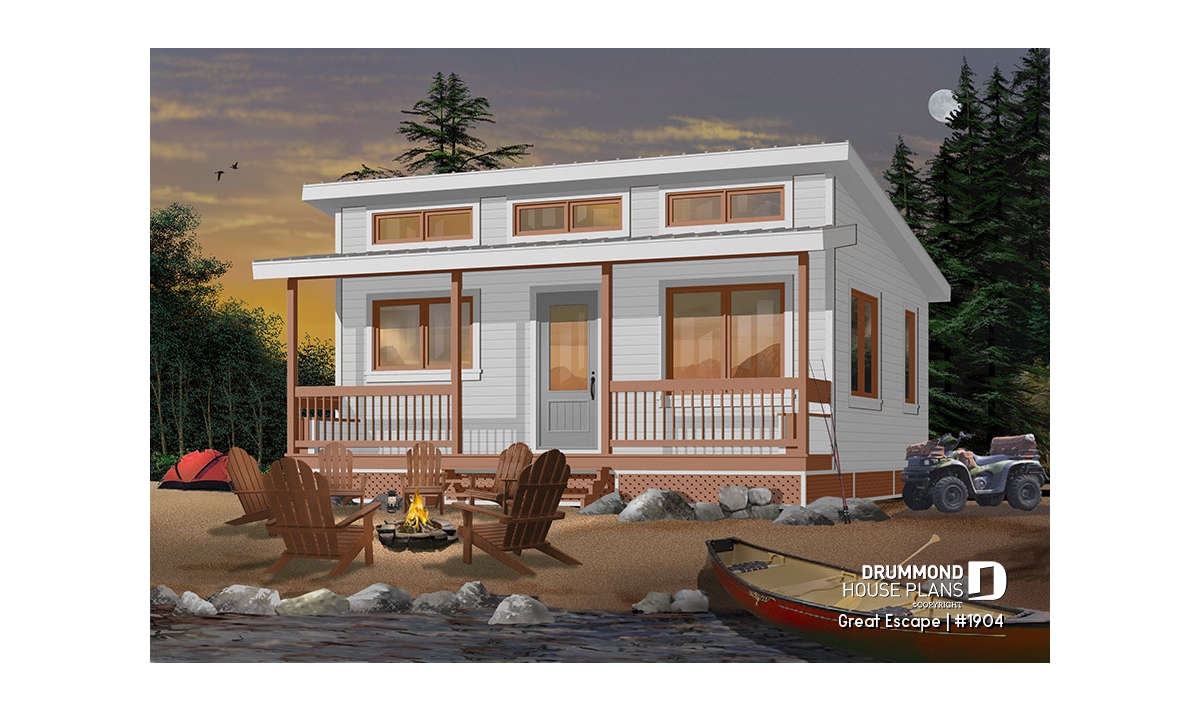

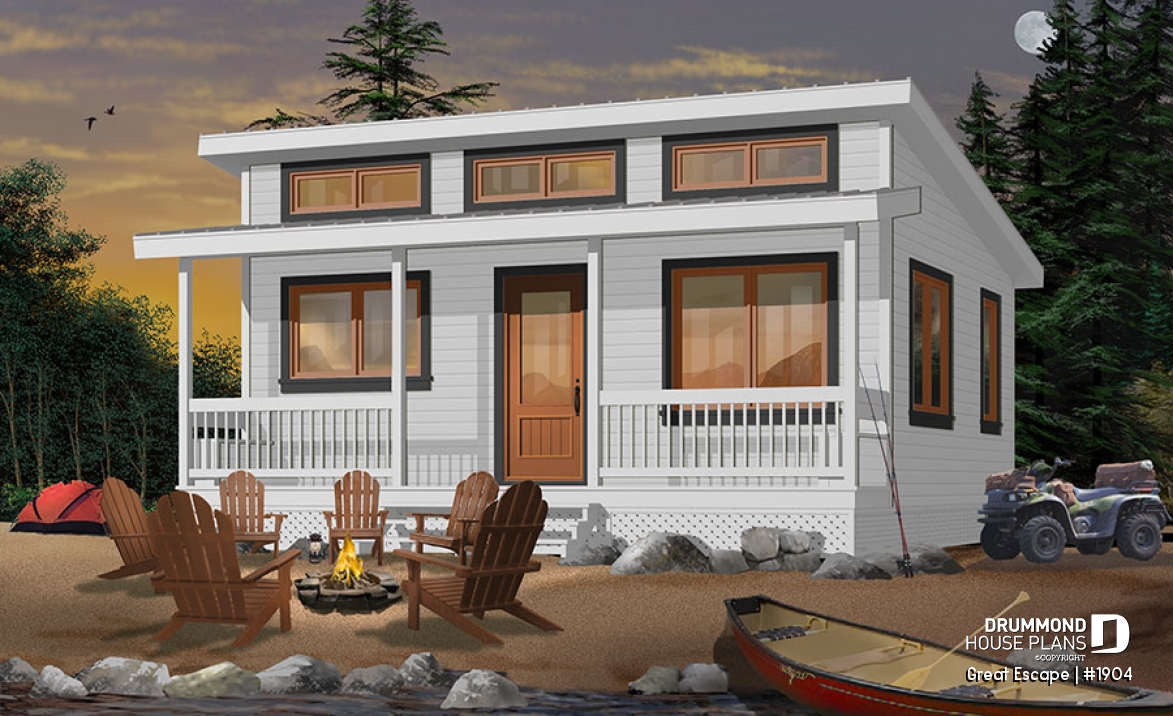

Color version 5 - Front

Color version 5 - Front

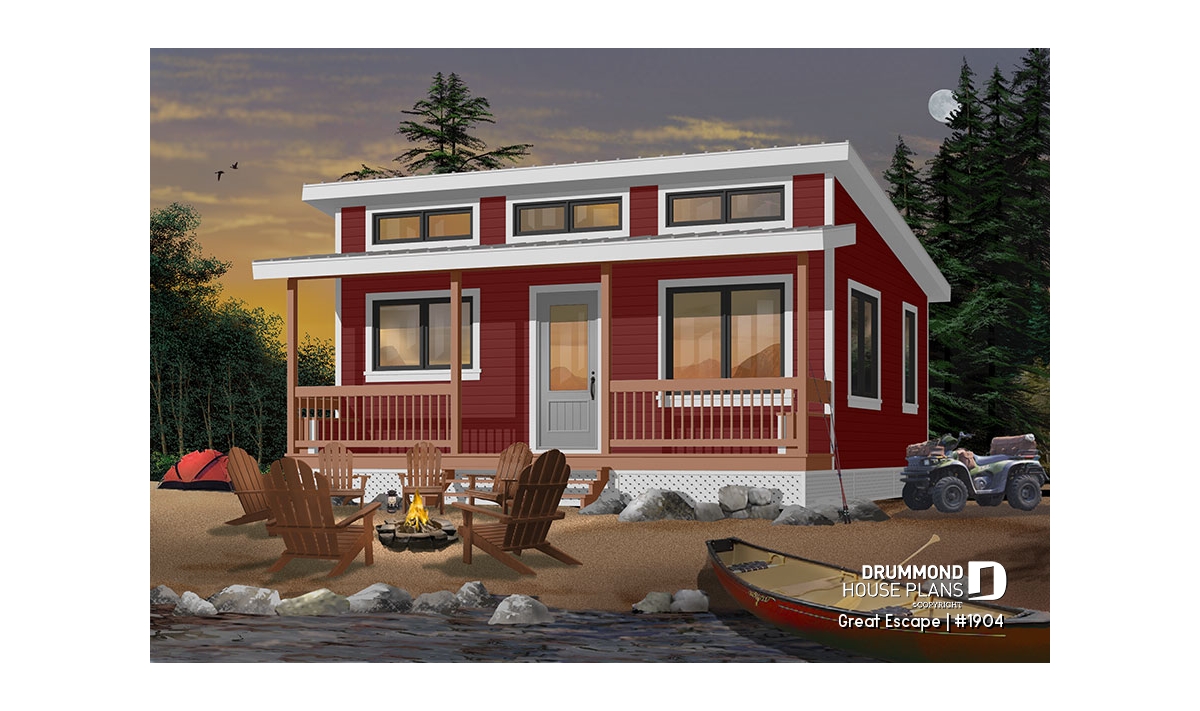

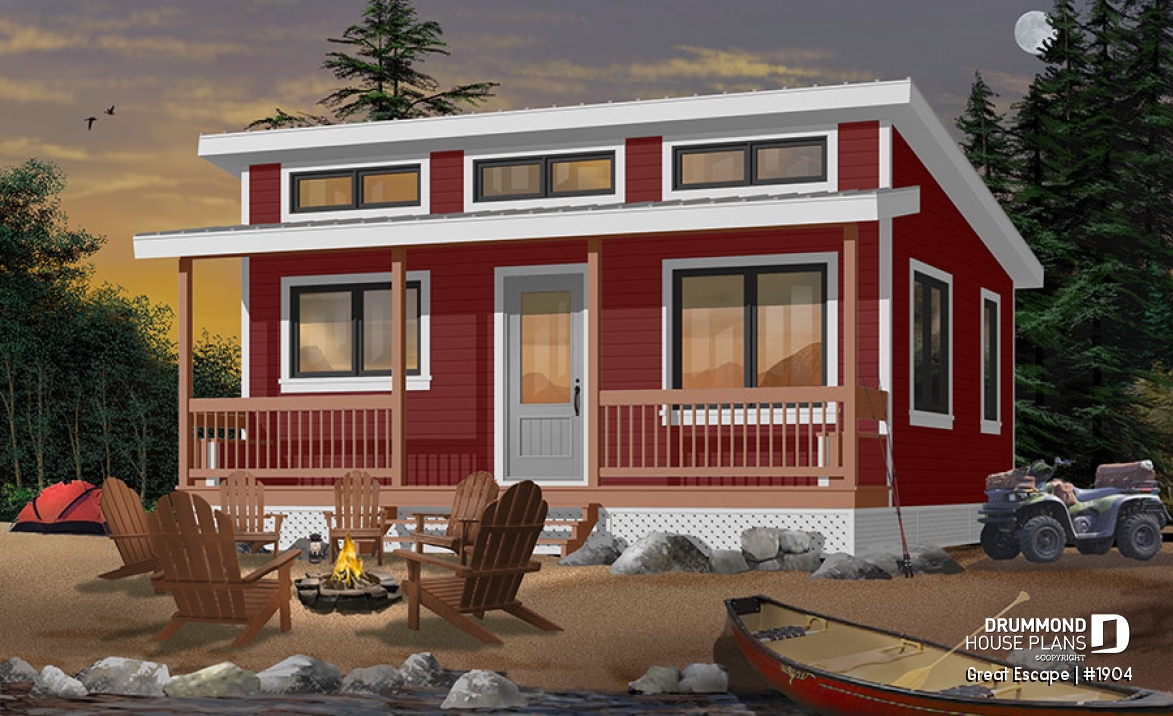

Color version 7 - Front

Vignette Color version 1 - Front - 1904
Vignette front - ORIGINAL MODEL - 1904
Vignette front - BASE MODEL - 1904
Vignette rear elevation - 1904
Vignette Color version 1 - Front - 1904
Vignette Color version 2 - Front - 1904
Vignette Color version 3 - Front - 1904
Vignette Color version 4 - Front - 1904
Vignette Color version 4 - Front - 1904
Vignette Color version 5 - Front - 1904
Vignette Color version 5 - Front - 1904
Vignette Color version 7 - Front - 1904

View by floor

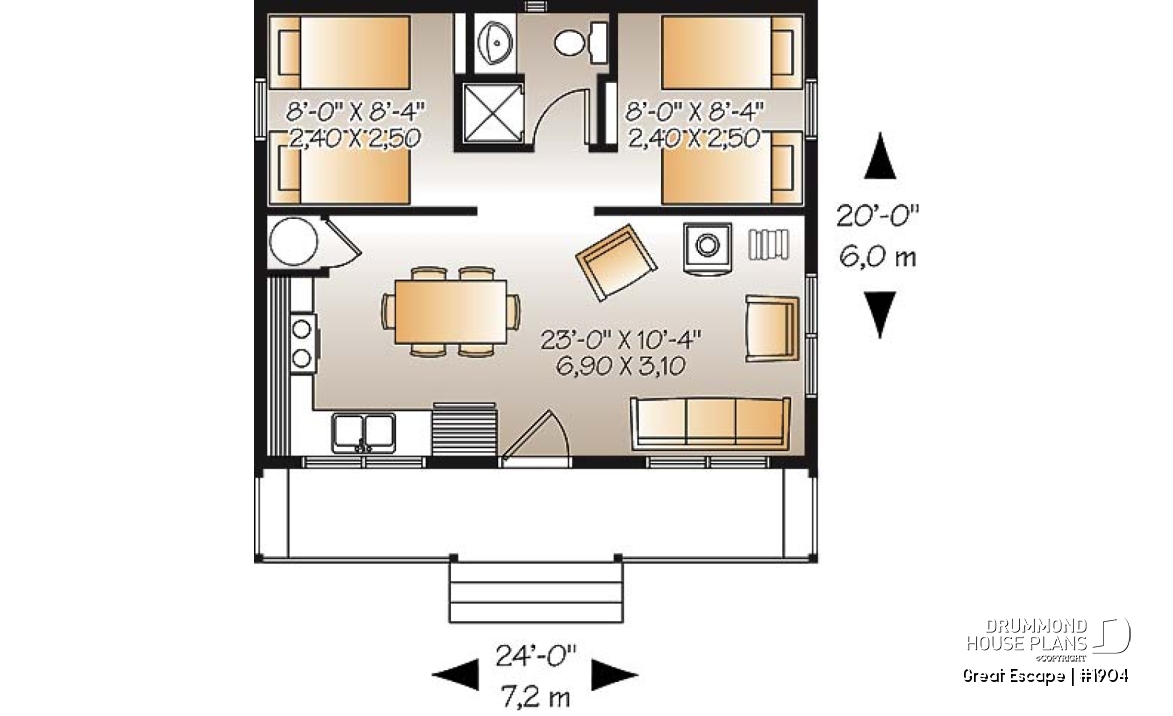

  • 1st level

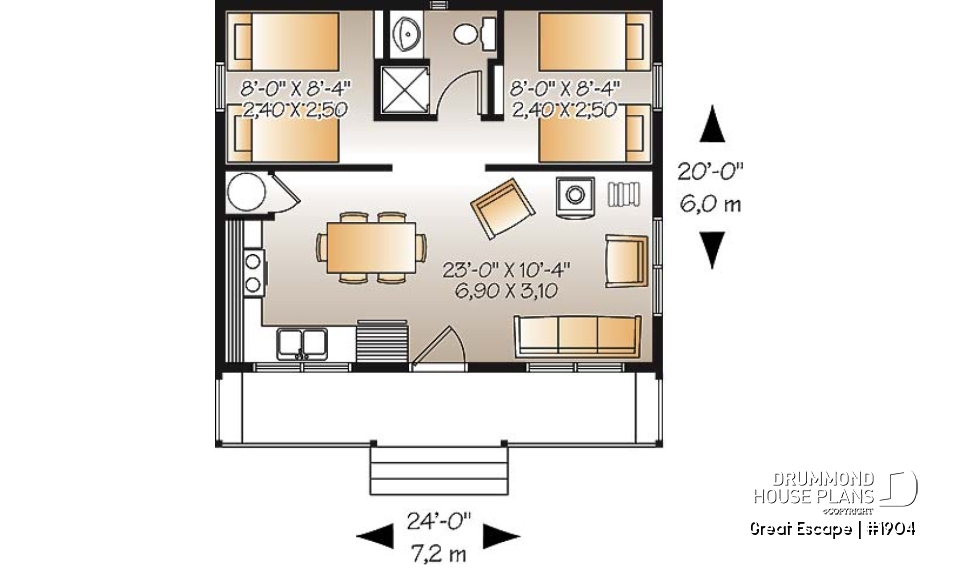

    1st level - Affordable small 2 bedroom cabin plan, wood stove, open concept, low budget construction - Great Escape
Vignette 1st level - 1904

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

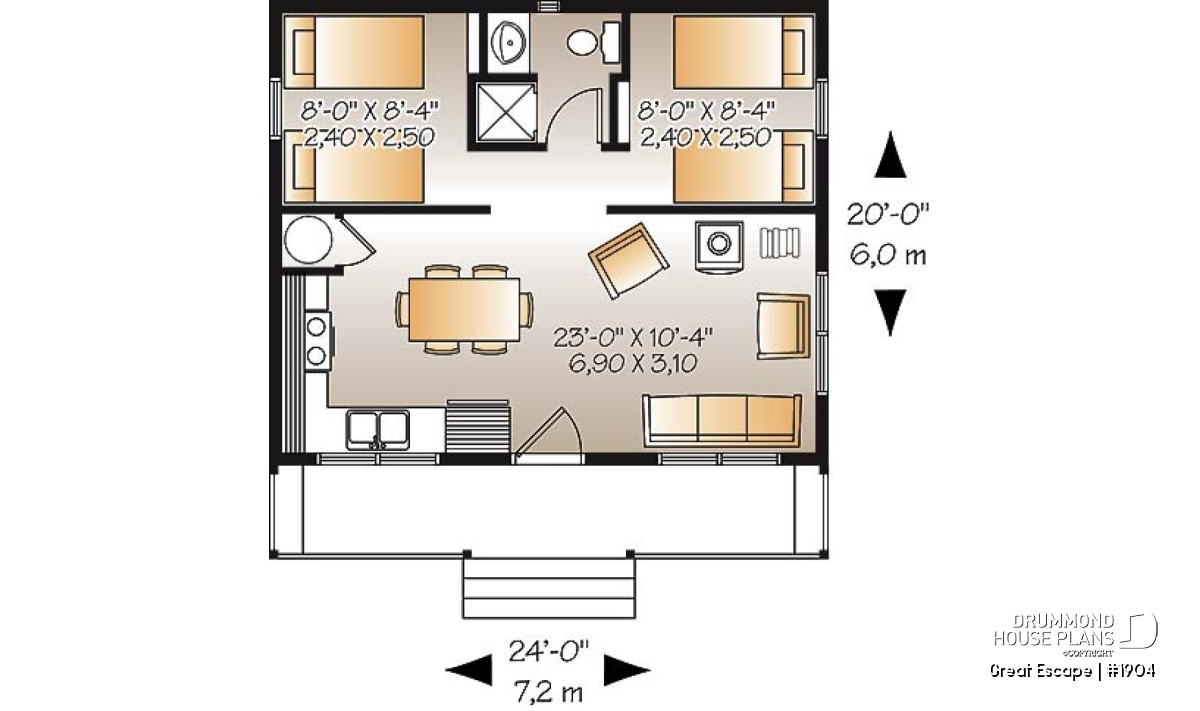

1st level
Rooms Sizes Ceiling
Porch 24'0" x 4'0" ~ 0'0"
Bedroom 8'0" x 8'4" ~ 8'2"
Bedroom 8'0" x 8'4" ~ 8'2"
Full bathroom 6'4" x 5'8" ~ 11'5"
Activity room 23'0" x 10'4" ~ 11'5"

General specifications

Total living area 480 sq.ft.
1st level 480 sq.ft.
Width 24'0"
Depth 20'0"
Ridge height from top of foundation 13'9"
Exterior wall 2 X 4 , 2 X 6
Foundation type included in the plan Screw pile
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code AA

Rooms specifications

Bedroom(s) 1, 2
Full baths 1
Half baths -
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 480 sq.ft.
1st level 480 sq.ft.
Width 24'0"
Depth 20'0"
Ridge height from top of foundation 13'9"
Exterior wall 2 X 4 , 2 X 6
Foundation type included in the plan Screw pile i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code AA

Rooms specifications

Bedroom(s) 1, 2
Full baths 1
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

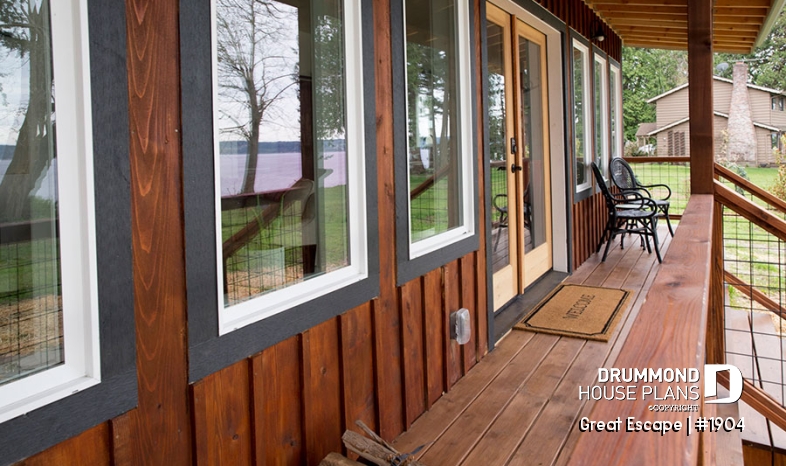

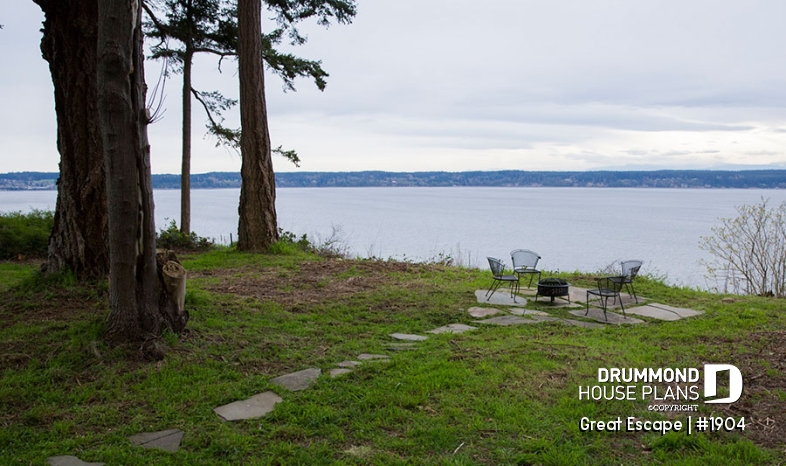

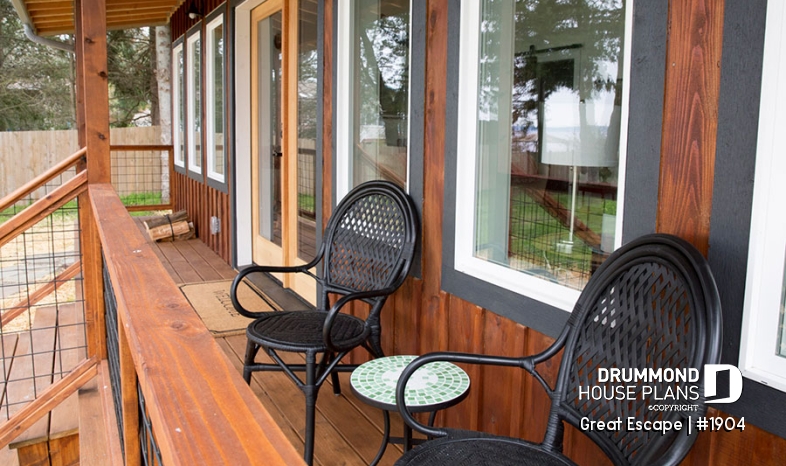

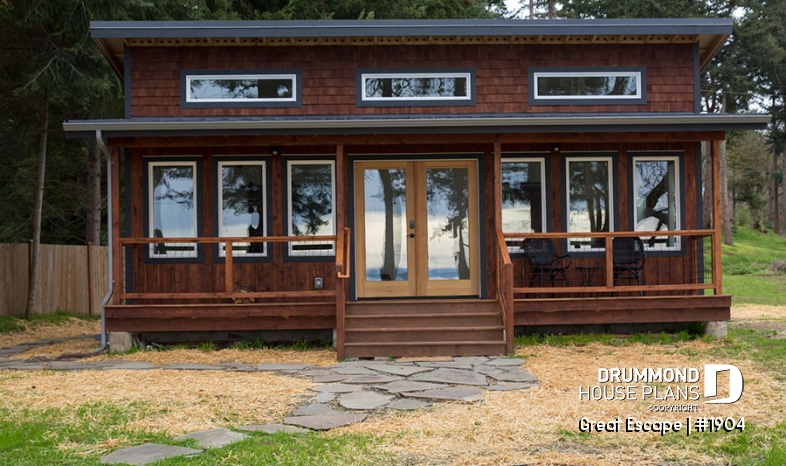

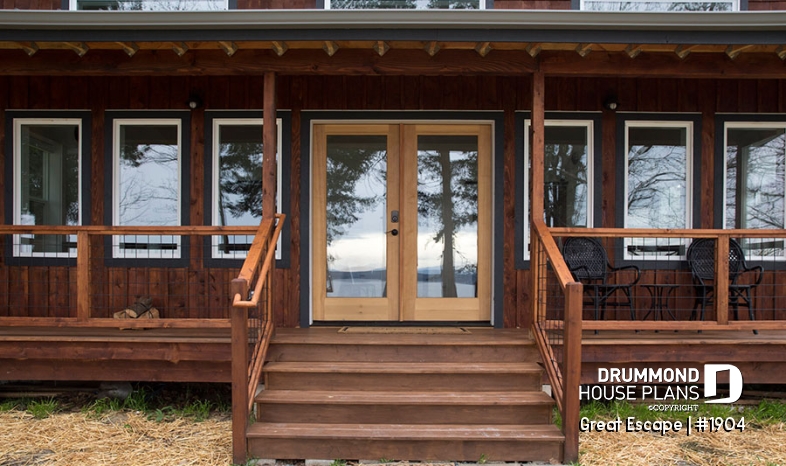

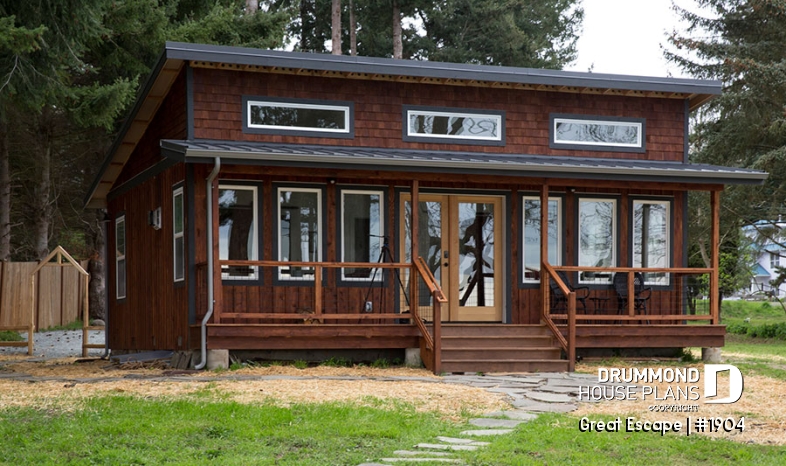

  • Photo front - Great Escape
  • Photo front - Great Escape
  • Photo front - Great Escape
  • Photo front - Great Escape
  • Photo front - Great Escape
  • Photo front - Great Escape
  • Photo front - Great Escape
  • Photo Bathroom - Great Escape

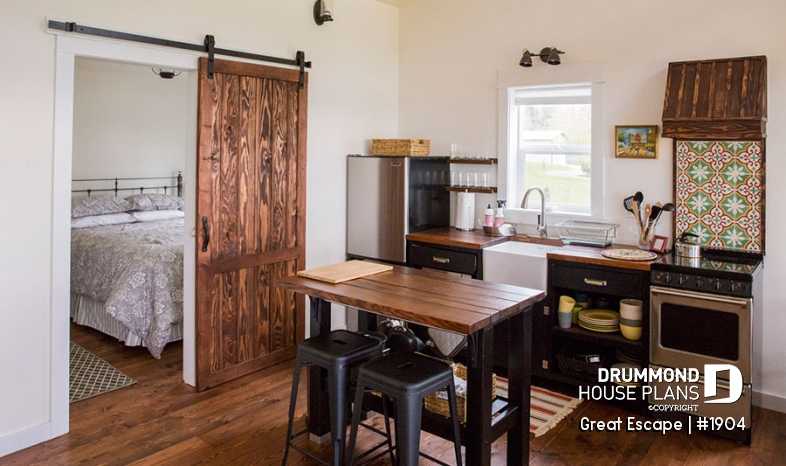

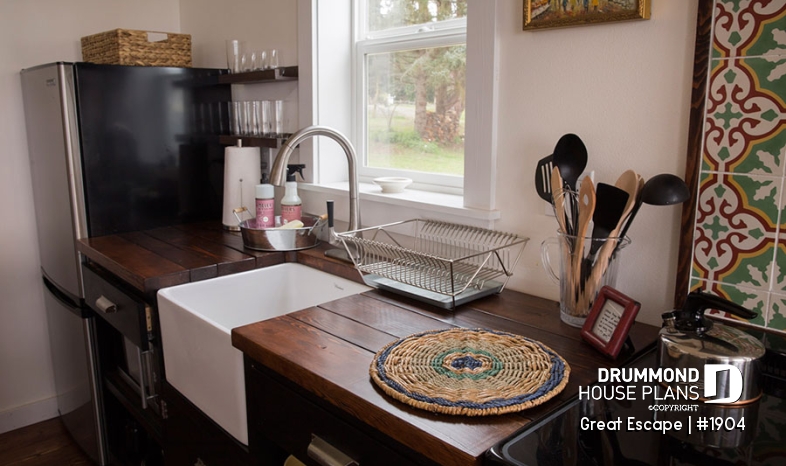

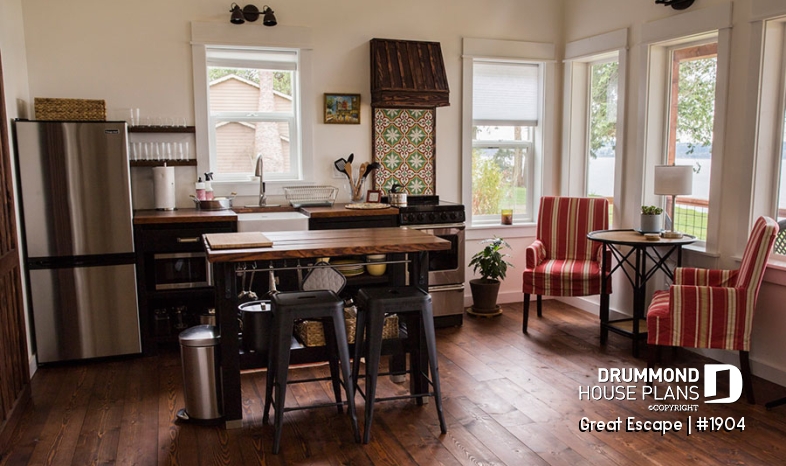

  • Photo Kitchen - Great Escape
  • Photo Kitchen - Great Escape
  • Photo Kitchen - Great Escape
  • Photo Breakfast room - Great Escape

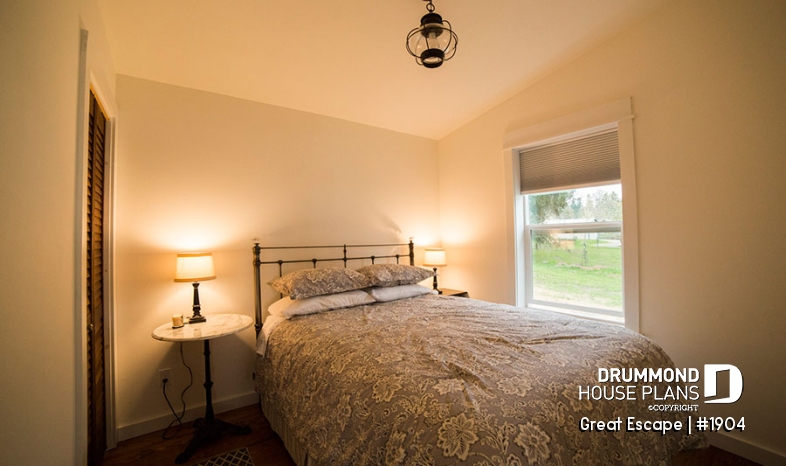

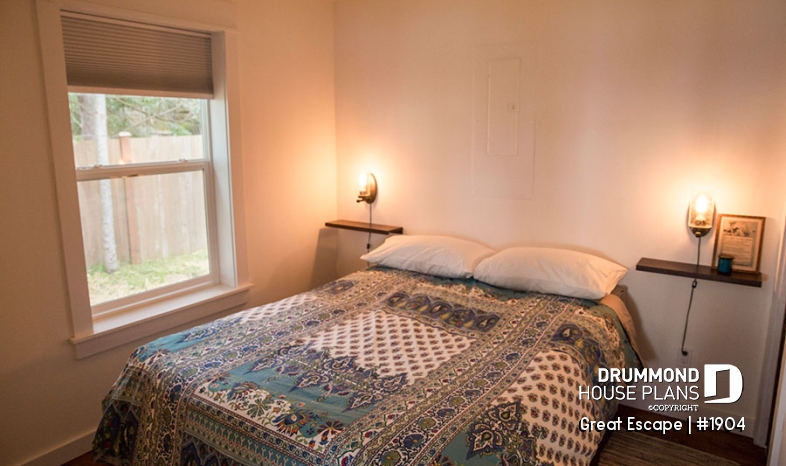

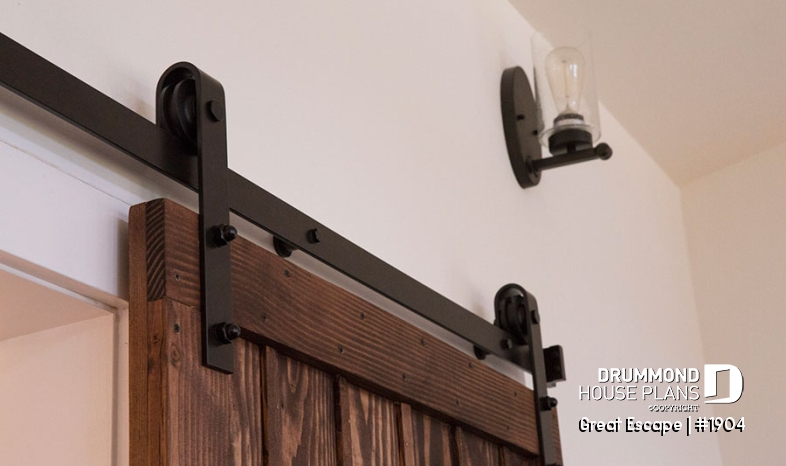

  • Photo Bedroom - Great Escape
  • Photo Bedroom - Great Escape
  • Photo Bedroom - Great Escape

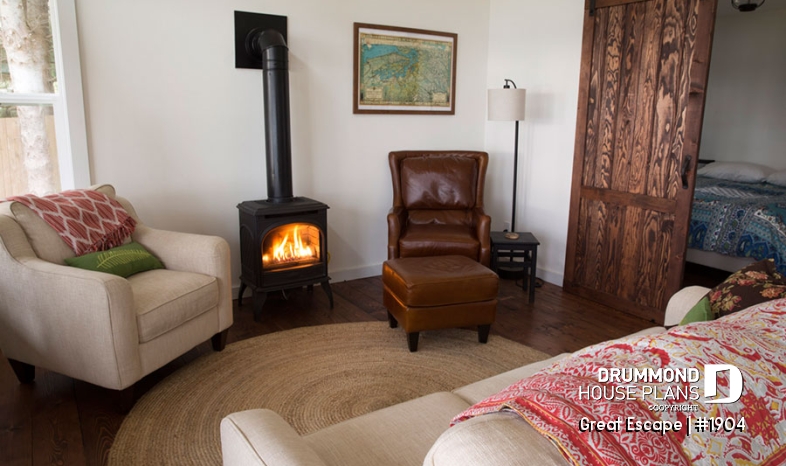

  • Photo Sitting room - Great Escape
  • Photo Sitting room - Great Escape

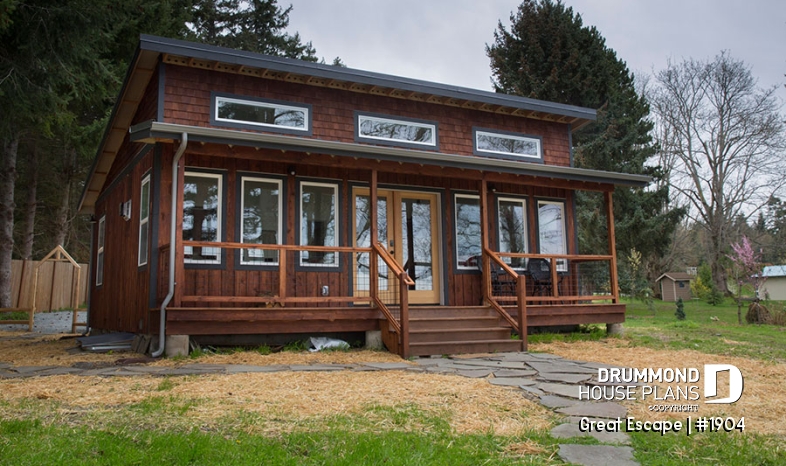

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

front
This color version might have decorative elements that are not available on base plan.

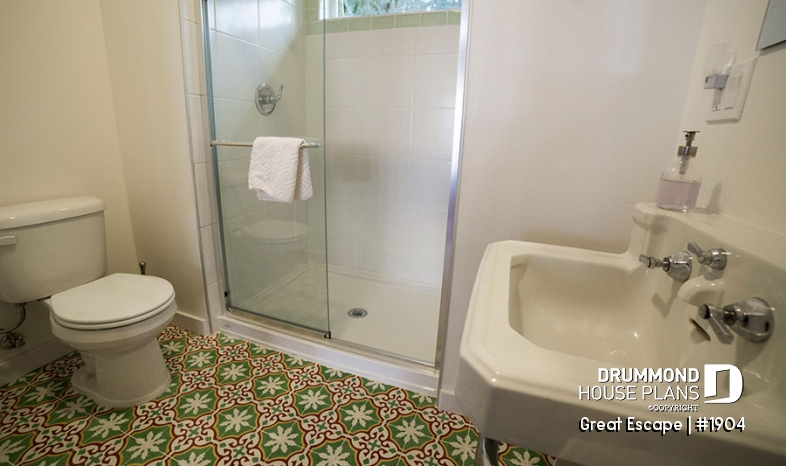

Bathroom
This color version might have decorative elements that are not available on base plan.

Kitchen
This color version might have decorative elements that are not available on base plan.

Kitchen
This color version might have decorative elements that are not available on base plan.

Kitchen
This color version might have decorative elements that are not available on base plan.

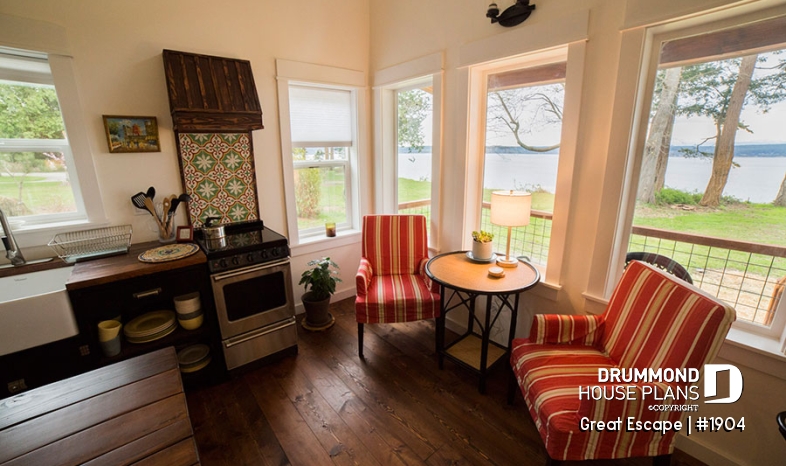

Breakfast room
This color version might have decorative elements that are not available on base plan.

Bedroom
This color version might have decorative elements that are not available on base plan.

Bedroom
This color version might have decorative elements that are not available on base plan.

Bedroom
This color version might have decorative elements that are not available on base plan.

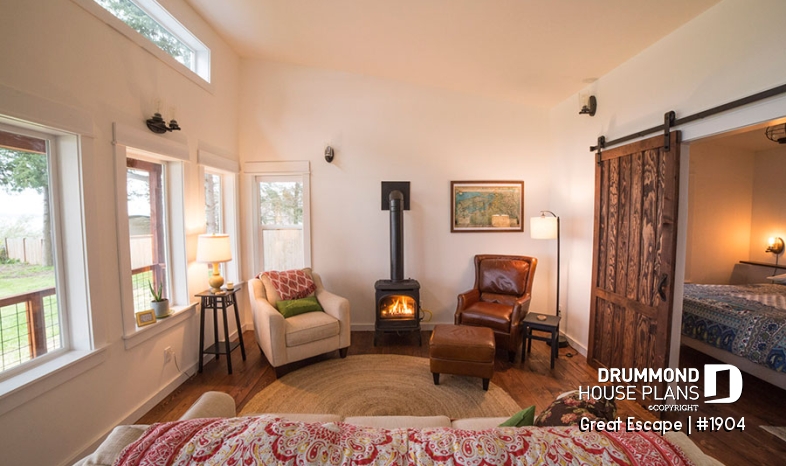

Sitting room
This color version might have decorative elements that are not available on base plan.

Sitting room
This color version might have decorative elements that are not available on base plan.

Photo thumbnail front - Plan 1904
Photo thumbnail front - Plan 1904
Photo thumbnail front - Plan 1904
Photo thumbnail front - Plan 1904
Photo thumbnail front - Plan 1904
Photo thumbnail front - Plan 1904
Photo thumbnail front - Plan 1904
Photo thumbnail Bathroom - Plan 1904
Photo thumbnail Kitchen - Plan 1904
Photo thumbnail Kitchen - Plan 1904
Photo thumbnail Kitchen - Plan 1904
Photo thumbnail Breakfast room - Plan 1904
Photo thumbnail Bedroom - Plan 1904
Photo thumbnail Bedroom - Plan 1904
Photo thumbnail Bedroom - Plan 1904
Photo thumbnail Sitting room - Plan 1904
Photo thumbnail Sitting room - Plan 1904

Buy this plan

From : 670$

Modify this plan

Get a quote

Description

Main level: Kitchen, dining and sitting area, shower room, two bedrooms. Foundation: screw pile. Other foundation options may be available, please contact us for more details.

Other useful information on this plan

2 Bedroom Country Cabin with very low construction costs

At a mere 480 sq. ft., this getaway cottage is popular for its twin bedrooms, cozy activity area and covered porch. Clerestory windows above the porch add the the brightness and illusion of more space and a woodstove keeps the whole area warm with very little fuel.

This tiny cottage is a favorite because of the ease of building the simple plan in remote areas.

In order to respect the building code and also meet the multiple needs of our customers, you will have two (2) versions of the cottage design included in your plan.

A first version will include an uninsulated and unheated version for seasonal use only (3 seasons). The walls are 2 '' x 4 '', the floor joists are 2 '' x 8 '' and the rafters are 2 '' x 8 '' for the roof.

The second version is an isolated and heated version for permanent occupation (4 seasons). For this one the walls are 2 '' x 6 '', the floor joists are 2 '' x 10 '' and the roof is designed with roof trusses.

Both versions are provided on screw piles to ensure stability. However we can design other types of foundation for this plan to better suit your needs if necessary. You need simply contact us for details.

The cost of the estimated materials is for the seasonal version and not the isolated version. Except for the screwed piles that are included in our cost, our cost of the estimated materials excludes the expenses related to the foundation specified in the details of the chosen plan (in the line "Type of foundation"), electricity, plumbing, heating and labor. In addition, the price of materials represents a provincial average that can vary from 10% to 30%, depending on the region, the construction season and the quality of your materials. It is also based on the use of everyday quality materials that most contractors use.

Distinctive elements

Affordable 2 bedroom cabin plan.
3-season (not heated) and 4-season (heated) construction options included in the house plan.
Kitchen and family room open concept.
Can accomodate up to 8 people.
Ceiling sloping from 8 'to 11'4.
Balcony sheltered at the front of the chalet.
Panoramic view chalet.

Plan feature(s)

Sloped ceiling, Stove, Open floor layout, Shower room

Other useful information on this plan

Full description

2 Bedroom Country Cabin with very low construction costs

At a mere 480 sq. ft., this getaway cottage is popular for its twin bedrooms, cozy activity area and covered porch. Clerestory windows above the porch add the the brightness and illusion of more space and a woodstove keeps the whole area warm with very little fuel.

This tiny cottage is a favorite because of the ease of building the simple plan in remote areas.

In order to respect the building code and also meet the multiple needs of our customers, you will have two (2) versions of the cottage design included in your plan.

A first version will include an uninsulated and unheated version for seasonal use only (3 seasons). The walls are 2 '' x 4 '', the floor joists are 2 '' x 8 '' and the rafters are 2 '' x 8 '' for the roof.

The second version is an isolated and heated version for permanent occupation (4 seasons). For this one the walls are 2 '' x 6 '', the floor joists are 2 '' x 10 '' and the roof is designed with roof trusses.

Both versions are provided on screw piles to ensure stability. However we can design other types of foundation for this plan to better suit your needs if necessary. You need simply contact us for details.

The cost of the estimated materials is for the seasonal version and not the isolated version. Except for the screwed piles that are included in our cost, our cost of the estimated materials excludes the expenses related to the foundation specified in the details of the chosen plan (in the line "Type of foundation"), electricity, plumbing, heating and labor. In addition, the price of materials represents a provincial average that can vary from 10% to 30%, depending on the region, the construction season and the quality of your materials. It is also based on the use of everyday quality materials that most contractors use.

Distinctive elements

Affordable 2 bedroom cabin plan.
3-season (not heated) and 4-season (heated) construction options included in the house plan.
Kitchen and family room open concept.
Can accomodate up to 8 people.
Ceiling sloping from 8 'to 11'4.
Balcony sheltered at the front of the chalet.
Panoramic view chalet.

Plan feature(s)

Sloped ceiling, Stove, Open floor layout, Shower room

Questions and comments on this plan

September 08 2015

David Otazu

You're explanation of ceiling height and light entering from top windows was not clear. If the ceiling height is around 8 feet throughout the whole structure, how can light from windows which are clearly higher than 8 feet enter the main living area?

September 08 2015

Customer service

Hello Mr Otazu,

Thank you for your comment and yes, many people are confused with this one.

The ceiling slopes from the back 8'-2" and at the rear to 11'-5" at front were the windows are.

I hope this helps!
Jessica
info@drummondhouseplans.com

February 09 2015

David leduc

Would it be possible to add a second level to this plan and increase the length to 36 ft?

February 09 2015

Customer service

Good day Mr. Leduc and thank you for your interest in this plan.

I invite you to contact our agency for your area to obtain further details on the modification of this plan.

You might also find something interestin in our new, tiny house collection of plans which provide economical homes with a smaller footprint.

Please let me know if you have any other questions or comments.
Regards
Deb

January 07 2015

Jay

The detail says the ceiling height is 8'2", but the illustration gives the impression that the height in the activity room should be much greater, perhaps 10' or more. What am I missing?

January 07 2015

Customer service

Good day and thank you for taking the time to write.

The ceiling height is actually 8'2" throughout but the small windows along the upper front give the impression of added height and add to the abundance of natural light that enters the main living area.

Please let me know if I can further assist you.
Regards
Deb

August 07 2014

Mark

HI ,COULD YOU PLEASE LET ME KNOW IF PLAN W1904 IS SUITABLE FOR SERVERE CYCLONE CONDITIONS ,OUR WIND LOADING HERE IN [FAR NORTH QLD AUSTRALIA] IS C2 OR 320 KM PER HOUR.
BEST REGARDS MARK

August 07 2014

Customer service

Good day and thank you for your interest in this plan.

Due to the extreme wind conditions of your regions, this plan would need to be revised by a structural engineer to conform.

Please let me know if you have any other questions or comments.
Regards
Deb

May 26 2014

Laurie Redl

Do you have plans and kits for building small homes suitable for very cold winters?

Thank you
Laurie

May 26 2014

Customer service

Good day Ms. Redl and thank you for taking the time to write.

Although the vocation of these small, recreational chalets is principally for the warmer months due to the R12 and R28 values, we could modify the plan of your choice to make it suitable for very cold winters.

Our modifications team would be happy to return a free estiamte for any changes that you require within two business days after receipt of this on line form.

Please let me know if I can further assist you.
Regards
Deb

Questions and comments

September 08 2015

David Otazu

You're explanation of ceiling height and light entering from top windows was not clear. If the ceiling height is around 8 feet throughout the whole structure, how can light from windows which are clearly higher than 8 feet enter the main living area?

September 08 2015

Customer service

Hello Mr Otazu,

Thank you for your comment and yes, many people are confused with this one.

The ceiling slopes from the back 8'-2" and at the rear to 11'-5" at front were the windows are.

I hope this helps!
Jessica
info@drummondhouseplans.com

February 09 2015

David leduc

Would it be possible to add a second level to this plan and increase the length to 36 ft?

February 09 2015

Customer service

Good day Mr. Leduc and thank you for your interest in this plan.

I invite you to contact our agency for your area to obtain further details on the modification of this plan.

You might also find something interestin in our new, tiny house collection of plans which provide economical homes with a smaller footprint.

Please let me know if you have any other questions or comments.
Regards
Deb

January 07 2015

Jay

The detail says the ceiling height is 8'2", but the illustration gives the impression that the height in the activity room should be much greater, perhaps 10' or more. What am I missing?

January 07 2015

Customer service

Good day and thank you for taking the time to write.

The ceiling height is actually 8'2" throughout but the small windows along the upper front give the impression of added height and add to the abundance of natural light that enters the main living area.

Please let me know if I can further assist you.
Regards
Deb

August 07 2014

Mark

HI ,COULD YOU PLEASE LET ME KNOW IF PLAN W1904 IS SUITABLE FOR SERVERE CYCLONE CONDITIONS ,OUR WIND LOADING HERE IN [FAR NORTH QLD AUSTRALIA] IS C2 OR 320 KM PER HOUR.
BEST REGARDS MARK

August 07 2014

Customer service

Good day and thank you for your interest in this plan.

Due to the extreme wind conditions of your regions, this plan would need to be revised by a structural engineer to conform.

Please let me know if you have any other questions or comments.
Regards
Deb

May 26 2014

Laurie Redl

Do you have plans and kits for building small homes suitable for very cold winters?

Thank you
Laurie

May 26 2014

Customer service

Good day Ms. Redl and thank you for taking the time to write.

Although the vocation of these small, recreational chalets is principally for the warmer months due to the R12 and R28 values, we could modify the plan of your choice to make it suitable for very cold winters.

Our modifications team would be happy to return a free estiamte for any changes that you require within two business days after receipt of this on line form.

Please let me know if I can further assist you.
Regards
Deb

Ask a question or leave a comment on this plan

Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.

Answer this comment :


Please check the box above.
