House plan Riviera (3972)
Small modern cottage plan, 2 bedrooms, ideal waterfront layout, nice master bedroom, open concept
View the size of the rooms and height of the ceilings
| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bathroom/laundry room | 9'0" x 8'10" | ~ 8'0" |
| Mechanical room | 5'2" x 8'10" | ~ 8'0" |

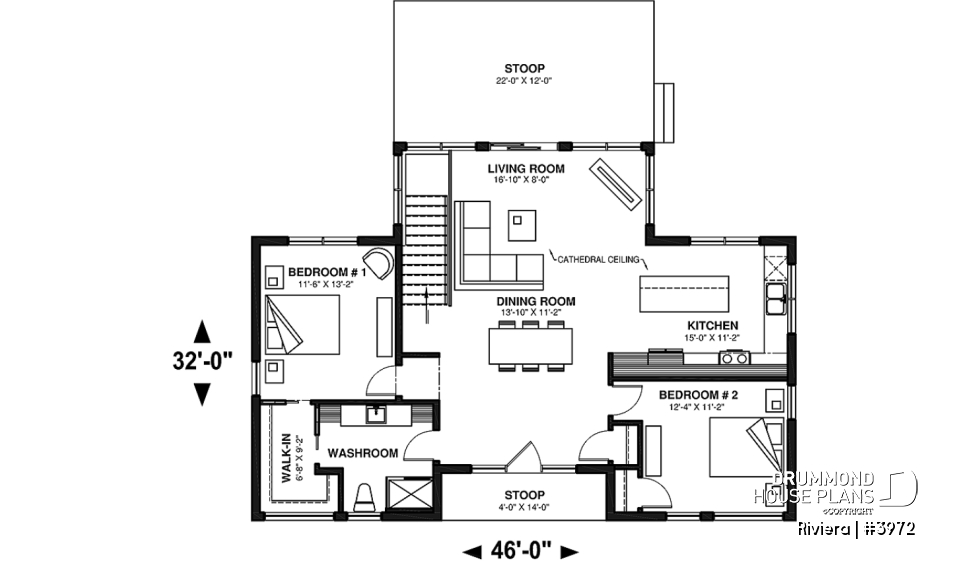

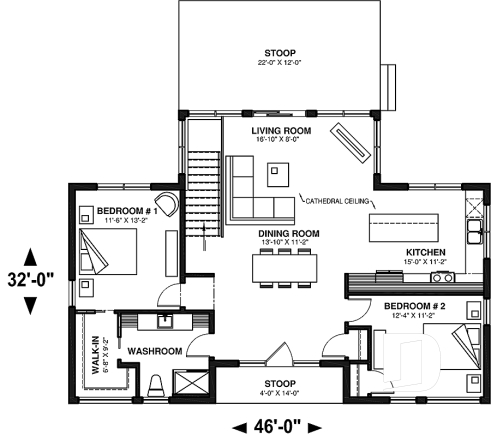

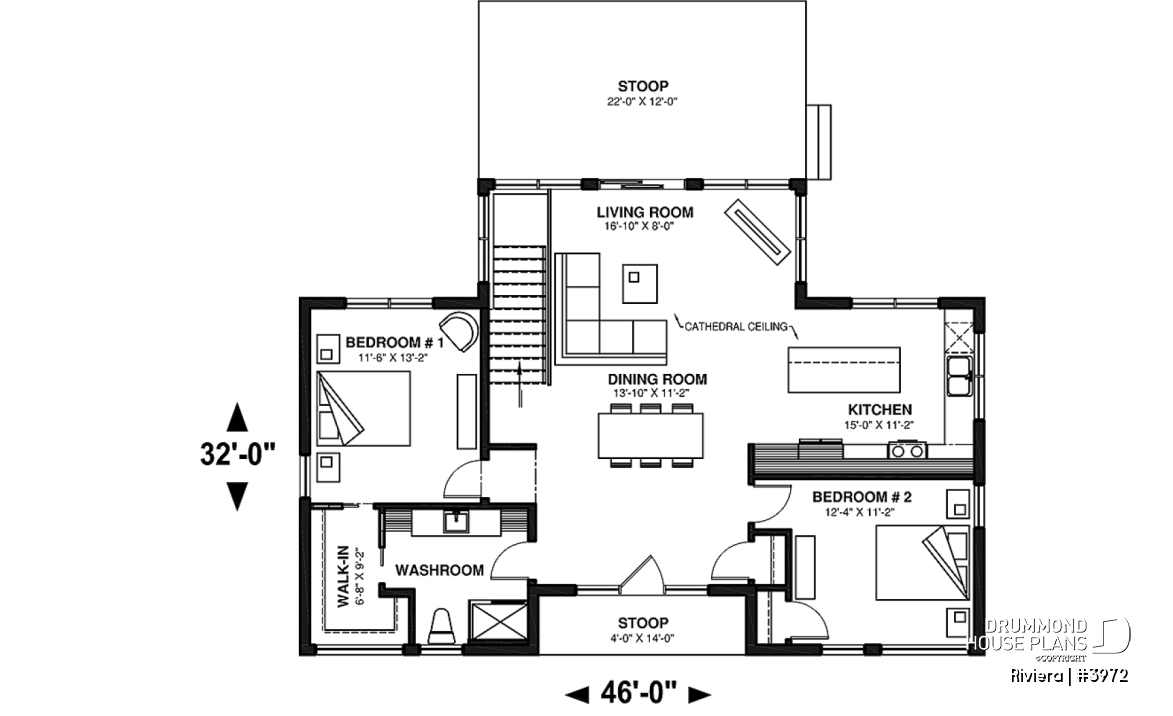

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'4" x 11'2" | ~ 8'0" |
| Closet | 3'8" x 2'0" | ~ 8'0" |
| Kitchen | 15'0" x 11'2" | N/A |
| Kitchen island | 7'6" x 3'0" | N/A |
| Living room | 16'10" x 8'0" | ~ 17'8" |
| Master suite | 11'6" x 13'2" | ~ 13'0" |
| Walk-in closet | 6'8" x 9'2" | ~ 8'0" |
| Full bathroom | 9'8" x 9'2" | N/A |
| Shower | 0'32" x 0'48" | N/A |
| Dining room | 13'10" x 11'2" | ~ 15'6" |
| Bathroom | 9'8" x 9'2" | ~ 8'0" |
| Shower | 4'0" x 2'8" | ~ 8'0" |
| Foyer | 14'4" x 5'6" | ~ 8'0" |
| Closet | 3'5" x 2'0" | ~ 8'0" |
| Covered porch | 14'0" x 4'0" | ~ 8'0" |
| Deck | 22'0" x 12'0" | N/A |
General specifications
| Total living area | 1209 sq.ft. |
| Basement | 1209 sq.ft. |
| 1st level | 1209 sq.ft. |
| Width | 46'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 21'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Full basement with walkout, Floating Slab, Finished basement with walkout, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

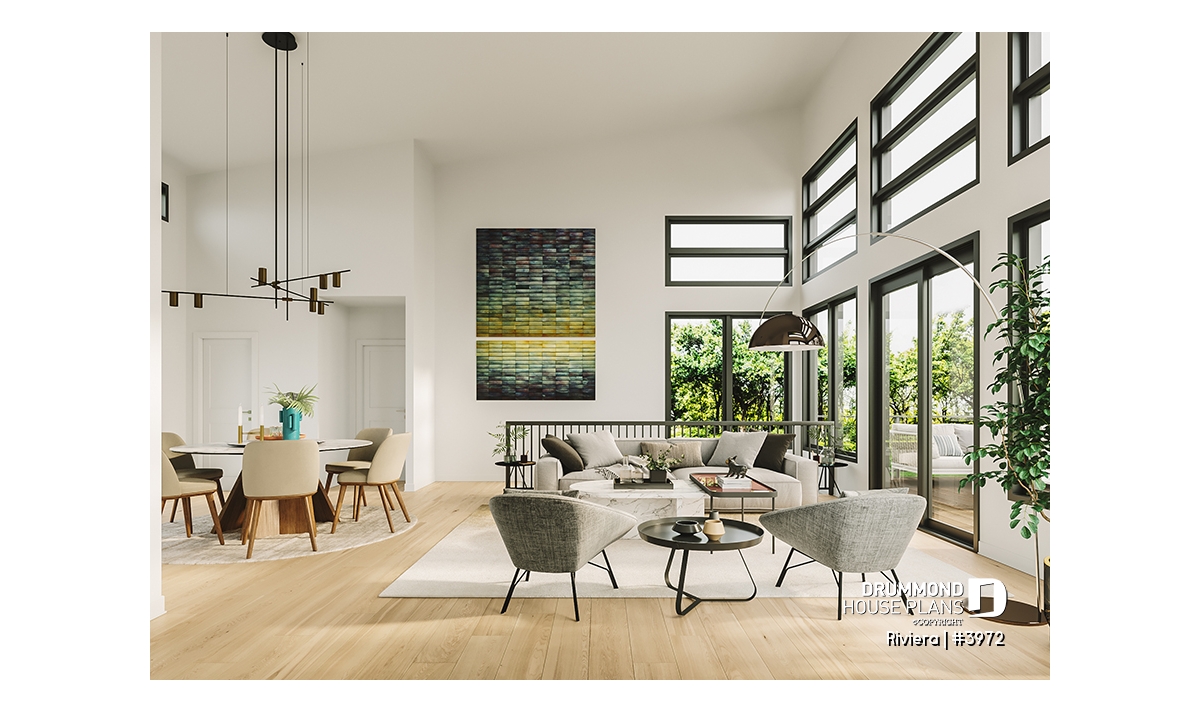

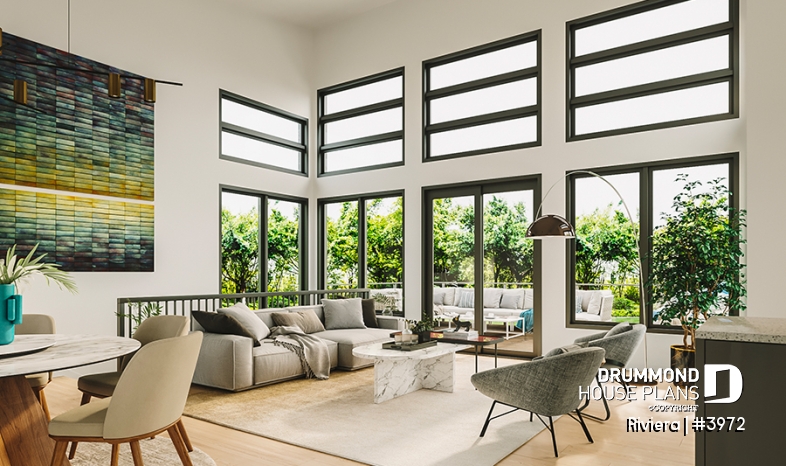

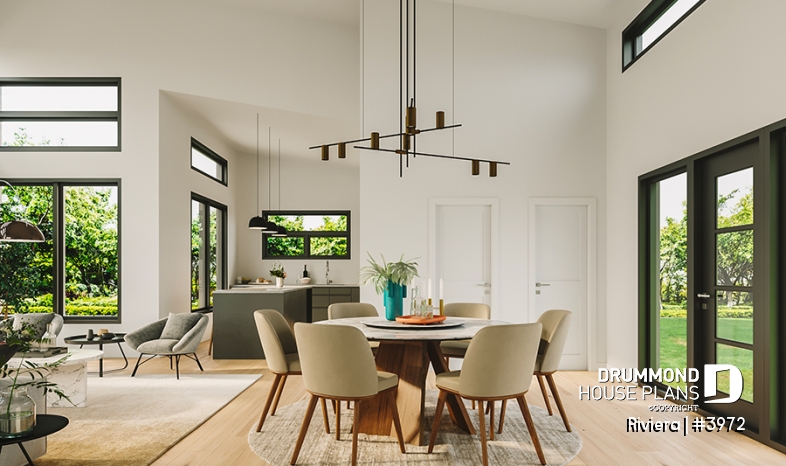

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

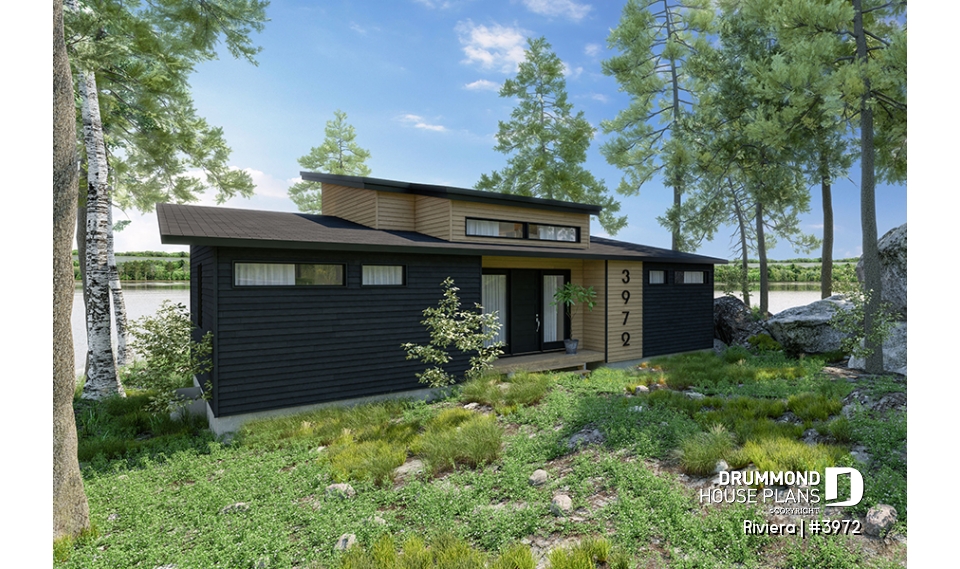

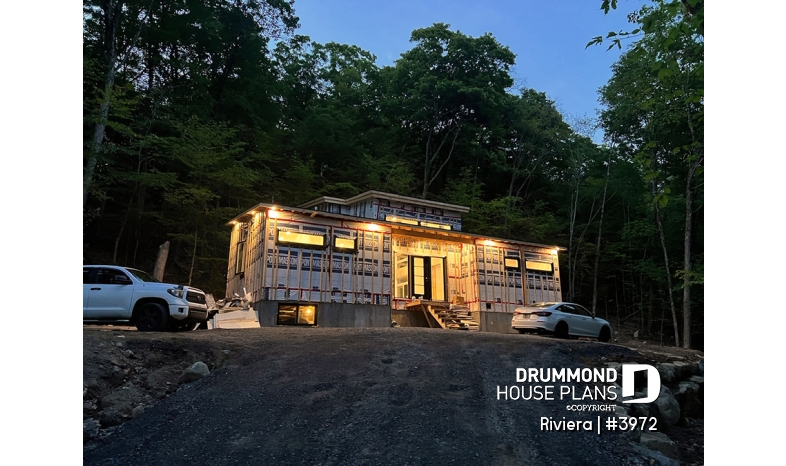

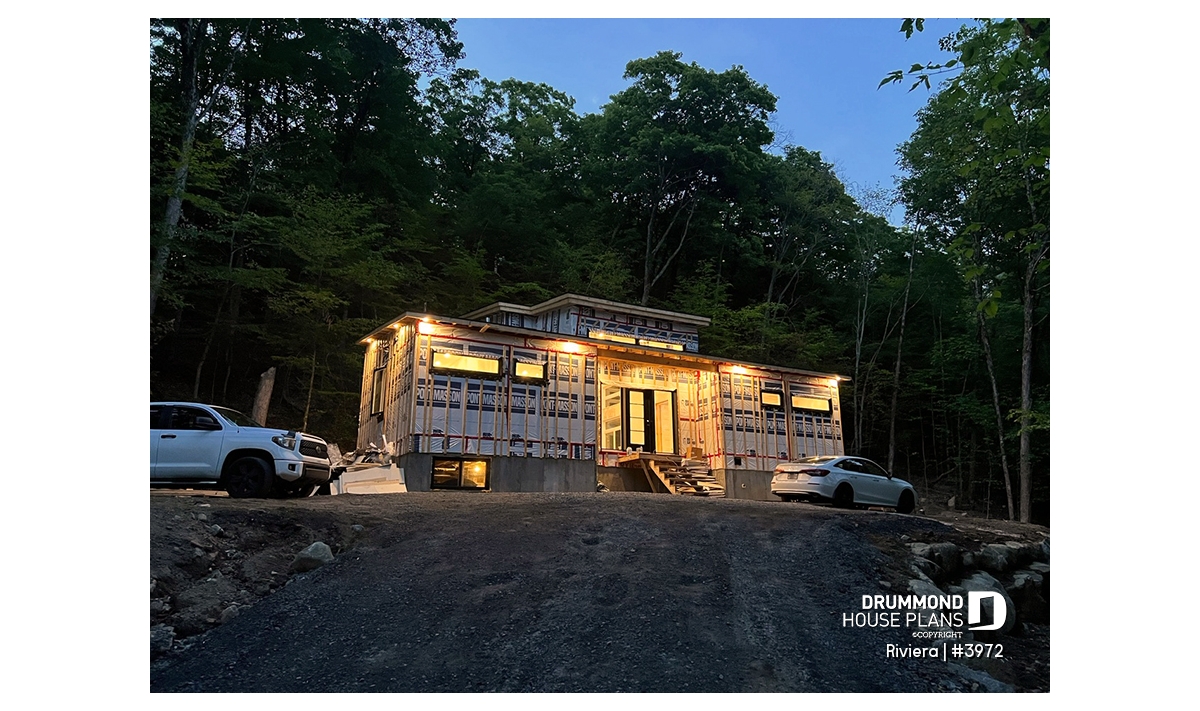

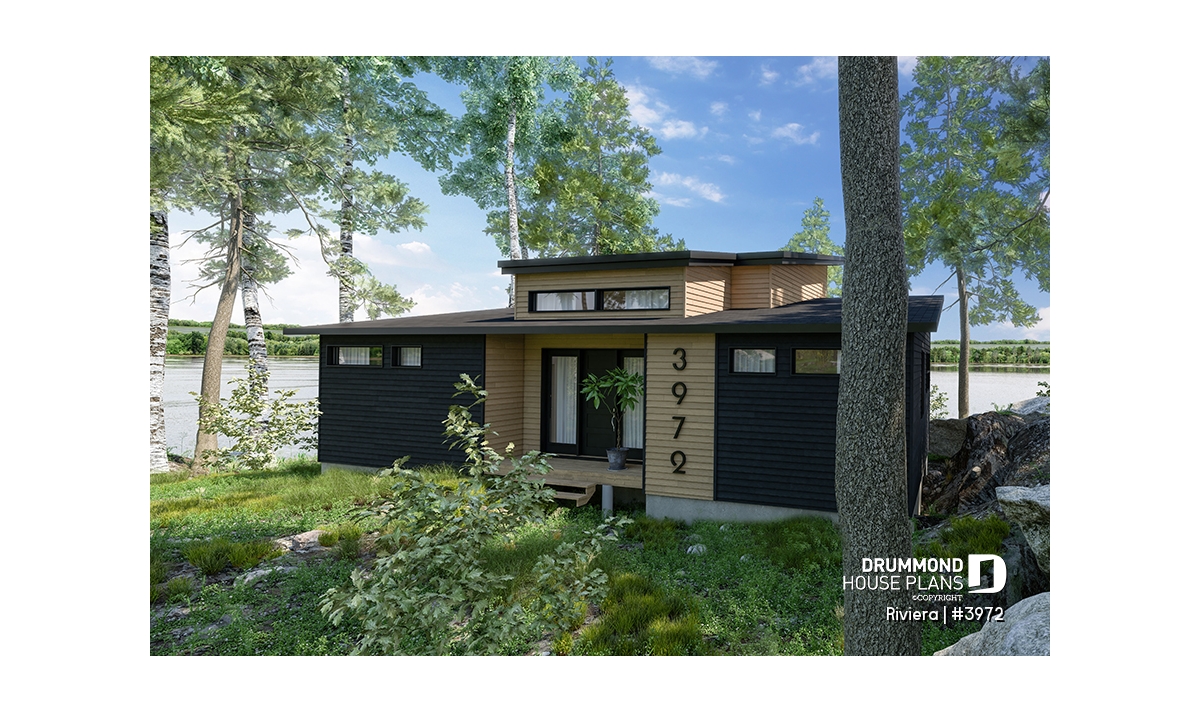

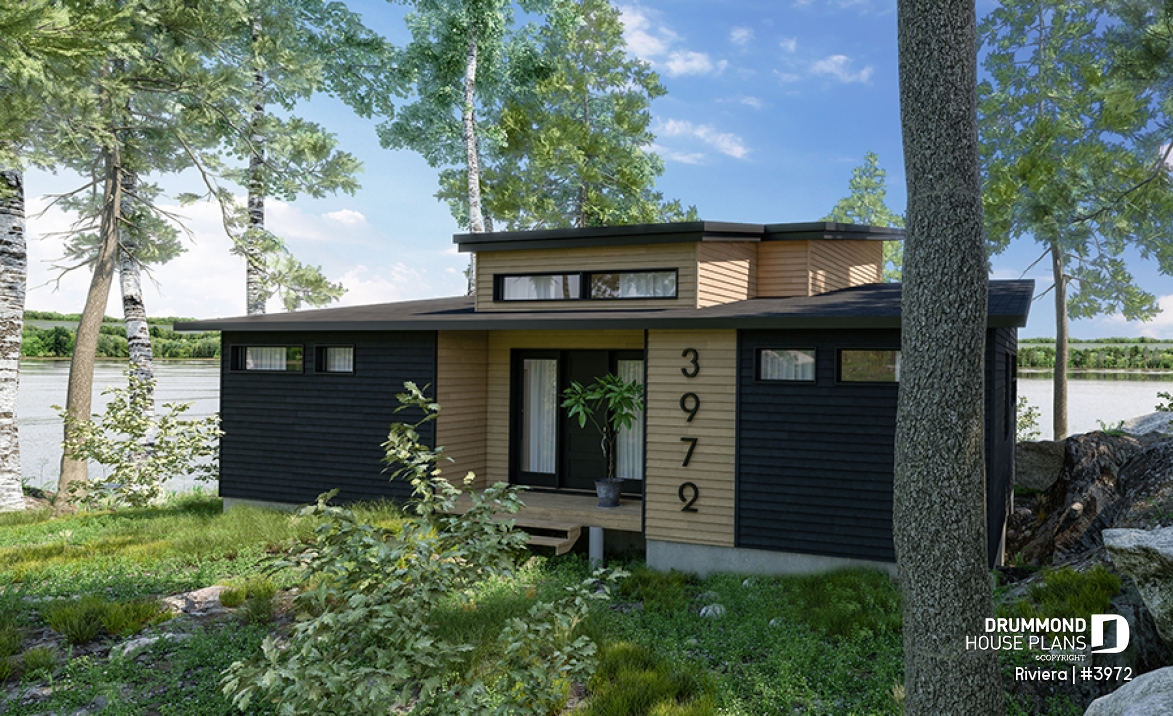

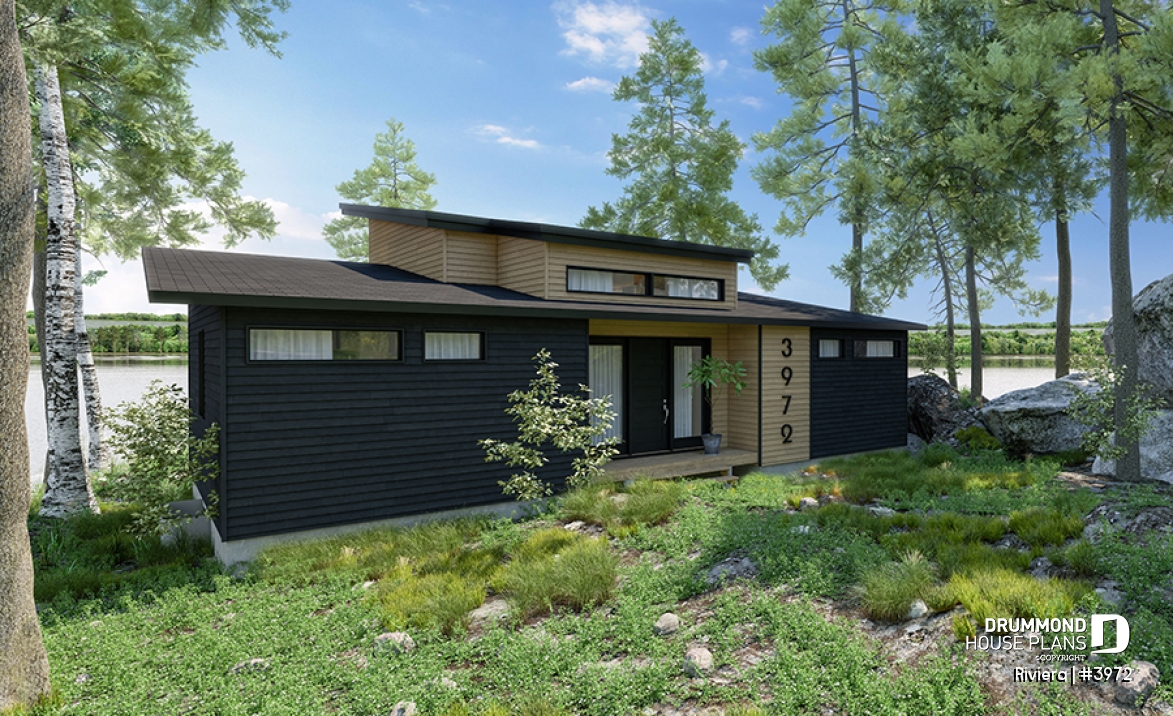

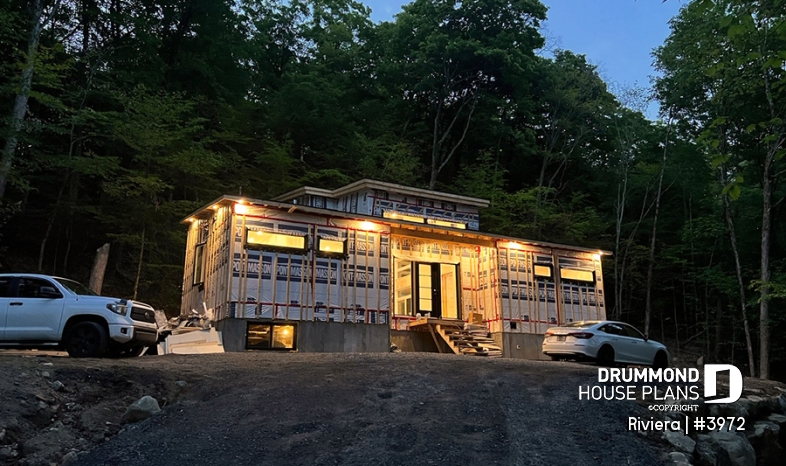

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

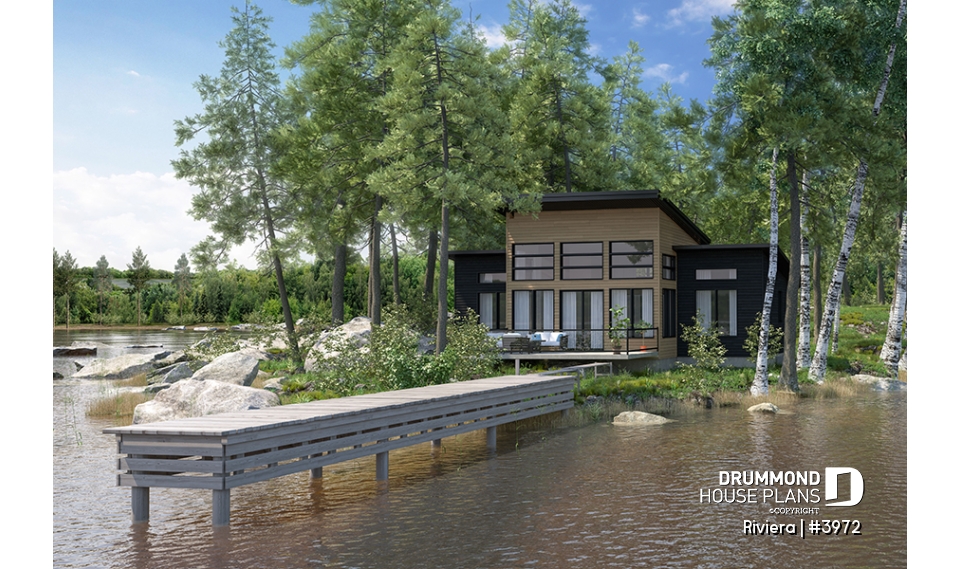

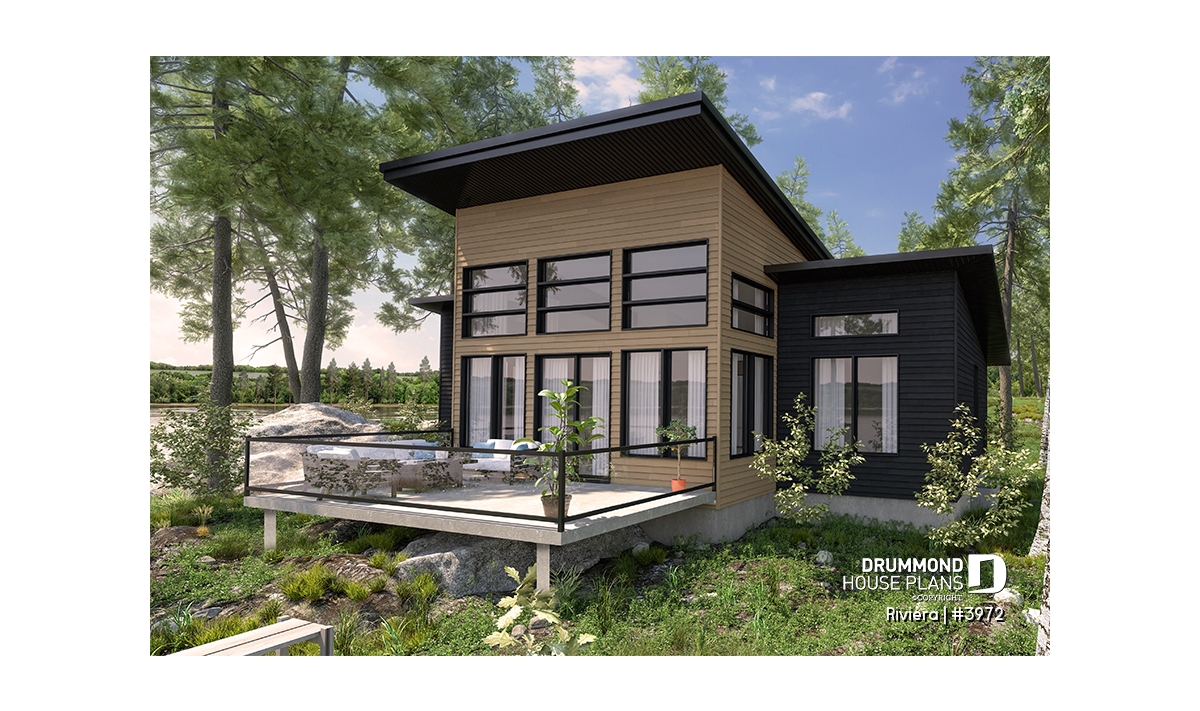

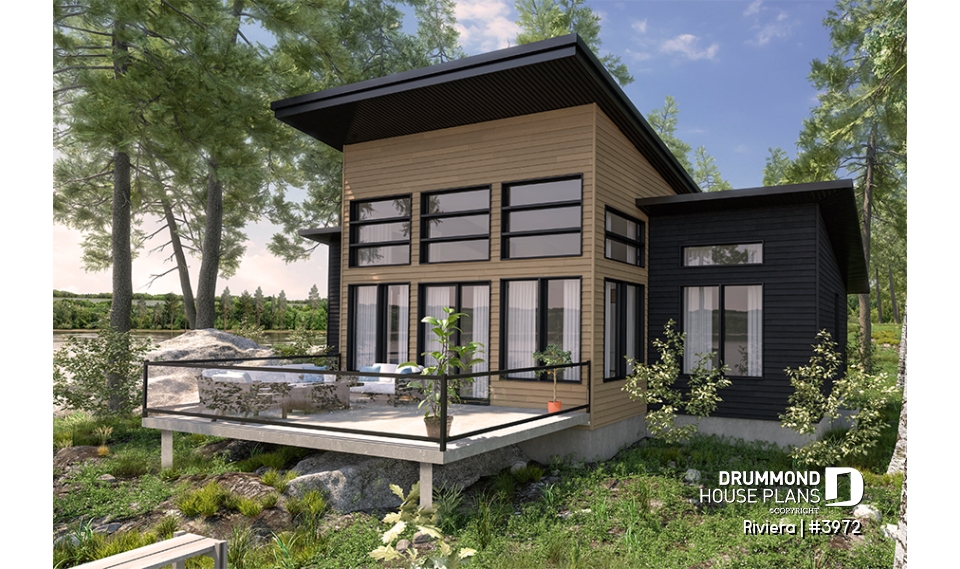

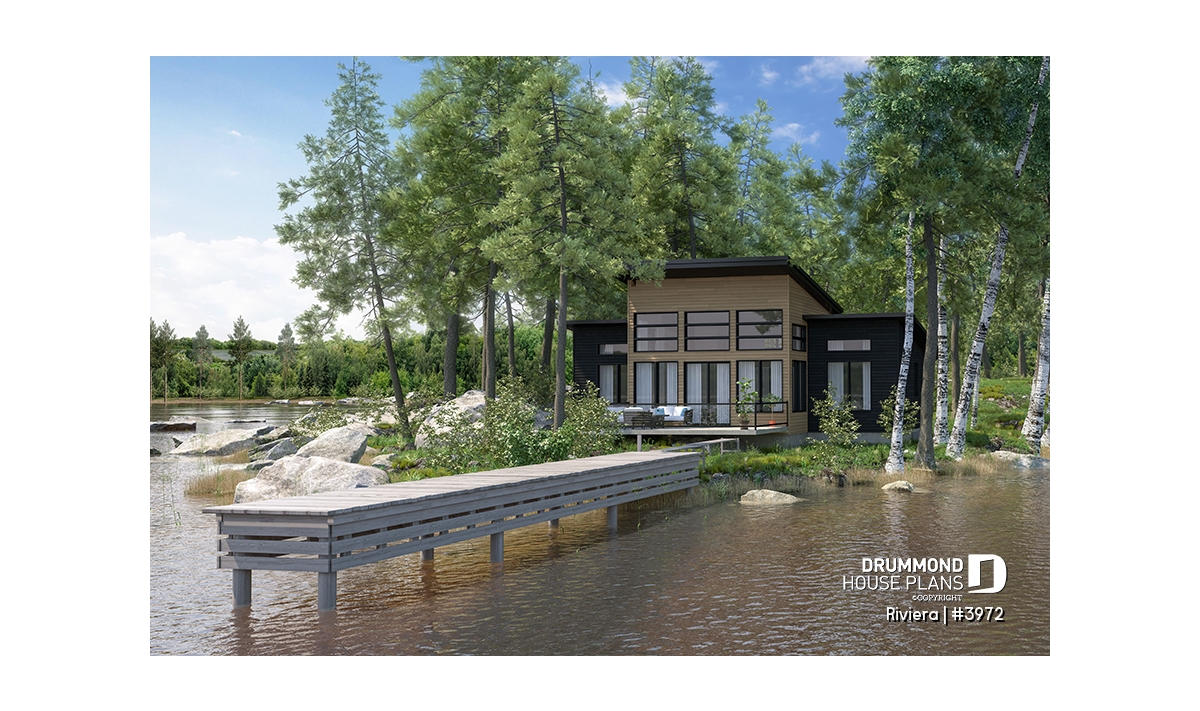

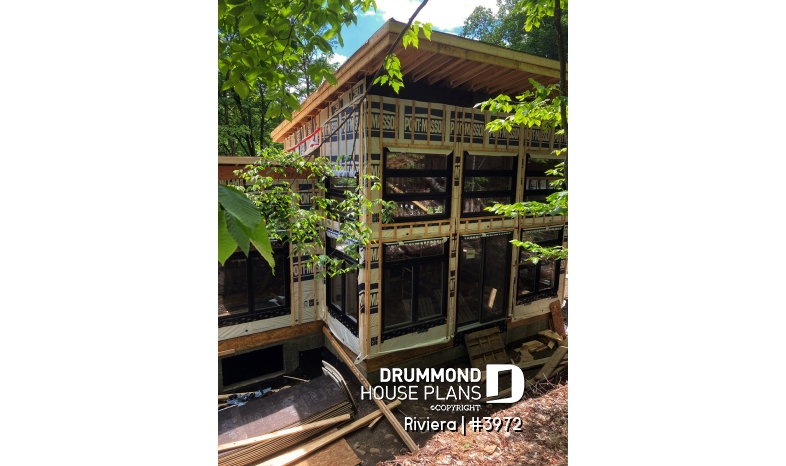

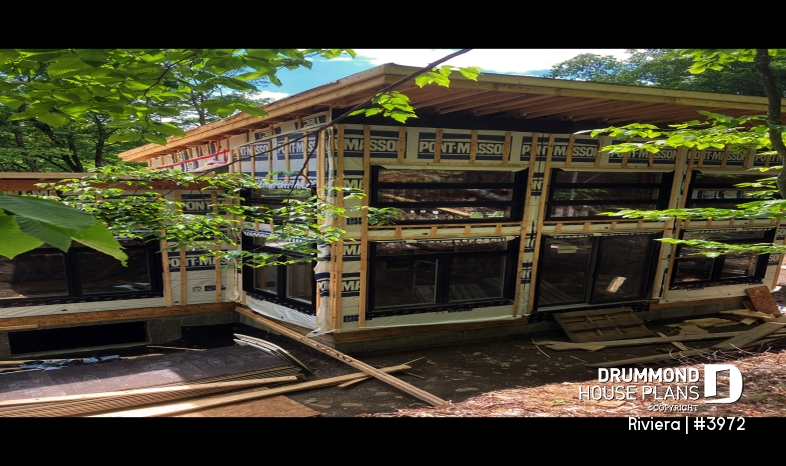

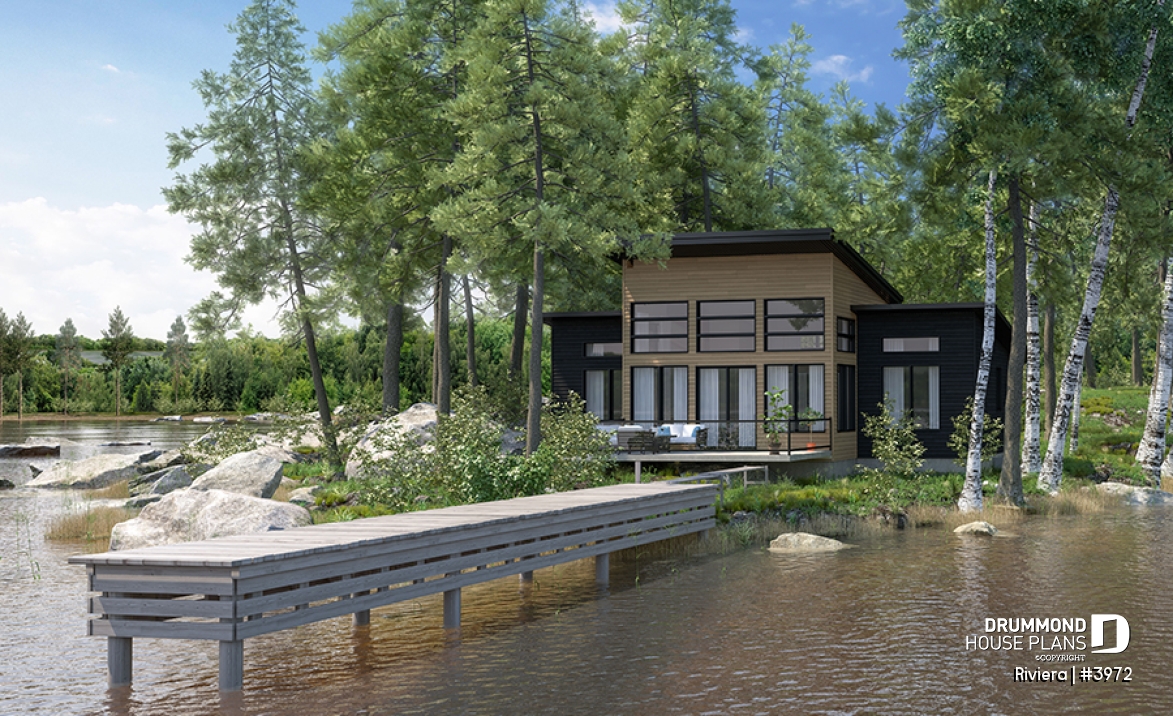

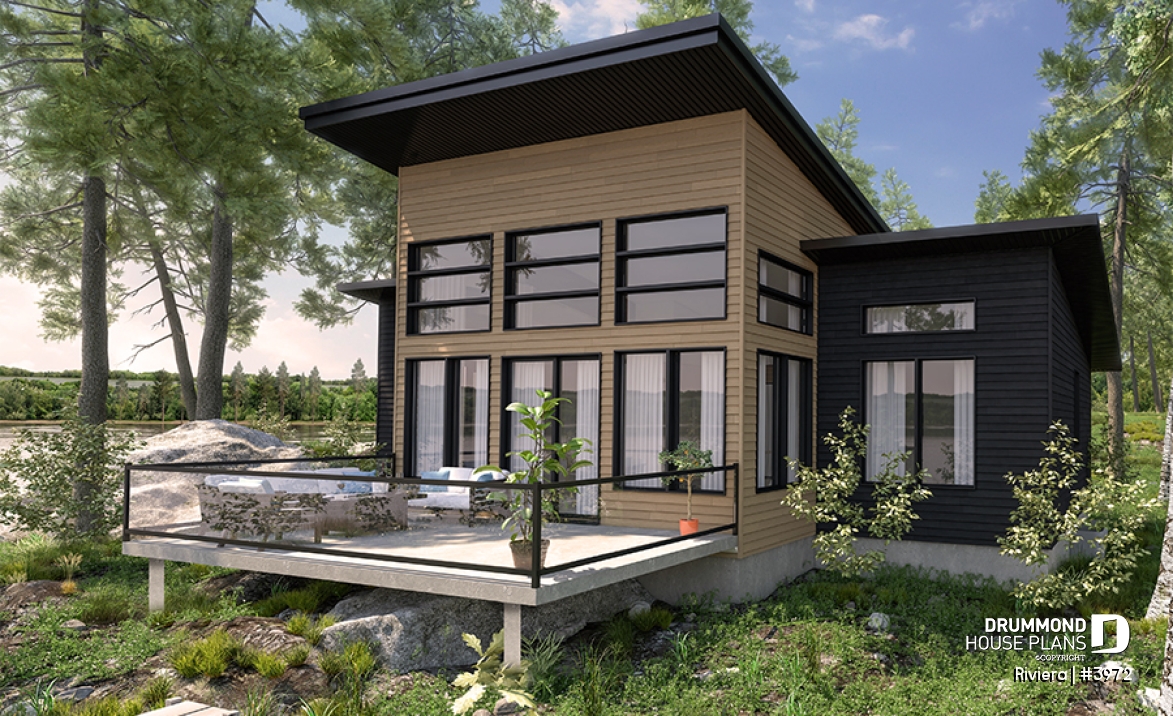

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

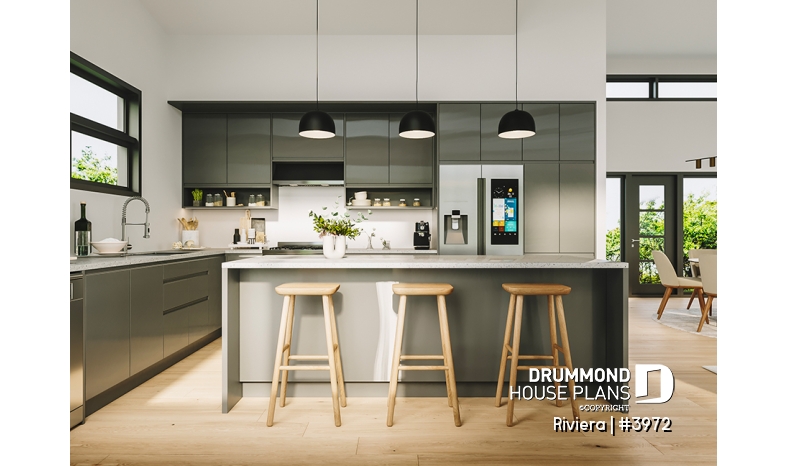

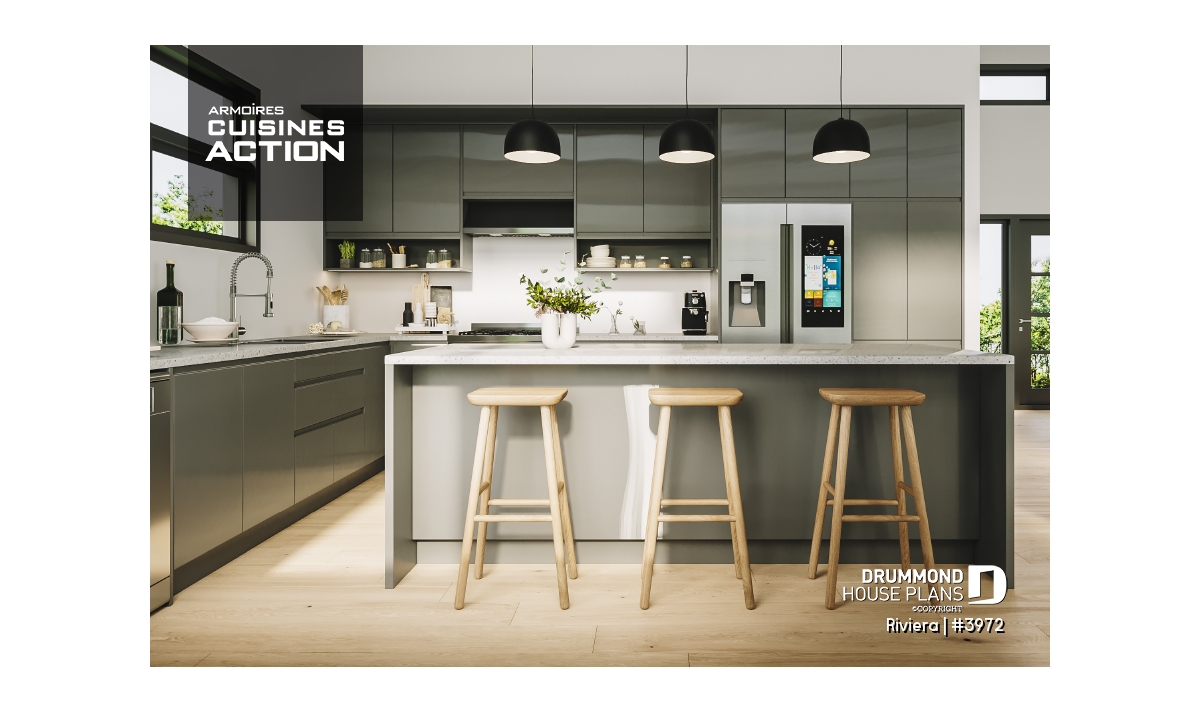

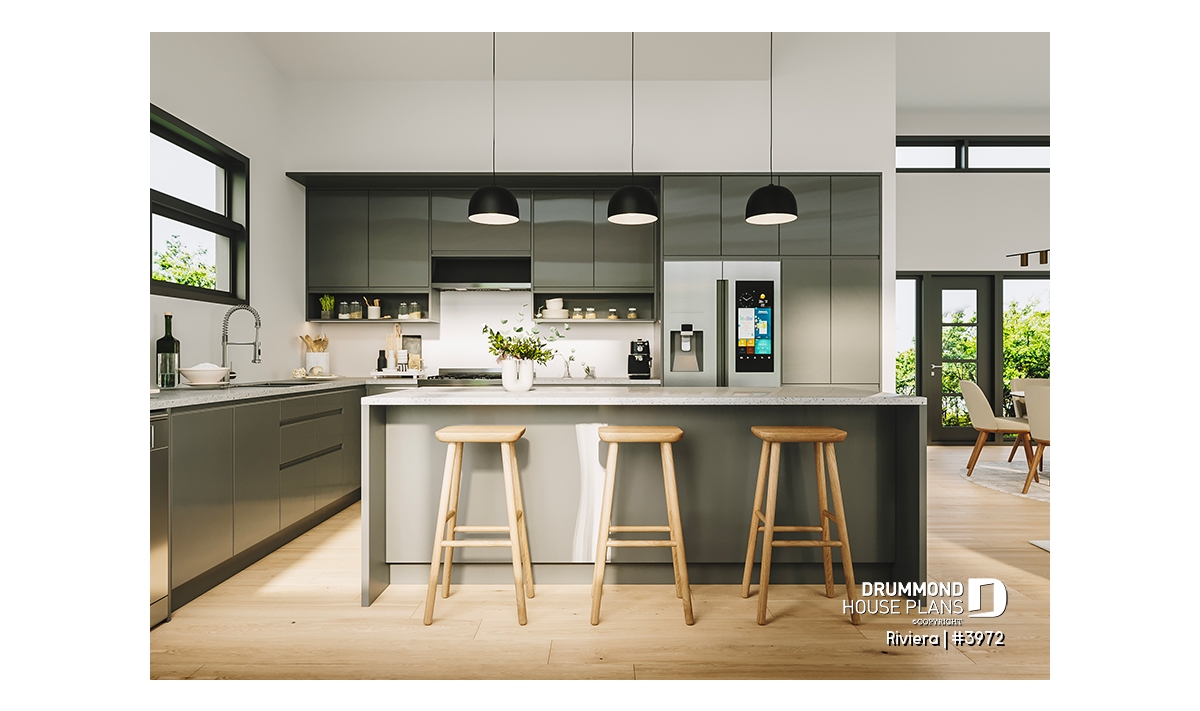

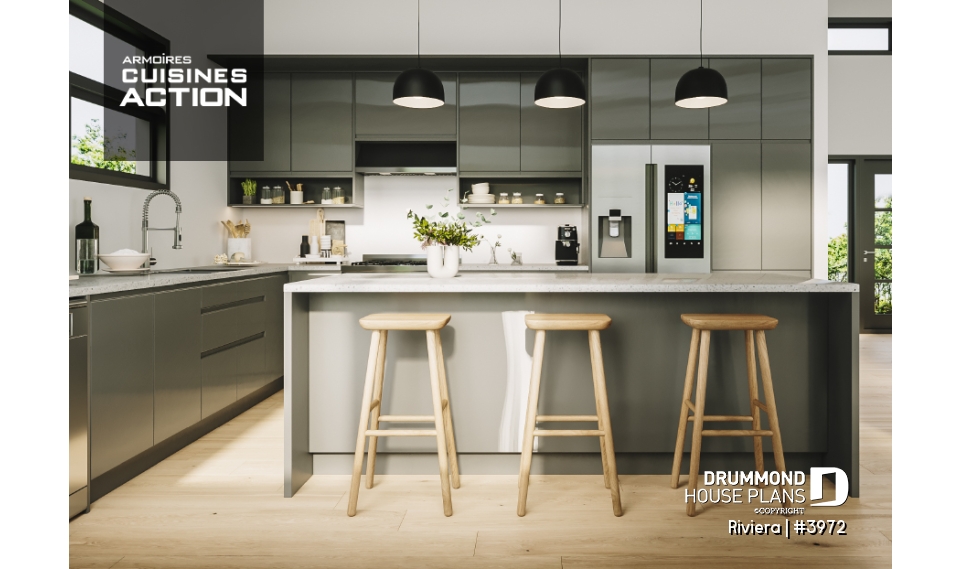

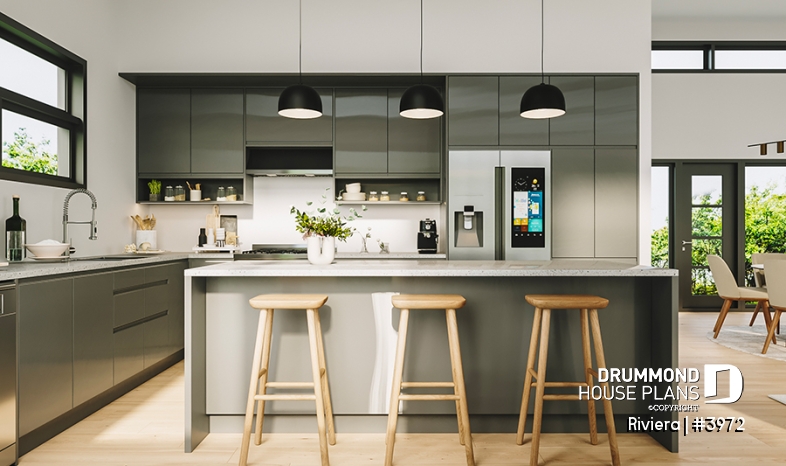

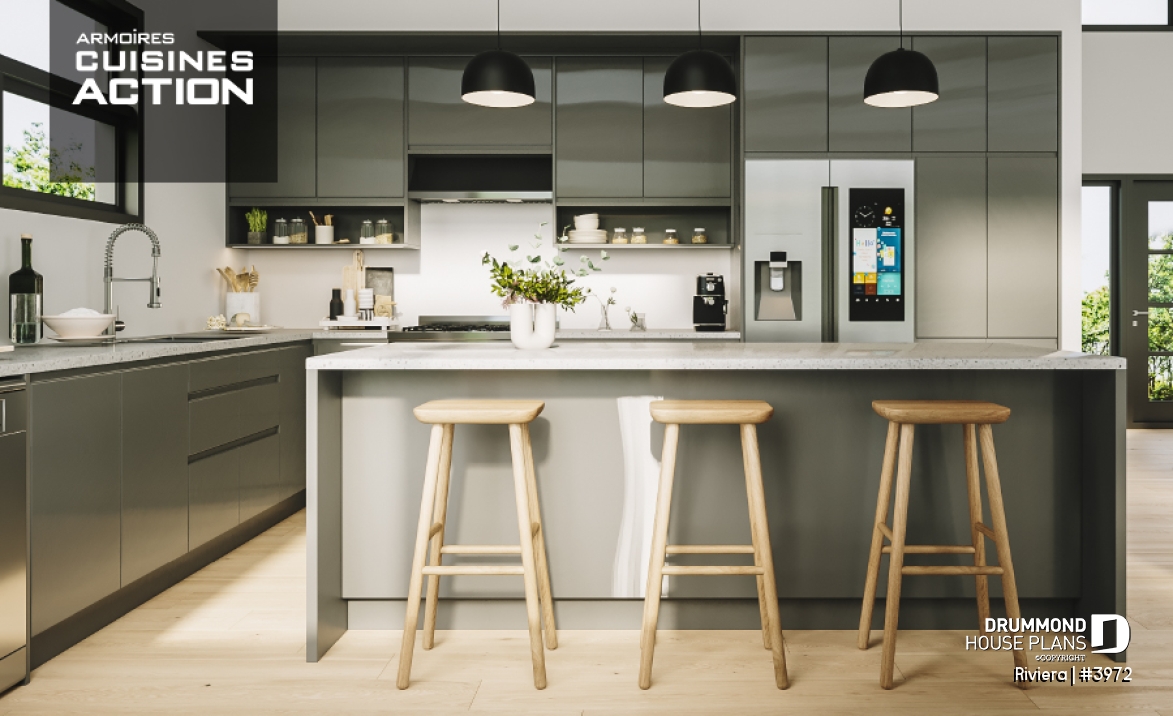

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

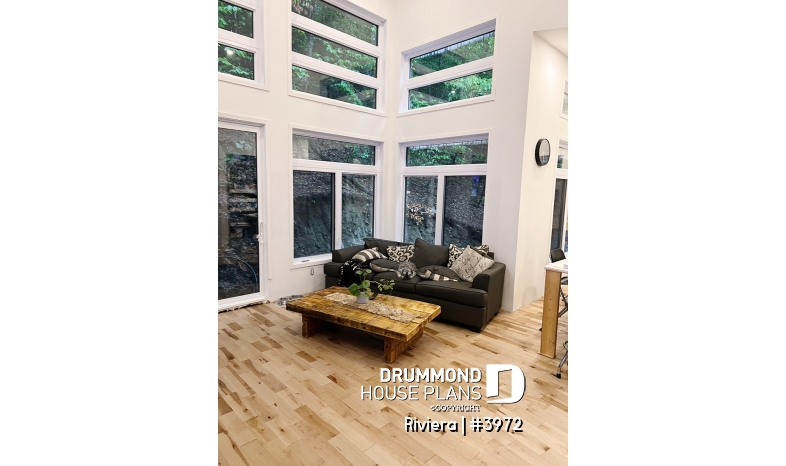

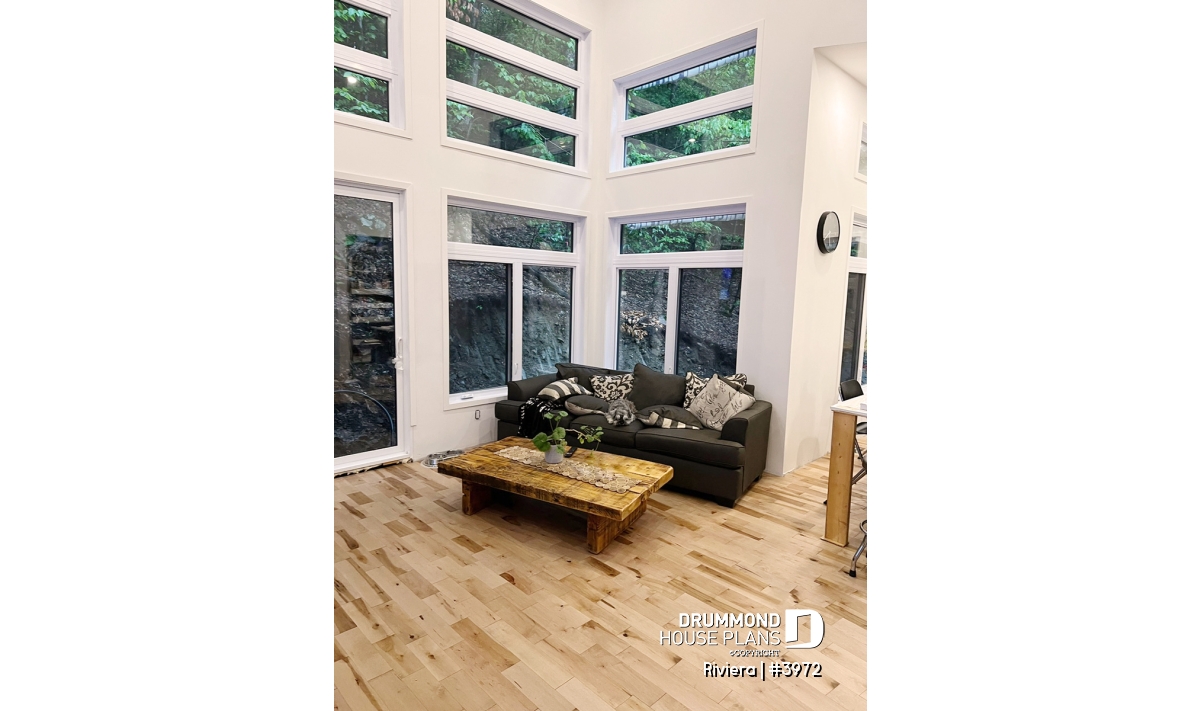

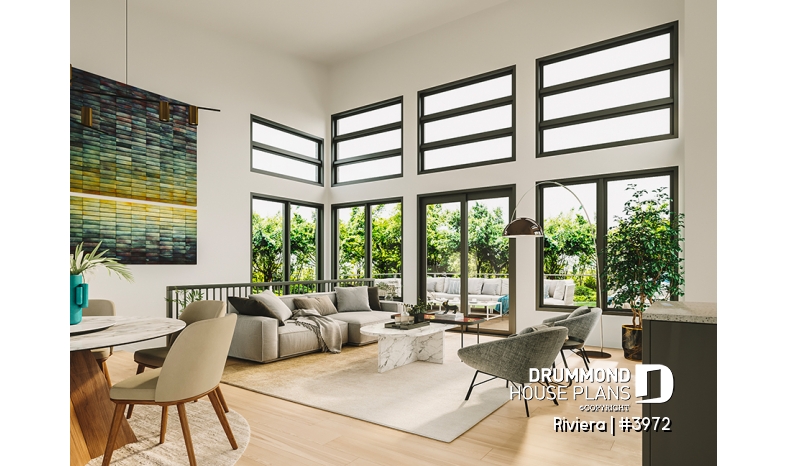

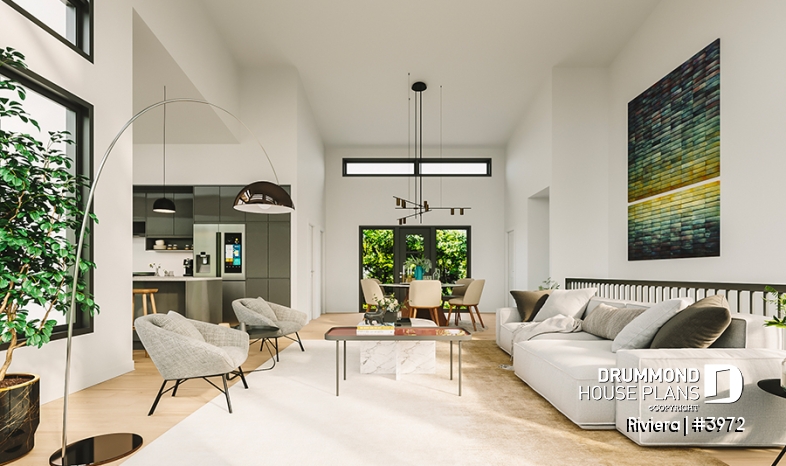

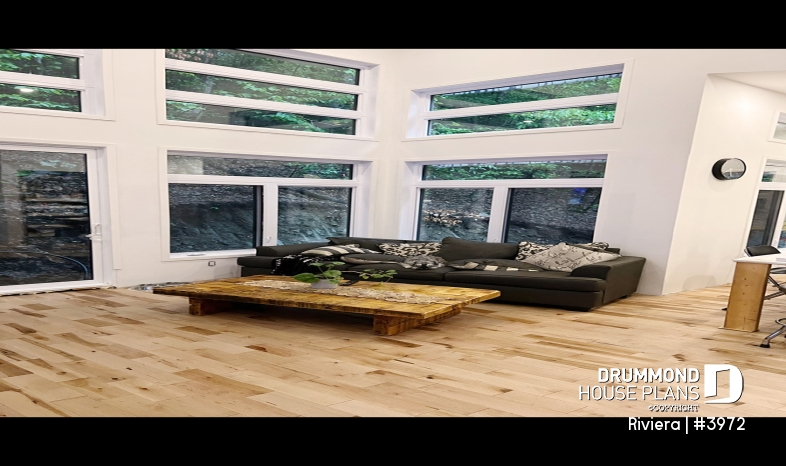

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

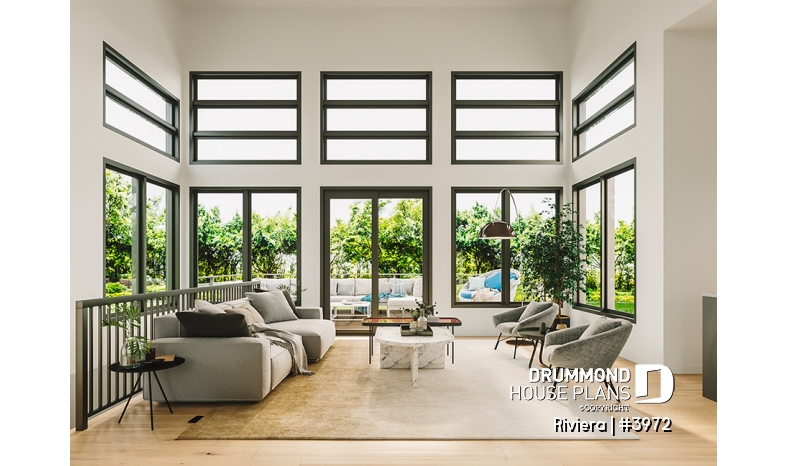

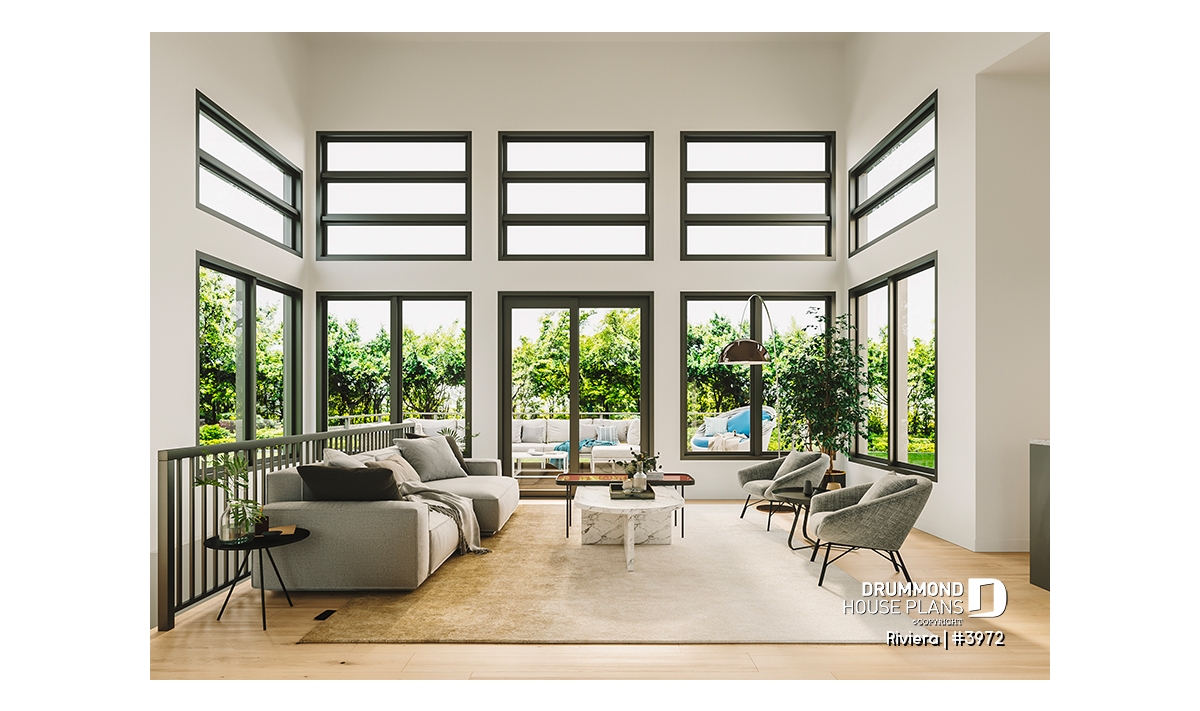

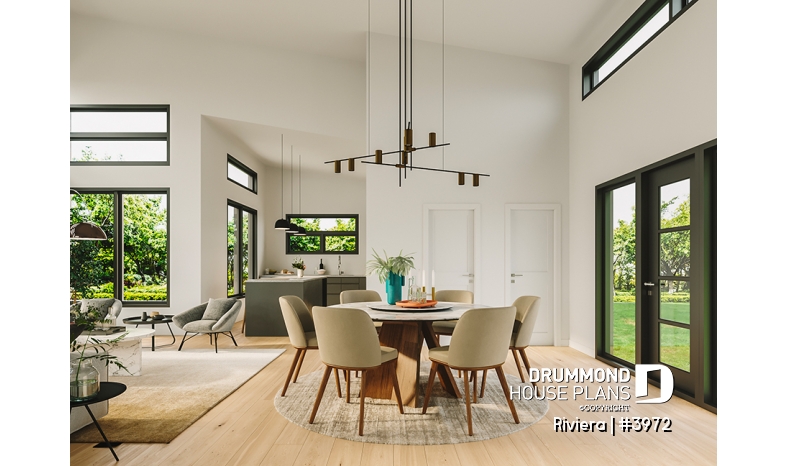

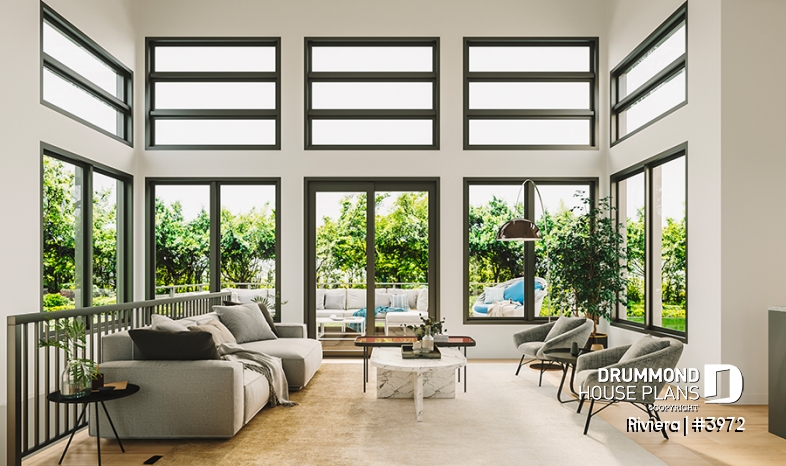

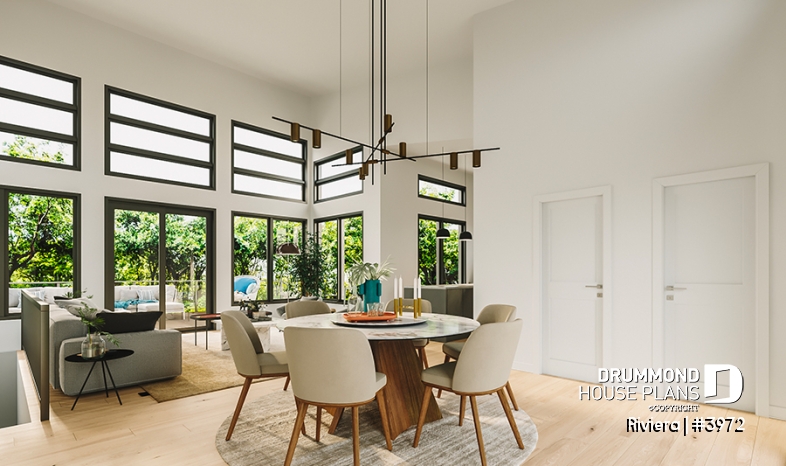

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

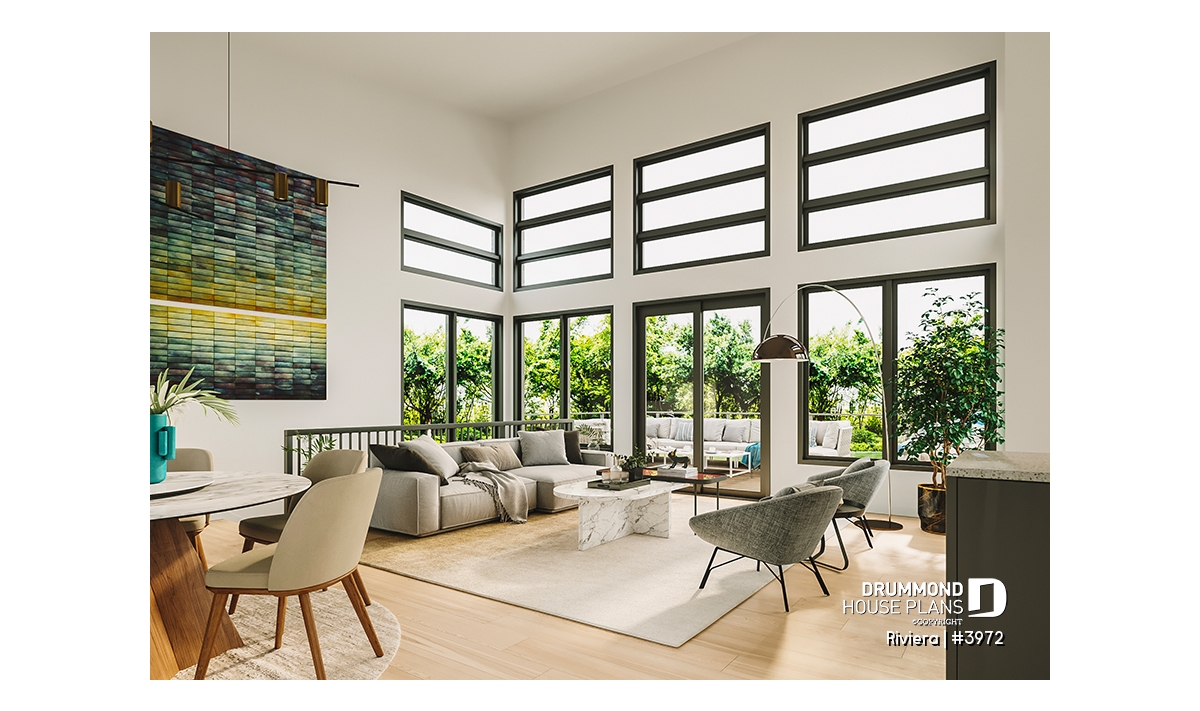

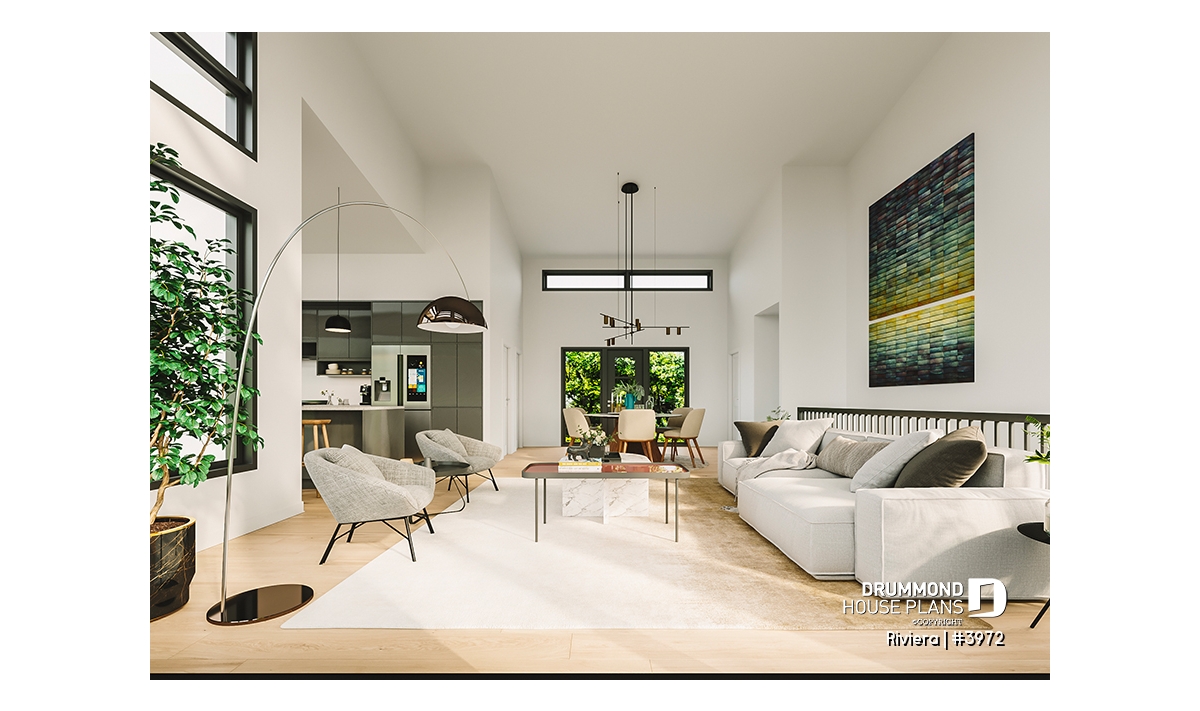

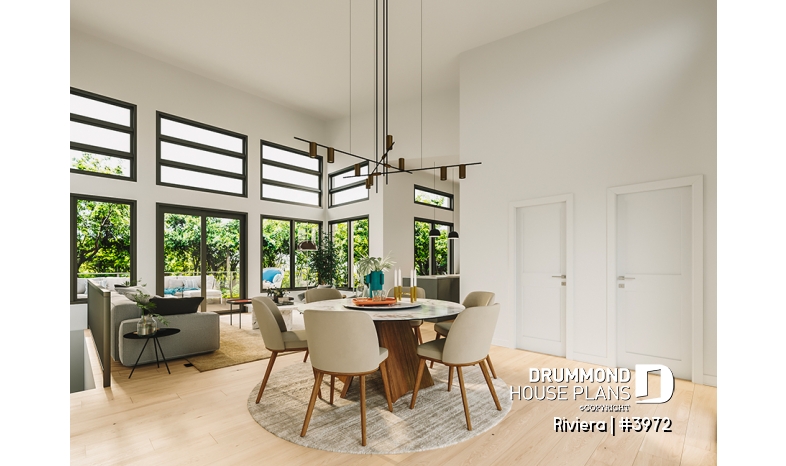

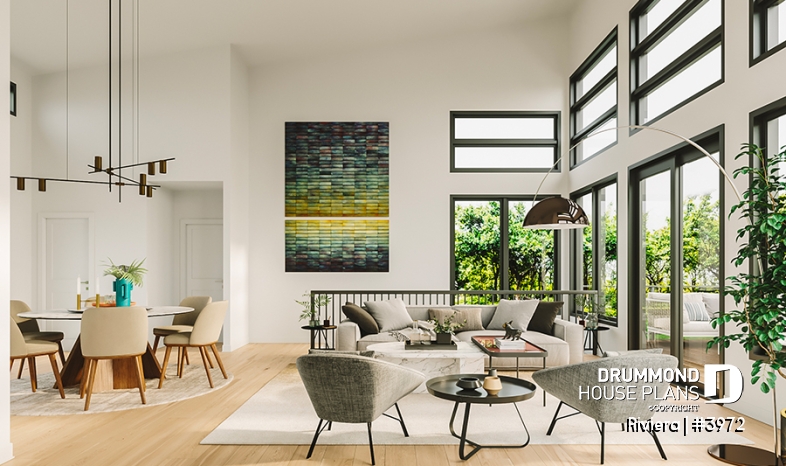

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

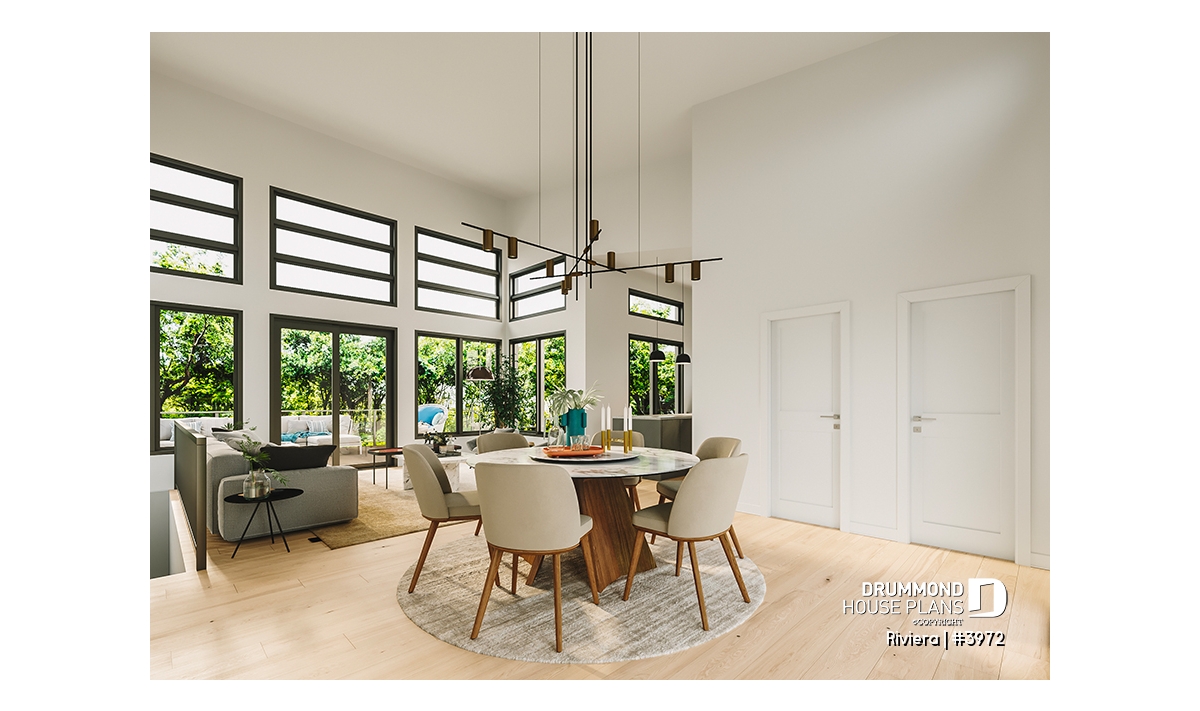

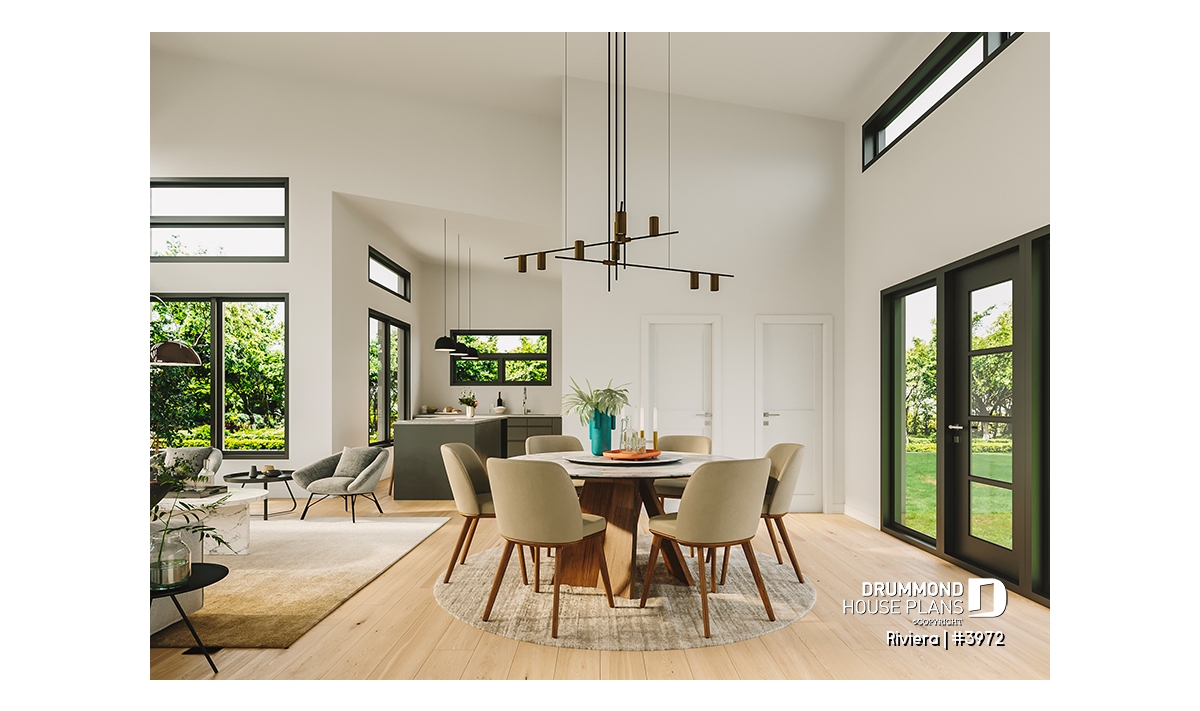

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Bright contemporary cabin house plan, modern cottage plan
Contemporary cottage house plan RIVIERA (plan # 3972) offers 1209 heated square feet on the ground floor, and the same in the unfinished basement.
This modern chalet plan stands out for its open space in the dining room, living room and kitchen area. The latter also has a large central island that can accommodate at least 4 people.
The layout offers a split bedroom floor plan thus promoting privacy for its occupants. The master bedroom has a large walk-in closet, as well as direct access to the bathroom via the latter. Bedroom # 2 is located at the front of the house and could serve as a home office as well as a guest bedroom.
The basement is to be fitted out according to your immediate or future needs depending on the vocation you wish to make of it. Note that we have several foundation options available for all of our plans.
Distinctive elements
Bright contemporary cabin house plan with panoramic views.
2 good size bedrooms.
Walk-in on main bedroom.
Lots of natural light.
Large island in kitchen.
Open floor plan concept.
Unfinished basement can provide space for additional bedrooms, family room and more..
Plan feature(s)
Island, Cathedral ceiling, Walk-in master bed., Open floor layout, Sloped ceiling, Self-Build
Plan architectural style(s)
. Cottage, chalet, cabin, . Scandinavian, . Modern / Design, . Modern rustic, . Vacation and waterfront, . Ski chalets, . Mountain, . Contemporary
