House plan NOYO (3968)
Affordable Small Modern Cottage, large covered deck, open floor plan, lots of natural lights
View the size of the rooms and height of the ceilings

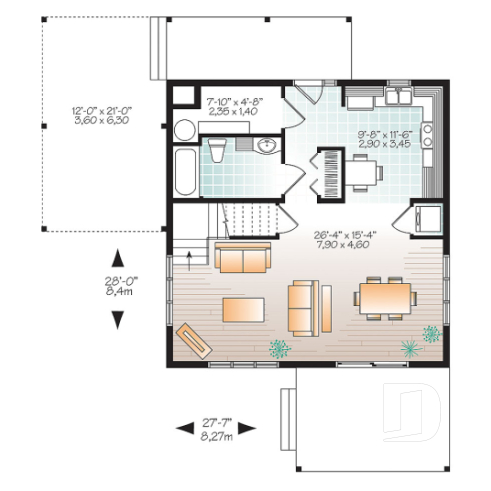

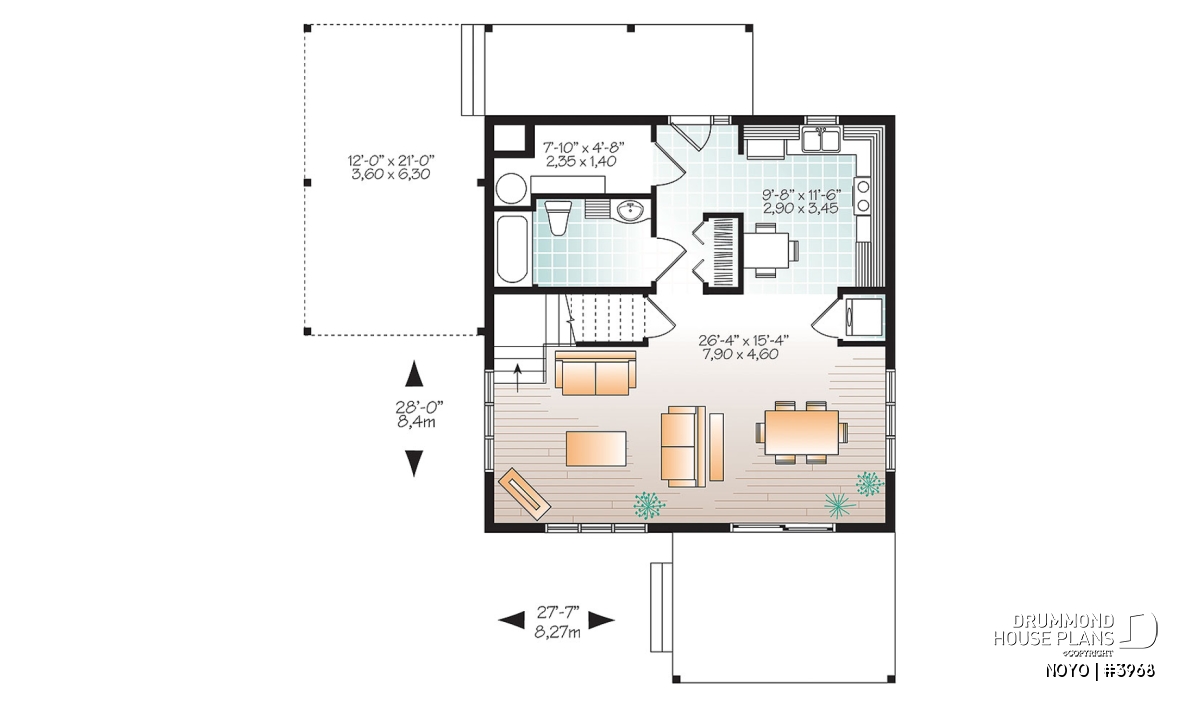

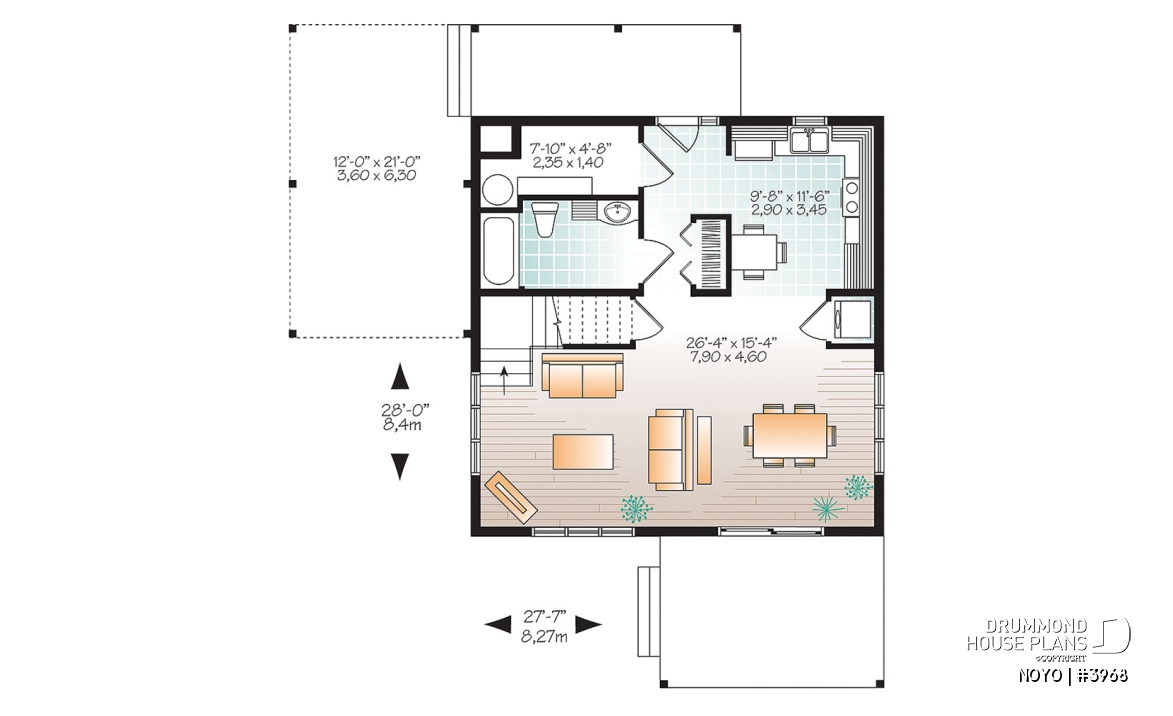

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 5'6" x 6'0" | ~ 8'0" |
| Closet | 2'0" x 4'8" | ~ 8'0" |
| Kitchen/dinette | 9'8" x 11'6" | ~ 8'0" |
| Pantry | 3'0" x 2'0" | N/A |
| Bathroom | 10'8" x 6'0" | ~ 8'0" |
| Linen | 1'8" x 1'4" | N/A |
| Mechanical room | 7'10" x 4'8" | ~ 8'0" |
| Living room/dining room | 26'4" x 15'4" | ~ 14'0" |
| Laundry space | 3'2" x 2'11" | ~ 8'0" |

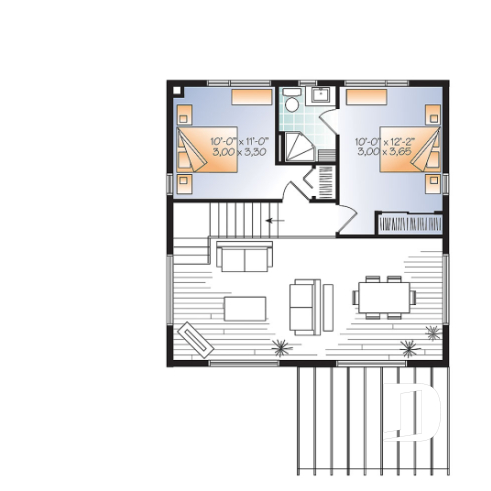

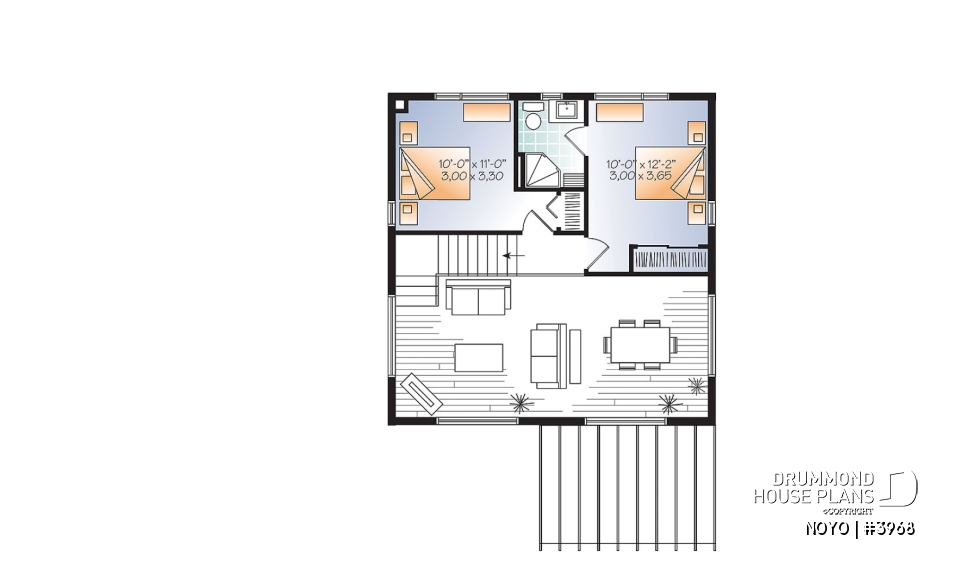

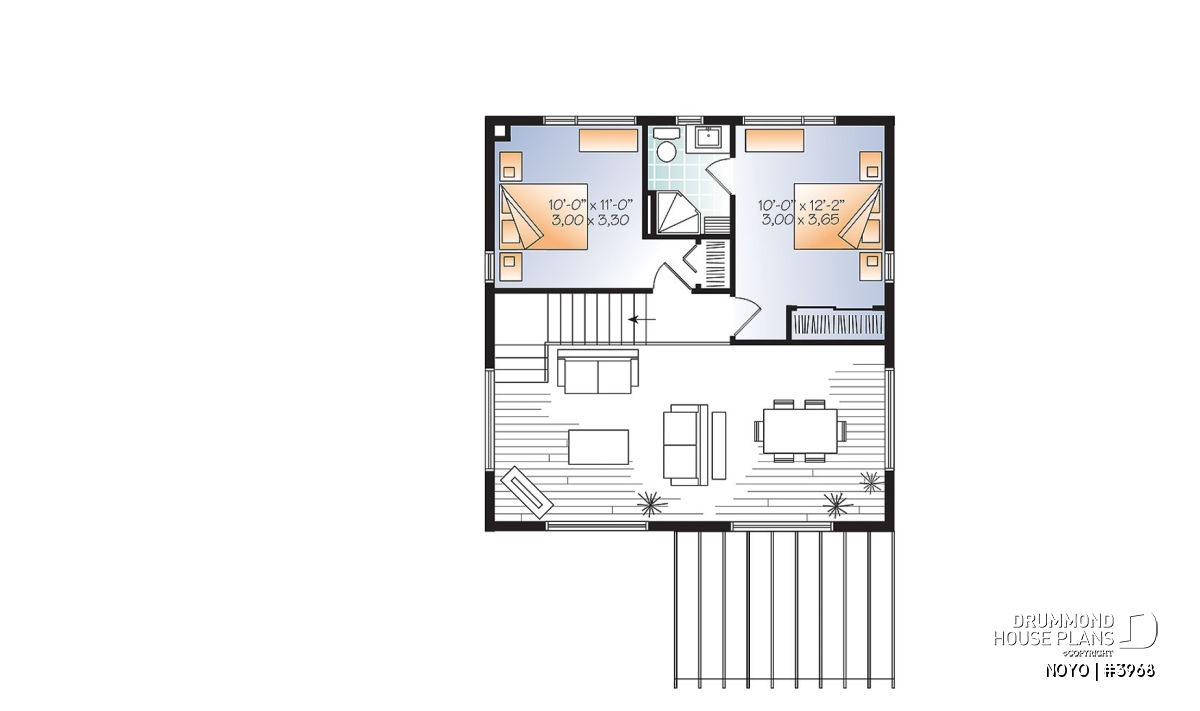

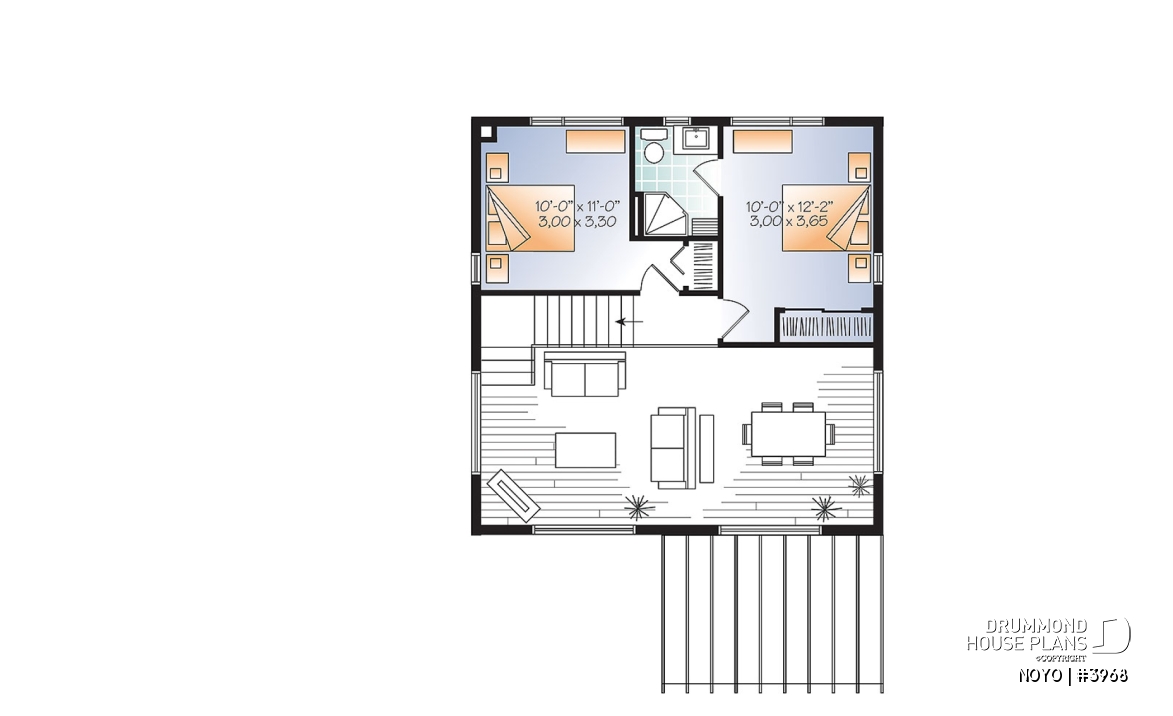

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 10'0" x 12'2" | ~ 9'0" |
| Closet | 6'4" x 2'0" | ~ 7'2" |
| Bedroom | 10'0" x 11'0" | ~ 9'0" |
| Closet | 2'0" x 3'4" | ~ 8'0" |
| Shower room or three quarter bath | 5'8" x 7'4" | ~ 9'6" |
| Linen | 1'9" x 1'2" | N/A |
General specifications
| Total living area | 1200 sq.ft. |
| 1st level | 772 sq.ft. |
| 2nd level | 428 sq.ft. |
| Width | 27'7" |
| Depth | 28'0" |
| Ridge height from top of foundation | 22'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Crawl space i |
| Other available foundations (a fee may apply) | Full Basement, Floating Slab, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Modular style modern chalet, scandinavian inspired cottage plan
To this model we have added an entrance foyer, an open floor plan living/ dining room with cathedral ceiling along with a mezzanine that has two bedrooms, one a master suite with a full bathroom that includes a corner shower.
Outside, a lovely pergola adds to the cachet of the rear terrace and the carport extends from the side to give ample shelter from the elements at the main entrance. The choice of materials including and shades add a warm yet contemporary feeling to this unique design.
Distinctive elements
Cathedral ceiling in the living/dining area.
Mud room near main entrance.
Full bathroom and laundry closet on first floor.
Kitchen with breakfast nook.
Open dining and living room layout.
Nice large pergola deck.
Master bedroom with ensuite.
Plan feature(s)
Open floor layout, Gound floor laundry room, Mud room, Panoramic view, Pergola, Cathedral ceiling, Mezzanine, Ceiling over 8', Master suite upstairs
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Modern / Design, . Ski chalets, . Scandinavian, . Contemporary, . Mid-century
