House plan Billy (1709)
Small modern house plan for corner lot, master suite, open space, huge windows, panoramic view
View the size of the rooms and height of the ceilings

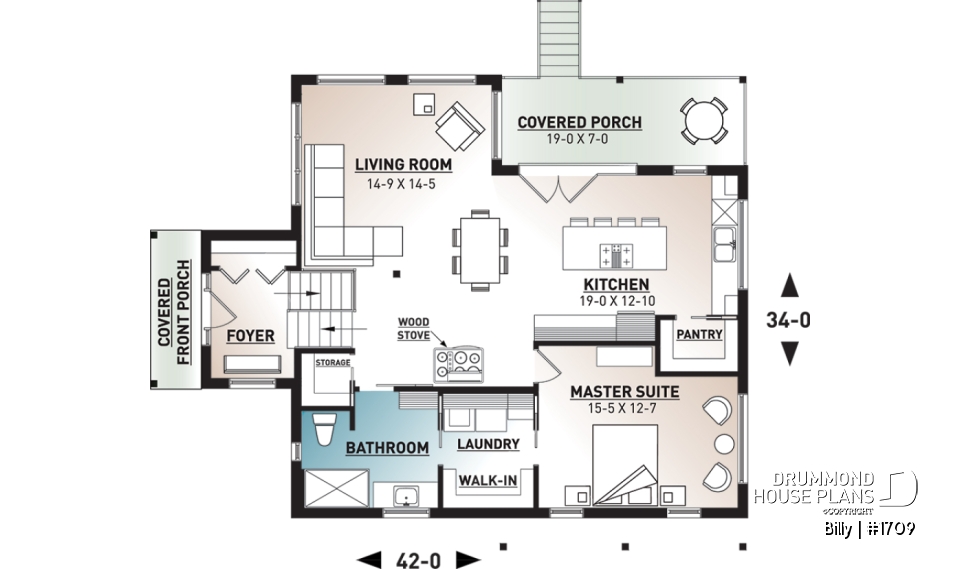

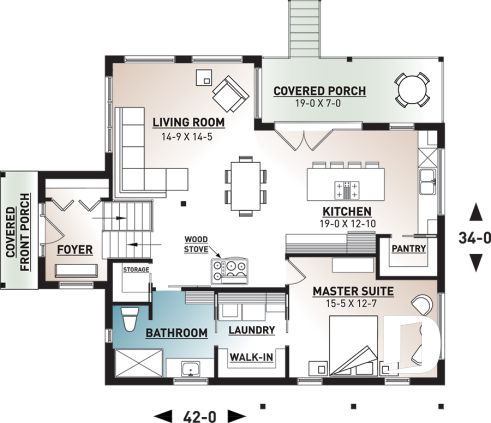

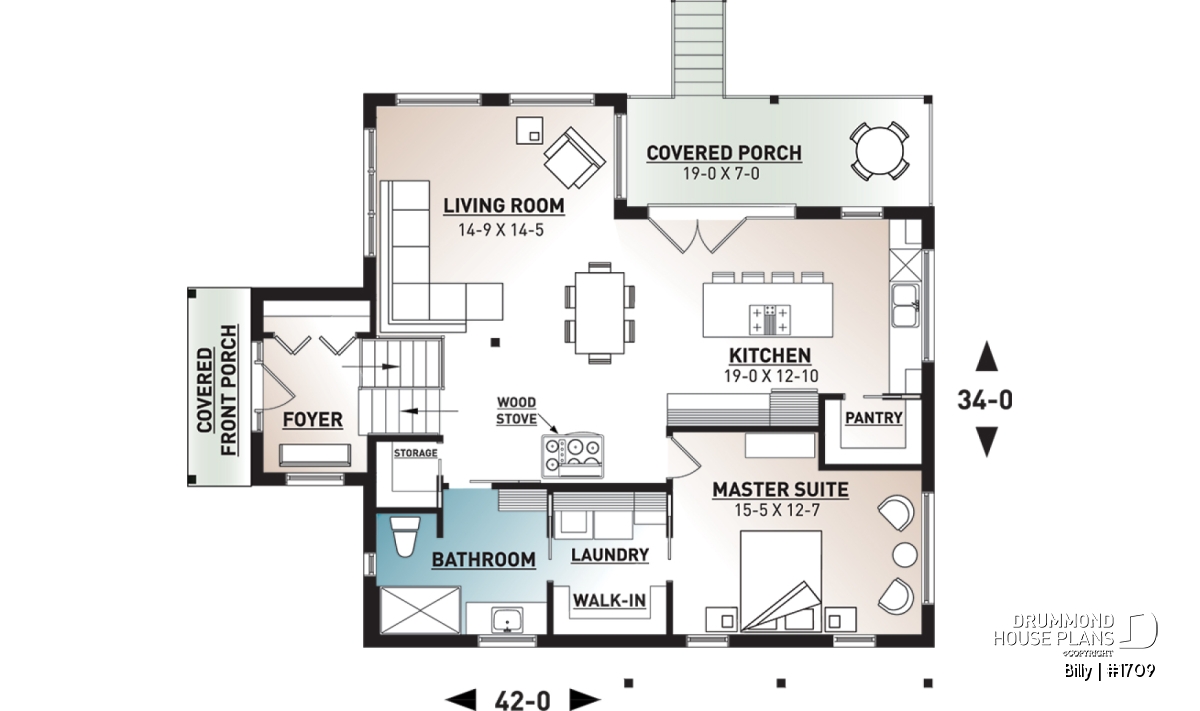

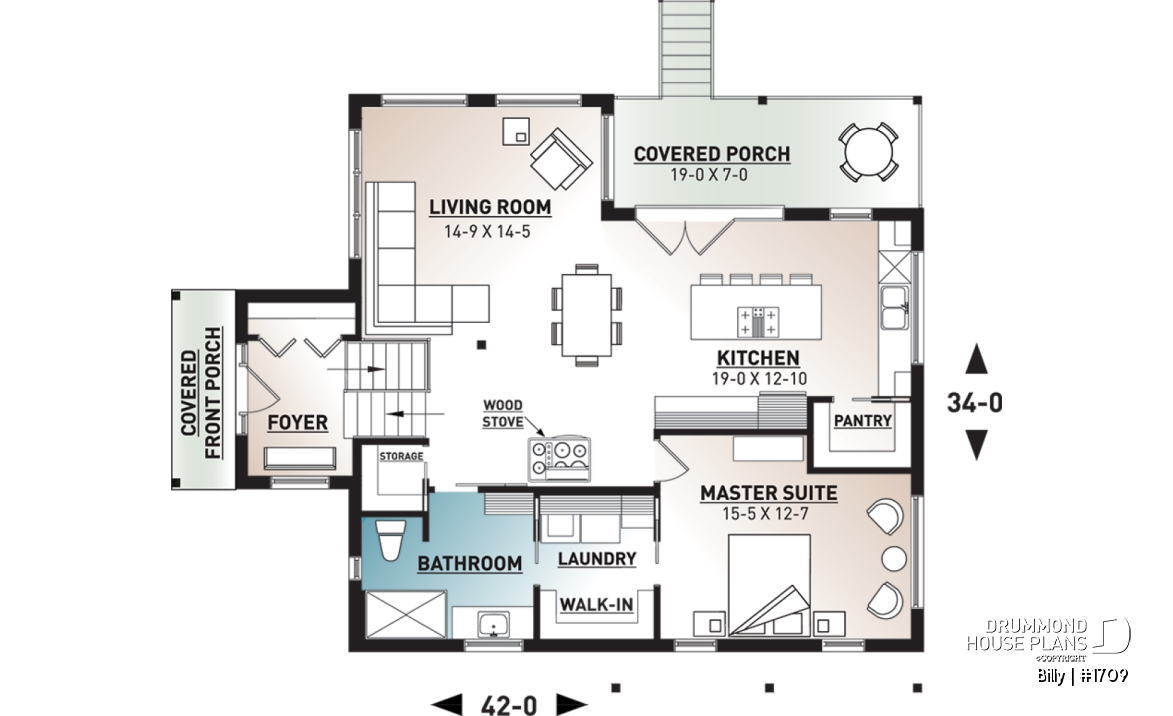

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 15'5" x 12'7" | ~ 8'0" |
| Kitchen/dining room | 19'0" x 12'10" | ~ 8'0" |
| Pantry | 6'0" x 4'0" | ~ 8'0" |
| Living room | 14'9" x 14'5" | ~ 8'0" |
| Full bathroom | 10'7" x 9'0" | ~ 8'0" |
| Foyer | 6'0" x 8'4" | ~ 13'8" |
| Closet | 6'8" x 2'0" | ~ 8'8" |
| Covered porch | 4'0" x 12'0" | N/A |
| Covered deck | 19'0" x 7'0" | N/A |
| Laundry room | 7'0" x 8'10" | ~ 8'0" |
| Storage | 3'9" x 4'1" | ~ 8'0" |
| Basement |
|---|
General specifications
| Total living area | 1141 sq.ft. |
| 1st level | 1141 sq.ft. |
| Basement | 1141 sq.ft. |
| Width | 42'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 21'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab |
| Builder price code | B |
Rooms specifications

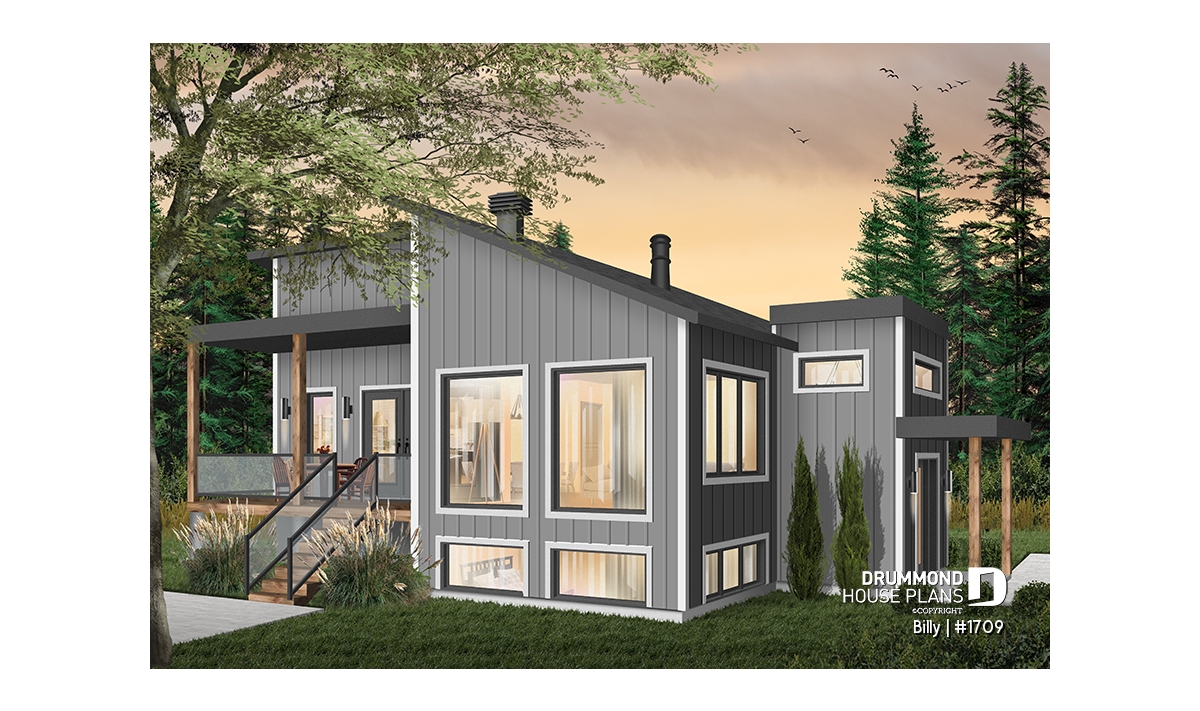

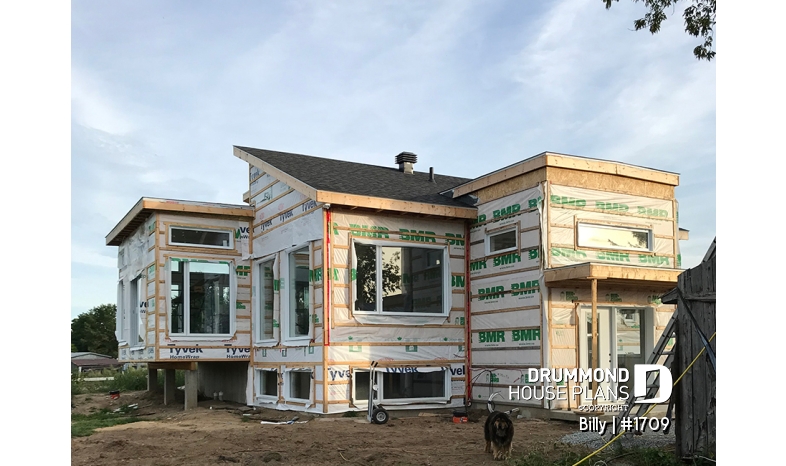

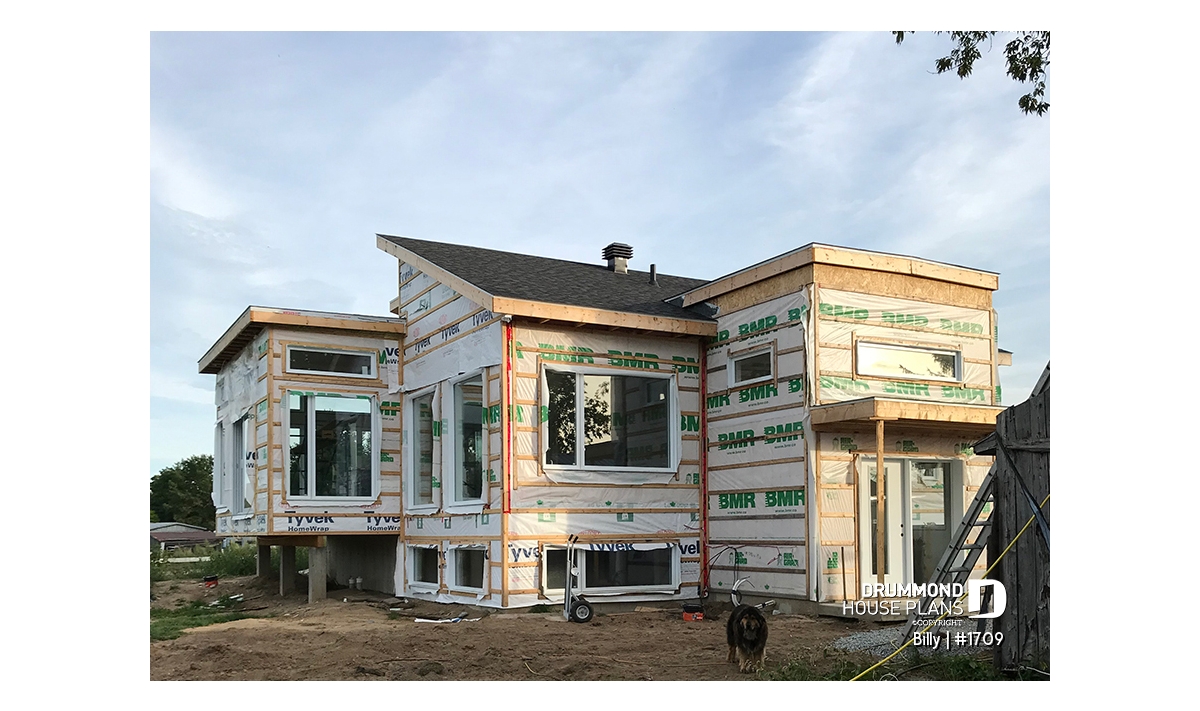

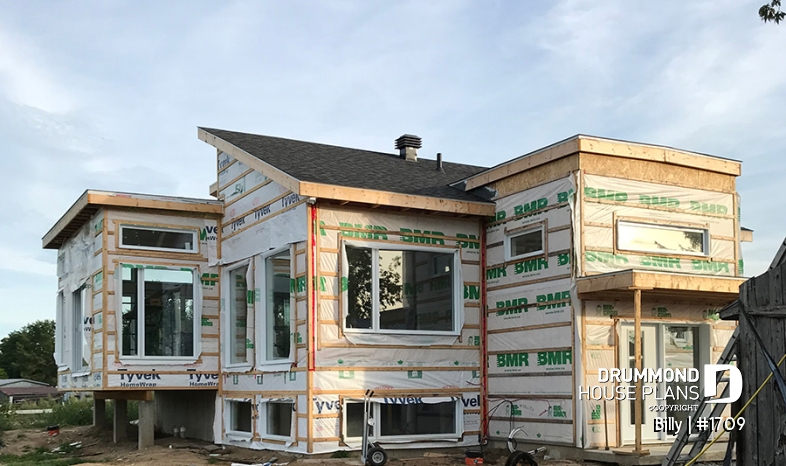

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

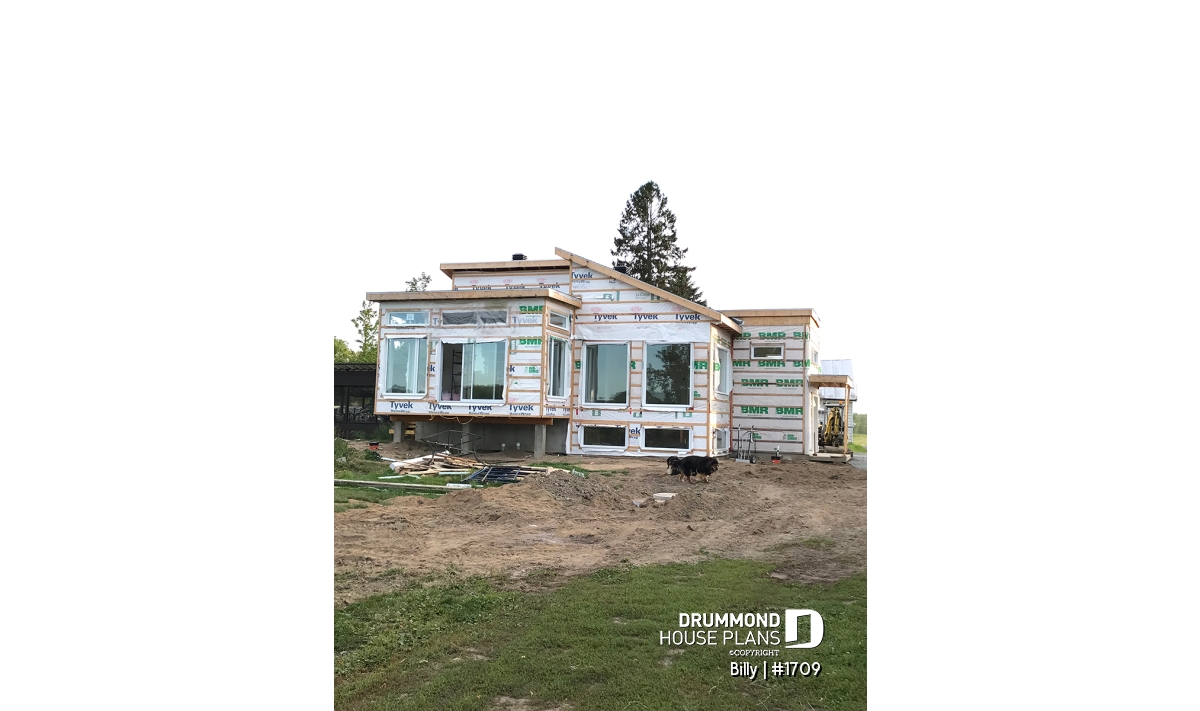

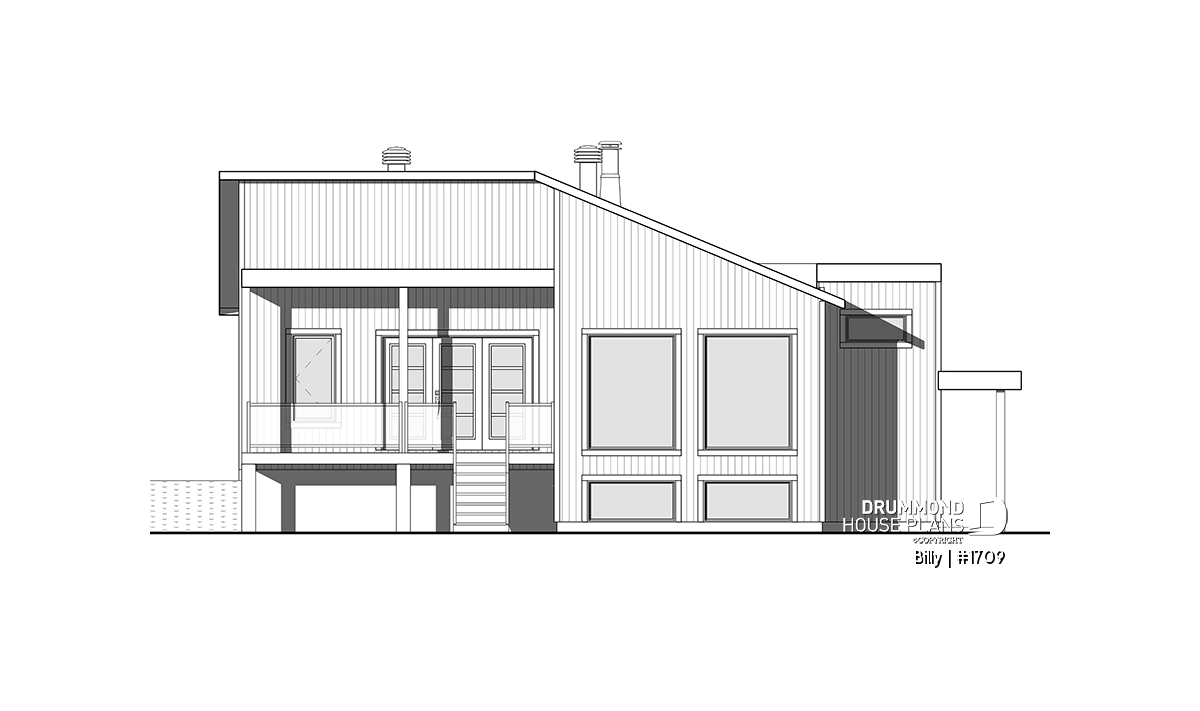

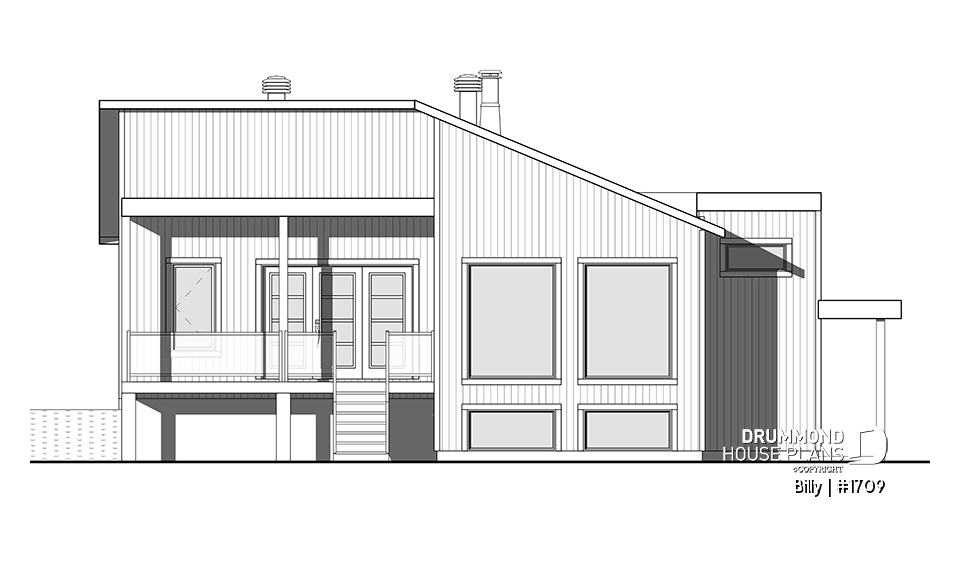

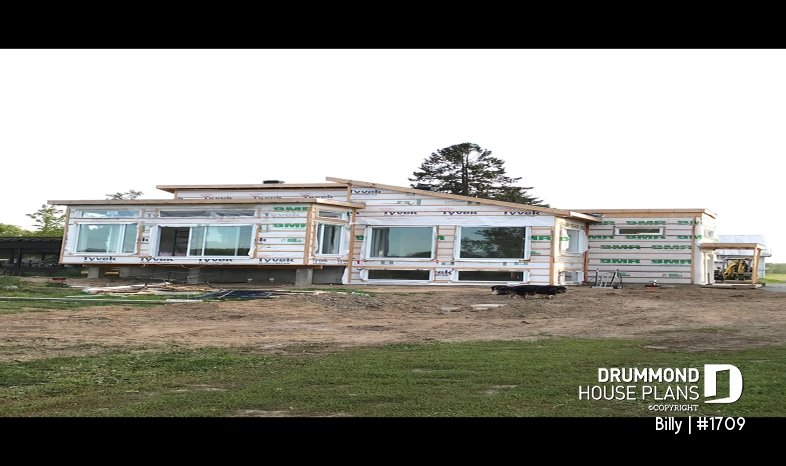

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

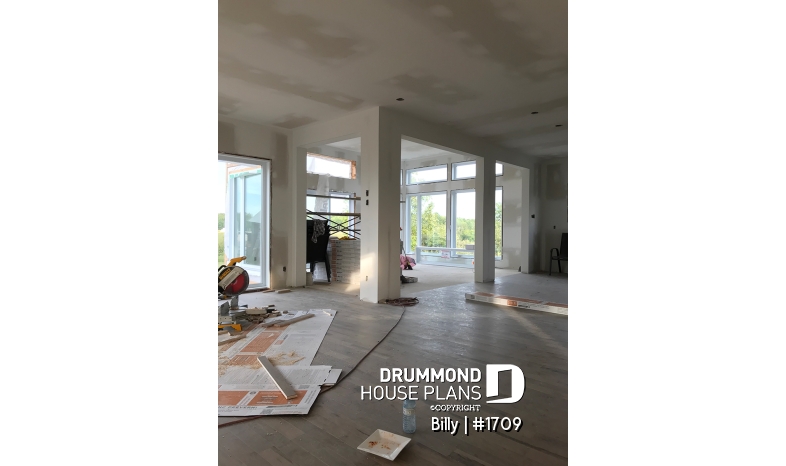

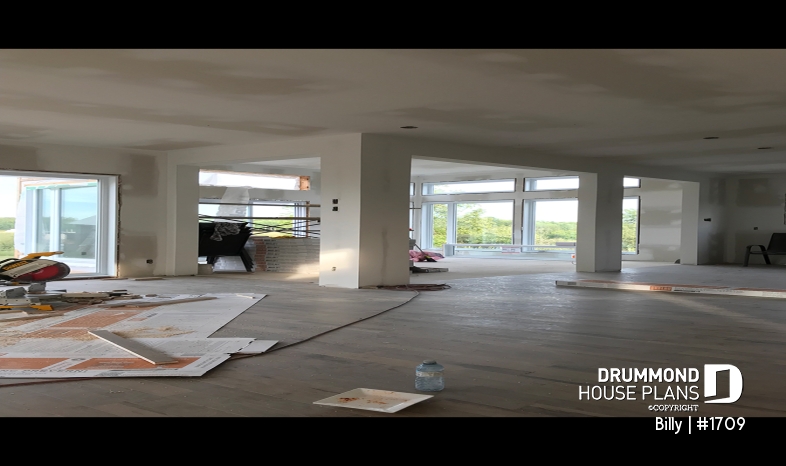

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

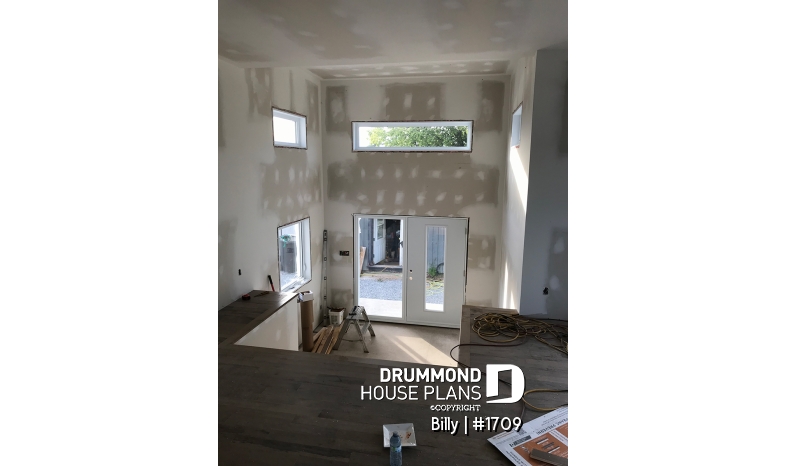

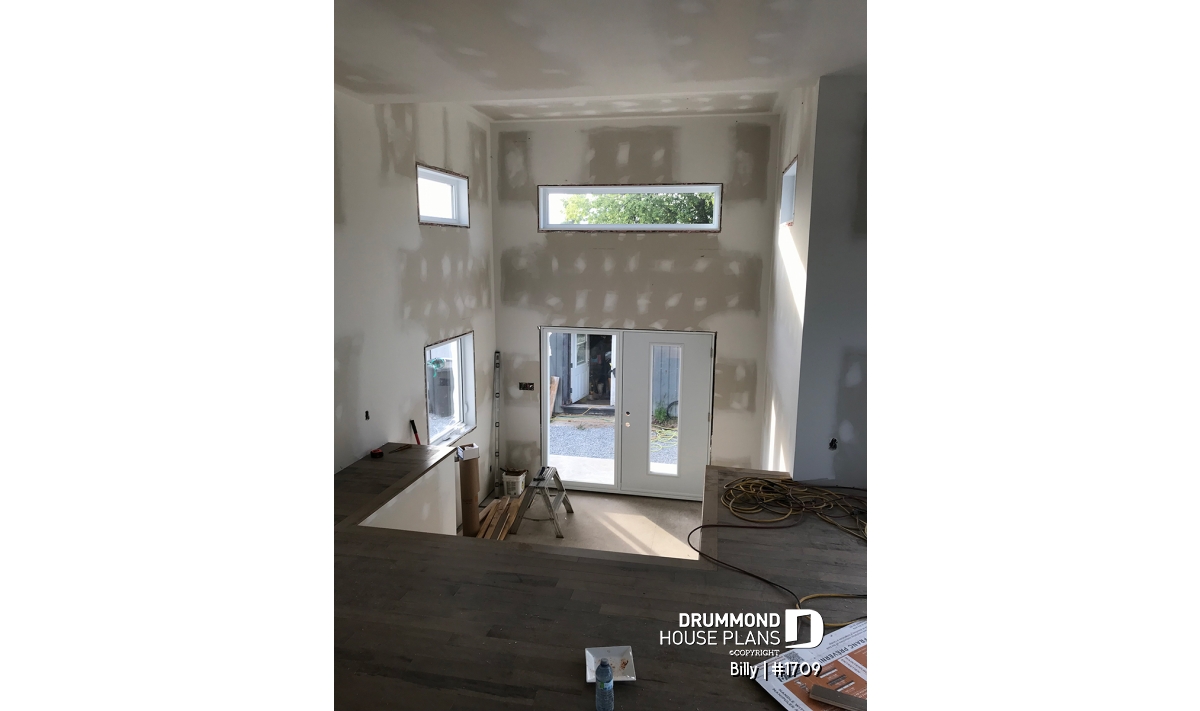

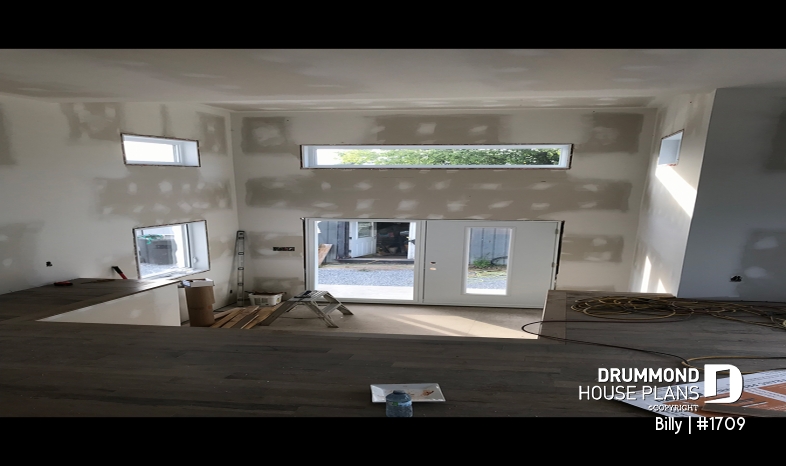

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Small modern house plan with one large master suite
Of Scandinavian spirit, this modern home was designed for a corner or angled lot of a panoramic view. At the entrance, there is a large closet and direct access to the basement and main floor. With its numerous windows, the open floor concept allows for a spectacular view regardless of your location in the house. A spacious kitchen with a large pantry and also has a triple door access to a covered terrace located on the left side of the house. The master suite is separated from the bathroom by a walk-in where there is the washer / dryer. A wood stove was placed in the main living area, allowing us to imagine that the ideal location for this house may be in the countryside. Ideal for a couple without children or with small children. The basement has been designed to accommodate other rooms should the need arise.
Distinctive elements
Modern home with split entry.
Open space.
Amazing panoramic view.
Abundant fenestration.
Kitchen with island and view.
Walk-in pantry.
Master suite on main.
Washer / dryer in the walk-in of the master suite.
Abundant storage.
Wood stove.
Unfinished basement
Covered terrace.
Corner lot.
Slop lot.
Plan feature(s)
Open floor layout, Gound floor laundry room, Lunch counter, Panoramic view, Pantry, Island, Wood stove, Master suite on main, Deck, Walk-in master bed.
Plan architectural style(s)
. Modern / Design, . Ranch, . Transitional, . Country, . Modern rustic, . Vacation and waterfront, . Contemporary, . Cottage, chalet, cabin, . Scandinavian, . Mid-century
