House plan Ataglance (2938)
Simple 3 bedrooms vacation style cottage house plan, lots of natural light, fireplace, mezzanine, cathedral
View the size of the rooms and height of the ceilings

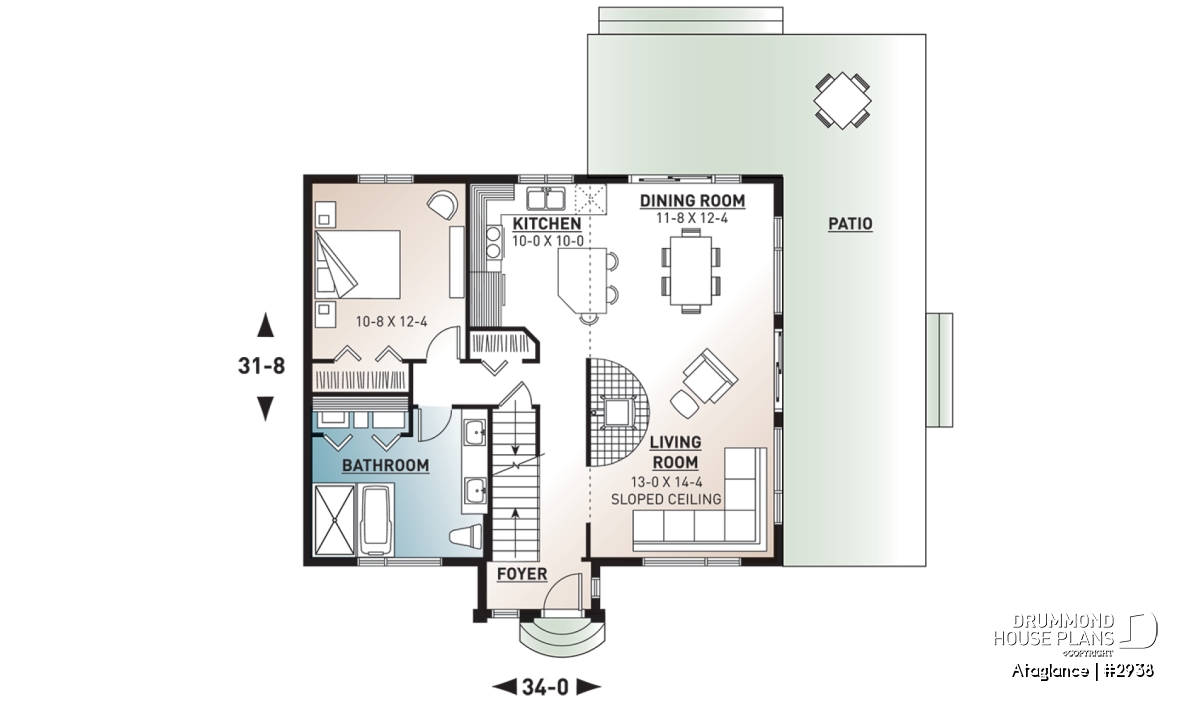

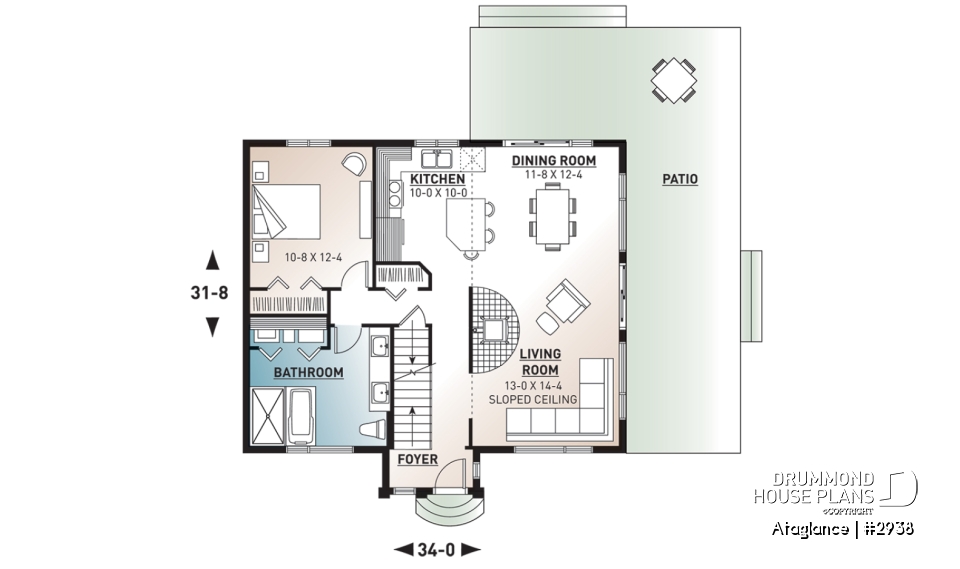

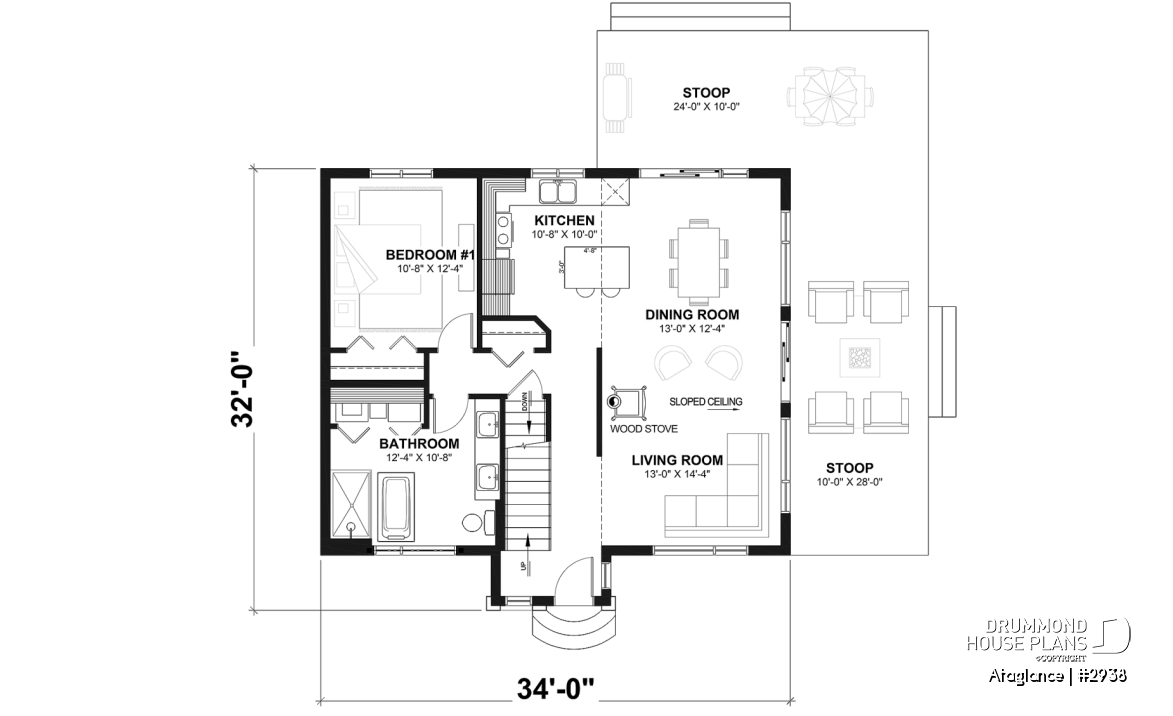

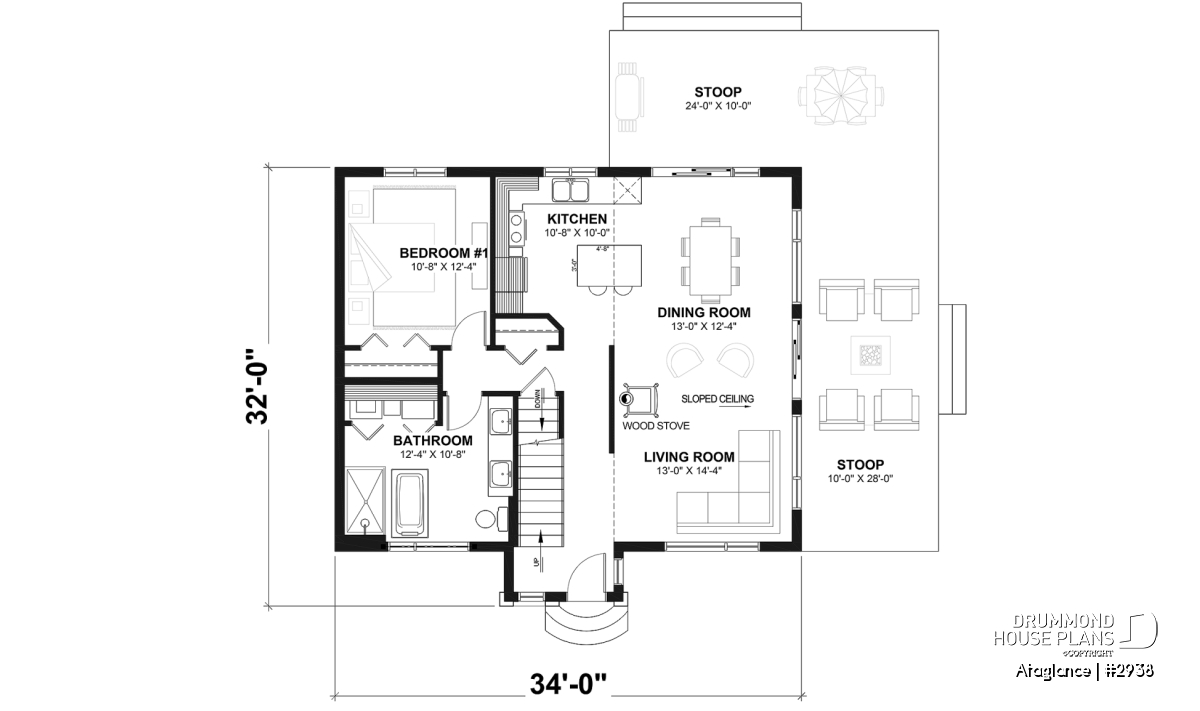

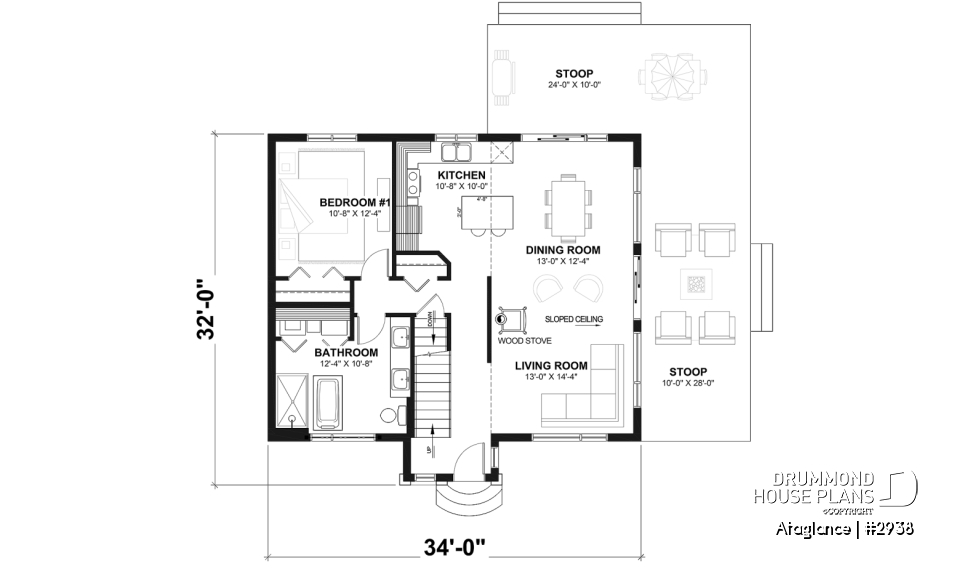

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'4" x 8'6" | ~ 8'0" |
| Kitchen | 10'0" x 10'0" | ~ 8'0" |
| Pantry | 2'0" x 1'6" | N/A |
| Dining room | 11'8" x 12'4" | ~ 16'4" |
| Living room | 13'0" x 14'4" | ~ 16'4" |
| Bedroom | 10'8" x 12'4" | ~ 8'0" |
| Foyer | 7'4" x 3'4" | ~ 8'0" |
| Closet | 4'8" x 2'0" | ~ 8'0" |
| Porch | 24'0" x 10'0" | N/A |
| Porch | 10'0" x 28'0" | N/A |
| Laundry room | 6'10" x 2'8" | ~ 8'0" |

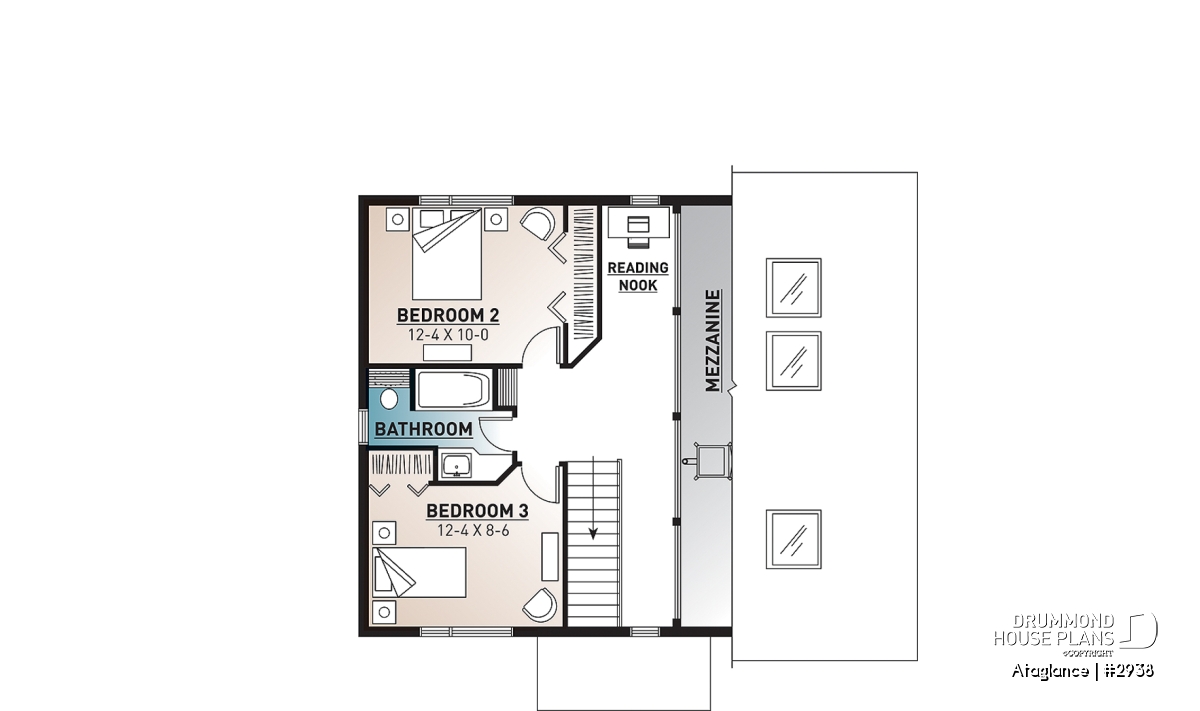

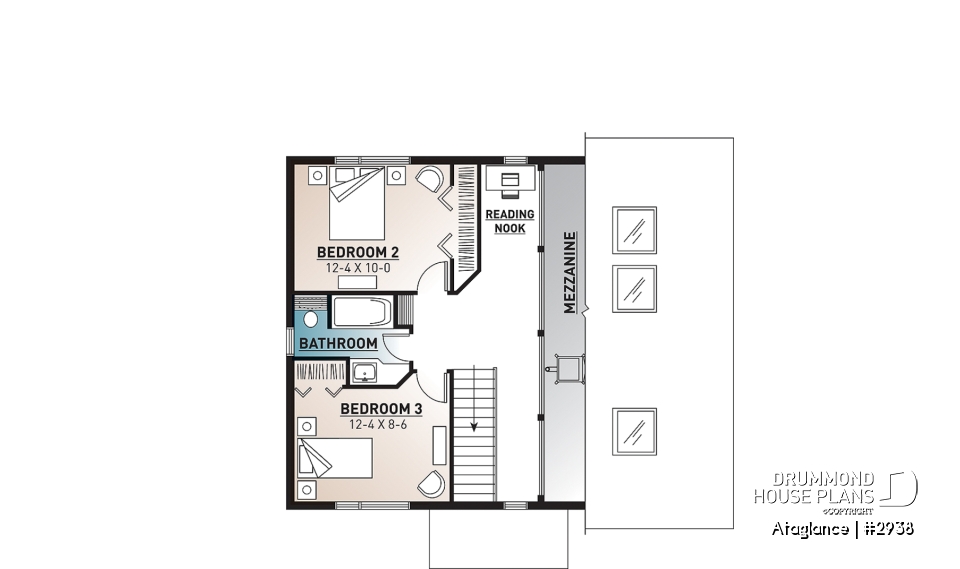

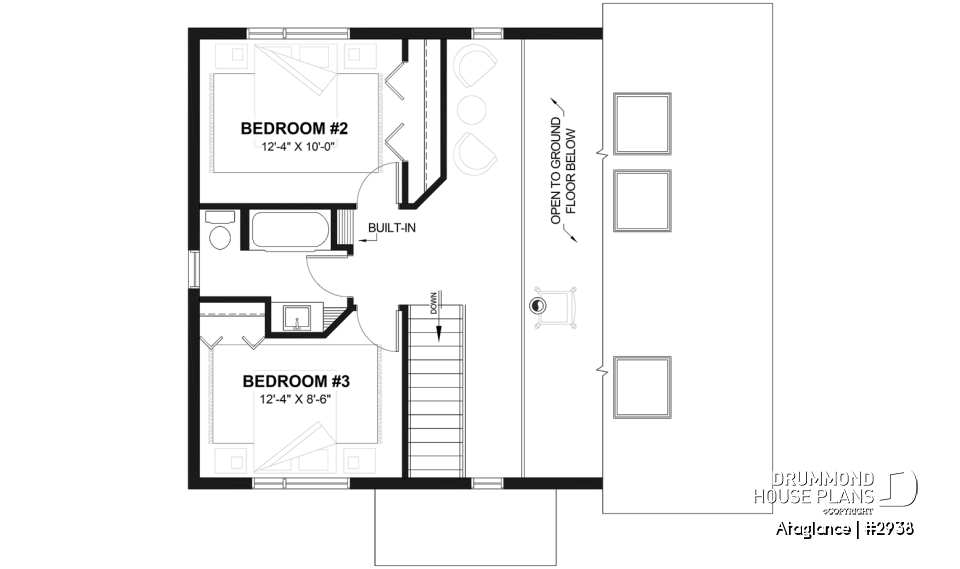

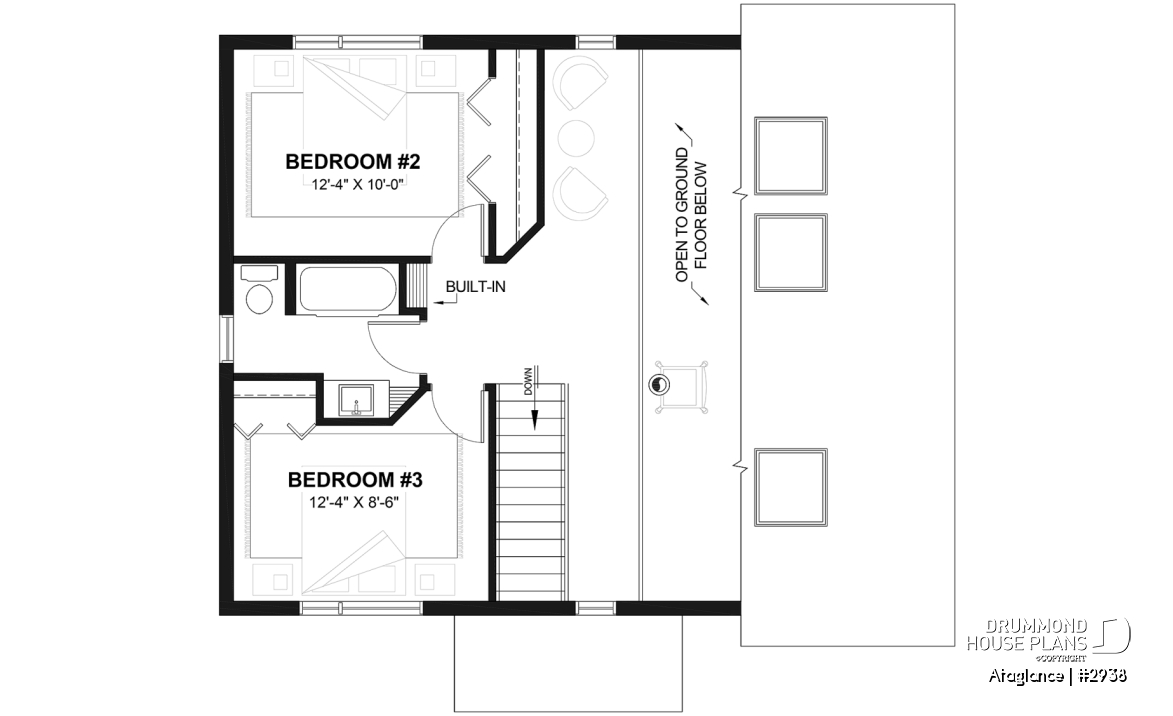

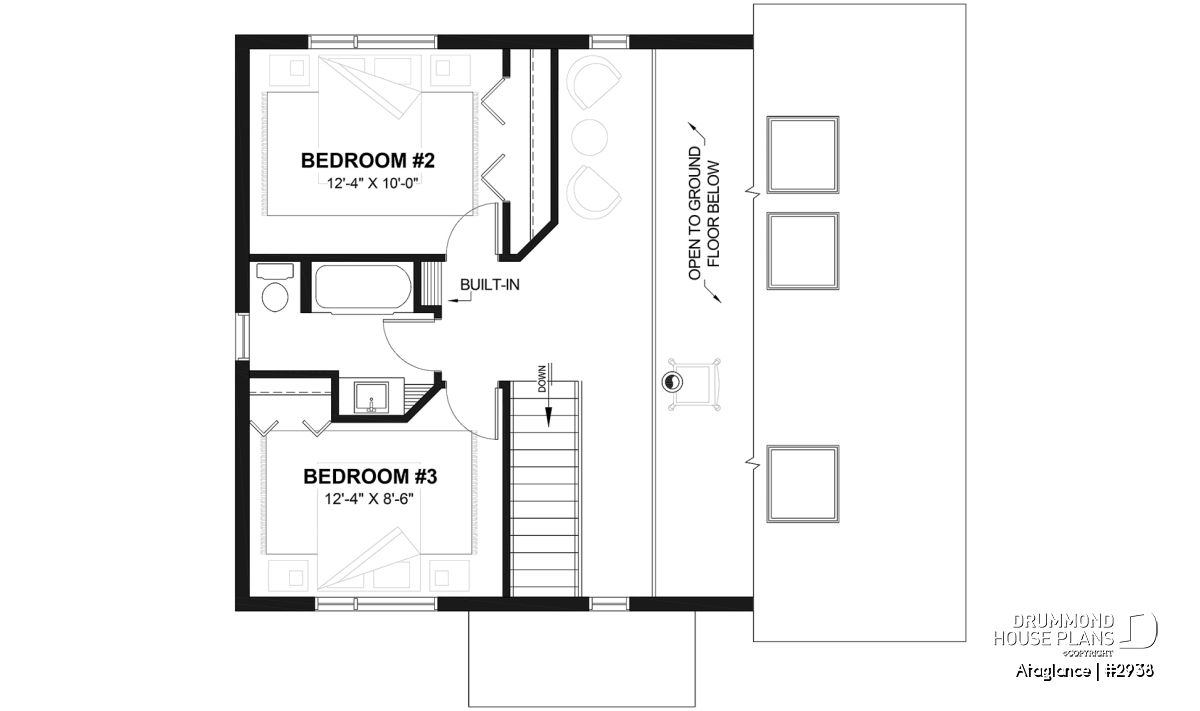

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'0" x 7'6" | ~ 8'0" |
| Bedroom | 12'4" x 10'0" | ~ 8'0" |
| Bedroom | 12'4" x 8'6" | ~ 8'0" |
| Linen | 1'2" x 2'2" | ~ 8'0" |
General specifications
| Total living area | 1544 sq.ft. |
| 1st level | 984 sq.ft. |
| 2nd level | 560 sq.ft. |
| Width | 34'0" |
| Depth | 31'8" |
| Ridge height from top of foundation | 24'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Full basement with walkout, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications

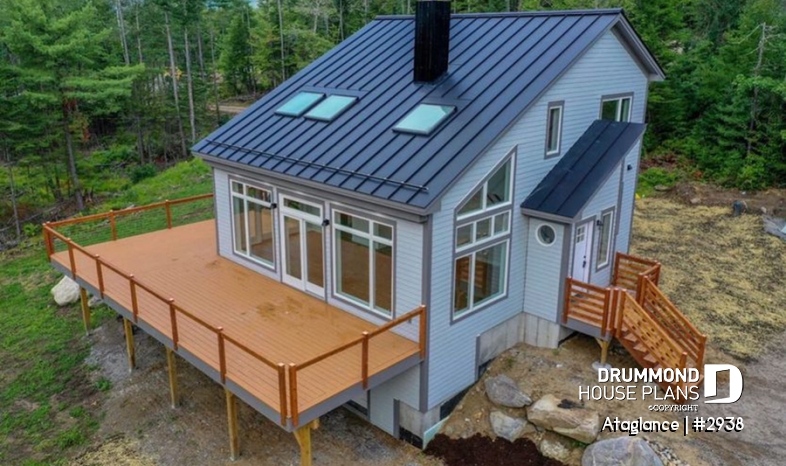

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

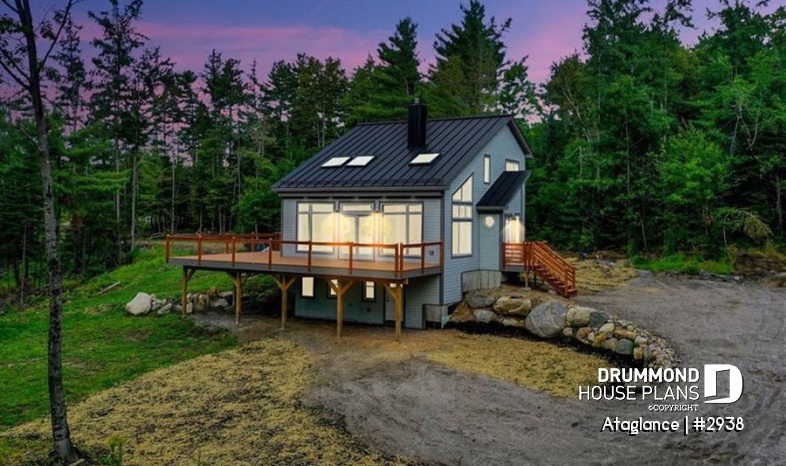

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

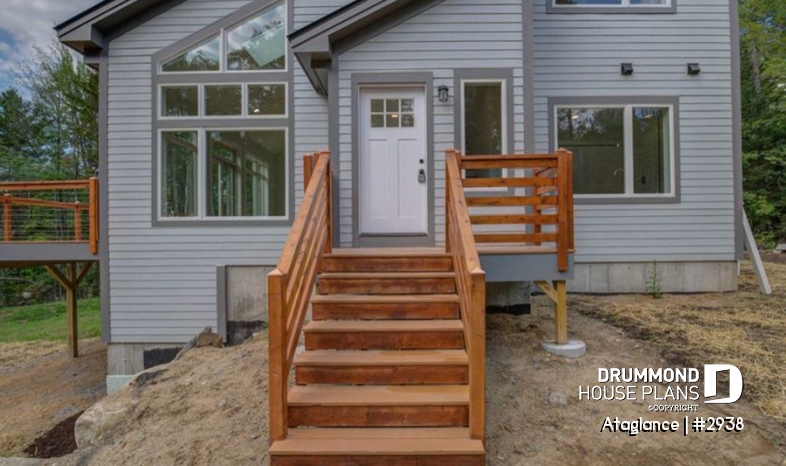

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

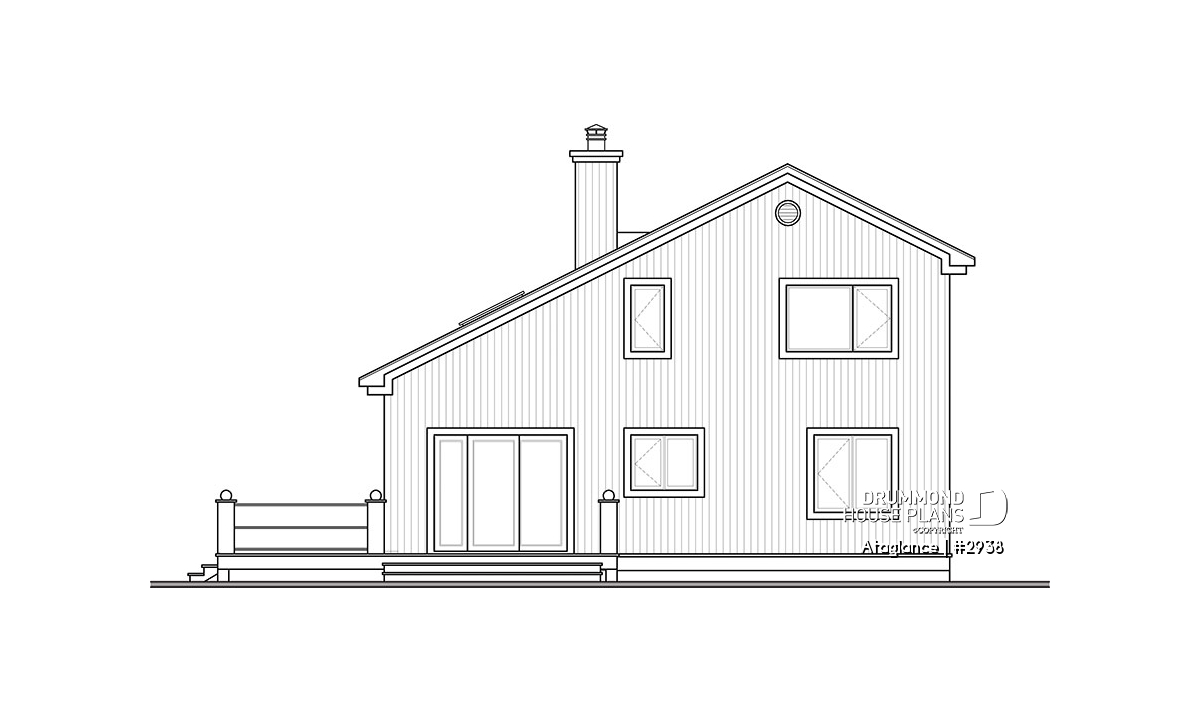

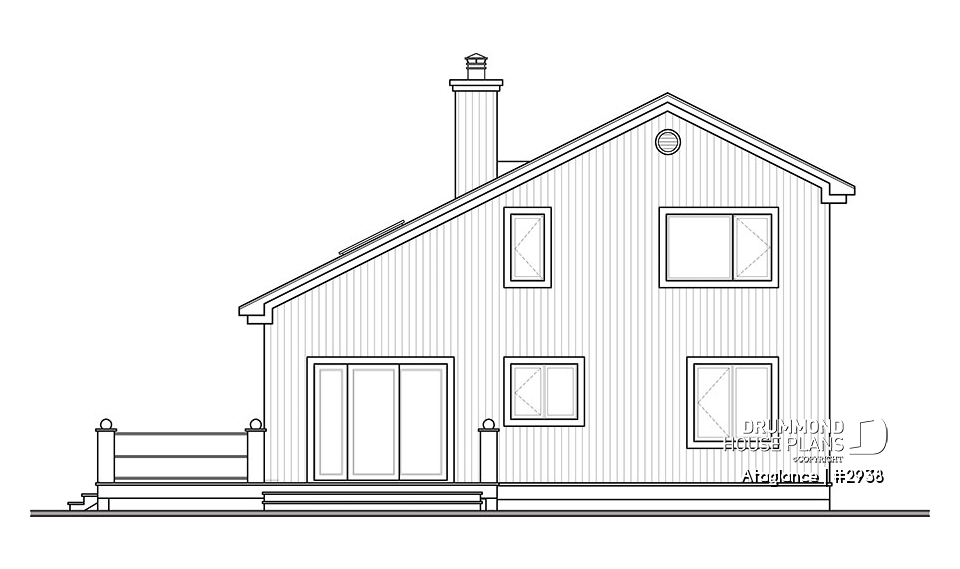

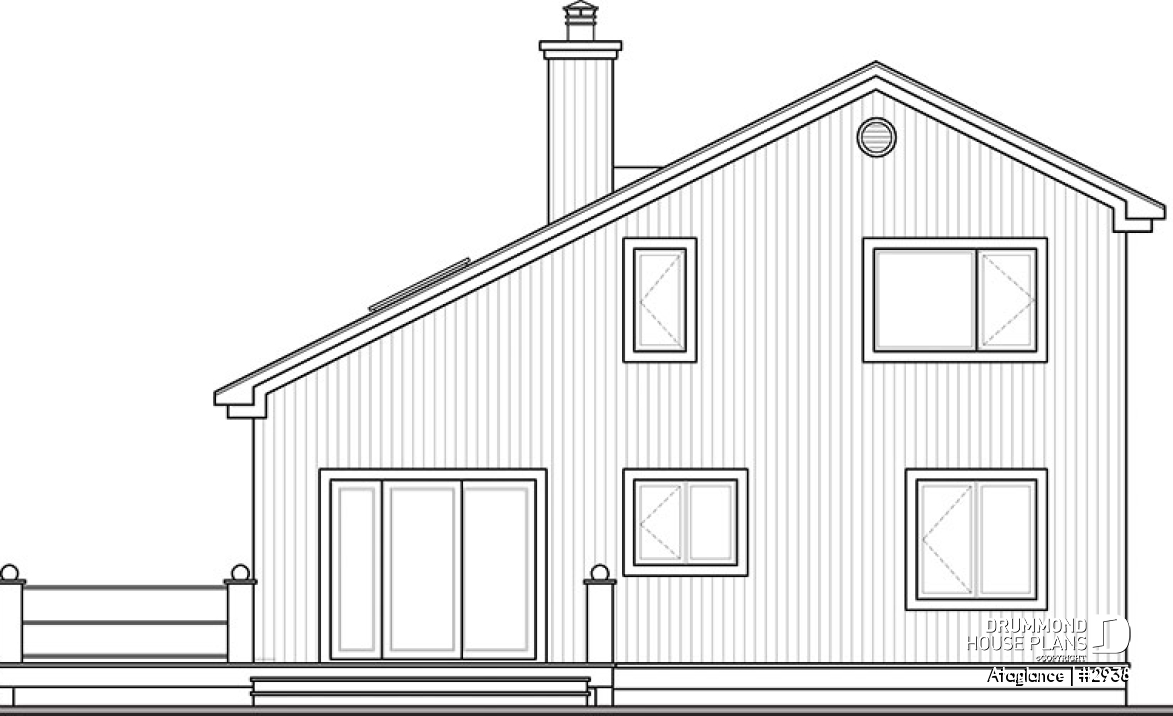

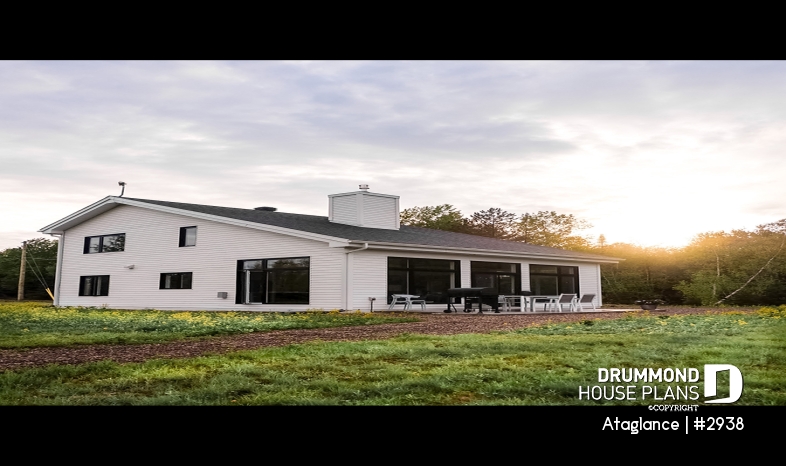

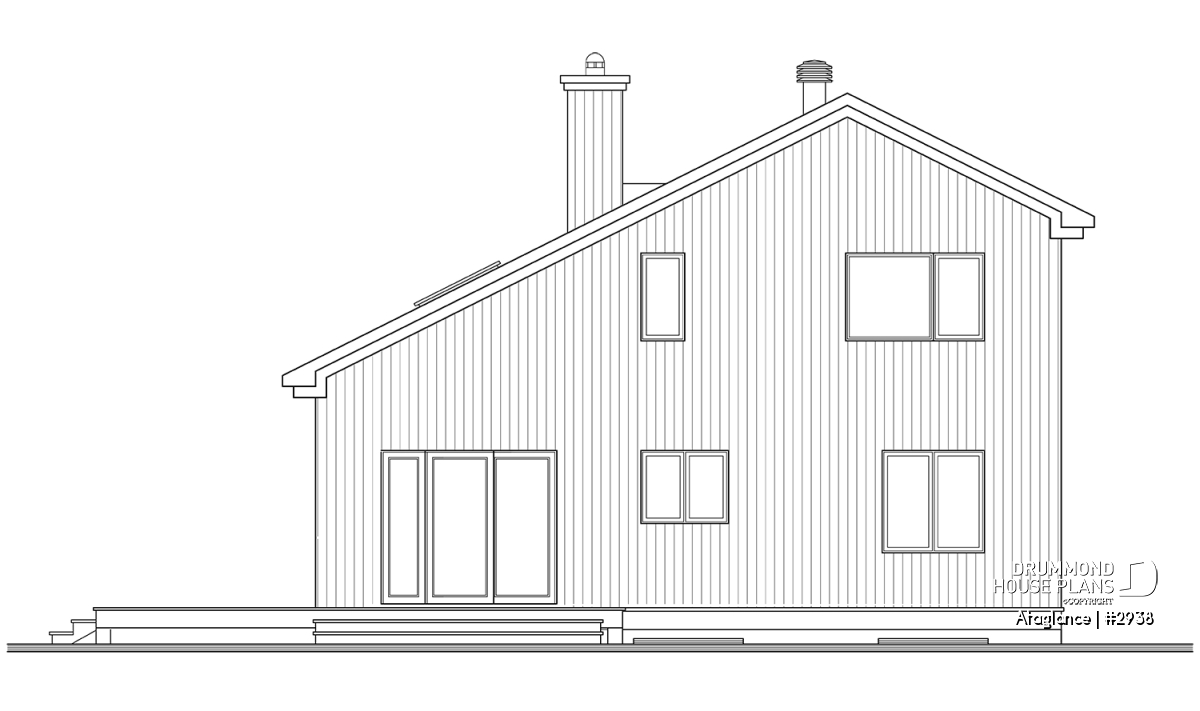

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

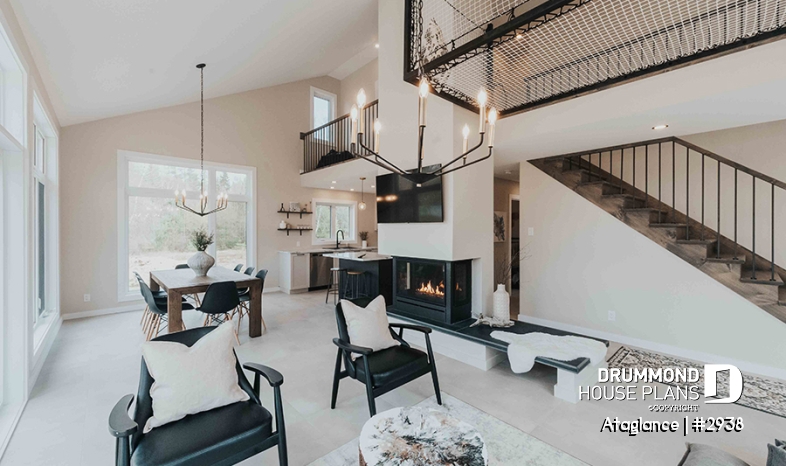

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

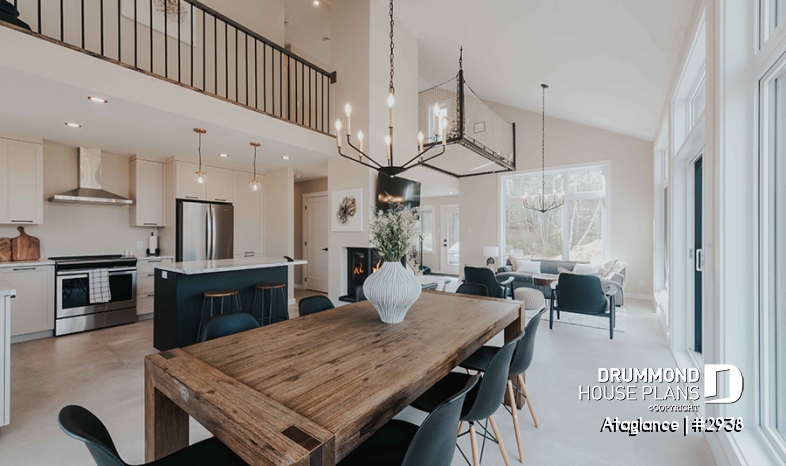

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

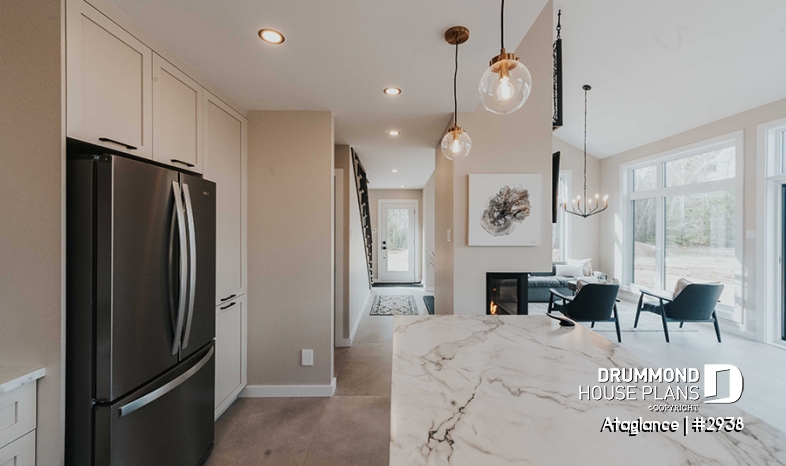

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Small waterfront cottage house plan with 3 bedrooms, mezzanine and skylights.
Small 3 bedroom modern waterfront cottage or cabin plan. Master bedroom on main floor. Great central fireplace and
open kitchen, dining and living room concept. XLarge main floor full bathroom. Mezzanine, 2 good size bedrooms and
a full bathroom are on the second floor. Home with lots of natural light.
Distinctive elements
Small 3 bedroom chalet style house plan.
Abundant windowing, cathedral ceiling, skylights.
2 bedrooms.
Central fireplace.
Plan feature(s)
Fireplace, Mezzanine, Gound floor laundry room, Sitting area, Wood stove, Island, Panoramic view, Separate bath and shower, Double sinks, Sloped ceiling
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Ski chalets, . Rustic, . Scandinavian, . Modern / Design, . Modern rustic
