House plan Lakeview (2914)
Scandinavian style cabin house plan with 3 bedrooms and open floor plan concept
View the size of the rooms and height of the ceilings

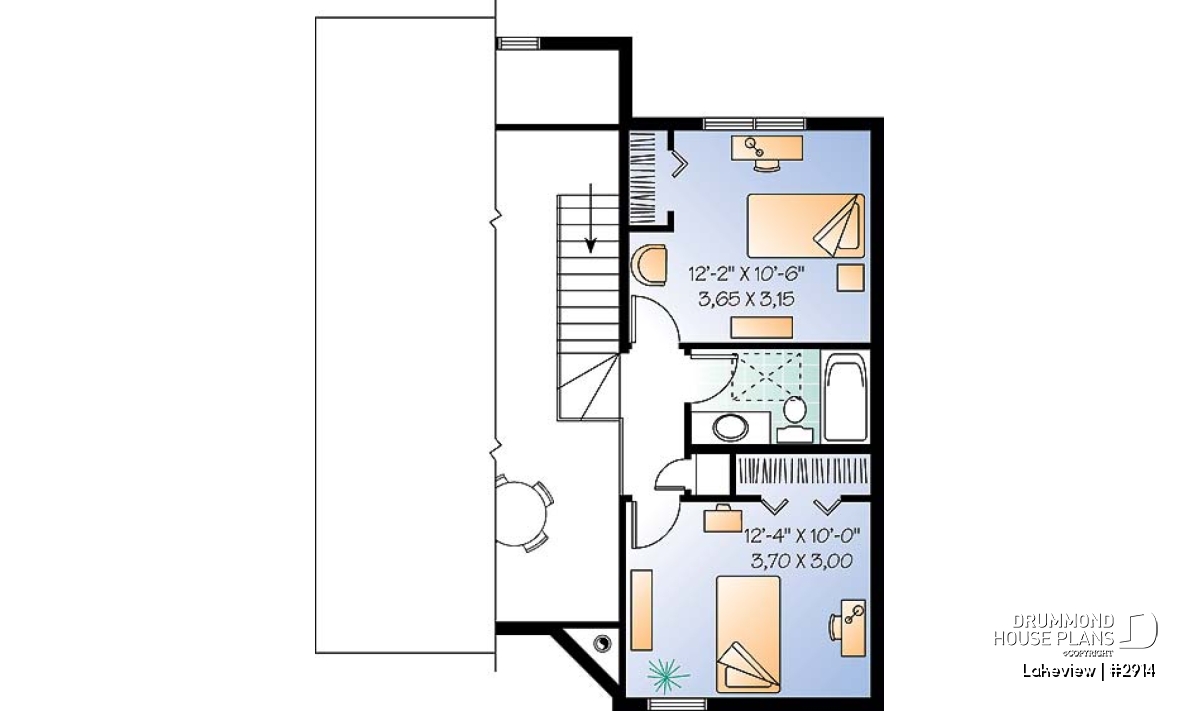

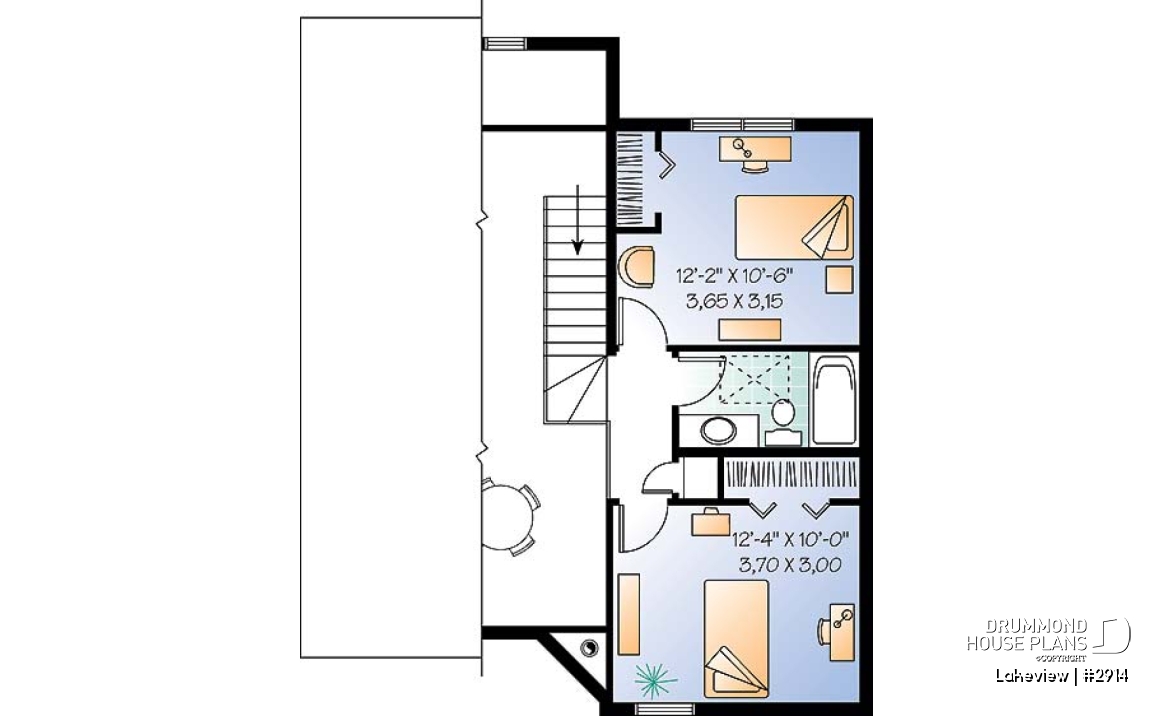

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 5'2" | ~ 15'8" |
| Bedroom | 12'4" x 10'0" | ~ 15'8" |
| Bedroom | 12'2" x 10'6" | ~ 15'8" |

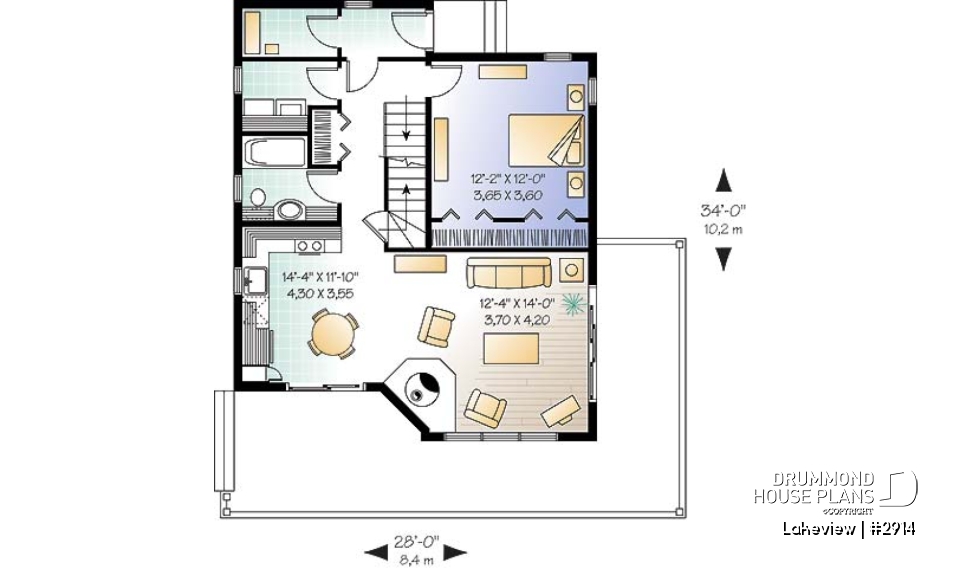

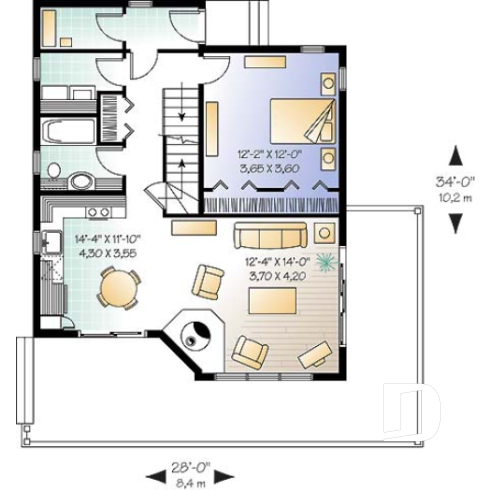

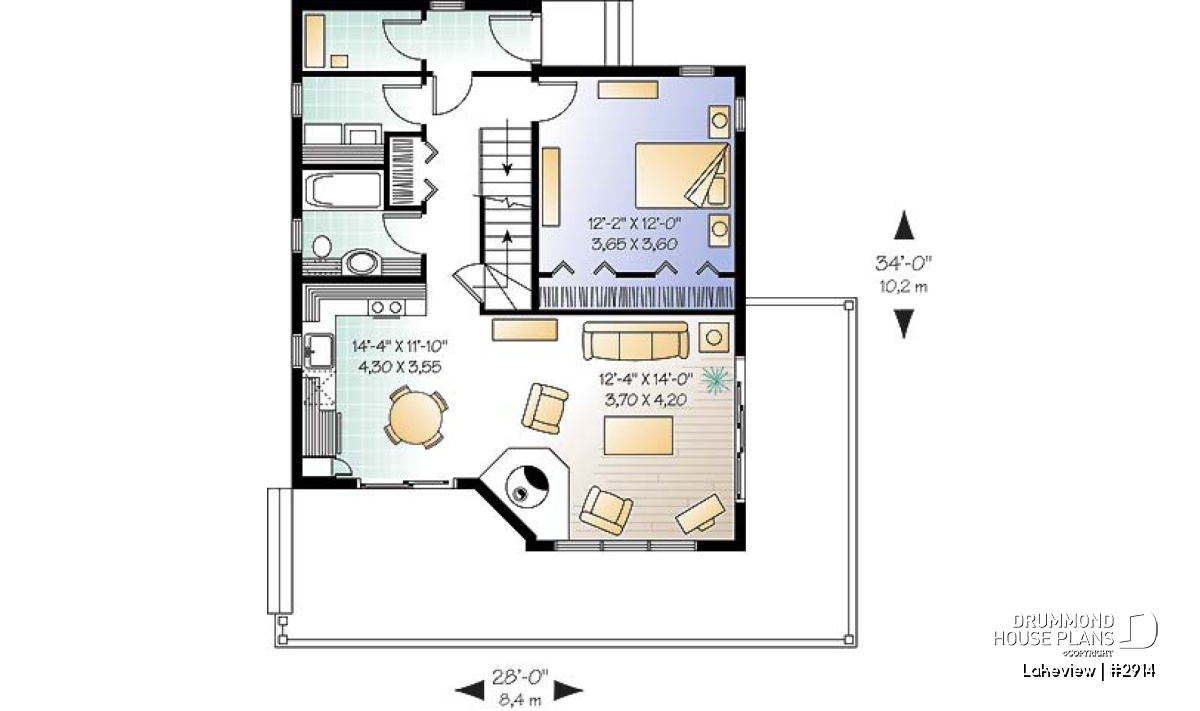

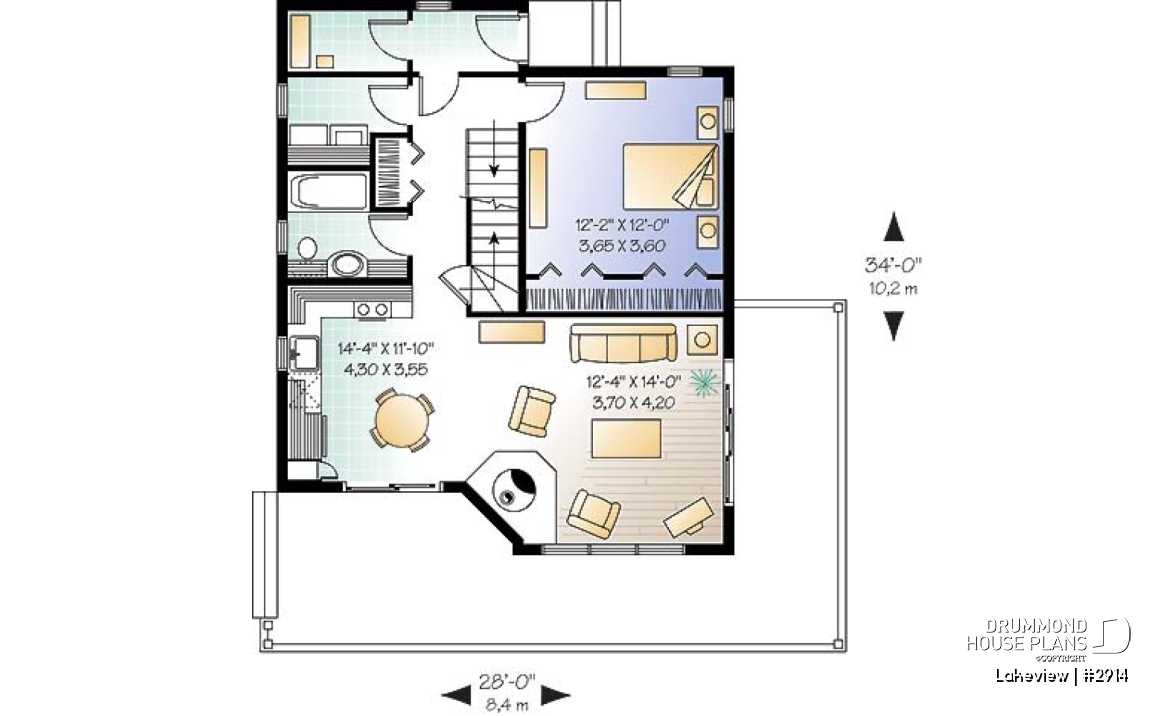

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Breakfast nook | 14'4" x 11'10" | ~ 8'0" |
| Living room | 12'4" x 14'0" | ~ 8'0" |
| Bedroom | 12'2" x 12'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Foyer | 6'4" x 3'6" | ~ 8'0" |
| Utility room | 7'4" x 5'4" | ~ 8'0" |
| Storage | 7'4" x 3'8" | ~ 8'0" |
| Mud room | 2'0" x 4'6" | ~ 8'0" |
| Terrace | 28'0" x 5'0" | N/A |
| Terrace | 20'0" x 5'0" | N/A |
| Terrace | 4'0" x 4'0" | N/A |
| Half bath or powder room | 7'6" x 6'8" | ~ 8'0" |
General specifications
| Total living area | 1300 sq.ft. |
| 2nd level | 451 sq.ft. |
| 1st level | 849 sq.ft. |
| Width | 28'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 28'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Vaulted Scandinavian Vacation Home!
The graceful offset roofs would blend beautifully in a natural setting. With a deck wrapping around two sides and abundant windows, this home is designed to take advantage of views and provide a stunning vacation getaway or 4-season home.
Pleasing amenities are located on the efficient main level including a laundry, good storage, bathroom and master bedroom. The open activities area enjoys the efficient warmth of a wood stove and is virtually wrapped in windows and provides easy access to the expansive deck.
Kids or guests will enjoy the mezzanine with two bedrooms and shared bath and view of the level below.
Distinctive elements
Cathedral ceiling on the entire activity area on 1st floor. Abundant windows. 2 bedroooms and a bathroom on 2nd level. Exterior terrace on 2 faces.
Plan feature(s)
Fireplace, Cathedral ceiling, Mezzanine, Open floor layout, Gound floor laundry room
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Ski chalets, . Rustic, . A-Frame, . Scandinavian, . Modern / Design
Similar plans
Previously Viewed Plans
Questions and comments
April 29
sean mcdonnell
Can this home be put on a pier foundation for coastal building?
-Thanks
April 30
Customer service
Dear Mr McDonnell,
Thank you for your interest in Drummond House Plans.
The foundation can be modified for pier. To get a cost estimate for the modification, you can contact our Customization Department at 1-866-444-4916 or visit the "Plan modification services" section of our website to receive your free estimate.
Do not hesitate to contact us again if you need further information. We will gladly answer any questions you may have.
Best Regards,
Customer Service Department
