Whiskey Jack 2 (2925)
Affordable A-frame cottage plan, 2 bedrooms + loft, mezzanine, open floor plan, mud room
View the size of the rooms and height of the ceilings

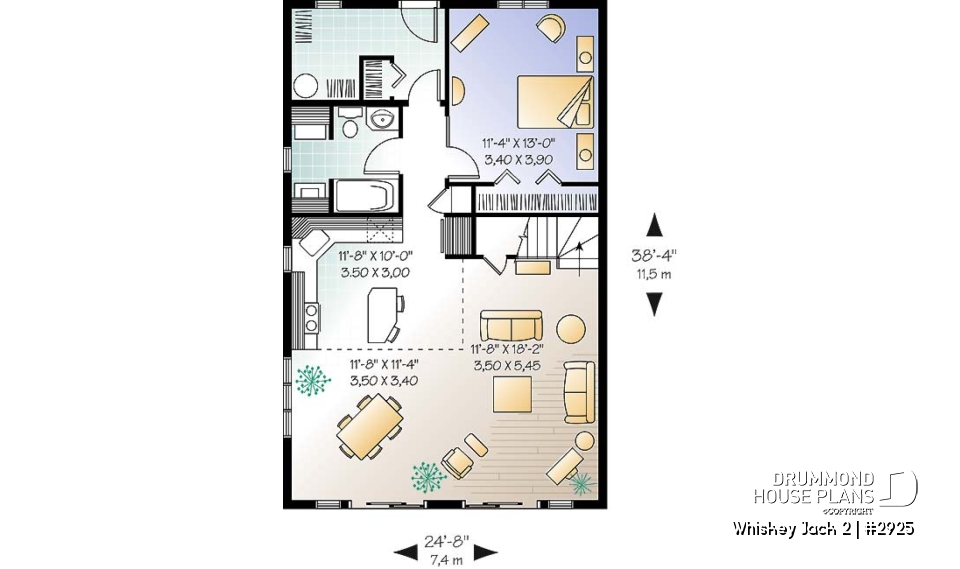

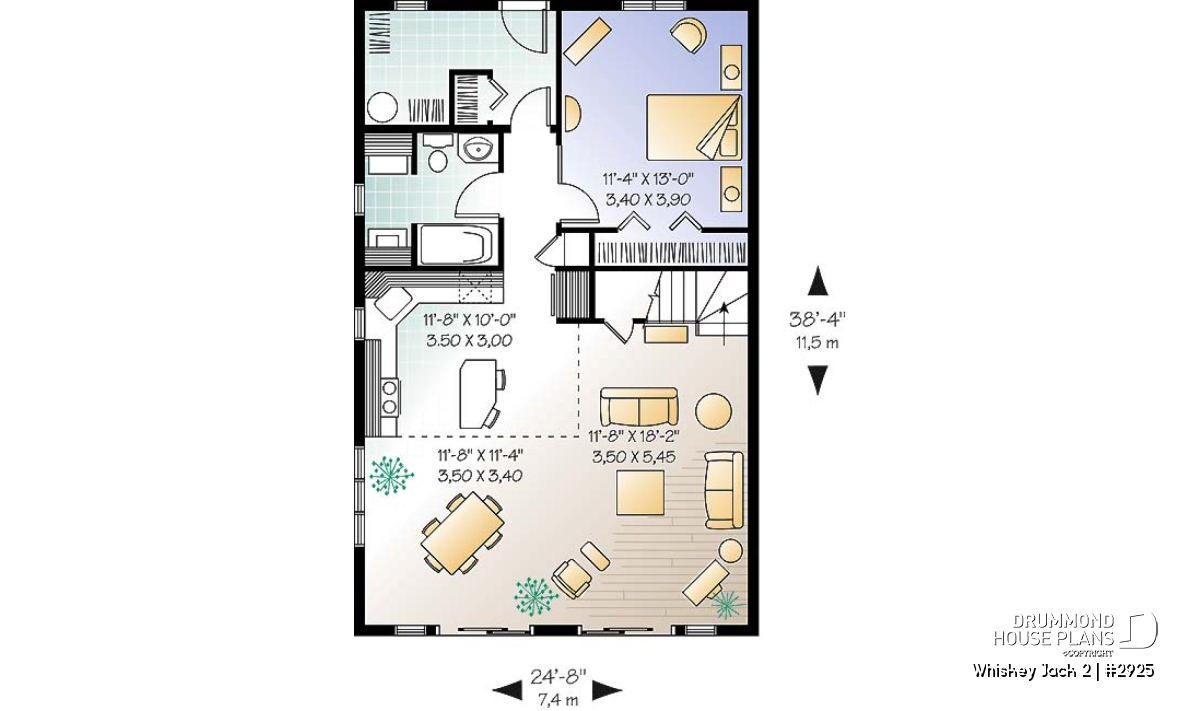

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'2" x 8'0" | ~ 8'0" |
| Kitchen | 11'8" x 10'0" | ~ 8'0" |
| Dining room | 11'8" x 11'4" | ~ 17'2" |
| Living room | 11'8" x 18'2" | ~ 17'2" |
| Bedroom | 11'4" x 13'0" | ~ 8'0" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Foyer | 11'8" x 6'10" | ~ 8'0" |
| Porch | 6'0" x 4'0" | N/A |
| Deck | 24'8" x 6'0" | N/A |

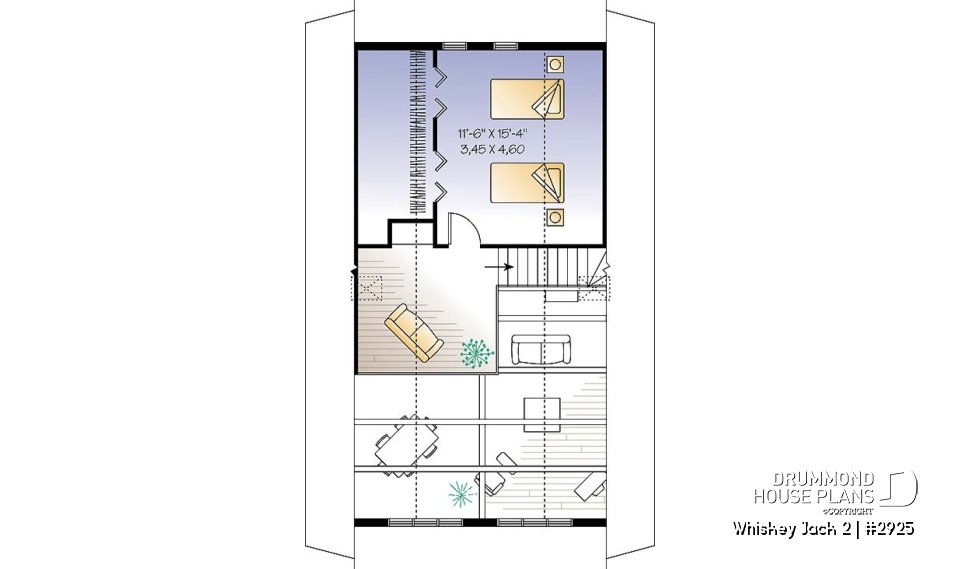

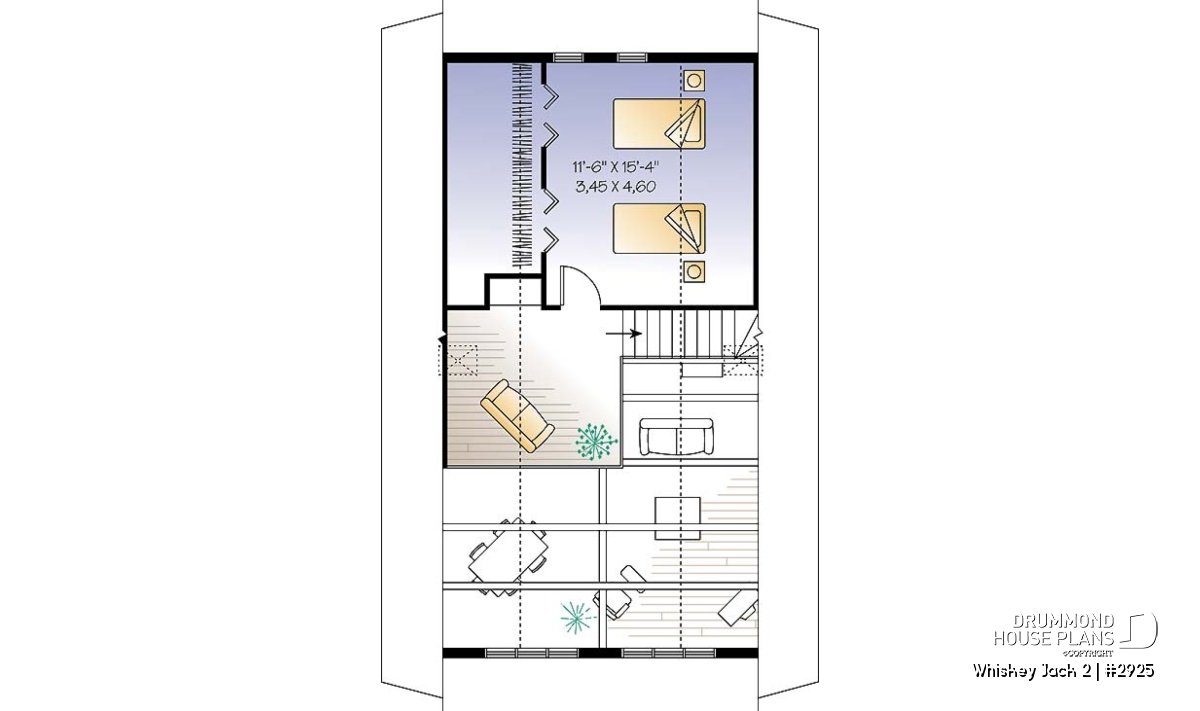

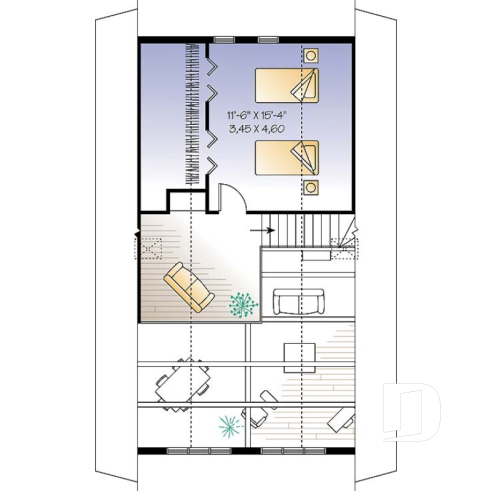

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'6" x 15'4" | ~ 8'0" |
| Mezzanine | 11'0" x 10'0" | ~ 8'0" |
General specifications
| Total living area | 1304 sq.ft. |
| 1st level | 945 sq.ft. |
| 2nd level | 359 sq.ft. |
| Width | 24'8" |
| Depth | 38'4" |
| Ridge height from top of foundation | 26'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Crawl space i |
| Other available foundations (a fee may apply) | Full Basement, Floating Slab, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Great panoramic view small A-Frame cabin plan with 2 bedrooms and a 2nd floor loft
Vaulted ceilings with timber details great you in this two-bedroom chalet plan. Expansive windows paint the open activity area in light. The master bedroom on the main floor makes this an ideal getaway property, even for baby boomers. Main level laundry, a full bathroom and generous entry with storage complete the main level amenities.
Upstairs is a good sized bedroom and seating area with incredible exterior views as well as main level view.
Distinctive elements
1st level with bedroom, bathroom, spacious storage space, and open activity area. 2nd bedroom and mezzanine on 2nd floor.
Plan feature(s)
Mezzanine, Island, Mud room, Open floor layout, Panoramic view, Sitting area, Loft, Gound floor laundry room, Plafond avec fausses poutres
Plan architectural style(s)
. Ski chalets, . Vacation and waterfront, . Rustic, . A-Frame, . Traditional, . Cabin plans, . Country, . Modern rustic, . Scandinavian, . Mountain, . Cottage, chalet, cabin
