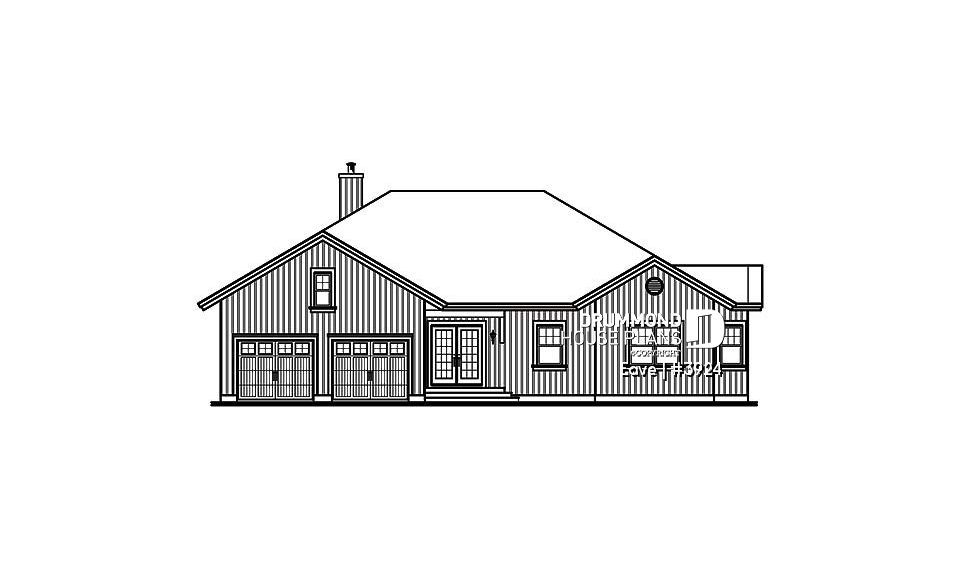

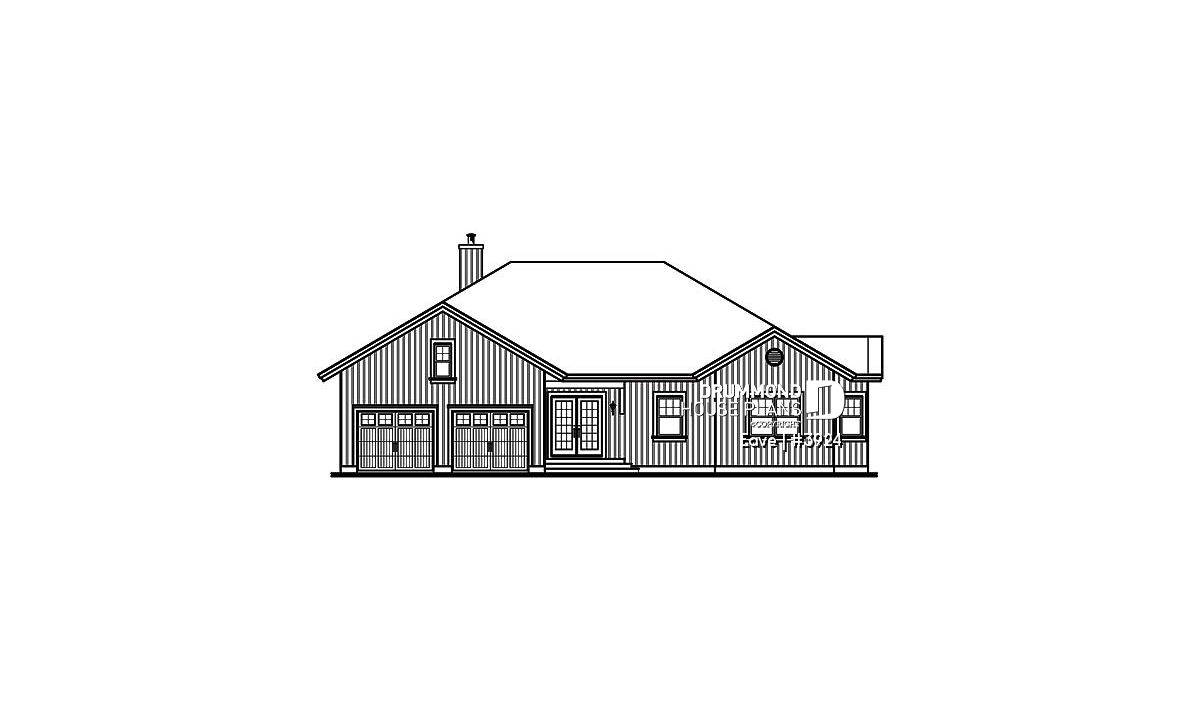

House plan Eave (3924)
5 bedroom modern ranch, walkout basement, screened-in porch, basement for grand-parents
View the size of the rooms and height of the ceilings

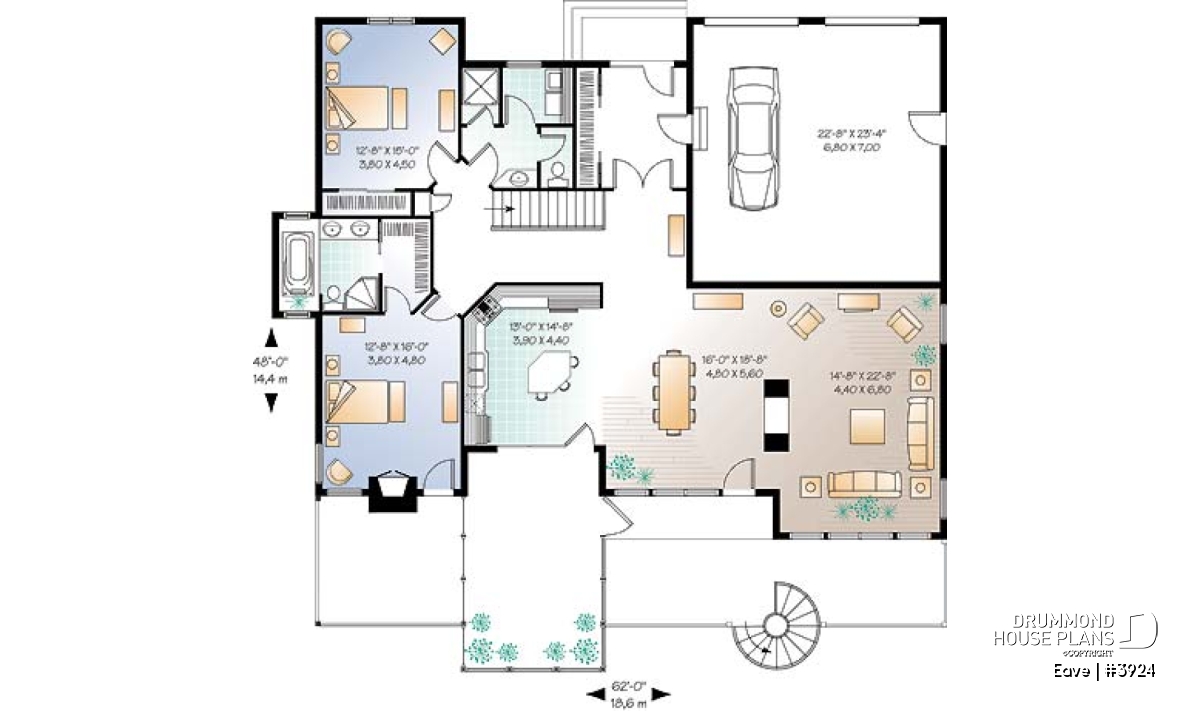

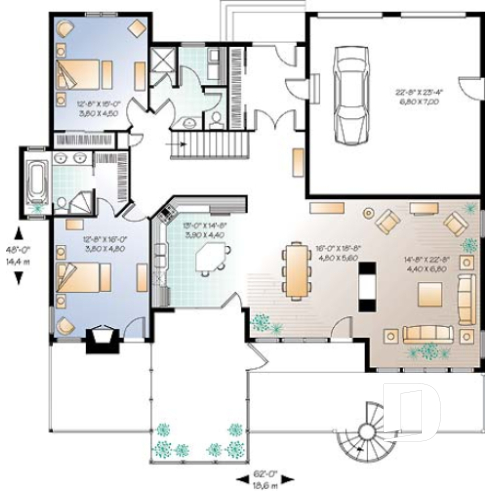

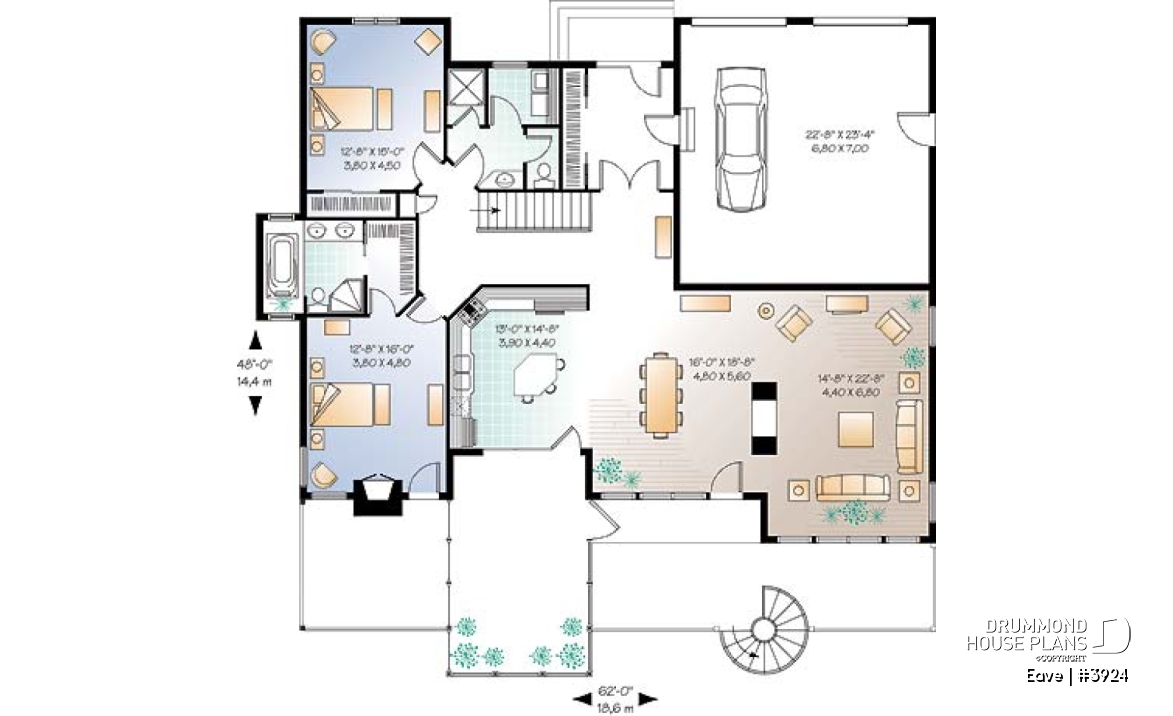

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'2" x 5'8" | ~ 9'0" |
| Kitchen | 13'0" x 14'8" | ~ 9'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Dining room | 16'0" x 18'8" | ~ 9'0" |
| Living room | 14'8" x 22'8" | ~ 9'0" |
| Master suite | 12'8" x 15'10" | ~ 9'0" |
| Full bathroom | 9'2" x 8'8" | ~ 9'0" |
| Walk-in closet | 4'6" x 8'8" | ~ 9'0" |
| Bedroom | 12'8" x 15'0" | ~ 9'0" |
| Closet | 8'0" x 2'0" | ~ 9'0" |
| Linen | 1'6" x 2'0" | ~ 9'0" |
| Foyer | 7'6" x 11'0" | ~ 9'0" |
| Closet | 2'0" x 11'0" | ~ 9'0" |
| Laundry room | 6'6" x 5'0" | ~ 9'0" |
| Garage | 22'8" x 23'4" | ~ 8'10" |
| Porch | 9'4" x 4'0" | N/A |
| Balcony | 13'4" x 12'0" | N/A |
| Balcony | 31'4" x 12'0" | N/A |
| Half bath or powder room | 10'2" x 5'6" | ~ 8'0" |

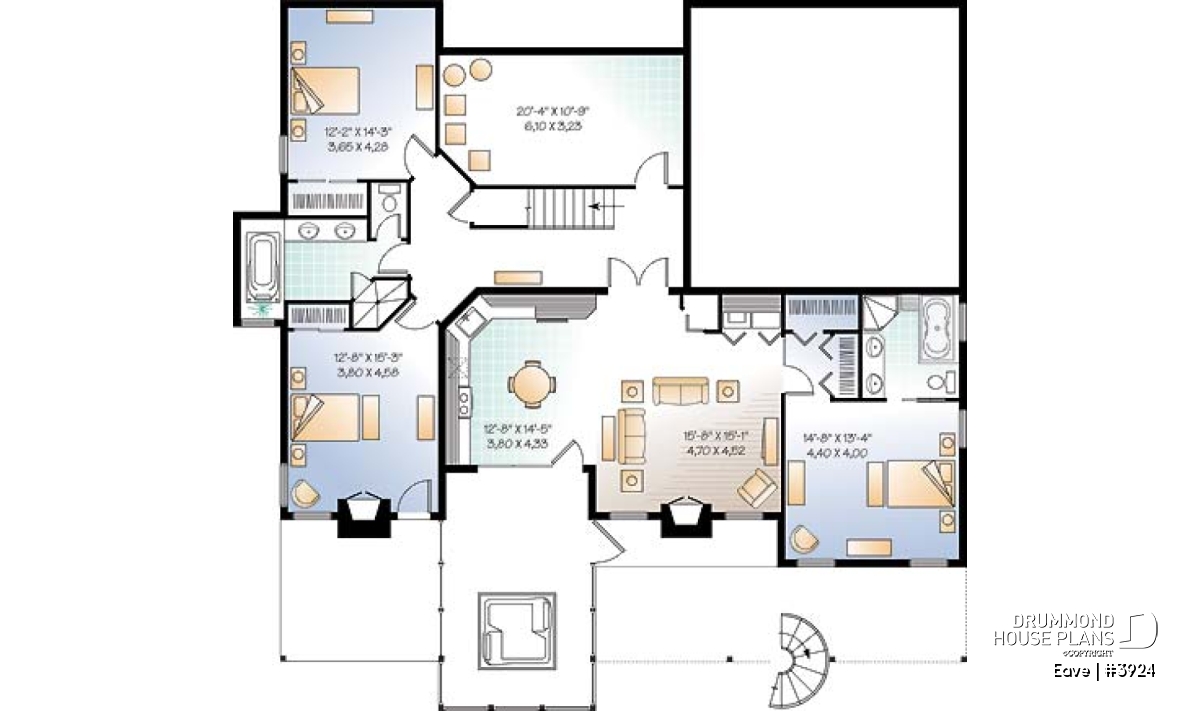

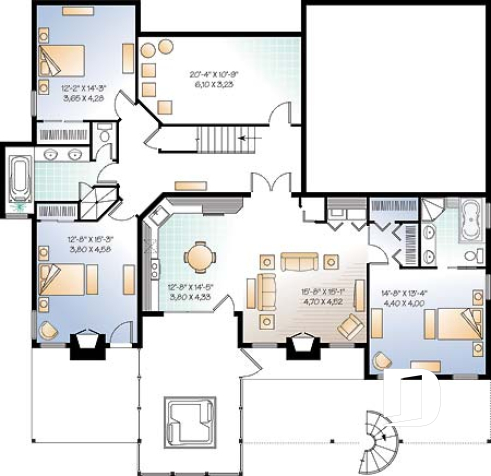

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 13'9" x 8'5" | ~ 8'2" |
| Bedroom | 12'8" x 15'3" | ~ 8'2" |
| Bedroom | 12'2" x 14'3" | ~ 8'2" |
| Storage | 20'4" x 10'9" | ~ 8'0" |
| Porch | 13'4" x 12'0" | N/A |
| Bedroom | 14'8" x 13'4" | ~ 8'2" |
| Closet | 6'2" x 3'0" | ~ 8'2" |
| Closet | 5'5" x 2'0" | ~ 8'2" |
| Full bathroom | 7'7" x 8'9" | ~ 8'2" |
| Living room | 15'8" x 15'1" | ~ 8'2" |
| Kitchen/dining room | 12'8" x 14'5" | ~ 8'0" |
| Laundry room | 5'0" x 3'0" | ~ 8'0" |
| Bonus storage | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bonus storage | 16'0" x 23'4" | ~ 7'2" |
General specifications
| Total living area | 3930 sq.ft. |
| 1st level | 1965 sq.ft. |
| Basement | 1965 sq.ft. |
| Bonus storage | 0 sq.ft. |
| Width | 62'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 32'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | K |
Rooms specifications
Other useful information on this plan
Distinctive elements
Basement apartment for grand-parents, a large terrace, two screened-in areas, very spacious and comfortable home.
Plan feature(s)
Fireplace, Screened porch, Deck, Master suite on main, Guest suite, Open floor layout, Ceiling over 8', Entrance hall, Separate bath and shower, Double sinks
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . American, . Ski chalets, . Modern / Design, . Ranch, . Mountain, . Contemporary
