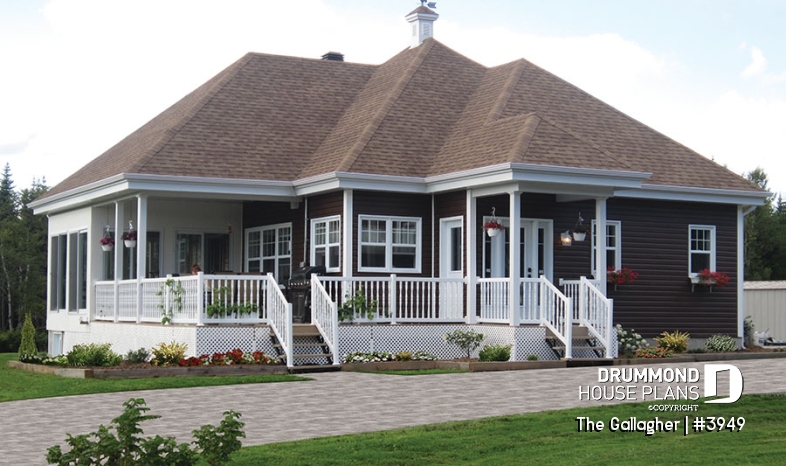

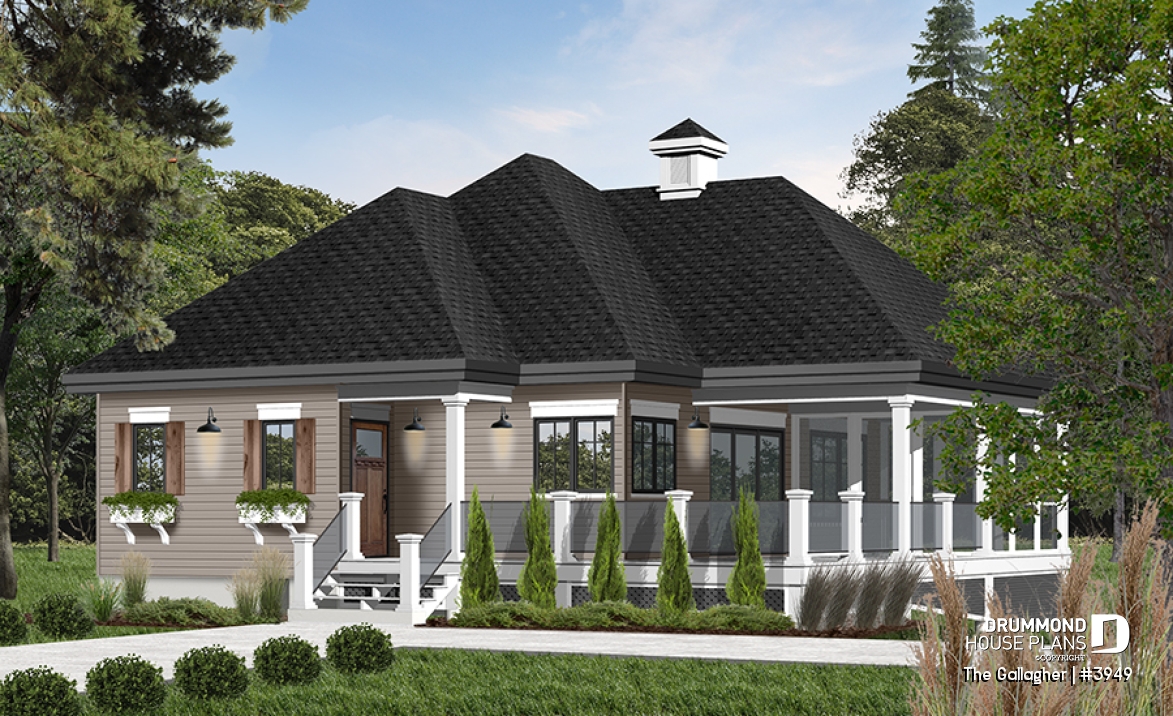

House plan The Gallagher (3949)
Country cottage waterfront house plan w/ covered screened-in porch, one bedroom, unfinished daylight basement
View the size of the rooms and height of the ceilings

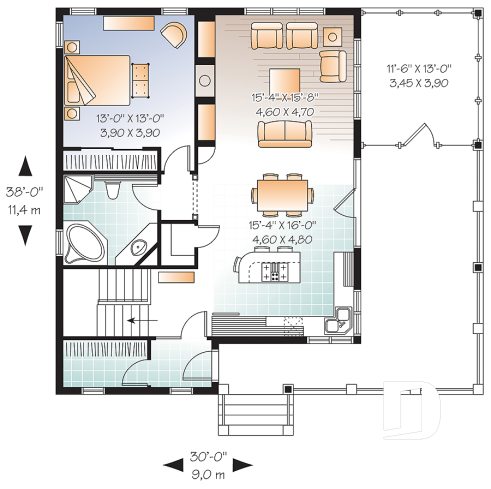

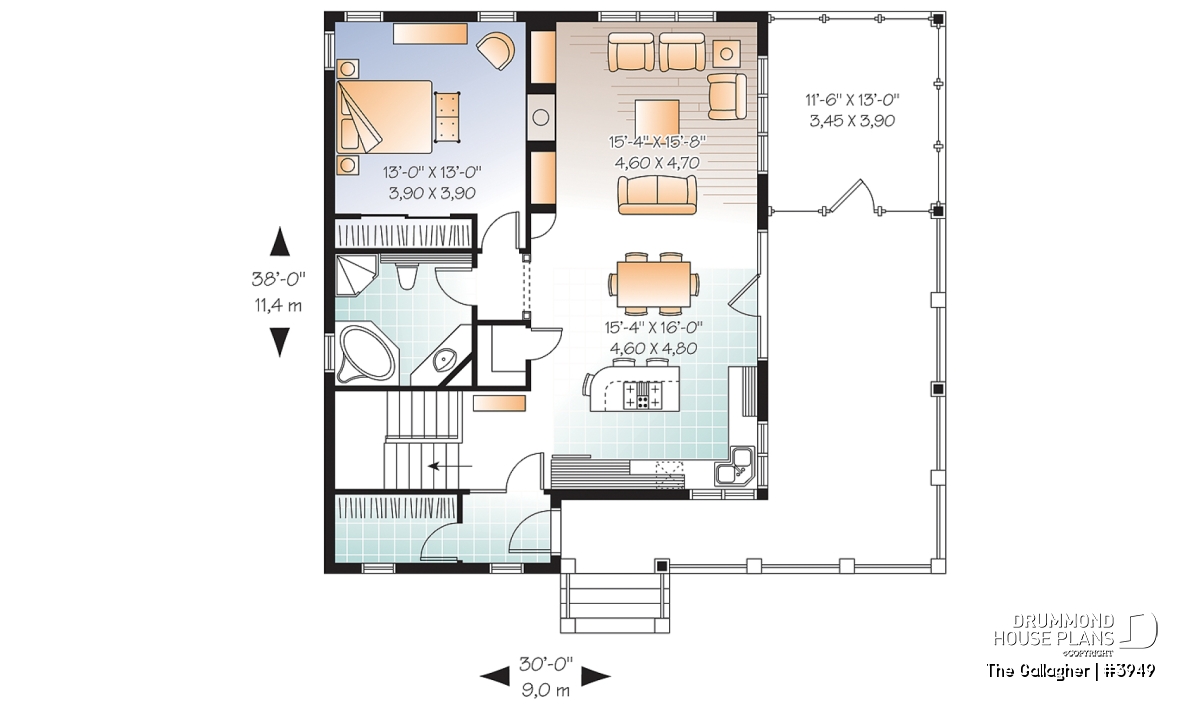

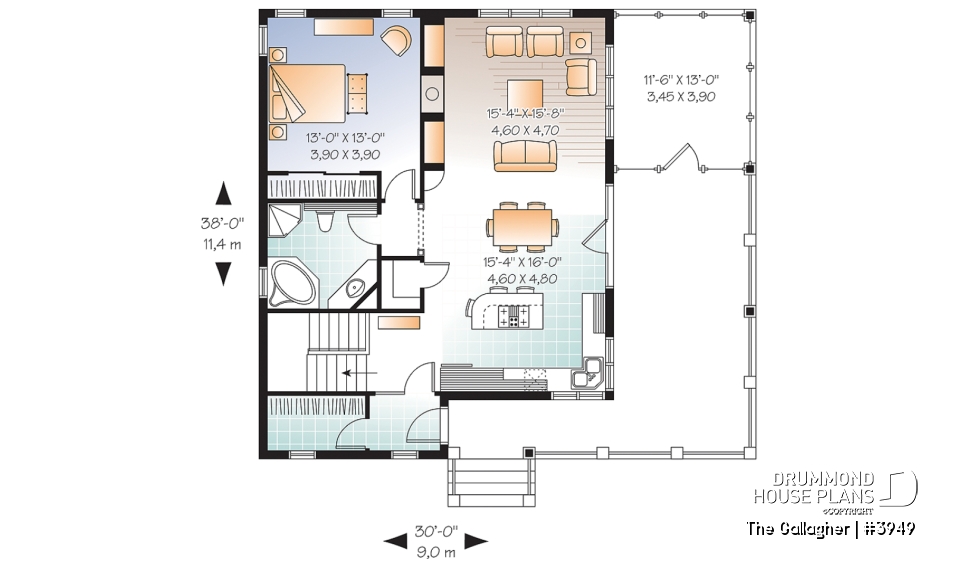

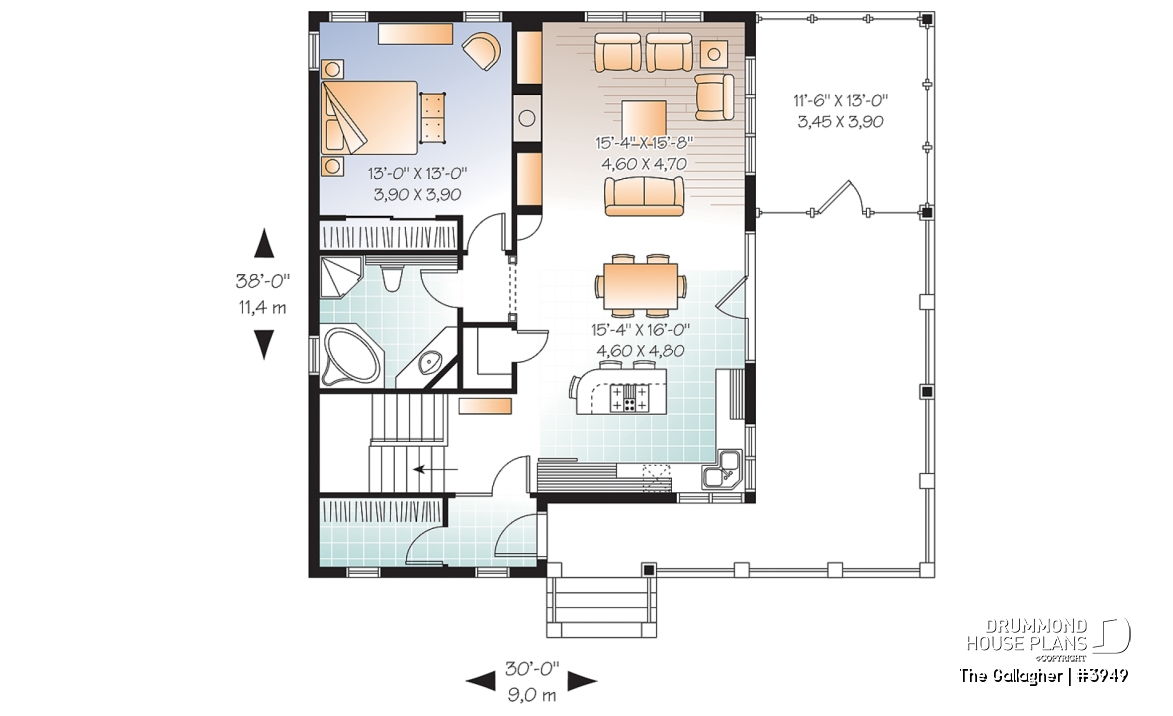

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 15'4" x 16'0" | ~ 9'0" |
| Living room | 15'4" x 15'8" | ~ 9'0" |
| Foyer | 6'0" x 4'8" | ~ 9'0" |
| Full bathroom | 9'4" x 9'0" | ~ 9'0" |
| Bedroom | 13'0" x 13'0" | ~ 9'0" |
| Porch | 14'0" x 5'0" | N/A |
| Mosquito Shelter | 11'6" x 13'0" | N/A |
| Porch | 12'0" x 24'3" | N/A |

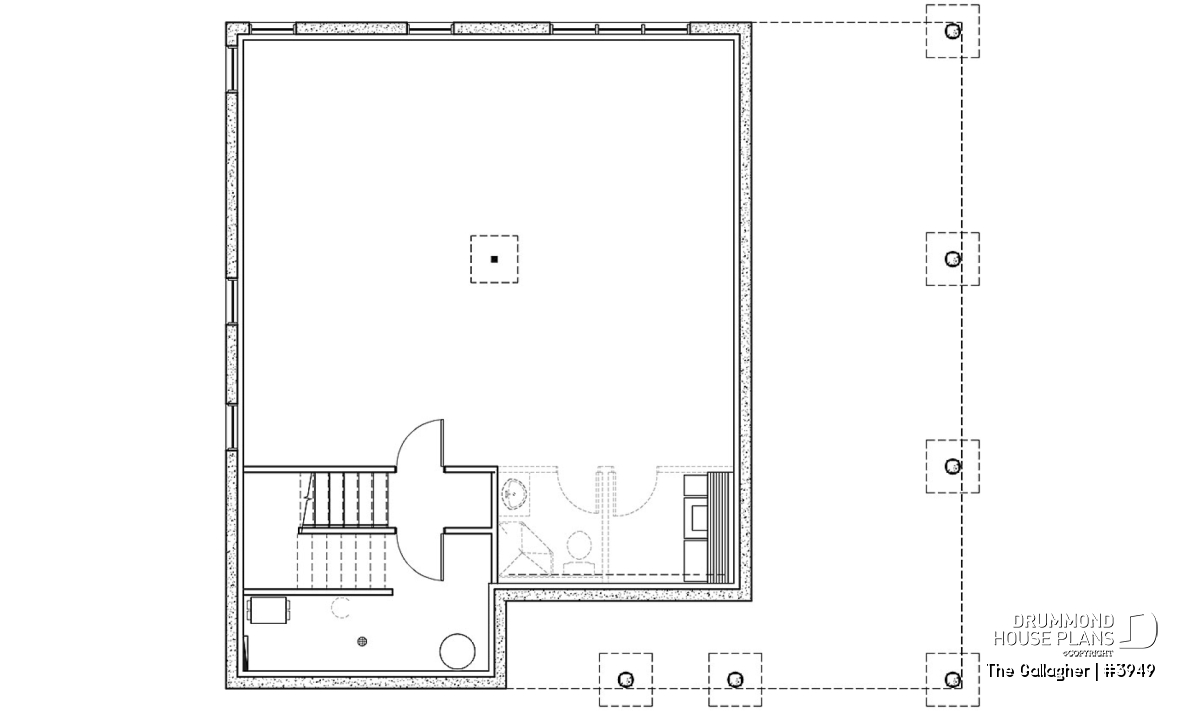

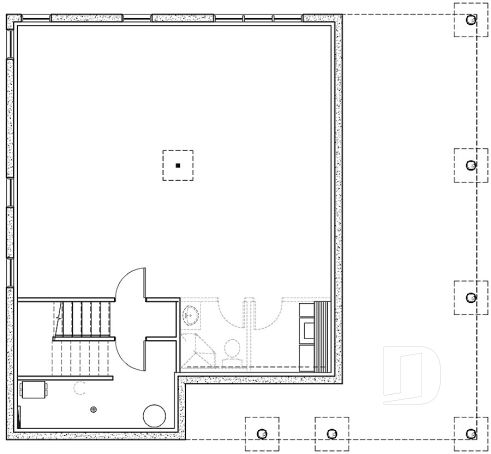

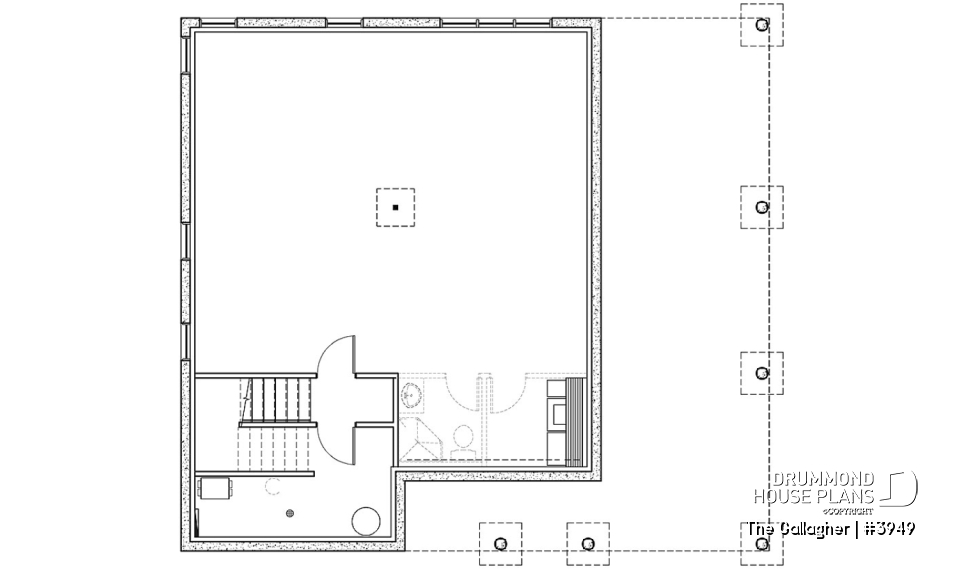

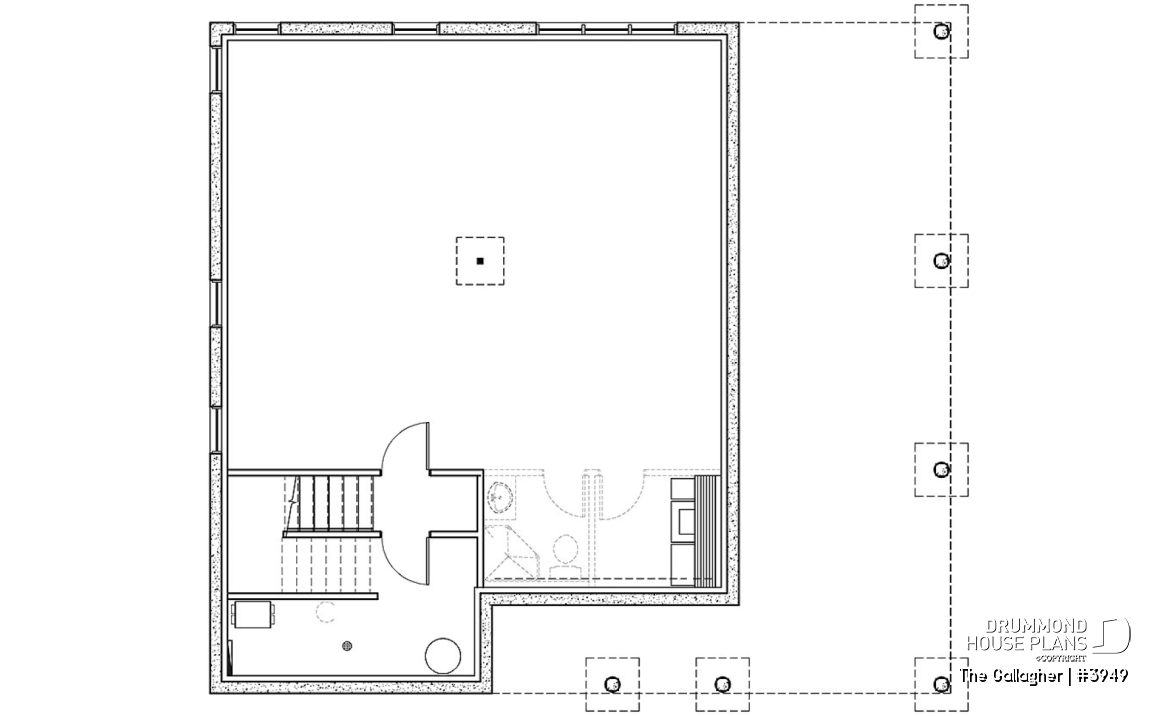

| Basement |
|---|
General specifications
| Total living area | 1070 sq.ft. |
| 1st level | 1070 sq.ft. |
| Basement | 1070 sq.ft. |
| Width | 30'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 28'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Country lakefront cottage house plan with flex room on basement
Is a lakefront chalet your dream?

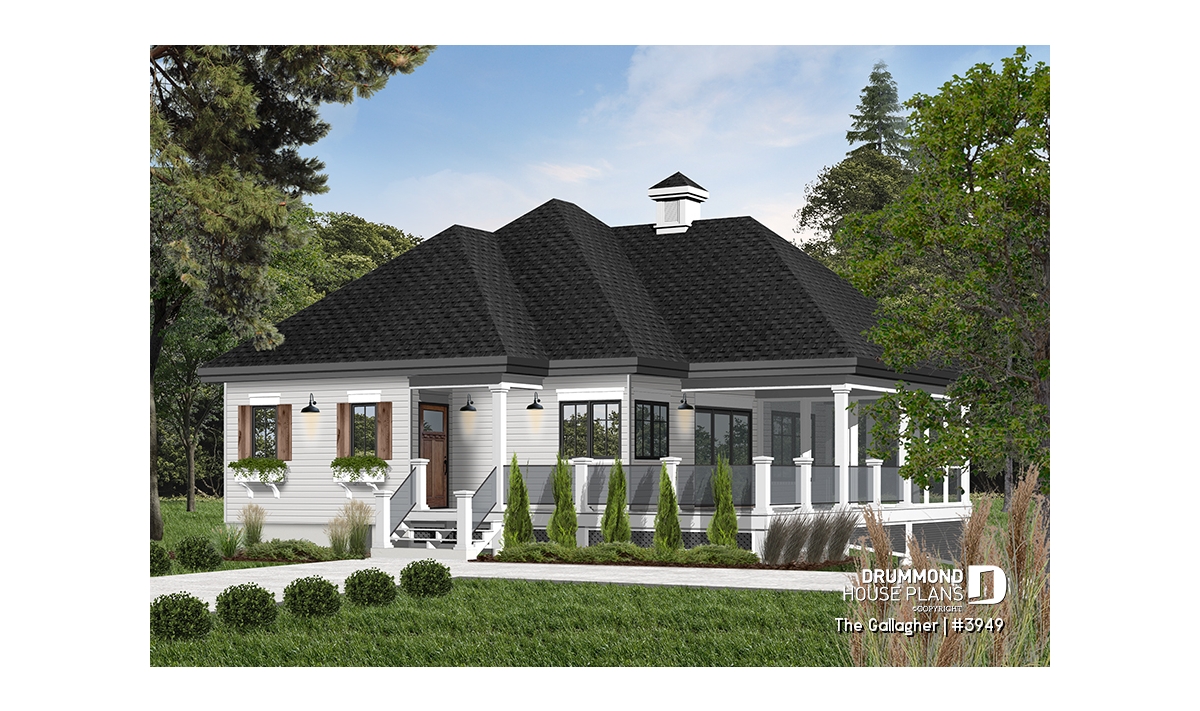

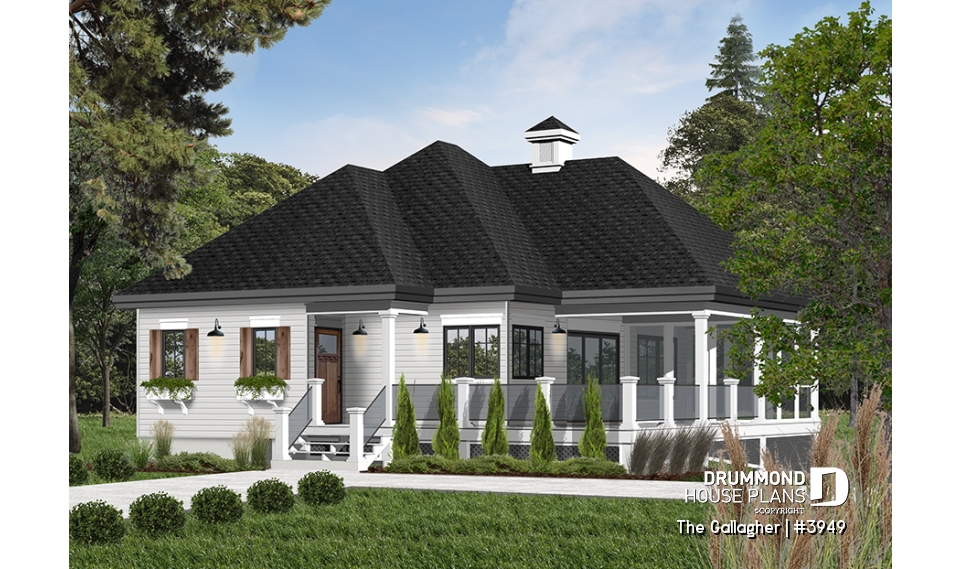

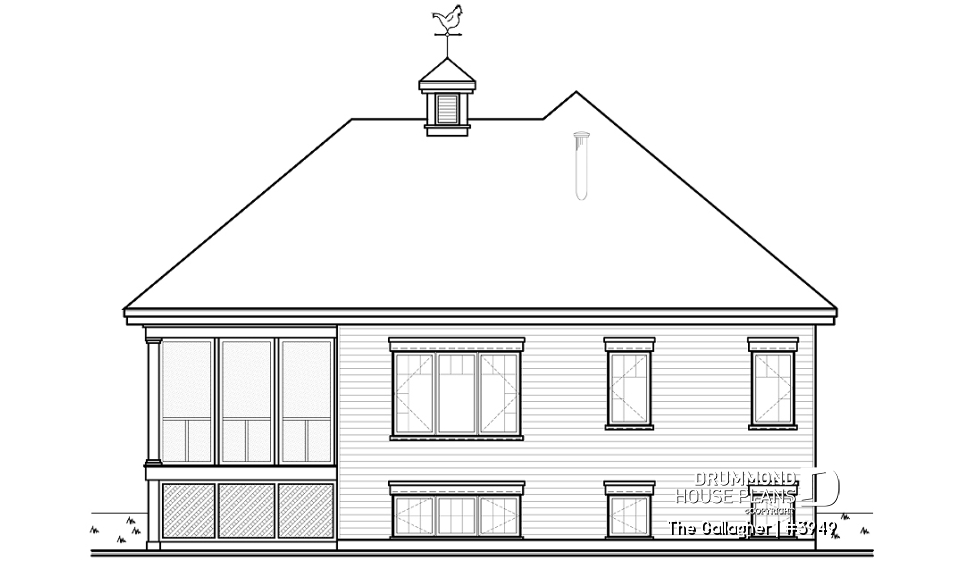

The rhythmic slopes of the roof line and a superb terrace divided into three sections that include covered, open and screened in porch are sure to strike a chord!
From the entrance foyer with its walk-in style closet and double glass doors to the common area to the double wide staircase that leads to the basement this lovely cottage is full of delightful features.
9' ceilings throughout the main floor and an abundance of windows throughout brighten up the main living area and a two sided fireplace can be enjoyed from both the common area and the master bedroom. Corner windows in the kitchen enhance the natural light and there is also a large island, a walk-in pantry and built in units in the living room. The well appointed, full bathroom has separate bath and corner shower and the possibility for a separate laundry area on this level are more enticing features of this unique design.
Distinctive elements
9' ceiling throughout the 1st level. Large storage space in the front entry. Kitchen with cornered fenestration, large pantry and central island lunch counter. Open activity center with abundant windows to maximize the panoramic view. Two-sided fireplace between the living room and the master bedroom with integrated built-ins in the living room. Covered terrace on the side with a closed, screened-in space.
Plan feature(s)
Screened porch, Fireplace, Open floor layout, Deck, Pantry, Warparound, Mud room, Panoramic view, Ceiling over 8', Built-ins, Separate bath and shower
Plan architectural style(s)
. Country, . Vacation and waterfront, . Cottage, chalet, cabin, . American, . Traditional, . Craftsman / Northwest, . European, . Modern rustic
Similar plans
Previously Viewed Plans
Questions and comments
January 22
Kathleen Whitcomb
I was looking for Accessible homes on your site. This is what came up. How is this in anyway wheelchair accessible, or for that matter one story? There are stairs in abundance and it's an obstacle course. I would ask respectfully that you don't offer a accessible option if you don't have accessible plans. Thank you.
May 25
Andy Jensen
Love this plan. Wondering about detached garage plan to match; placement of washer/dryer; floor plan for basement with 2 more bedrooms, a bathroom, and possible cold storage.
May 26
Customer service
Dear Mr Jensen,
Thank you for your interest in Drummond House Plans.
We have two garage plans that are similar to the house. Plans number 3982 and 2997. Simply click on the plan number to access it on our website.
As for a floor plan for the basement, we can modify the plan for you. However, we will need more details such as the rooms location and the dimensions. To get a cost estimate for the modified plan, you can visite the "Plan modification services" section of our website or contact our Modification department at 1-800-444-4916.
Do not hesitate to contact us again if you need further information. We will gladly answer any questions you may have.
Best Regards,
Customer Service Department
March 28
Jeannie
Would it be possible to raise the ceilings in main living are or put in vaulted ceiling in the living room?
March 30
Customer service
Dear Sir,
Thank you for your interest in Drummond House Plans Collection.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-866-444-4916.
Do not hesitate to contact us again if you need further information.
Best Regards,
Customer Service Department
March 25
Matt Schick
Could a second floor be added to this to provide a bathroom and 2 bedrooms?
March 26
Customer service
Dear Mr Schick,
Thank you for your interest in Drummond House Plans.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-866-444-4916.
Do not hesitate to contact us again if you need further information.
Best Regards,
Customer Service Department
