3900A (The Trail Seeker 2)

Wraparound porch, waterfront cottage house plan, master bedroom on main floor, open layout, walkout basement

Bedrooms

1, 2, 3

Bath(s)

1

Half B.

-

Living area

840 sq.ft.

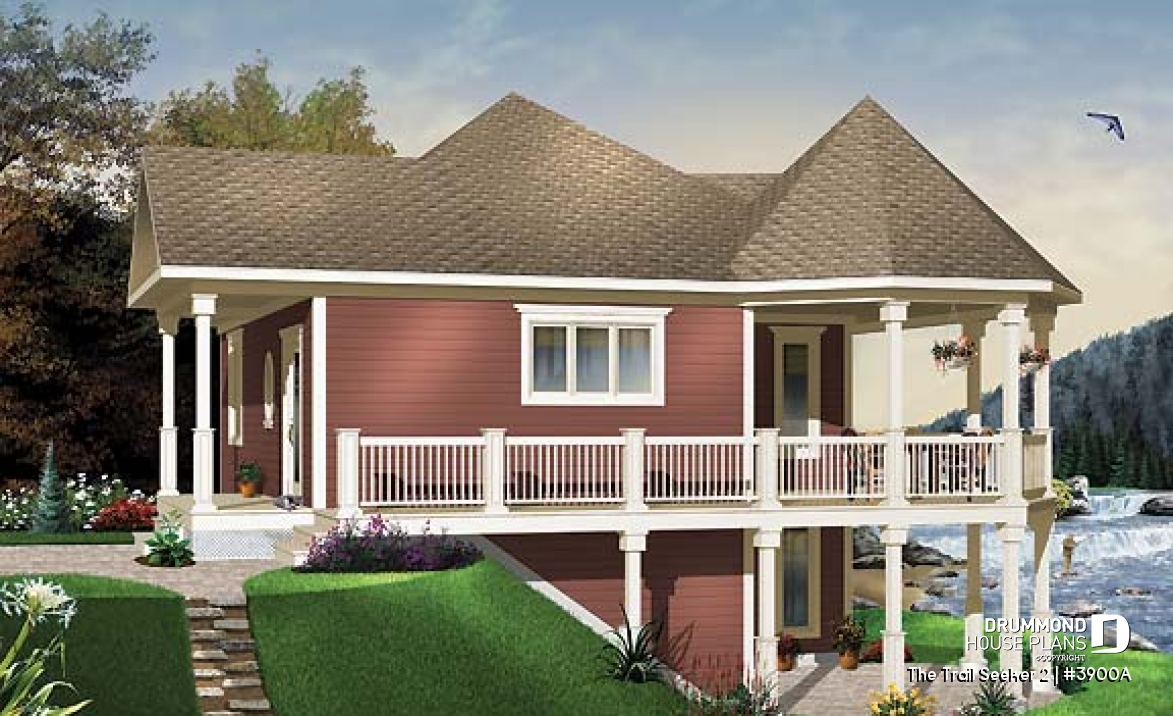

  • front - BASE MODEL - Wraparound porch, waterfront cottage house plan, master bedroom on main floor, open layout, walkout basement - The Trail Seeker 2

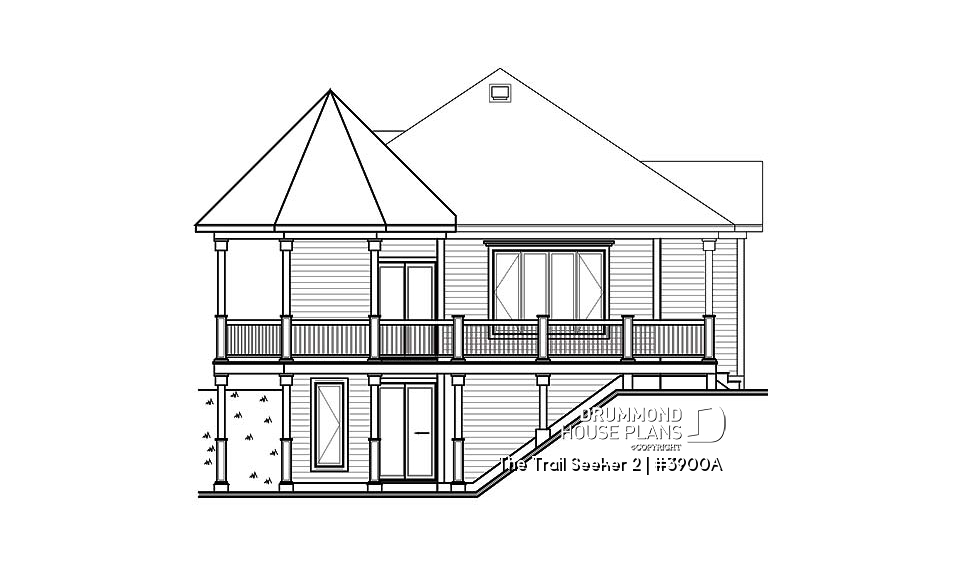

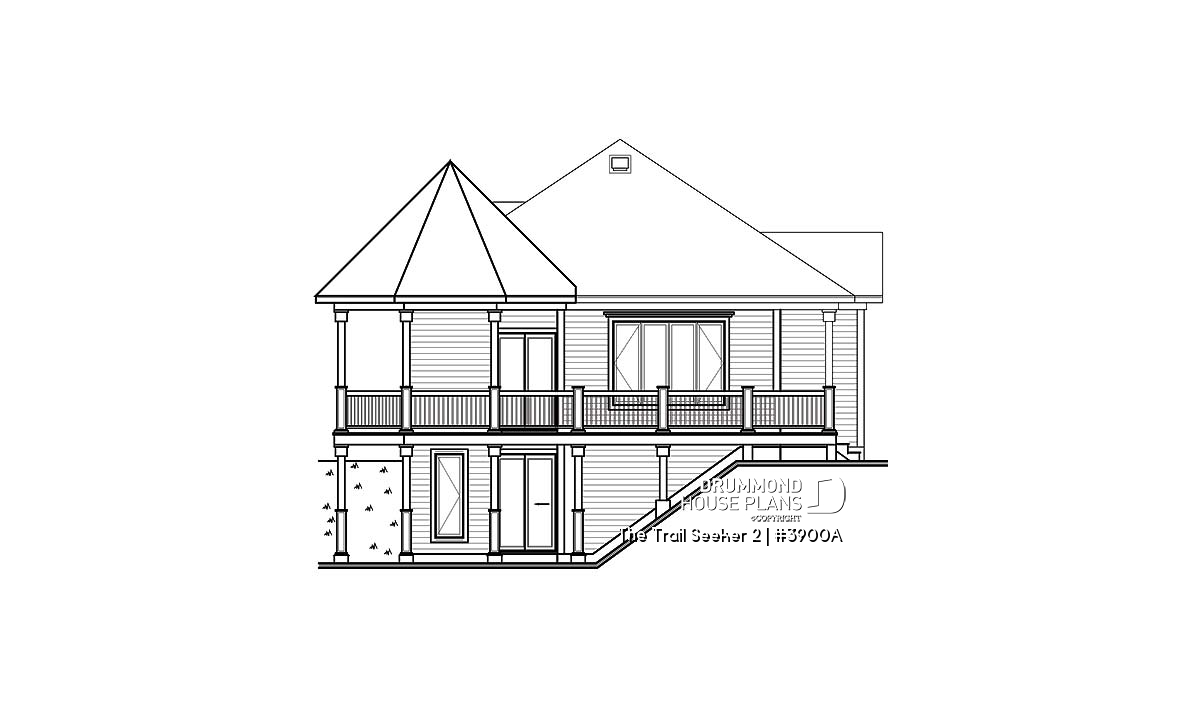

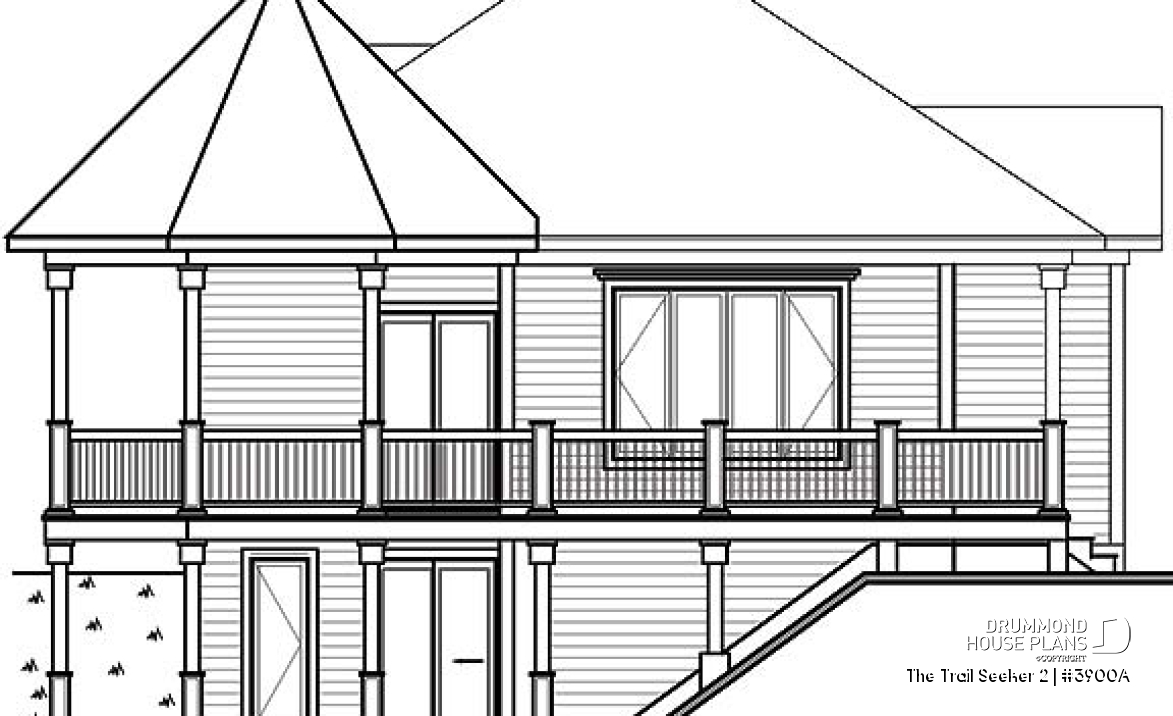

  • rear elevation - The Trail Seeker 2

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3900A
Vignette rear elevation - 3900A

View by floor

  • 1st level

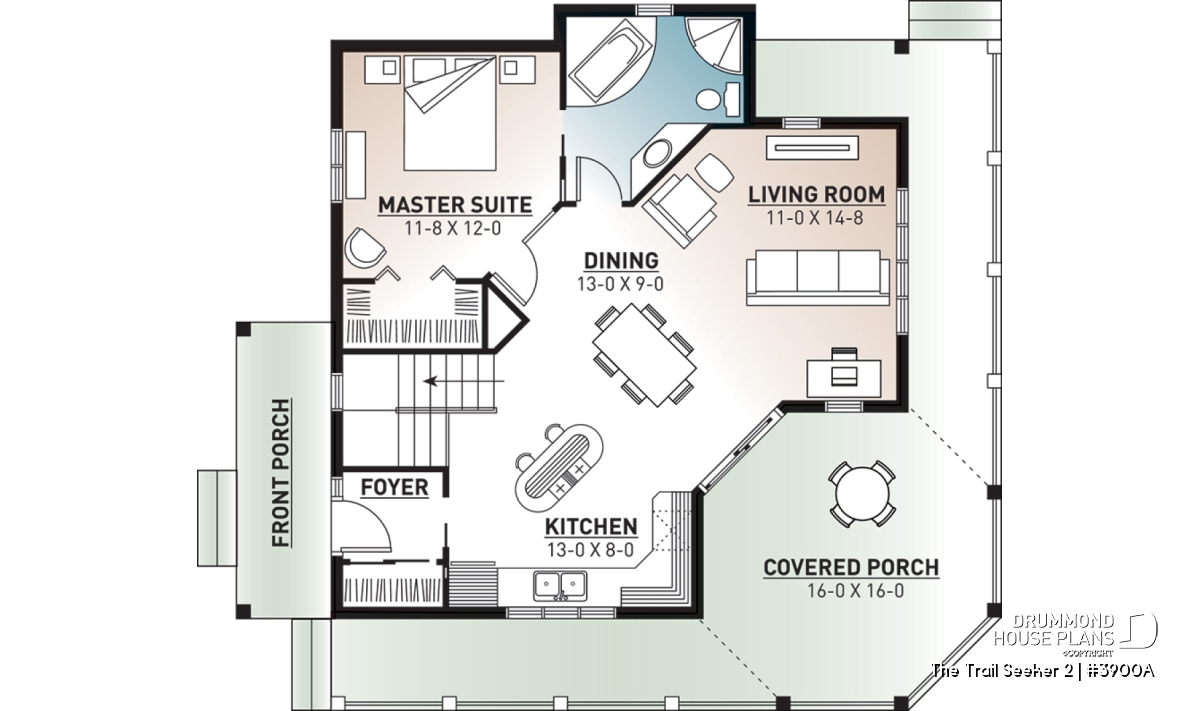

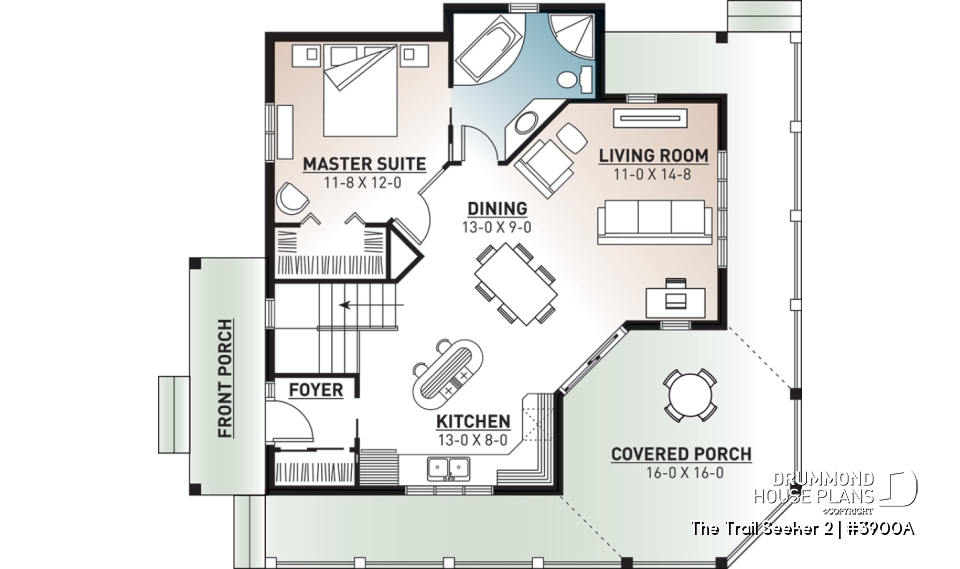

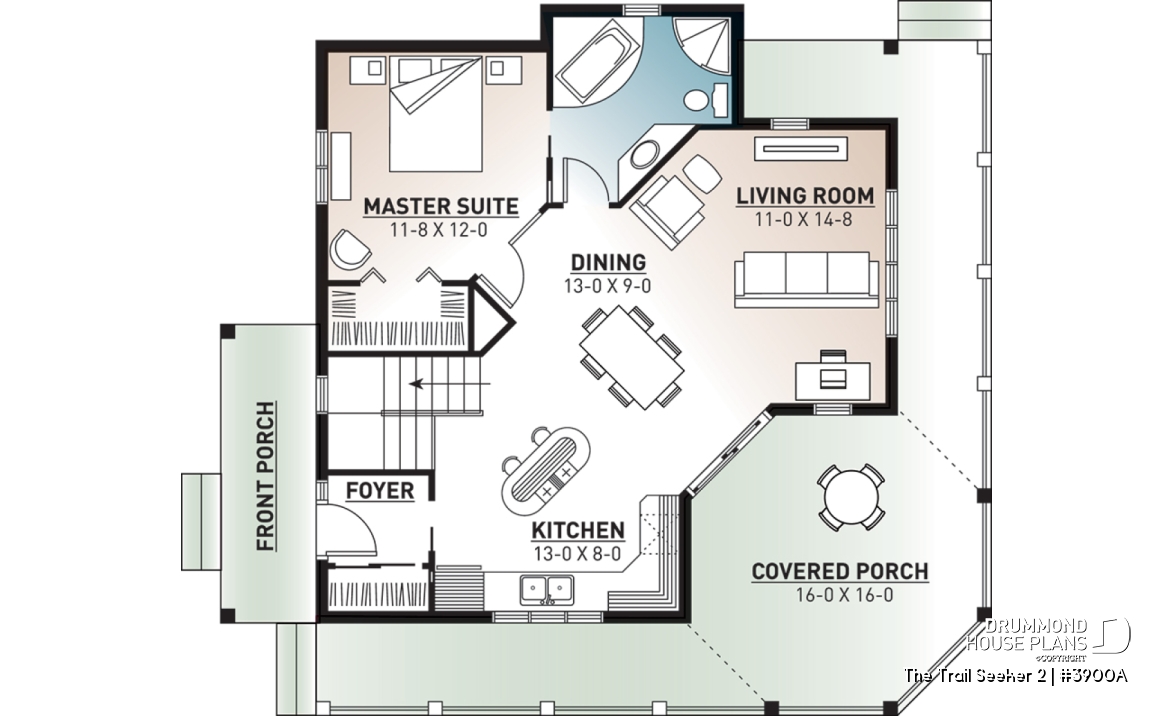

    1st level - Wraparound porch, waterfront cottage house plan, master bedroom on main floor, open layout, walkout basement - The Trail Seeker 2
Vignette 1st level - 3900A

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Full bathroom 10'0" x 9'4" ~ 9'0"
Dining room 9'0" x 13'0" ~ 9'0"
Foyer 5'0" x 5'4" ~ 9'0"
Kitchen 8'0" x 13'0" ~ 9'0"
Living room 14'8" x 11'0" ~ 9'0"
Porch 16'0" x 5'0" ~ 0'0"
Deck 36'0" x 5'0" ~ 0'0"
Lanai 5'0" x 36'0" ~ 0'0"
Bedroom 12'0" x 11'8" ~ 9'0"

General specifications

Total living area 840 sq.ft.
1st level 840 sq.ft.
Width 33'0"
Depth 31'0"
Ridge height from top of foundation 29'9"
Exterior wall 2 X 6
Foundation type included in the plan Full basement with walkout
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code A

Rooms specifications

Bedroom(s) 1, 2, 3
Full baths 1
Half baths -
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 840 sq.ft.
1st level 840 sq.ft.
Width 33'0"
Depth 31'0"
Ridge height from top of foundation 29'9"
Exterior wall 2 X 6
Foundation type included in the plan Full basement with walkout i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code A

Rooms specifications

Bedroom(s) 1, 2, 3
Full baths 1
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

Buy this plan

From : 710$

Modify this plan

Get a quote

Description

Main level: 9' ceiling. Foyer with coat closet, kitchen with island and lunch counter, dining room/family room, full bathroom, master bedroom with walk-in closet. Large unfinished walkout basement.

Other useful information on this plan

Chalet style house plan waterfront lot with unfinished walkout basement

Designed at the turn of the millennium in answer to the requests for a full-featured getaway property, this four-season recreation style house includes many interesting elements inside and out. Let’s examine it more closely!

Outside on the main level, a gallery spread over two façades ties together the front and rear of the house, joined by a gazebo which would be ideal for enjoying meals with shelter from the elements. Also, an exit from the basement is located just below this gazebo allowing for a sheltered patio space at that level.

Inside, we discover an open activities area, bathed in light and benefiting from a 9 foot ceiling throughout the entire main level. We appreciate a kitchen with central island and triple window at the sink, a dining room, and a living room with an angled layout for a dynamic and unique interior, a master bedroom with walk-in closet, discreetaccess to an adjoining bathroom with corner bath and corner shower, and double glass doors allowing a view on the panorama through the dining room.

For further options of this basic plan, model 3930 proposes a design with finished basement and a slightly enlarged format.

Distinctive elements

9' ceiling on 1st level. Open activity area and abundant windows towards the back. Bedroom #1 and bathroom on 1st floor. Two-sided gallery with a gazebo, which provides a nice spot for eating outdoors.
Unfinished basement for extra bedrooms and family room, or storage.

Plan feature(s)

Gazebo, Open floor layout, Warp around porch, Walk-in master bed., front porch, Island, Abundant fenestration, Deck, Access to basement from exterior

Other useful information on this plan

Full description

Chalet style house plan waterfront lot with unfinished walkout basement

Designed at the turn of the millennium in answer to the requests for a full-featured getaway property, this four-season recreation style house includes many interesting elements inside and out. Let’s examine it more closely!

Outside on the main level, a gallery spread over two façades ties together the front and rear of the house, joined by a gazebo which would be ideal for enjoying meals with shelter from the elements. Also, an exit from the basement is located just below this gazebo allowing for a sheltered patio space at that level.

Inside, we discover an open activities area, bathed in light and benefiting from a 9 foot ceiling throughout the entire main level. We appreciate a kitchen with central island and triple window at the sink, a dining room, and a living room with an angled layout for a dynamic and unique interior, a master bedroom with walk-in closet, discreetaccess to an adjoining bathroom with corner bath and corner shower, and double glass doors allowing a view on the panorama through the dining room.

For further options of this basic plan, model 3930 proposes a design with finished basement and a slightly enlarged format.

Distinctive elements

9' ceiling on 1st level. Open activity area and abundant windows towards the back. Bedroom #1 and bathroom on 1st floor. Two-sided gallery with a gazebo, which provides a nice spot for eating outdoors.
Unfinished basement for extra bedrooms and family room, or storage.

Plan feature(s)

Gazebo, Open floor layout, Warp around porch, Walk-in master bed., front porch, Island, Abundant fenestration, Deck, Access to basement from exterior

Questions and comments on this plan

February 02 2015

Linda

Hi, would it be possible for you to email me a diagram of the basement layout? Thanks.

February 02 2015

Customer service

Good day and thank you for your interest in this plan.

Since it has a full, unfinished basement there are no walls for divisions which is why there is no floor plan available but we would be happy to provide a free estimate for the basement plan that meets your specific requirements within two business days after receipt of this on line form.

Please let me know if I can further assist you
Regards
Deb

March 15 2013

crystal

hello,
i was wondering if it would be possible for you to email me the matierials list for this plan? im trying to figure out an approximate price. thank you!

March 15 2013

Customer service

Good day and thank you for taking the time to write

You can purchase the materials list prior to buying the plan and we will be happy to send it to you via Email but the order will need to be placed by telephone as the on line will require purchase of the plan at the same time.

You can reach us during normal business hours from Monday to Friday at 1 (800) 567-5267.

Thank you

Deborah

October 03 2012

ADAM LAWRENCE

What types of siding and roofing are supported by this plan 3900A?
Is there a charge to change the layout of the bathroom to have a larger shower but no tub?

October 03 2012

Customer service

Good day Mr. Lawrence and thank you for your interest in our plans.

The roofing is shingles and the structure is trusses but I unfortunately do not have the details with which to answer the rest of your question.

If you require more infomation prior to purchasing the plan, you can acquire the materials list, which can be sent to you in electronic form in order to eliminate shipping charges.

Please let me know if I can further assist you.

Regards

Deborah

Questions and comments

February 02 2015

Linda

Hi, would it be possible for you to email me a diagram of the basement layout? Thanks.

February 02 2015

Customer service

Good day and thank you for your interest in this plan.

Since it has a full, unfinished basement there are no walls for divisions which is why there is no floor plan available but we would be happy to provide a free estimate for the basement plan that meets your specific requirements within two business days after receipt of this on line form.

Please let me know if I can further assist you
Regards
Deb

March 15 2013

crystal

hello,
i was wondering if it would be possible for you to email me the matierials list for this plan? im trying to figure out an approximate price. thank you!

March 15 2013

Customer service

Good day and thank you for taking the time to write

You can purchase the materials list prior to buying the plan and we will be happy to send it to you via Email but the order will need to be placed by telephone as the on line will require purchase of the plan at the same time.

You can reach us during normal business hours from Monday to Friday at 1 (800) 567-5267.

Thank you

Deborah

October 03 2012

ADAM LAWRENCE

What types of siding and roofing are supported by this plan 3900A?
Is there a charge to change the layout of the bathroom to have a larger shower but no tub?

October 03 2012

Customer service

Good day Mr. Lawrence and thank you for your interest in our plans.

The roofing is shingles and the structure is trusses but I unfortunately do not have the details with which to answer the rest of your question.

If you require more infomation prior to purchasing the plan, you can acquire the materials list, which can be sent to you in electronic form in order to eliminate shipping charges.

Please let me know if I can further assist you.

Regards

Deborah
