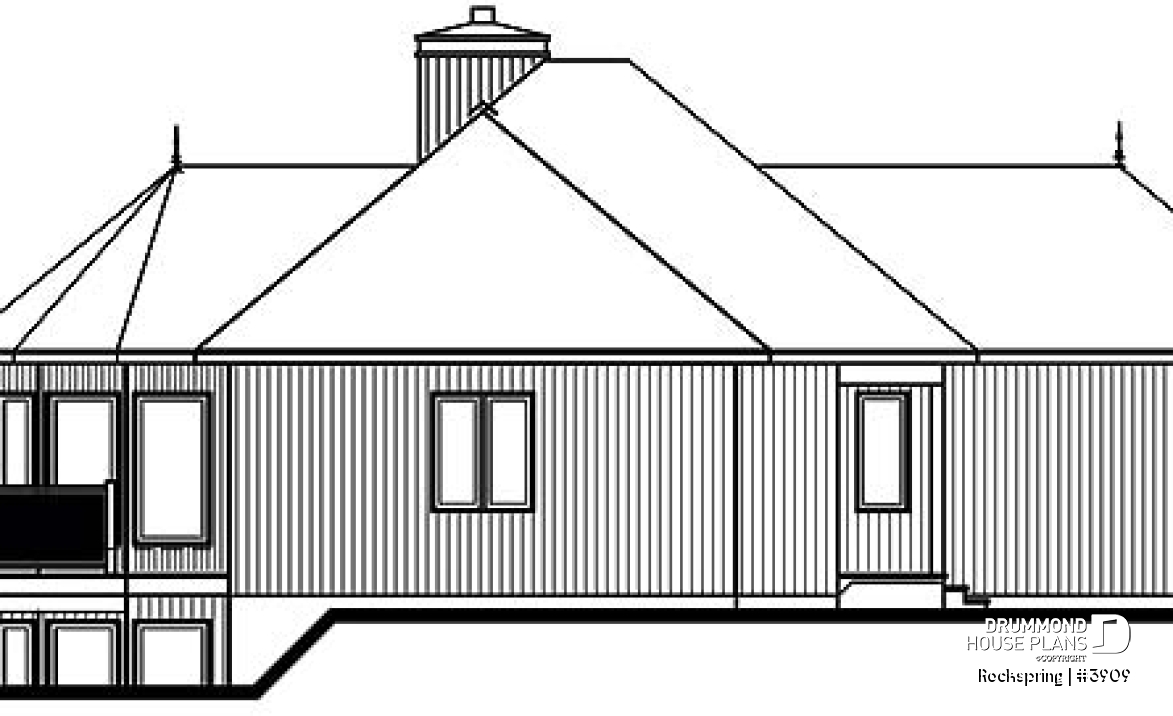

House plan Rockspring (3909)
Chalet house plan with 2 bedrooms, master bedroom with private balcony, lots of natural light
View the size of the rooms and height of the ceilings

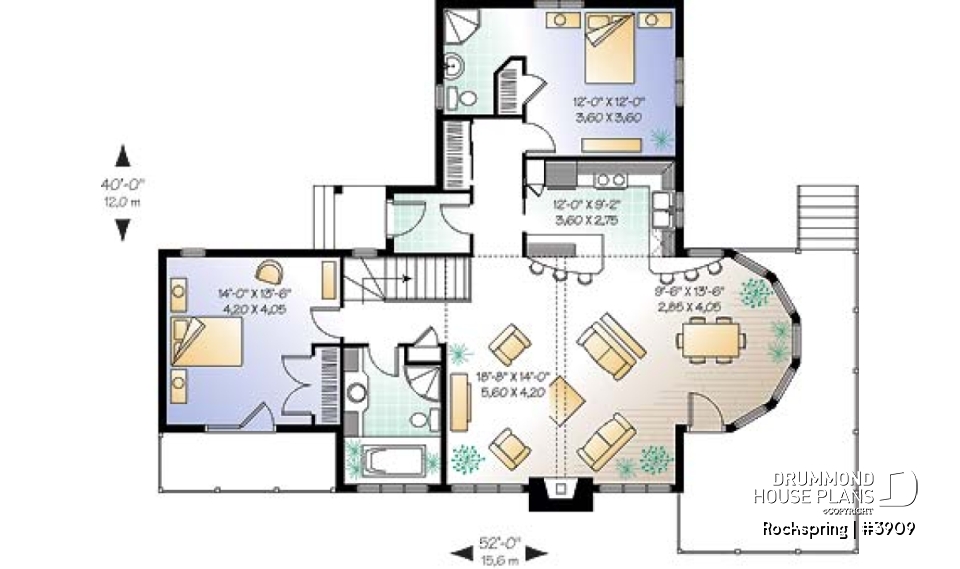

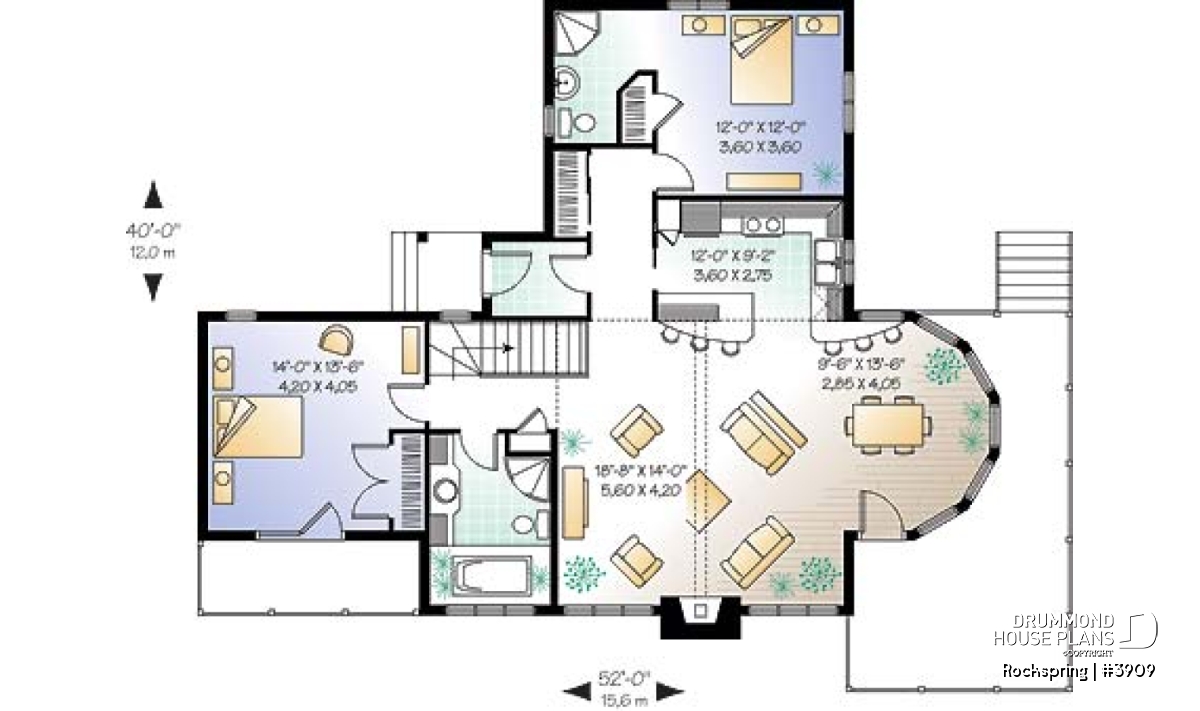

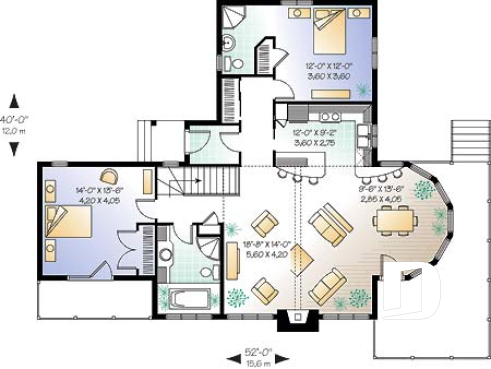

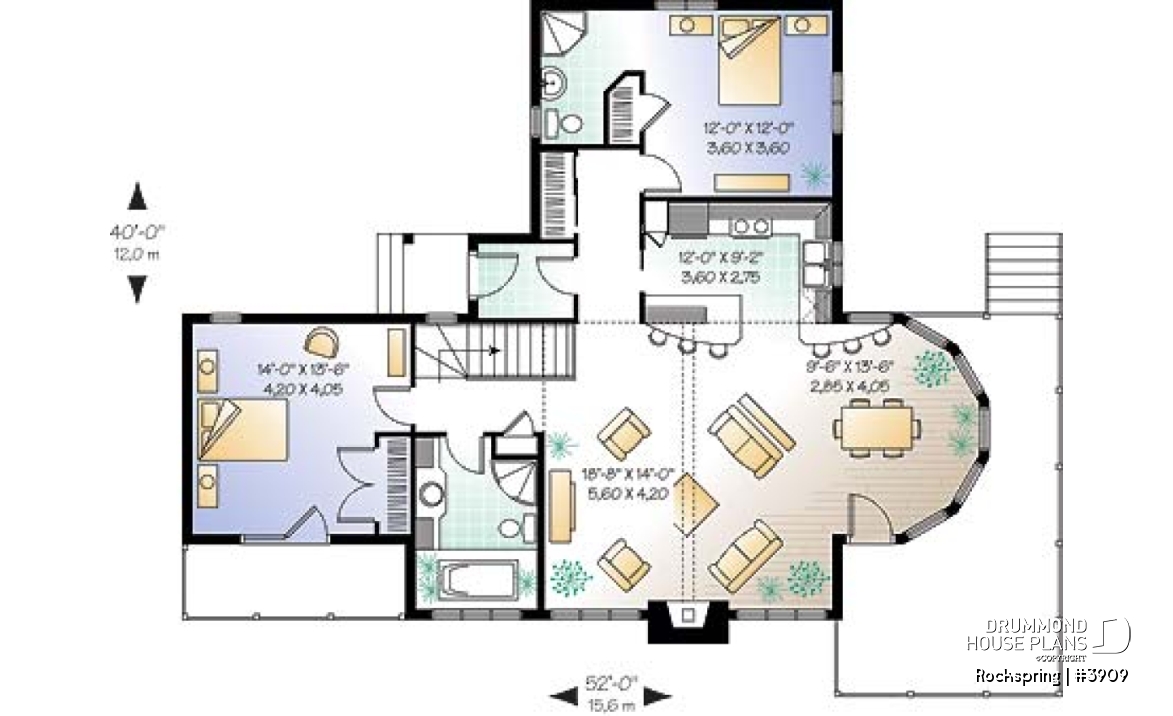

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'10" x 11'2" | ~ 8'0" |
| Kitchen | 12'0" x 9'2" | ~ 8'0" |
| Dining room | 9'6" x 13'6" | ~ 8'0" |
| Living room | 18'8" x 14'0" | ~ 15'9" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Bedroom | 14'0" x 13'6" | ~ 8'0" |
| Linen | 2'8" x 1'0" | ~ 8'0" |
| Linen | 2'0" x 2'10" | ~ 8'0" |
| Closet | 7'10" x 2'0" | ~ 8'0" |
| Porch | 7'6" x 3'0" | ~ 8'0" |
| Terrace | 15'0" x 24'10" | ~ 8'0" |
General specifications
| Total living area | 1314 sq.ft. |
| 1st level | 1314 sq.ft. |
| Width | 52'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 30'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Cottage style house plan with open floor plan, 2 bedrooms and unfinished walkout basement
.
Distinctive elements
Fireplace, abundant fenestration.
Plan feature(s)
Fireplace, Open floor layout, Cathedral ceiling, Lunch counter, Island, Entrance hall, Panoramic view
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Ski chalets, . American, . Mountain, . Ranch
Similar plans
Previously Viewed Plans
Questions and comments
February 24
Vanessa Witkowski
I am interested in building a home with small square footage and a modern design. The Whiskey Jack and Rockspring floorplans appeal to me. Please contact me with more information.
Vanessa
February 24
Customer service
Good day Ms. Witkowski and thank you for taking the time to write.
Although there are similar versions in each or the two categories that you mention, certain models have been designed to conform to the IRC US construction code and as such the "wedge" shaped stairs have been replaced.
In the case of the Whiskey Jack model, you would probably be better off with
4925 if you are going to build in the U.S.
As far as the Rockspring collection you're probably better off with either 6910 or plan 6919 depending on the configuration that best meets your needs.
If you are thinking of building outside the U.S. the choice is yours as the IRC code does not apply elsewhere.
We can modify any plan to meet your specific requirements and would be happy to forward a free estimate for any changes within two business days after receipt of this on line request.
Please let me know if I can further assist you in any way
Regards
Deb
