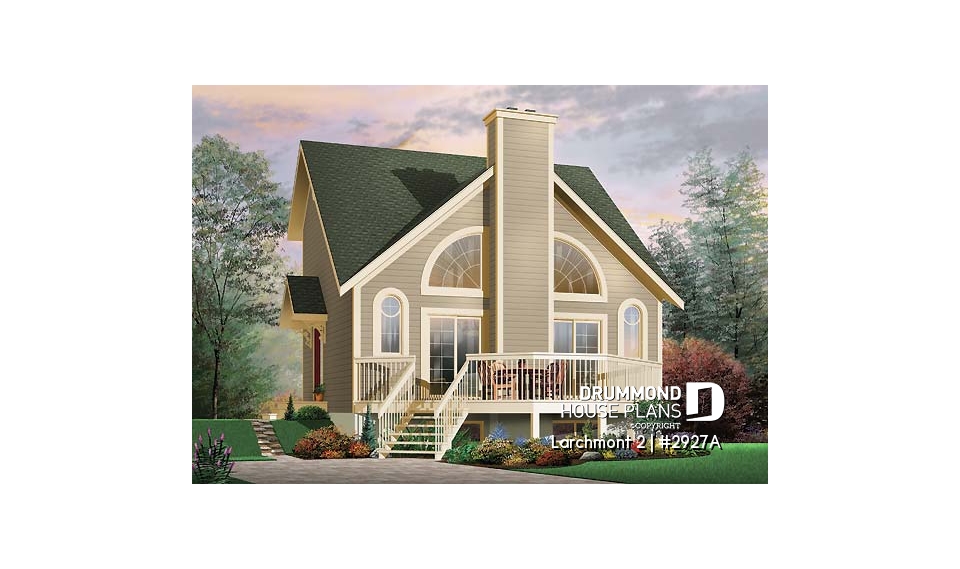

House plan Larchmont 2 (2927A)
1 bedroom cottage plan with cathedral ceiling, unfinished basement for extra beds, mudroom
View the size of the rooms and height of the ceilings
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 16'0" x 11'2" | ~ 8'0" |

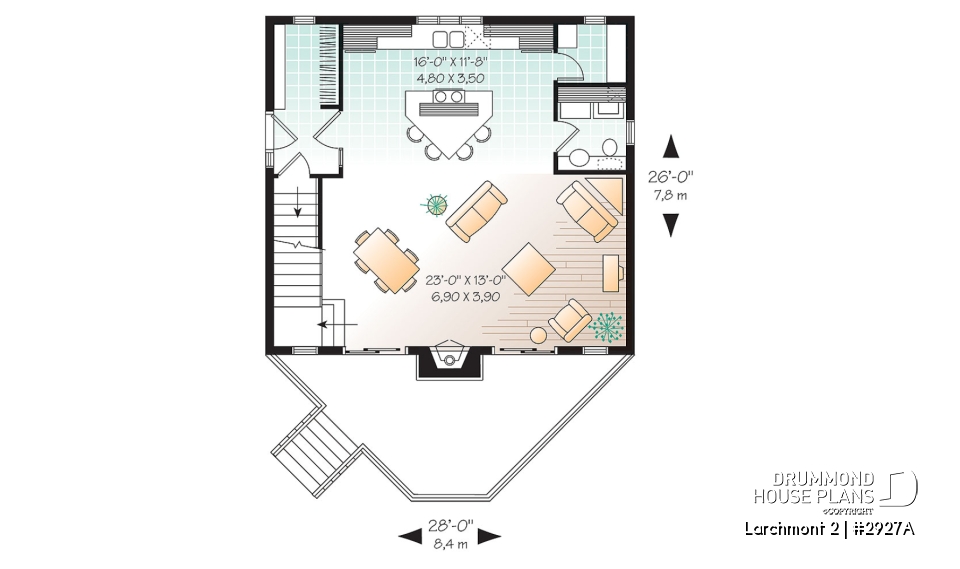

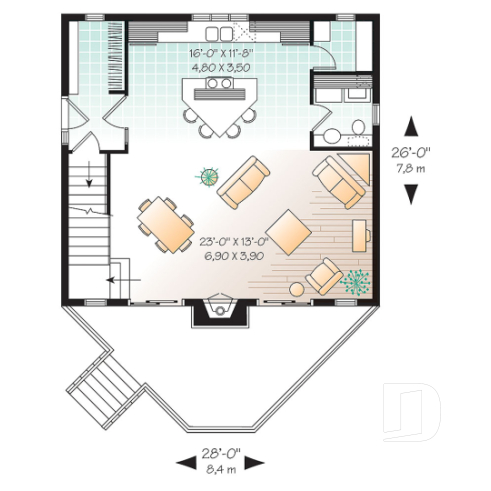

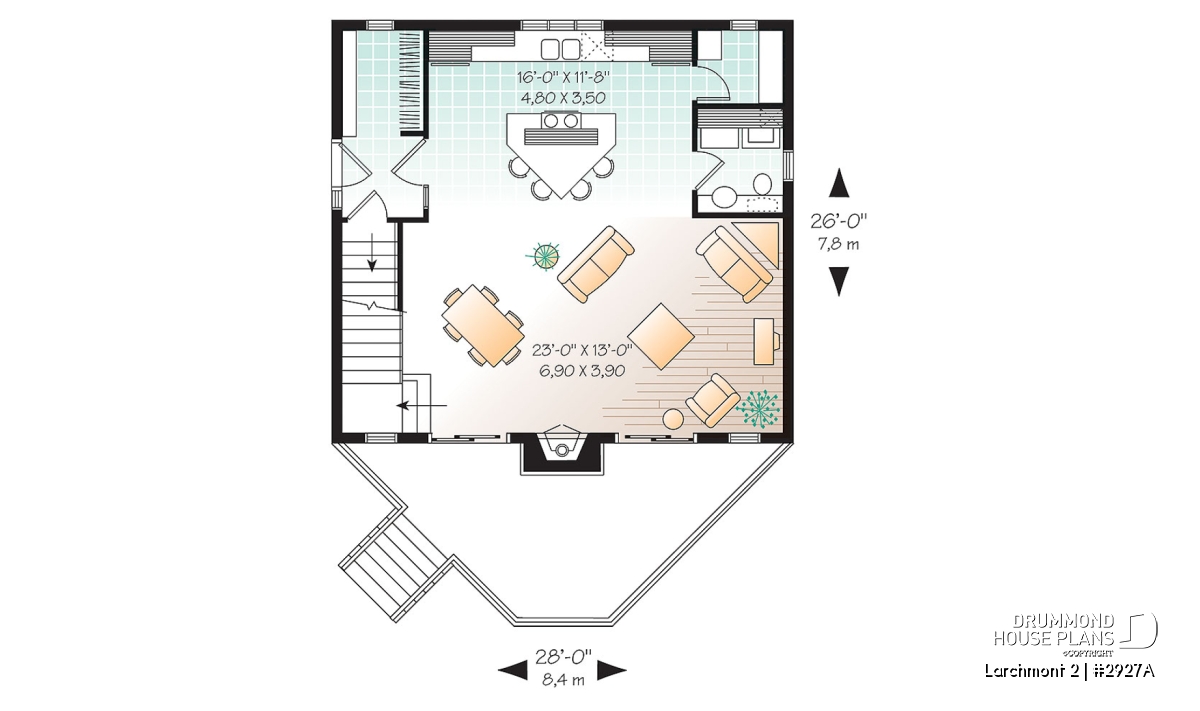

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room/dining room | 23'0" x 13'0" | ~ 17'2" |
| Foyer | 5'0" x 5'0" | ~ 8'0" |
| Powder/laundry room | 5'0" x 6'10" | ~ 8'0" |
| Kitchen | 16'0" x 11'8" | ~ 8'0" |
| Porch | 3'4" x 10'0" | N/A |
| Deck | 28'0" x 11'0" | N/A |
| Storage | 5'0" x 5'0" | ~ 8'0" |
| Living room | 22'9" x 12'11" | ~ 8'0" |
| Full bathroom | 5'0" x 7'7" | ~ 8'0" |
General specifications
| Total living area | 1148 sq.ft. |
| 2nd level | 420 sq.ft. |
| 1st level | 728 sq.ft. |
| Width | 28'0" |
| Depth | 26'0" |
| Ridge height from top of foundation | 26'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan

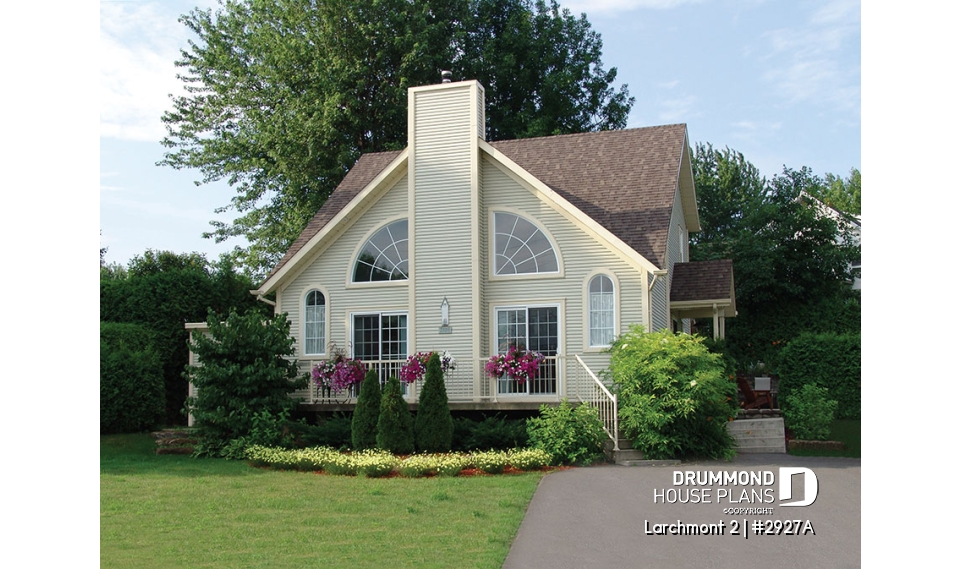

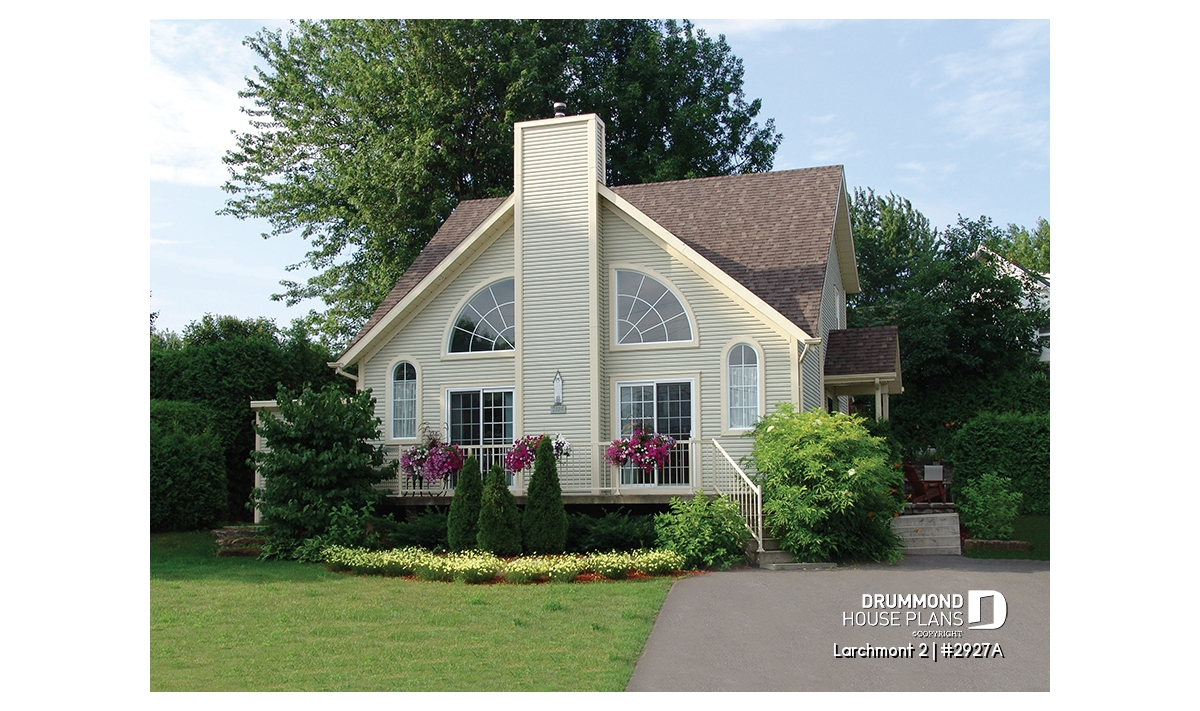

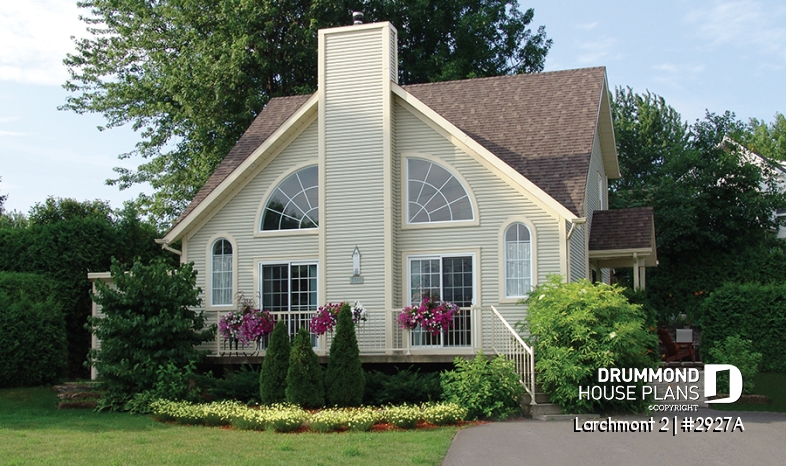

Quite an Original Chalet with lots of natural light!

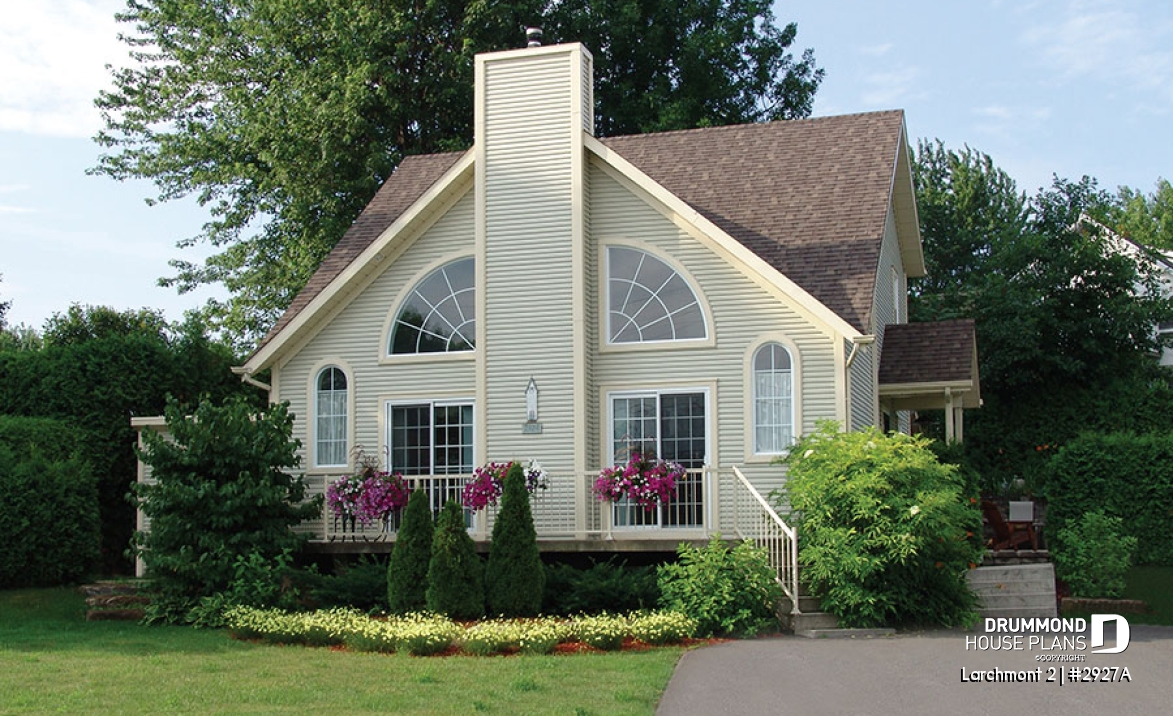

Among the chalet designs proposed by Drummond Designs, this cost-conscious model is one of the most popular, with a balanced exterior and original fenestration evenly distributed on either side of a central fireplace, and a very open interior. Let’s take a closer look.
As we enter, we first notice the vast coat closet, with space enough for sports equipment and a practical drying area. Once through the foyer, we are pleasantly surprised by the available interior space in this chalet; a laboratory-style kitchen with central lunch counter and walk-in pantry adjacent an open family and dining room with a cathedral ceiling and a beautifully centered fireplace.

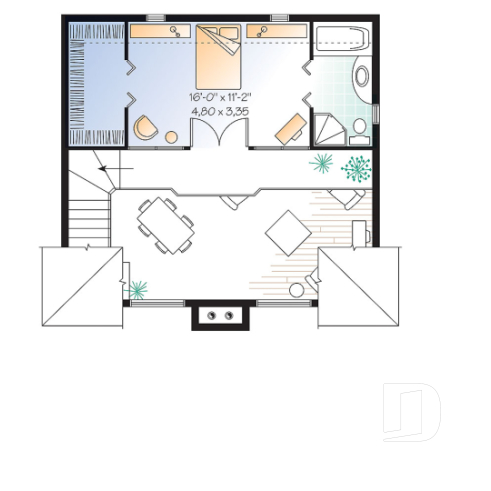

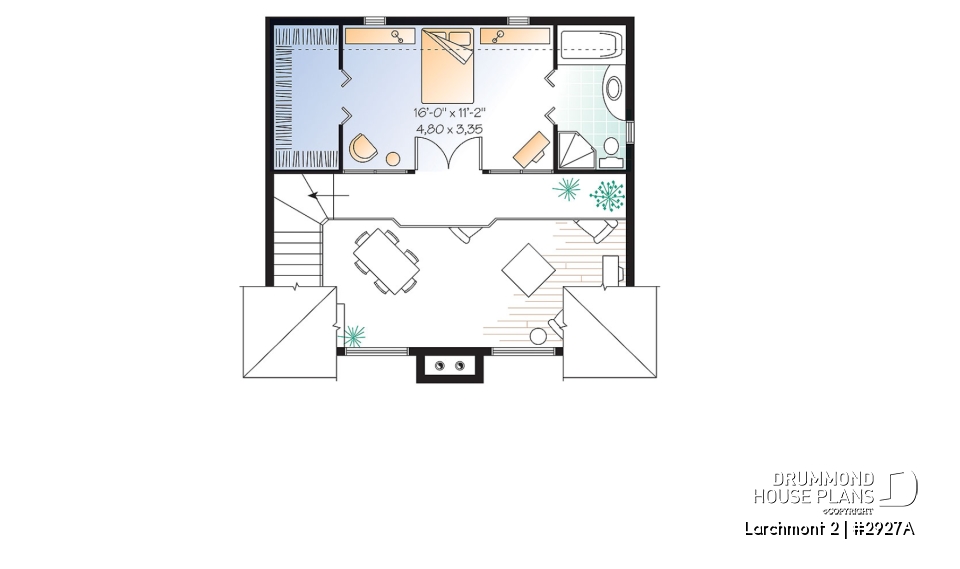

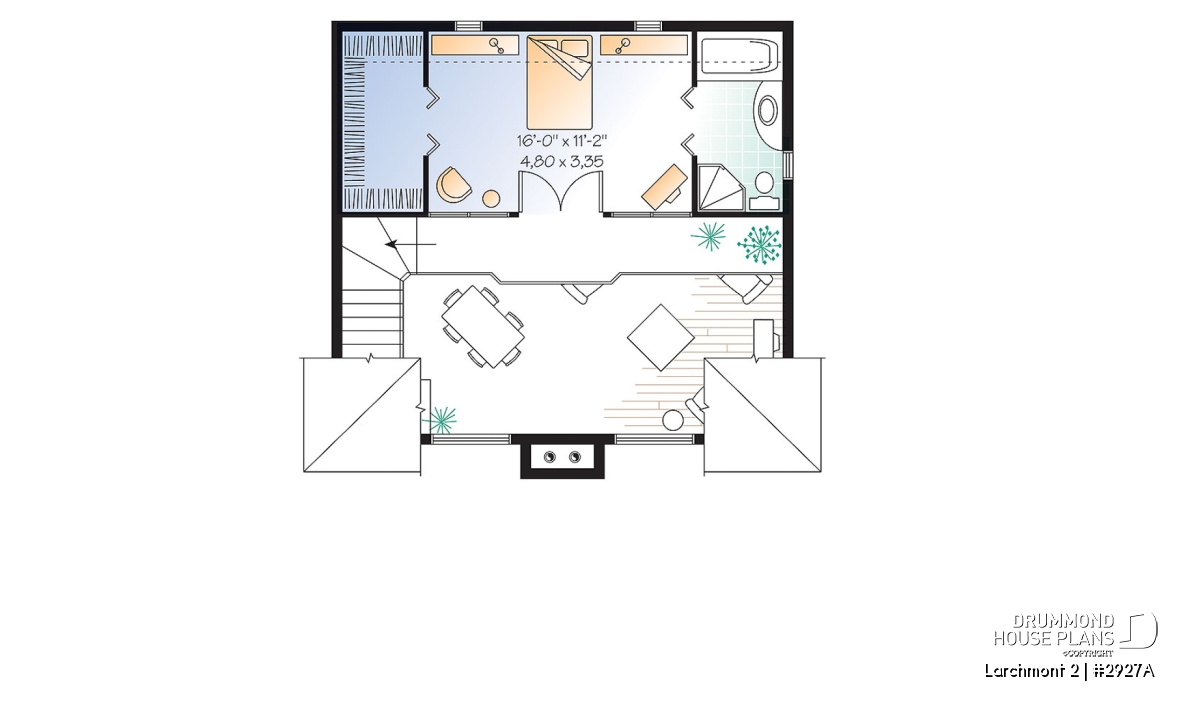

The second level is dominated by the master bedroom suite with roomy walk-in closet, private bathroom and especially the 16 foot long glassed partition, which ensures a panoramic view via a full-length mezzanine.
The addition of rooms in the basement is possible to add space to accomodate a family with a couple of teenagers.
Distinctive elements
Open activity area on 1st level. Kitchen with walk-in pantry and original island lunch-counter. Master suite on 2nd level with abundant fenestration, walk-in closet and private bathroom.
Plan feature(s)
Mezzanine, Pantry, Island, Open floor layout, Loft, Fireplace, Walk-in master bed., Mud room, Cathedral ceiling
Plan architectural style(s)
. Vacation and waterfront, . A-Frame, . Ski chalets, . Country, . Cottage, chalet, cabin
