House plan Chestnut (3953)
1 to 3 bedroom cottage house plan, cathedral ceiling, great master suite, pantry, and more!
View the size of the rooms and height of the ceilings

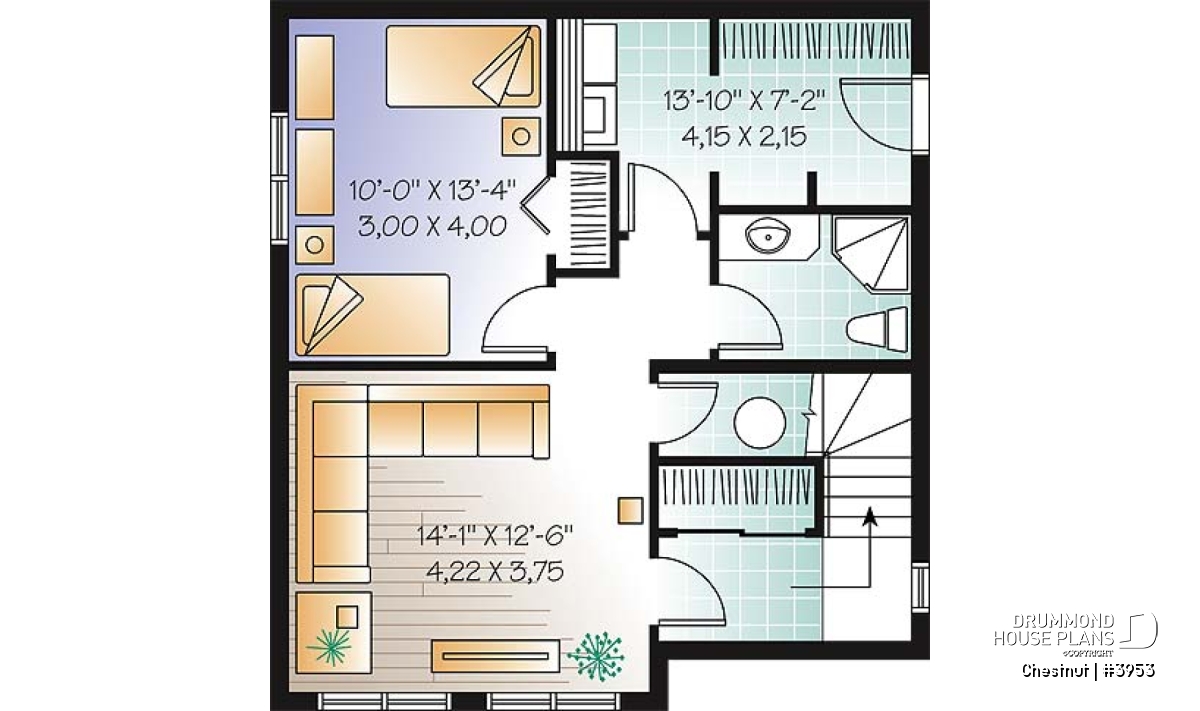

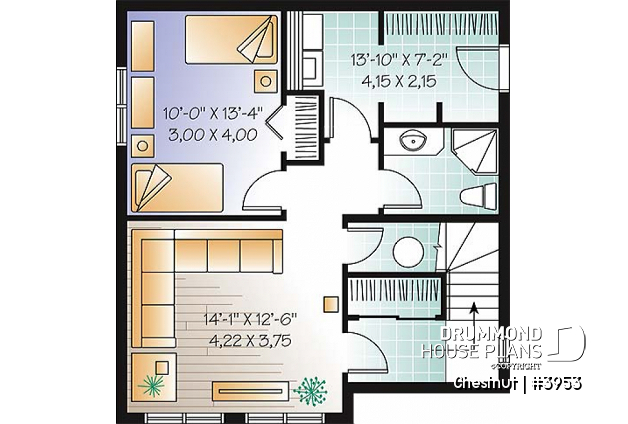

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 3'4" x 3'4" | ~ 8'0" |
| Linen | 6'2" x 2'6" | ~ 8'0" |
| Utility room | 13'8" x 7'2" | ~ 8'0" |
| Shower room or three quarter bath | 7'8" x 5'9" | ~ 8'0" |
| Bedroom | 10'0" x 13'4" | ~ 8'0" |

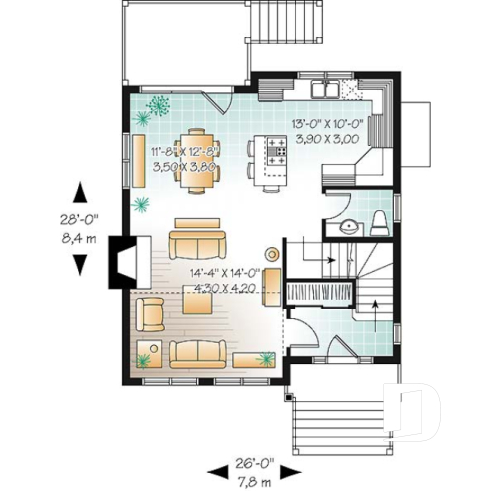

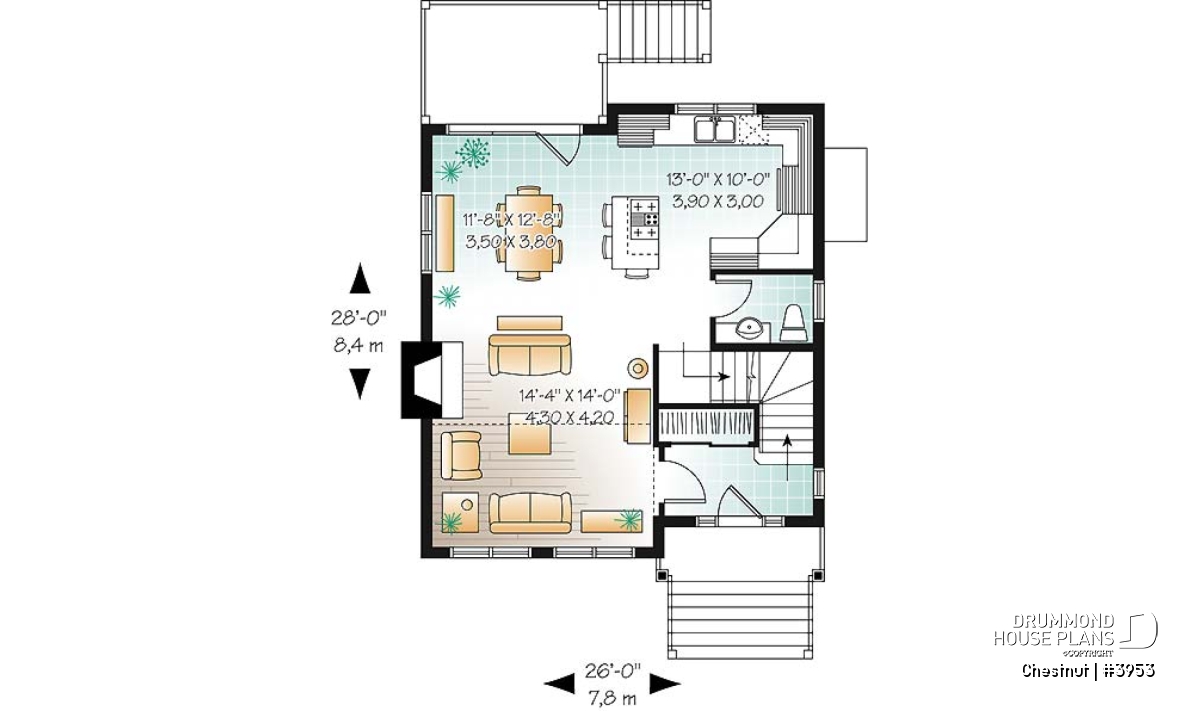

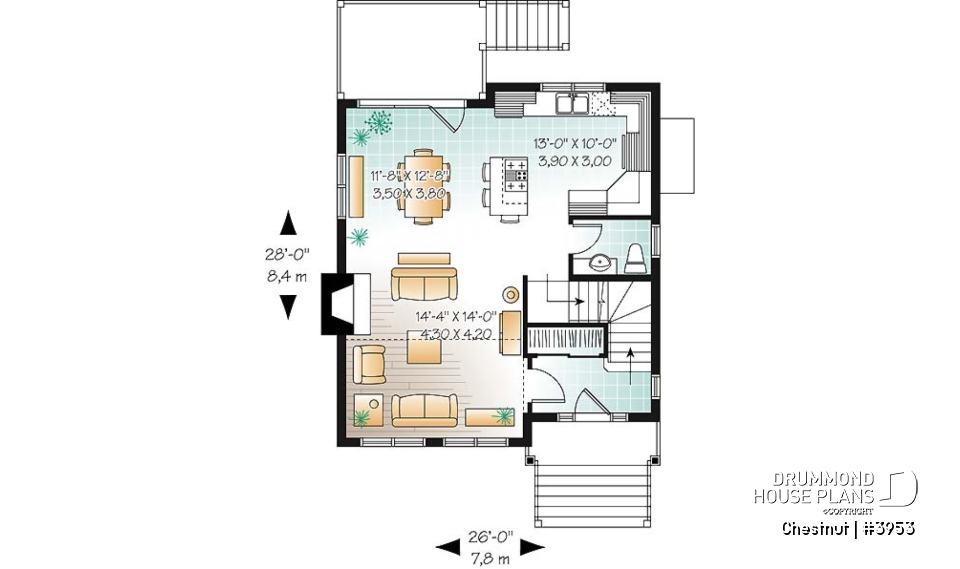

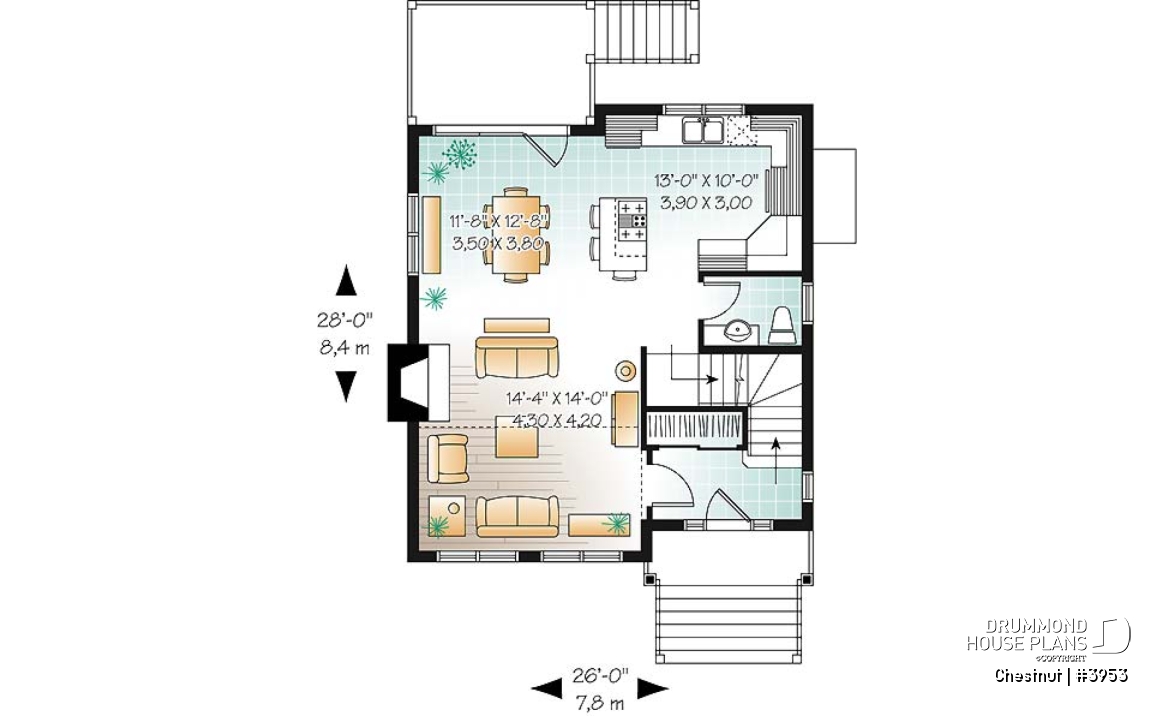

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 13'0" x 10'0" | ~ 8'0" |
| Dining room | 11'8" x 12'8" | ~ 8'0" |
| Living room | 14'4" x 14'0" | ~ 17'4" |
| Foyer | 9'8" x 4'6" | ~ 8'0" |
| Half bath or powder room | 6'4" x 4'6" | ~ 8'0" |
| Porch | 10'4" x 3'6" | N/A |
| Deck | 12'0" x 8'0" | N/A |

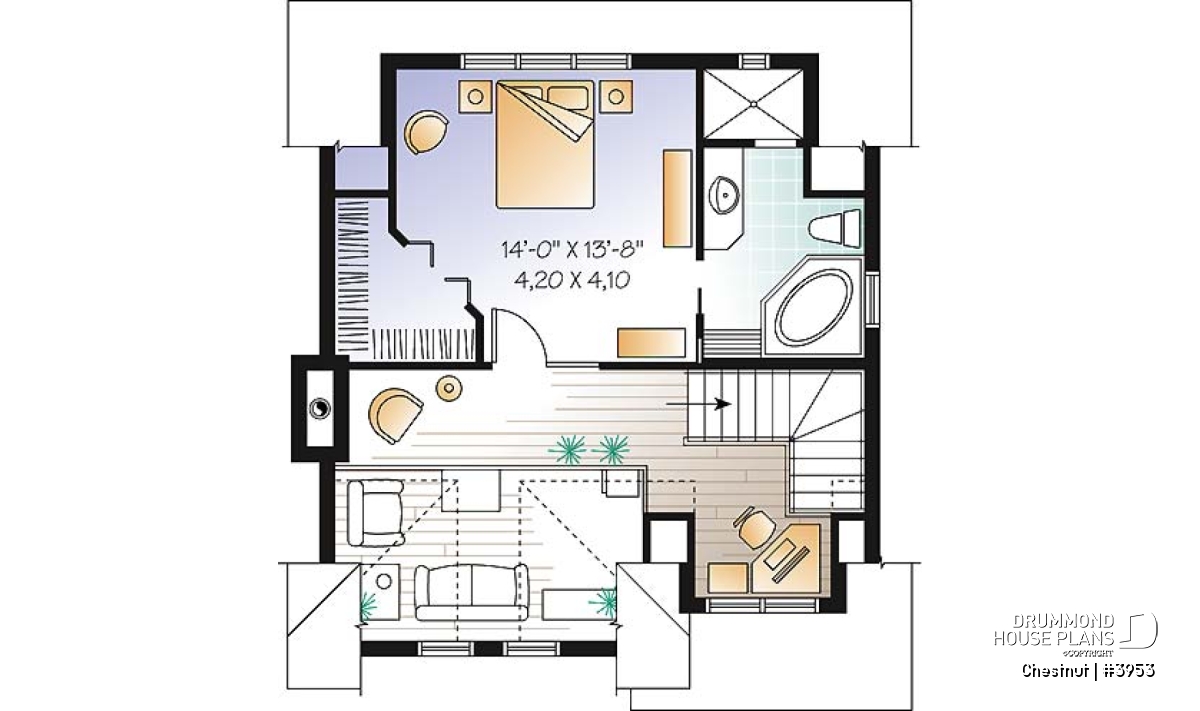

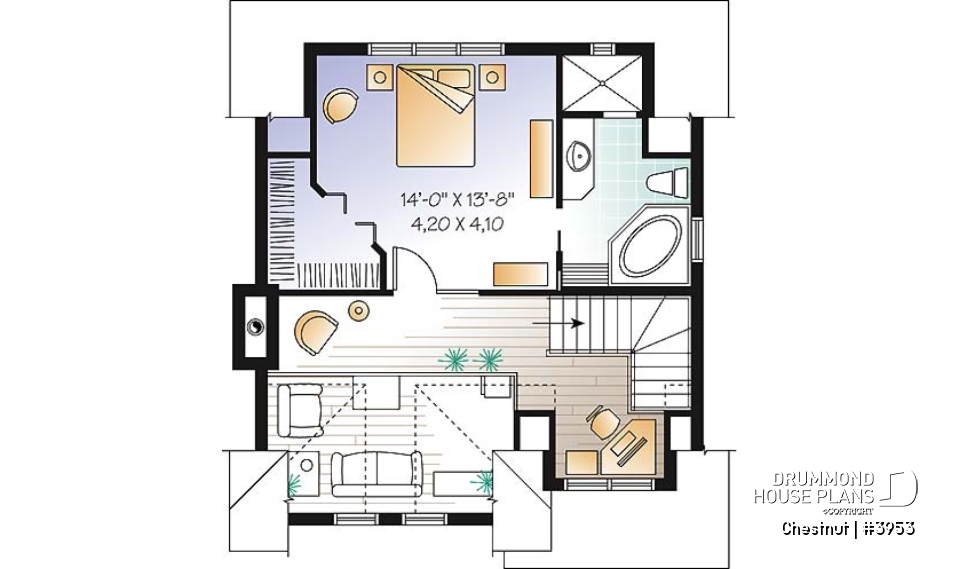

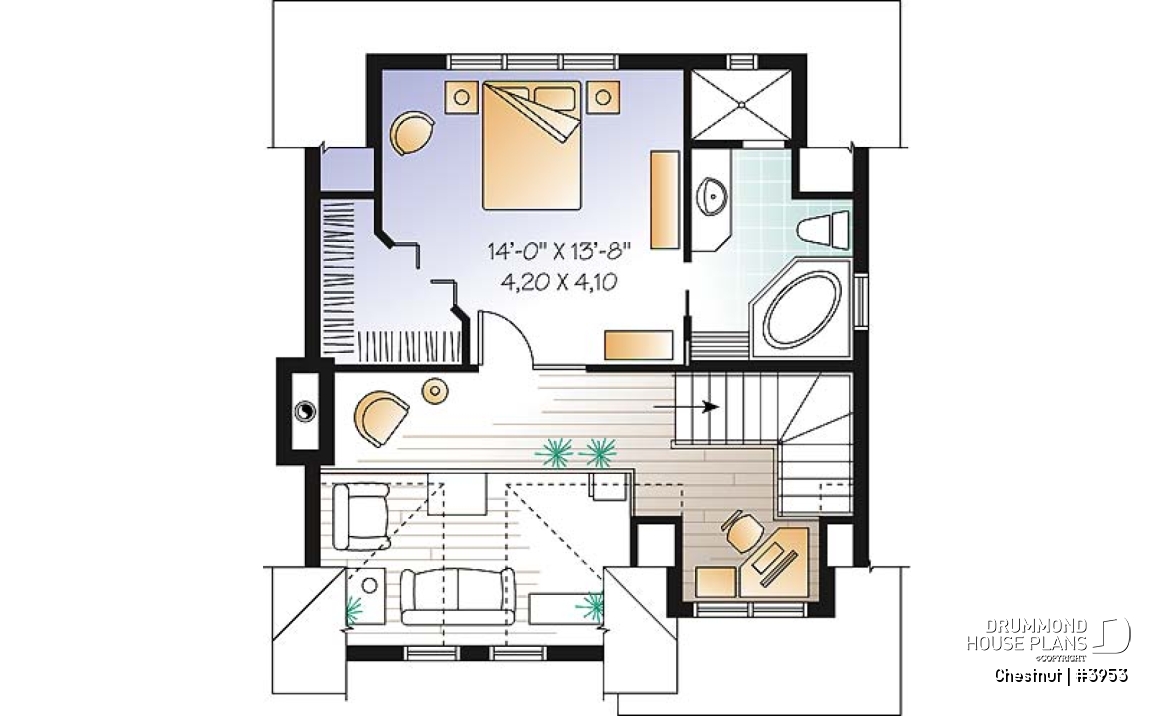

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 14'0" x 13'8" | ~ 8'0" |
| Reading/computer area | 15'9" x 4'8" | ~ 8'0" |
| Reading/computer area | 6'5" x 7'2" | ~ 8'0" |
General specifications
| Total living area | 1956 sq.ft. |
| Basement | 707 sq.ft. |
| 1st level | 726 sq.ft. |
| 2nd level | 523 sq.ft. |
| Width | 26'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 30'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Lots of natural light for this 1 to 3 bedroom house plan, mountain style!
.
Distinctive elements
Activity area entirely open on 1st level with panoramic view on the front of the house.
Partial cathedral ceiling in living room, triple patio-door in dining room and lunch island in the kitchen.
Remarquable master suite on 2nd floor with double glass doors and private bathroom including an independant 56" x 40" shower.
Lower level with service door accessing a storage/laundry area appropriate for skiers and surfers.
Game room on lower level easily convertible in a 3rd bedroom if required.
Plan feature(s)
Access to basement from exterior, Cathedral ceiling, Mezzanine, Fireplace, Island, Pantry, Entrance hall, Master suite upstairs, Separate bath and shower, Walk-in master bed., Sitting area, Planning desk
Plan architectural style(s)
. Mountain, . Country, . Vacation and waterfront, . Ski chalets, . Modern rustic, . Rustic, . Scandinavian, . Cottage, chalet, cabin
