House plan Larchmont (2927)
One bedroom A-frame cabin plan, lots of lights, fireplace, mezzanine, large master suite, unfinished basement
View the size of the rooms and height of the ceilings

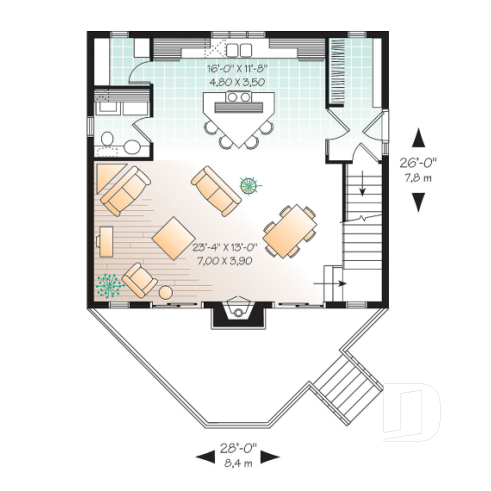

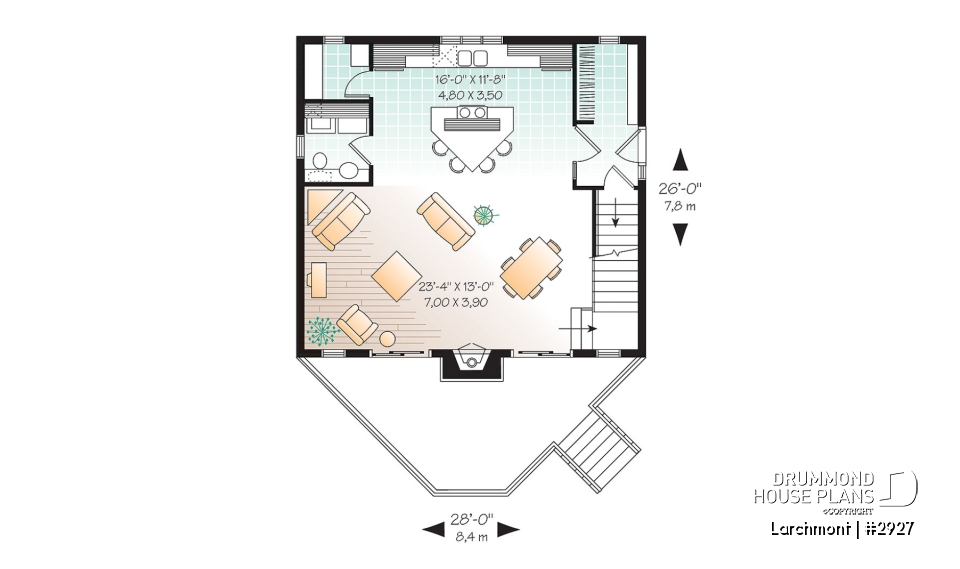

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 16'0" x 11'8" | ~ 8'0" |
| Living room/dining room | 23'0" x 13'0" | ~ 19'4" |
| Foyer | 5'0" x 4'10" | ~ 8'0" |
| Powder/laundry room | 5'0" x 6'4" | ~ 8'0" |
| Terrace | 3'4" x 10'0" | N/A |
| Porch | 28'0" x 11'0" | N/A |
| Storage | 5'0" x 4'6" | ~ 8'0" |
| Great room or Family room | 22'9" x 12'11" | ~ 8'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 16'0" x 11'2" | ~ 8'0" |
General specifications
| Total living area | 1148 sq.ft. |
| 1st level | 728 sq.ft. |
| 2nd level | 420 sq.ft. |
| Width | 28'0" |
| Depth | 26'0" |
| Ridge height from top of foundation | 26'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Perfectly decadent one bedroom chalet house plan

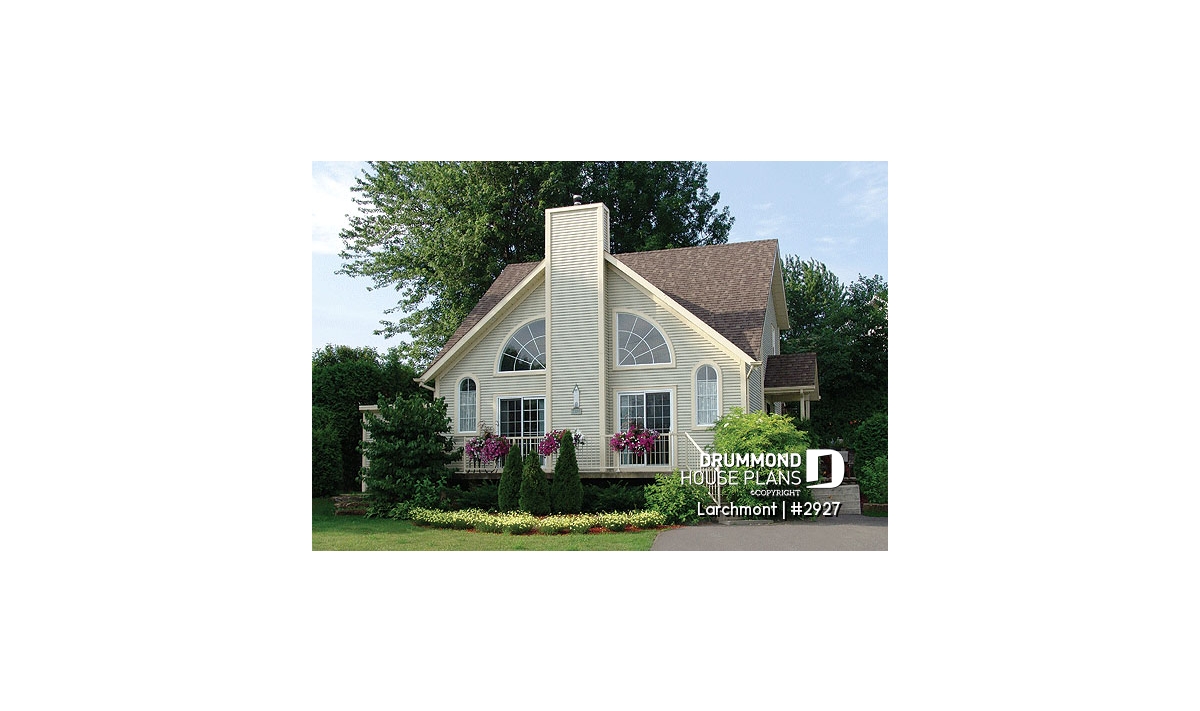

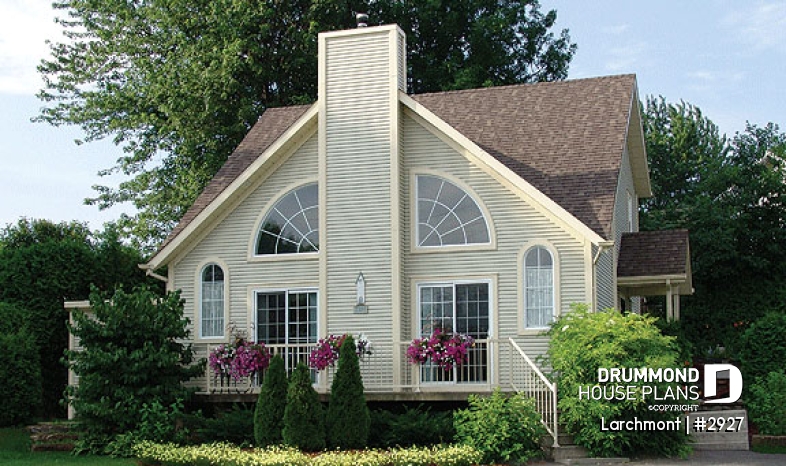

This cost-conscious model is one of the most popular of our chalet collection, with a balanced exterior and original windows, evenly distributed on either side of a central fireplace, and a very open interior.

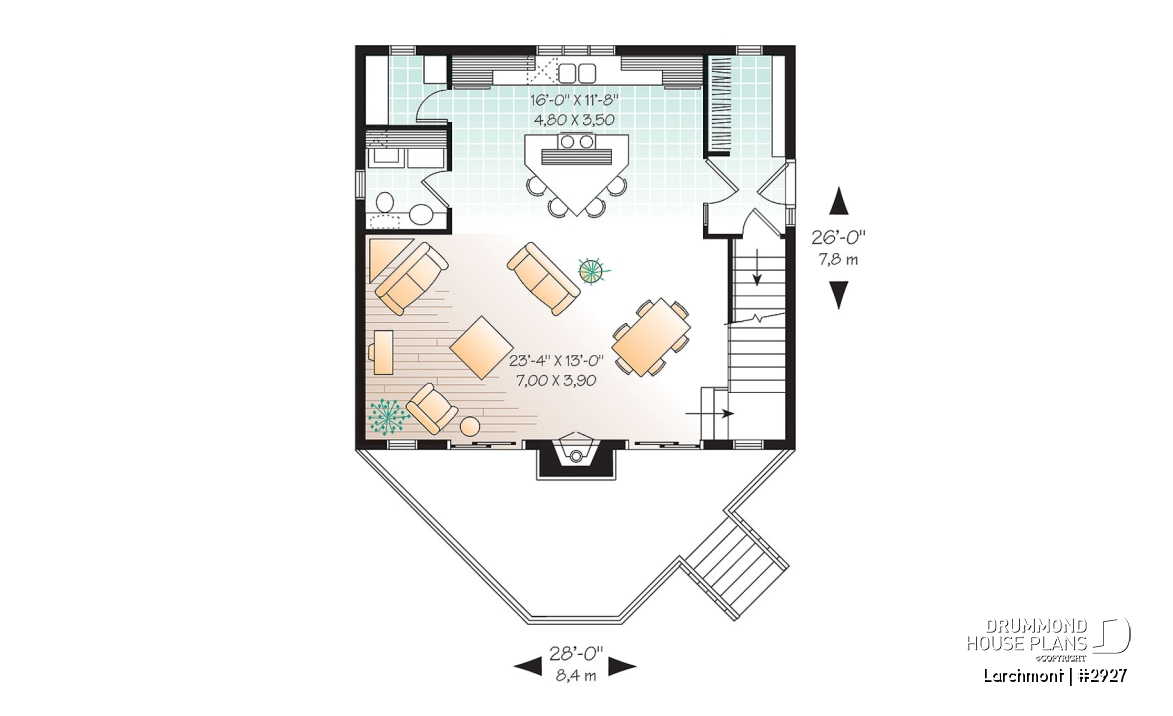

As we enter, we first notice the generous coat closet, with space enough for sports equipment and a practical drying area. Once through the foyer, we are pleasantly surprised by the available interior space in this chalet; a laboratory-style kitchen with central lunch counter and walk-in pantry adjacent an open family and dining room with a cathedral ceiling and a beautifully centered fireplace.

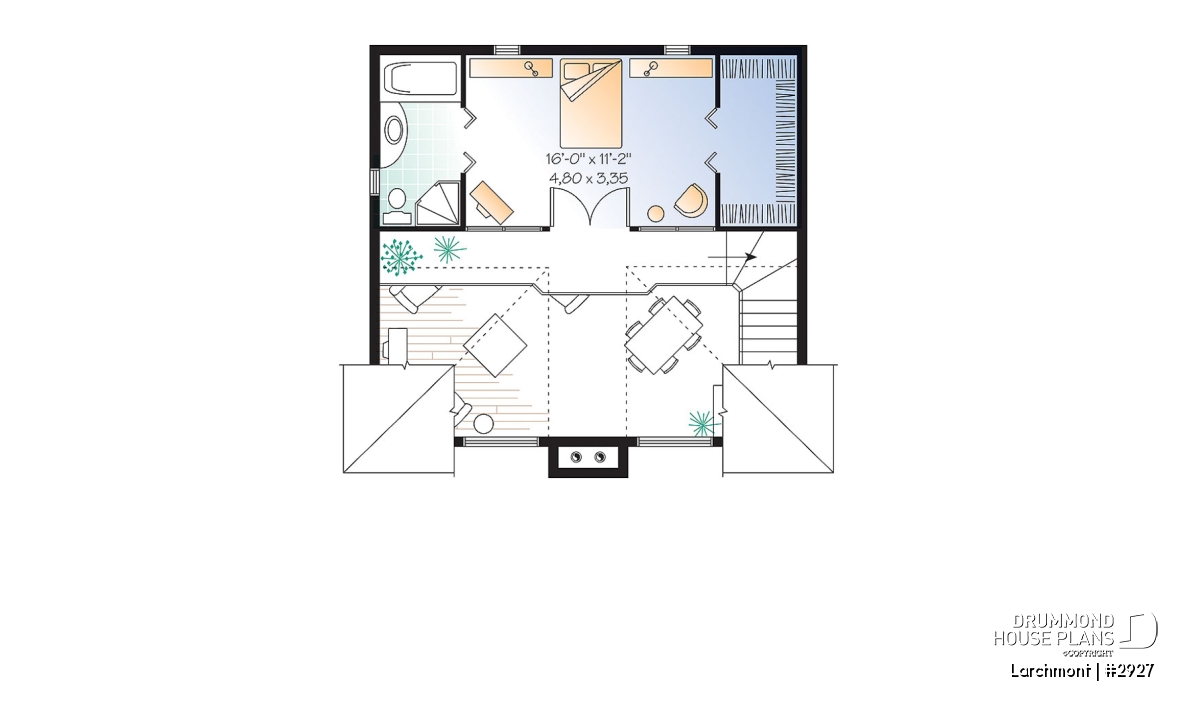

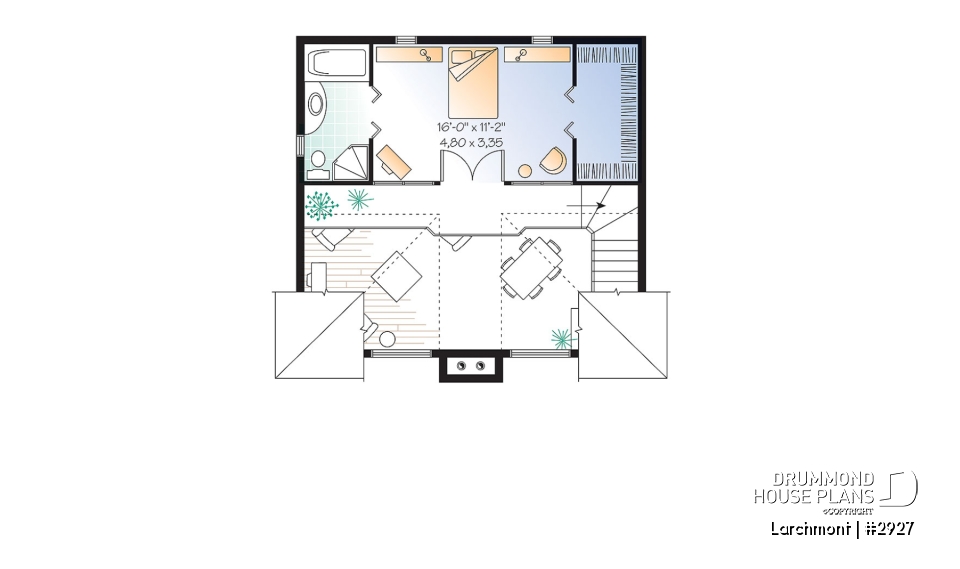

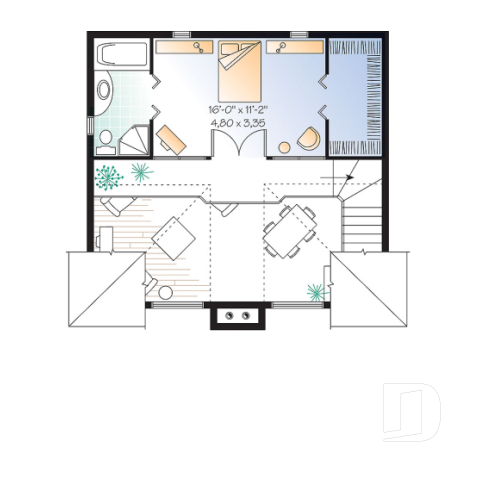

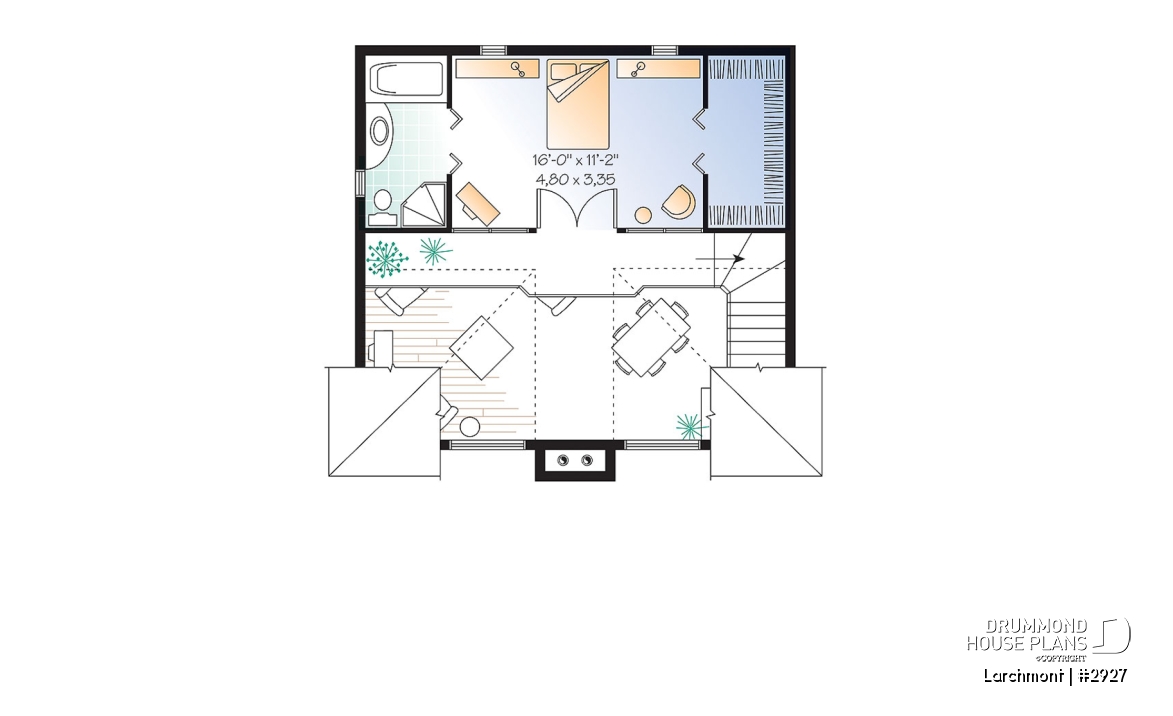

The second level is a private master suite with roomy walk-in closet, private bathroom and panoramic view via a full-length glass partition on the mezzanine.
Additional bedrooms and living area can be added to the undeveloped basement.
Distinctive elements
Double French doors to the master bedroom, abundant windows. Cathedral ceiling in the dining room/living room.
Plan feature(s)
Mezzanine, Fireplace, Gound floor laundry room, Walk-in master bed., Master suite upstairs, Mud room, Loft, Island, Pantry, Cathedral ceiling, Separate bath and shower
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . A-Frame, . Country, . Ski chalets
Similar plans
Previously Viewed Plans
Questions and comments
May 29
Joel Harris
Is it possible to view the optional basement layout that is included with this plan?
May 29
Customer service
Good day Mr. Harris and thank you for your interrest in this plan.
Because the standard foundation is a full, unfinished basement with no divisions for the rooms, the plan is limited to the outline of the first floor and has a ceiling height of 8'.
If you choose an optional slab foundation there is either monolithic (slab on grade), floating slab (stem wall) or a crawl space that can be ordered for an additional charge and will not be available until ordered with a plan set.
Please let me know if you have any other questions or comments.
Regards
Deb
January 28
Arjun
very nice concept........
keep it up
tks
January 28
Customer service
Thank you, we appreciate the words of encouragement
Regards
Deborah
