Hamilton 2 (3038-V1)

Large 3 unit apartment building plan, 2 bedrooms, laundry room, sheltered terrace, kitchen island

Bedrooms

2

Bath(s)

1

Half B.

-

Living area

3640 sq.ft.

  • front - BASE MODEL - Large 3 unit apartment building plan, 2 bedrooms, laundry room, sheltered terrace, kitchen island - Hamilton 2

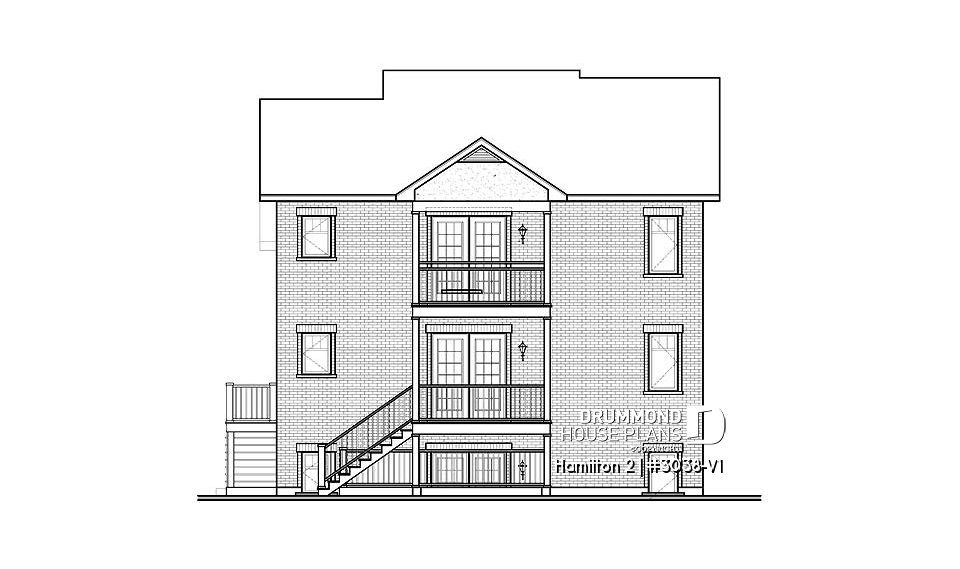

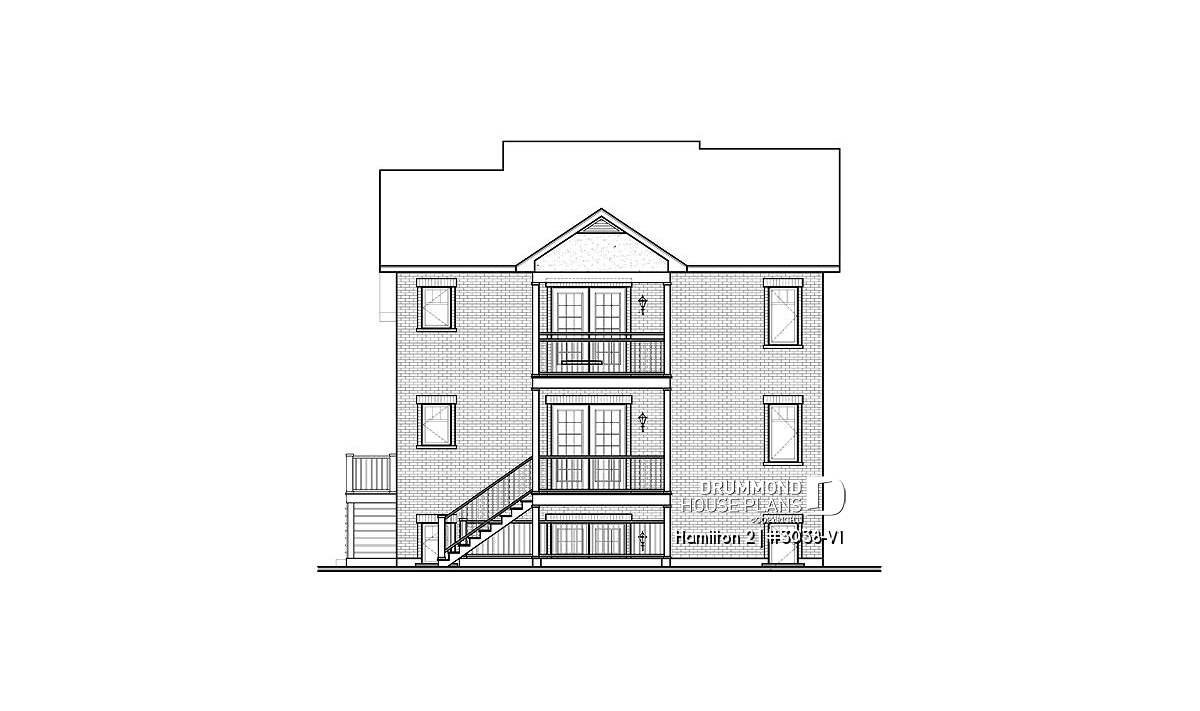

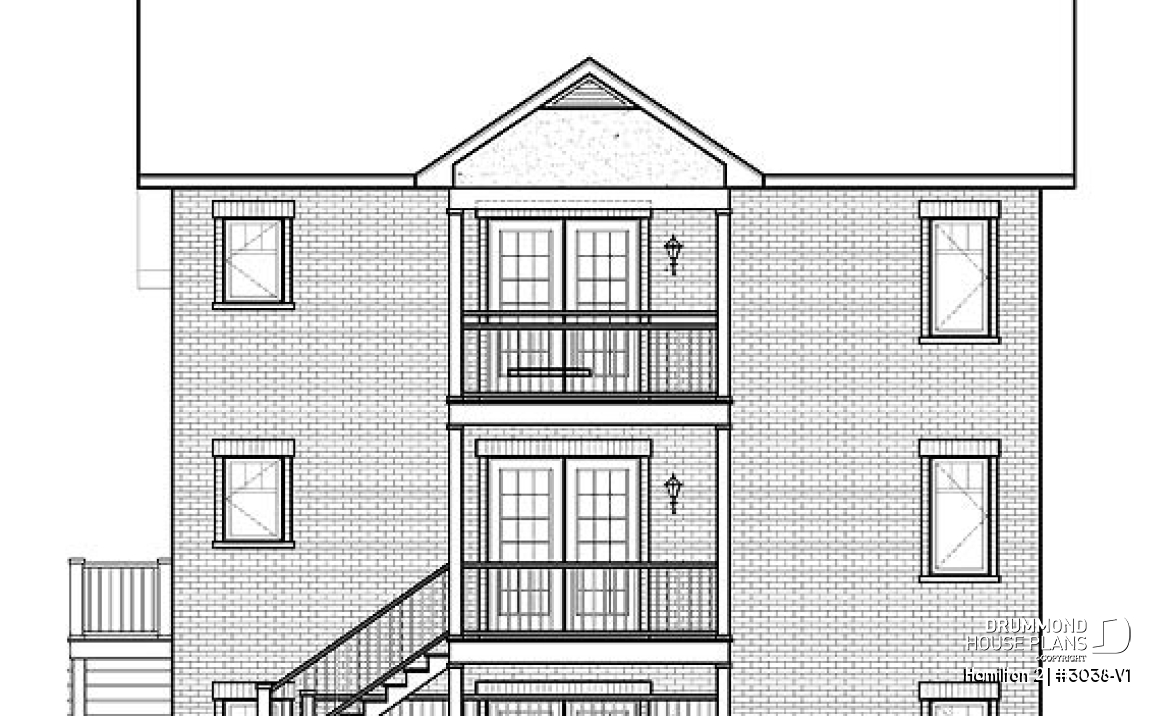

  • rear elevation - Hamilton 2

front - BASE MODEL

rear elevation

Vignette front - BASE MODEL - 3038-V1
Vignette rear elevation - 3038-V1

View by floor

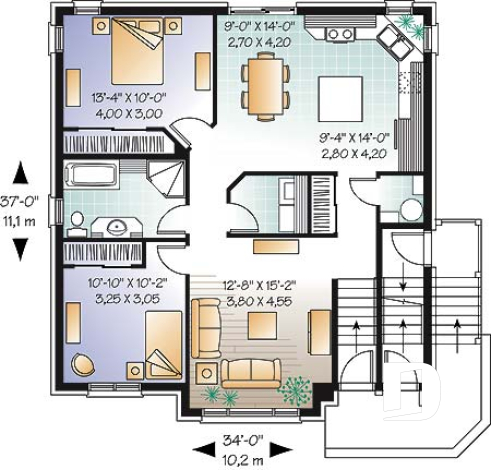

  • 1st level

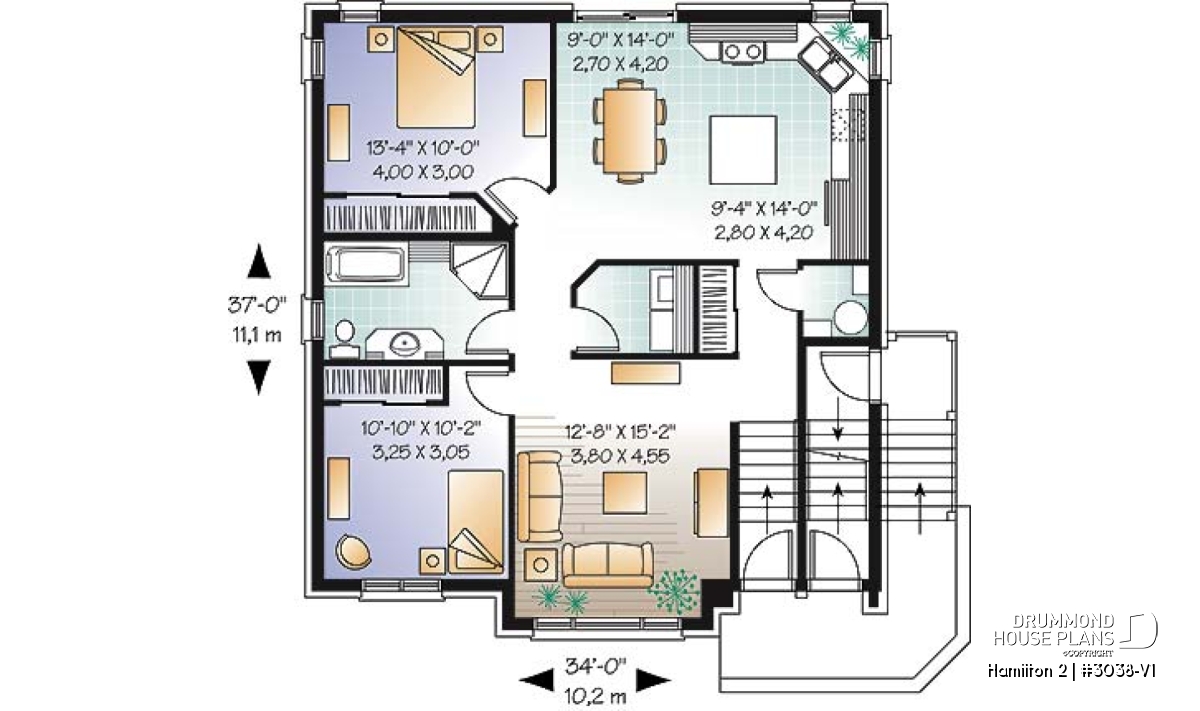

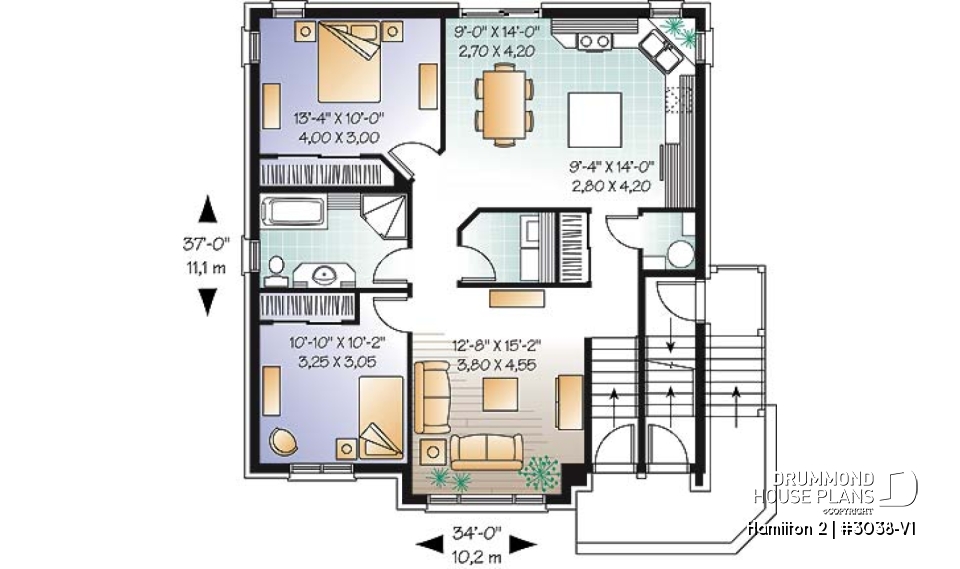

    1st level - Large 3 unit apartment building plan, 2 bedrooms, laundry room, sheltered terrace, kitchen island - Hamilton 2

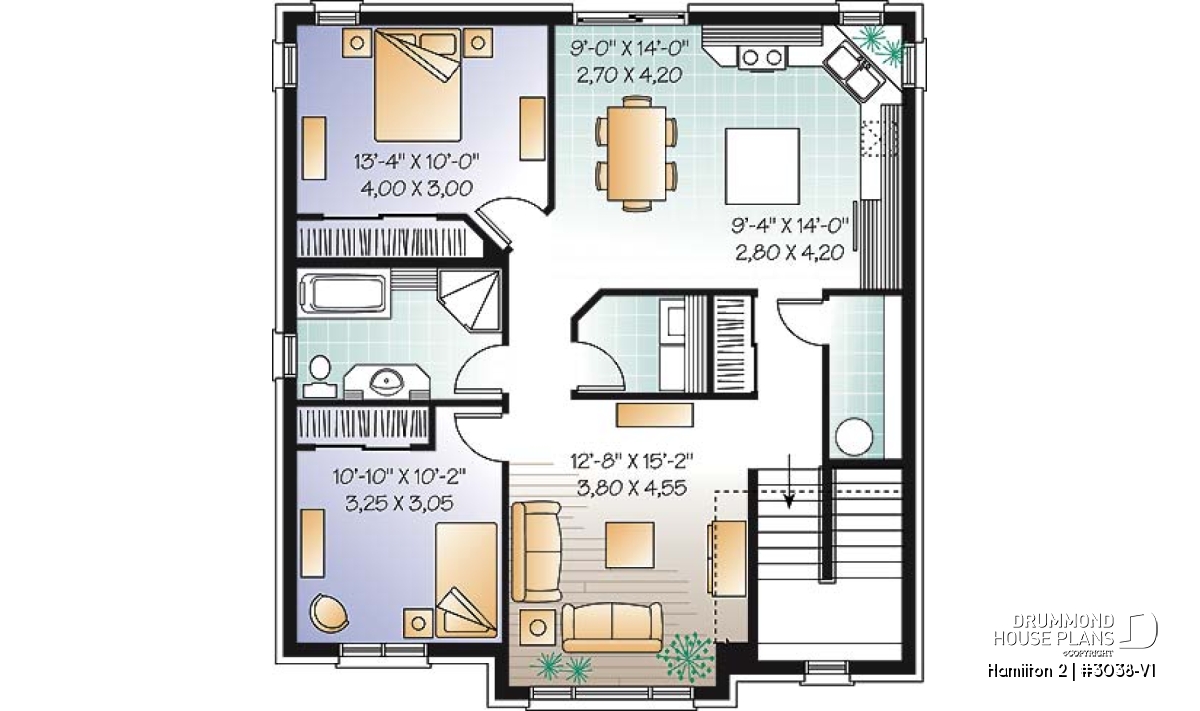

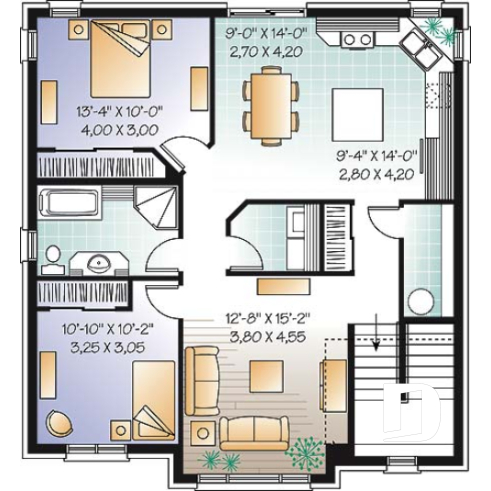

  • 2nd level

    2nd level - Large 3 unit apartment building plan, 2 bedrooms, laundry room, sheltered terrace, kitchen island - Hamilton 2

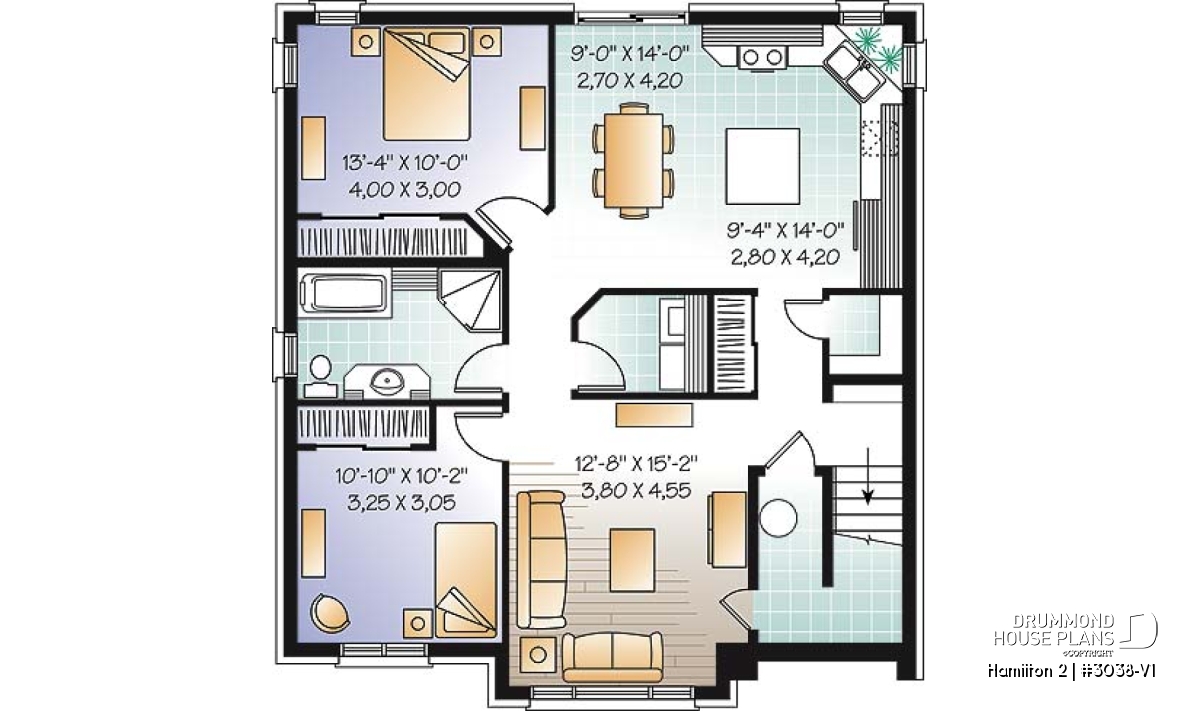

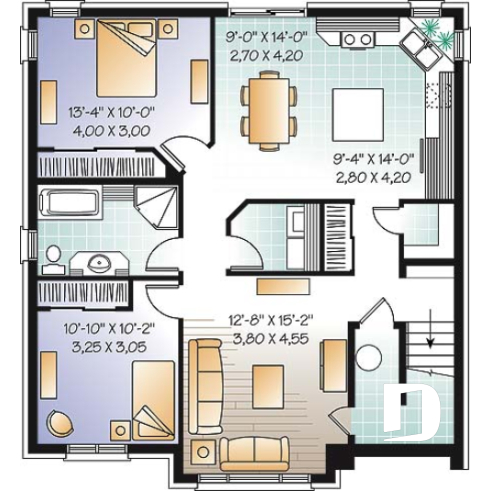

  • Basement

    Basement - Large 3 unit apartment building plan, 2 bedrooms, laundry room, sheltered terrace, kitchen island - Hamilton 2
Vignette 1st level - 3038-V1
Vignette 2nd level - 3038-V1
Vignette Basement - 3038-V1

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

Basement
Rooms Sizes Ceiling
Kitchen 9'4" x 14'0" ~ 8'0"
Dining room 9'0" x 14'0" ~ 8'0"
Living room 12'8" x 15'2" ~ 8'0"
Foyer 3'5" x 3'9" ~ 8'0"
Full bathroom 10'10" x 7'0" ~ 8'0"
Bedroom 13'4" x 10'0" ~ 8'0"
Bedroom 10'10" x 10'2" ~ 8'0"
Laundry room 6'8" x 5'2" ~ 8'0"
Storage 3'11" x 4'2" ~ 8'0"
Storage 3'5" x 5'6" ~ 0'0"
Terrace 9'8" x 7'4" ~ 0'0"
1st level
Rooms Sizes Ceiling
Kitchen 9'4" x 14'0" ~ 8'0"
Dining room 9'0" x 14'0" ~ 8'0"
Living room 12'8" x 15'2" ~ 8'0"
Foyer 3'5" x 3'8" ~ 8'0"
Full bathroom 10'10" x 7'0" ~ 8'0"
Bedroom 13'4" x 10'0" ~ 8'0"
Bedroom 10'10" x 10'2" ~ 8'0"
Laundry room 6'8" x 5'2" ~ 8'0"
Storage 3'11" x 4'2" ~ 8'0"
Porch 13'10" x 9'3" ~ 0'0"
Porch 4'0" x 5'2" ~ 0'0"
Covered deck 11'0" x 8'0" ~ 0'0"
2nd level
Rooms Sizes Ceiling
Kitchen 9'4" x 14'0" ~ 8'0"
Dining room 9'0" x 14'0" ~ 8'0"
Living room 12'8" x 15'2" ~ 8'0"
Foyer 3'5" x 3'8" ~ 8'0"
Full bathroom 10'10" x 7'0" ~ 8'0"
Bedroom 13'4" x 10'0" ~ 8'0"
Bedroom 10'10" x 10'2" ~ 8'0"
Laundry room 6'8" x 5'2" ~ 8'0"
Storage 3'11" x 8'9" ~ 8'0"
Balcony 11'0" x 8'0" ~ 0'0"

General specifications

Total living area 3640 sq.ft.
1st level 1211 sq.ft.
2nd level 1219 sq.ft.
Basement 1210 sq.ft.
Width 34'0"
Depth 37'0"
Ridge height from top of foundation 33'3"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement
Builder price code ME

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths -
Garage type -
Living bonus space -
Bonus storage -

Units specifications

UNIT 1 UNIT 2 UNIT 3
Total living area 605 sq.ft. 605.5 sq.ft. 609.5 sq.ft.
Basement 605 sq.ft. - -
1st level - 605.5 sq.ft. -
2nd level - - 609.5 sq.ft.
Width 34' 0" 34' 0" 34' 0"
Depth 37' 0" 37' 0" 37' 0"
Ridge height from top of foundation 33' 3" 33' 3" 33' 3"
Exterior wall 2 X 6 2 X 6 2 X 6
Foundation type Finished basement Finished basement Finished basement
Bedroom(s) 2 2 2
Full baths 1 1 1
Half baths - - -
Garage type - - -
Living bonus space - - -
Bonus storage - - -
Find a builder

General specifications

Total living area 3640 sq.ft.
Basement 1210 sq.ft.
1st level 1211 sq.ft.
2nd level 1219 sq.ft.
Width 34'0"
Depth 37'0"
Ridge height from top of foundation 33'3"
Exterior wall 2 X 6
Foundation type included in the plan Finished basement i
Builder price code ME

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

Units specifications

UNIT 1 UNIT 2 UNIT 3
Total living area 605 sq.ft. 605.5 sq.ft. 609.5 sq.ft.
Basement 605 sq.ft. - -
1st level - 605.5 sq.ft. -
2nd level - - 609.5 sq.ft.
Width 34' 0" 34' 0" 34' 0"
Depth 37' 0" 37' 0" 37' 0"
Ridge height from top of foundation 33' 3" 33' 3" 33' 3"
Exterior wall 2 X 6 2 X 6 2 X 6
Foundation type Finished basement Finished basement Finished basement
Bedroom(s) 2 2 2
Full baths 1 1 1
Half baths - - -
Garage type - - -
Living bonus space - - -
Bonus storage - - -

Buy this plan

From : $1529

Modify this plan

Get a quote

Description

First level: Appartement 1: Living room, two bedrooms, bathroom, laundry area, kitchen, dining room and storage. 2nd level: Appartement 2: Living room, two bedrooms, bathroom, laundry area, kitchen, dining room and storage. Basement: Appartment 3: Living room, two bedrooms, bathroom, laundry area, kitchen, dining room and storage.

Other useful information on this plan

Large triplex house plan with sheltered balconies

.

Distinctive elements

Elegant front elevation for this triplex. Covered terrace in the back, for each appartement. Nice bathroom with separate shower for each appartement. Nice living room and infatuating kitchen with corner fenestration amplifying the lighting in this area. Storage and laundry area in each appartment.

Plan feature(s)

Island, Panoramic view, Deck

Plan architectural style(s)

European, English, Traditional

Other useful information on this plan

Full description

Large triplex house plan with sheltered balconies

.

Distinctive elements

Elegant front elevation for this triplex. Covered terrace in the back, for each appartement. Nice bathroom with separate shower for each appartement. Nice living room and infatuating kitchen with corner fenestration amplifying the lighting in this area. Storage and laundry area in each appartment.

Plan feature(s)

Island, Panoramic view, Deck

Plan architectural style(s)

Questions and comments on this plan
