House plan Herstal (3033)
Triplex plan (3 Unit Multi-Plex) 2 bedrooms, 1 full bathroom and rear private terrace in each accommodation
View the size of the rooms and height of the ceilings

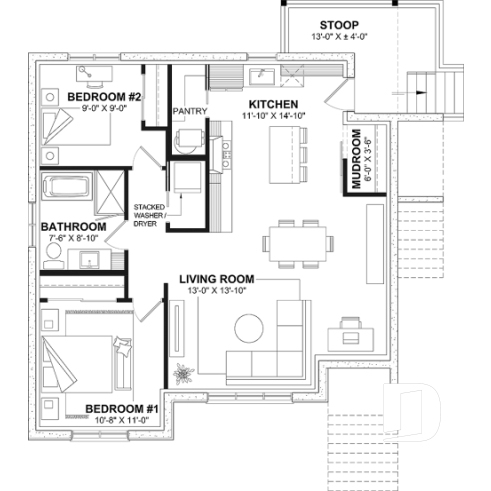

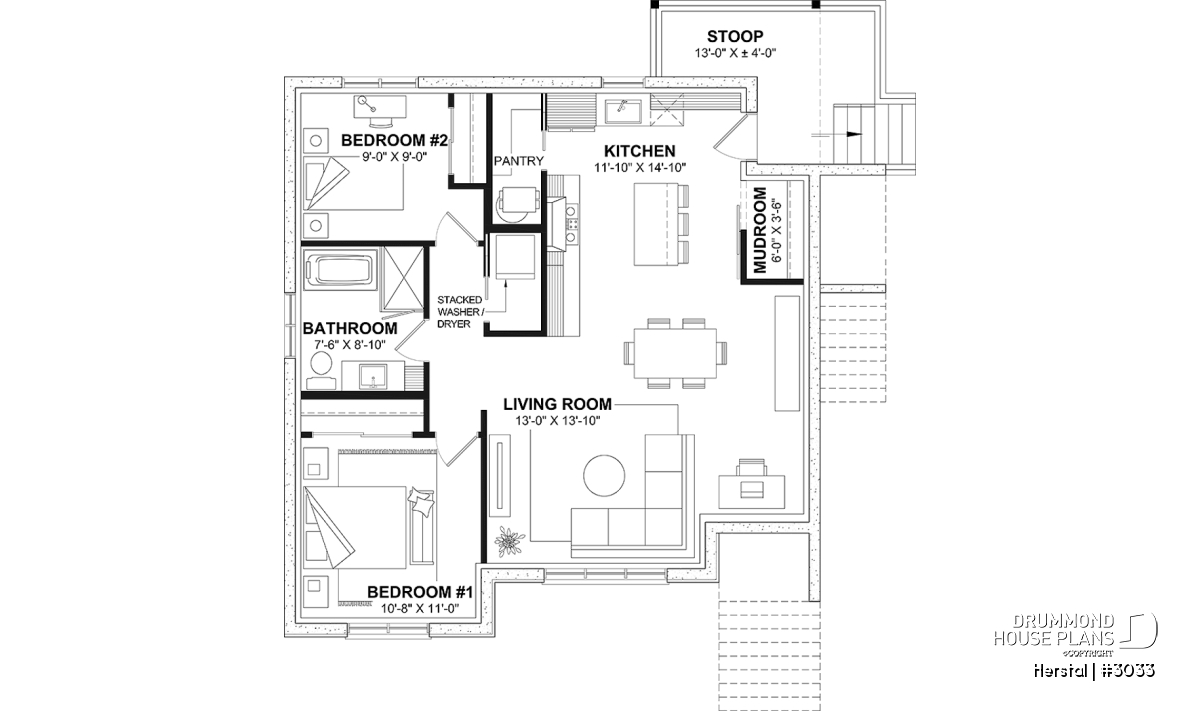

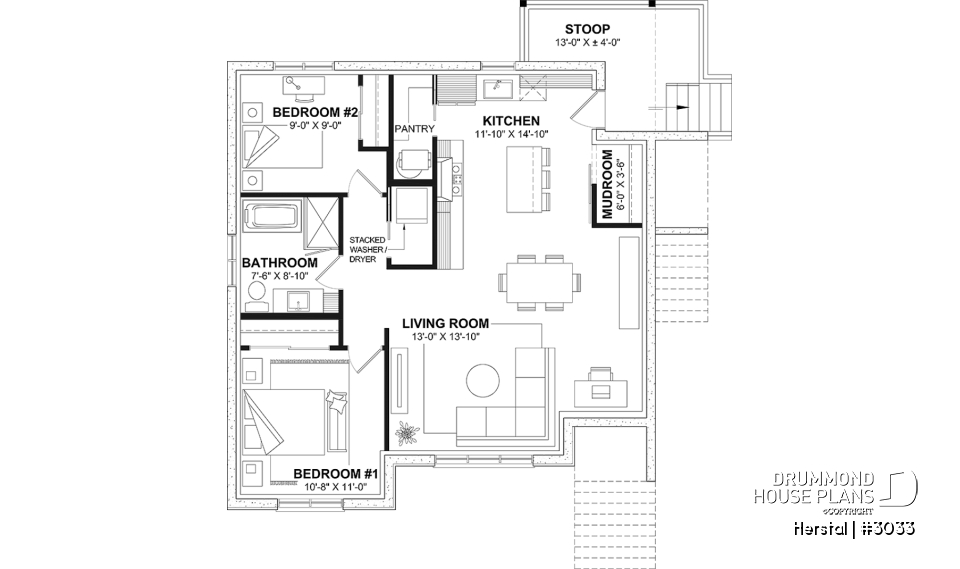

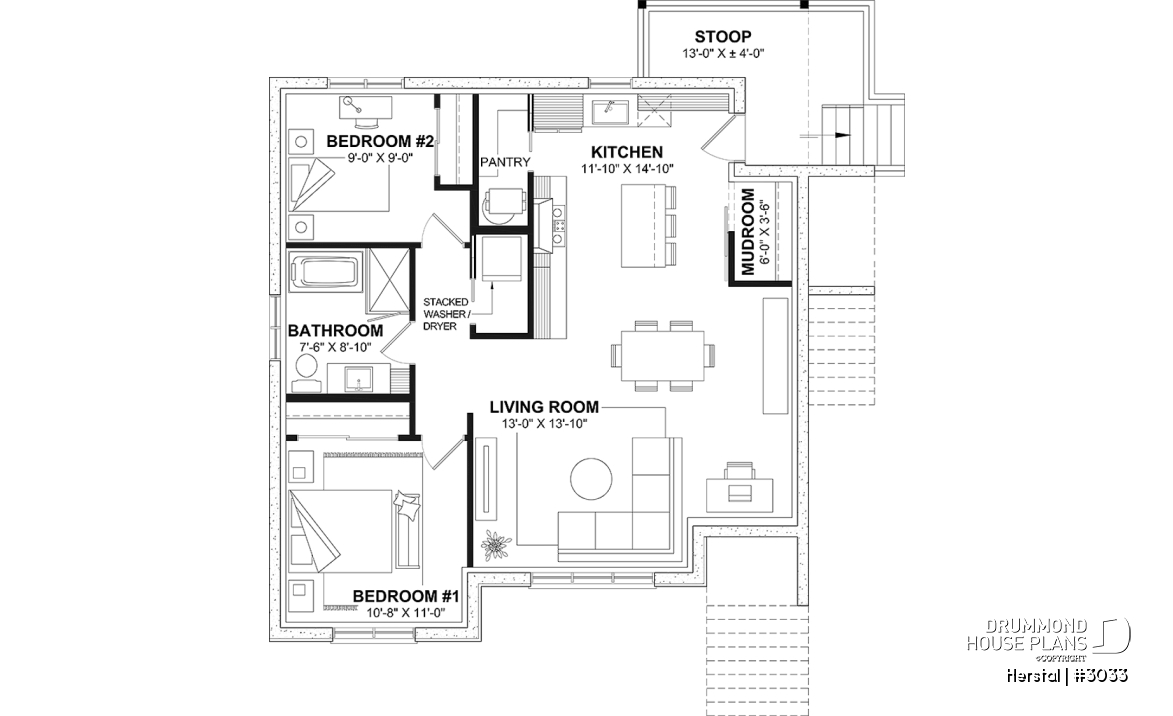

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'6" x 8'10" | ~ 8'0" |
| Shower | 2'8" x 4'0" | N/A |
| Linen | 1'2" x 1'6" | N/A |
| Kitchen/dining room | 11'10" x 14'10" | ~ 8'0" |
| Closet | 3'5" x 2'0" | ~ 8'0" |
| Pantry | 3'0" x 8'0" | ~ 8'0" |
| Kitchen island | 5'0" x 2'8" | N/A |
| Living room | 13'0" x 13'10" | ~ 8'0" |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Bedroom | 9'0" x 9'0" | ~ 8'0" |
| Laundry room | 3'2" x 6'0" | ~ 8'0" |
| Mud room | 6'0" x 3'6" | ~ 8'0" |
| Covered porch | 13'0" x 4'0" | ~ 8'4" |

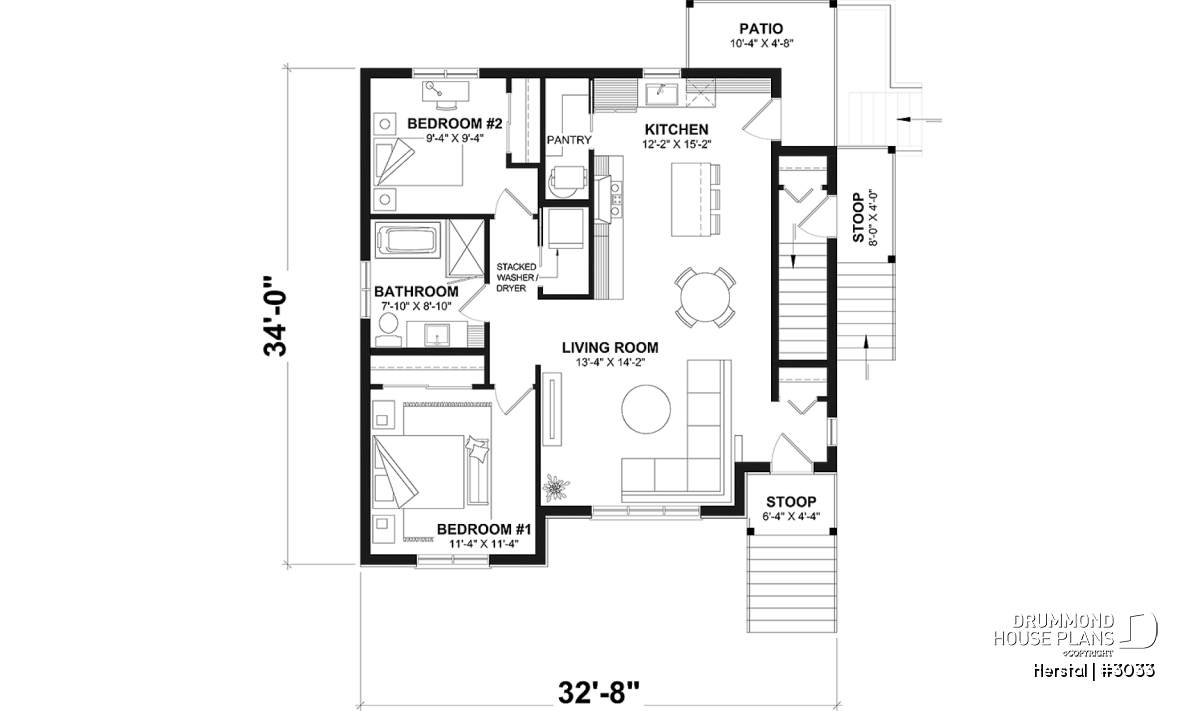

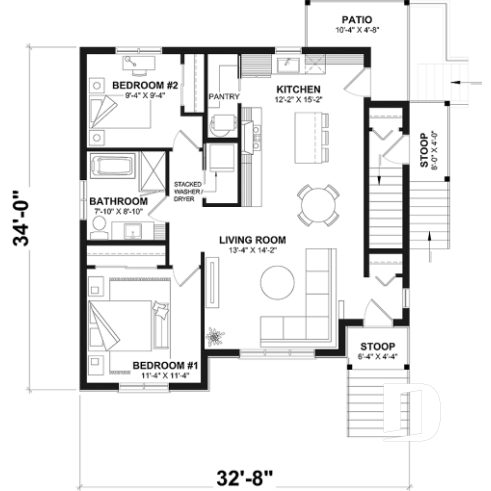

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'10" x 8'10" | ~ 8'0" |
| Shower | 2'8" x 4'0" | N/A |
| Linen | 1'2" x 1'6" | N/A |
| Kitchen/dining room | 12'2" x 15'2" | ~ 8'0" |
| Pantry | 2'0" x 2'7" | N/A |
| Pantry | 8'4" x 3'0" | ~ 8'0" |
| Kitchen island | 5'0" x 2'8" | N/A |
| Living room | 13'4" x 14'2" | ~ 8'0" |
| Bedroom | 11'4" x 11'4" | ~ 8'0" |
| Foyer | 6'4" x 6'6" | ~ 8'0" |
| Closet | 3'4" x 2'0" | ~ 8'0" |
| Covered porch | 6'4" x 4'4" | ~ 8'4" |
| Bedroom | 9'4" x 9'4" | ~ 8'0" |
| Laundry room | 3'2" x 6'0" | ~ 8'0" |
| Covered porch | 8'0" x 4'0" | ~ 8'4" |
| Covered porch | 10'4" x 4'8" | ~ 8'4" |
| Closet | 3'4" x 2'0" | ~ 8'0" |

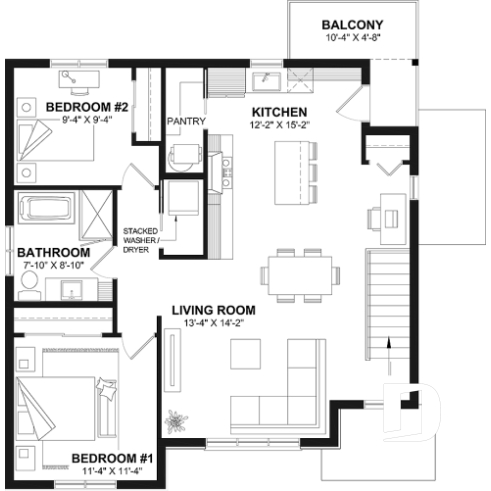

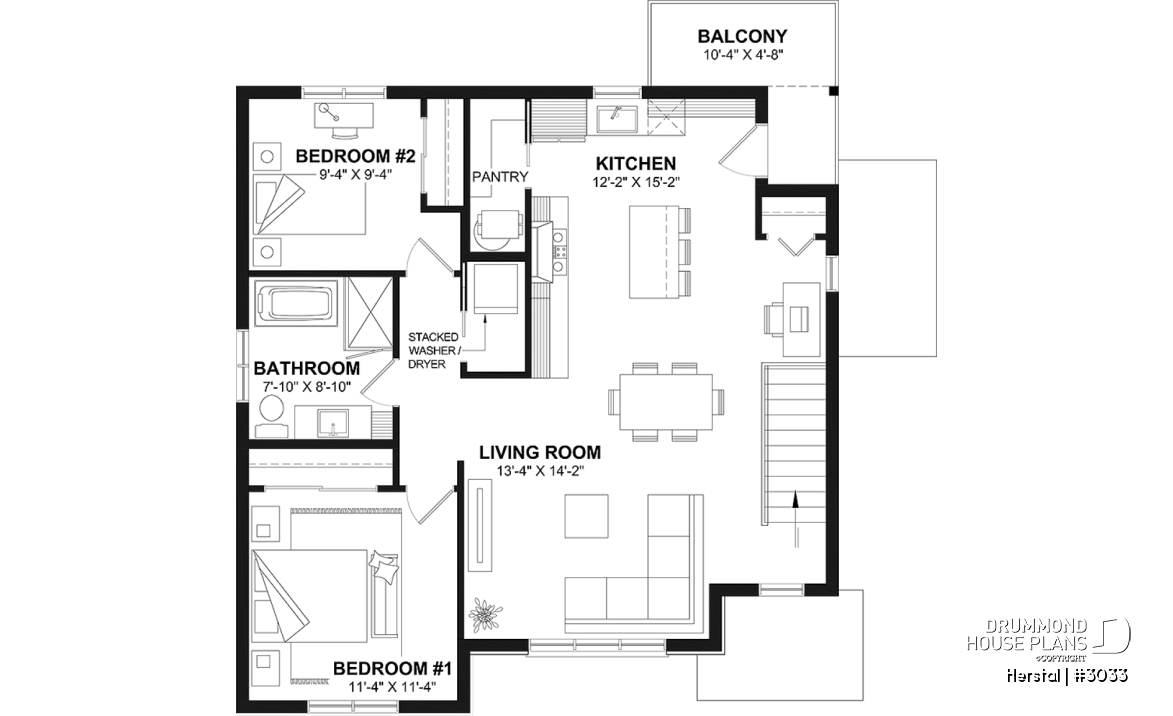

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dining room | 12'2" x 15'2" | ~ 8'0" |
| Pantry | 3'0" x 8'4" | ~ 8'0" |
| Kitchen island | 5'0" x 2'8" | N/A |
| Living room | 13'4" x 14'2" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Bedroom | 11'4" x 11'4" | ~ 8'0" |
| Bedroom | 9'4" x 9'4" | ~ 8'0" |
| Closet | 5'10" x 2'0" | ~ 8'0" |
| Full bathroom | 7'10" x 8'10" | ~ 8'0" |
| Shower | 2'8" x 4'0" | N/A |
| Linen | 1'2" x 1'6" | N/A |
| Laundry room | 3'2" x 6'0" | ~ 8'0" |
| Balcony | 10'4" x 4'8" | ~ 8'4" |
| Closet | 3'6" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 3011 sq.ft. |
| Basement | 1010 sq.ft. |
| 1st level | 1010 sq.ft. |
| 2nd level | 991 sq.ft. |
| Width | 32'8" |
| Depth | 34'0" |
| Ridge height from top of foundation | 35'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MD |
Rooms specifications
| Bedroom(s) | 2 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 152 sq.ft. |
Units specifications
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Modern rustic triplex plan (3 unit multi-plex) with 2 bedrooms per unit and great open floor plan!
.
Distinctive elements
Trendy triplex plan in modern rustic styles.
Noble materials and warm tones.
Private entrance to each unit.
Beautiful natural light in the living room and master bedroom.
A coat closet is provided near each entrance.
Corner desk (planning desk) set up in unit 3 (finished daylight basement) and unit 2 (upper floor).
Kitchen with island and pantry in each unit.
Laundry room for stacked washer-dryer near the bedrooms.
Full bathroom with separate bath and shower.
Small sheltered terrace in each unit.
Plan feature(s)
Open floor layout, Island, Pantry, Separate bath and shower, Planning desk, Planning desk, Mud room
