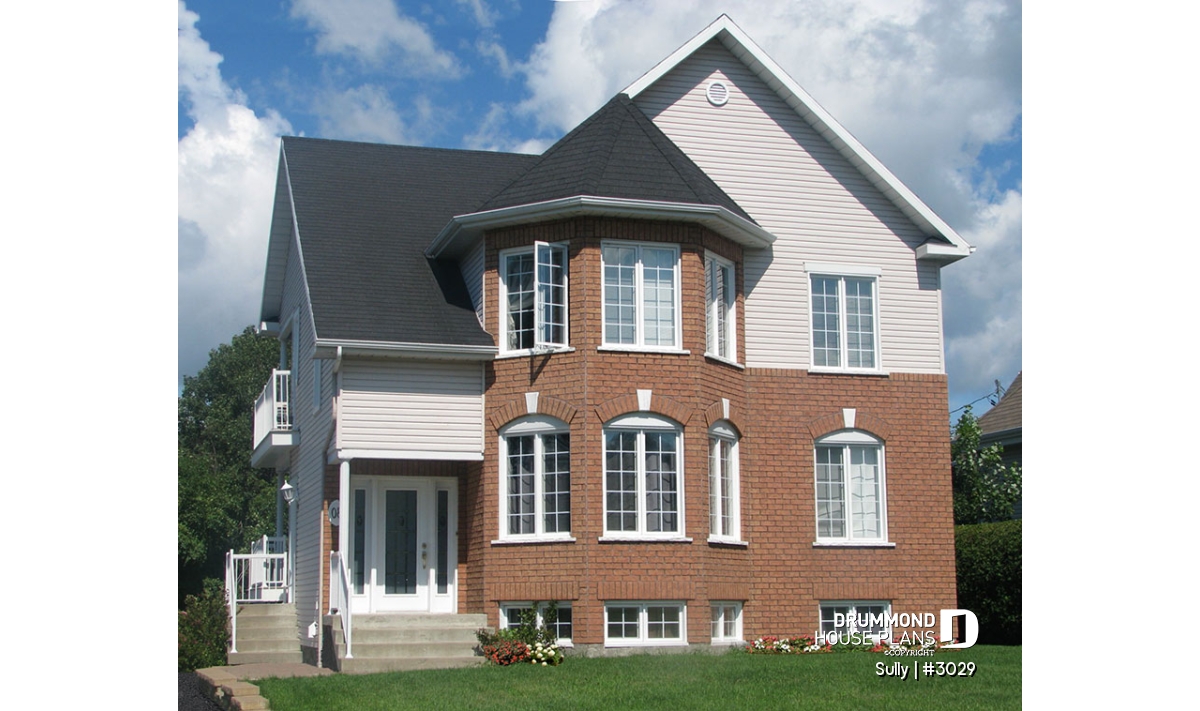

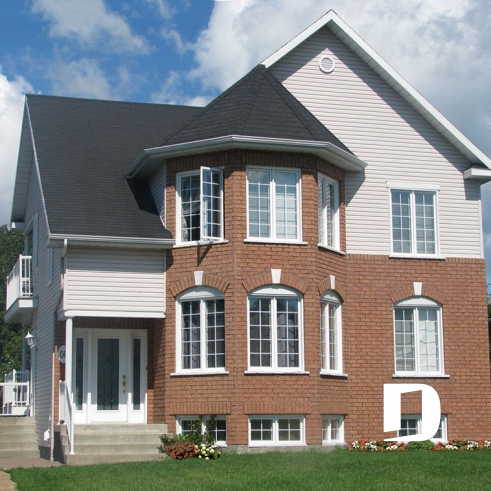

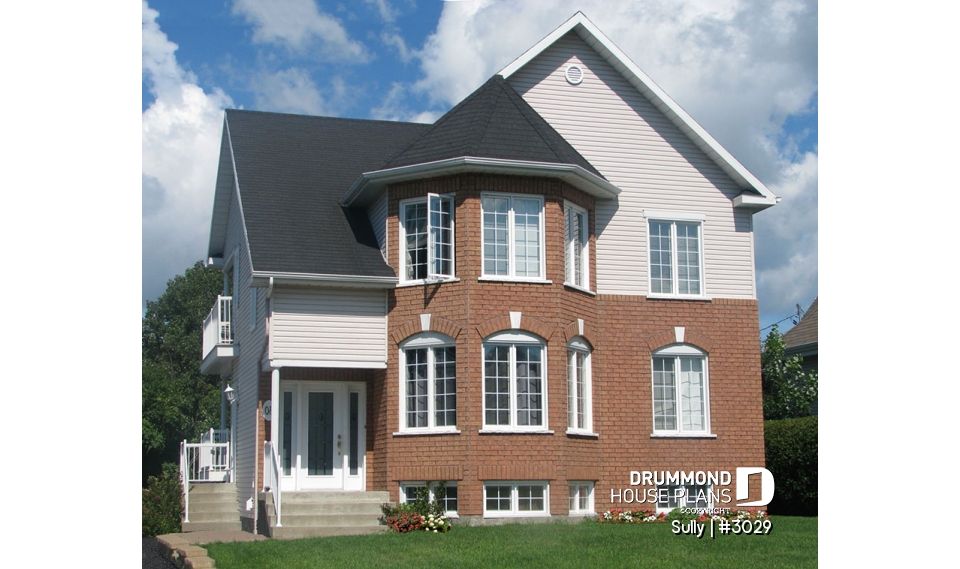

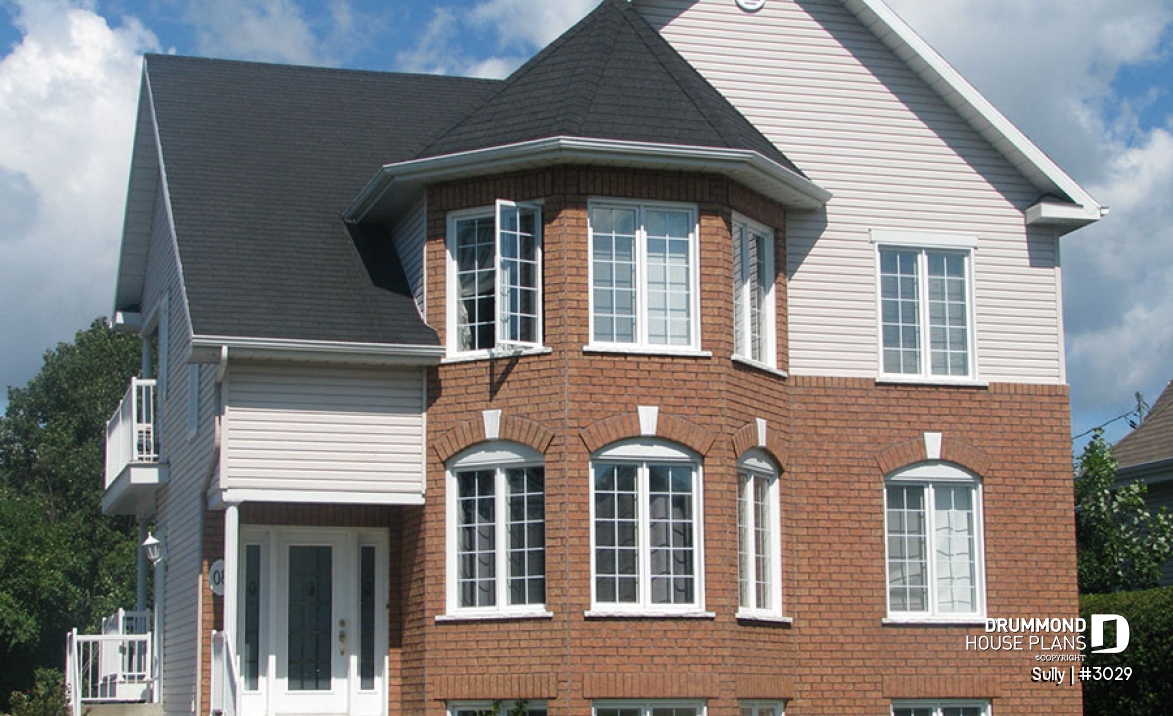

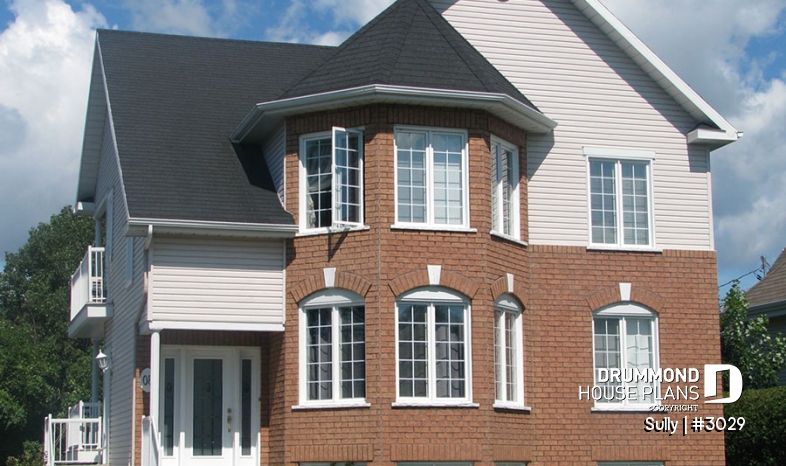

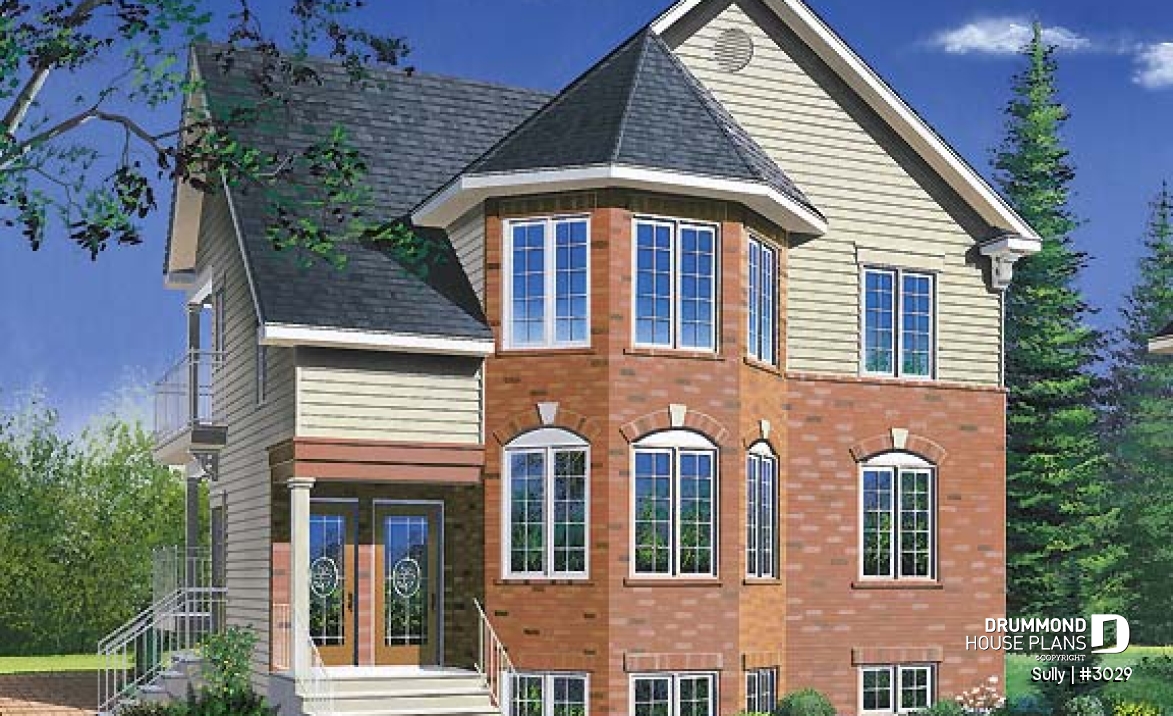

House plan Sully (3029)
Triplex house plan with 2 bedrooms, one bathroom and laundry room on each unit, sheltered rear balcony
View the size of the rooms and height of the ceilings

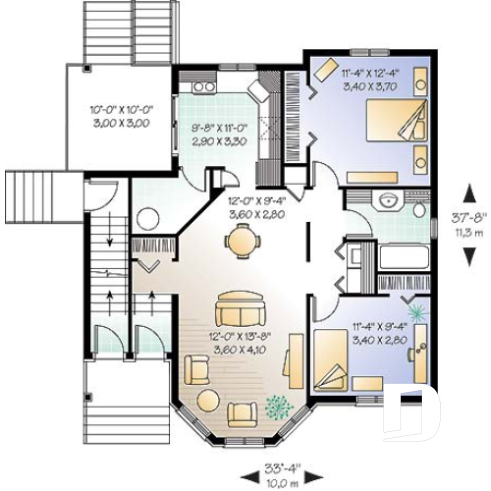

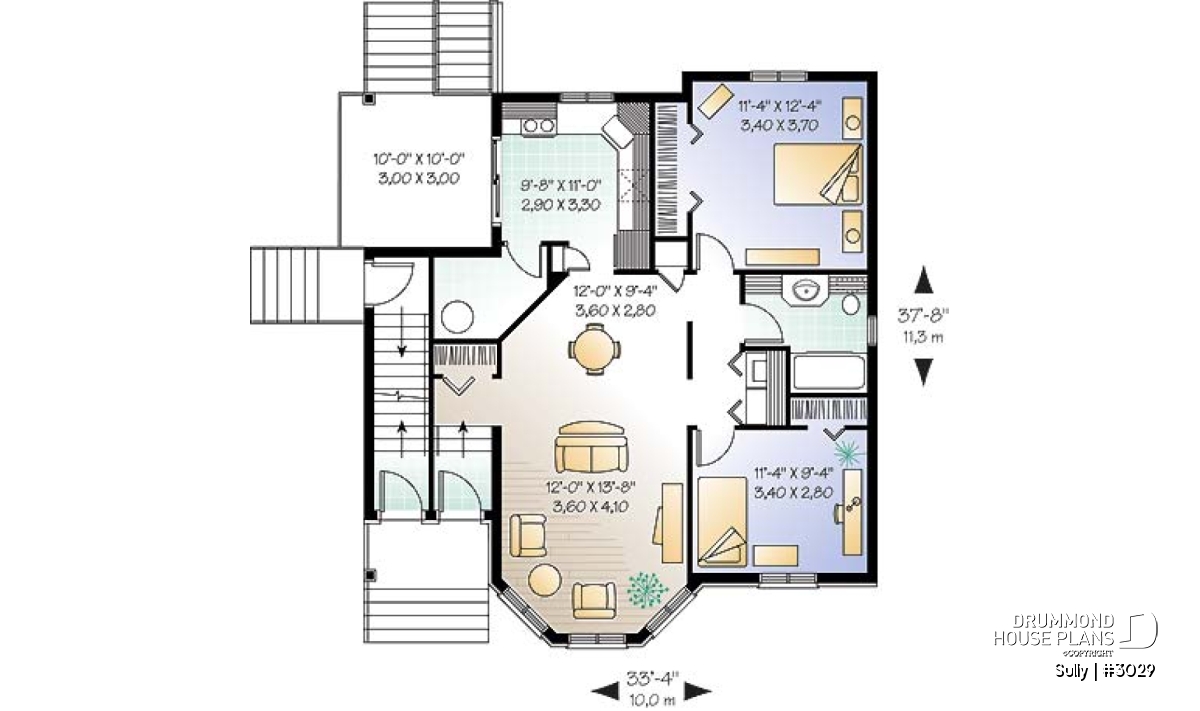

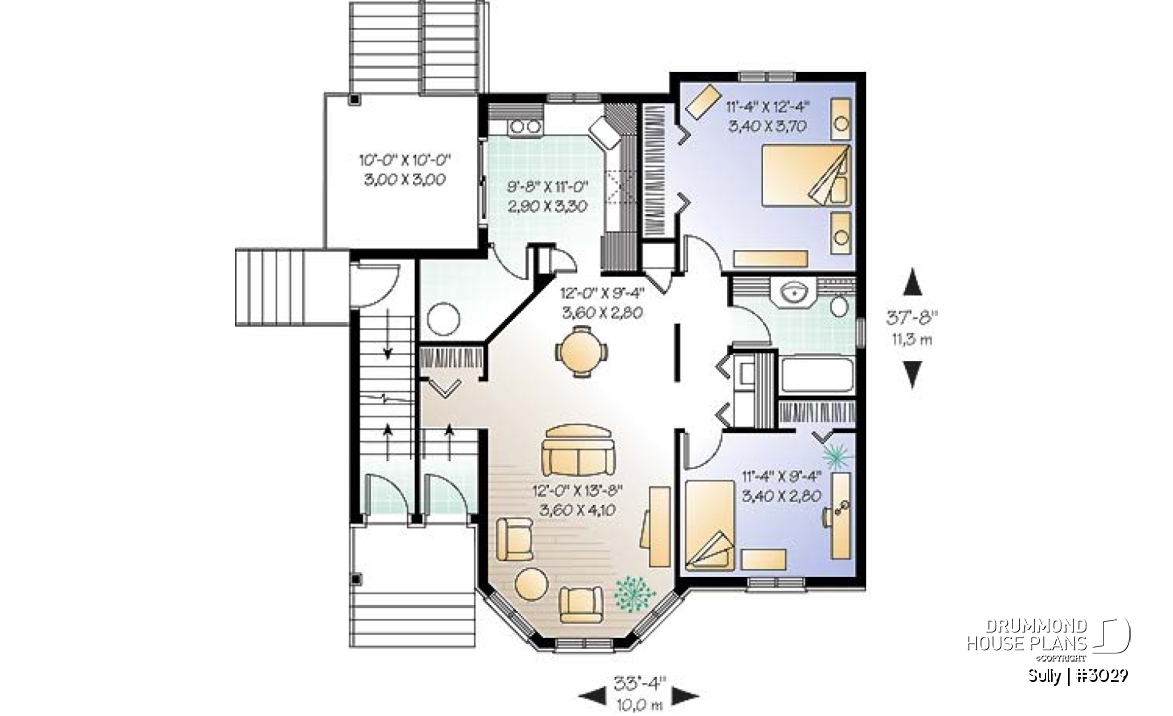

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'0" x 7'6" | ~ 8'0" |
| Kitchen | 9'8" x 11'0" | ~ 8'0" |
| Pantry | 0'10" x 1'8" | N/A |
| Dining room | 12'0" x 10'0" | ~ 8'0" |
| Living room | 12'0" x 13'8" | ~ 8'0" |
| Bedroom | 11'4" x 12'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Closet | 2'0" x 8'8" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Closet | 8'0" x 6'4" | ~ 8'0" |
| Bedroom | 11'4" x 9'4" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Laundry room | 8'0" x 6'4" | ~ 8'0" |
| Covered porch | 8'0" x 4'0" | N/A |
| Covered deck | 10'0" x 10'0" | N/A |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Storage | 7'3" x 5'4" | ~ 8'0" |

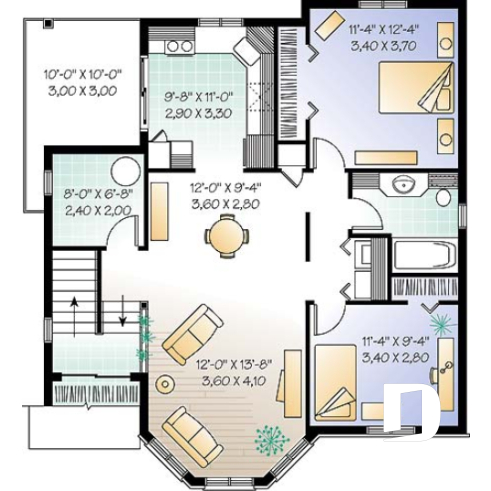

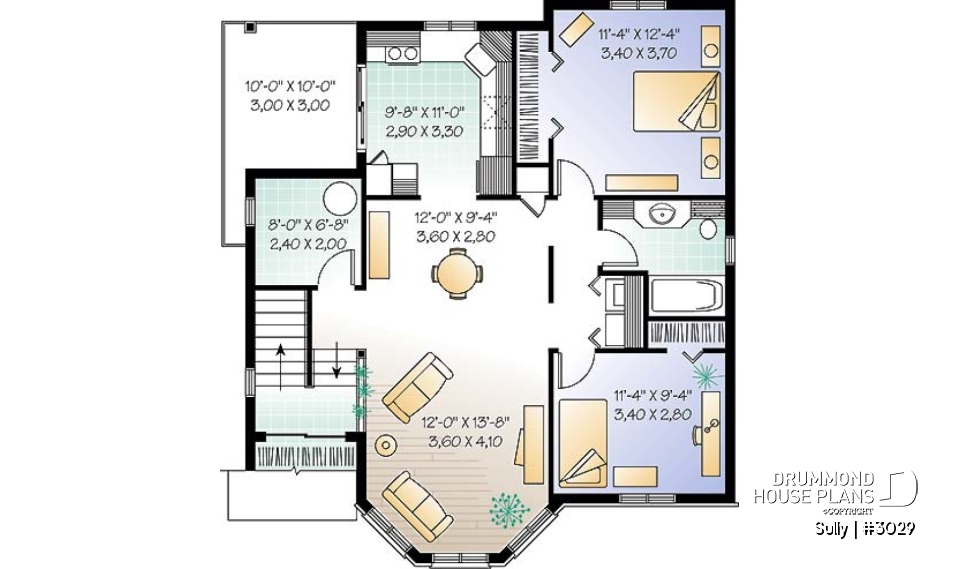

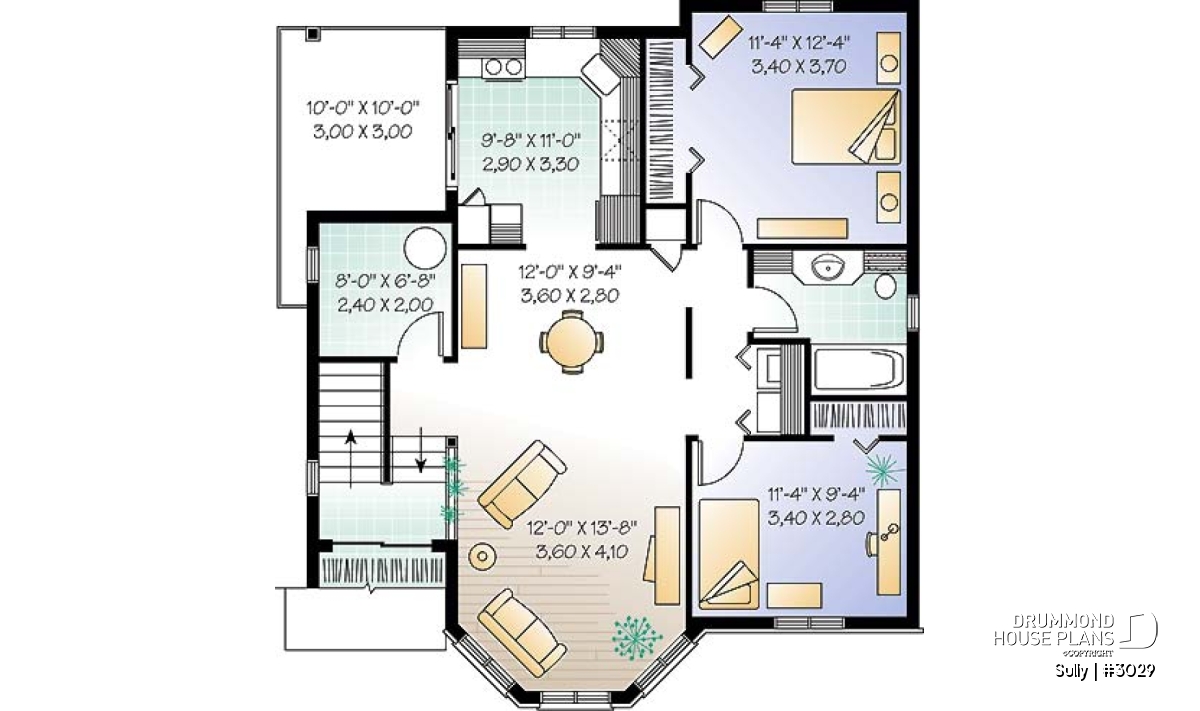

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Balcony | 10'0" x 10'0" | N/A |
| Laundry room | 3'0" x 5'0" | ~ 8'0" |
| Living room | 12'0" x 14'0" | ~ 8'0" |
| Closet | 7'8" x 2'6" | ~ 8'0" |
| Storage | 8'0" x 6'4" | ~ 8'0" |
| Dining room | 12'0" x 9'4" | ~ 8'0" |
| Bedroom | 11'4" x 9'2" | ~ 8'0" |
| Closet | 5'0" x 2'0" | ~ 8'0" |
| Bedroom | 11'4" x 12'4" | ~ 8'0" |
| Closet | 2'0" x 8'8" | ~ 8'0" |
| Kitchen | 9'8" x 11'0" | ~ 8'0" |
| Pantry | 1'10" x 2'0" | N/A |
| Full bathroom | 8'0" x 7'4" | ~ 8'0" |

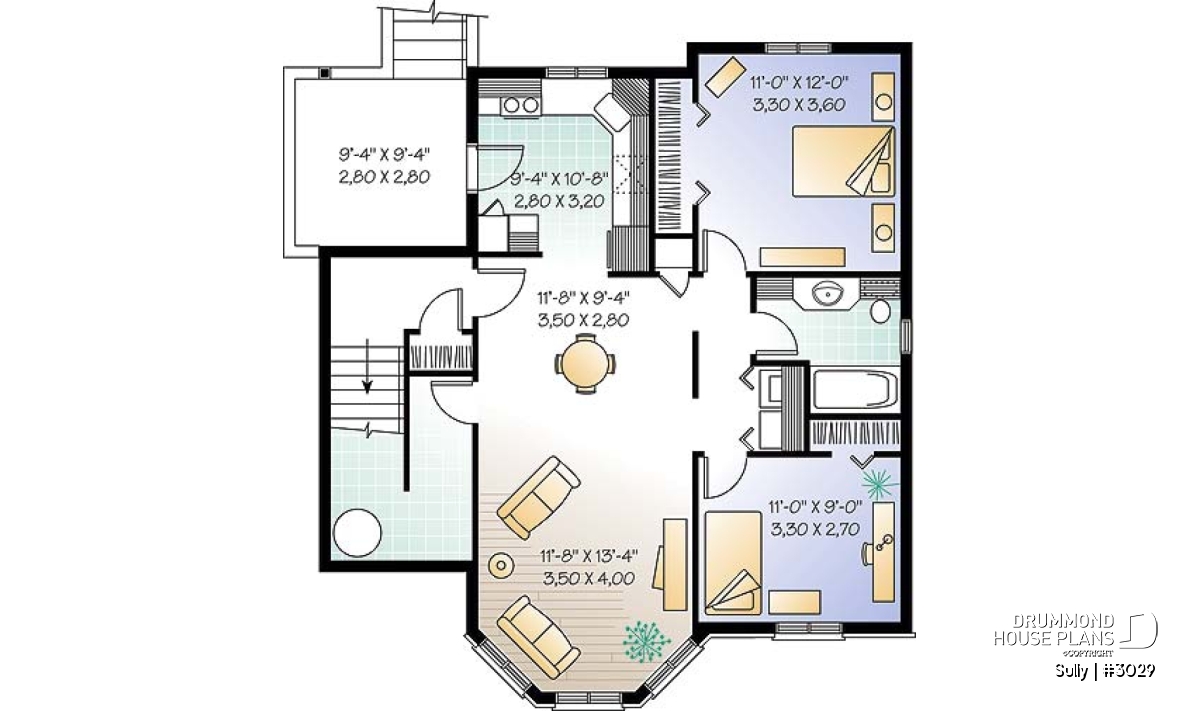

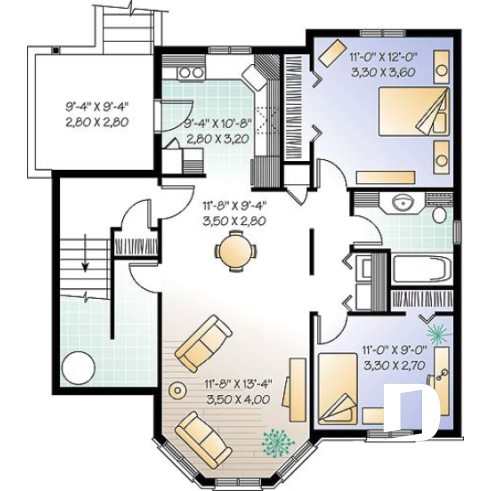

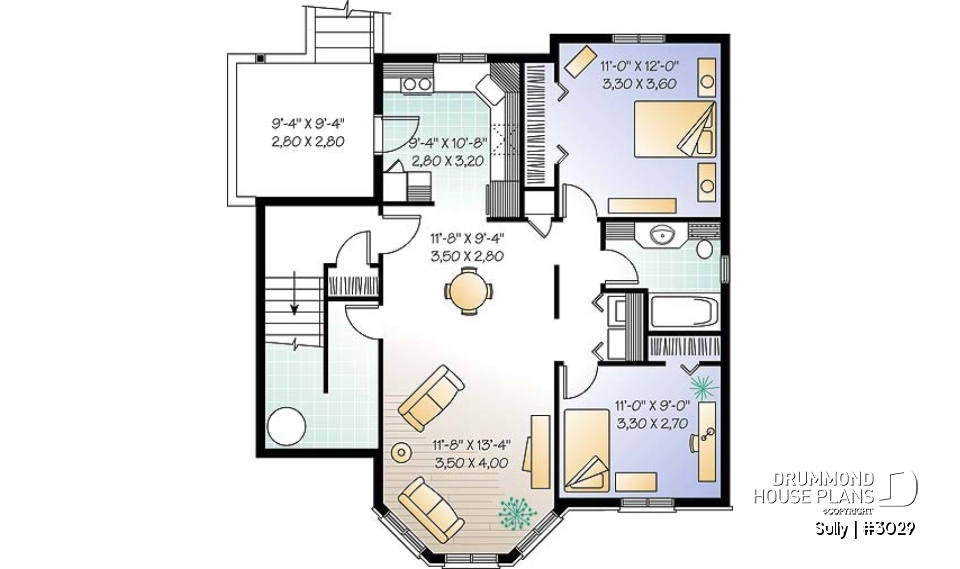

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'1" x 12'1" | ~ 8'0" |
| Closet | 2'0" x 8'5" | ~ 8'0" |
| Bedroom | 11'1" x 9'1" | ~ 8'0" |
| Closet | 4'9" x 2'0" | ~ 8'0" |
| Living room | 12'0" x 14'0" | ~ 8'0" |
| Dining room | 12'0" x 9'4" | ~ 8'0" |
| Laundry room | 3'0" x 5'0" | ~ 8'0" |
| Full bathroom | 7'9" x 7'4" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
| Foyer | 7'9" x 3'9" | ~ 8'0" |
| Closet | 3'11" x 2'0" | ~ 8'0" |
| Terrace | 9'4" x 9'4" | N/A |
| Kitchen | 9'5" x 10'9" | ~ 8'0" |
| Pantry | 1'10" x 2'0" | N/A |
General specifications
| Total living area | 3054 sq.ft. |
| 1st level | 1018 sq.ft. |
| 2nd level | 1018 sq.ft. |
| Basement | 1018 sq.ft. |
| Width | 33'4" |
| Depth | 37'8" |
| Ridge height from top of foundation | 34'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MD |
Rooms specifications
| Bedroom(s) | 2 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 32 sq.ft. |
Units specifications
Other useful information on this plan
Triplex (3 units) building plan, 2 bedroom, laundry room and sheltered rear balcony
.
Distinctive elements

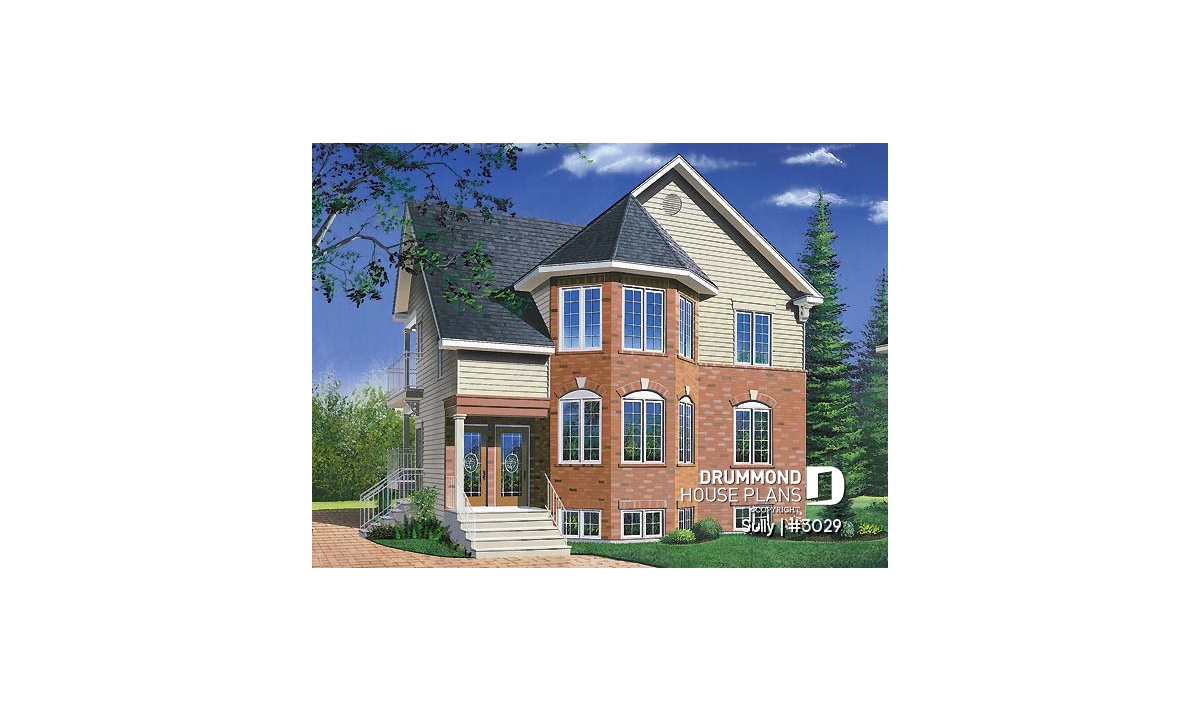

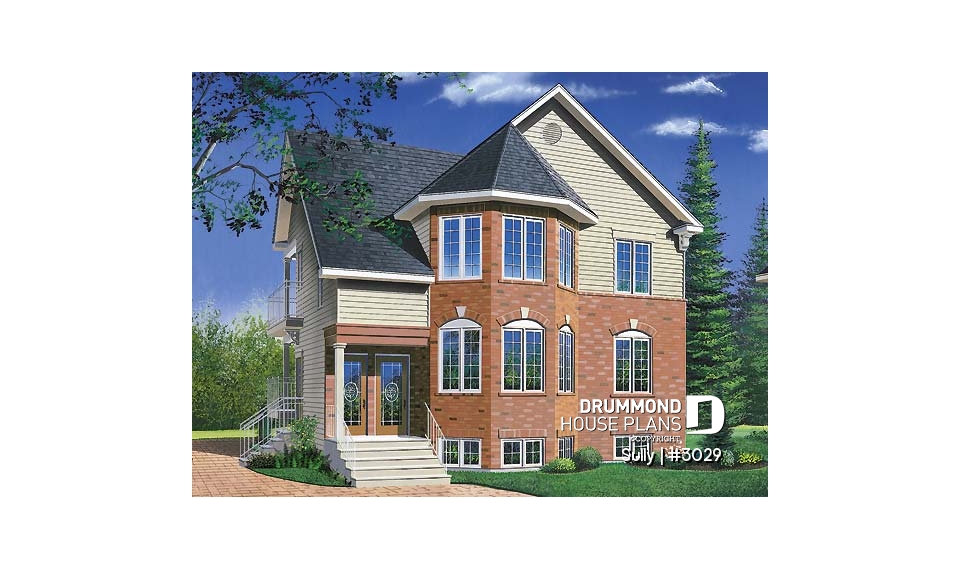

Abundant fenestration, covered front entry, covered rear balconies.
Plan feature(s)
Deck, Panoramic view, Gound floor laundry room, Second floor laundry room
