House plan Amelia (3257)
Luxury one-story home, split bedrooms, 3-4 bedrooms, jack & jill bathroom, 2-car garage, bonus room
View the size of the rooms and height of the ceilings

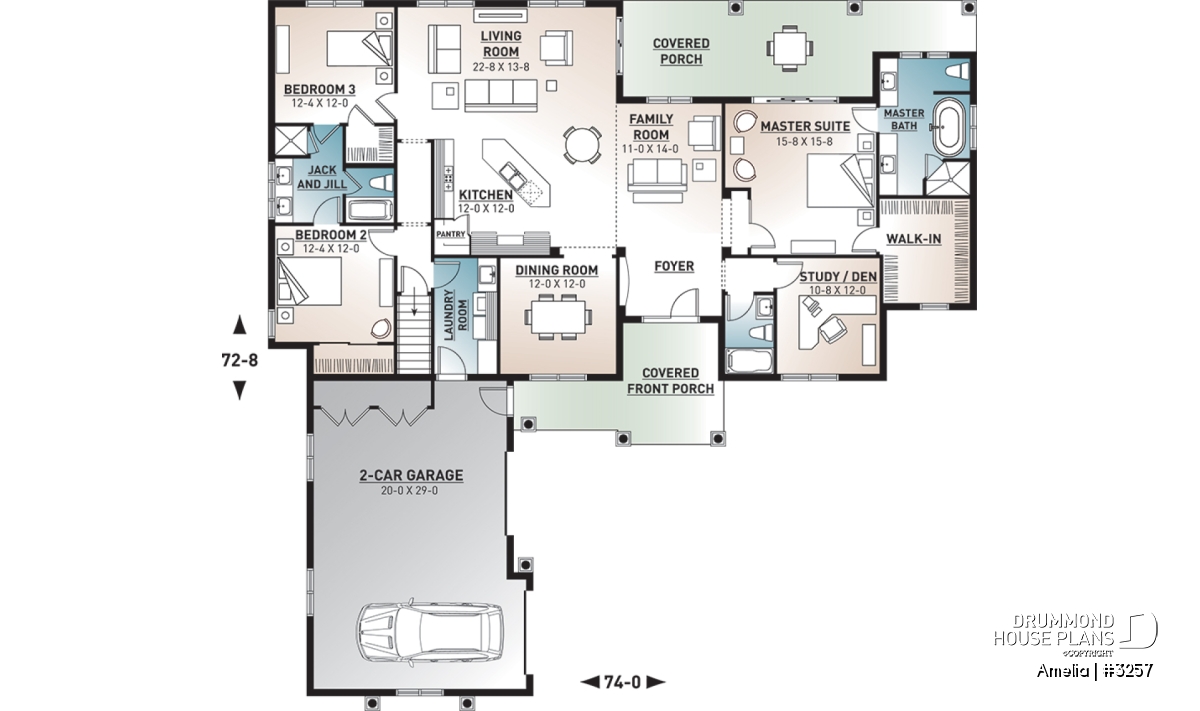

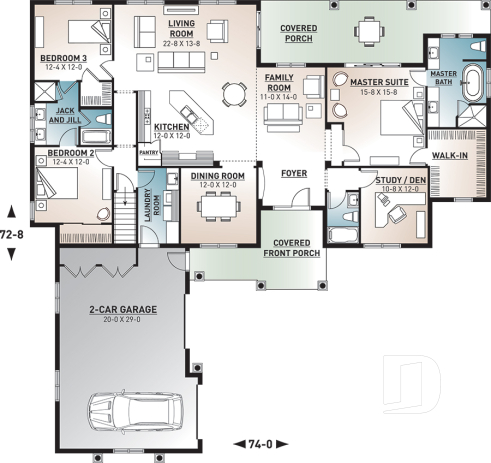

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 12'0" | ~ 10'0" |
| Dining room | 12'0" x 12'0" | ~ 10'0" |
| Living room | 11'0" x 14'0" | ~ 10'0" |
| Foyer | 10'0" x 8'0" | ~ 12'2" |
| Master suite | 15'8" x 15'8" | ~ 10'0" |
| Full bathroom | 9'4" x 14'2" | ~ 10'0" |
| Walk-in closet | 9'0" x 10'10" | ~ 10'0" |
| Bedroom | 12'4" x 12'0" | ~ 10'0" |
| Full bathroom | 12'4" x 6'8" | ~ 10'0" |
| Closet | 8'4" x 3'0" | ~ 10'0" |
| Bedroom | 12'4" x 12'0" | ~ 10'0" |
| Closet | 5'0" x 3'10" | ~ 10'0" |
| Full bathroom | 5'0" x 8'2" | ~ 10'0" |
| Utility room | 6'6" x 12'0" | ~ 10'0" |
| Garage | 20'0" x 29'0" | ~ 8'2" |
| Storage | 12'2" x 2'8" | ~ 8'2" |
| Covered porch | 21'6" x 12'4" | N/A |
| Covered deck | 36'8" x 10'0" | N/A |
| Dinette | 9'0" x 9'0" | ~ 10'0" |
| Great room or Family room | 22'8" x 13'8" | ~ 10'0" |
| Home office | 10'8" x 12'0" | ~ 10'0" |

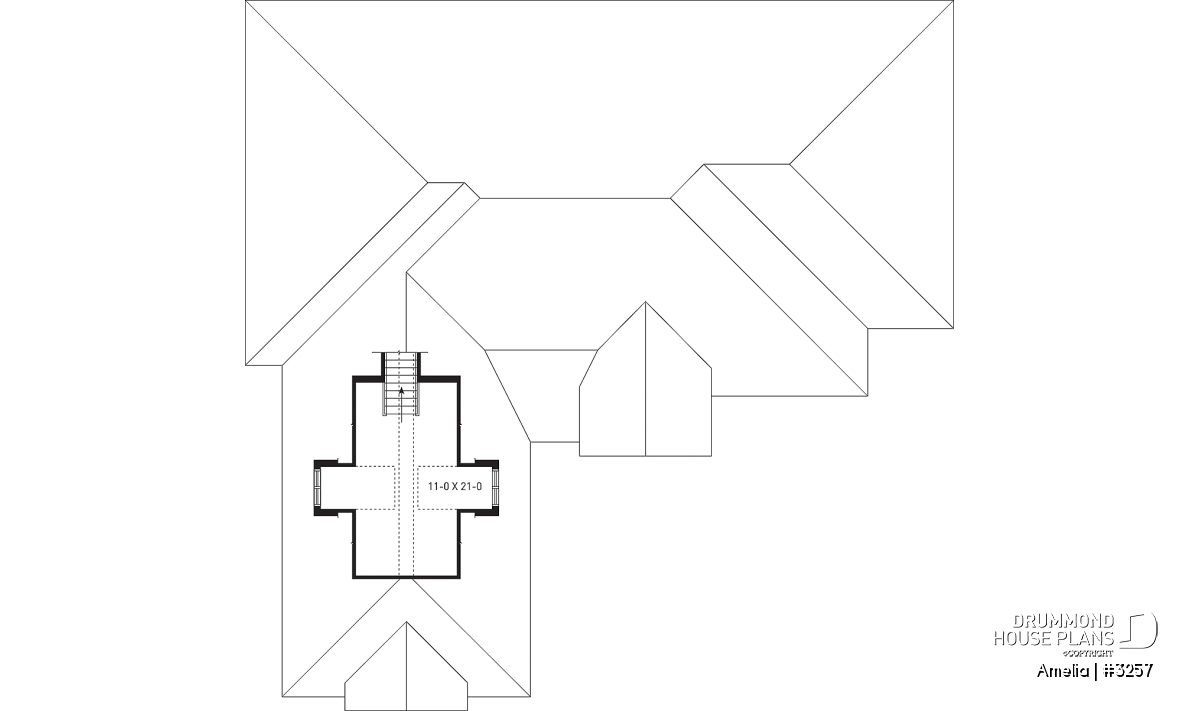

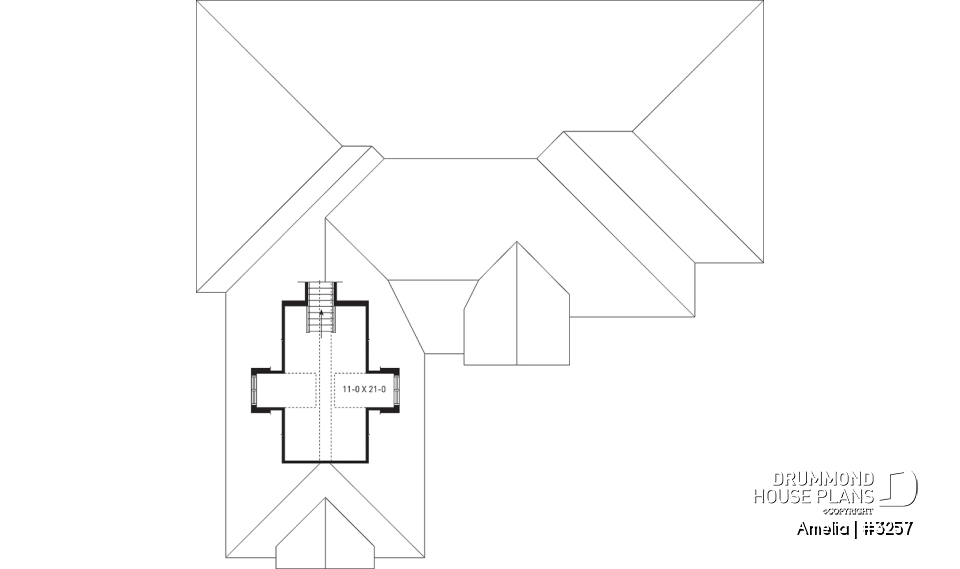

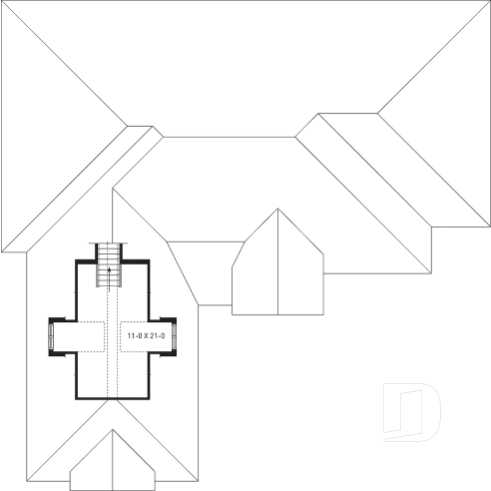

| Bonus space | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 11'0" x 21'0" | ~ 8'0" |
General specifications
| Total living area | 2489 sq.ft. |
| 1st level | 2489 sq.ft. |
| Bonus space | 0 sq.ft. |
| Width | 74'0" |
| Depth | 72'8" |
| Ridge height from top of foundation | 25'0" |
| Exterior wall | Block , 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Large 3 bedroom Florida ranch style house plan with bonus space
.
Distinctive elements
Ceiling at 10' throughout the main level. Master suite with original bathroom, large closet and triple patio doors overlooking a covered patio. Large family room with access to the rear covered patio and kitchen with a strategic island. Two lovely secondary bedrooms sharing a well-organized full bathroom. Interesting bonus space above the large double garage.
Plan feature(s)
Office / Study / Den, Living bonus space, Deck, Island, Side entry garage, Ceiling over 8', Jack & Jill bath, Gound floor laundry room, Master suite on main, Split bedrooms, Walk-in master bed., Separate bath and shower, Double sinks, Formal dining room, Breakfast nook, Pantry
Plan architectural style(s)
. Florida, . Mediterranean, . Ranch, Modern French Country
Similar plans
Previously Viewed Plans
Questions and comments
May 29
Shirley A Adams
Do you have any single story plans with 2 master suites + office, 1 more bedroom & bath, 1/2 bath, kitchen pantry, 3 car garage? Similar in design to W3257.
May 29
Customer service
Good day Ms. Adams and thank you for taking the time to write.
Attached are the links for several of our plans that you might find interesting.
3231
3212
3255
The following plan is another possibility despite the two car garage and could easily be modified to add another parking space within. We would be happy to provide a free estimate for this or any other changes that you require within two business days after receipt of this on line form.
3254
Please let me know if I can further assist you
Regards
Deb
