House plan Whitehurst (3255)
4 bedroom Mediteraneanm home plan with 10' ceilngs and triple garage

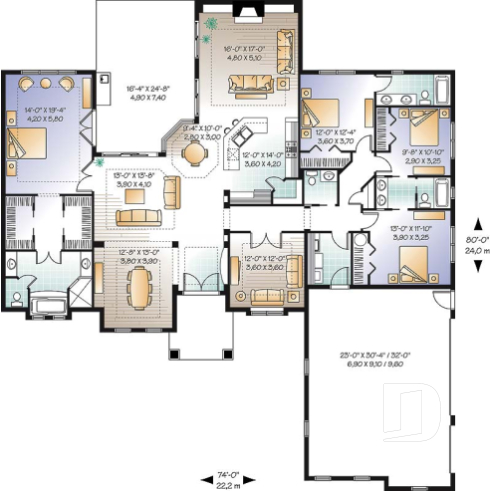

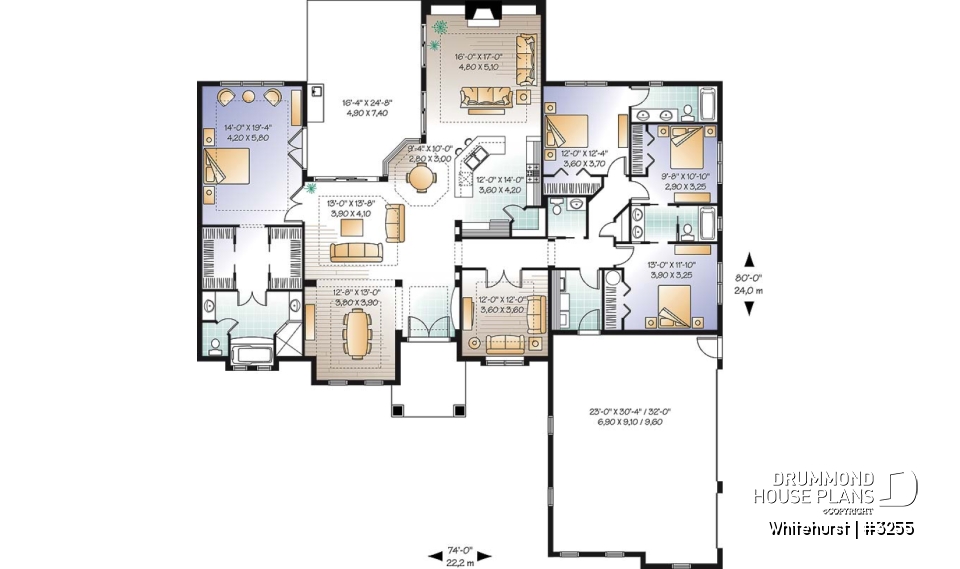

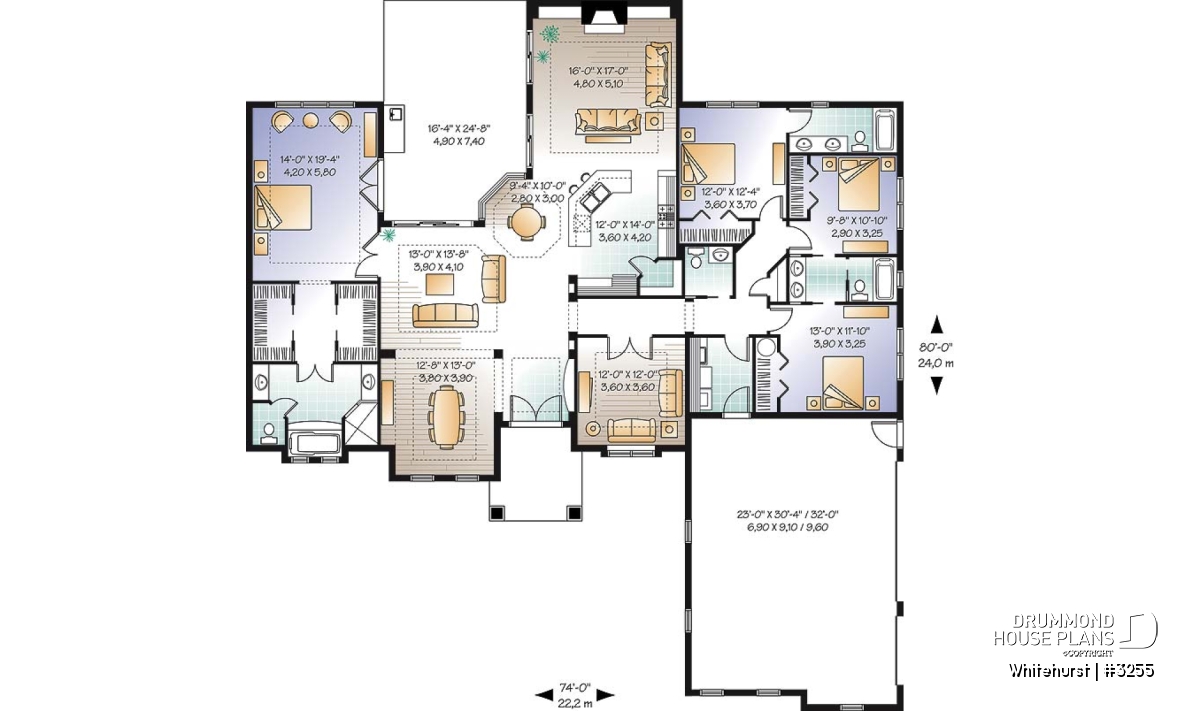

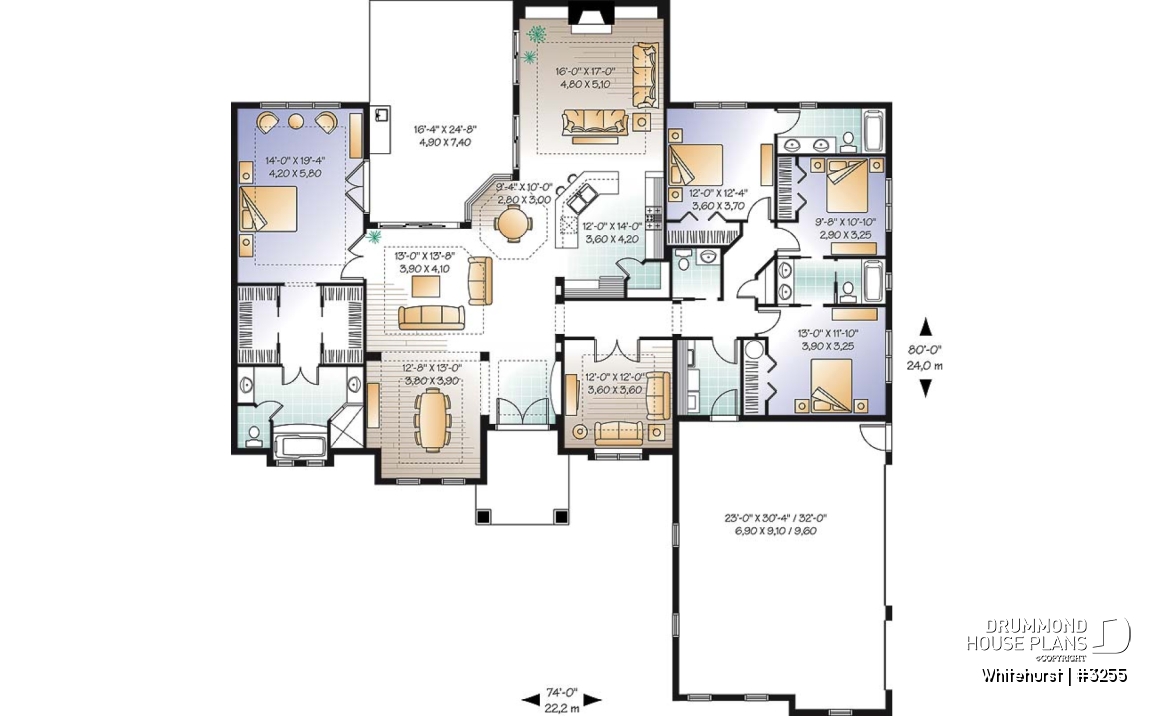

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 14'0" | ~ 12'0" |
| Dining room | 12'8" x 13'0" | ~ 12'6" |
| Living room | 13'0" x 13'8" | ~ 12'6" |
| Foyer | 7'4" x 8'0" | ~ 12'6" |
| Full bathroom | 12'0" x 5'0" | ~ 10'0" |
| Half bath or powder room | 5'4" x 5'6" | ~ 10'0" |
| Master suite | 14'0" x 19'4" | ~ 10'6" |
| Bedroom | 13'0" x 12'10" | ~ 10'0" |
| Bedroom | 9'8" x 10'10" | ~ 10'0" |
| Storage | 1'10" x 3'2" | ~ 10'0" |
| Laundry room | 7'8" x 8'4" | ~ 10'0" |
| Porch | 10'4" x 10'2" | N/A |
| Porch | 15'4" x 13'4" | N/A |
| Playroom | 12'0" x 12'0" | ~ 10'6" |
| Dinette | 9'4" x 10'0" | ~ 12'6" |
| Great room or Family room | 16'0" x 17'0" | ~ 12'0" |
| Guest suite | 12'0" x 12'4" | ~ 10'0" |
| Garage | 23'0" x 32'0" | ~ 9'0" |
General specifications
| Total living area | 2901 sq.ft. |
| 1st level | 2901 sq.ft. |
| Width | 74'0" |
| Depth | 80'0" |
| Ridge height from top of foundation | 25'2" |
| Exterior wall | Block , 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Dream grand
The double-sloped, multi-peaked roofline of this luxurious home mimics a mountain range on the horizon and the interior is equally grand.
An arched covered entry leads to double doors opening to a grand corridor and 10’ plus coffered ceilings throughout. A central gourmet kitchen with walk-in pantry and social island is open to the casual breakfast nook and two social areas allowing for spectacular gatherings. A den or study allows for an intimate getaway space. Two bedrooms share a Jack and Jill bathroom and a third enjoys a private bathroom.
The master suite forms a private wing, complete with french doors opening to the rear patio. A spacious sleeping chamber transitions through his and hers walk-in closets and on to a luxurious 5-piece master bathroom.
A three-car garage keeps autos discreetly out of site.
While designed for the southern market, this luxurious model is equally at home for discerning homeowners nation-wide.
Also available in 2 x 6 at no additional cost. Contact Customer Service to order.
Distinctive elements
Elegant front porch. Triple garage rather discreet with side doors. Remarkable entry with more than 12' ceiling as in the dining room, the living room, the dinette, the family room and the kitchen. Ceiling at 10' in all the bedrooms. Built-ins in the family room and in the main entry. Access to the rear patio from the living room, the master suite and the family room.
Plan feature(s)
Fireplace, Island, Deck, Guest suite, Pantry, Gound floor laundry room, Office / Study / Den, Side entry garage, Master suite on main, Built-ins, Breakfast nook, Formal dining room, Split bedrooms, Separate bath and shower, Double sinks, His/Hers walk-in, Jack & Jill bath
Plan architectural style(s)
. Mediterranean, . Florida
Similar plans
Previously Viewed Plans
Questions and comments
May 21
Rose Enoh
I want to order this plan for construction in Nigeria where I will be using block and insulation is not needed, will I need to make a lot of changes.
Thanks
Rose
May 21
Customer service
Good day Ms. Enoh and thank you for your interest in this plan.
This collection is designed to by built with concrete block construction and there is no extra charge for this style. All you need to do is indicate your preference at the time of the order.
Please let me know if you have any other questions or comments.
Regards
Deb
December 18
ALONSO SANCHEZ
als i need a electrical and pluming blue prints for this house
December 18
Customer service
Good day Mr. Sanchez and thank you for taking the time to write.
For electrical and plumbing details, you will need to direct your inquiry to a local professional as we do not include this information with our plans.
Regards
Deborah
May 29
Cathryn
Approximately (rough estimate) how much would it cost to build this house? (W3255 whitehurst)
May 29
Customer service
Good day and thank you for your interest in this plan.
Since we do no actual construction, we do not have construction estimates for this home in your area.
A ballpark idea, in 2x6 wood construction, for Quebec (Canada) starts at roughly $500,000. but your best source for more precise information would be local contractors and materials suppliers.
This model is also available in concrete block, for which I do not have an estimate.
Please let me know if you have any other questions or comments.
Regards
Deborah
