Mediterranean style design with split bedroom concept, home office, 3-car garage, large open floor plan

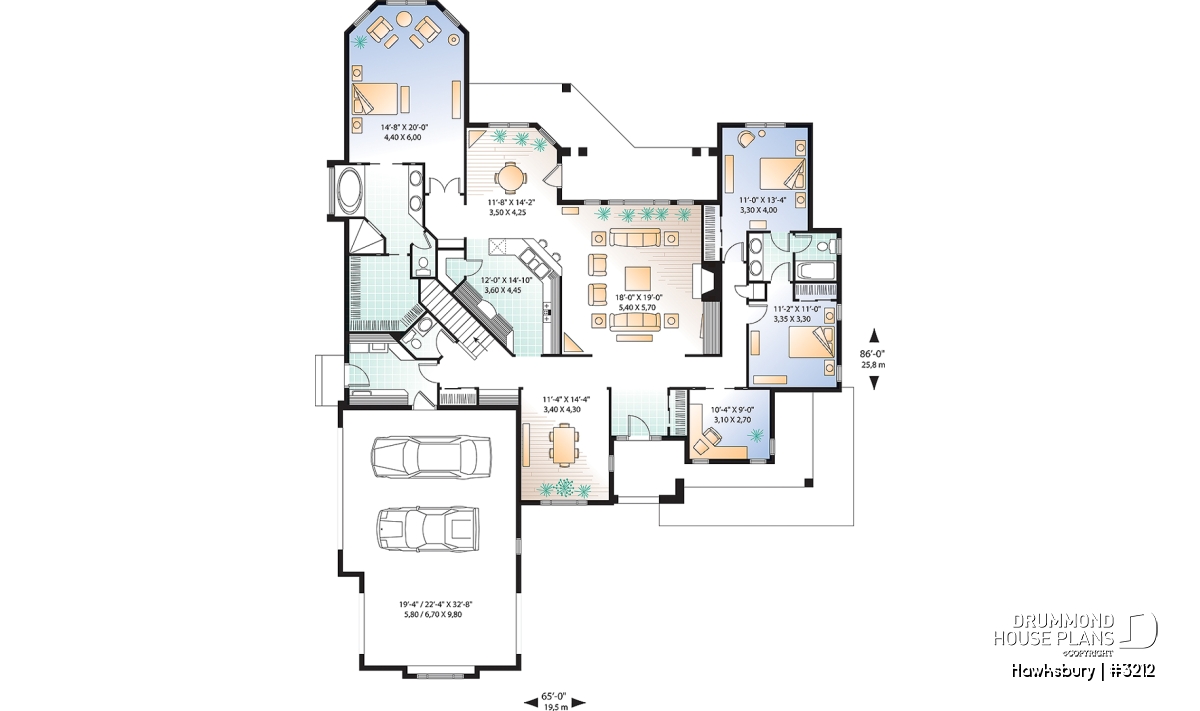

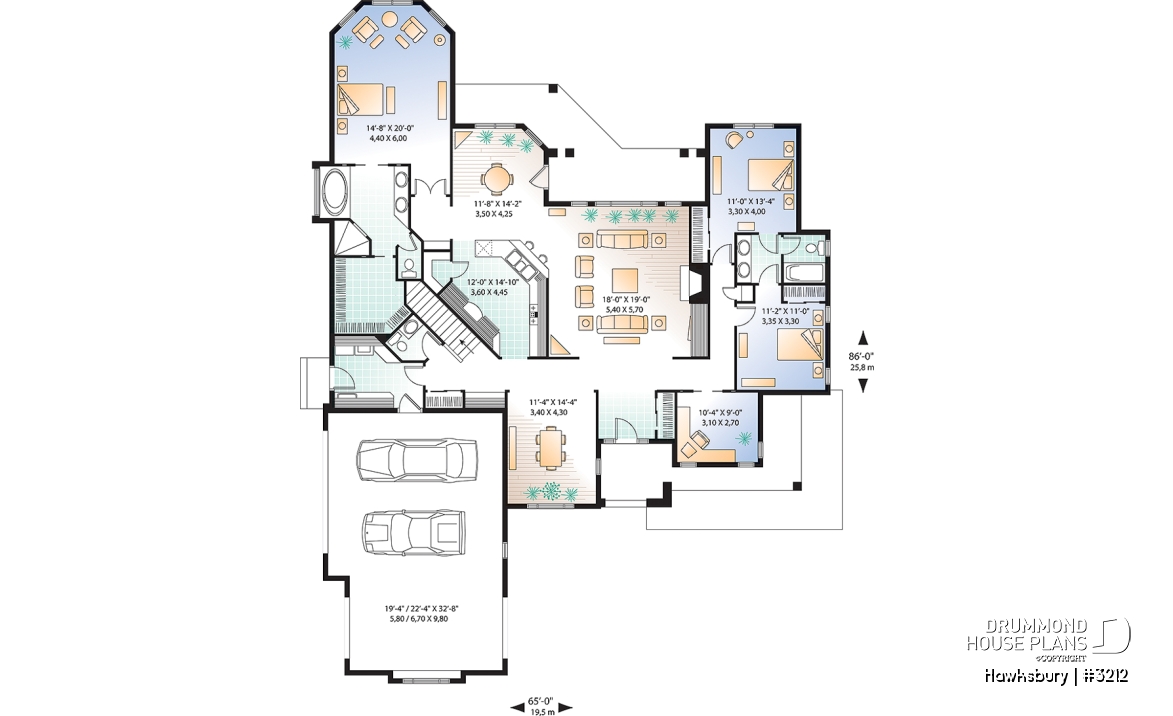

View the size of the rooms and height of the ceilings
|Half bath or powder room||5'2" x 5'4"||~ 9'0"|
|Full bathroom||11'2" x 6'0"||~ 9'0"|
|Kitchen||12'0" x 14'10"||~ 9'0"|
|Breakfast nook||11'8" x 14'2"||~ 9'0"|
|Dining room||11'4" x 14'4"||~ 11'9"|
|Great room or Family room||18'0" x 19'0"||~ 9'0"|
|Home office||10'4" x 9'0"||~ 9'0"|
|Master suite||14'8" x 20'0"||~ 9'0"|
|Bedroom||11'0" x 13'4"||~ 9'0"|
|Bedroom||11'2" x 11'0"||~ 9'0"|
|Linen||2'0" x 2'2"||~ 9'0"|
|Foyer||7'4" x 6'4"||~ 11'9"|
|Utility room||11'4" x 9'4"||~ 9'0"|
|Garage||22'4" x 20'8"||~ 10'6"|
|Garage||19'4" x 12'0"||~ 10'6"|
|Closet||4'8" x 2'0"||~ 9'0"|
|Porch||9'0" x 8'0"||N/A|
|Porch||20'0" x 6'9"||N/A|
|Porch||6'6" x 3'0"||N/A|
|Total living area||2620 sq.ft.|
|1st level||2620 sq.ft.|
|Ridge height from top of foundation||24'2"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full basement with walkout|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||G|
|Garage type||Three-car garage (754 sq.ft.)|
|Living bonus space||-|
