Palmgrove (3246)
3 bedroom bungalow with fireplace, bonus space and garage, lots of natural light, cathedral ceiling
View the size of the rooms and height of the ceilings

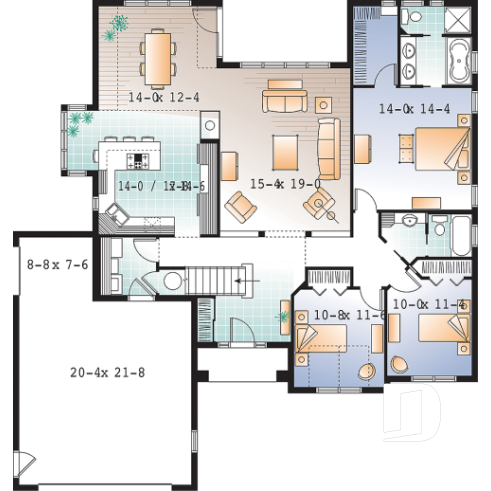

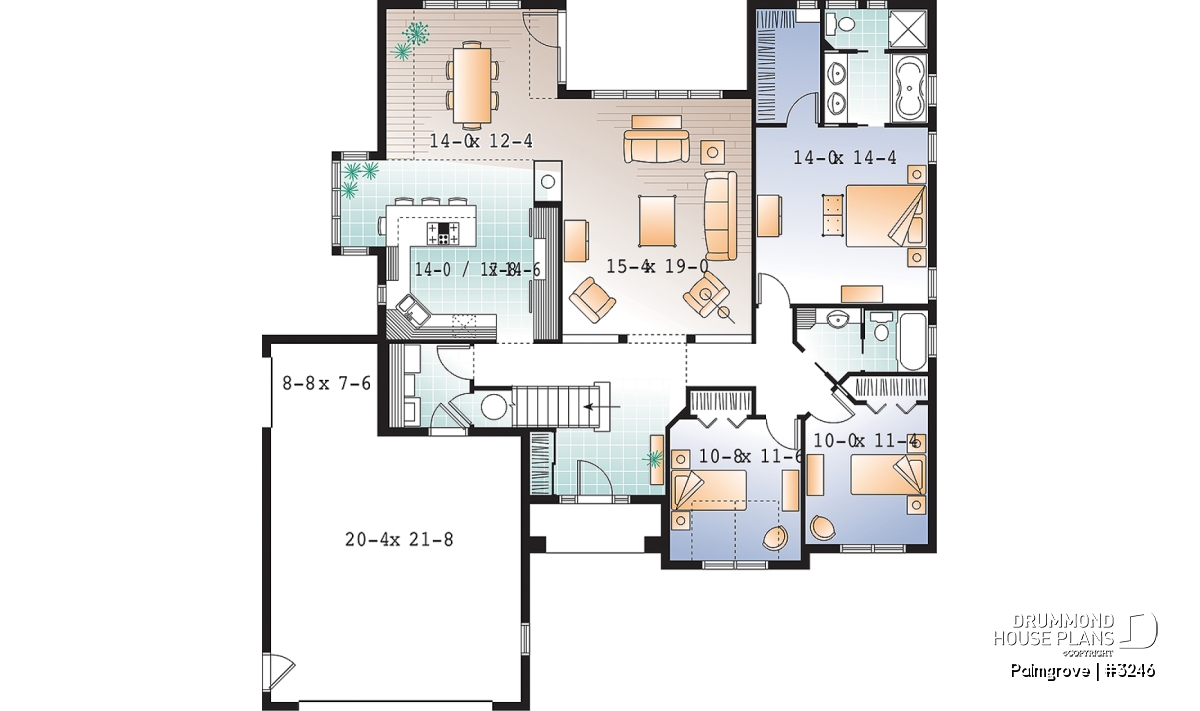

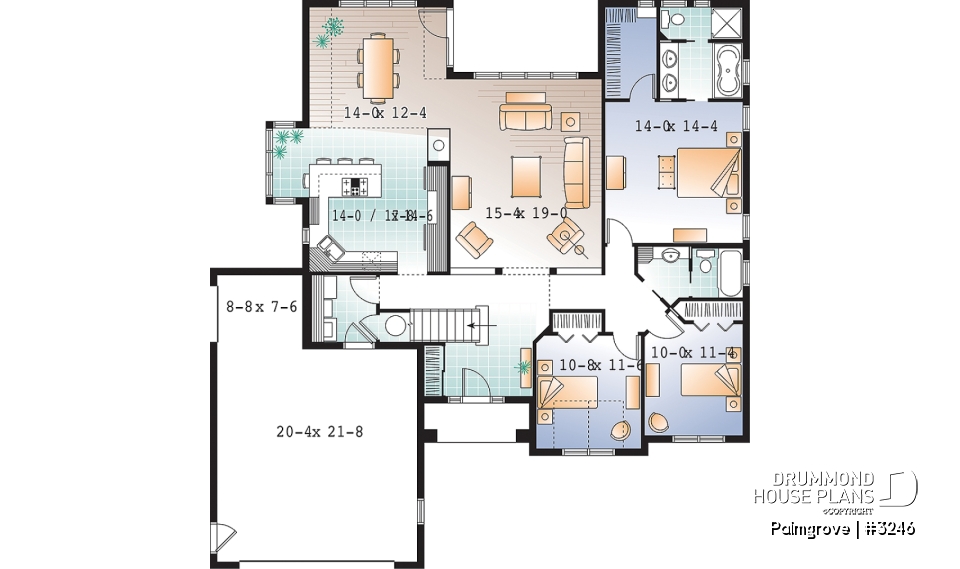

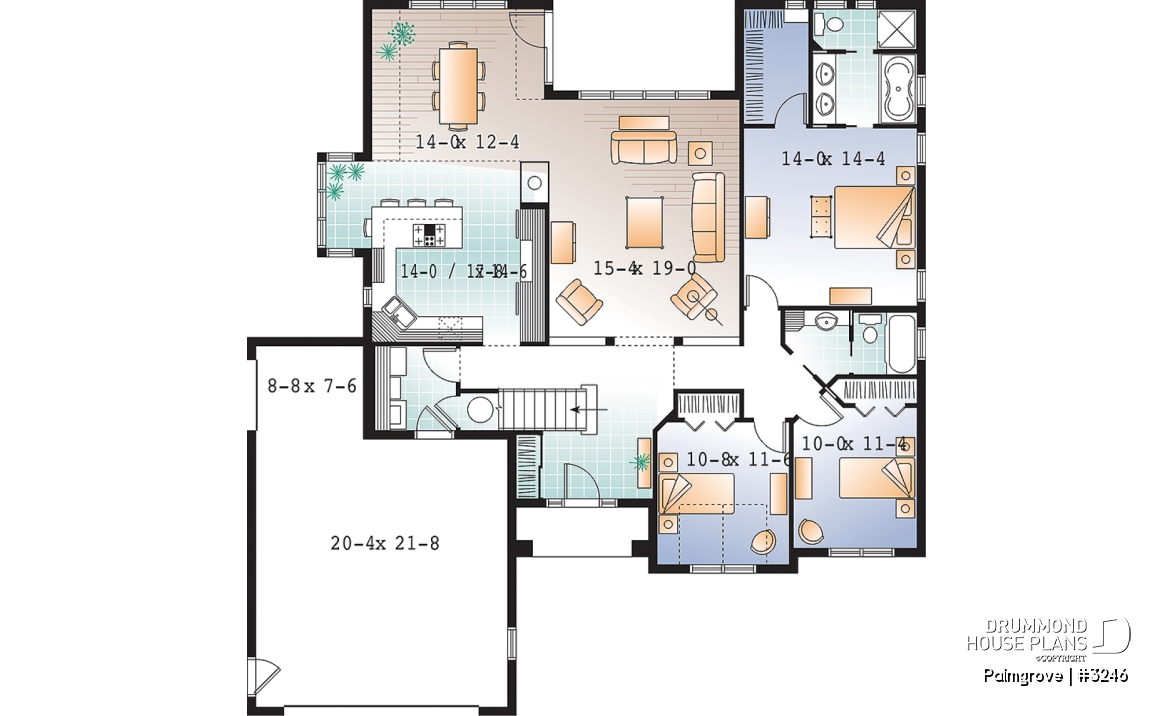

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 14'0" x 14'6" | ~ 9'0" |
| Dining room | 14'0" x 12'4" | ~ 11'2" |
| Living room | 15'4" x 19'0" | ~ 11'2" |
| Foyer | 8'10" x 5'6" | ~ 9'0" |
| Closet | 2'0" x 5'2" | ~ 9'0" |
| Master suite | 14'0" x 14'4" | ~ 9'0" |
| Full bathroom | 8'5" x 9'4" | ~ 9'0" |
| Walk-in closet | 5'3" x 9'4" | ~ 9'0" |
| Full bathroom | 6'6" x 5'0" | ~ 9'0" |
| Bedroom | 10'8" x 11'6" | ~ 12'1" |
| Closet | 5'0" x 2'0" | ~ 9'0" |
| Bedroom | 10'0" x 11'4" | ~ 9'0" |
| Closet | 6'4" x 2'0" | ~ 9'0" |
| Utility room | 6'6" x 6'10" | ~ 8'0" |
| Garage | 20'4" x 21'8" | ~ 9'0" |
| Covered porch | 10'8" x 4'0" | N/A |

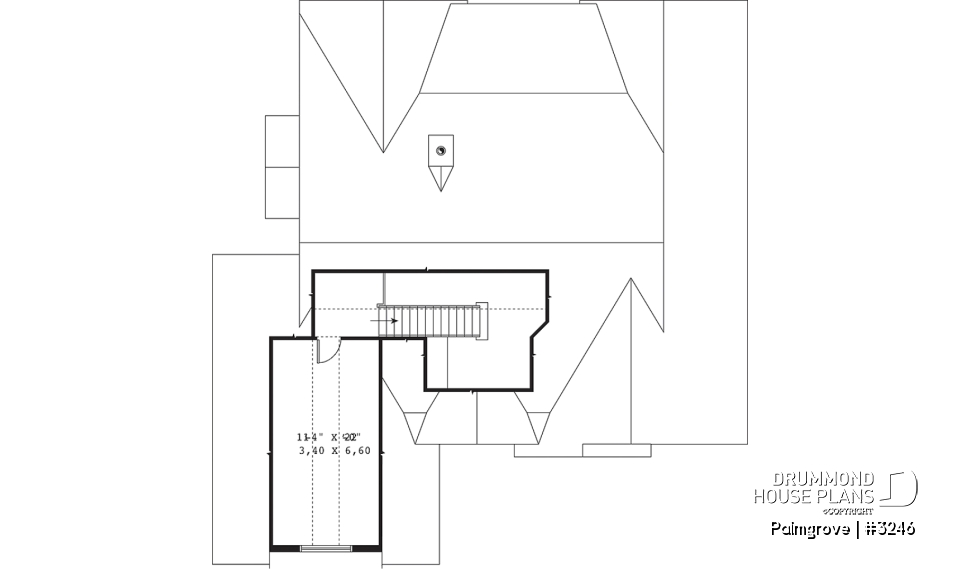

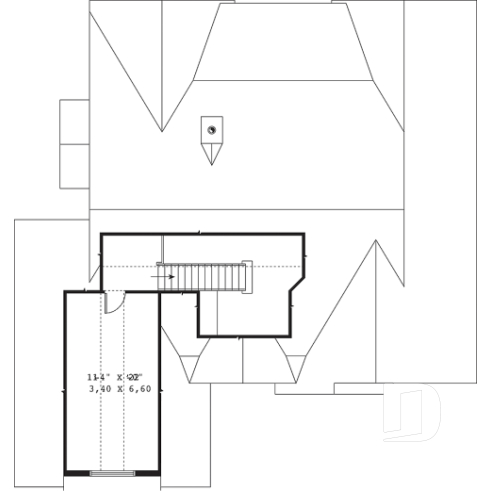

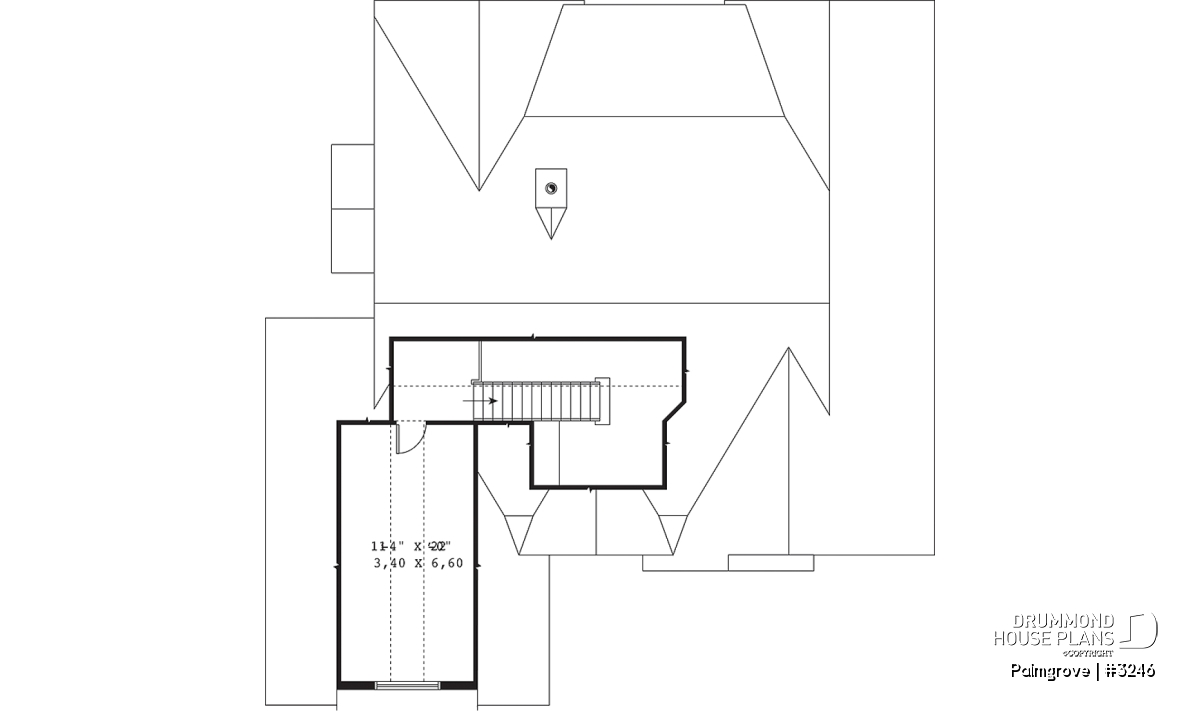

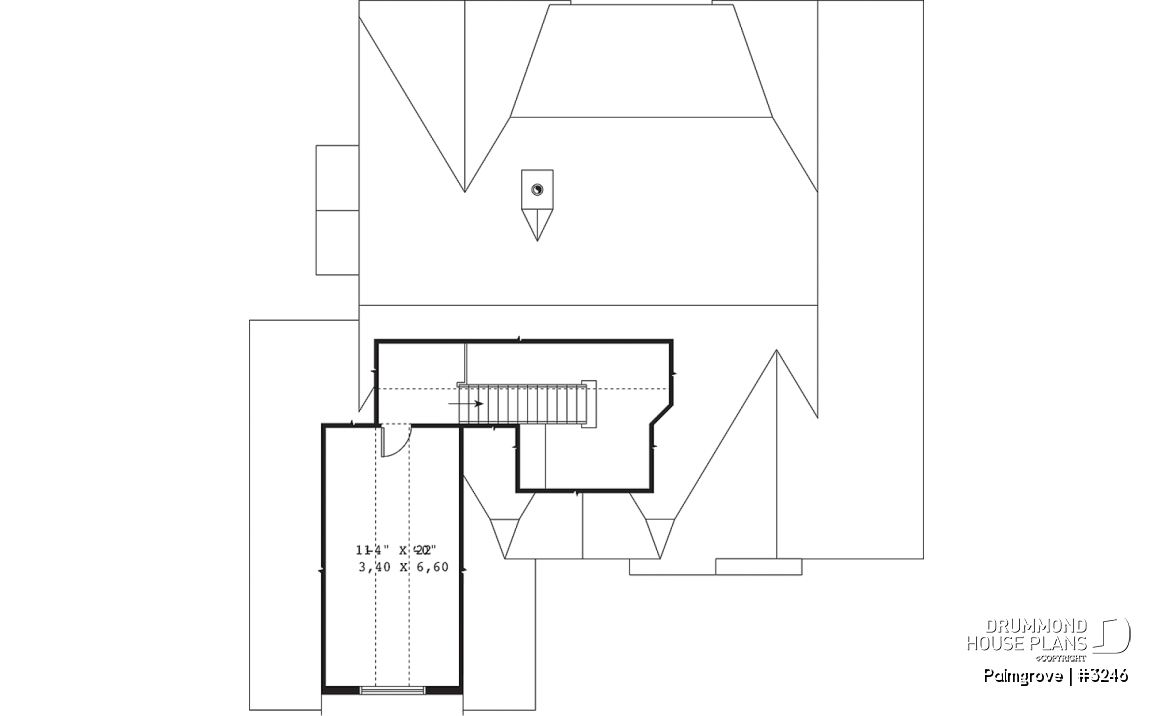

| Bonus space | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 11'4" x 22'0" | ~ 8'0" |
General specifications
| Total living area | 1816 sq.ft. |
| 1st level | 1816 sq.ft. |
| Bonus space | 0 sq.ft. |
| Width | 54'8" |
| Depth | 57'8" |
| Ridge height from top of foundation | 22'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Other available foundations (a fee may apply) | Full Basement, Floating Slab, Crawl space |
| Builder price code | E |
Rooms specifications
Other useful information on this plan

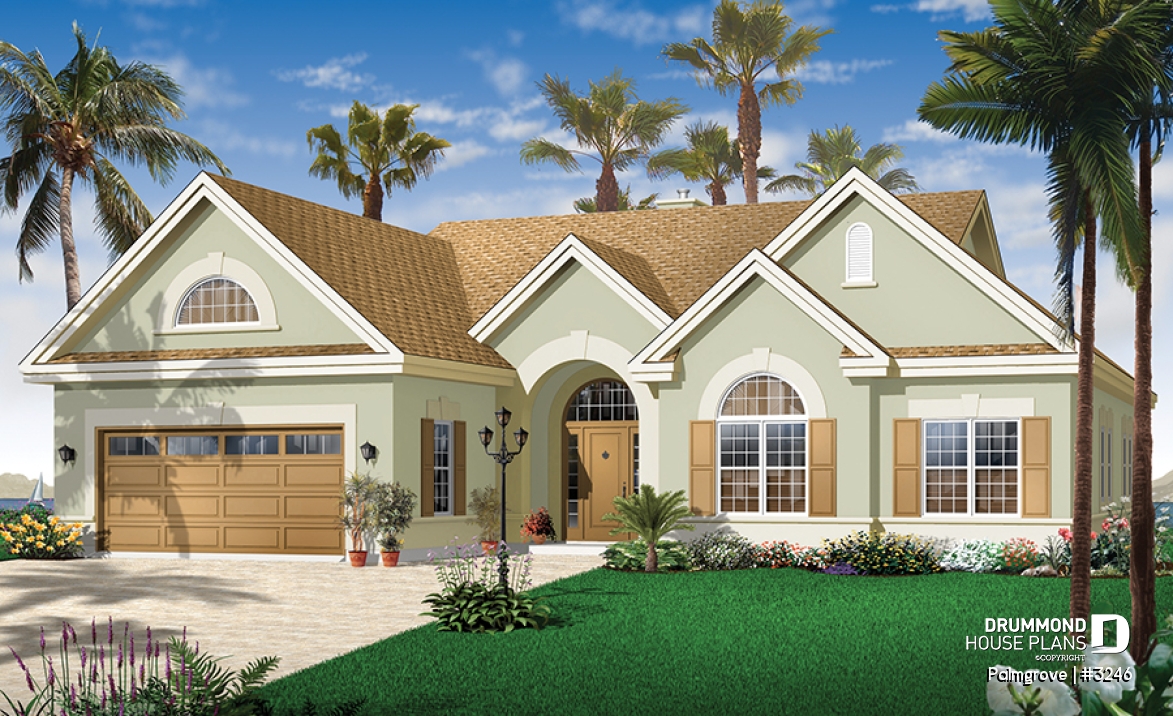

Airy, Florida-style ranch with 3 bedrooms, and a 2-car garage
While rendered with a southern look, this model is popular nation-wide due to the easy living style on one level.
A gracefully arched, covered entry opens to a dramatic vaulted foyer. An airiness is achieved by 9’ ceilings throughout, plus a vaulted dining and living room. A three sided fireplace links the kitchen, dining room and living room.

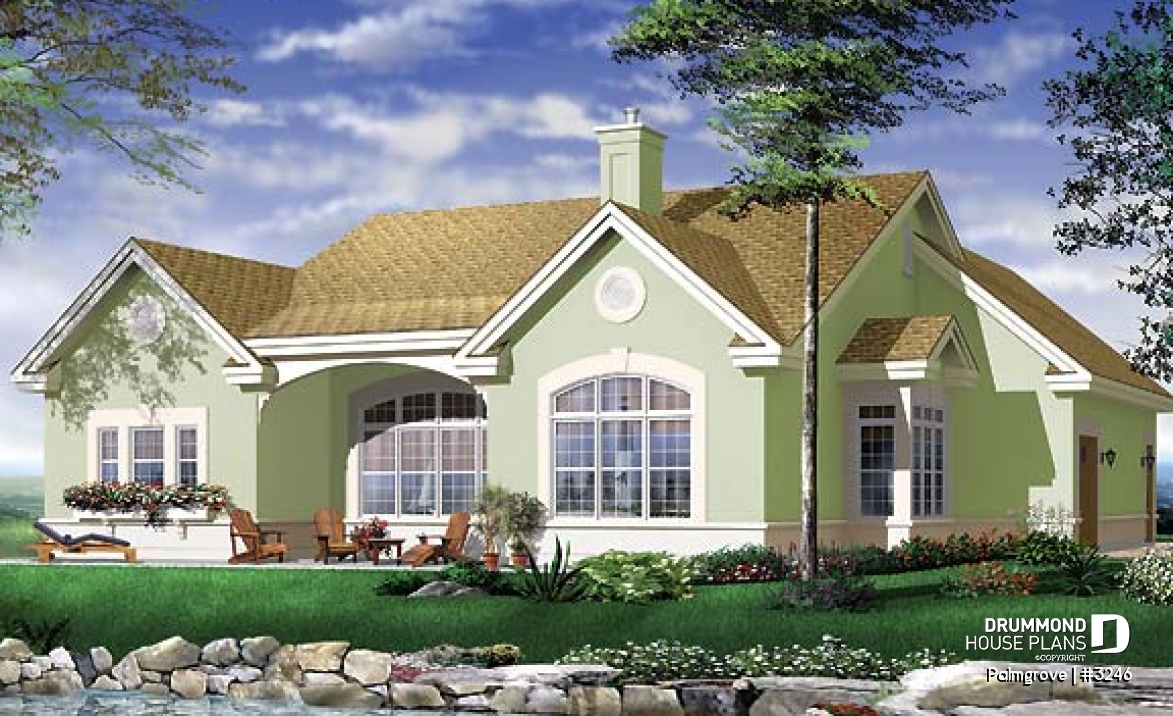

Grocery shopping is a breeze with an attached, two-car garage being mere steps from car to kitchen. All of the main living areas, plus a covered deck are oriented to the back of the house - perfect for privacy and backyard enjoyment.
The private master suite includes a 5-fixture bathroom and walk-in closet. Two additional bedrooms share a bathroom.
The garage provides a golf cart bay with its own door and a sloped bonus room above the garage provides additional space for a unique room or storage.
Distinctive elements
9' ceiling throughout the main level except the laudry room to 8', sloped ceiling to the entry until 17' and at 11' in the dining room and the living room. Central three-sided fireplace shared with the kitchen, dining room and living room. Dinette area enhanced with abundant window. Garage providing space for the golf cart as well as its own door. Bonus room above garage with sloped ceiling.
Plan feature(s)
Fireplace, Living bonus space, Ceiling over 8', Gound floor laundry room, Master suite on main, Walk-in master bed., Lunch counter, Panoramic view, Cathedral ceiling, Double sink vanity, Separate bath and shower
Plan architectural style(s)
. Florida, . Mediterranean, . Ranch, French Country
Previously Viewed Plans
Questions and comments
April 15 2011
Shannon
Hi there,
Are you able to provide a provincial average for the cost of building this house in Manitoba? Is it possible to provide an approximate cost of the building materials only?
Thanks,
Shannon
April 15 2011
Customer service
Dear Shannon,
Thank you for your interest in Drummond House Plans.
We only have provincial averages for Quebec and they may not be accurate for Manitoba. As for the cost for materials, I would suggest you purchase the materials list and have quotes made by local materials suppliers.
Please contact us again if you need further information. I will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service Department
April 13 2011
Kayla
Hi... I was wondering what the average provincial cost to build this house would be... approximately. Thank you!
April 14 2011
Customer service
Dear Kayla,
Thank you for your interest in Drummond House Plans.
The only prices we have are provincial averages for Quebec. Since you do not mention where you are located, I cannot guarantee that these prices would be accurate for your region. The prices we have are from $279,000 to $320,000.
If you need further information, please contact me again. I will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service
March 25 2011
Heidi
I was just wondering if you have a floor plan similar to this one, except with 3 bedrooms plus a den? If so I would love to see it.
Thanks,
March 28 2011
Customer service
Dear Heidi,
Thank you for your interest in Drummond House Plans.
This floor plan is the only version of the plan we have. However, please note that any modification is possible to any of our plans. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267.
Do not hesitate to contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
November 05 2010
Ricky
Hi...I was just wondering if there's any way to see a virtual tour of this place and also is there any way to change the staircase from being right in the foyer?..thanks
November 08 2010
Customer service
Dear Ricky,
Thank you for your interest in Drummond House Plans.
We do not have virtual tours available for our plans. All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267.
Do not hesitate to contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
