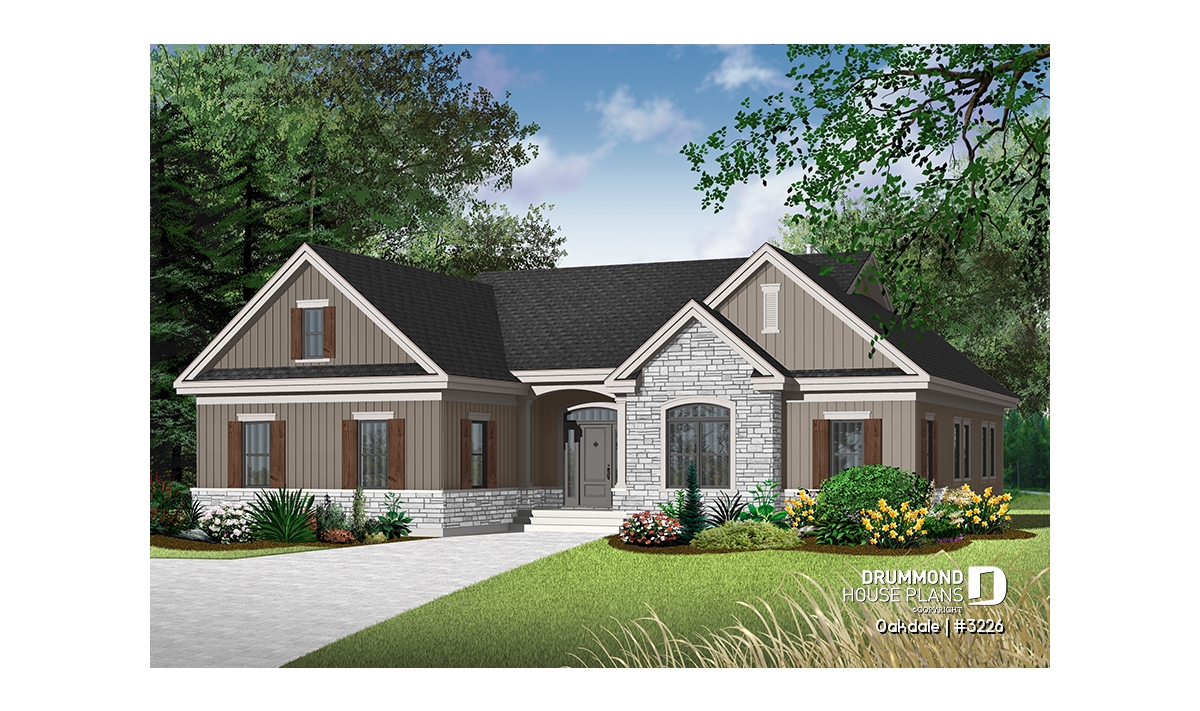

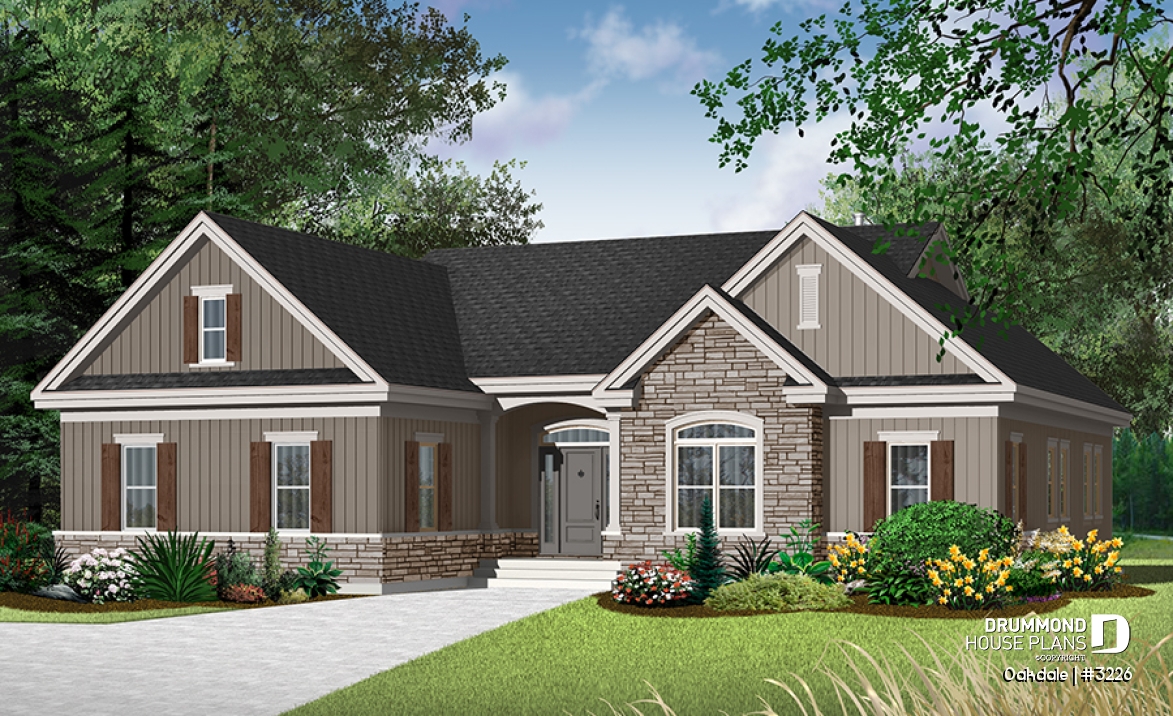

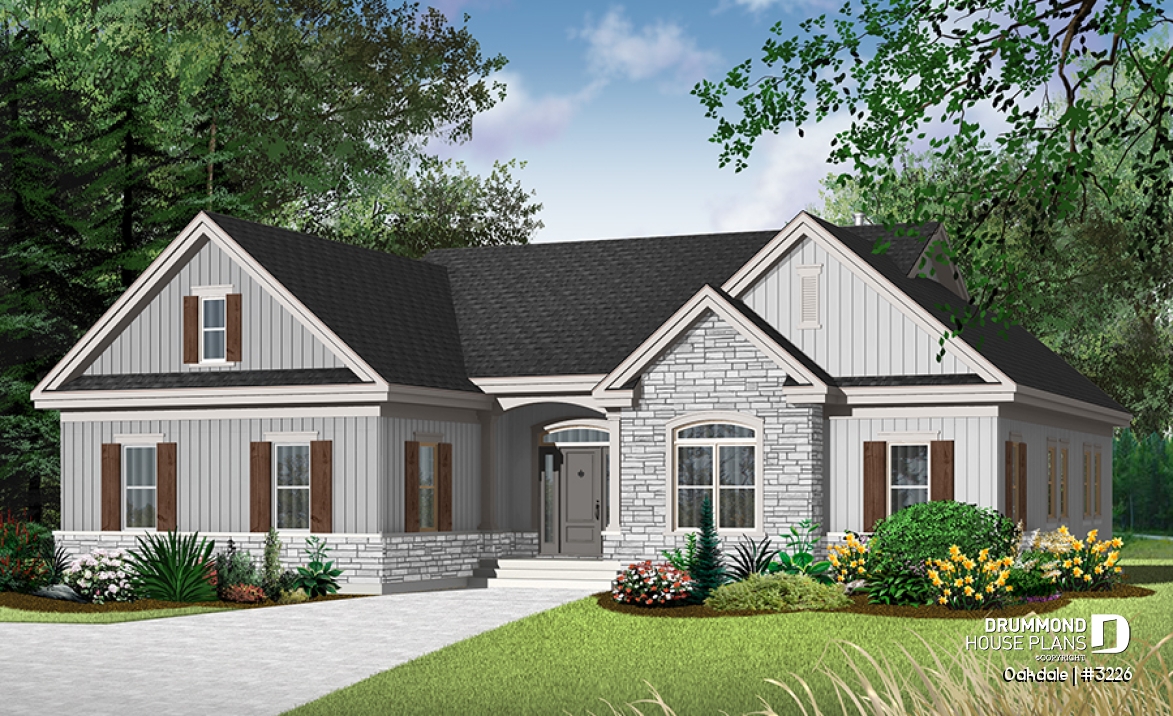

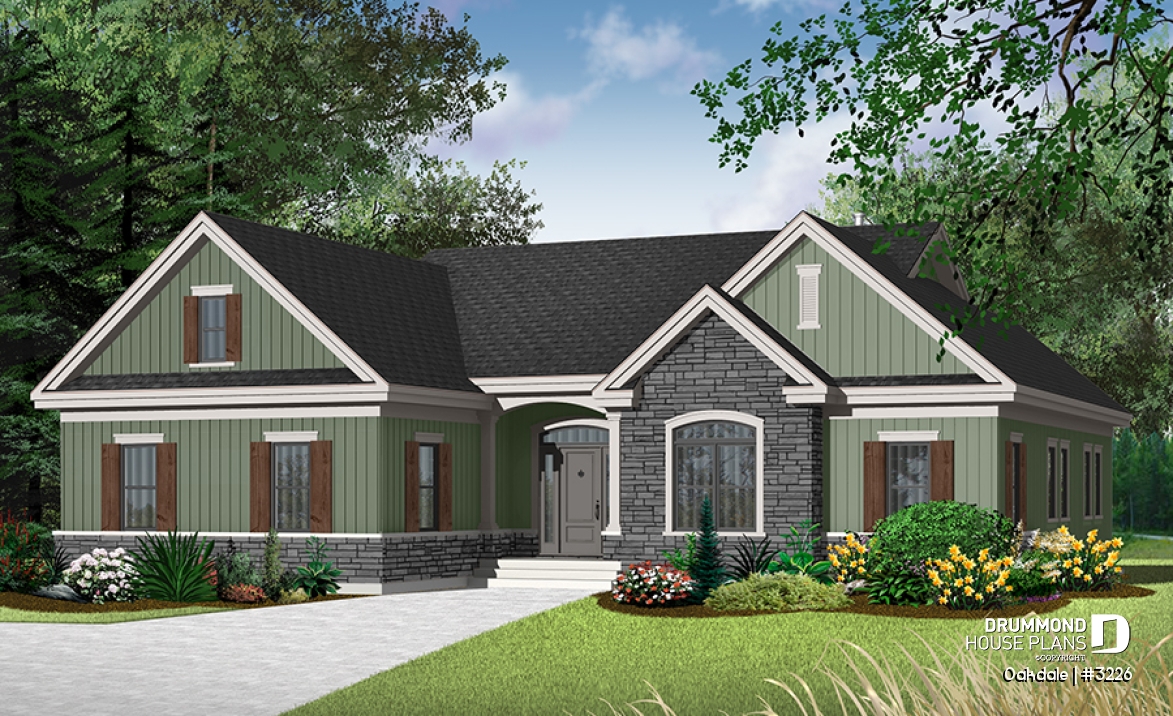

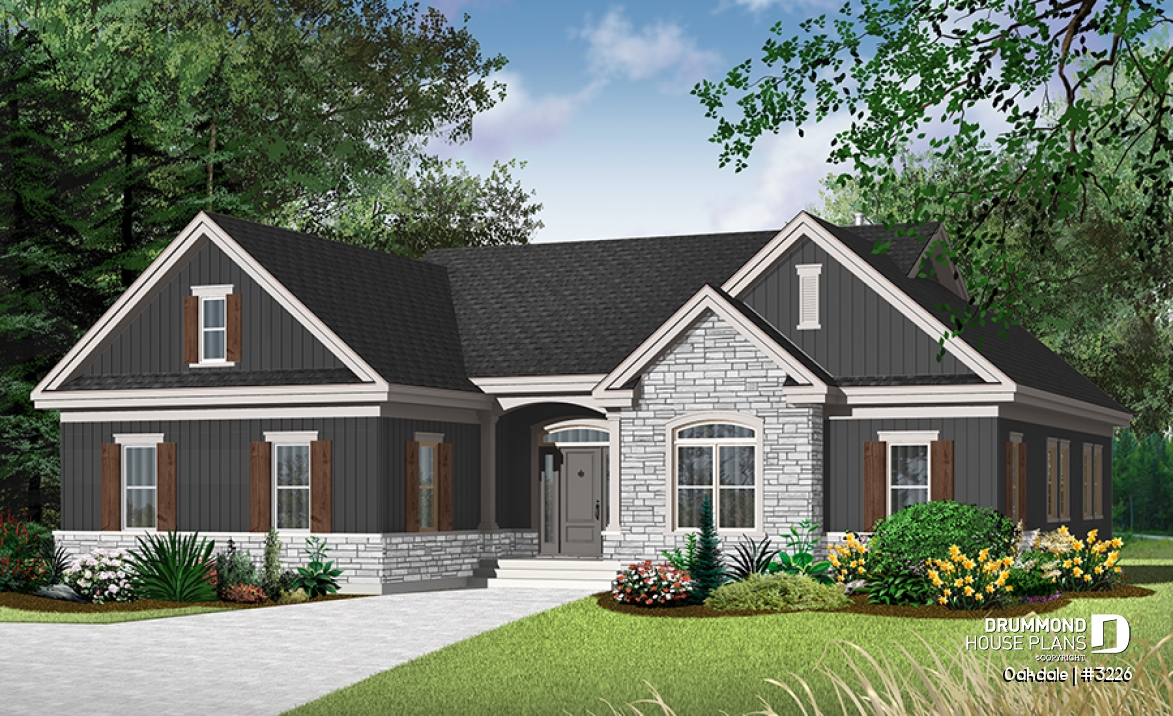

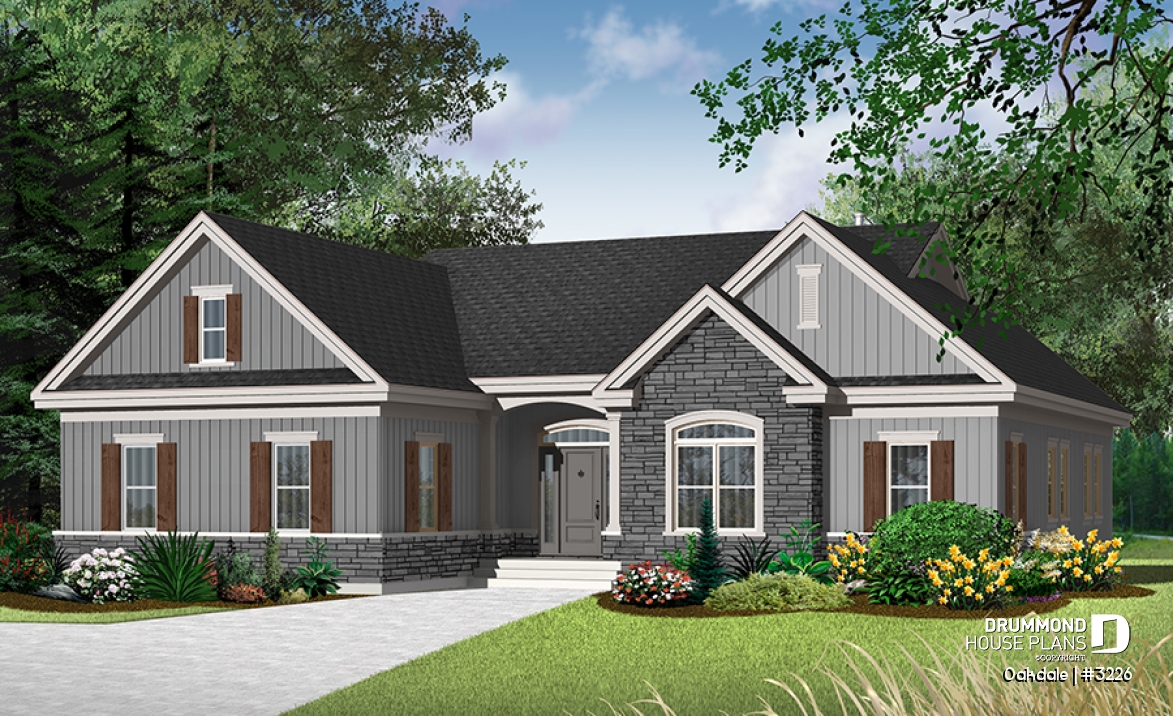

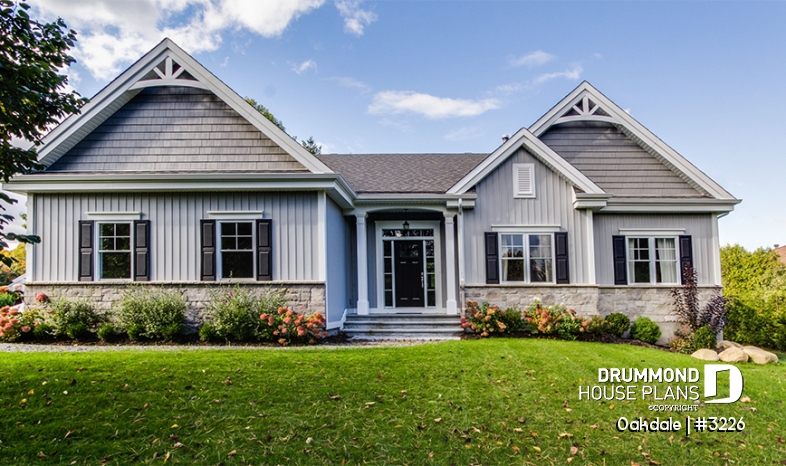

House plan Oakdale (3226)
3 bedroom Ranch house plan with two-car garage, master suite, total 3 bedrooms 2 baths, fireplace
View the size of the rooms and height of the ceilings

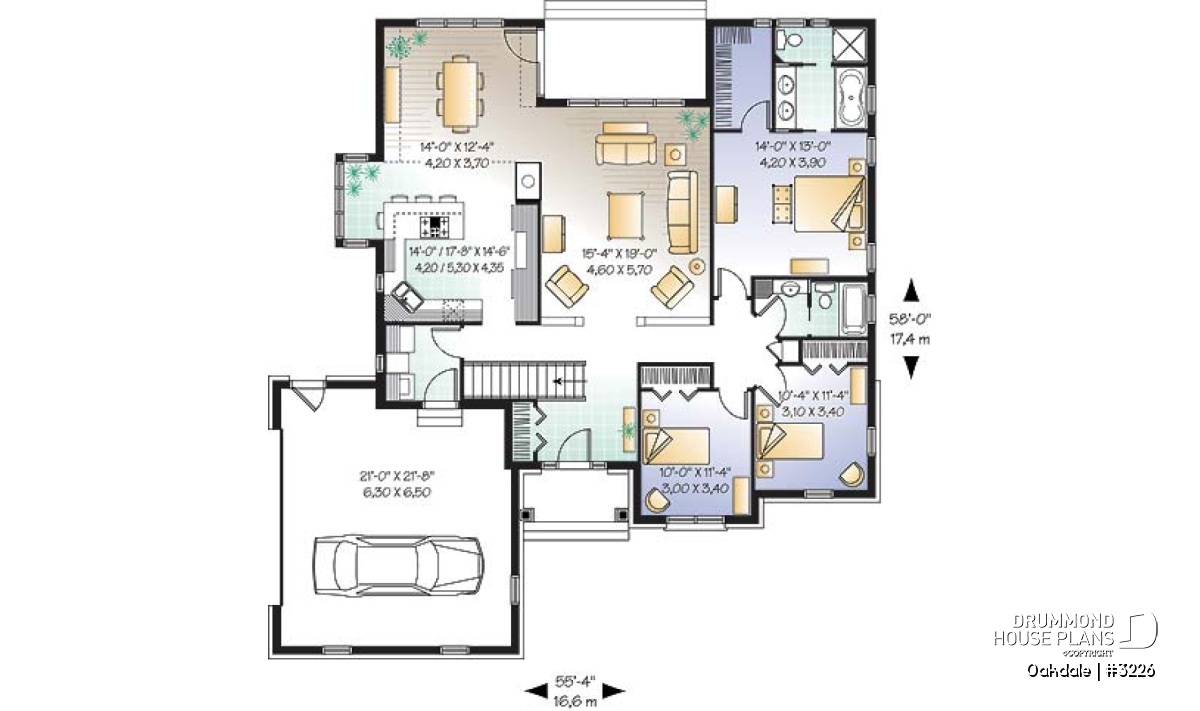

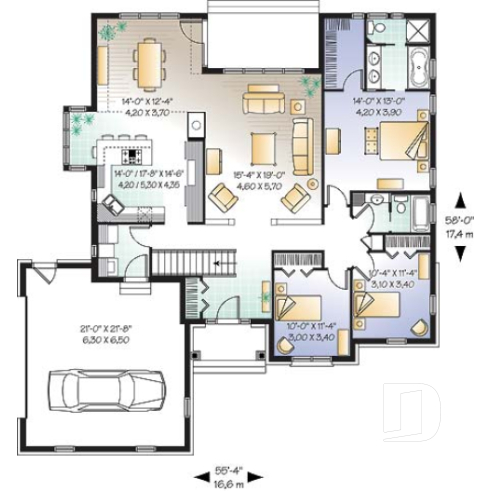

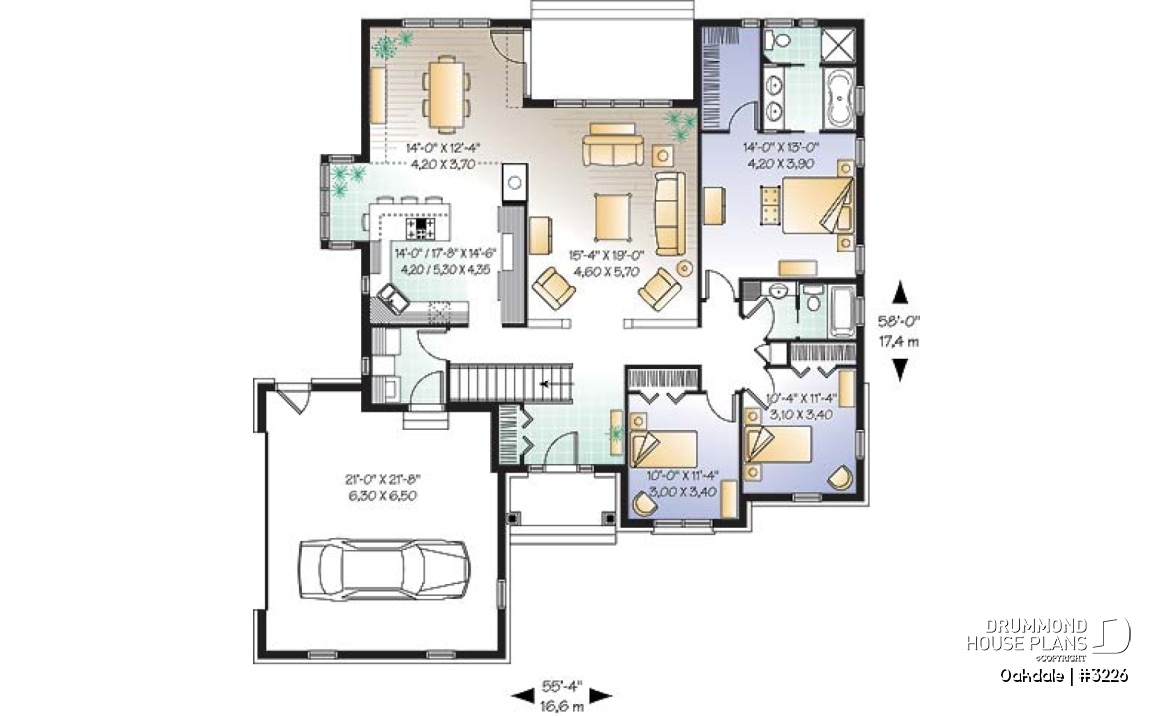

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'0" x 14'6" | ~ 9'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Living room | 15'4" x 19'0" | ~ 11'0" |
| Dining room | 14'0" x 12'4" | ~ 11'0" |
| Foyer | 9'0" x 5'7" | ~ 9'0" |
| Full bathroom | 10'4" x 5'2" | ~ 9'0" |
| Master suite | 14'0" x 13'0" | ~ 9'0" |
| Bedroom | 10'0" x 11'4" | ~ 9'0" |
| Bedroom | 10'4" x 11'4" | ~ 9'0" |
| Linen | 1'6" x 2'0" | ~ 9'0" |
| Garage | 21'0" x 21'8" | ~ 9'8" |
| Porch | 9'8" x 4'6" | N/A |
| Deck | 14'8" x 7'4" | N/A |
| Utility room | 6'8" x 6'10" | ~ 9'0" |

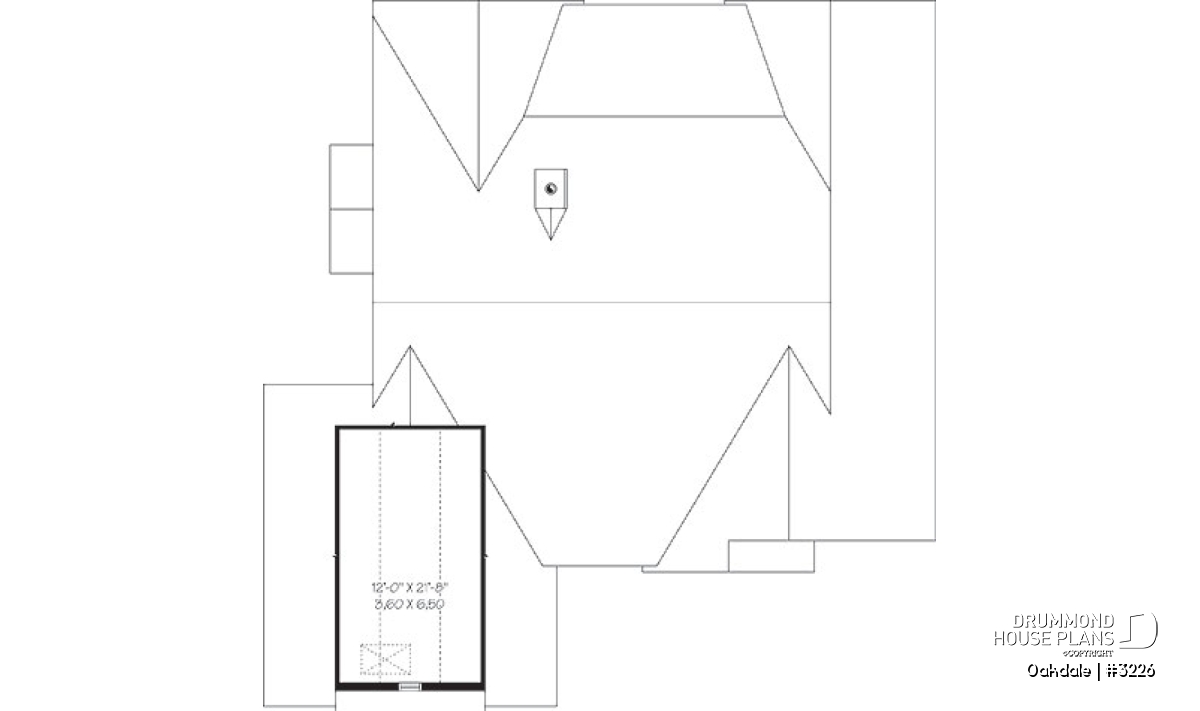

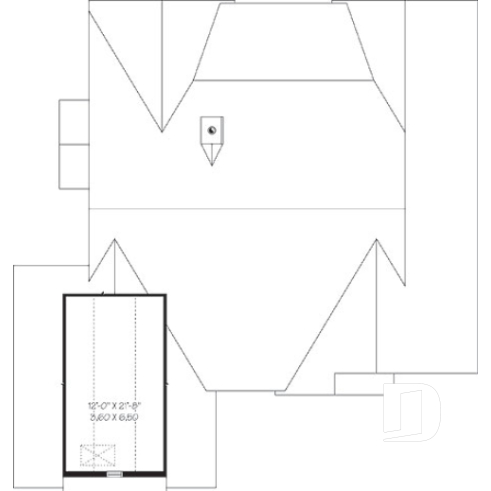

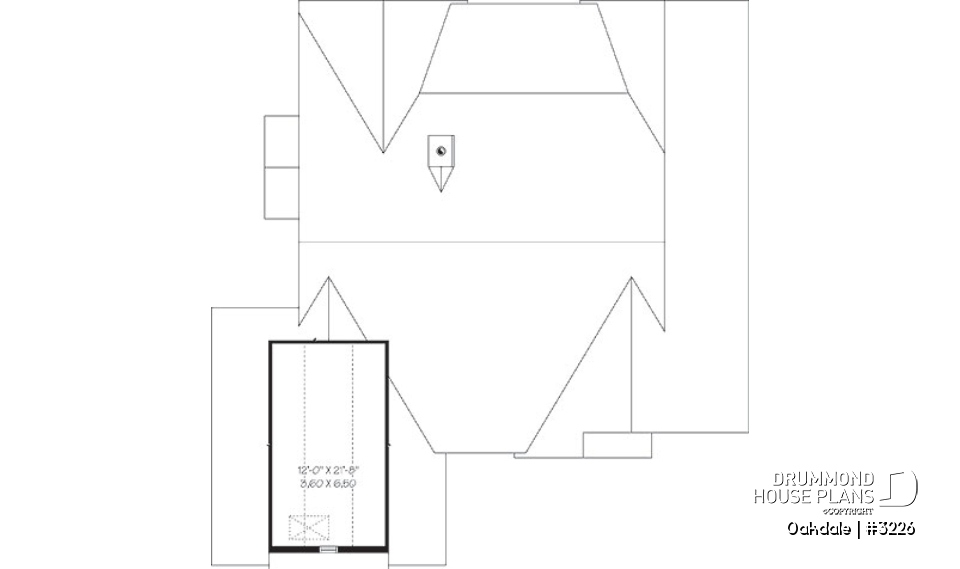

| Bonus storage | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bonus storage | 12'0" x 20'2" | ~ 7'8" |
General specifications
| Total living area | 1808 sq.ft. |
| 1st level | 1808 sq.ft. |
| Bonus storage | 0 sq.ft. |
| Width | 55'4" |
| Depth | 58'0" |
| Ridge height from top of foundation | 23'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan

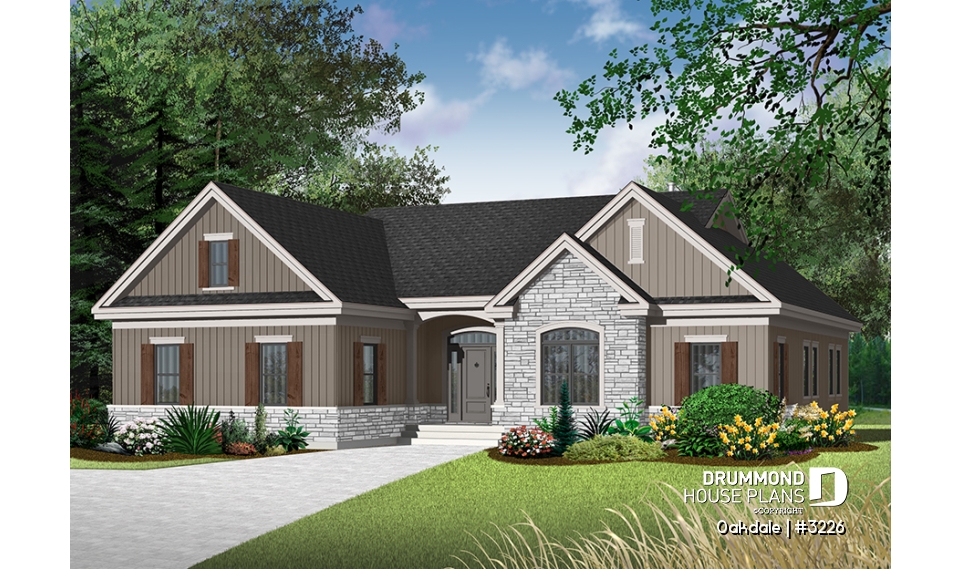

Modern Rustic Ranch House Plans with side-load 2-car garage and great master suite!
Live gracefully on one level in this country-inspired bungalow. Convenient entries grace the front and back covered porches or enter directly from the two-car garage.
Share cooking time with friends and family in your generous kitchen with breakfast bar. The adjoining dining area is defined by an alcove with direct access to an essential covered grilling patio. The brightly windowed and spacious family room is sure to be the home of many fond memories.
When it’s time to retire, pamper yourself in the master retreat complete with a 5-fixture ensuite bathroom and walk-in closet. Two secondary bedrooms share a bathroom.
An alternate plan is available with front-loading garage.
Distinctive elements
9' ceiling over all of main level, dining room and living roome are raised to 11'. Comfortable family room shares a see-thru fireplace with dining room. Dining room access to rear covered porch. Attractive sunroom-like space in kitchen illuminating lunch counter. Storage area above garage of 260 sq.ft.
Plan feature(s)
Fireplace, Gound floor laundry room, Lunch counter, Panoramic view, Side entry garage, Open floor layout, Ceiling over 8', Deck, Walk-in master bed., Master suite on main, Walk-in master bed., Separate bath and shower, Double sinks
Plan architectural style(s)
. Ranch, . Craftsman / Northwest, . American, . Modern rustic, . Rustic, . Traditional, . Transitional
