Oakdale 2 (3226-V1)

Beautiful Ranch style house plan with 2-car garage, 9' ceiling, master suite, 3 bedrooms, 2 bathrooms

Bedrooms

3

Bath(s)

2

Half B.

-

Living area

1791 sq.ft.

  • Color version 5 - Front - Beautiful Ranch style house plan with 2-car garage, 9' ceiling, master suite, 3 bedrooms, 2 bathrooms - Oakdale 2

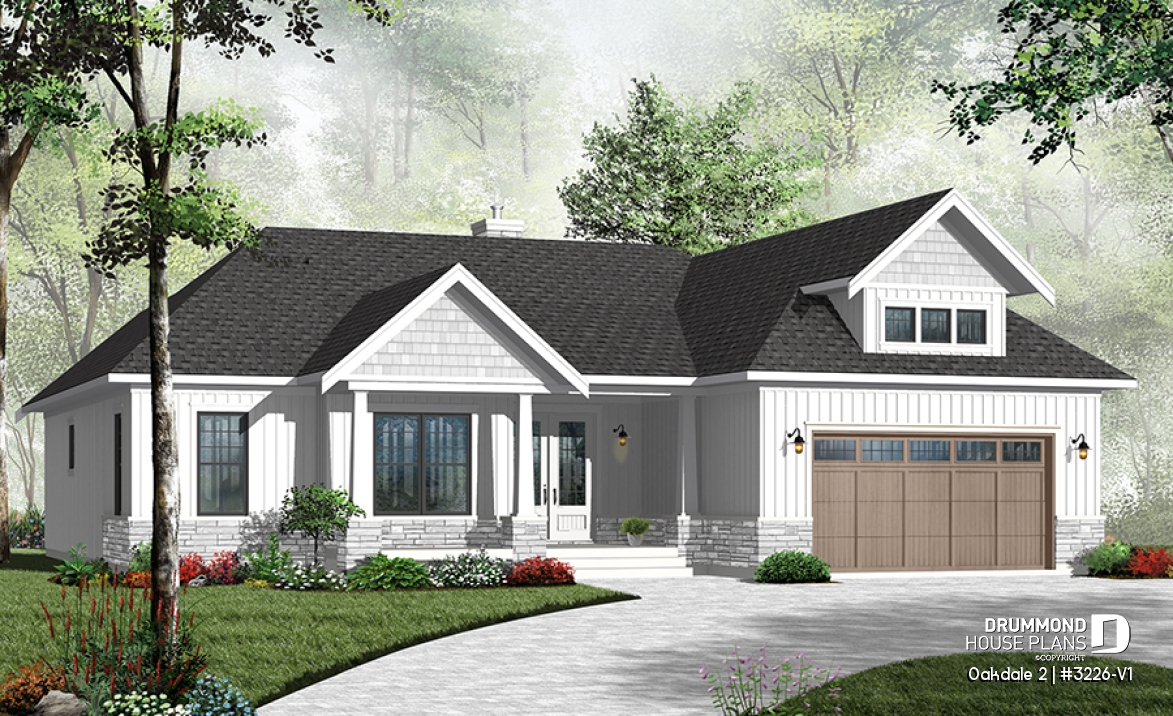

  • front - BASE MODEL - Oakdale 2

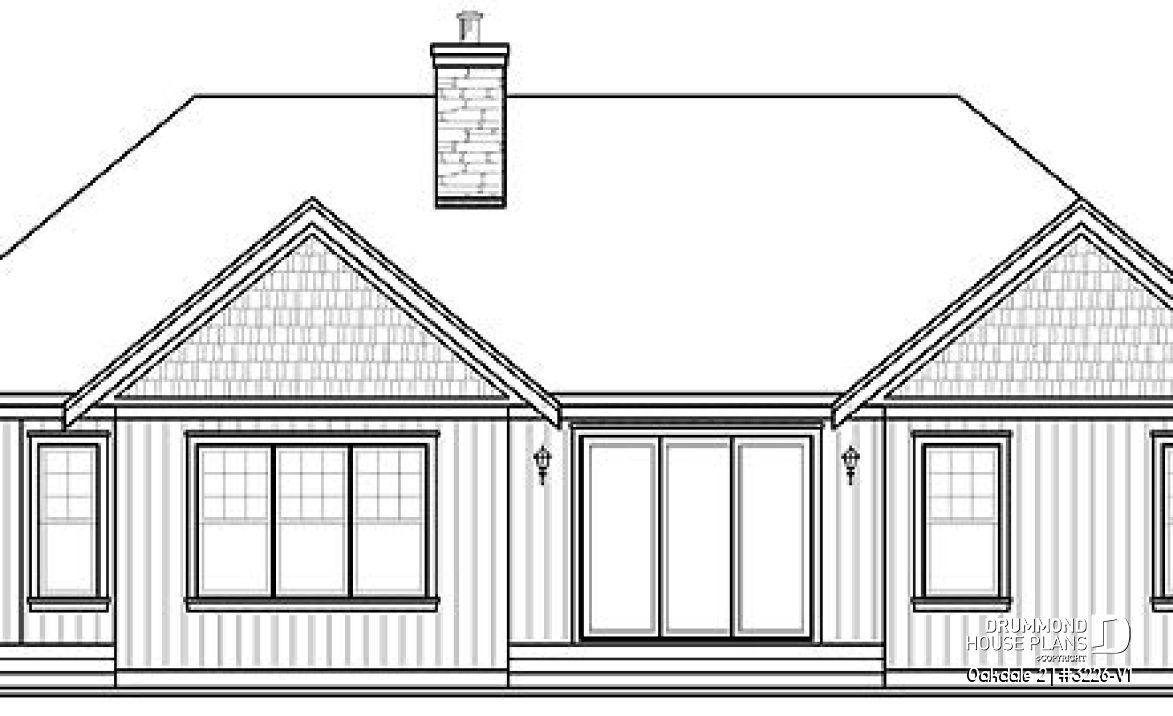

  • rear elevation - Oakdale 2

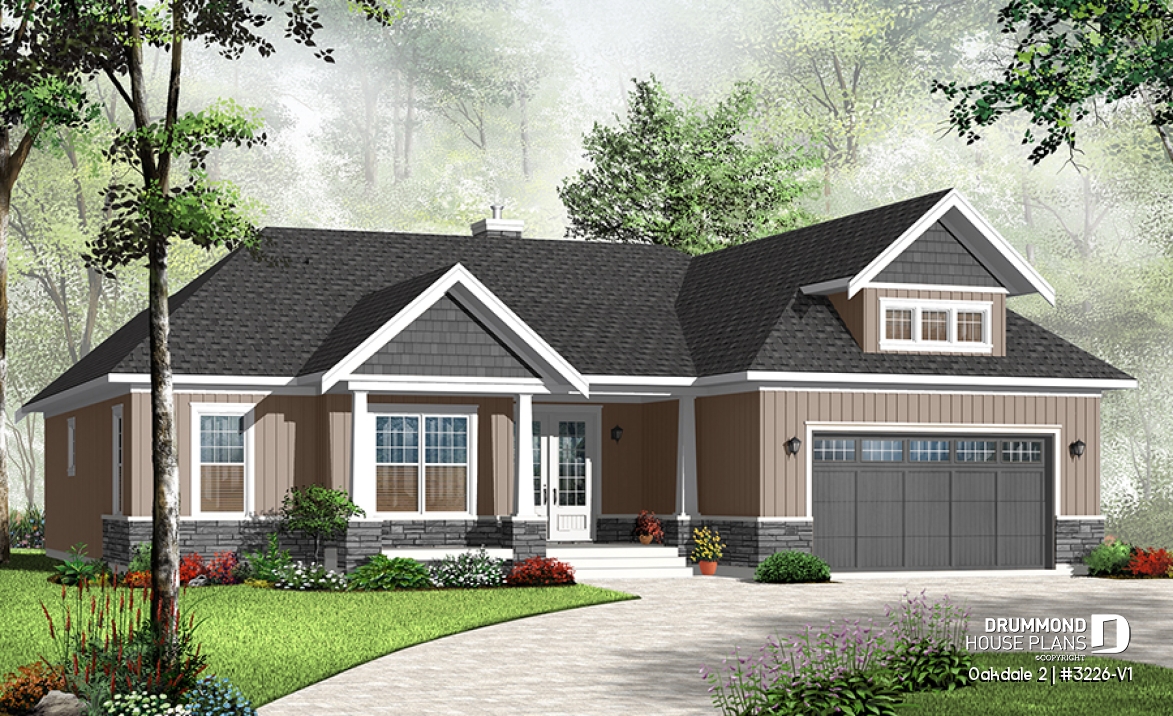

  • Color version 1 - Front - Oakdale 2
  • Color version 2 - Front - Oakdale 2

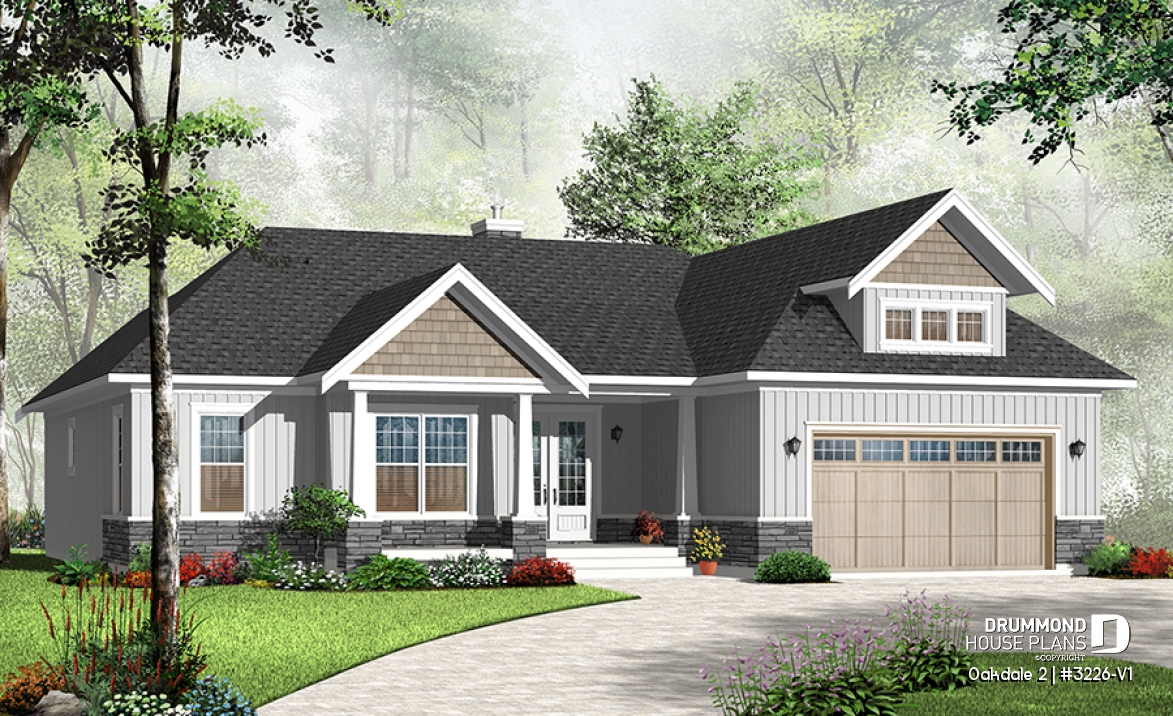

  • Color version 3 - Front - Oakdale 2

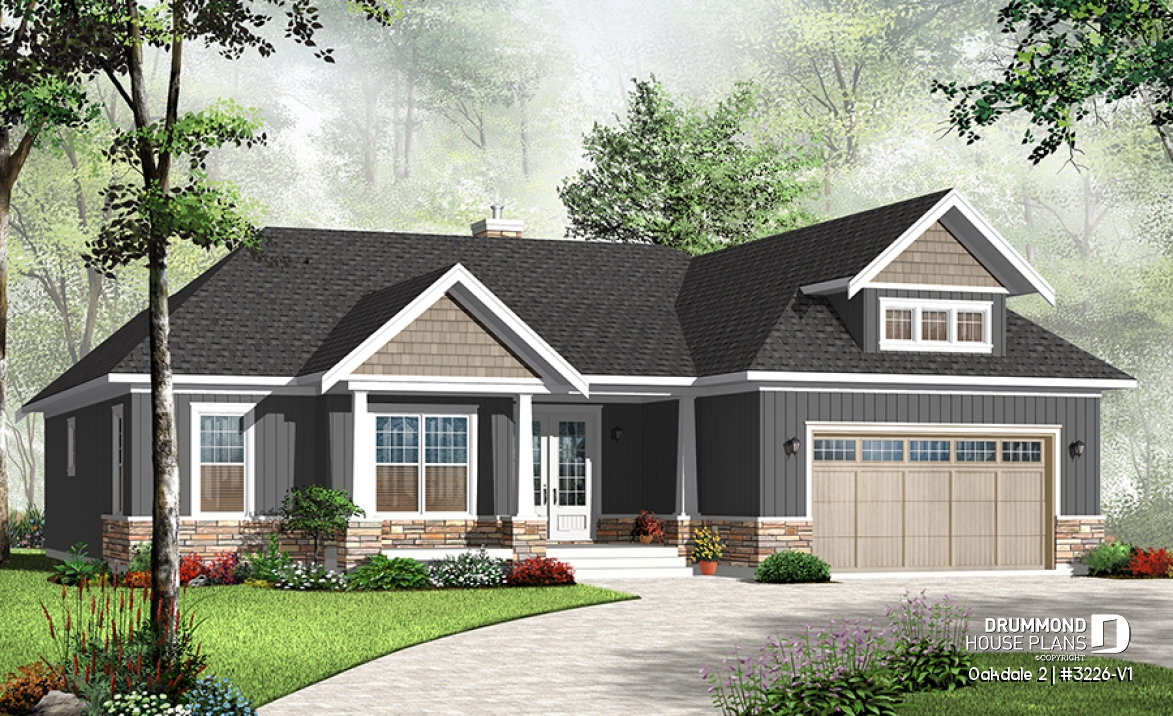

  • Color version 4 - Front - Oakdale 2

Color version 5 - Front

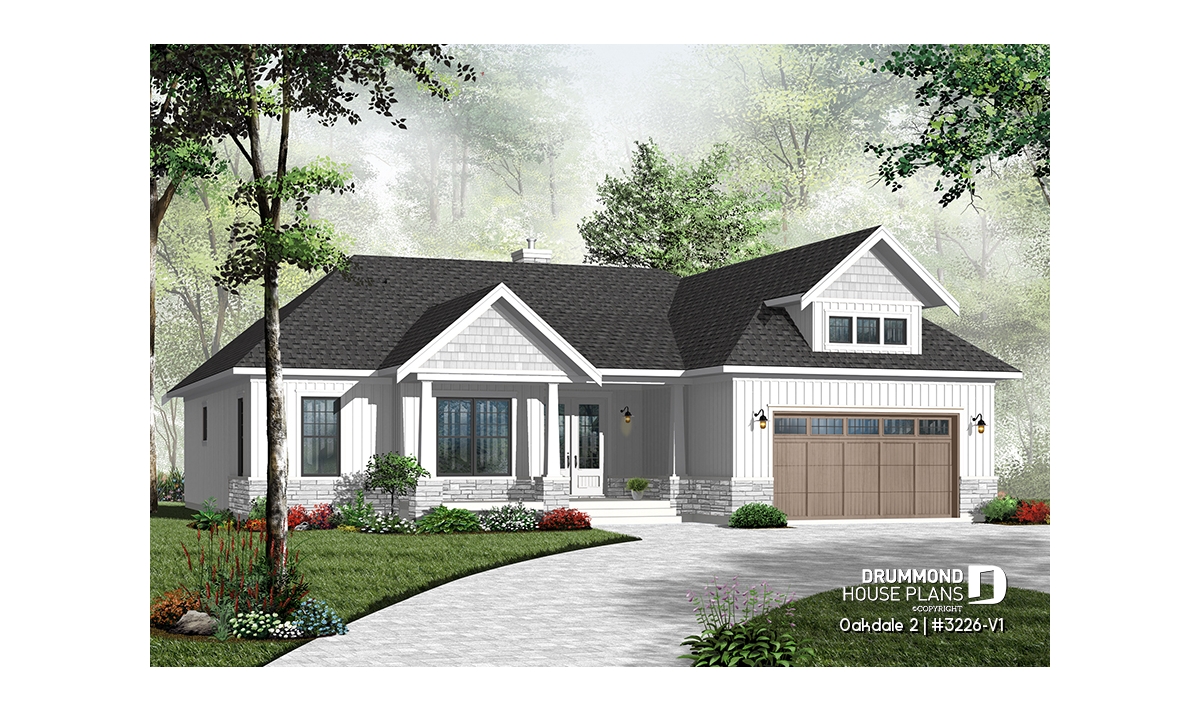

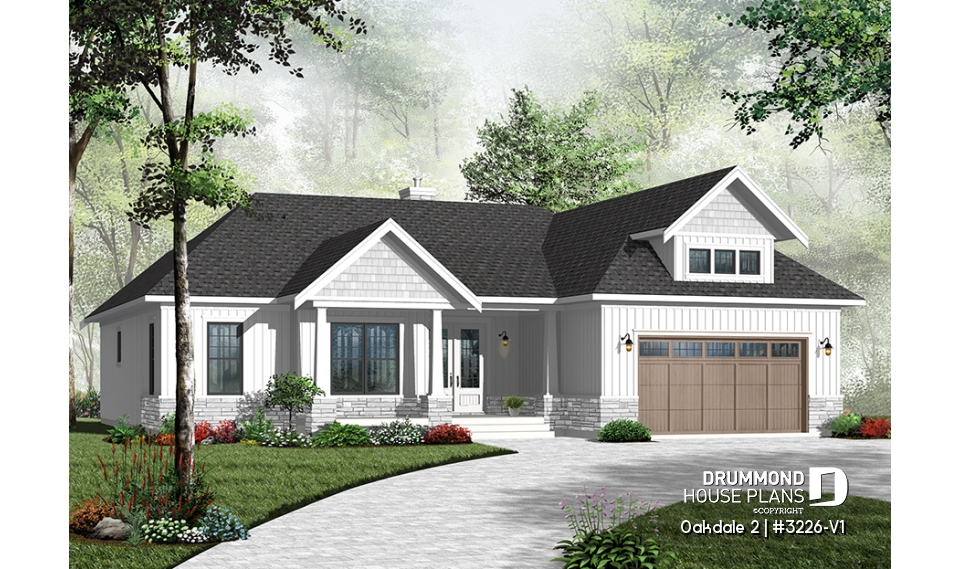

front - BASE MODEL

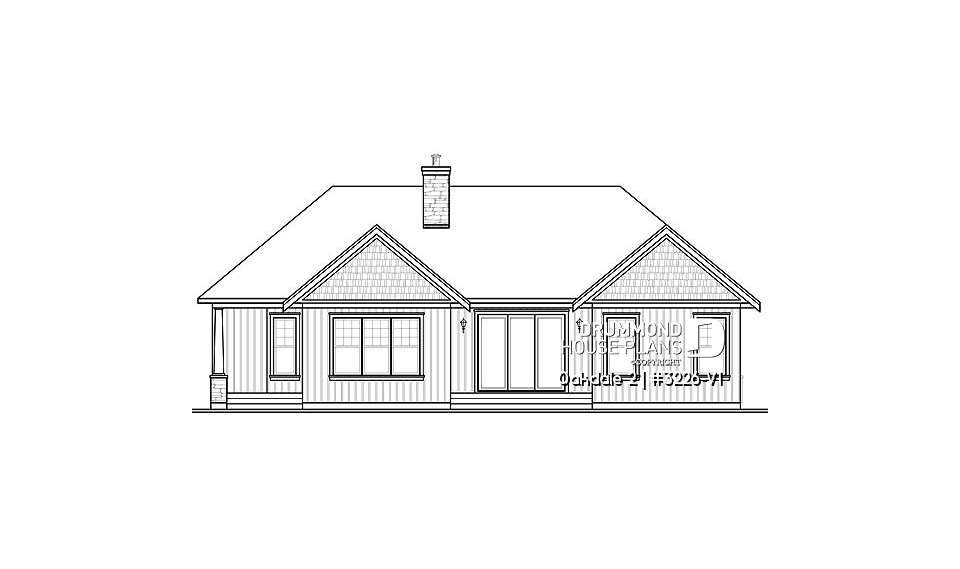

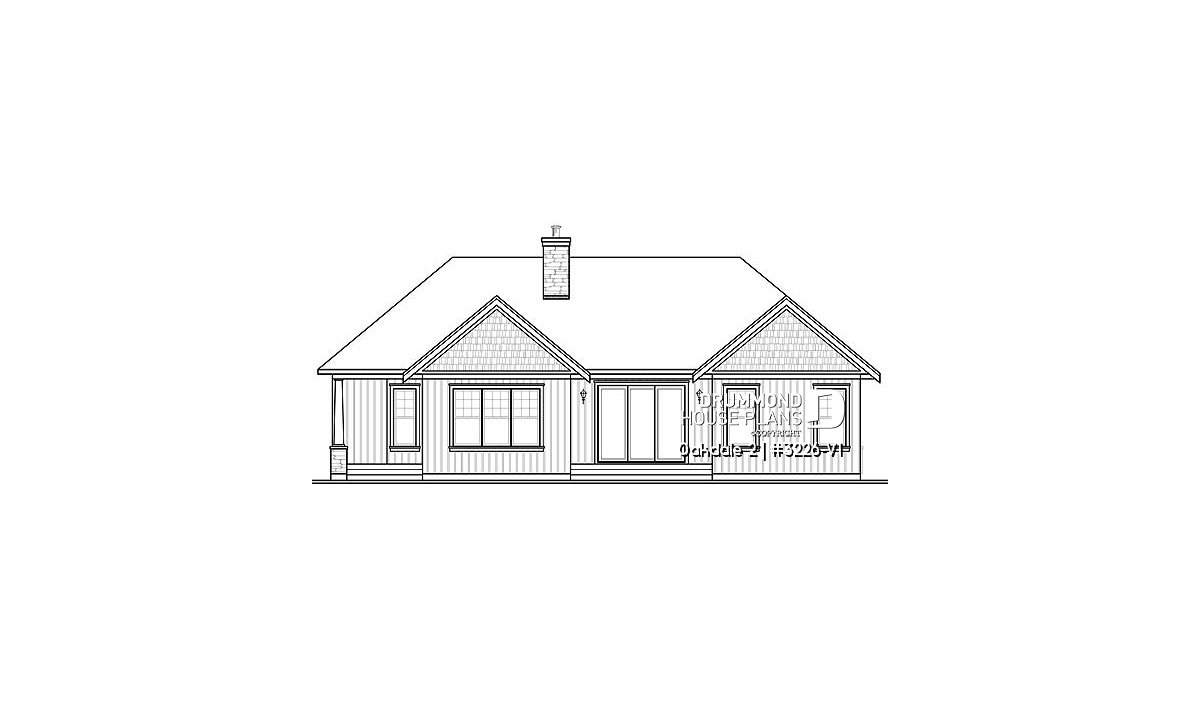

rear elevation

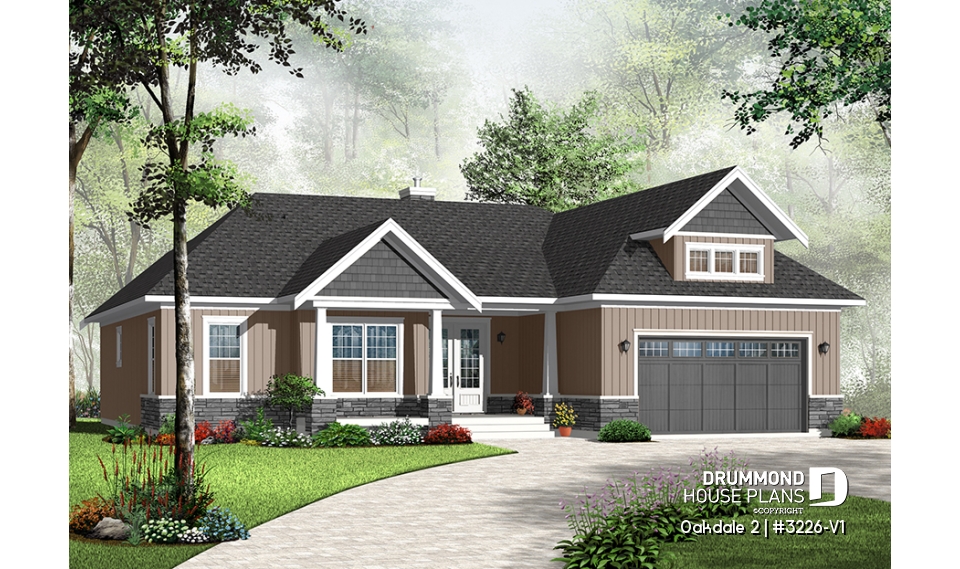

Color version 1 - Front

Color version 2 - Front

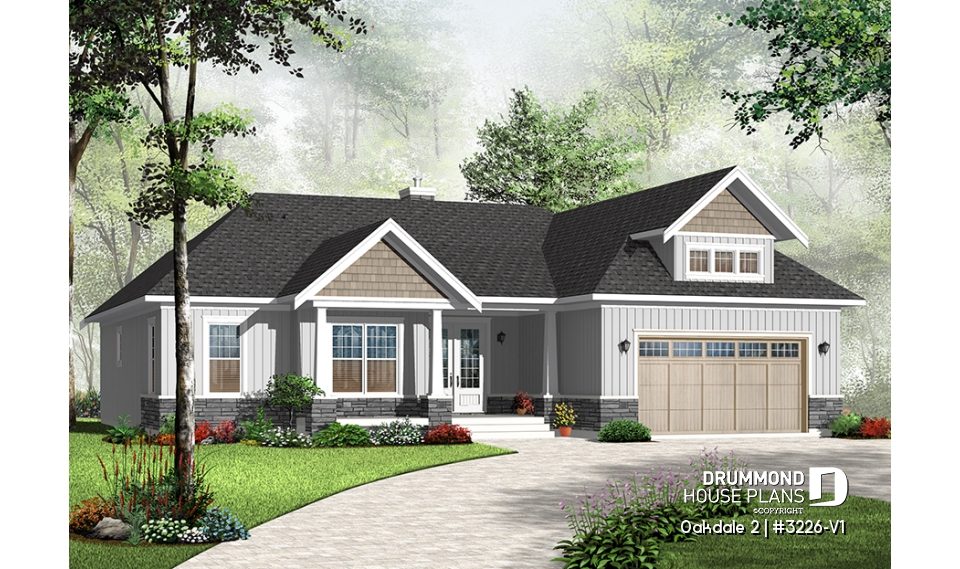

Color version 3 - Front

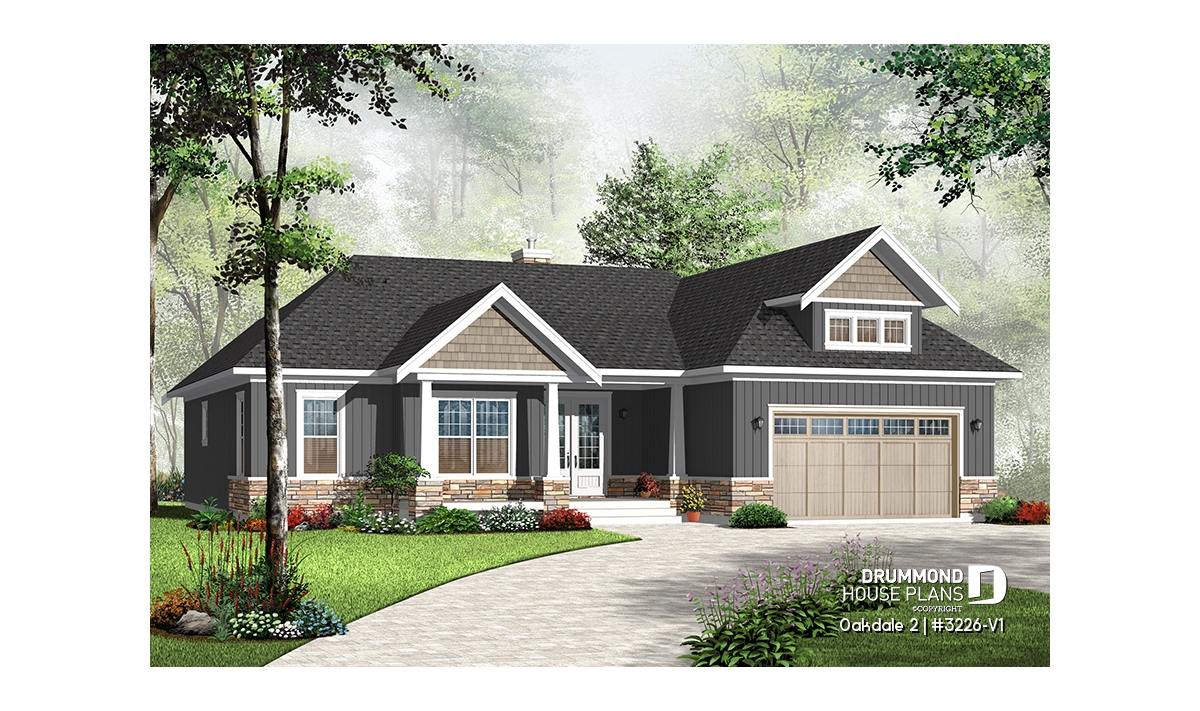

Color version 4 - Front

Vignette Color version 5 - Front - 3226-V1
Vignette front - BASE MODEL - 3226-V1
Vignette rear elevation - 3226-V1
Vignette Color version 1 - Front - 3226-V1
Vignette Color version 2 - Front - 3226-V1
Vignette Color version 3 - Front - 3226-V1
Vignette Color version 4 - Front - 3226-V1

View by floor

  • 1st level

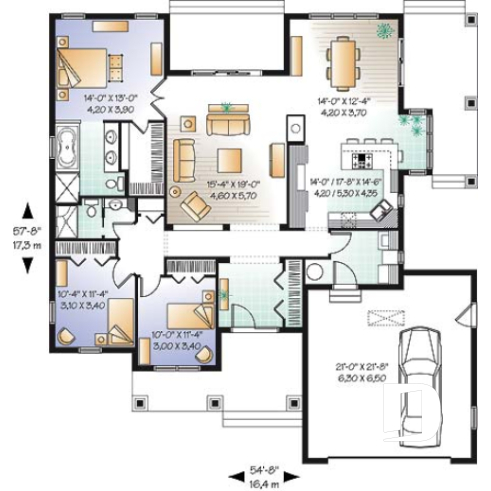

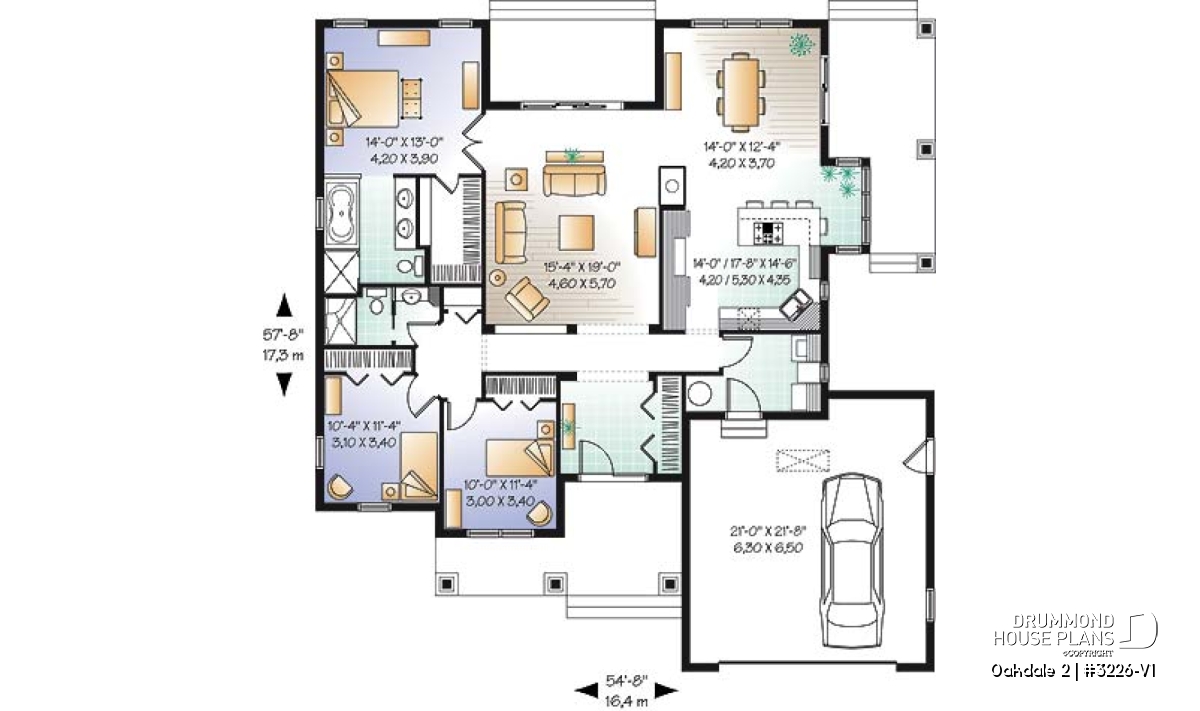

    1st level - Beautiful Ranch style house plan with 2-car garage, 9' ceiling, master suite, 3 bedrooms, 2 bathrooms - Oakdale 2
  • Bonus storage

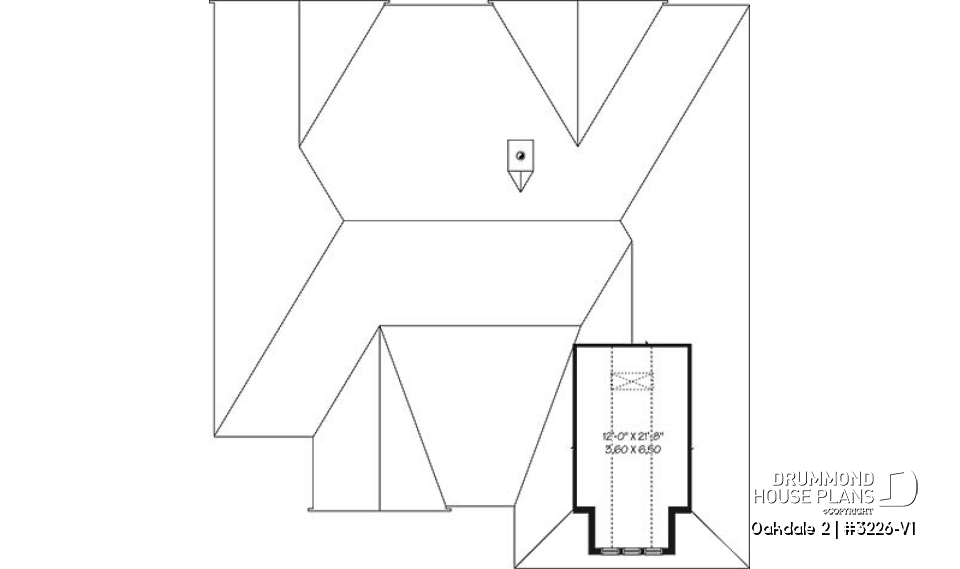

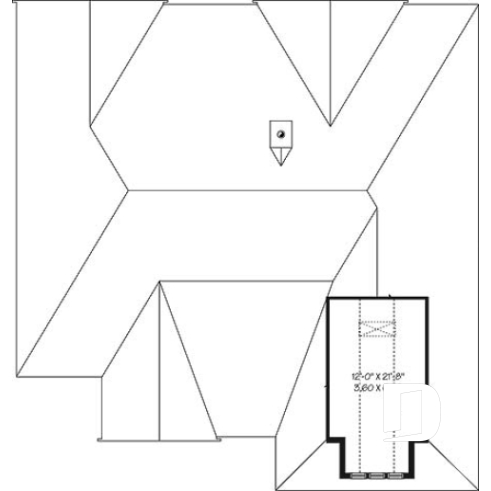

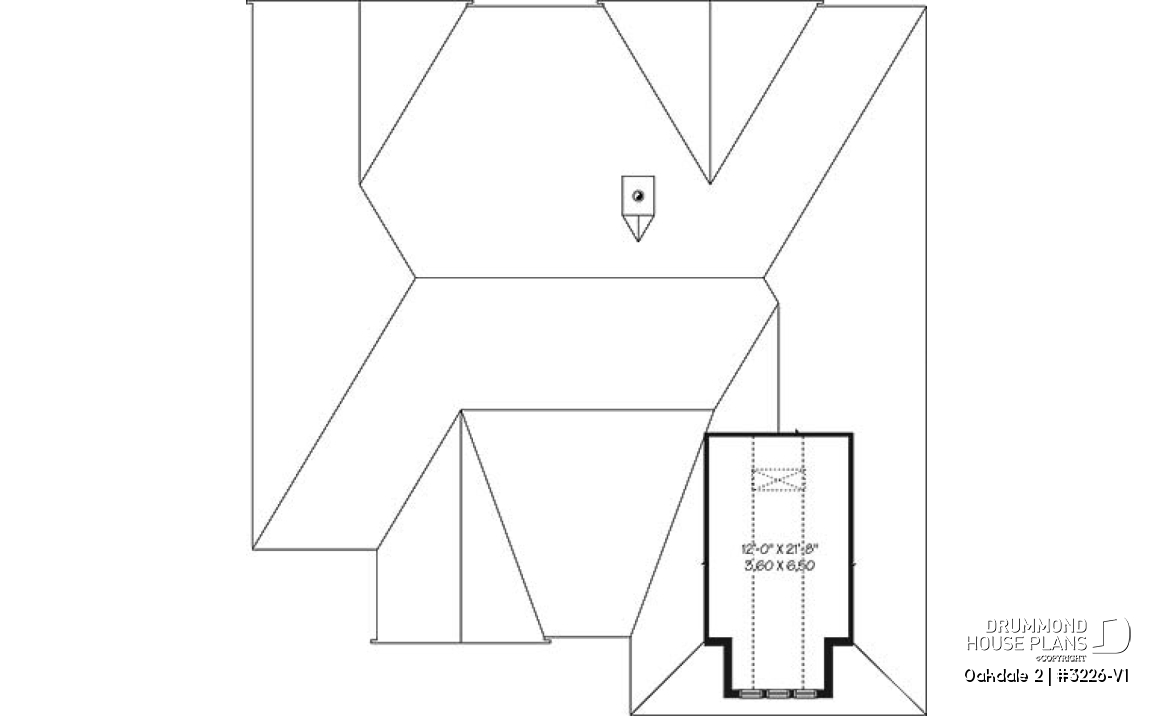

    Bonus storage - Beautiful Ranch style house plan with 2-car garage, 9' ceiling, master suite, 3 bedrooms, 2 bathrooms - Oakdale 2
Vignette 1st level - 3226-V1
Vignette Bonus storage - 3226-V1

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Garage 21'0" x 21'8" ~ 9'4"
Porch 21'8" x 10'0" ~ 0'0"
Deck 14'8" x 7'4" ~ 0'0"
Porch 9'6" x 20'8" ~ 0'0"
Linen 3'4" x 2'0" ~ 9'0"
Laundry room 8'8" x 6'10" ~ 9'0"
Kitchen 14'0" x 14'6" ~ 9'0"
Dining room 14'0" x 12'4" ~ 9'0"
Living room 15'4" x 19'0" ~ 9'0"
Foyer 8'2" x 8'2" ~ 9'0"
Shower room or three quarter bath 10'4" x 5'2" ~ 9'0"
Master suite 14'0" x 13'0" ~ 9'0"
Bedroom 10'4" x 11'4" ~ 9'0"
Bedroom 10'0" x 11'4" ~ 9'0"
Carport 0'0" x 0'0" ~ 0'0"

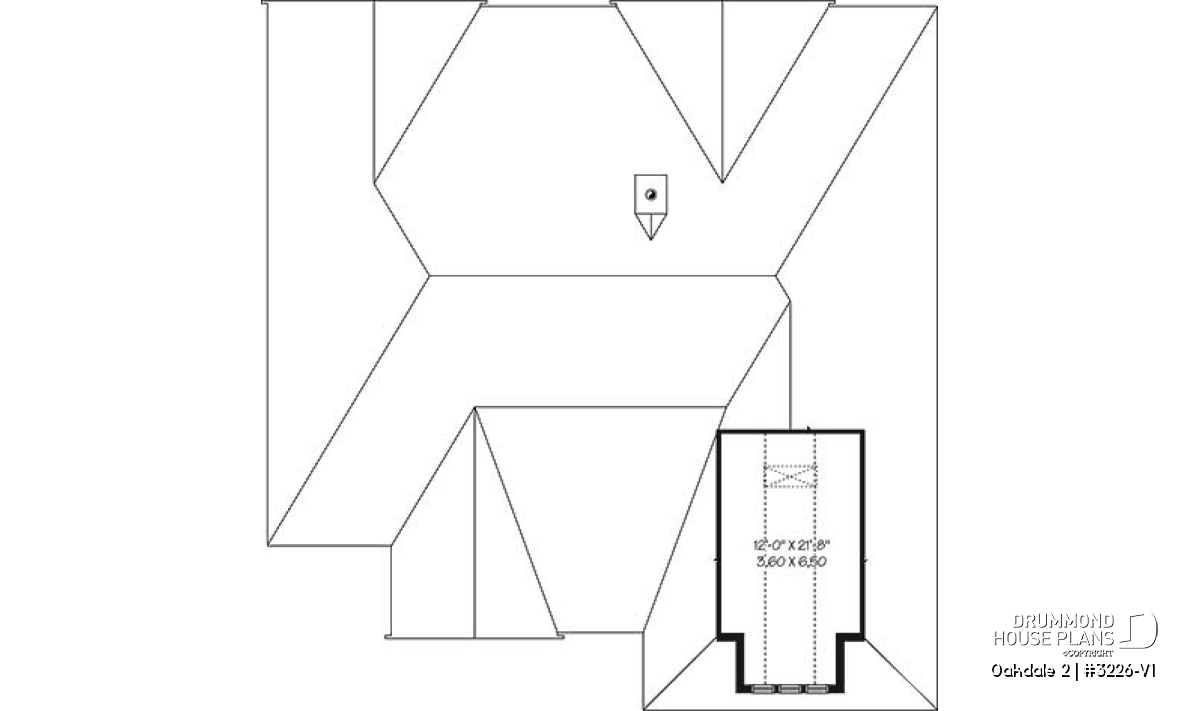

Bonus storage
Rooms Sizes Ceiling
Bonus storage 12'0" x 21'8" ~ 7'8"

General specifications

Total living area 1791 sq.ft.
1st level 1791 sq.ft.
Bonus storage 0 sq.ft.
Width 54'8"
Depth 57'8"
Ridge height from top of foundation 22'6"
Exterior wall 2 X 6
Foundation type included in the plan Crawl space
Other available foundations (a fee may apply) Floating Slab, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths -
Garage type Two-car garage (518 sq.ft.)
Living bonus space -
Bonus storage 254 pi2
Find a builder

General specifications

Total living area 1791 sq.ft.
1st level 1791 sq.ft.
Bonus storage 0 sq.ft.
Width 54'8"
Depth 57'8"
Ridge height from top of foundation 22'6"
Exterior wall 2 X 6
Foundation type included in the plan Crawl space i
Other available foundations (a fee may apply) Floating Slab, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths -
Garage type Two-car garage (518 sq.ft.)
Living bonus space - i
Bonus storage 254 sq.ft. i

Buy this plan

From 1130$

Modify this plan

Get a quote

A problem?

Contact us

Or come see us

Our 26 Regional offices

Description

Foyer entrance with coat closet, family room with fireplace shared with dining room, kitchen with lunch counter, master suite with walk-in closet and private bathroom, two secondary bedrooms. 2-car garage. Crawlspace foundation. Other fondation types available.

Other useful information on this plan

Ranch style house plan with 2-car garage, master suite and covered side balcony.

.

Distinctive elements

Beautiful Ranch style floor plan with a 2-car garage.
9' ceiling over all of main level.
Comfortable family room shares a see-thru fireplace with dining room.
Dining room access to rear covered porch.
Attractive sunroom-like space in kitchen illuminating lunch counter.
Side covered deck.
Large master suite with ensuite and walk-in closet.
Storage area above garage of 254 sq.ft.
Crawlspace foundation. Other foundations are available.

Plan feature(s)

Gound floor laundry room, Lunch counter, Panoramic view, Fireplace, Open floor layout, Walk-in master bed., Ceiling over 8', Deck, Master suite on main, Separate bath and shower, Double sink vanity, Split bedrooms

Plan architectural style(s)

. Ranch, . Craftsman / Northwest, . Modern rustic, . Rustic, . Country, . American, . Cape Cod, . Traditional

Other useful information on this plan

Full description

Ranch style house plan with 2-car garage, master suite and covered side balcony.

.

Distinctive elements

Beautiful Ranch style floor plan with a 2-car garage.
9' ceiling over all of main level.
Comfortable family room shares a see-thru fireplace with dining room.
Dining room access to rear covered porch.
Attractive sunroom-like space in kitchen illuminating lunch counter.
Side covered deck.
Large master suite with ensuite and walk-in closet.
Storage area above garage of 254 sq.ft.
Crawlspace foundation. Other foundations are available.

Plan feature(s)

Gound floor laundry room, Lunch counter, Panoramic view, Fireplace, Open floor layout, Walk-in master bed., Ceiling over 8', Deck, Master suite on main, Separate bath and shower, Double sink vanity, Split bedrooms
