Artagnan (3225)
Affordable ranch house plan, 2-car garage, remarkable master suite, 3 bedrooms, 12' ceilings, amazing kitchen
View the size of the rooms and height of the ceilings

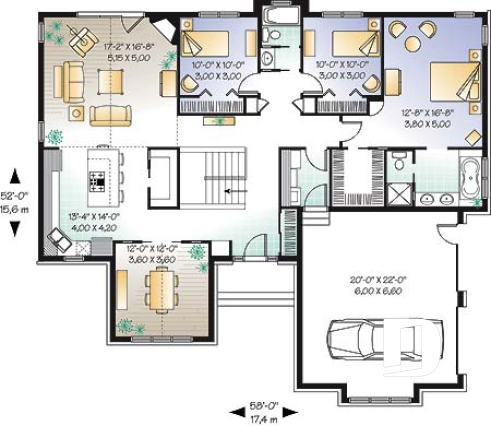

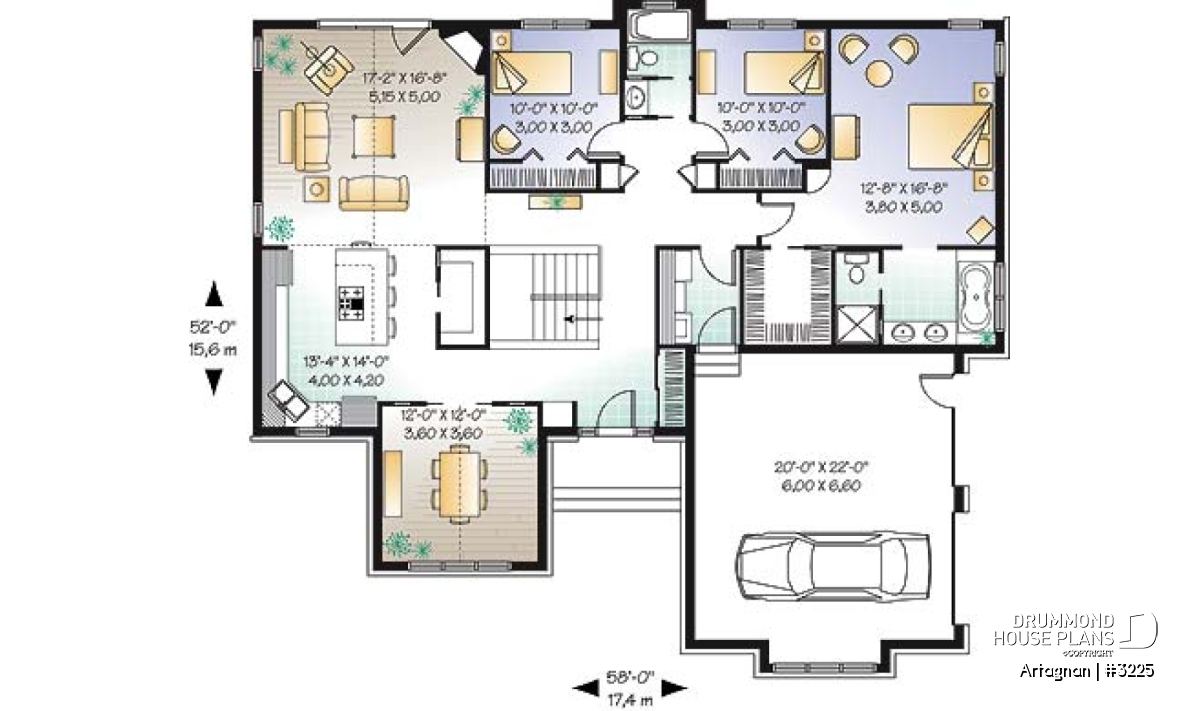

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'4" x 14'0" | ~ 9'0" |
| Living room | 17'2" x 16'8" | ~ 12'0" |
| Dining room | 12'0" x 12'0" | ~ 11'2" |
| Foyer | 6'0" x 6'0" | ~ 9'0" |
| Full bathroom | 5'0" x 8'2" | ~ 9'0" |
| Master suite | 12'8" x 16'8" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Linen | 1'6" x 2'0" | ~ 9'0" |
| Linen | 1'6" x 2'0" | ~ 9'0" |
| Garage | 20'0" x 22'0" | ~ 10'2" |
| Porch | 10'0" x 3'8" | N/A |
| Utility room | 6'2" x 7'4" | ~ 9'0" |
General specifications
| Total living area | 1871 sq.ft. |
| 1st level | 1871 sq.ft. |
| Width | 58'0" |
| Depth | 52'0" |
| Ridge height from top of foundation | 27'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Good floor plan for this ranch style house plan with 3 bedrooms, 2 bathrooms and 2-car garage home
.
Distinctive elements
9' ceiling over all of main level. Cathedral ceiling in family room at close to 12' and in the dining room at close to 11'. Large walk-in pantry in kitchen or storage area. Corner fireplace in family room.
Plan feature(s)
Fireplace, Cathedral ceiling, Side entry garage, Island, Pantry, Ceiling over 8', Gound floor laundry room, Open floor layout, Master suite on main, Walk-in master bed., Formal dining room, Separate bath and shower, Double sink vanity
Plan architectural style(s)
. Country, . Rustic, . Traditional, . Cape Cod, . American
Previously Viewed Plans
Questions and comments
March 10 2015
Humphrey
Is it possible to have extra room upstairs?
I like this house.
How would we ensure that the roof comes out exactly like in the picture?Do you give exact dimensions and measurements to ensure the roof is perfectly the same.
March 10 2015
Customer service
Good day and thank you for your interest in this plan.
We would be happy to provide a free estimate with the details about adding a room upstairs within two business days after receipt of this on line request.
Please let me know if I can further assist you.
Regards
Deb
October 26 2011
Desiree Grimm
Hi, we would like to ask a question about this plan, what is the roof pitch?
thanks !
October 26 2011
Customer service
Good day Ms. Grimm
Thank you for your interest in Drummond House Plans.
In response to your inquiry the roof pitch is 10/12
Please feel free to contact us if you require further information
Deborah
