House plan Dambroise (3224)
Single level Rancher with double garage, 3 beds + den, open floor plan
View the size of the rooms and height of the ceilings

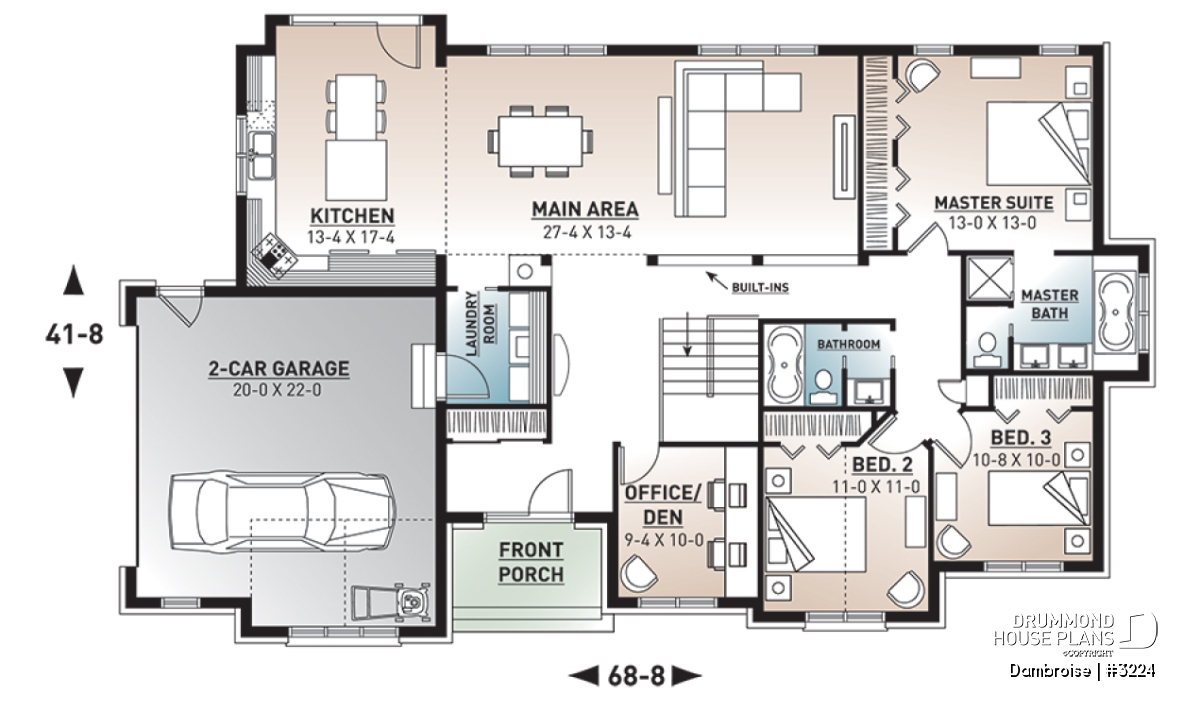

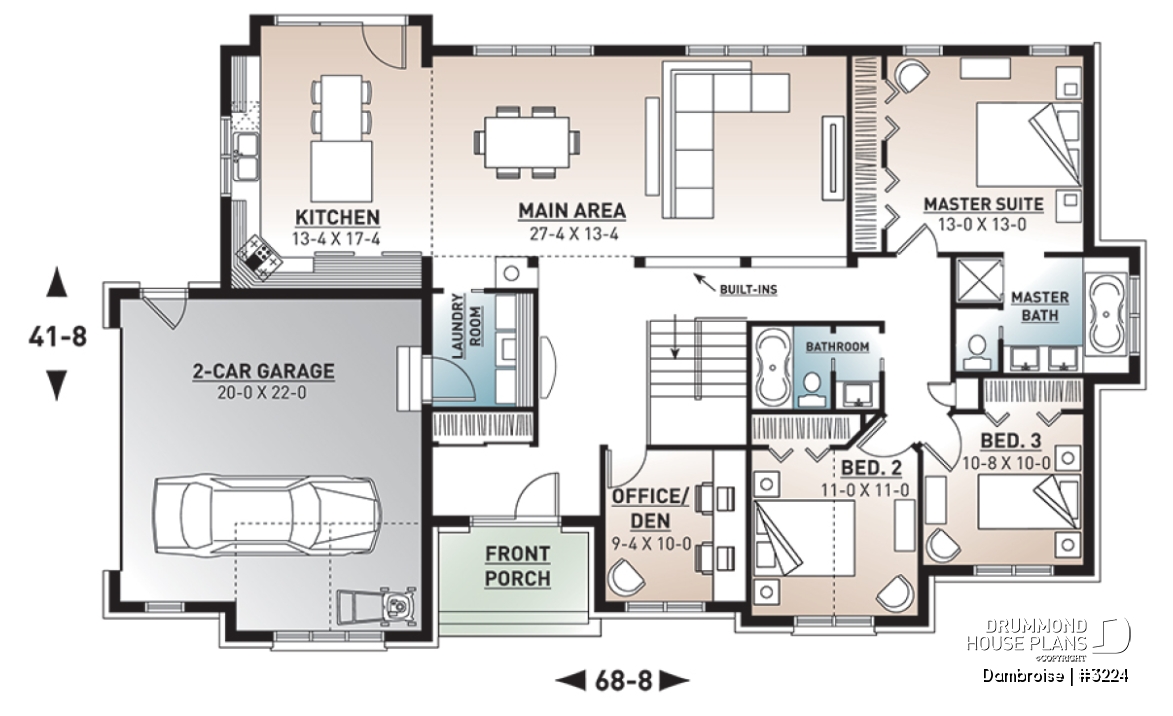

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'4" x 17'4" | ~ 9'0" |
| Dining room | 27'4" x 13'4" | ~ 14'3" |
| Foyer | 11'0" x 4'6" | ~ 9'0" |
| Full bathroom | 8'6" x 5'6" | ~ 9'0" |
| Master suite | 13'0" x 13'0" | ~ 9'0" |
| Bedroom | 11'0" x 11'0" | ~ 9'0" |
| Bedroom | 10'8" x 10'0" | ~ 9'0" |
| Linen | 1'6" x 2'0" | ~ 9'0" |
| Garage | 20'0" x 22'0" | ~ 12'3" |
| Porch | 12'0" x 6'0" | N/A |
| Terrace | 9'4" x 10'0" | N/A |
| Mud room | 6'8" x 7'6" | ~ 9'0" |
| Home office | 9'4" x 10'0" | ~ 9'0" |
General specifications
| Total living area | 1883 sq.ft. |
| 1st level | 1883 sq.ft. |
| Width | 68'8" |
| Depth | 41'8" |
| Ridge height from top of foundation | 23'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

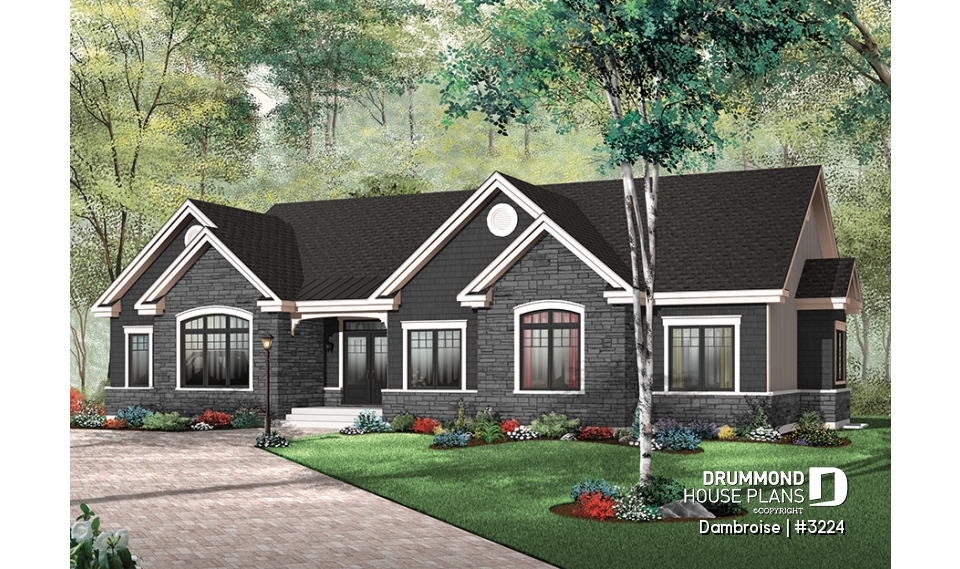

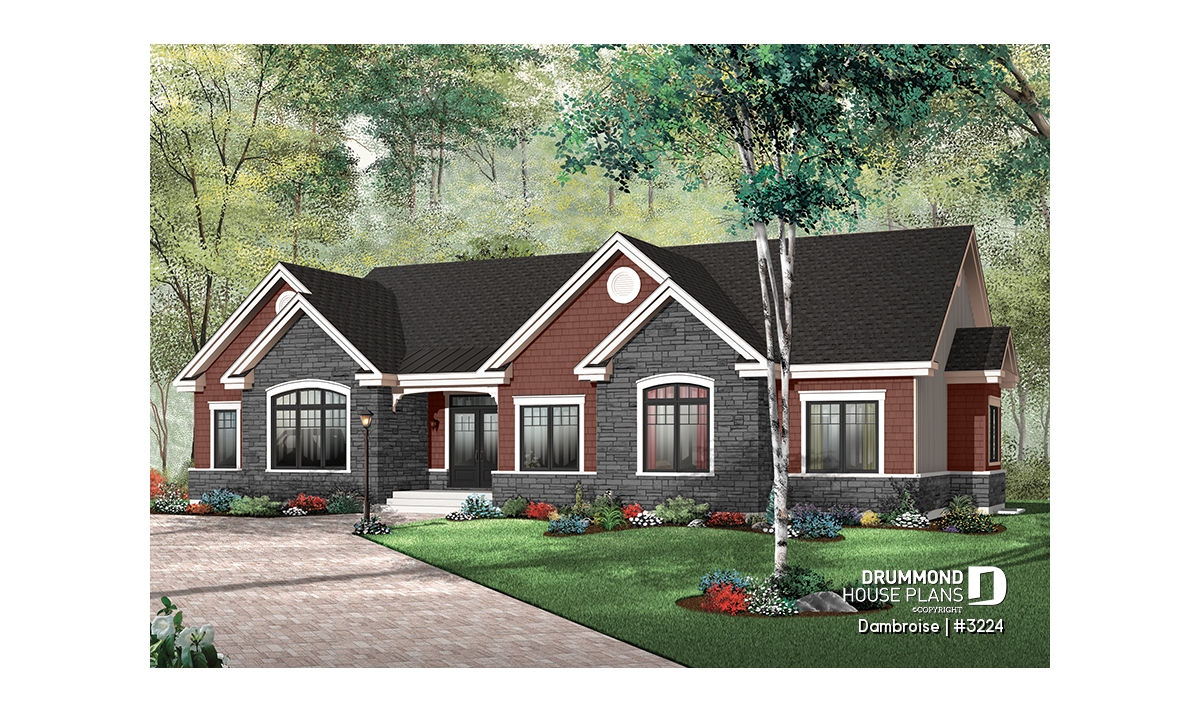

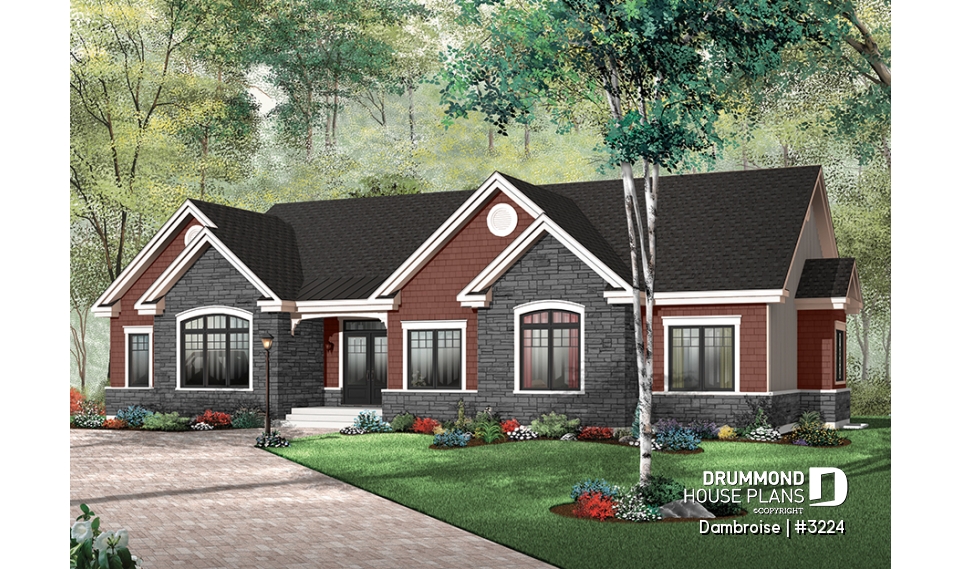

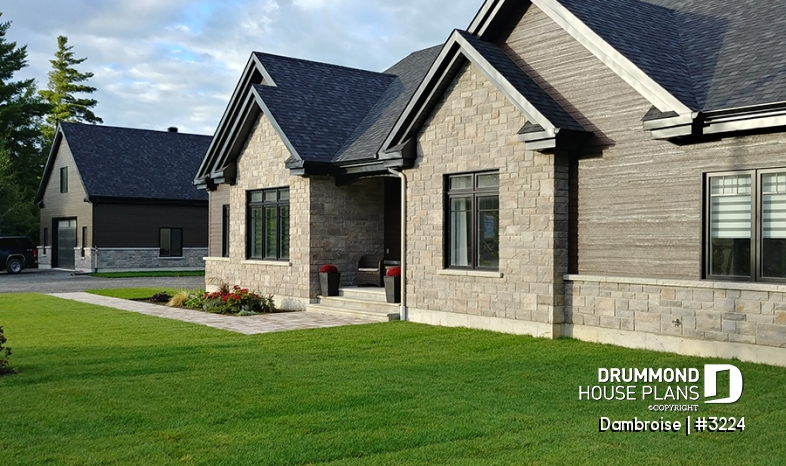

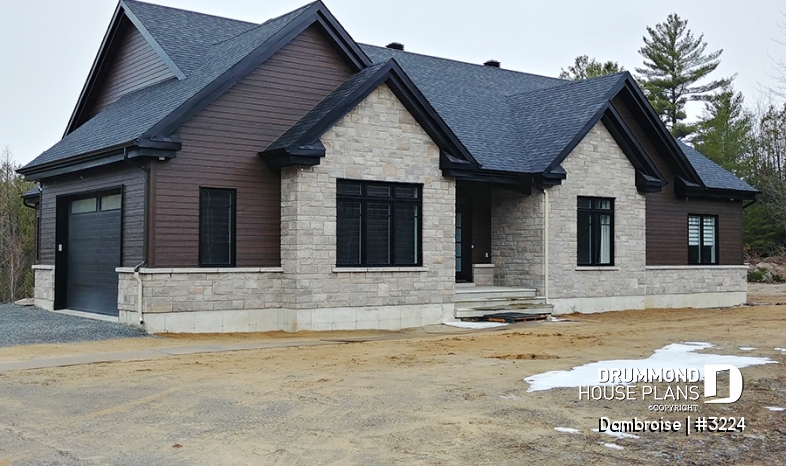

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

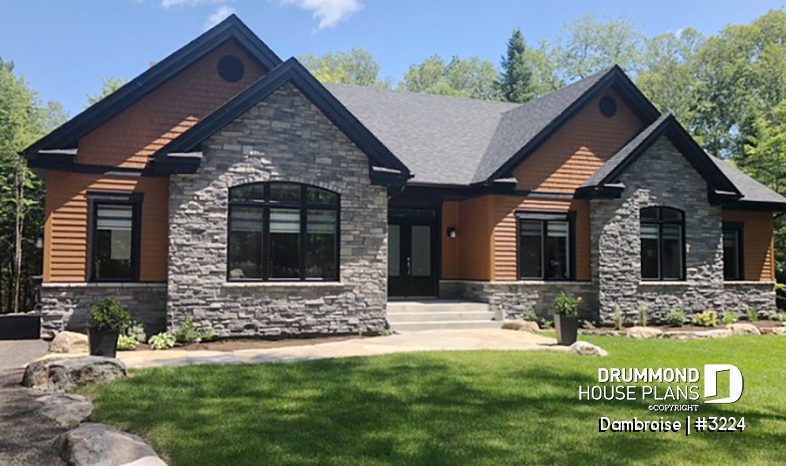

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

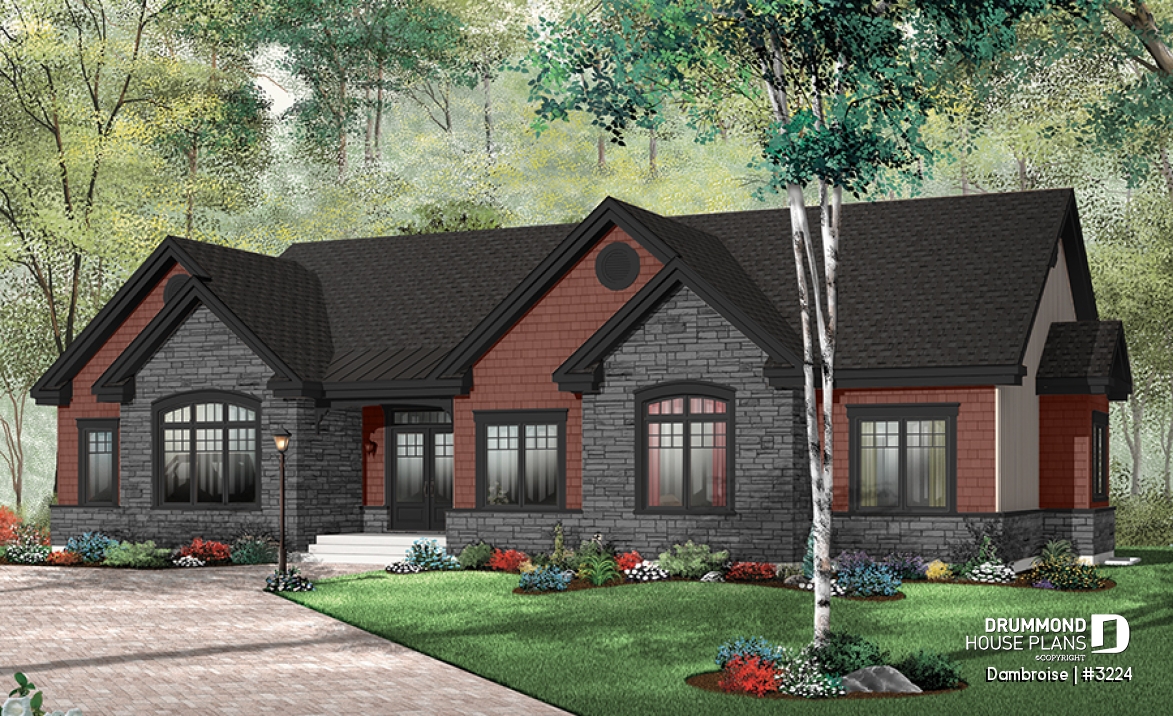

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

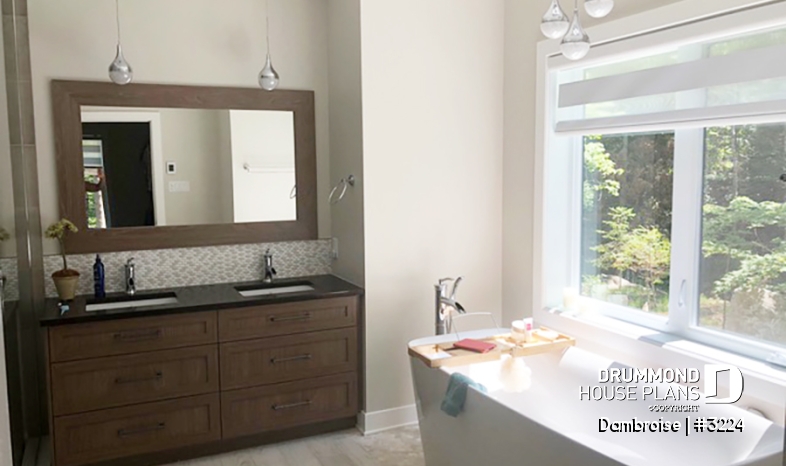

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

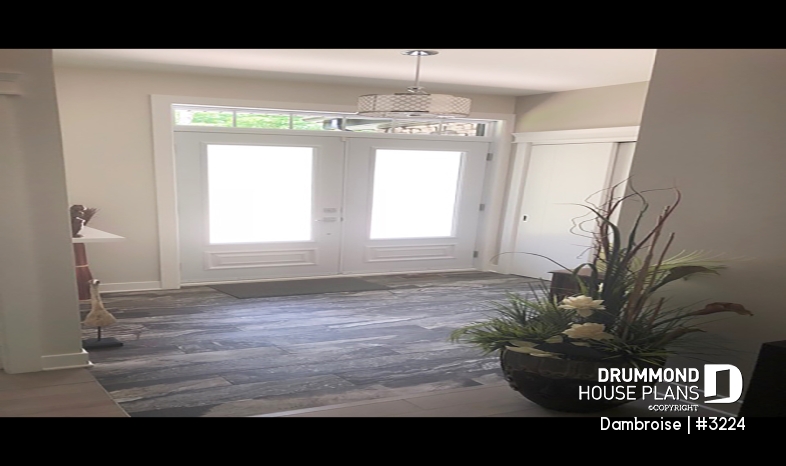

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

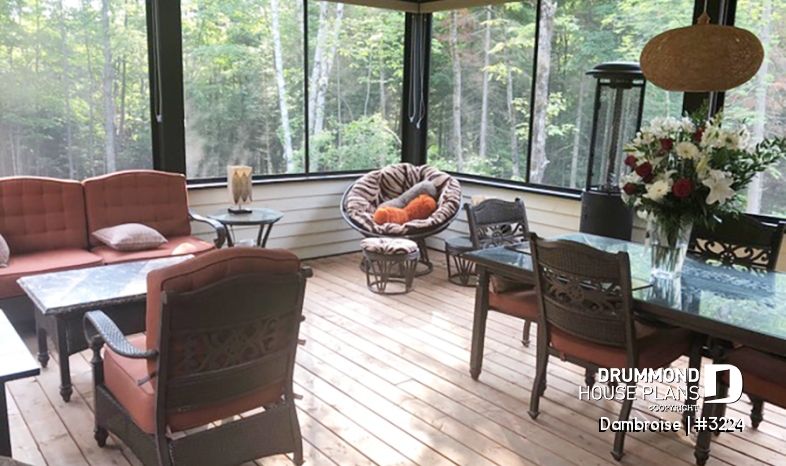

Screened porch
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

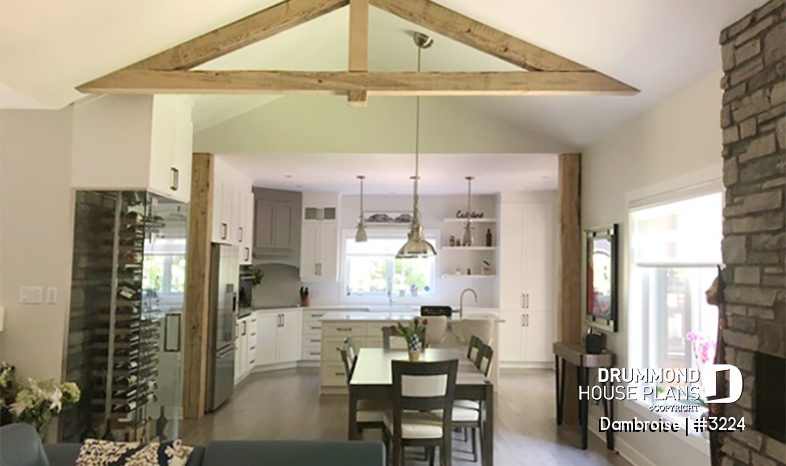

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

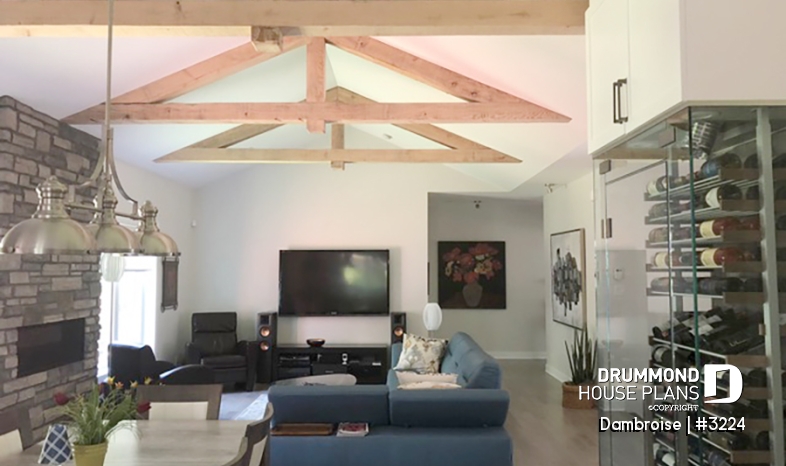

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Ranch bungalow house plan with open floor plan, master suite and side-load 2-car garage.
.
Distinctive elements
9' ceiling throughout with the exception of the dining/family rooms where the cathedral ceiling measures more than 14 feet. Workeable work island and lunch counter combination in a well-lit organized kitchen. Possibility of 4 bedrooms with the conversion of the home office. Superb rear views. Work counter space in garage.
Plan feature(s)
Cathedral ceiling, Gound floor laundry room, Side entry garage, Office / Study / Den, Lunch counter, Island, Panoramic view, Open floor layout, Ceiling over 8', Deck, Master suite on main, Separate bath and shower, Double sinks
Plan architectural style(s)
. Ranch, . American, . Country, . Craftsman / Northwest, . Modern rustic, . Rustic
