Oakdale 3 (3226-V2)

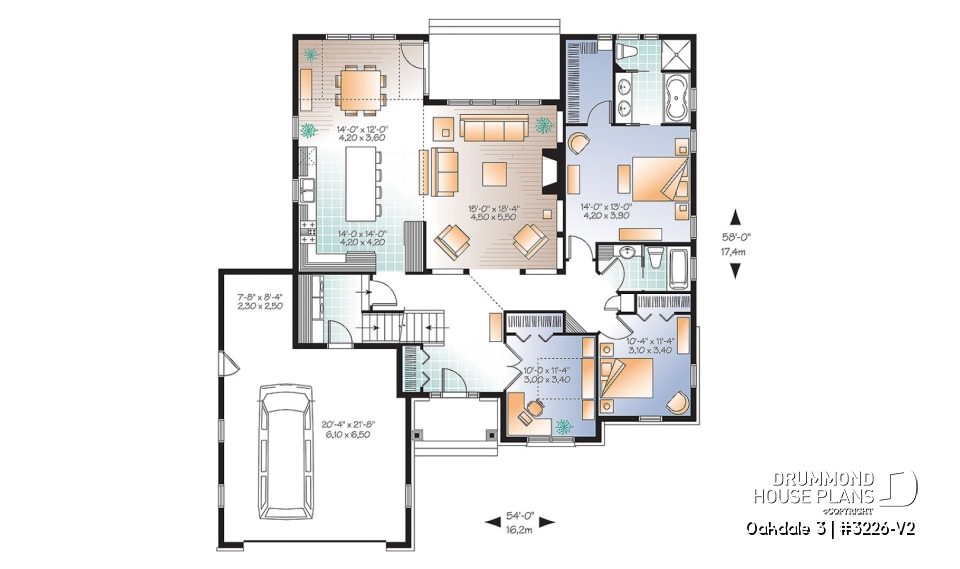

U shape Ranch house plan, 2-car garage, master suite, large kitchen with island, high ceiling, bonus room

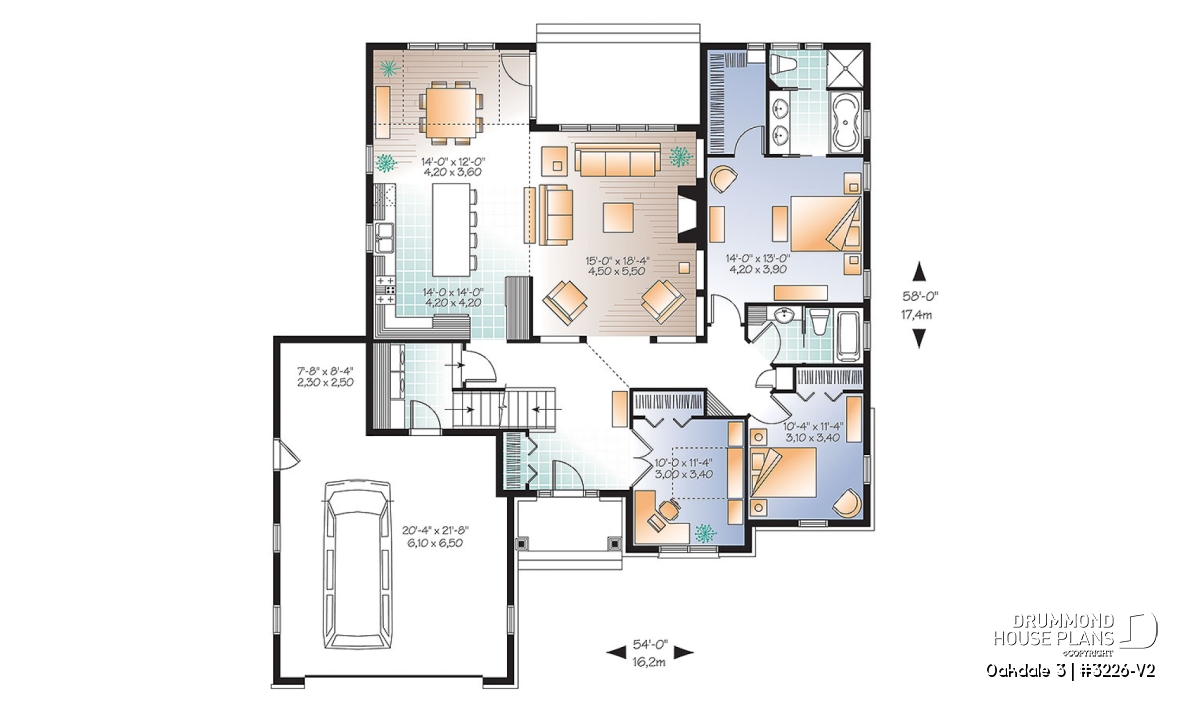

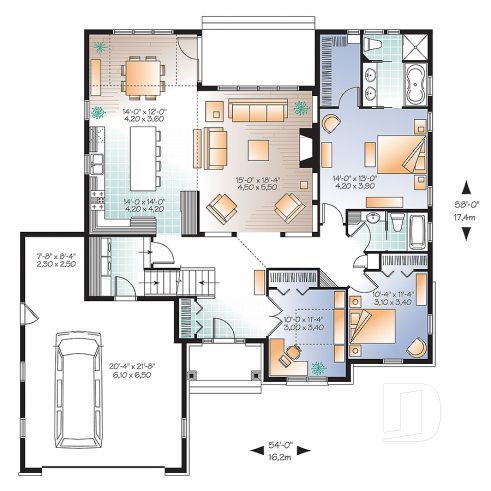

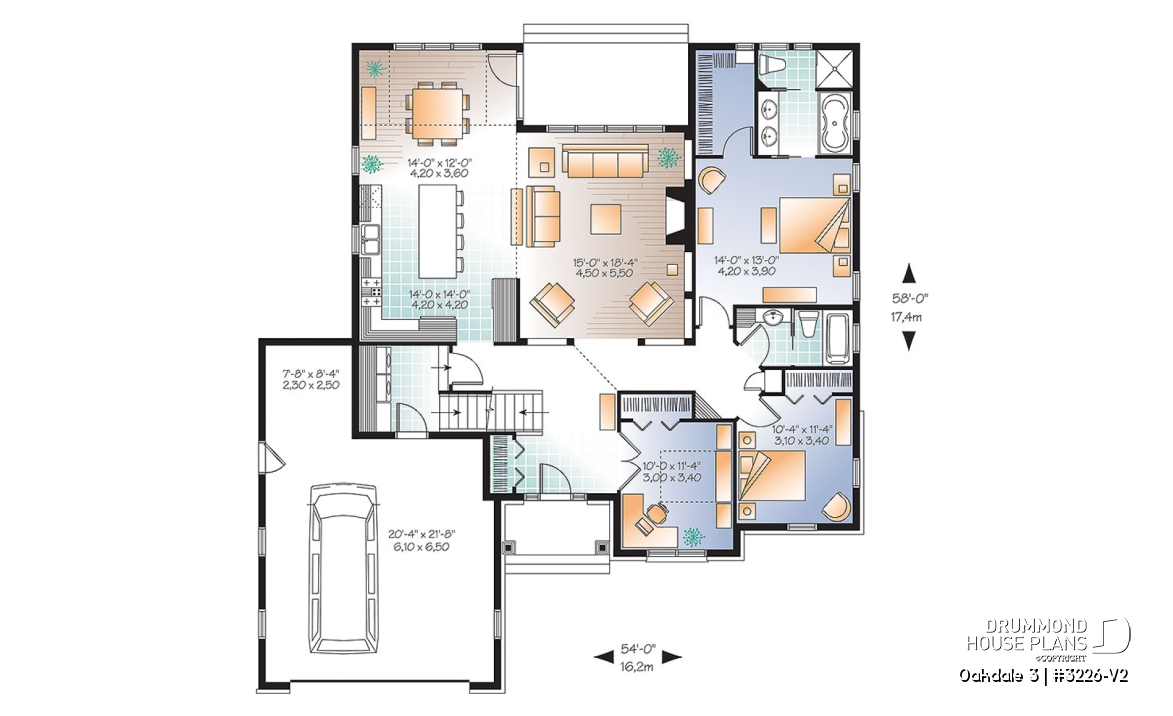

View the size of the rooms and height of the ceilings
|Garage||20'4" x 21'8"||~ 9'4"|
|Storage||7'8" x 8'4"||~ 9'4"|
|Foyer||9'0" x 5'2"||~ 17'2"|
|Closet||2'0" x 5'2"||~ 9'2"|
|Office||10'0" x 11'4"||~ 9'2"|
|Closet||6'4" x 2'2"||~ 9'2"|
|Bedroom||10'4" x 11'4"||~ 9'2"|
|Closet||6'0" x 2'0"||~ 9'2"|
|Master suite||14'0" x 13'0"||~ 9'2"|
|Walk-in closet||5'3" x 9'4"||~ 9'2"|
|Full bathroom||8'5" x 9'4"||~ 9'2"|
|Laundry room||7'1" x 7'8"||~ 10'4"|
|Full bathroom||10'4" x 5'0"||~ 9'2"|
|Dining room||14'0" x 12'0"||~ 11'2"|
|Kitchen||14'0" x 14'0"||~ 9'2"|
|Living room||15'0" x 18'4"||~ 11'2"|

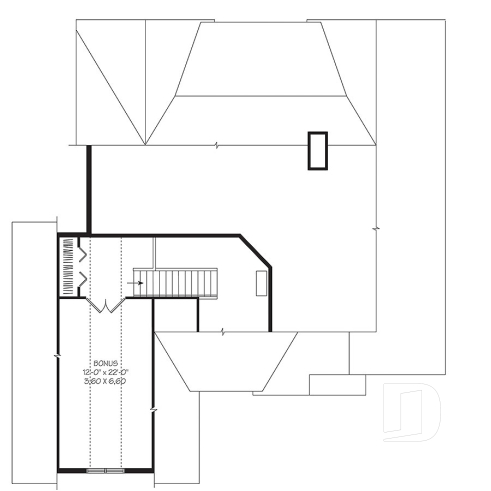

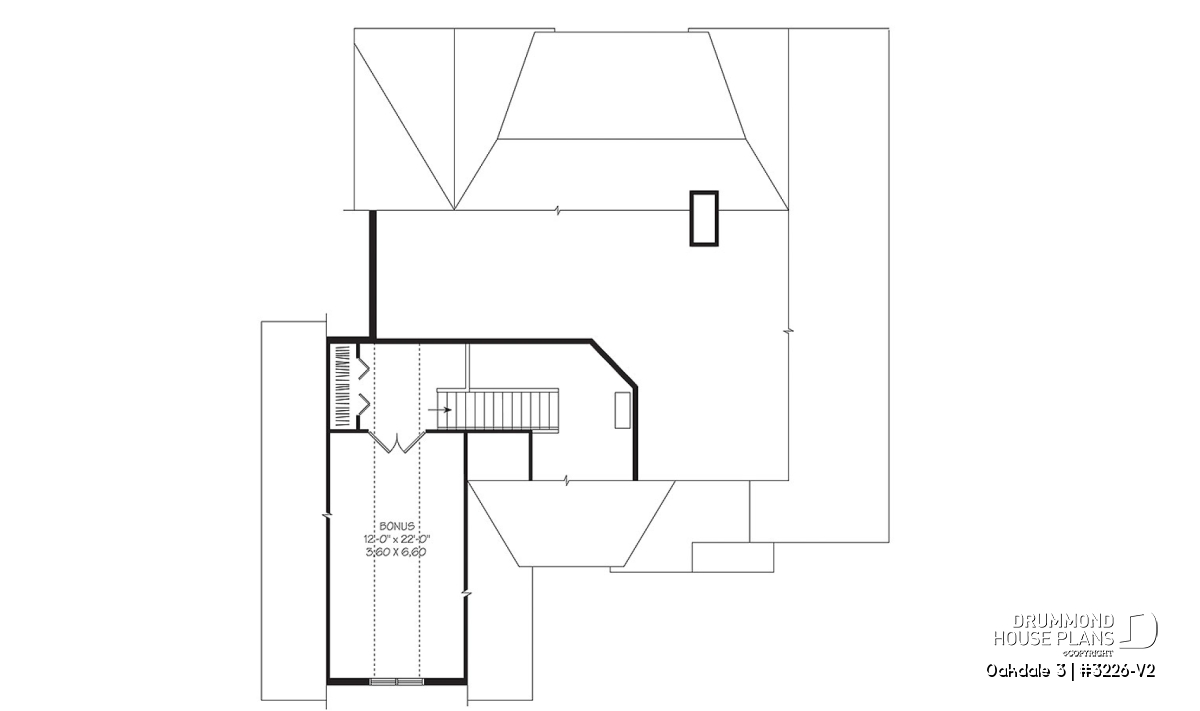

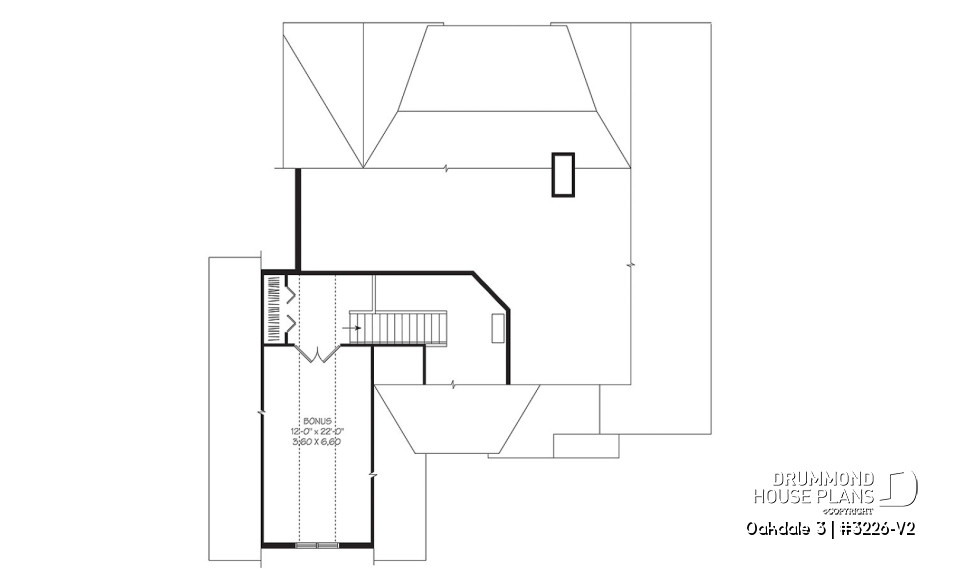

|Living bonus room||12'0" x 22'0"||~ 8'0"|
|Covered porch||9'4" x 4'6"||N/A|
|Covered deck||14'8" x 7'4"||N/A|
|Total living area||1780 sq.ft.|
|1st level||1780 sq.ft.|
|Bonus space||0 sq.ft.|
|Ridge height from top of foundation||23'8"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||D|
|Bedroom(s)||2, 3, 4|
|Garage type||Two-car garage (557 sq.ft.)|
|Living bonus space||396 pi2|
