House plan Miranda 3 (3137-BJG)

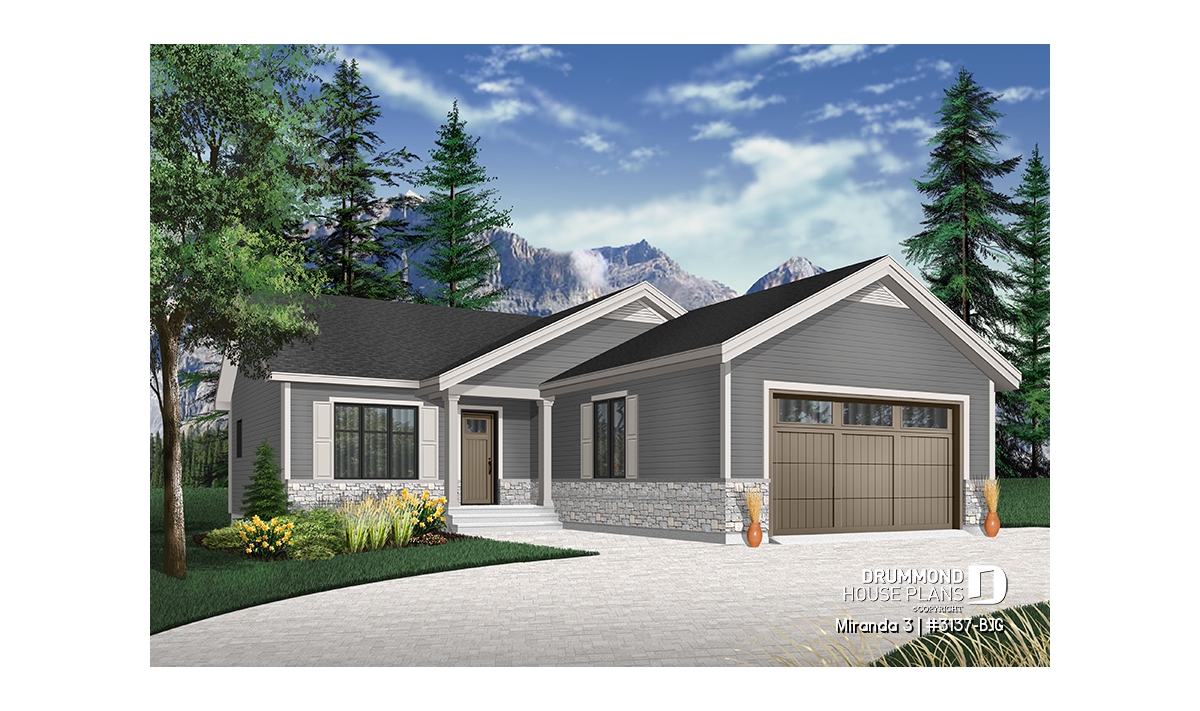

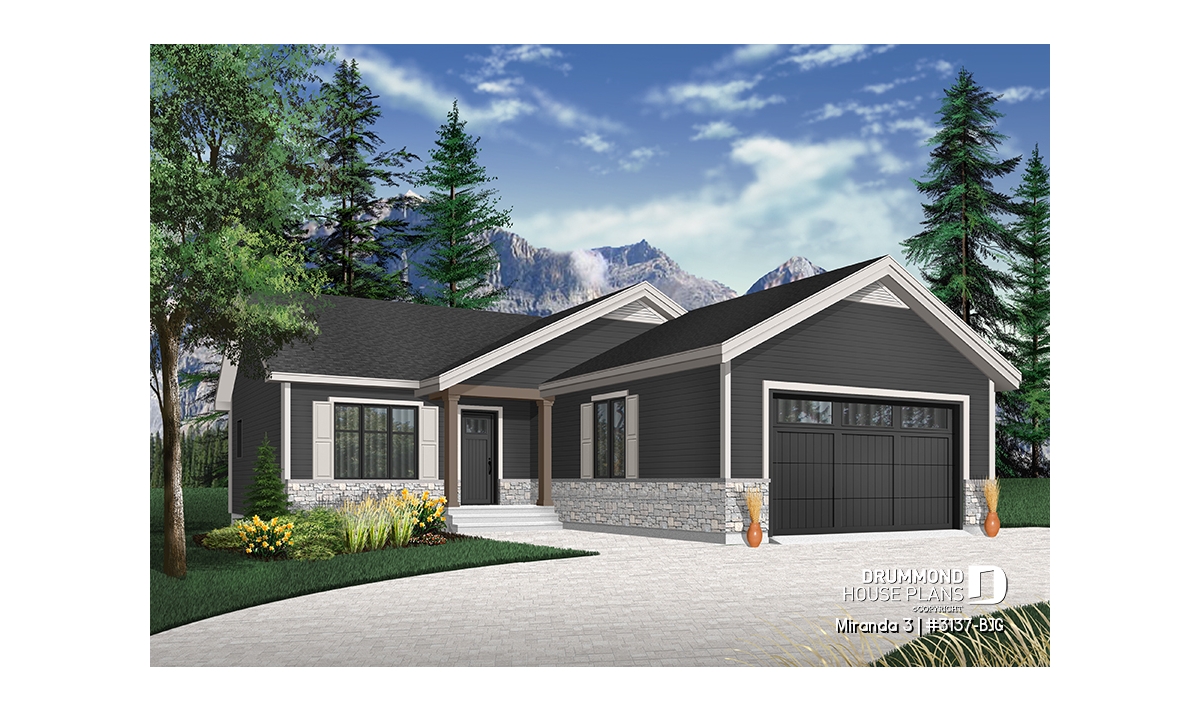

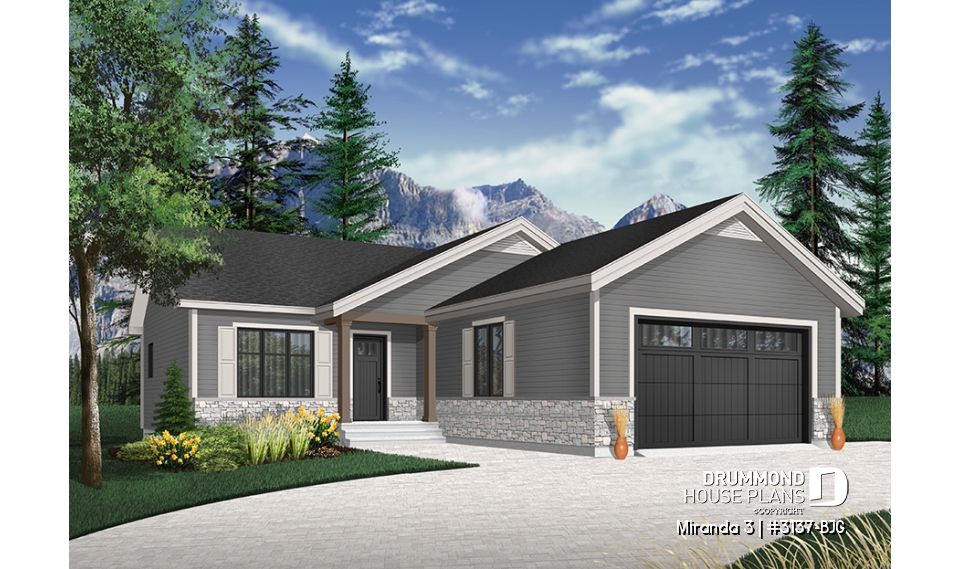

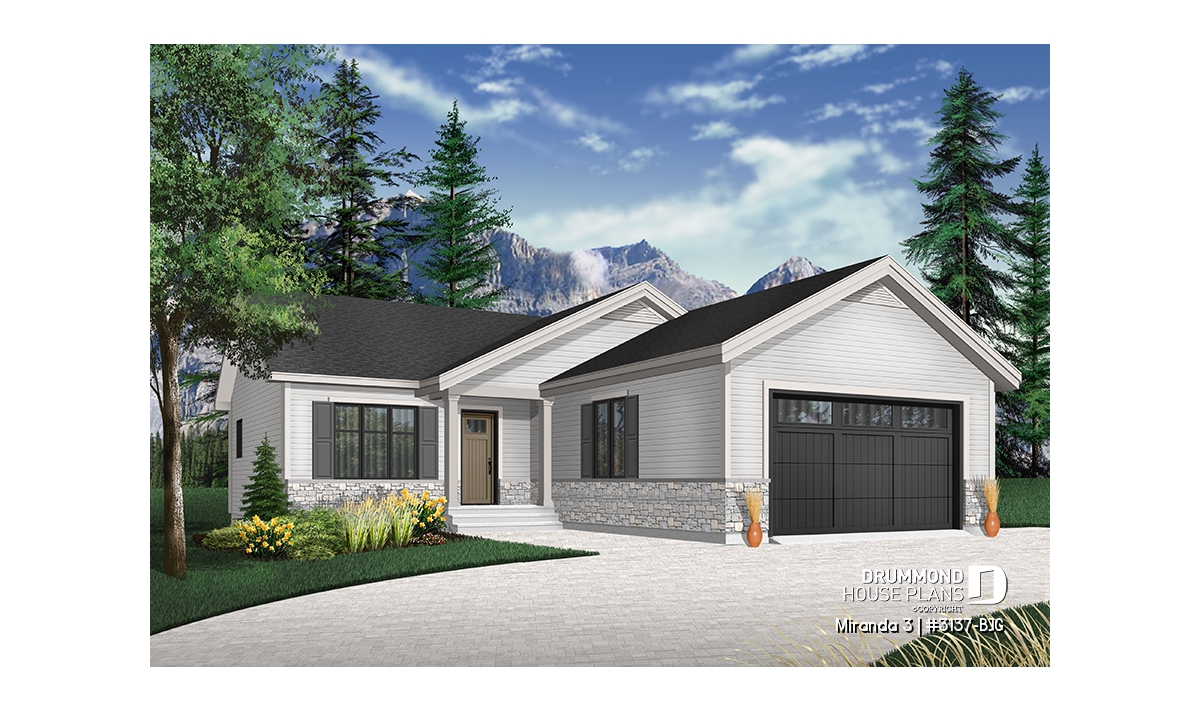

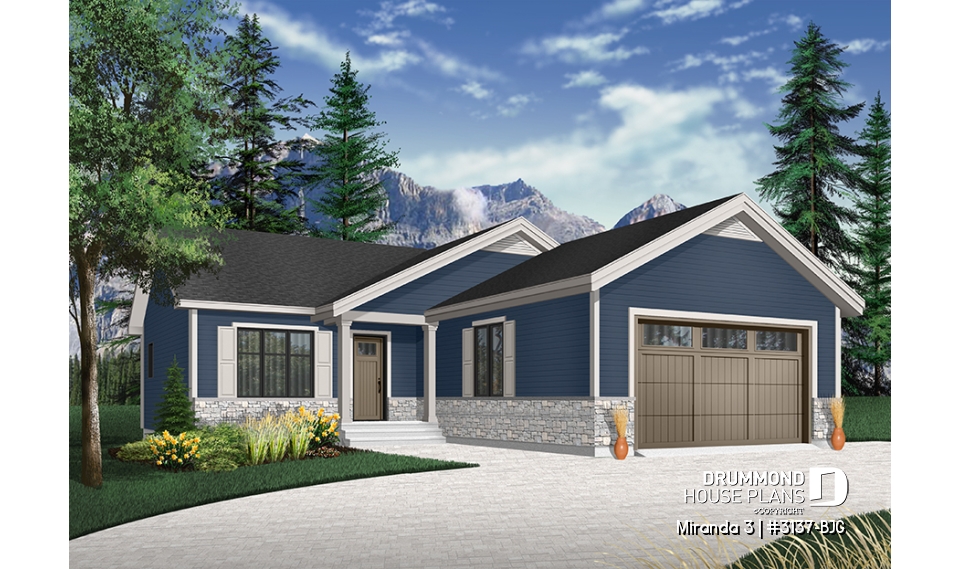

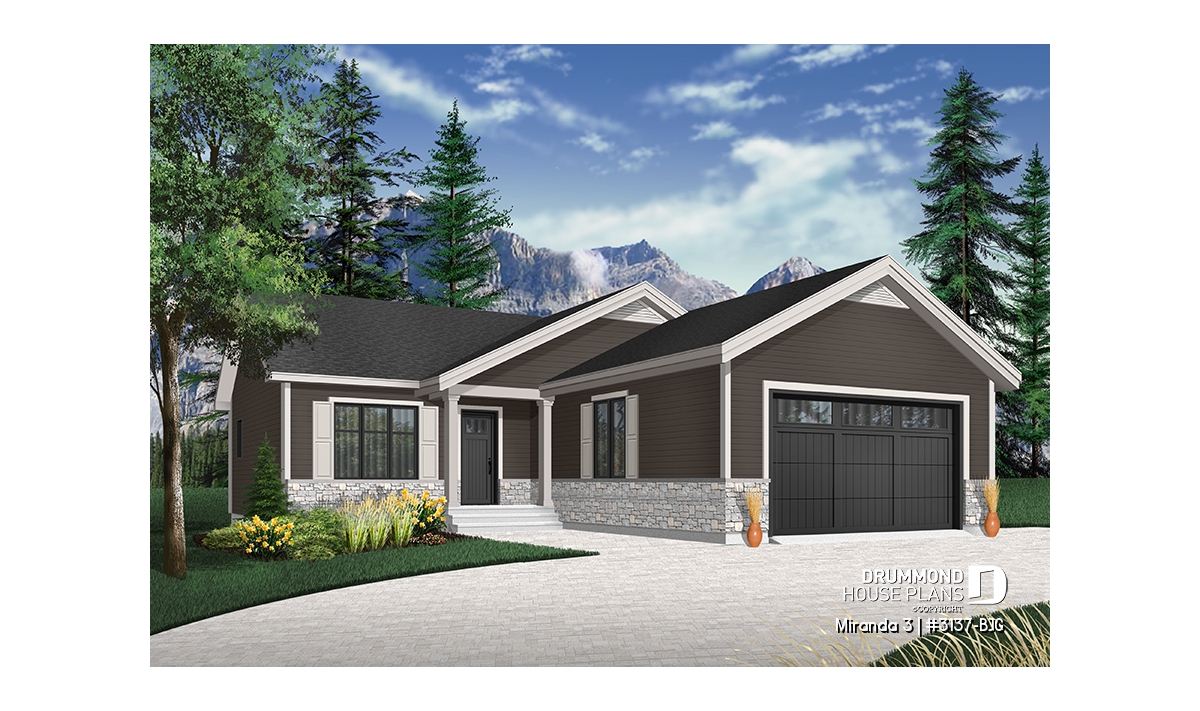

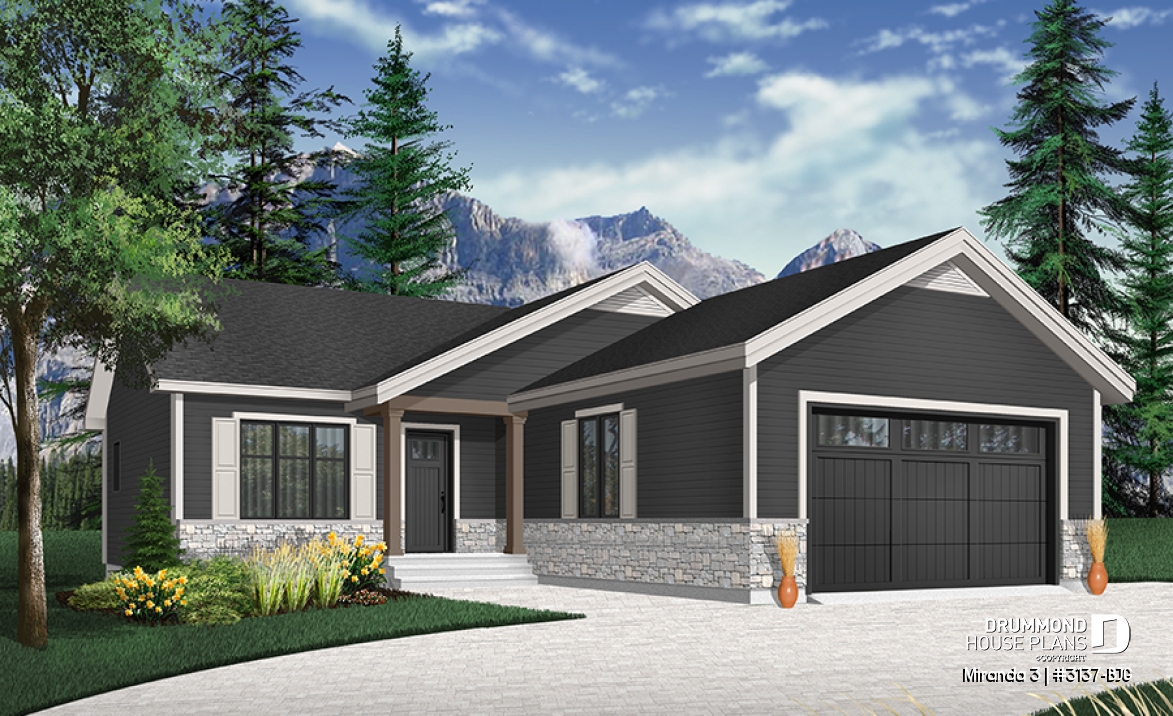

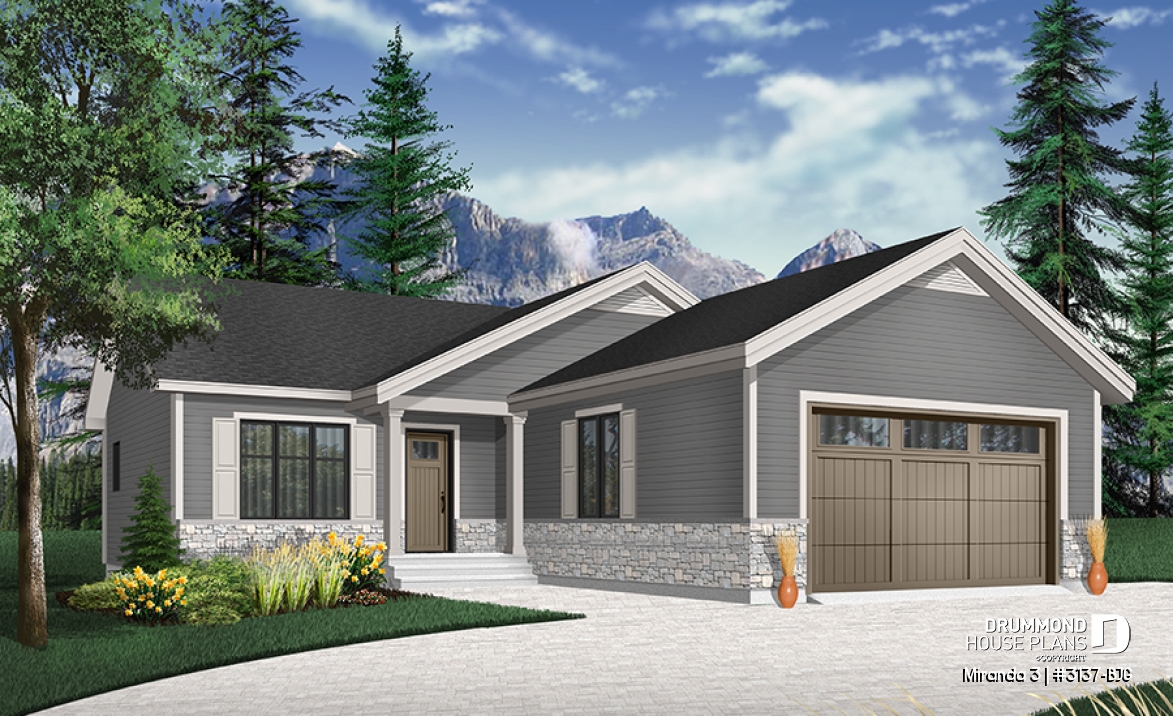

Affordable modern rustic ranch bungalow, 2-car garage, master suite with private shower, open floor concept
View the size of the rooms and height of the ceilings

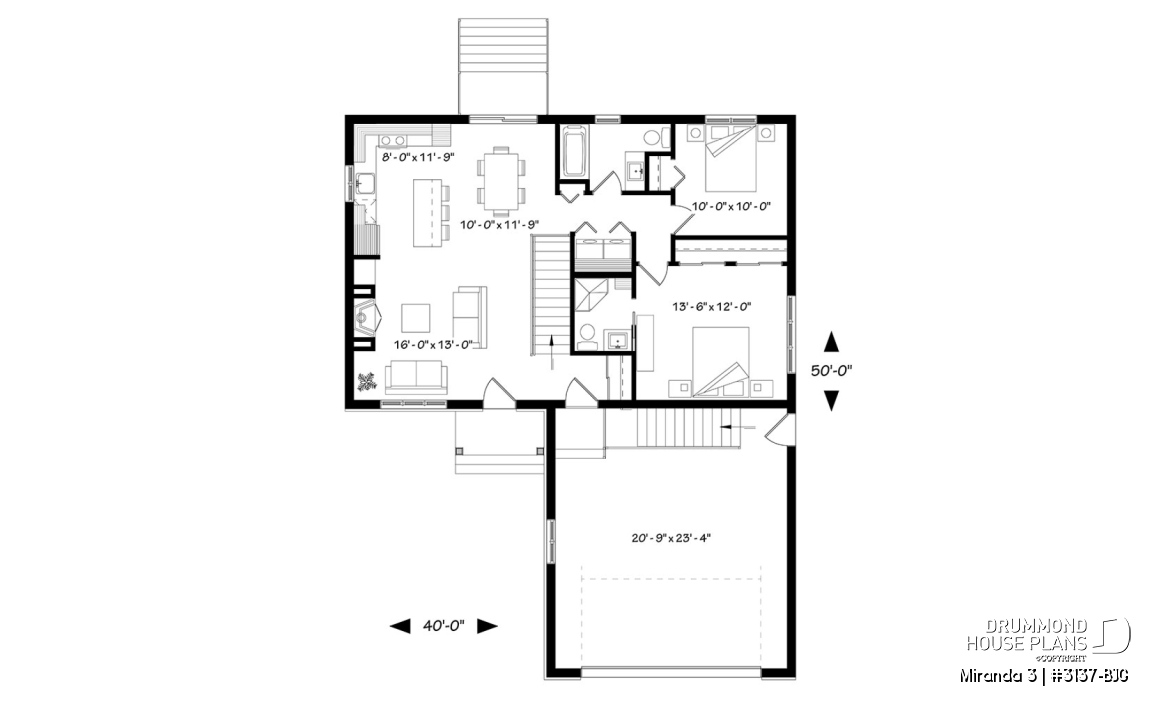

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 3'2" | ~ 8'0" |
| Master suite | 13'6" x 12'0" | ~ 8'0" |
| Closet | 10'0" x 2'0" | ~ 8'0" |
| Shower room or three quarter bath | 5'2" x 6'7" | ~ 8'0" |
| Dining room | 10'0" x 11'9" | ~ 8'0" |
| Kitchen | 8'0" x 11'9" | ~ 8'0" |
| Living room | 16'0" x 13'0" | ~ 8'0" |
| Garage | 20'9" x 23'4" | ~ 9'8" |
| Covered porch | 8'0" x 4'0" | N/A |
| Porch | 8'0" x 4'0" | N/A |
| Closet | 2'0" x 4'1" | ~ 8'0" |
| Laundry space | 5'2" x 3'3" | ~ 8'0" |
| Bathroom | 7'8" x 6'0" | ~ 8'0" |
General specifications
| Total living area | 1040 sq.ft. |
| 1st level | 1040 sq.ft. |
| Width | 40'0" |
| Depth | 50'0" |
| Ridge height from top of foundation | 18'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Affordable Modern Rustic ranch one-story home, ideal for narrow lot
Miranda 3 combines an affordable Modern Rustic design and a delightfully open floor plan in a two bedroom 2 car-garage model that's sure to please with it low construction costs.
It offers an open kitchen / dining and living concept with fireplace that is sure to please to the first-home buyers as well as the baby boomers looking to decrease the size of their family home.
The master bedroom comes with a convenient and private shower room. The secondary bedroom is located near a full bathroom and the laundry area.
The front two-car garage is ideal for narrow lots or corner lots, and offers direct access to the house on the main floor and through the basement.
An unfinished basement can be converted into more bedrooms and/or a family room with an extra bathroom. Or maybe a basement apartment for additional household income?
Please note that many foundation options are available, contact our customer service for information, or to have this house plan modified.
Distinctive elements
Affordable modern rustic bungalow with a frontal 2-car garage.
Ideal home design for a narrow lot.
Coverd front porch and entry hall with coat closet.
Popular open floor plan concept.
Large kitchen island and patio doors in the dining area.
Master bedroom with private shower room.
Another full bathroom near secondary bedroom.
Laundry closet on main floor.
Attached 2-car garage with direct access to the house main floor and also through the basement.
Unfinished basement can be converted into extra bedrooms or family room with third bathroom.
Plan feature(s)
Basement access from garage, Gound floor laundry room, Fireplace, Island, Open floor layout, Master suite on main
Plan architectural style(s)
. Country, . American, . Craftsman / Northwest, . Ranch, . Traditional, . Transitional
