House plan Ashbury 4 (3133-V6)
Craftsman house plan. open floor plan concept, three-sided fireplace, 2 bedrooms, large laundry room

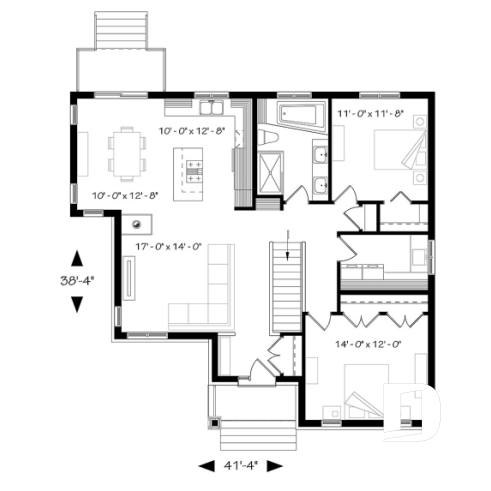

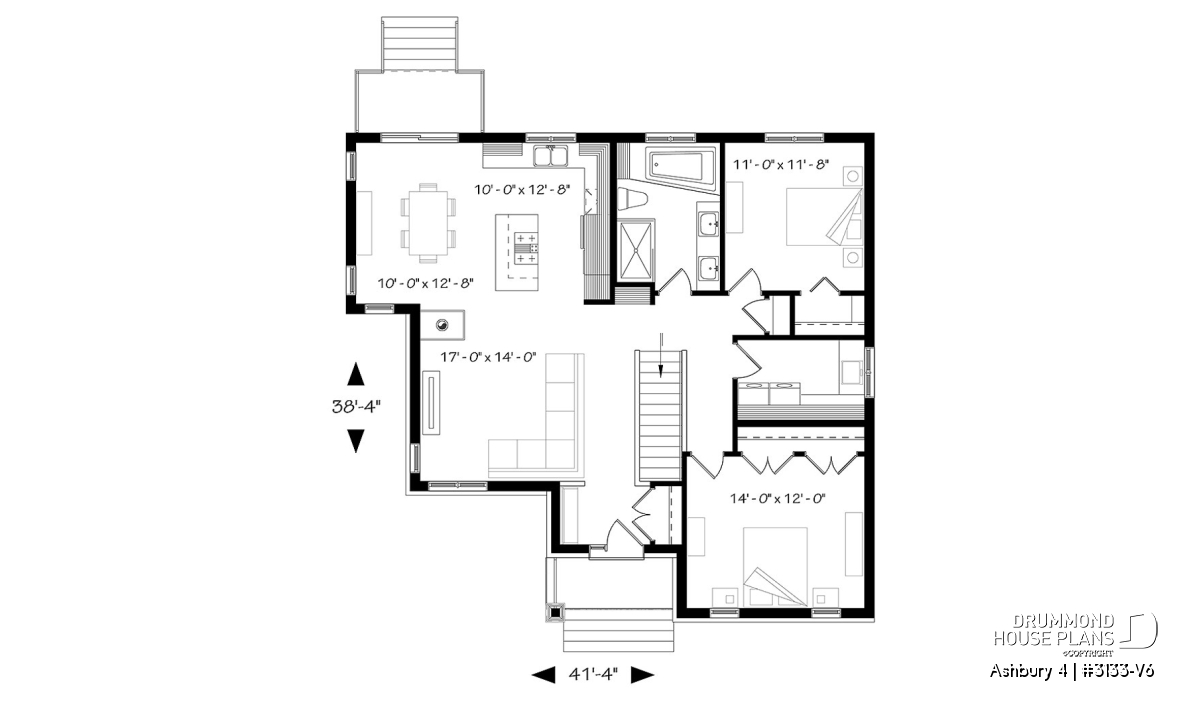

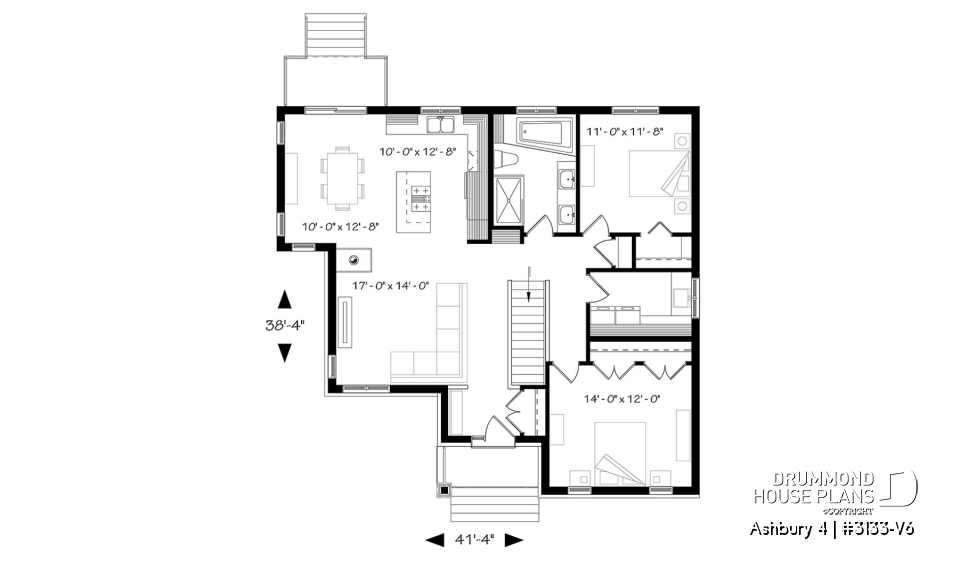

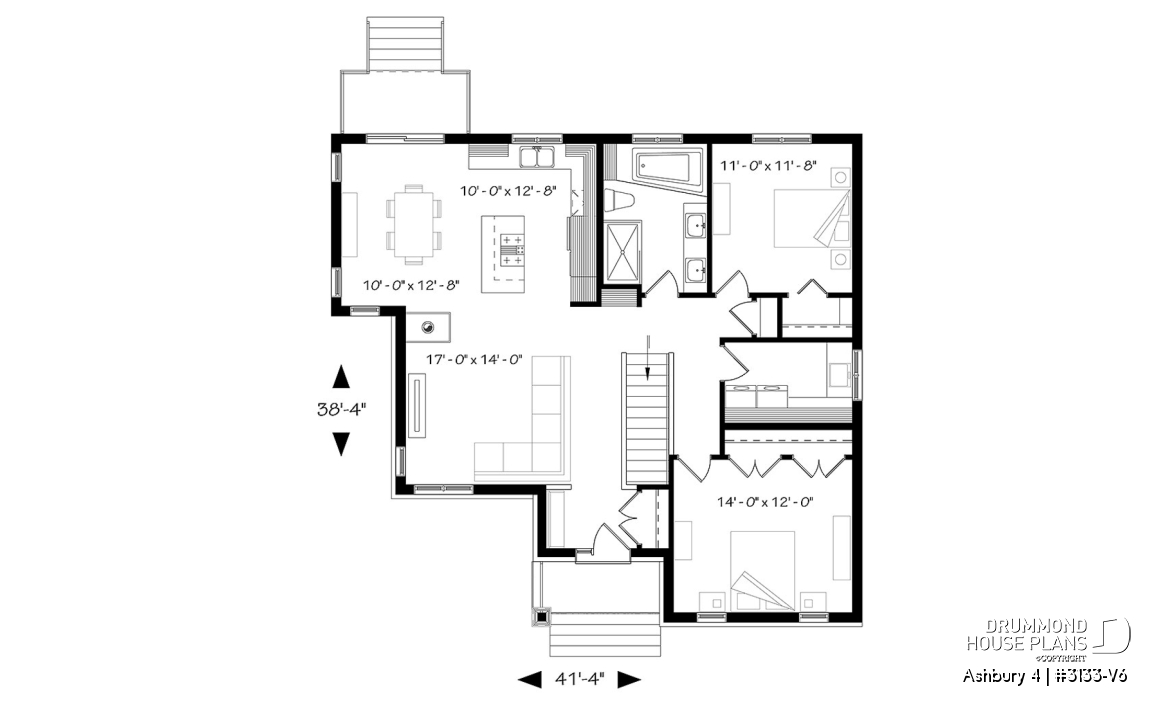

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 14'0" x 12'0" | ~ 8'0" |
| Closet | 10'0" x 2'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'8" | ~ 8'0" |
| Walk-in closet | 5'6" x 3'1" | ~ 8'0" |
| Kitchen/dinette | 10'0" x 12'8" | ~ 8'0" |
| Pantry | 2'0" x 1'8" | ~ 8'0" |
| Foyer | 7'2" x 4'8" | ~ 8'0" |
| Closet | 2'2" x 4'8" | ~ 8'0" |
| Linen | 1'7" x 3'1" | ~ 8'0" |
| Storage | 2'9" x 1'4" | ~ 8'0" |
| Dining room | 10'0" x 12'8" | ~ 8'0" |
| Full bathroom | 8'2" x 11'8" | ~ 8'0" |
| Shower | 3'0" x 5'0" | N/A |
| Linen | 1'0" x 2'10" | N/A |
| Living room | 17'0" x 14'0" | ~ 8'0" |
| Laundry room | 10'0" x 6'3" | ~ 8'0" |
General specifications
| Total living area | 1313 sq.ft. |
| 1st level | 1313 sq.ft. |
| Width | 41'4" |
| Depth | 38'4" |
| Ridge height from top of foundation | 22'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Craftsman house plan - economical home design with open floor plan concept
Inspired by the popular plan # 3133, this version is particularly suited to those for whom the convenience of having everything on the same level, whether due to advanced age or other considerations, takes precedence over the number of bedrooms required.
The three bedrooms of the original plan become two as the third is replaced with a laundry/utility room in which a large counter complete with sink and place for a separate freezer are practical features that are sure to be appreciated by the occupants.
An open, well fenestrated activities area complete with a fireplace in the center, will offer comfort to his occupants. Another wonderful feature of this plan is the abundant storage space and kitchen island. There is a practical, double vanity in a bathroom that boasts a separate, corner tub an a 3' x 6' shower enclosure.
A well considered choice for homeowners who know what they want!
Distinctive elements
Appealing Craftsman bungalow.
Abundantly windowed dining room.
Kitchen / dinette with 40" x 60" central lunch island lunch.
Two good-sized bedrooms.
Bathroom with double vanity and 36" x 60" shower.
Large laundry room.
Fireplace in living room opened on three sides to the living room and the heart of the activities area.
Plan feature(s)
Open floor layout, Gound floor laundry room, Fireplace, Island, Separate bath and shower, Double sinks
Plan architectural style(s)
. Craftsman / Northwest, . Country, . Modern / Design, . American, . Modern rustic, . Contemporary, . Rustic, . Ranch, . Transitional
