House plan Mainville 4 (3133-V4)
Affordable 1 to 5 bedroom Bungalow, large master suite, home office, large kitchen island & open floor plan
View the size of the rooms and height of the ceilings

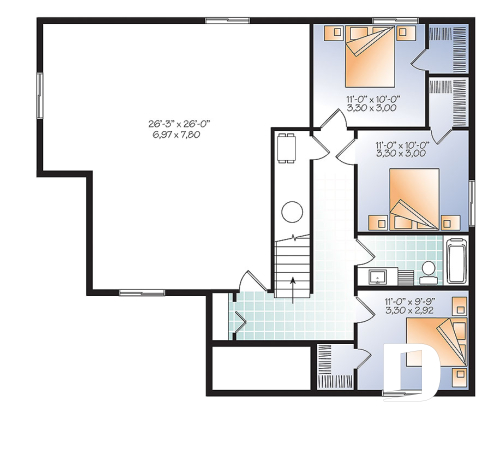

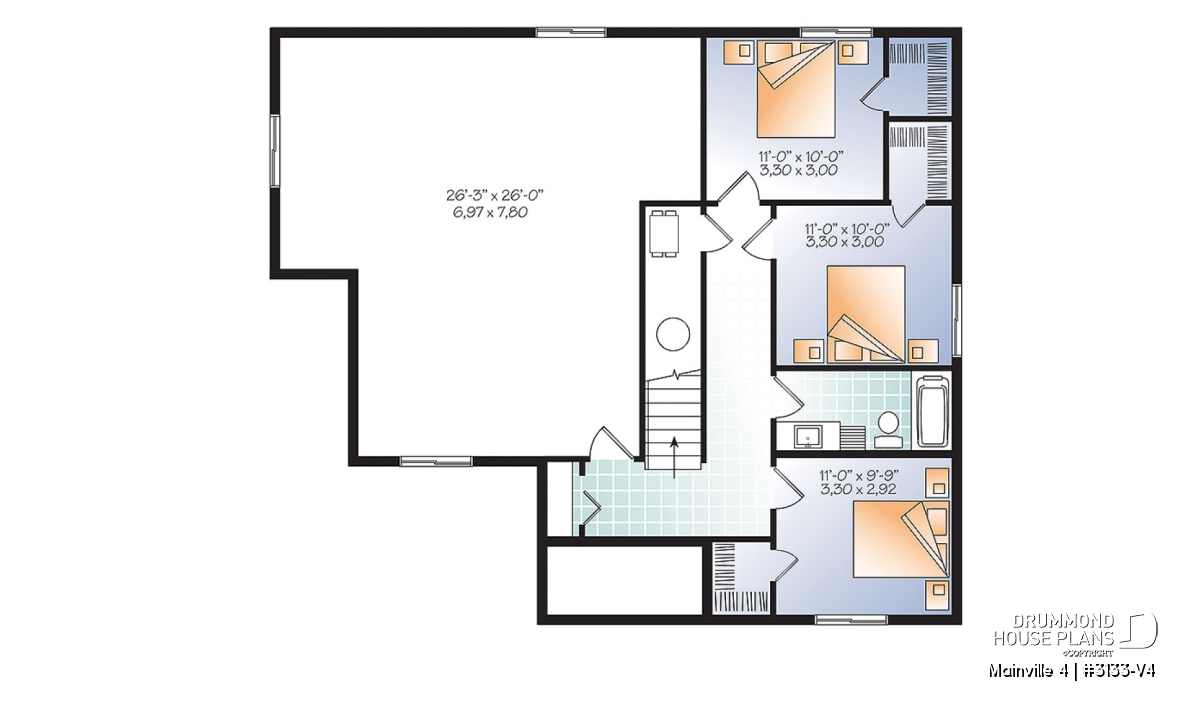

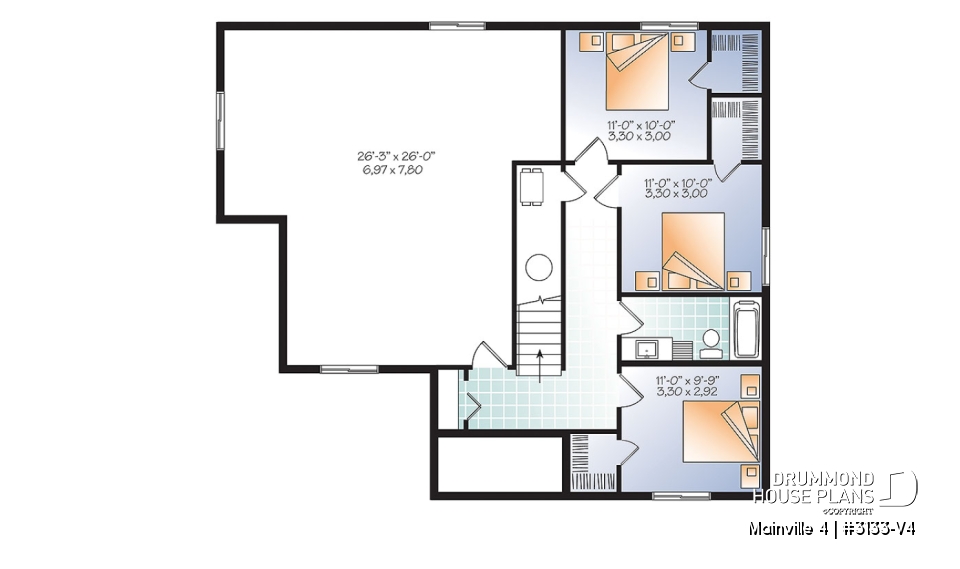

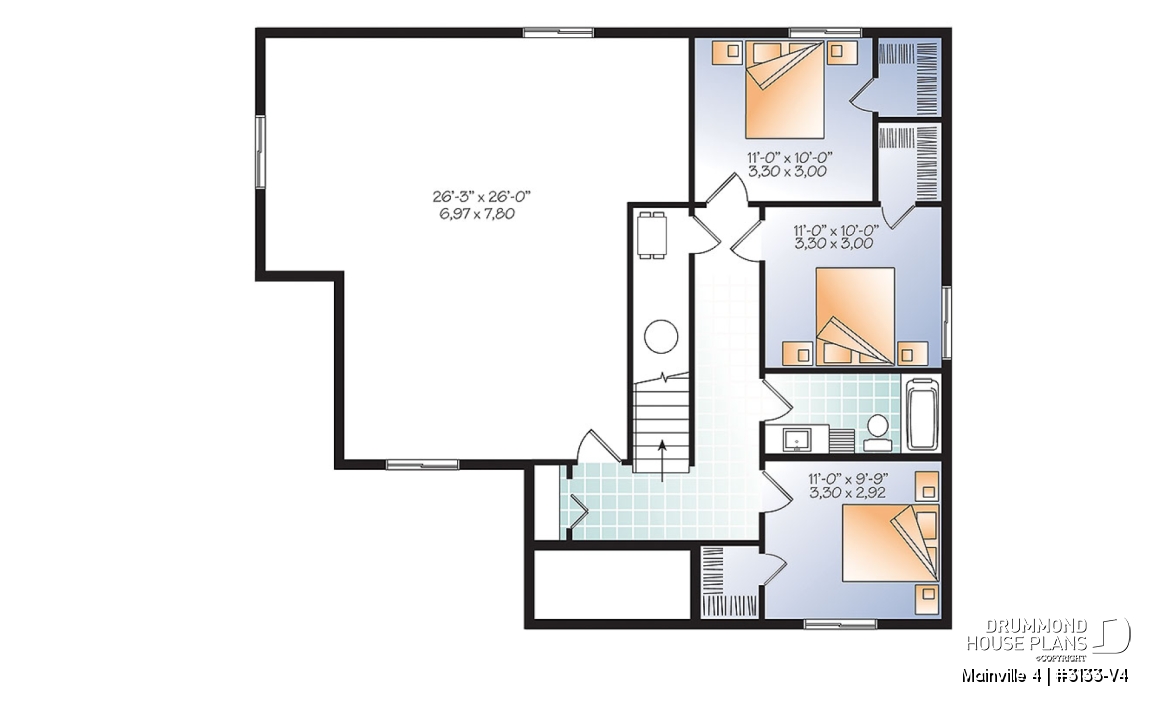

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Unfinished space | 26'3" x 26'0" | ~ 8'0" |
| Bedroom | 11'0" x 9'9" | ~ 8'0" |
| Walk-in closet | 3'4" x 4'8" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Walk-in closet | 4'0" x 4'10" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Walk-in closet | 4'0" x 4'10" | ~ 8'0" |
| Bathroom | 11'0" x 5'0" | ~ 8'0" |
| Linen | 1'6" x 1'6" | N/A |
| Linen | 1'10" x 4'8" | ~ 8'0" |

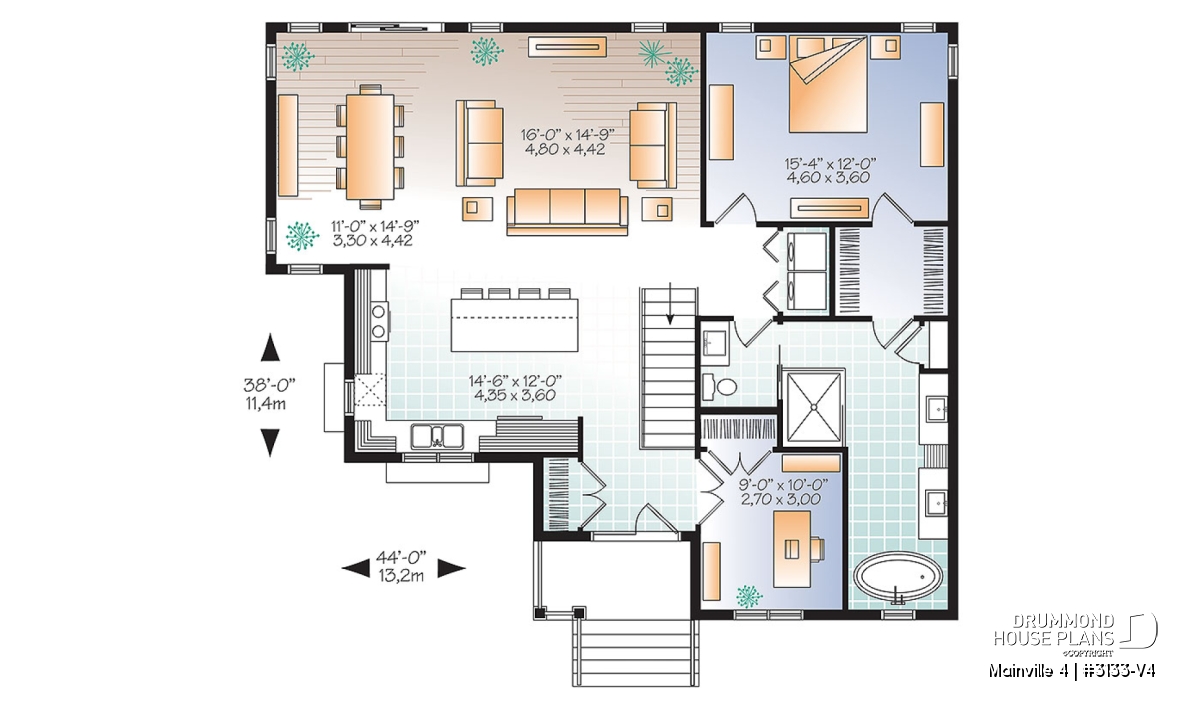

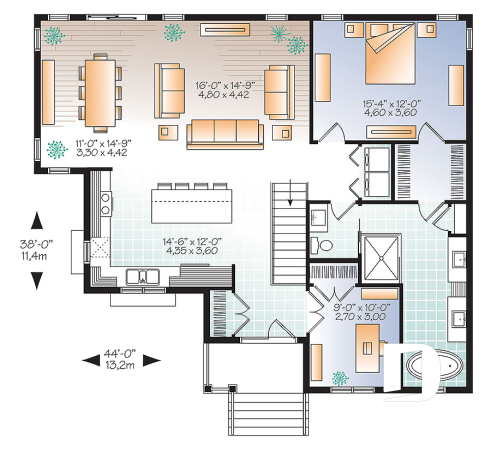

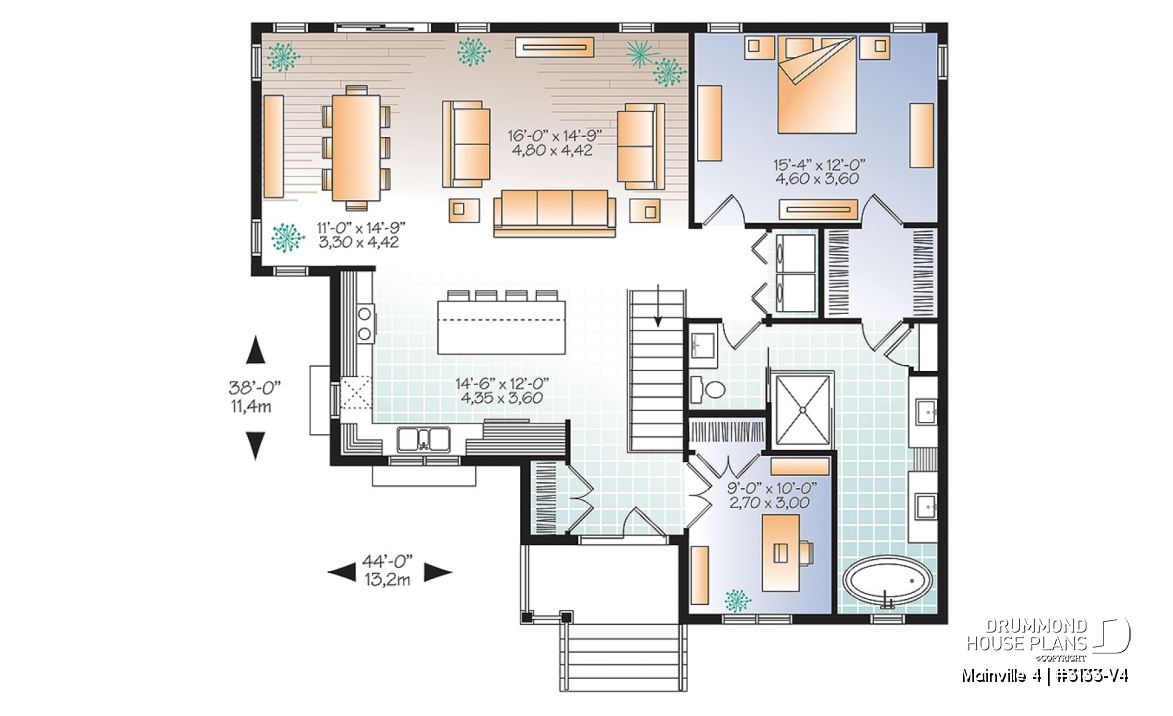

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'0" x 5'4" | ~ 9'0" |
| Closet | 2'2" x 4'8" | ~ 9'0" |
| Kitchen/dinette | 14'6" x 12'0" | ~ 9'0" |
| Pantry | 2'2" x 2'0" | N/A |
| Dining room | 11'0" x 14'9" | ~ 9'0" |
| Living room | 16'0" x 14'9" | ~ 9'0" |
| Bedroom | 15'4" x 12'0" | ~ 9'0" |
| Walk-in closet | 7'2" x 5'8" | ~ 9'0" |
| Bathroom | 6'4" x 18'4" | ~ 9'0" |
| Shower | 4'0" x 5'0" | N/A |
| Linen | 1'6" x 3'0" | ~ 9'0" |
| Powder room | 4'10" x 5'5" | ~ 9'0" |
| Laundry space | 3'0" x 5'8" | ~ 9'0" |
| Home office | 9'0" x 10'0" | ~ 9'0" |
| Closet | 4'10" x 2'0" | ~ 9'0" |
General specifications
| Total living area | 2133 sq.ft. |
| Basement | 741 sq.ft. |
| 1st level | 1392 sq.ft. |
| Width | 44'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 24'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Affordable 1 to 5 bedroom home with large kitchen and great open floor plan concept
Inspired by model 3133, a customer favorite, this model version offers a fresh, new approach to the interior space.
The delightfully open floor plan is enhanced by a 9’ ceiling throughout which enhances the natural light that brightens the main floor. The well fenestrated, 14’ x 12’ kitchen offers ample storage space and a large, 96’’ x 40’’ island. The beautiful living/dining area, that spans 27’ wide and almost 15’ deep, offers a view of the back yard through windows from one end to the other. The superb master suite is 15+’ wide x 12’ deep and has a his and hers walk in closet that leads into the well appointed bathroom, compete with 4’ x 5’ shower, double vanity and pedestal bath.
A home office space (which can easily become a 5th bedroom), a separate laundry area and a powder room complete the features of the first floor.
The ‘high profile’ design permits ample fenestration for the three almost 11’ x 10’ bedrooms, each with its own walk-in closet. A complete bathroom and a large space that can be finished as a game or multi-media room enhance the livability of this well thought out floor plan that is perfectly adaptable to today’s blended families
Distinctive elements
9' ceiling on main floor.
Open floor plan concept.
Master suite with private bathroom.
Home office.
Large kitchen island.
Plan feature(s)
Ceiling over 8', Island, Gound floor laundry room, Office / Study / Den, Walk-in master bed., Living bonus space, Separate bath and shower, Double sinks, Master suite on main, Open floor layout
Plan architectural style(s)
. Country, . Colonial, . Traditional, . American, . Ranch, . Farmhouse, . Transitional
