House plan Mainville 2 (3133-V2)
Modern house plan with great kitchen island and open floor plan concept, lots of storage

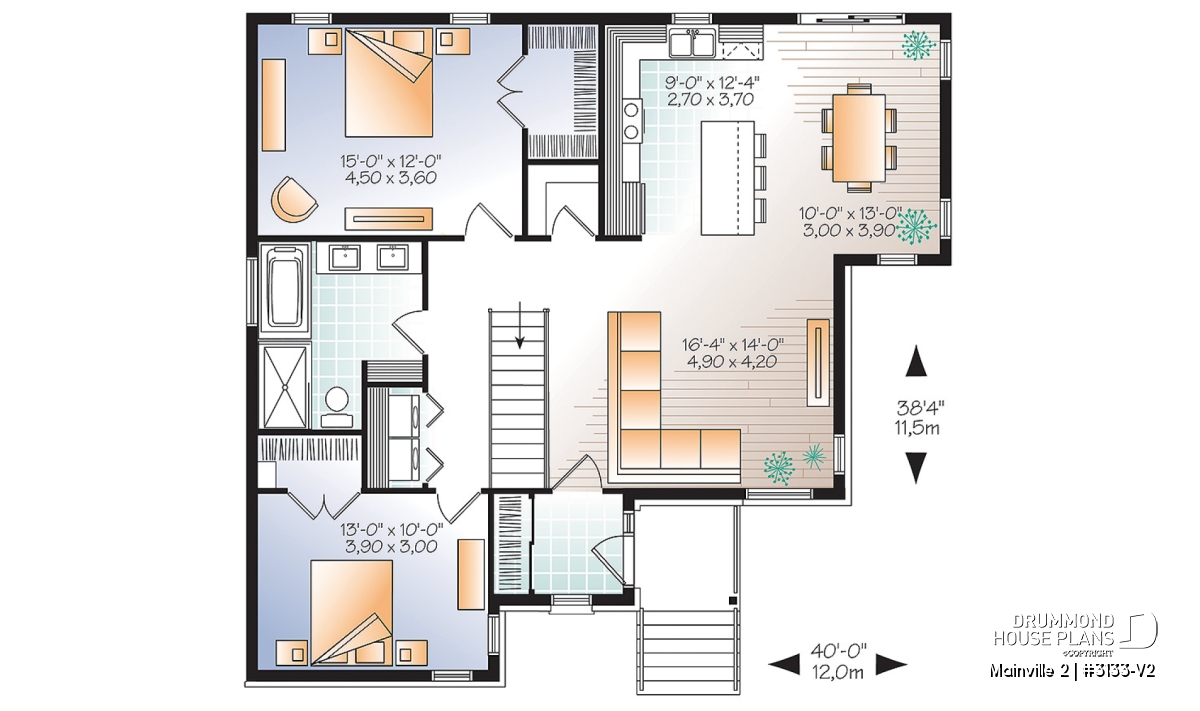

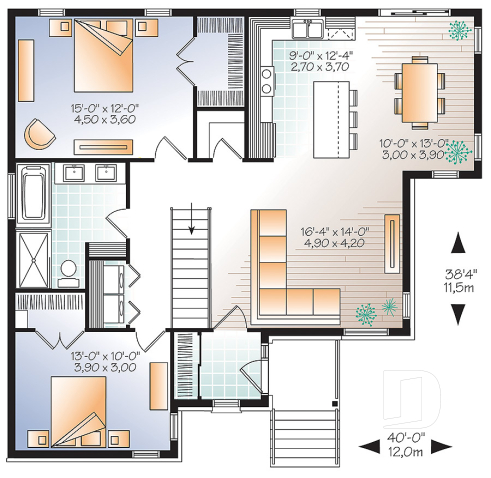

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 5'0" x 5'8" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Living room | 16'4" x 14'0" | ~ 8'0" |
| Dining room | 10'0" x 13'0" | ~ 8'0" |
| Kitchen/dinette | 9'0" x 12'4" | ~ 8'0" |
| Pantry | 4'0" x 4'0" | ~ 8'0" |
| Bedroom | 15'0" x 12'0" | ~ 8'0" |
| Walk-in closet | 4'0" x 7'8" | ~ 8'0" |
| Bedroom | 13'0" x 10'0" | ~ 8'0" |
| Walk-in closet | 5'10" x 3'0" | ~ 8'0" |
| Full bathroom | 9'4" x 10'8" | ~ 8'0" |
| Linen | 3'0" x 1'2" | ~ 8'0" |
| Laundry space | 3'0" x 5'8" | ~ 8'0" |
General specifications
| Total living area | 1240 sq.ft. |
| 1st level | 1240 sq.ft. |
| Width | 40'0" |
| Depth | 38'4" |
| Ridge height from top of foundation | 20'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

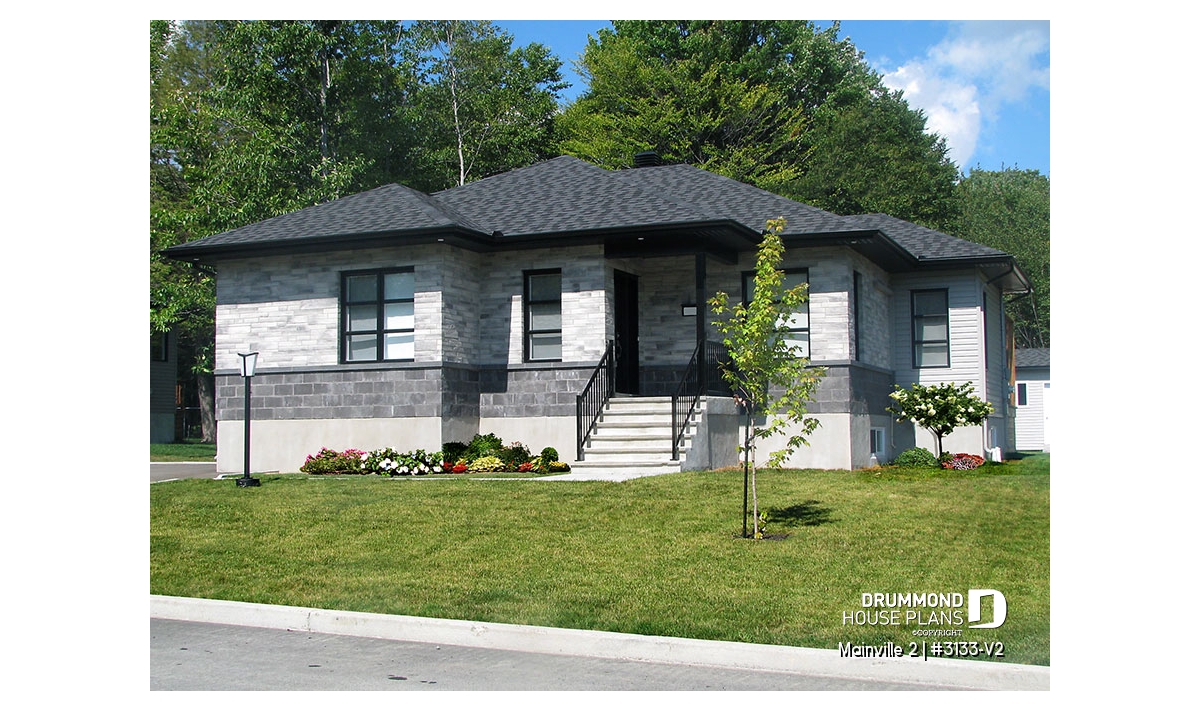

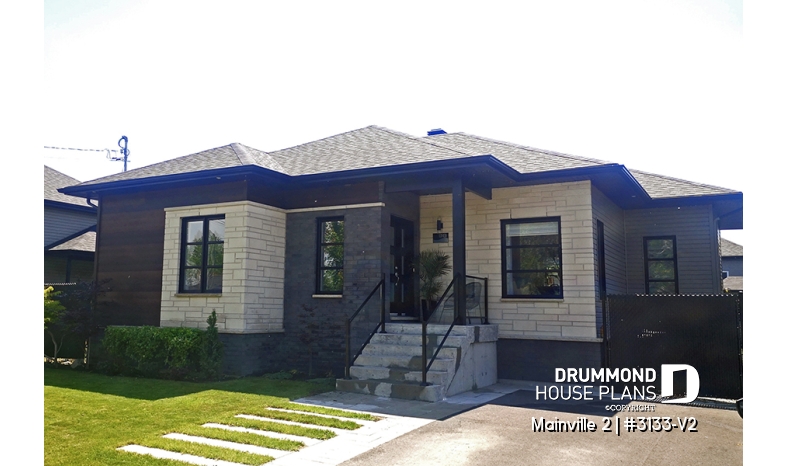

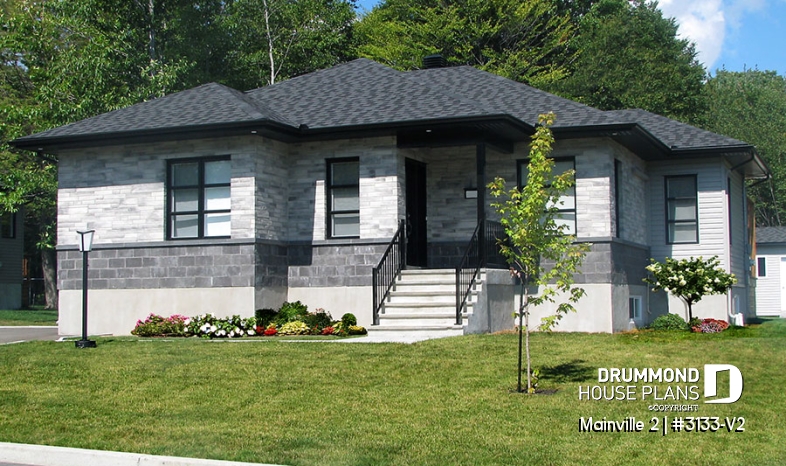

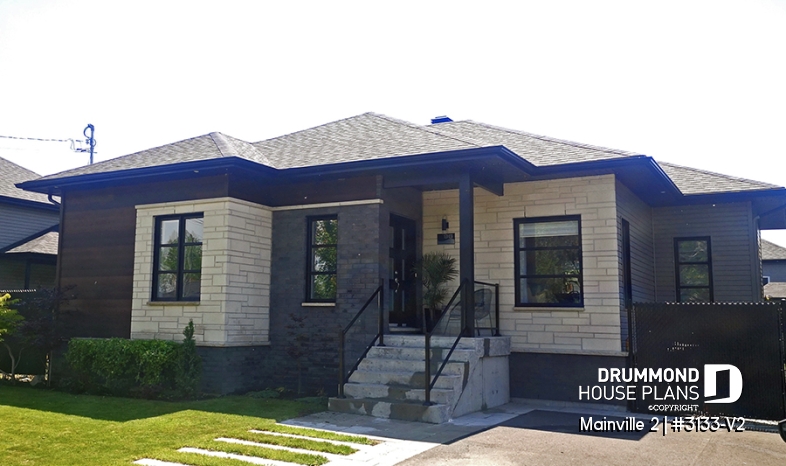

front
This color version might have decorative elements that are not available on base plan.
front
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
Popular plan revisited with a contemporary touch
Inspired by the popular 3133 model, this approach features a contemporary feel enhanced by the additional 40 sq. ft. of living space in a two bedroom model.
The designer has taken care to maintain everything that makes the original so popular.
The entrance foyer features an unusually large closet which opens onto the open living area that groups living and dining areas and an open kitchen/breakfast nook area, all enhanced by an abundance of natural light and a walk-in pantry.
Other wonderful features of this design include a central kitchen island, a laundry area on the main floor and a walk-in closet in both master bedroom and the secondary bedroom as well as a full bathroom with separate 3’ x 5’ shower.
Keep a look out for the next in this series, plan 3133-V3, that offers contemporary styling in a three bedroom model...
Distinctive elements
Modern one-storey home.
Foyer with a practical large coat closet.
Open family, dining and kitchen area.
Central fireplace.
Two good size bedrooms with walk-in closets.
Family bathroom with separate tub and shower stall.
Laundry closet on main floor.
Many foundation options available.
Plan feature(s)
Gound floor laundry room, Walk-in master bed., Island, Separate bath and shower, Double sinks, Entrance hall
Plan architectural style(s)
. Contemporary, . Modern / Design, . Ranch
Similar plans
Previously Viewed Plans
Questions and comments
March 11
Brian Mcintyre
Ball park cost to build this house
March 11
Customer service
Good day Mr. Mcintyre and thank you for taking the time to write
Although we do no actual construction, the ballpark estimate to build this home in Quebec (Canada) starts at around $193,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms.
The kitchen cabinetry is wood grain melamine and this construction estimate to build in Quebec is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb
