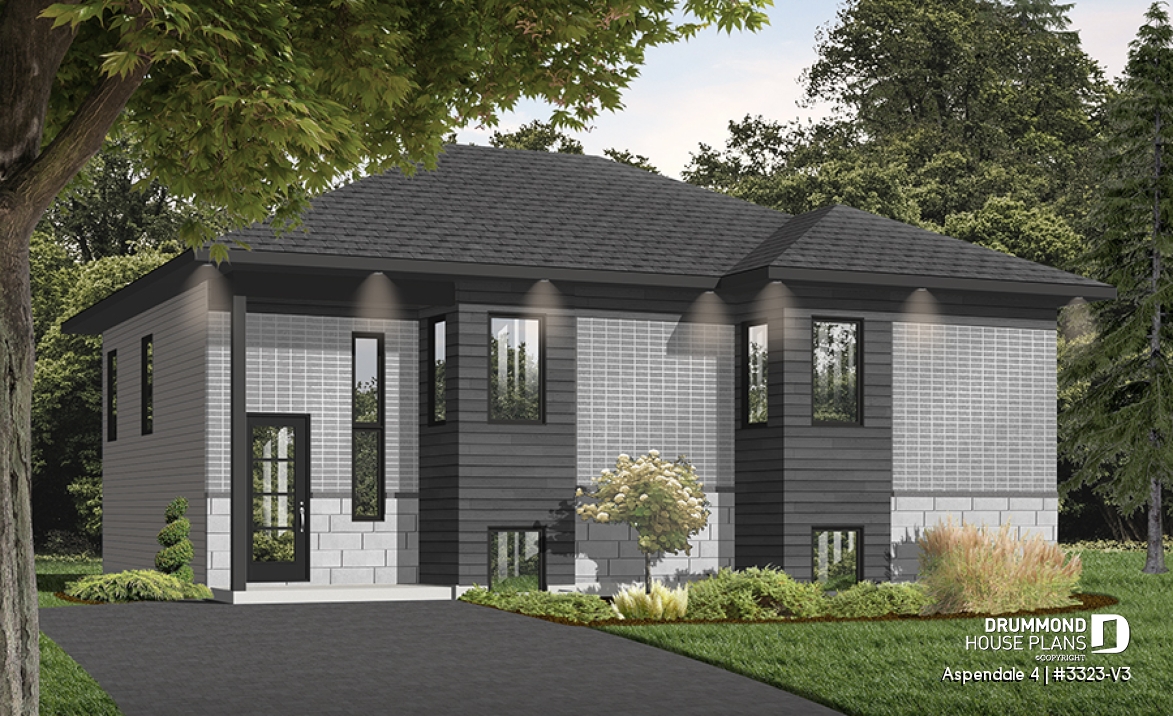

House plan Aspendale 4 (3323-V3)
Modern split-level house plan, large kitchen island, open floor plan concept
View the size of the rooms and height of the ceilings

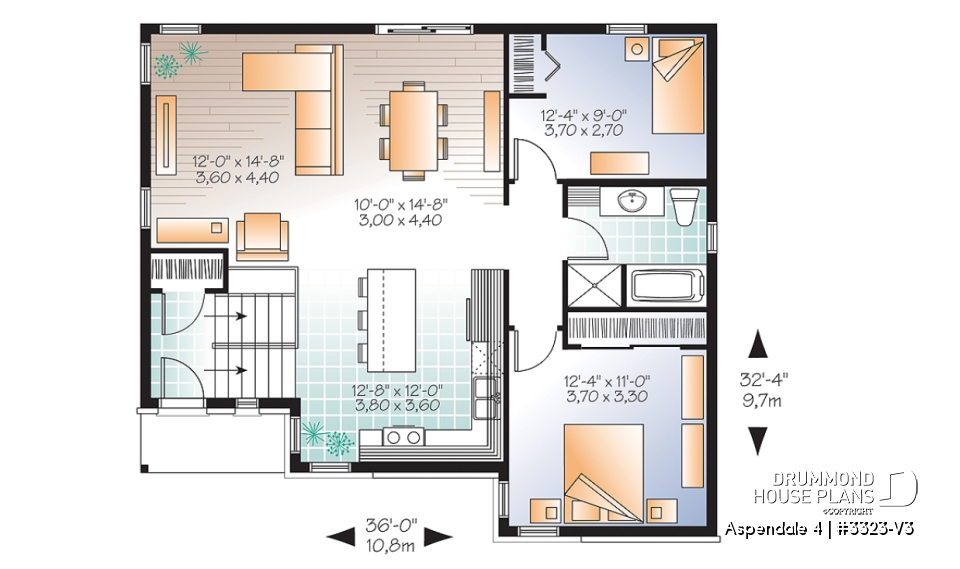

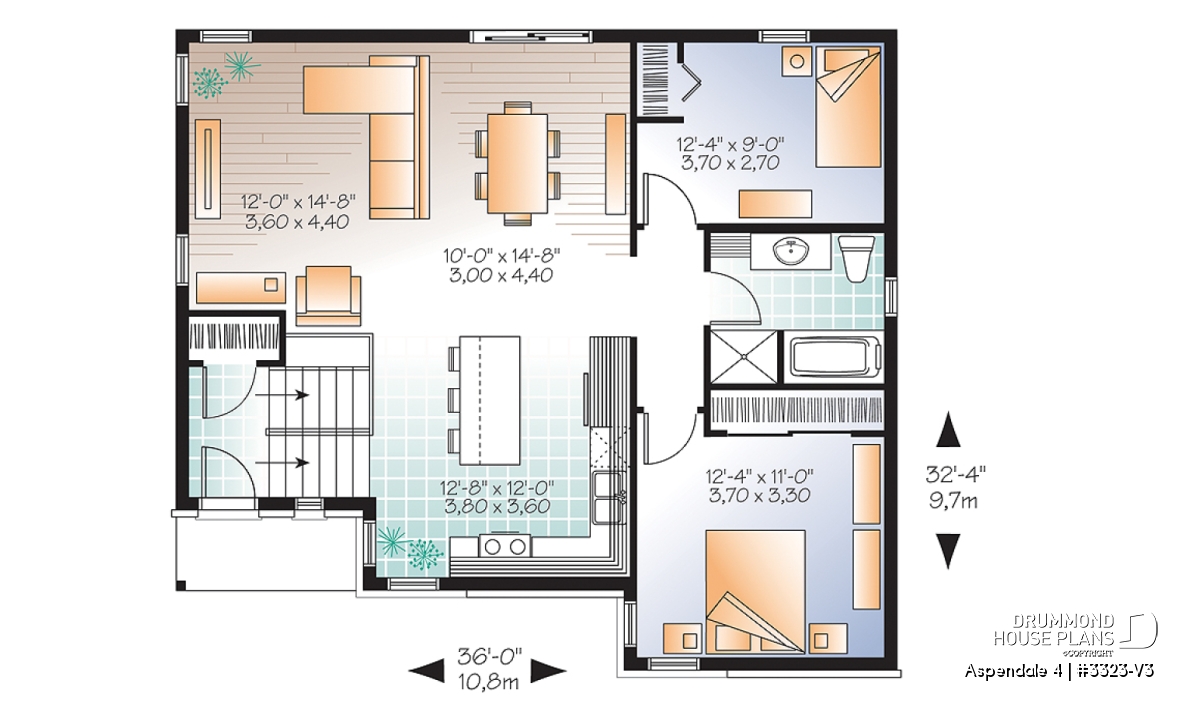

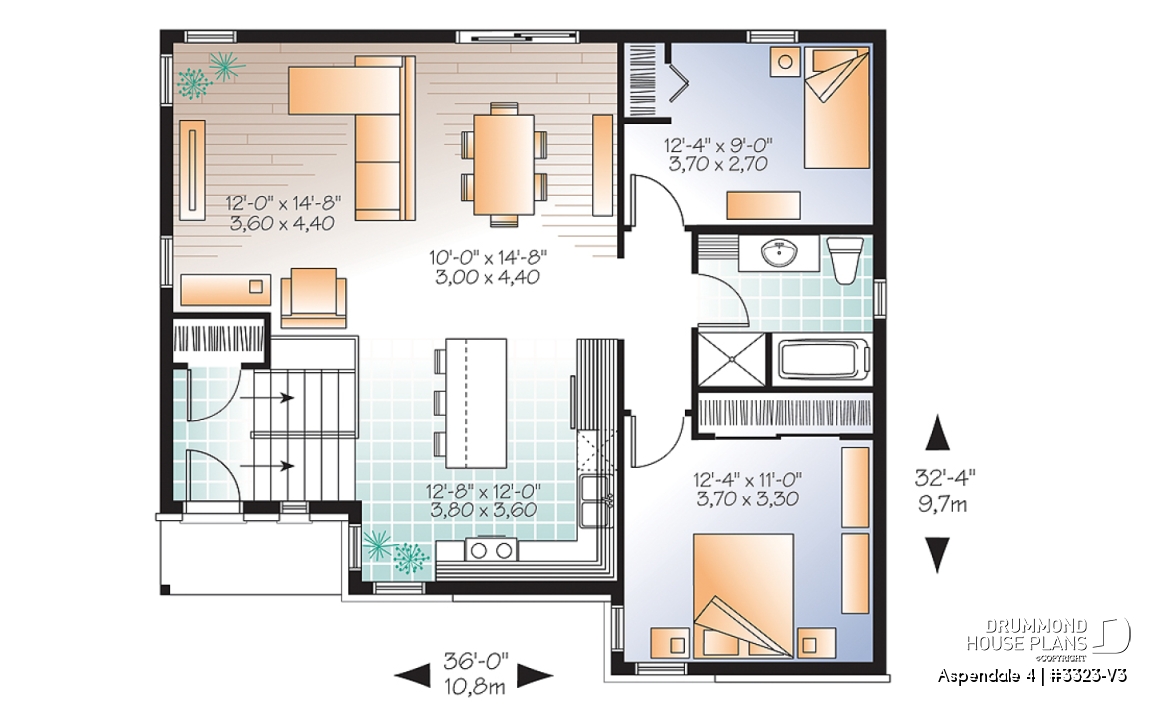

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 4'0" x 6'6" | ~ 12'0" |
| Closet | 4'6" x 2'2" | ~ 8'0" |
| Kitchen/dinette | 12'8" x 12'0" | ~ 8'0" |
| Pantry | 2'0" x 1'8" | N/A |
| Dining room | 10'0" x 14'8" | ~ 8'0" |
| Living room | 12'0" x 14'8" | ~ 8'0" |
| Bedroom | 12'4" x 11'0" | ~ 8'0" |
| Closet | 8'8" x 2'0" | ~ 8'0" |
| Bedroom | 12'4" x 9'0" | ~ 8'0" |
| Closet | 2'0" x 3'8" | ~ 8'0" |
| Full bathroom | 8'8" x 7'6" | ~ 8'0" |
| Linen | 2'0" x 1'2" | N/A |
| Shower | 3'4" x 2'8" | N/A |
General specifications
| Total living area | 1040 sq.ft. |
| 1st level | 1040 sq.ft. |
| Width | 36'0" |
| Depth | 32'4" |
| Ridge height from top of foundation | 20'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Functional Flowing Contemporary House Plan
Enjoy this efficient contemporary bungalow designed for living. The ground level entry features a 12 ft. ceiling, generous closet and easy access to the kitchen. The open floor plan flows easily from the island kitchen to the rear-oriented living and dining room with patio access.
Two bedrooms share a bathroom complete with soaker tub and separate 40" x 32" shower.
Need more room? Effectively double your living space by finishing the raised basement.
Distinctive elements
Entrance with 12 ft. ceiling and quick access to the kitchen. Kitchen with central 36" x 76" lunch island. Living room/dining room in the back of the house with access to the terrace. Separate 40" x 32" shower in the bathroom.
Plan feature(s)
Open floor layout, Island, Separate bath and shower
Plan architectural style(s)
. Contemporary, . Modern / Design, . Mid-century
