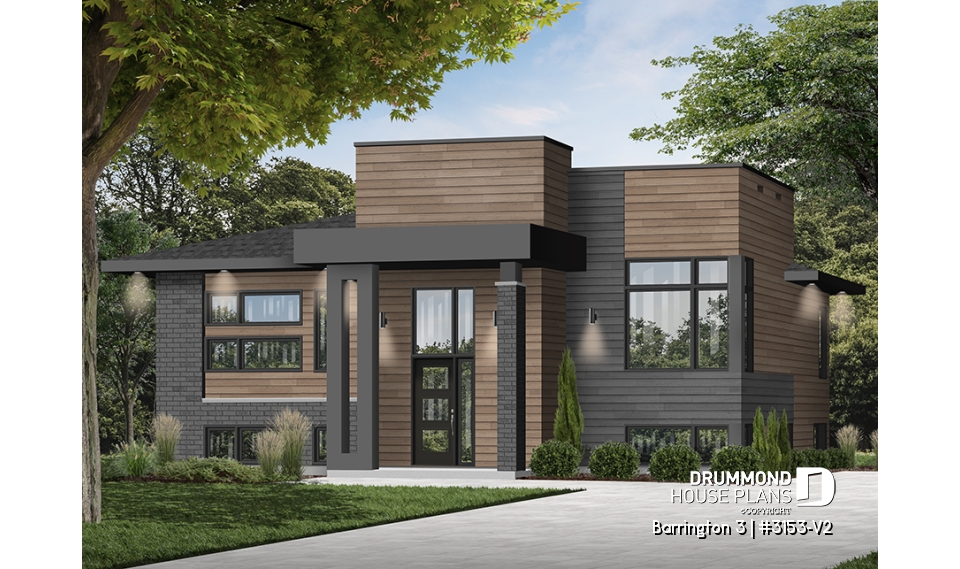

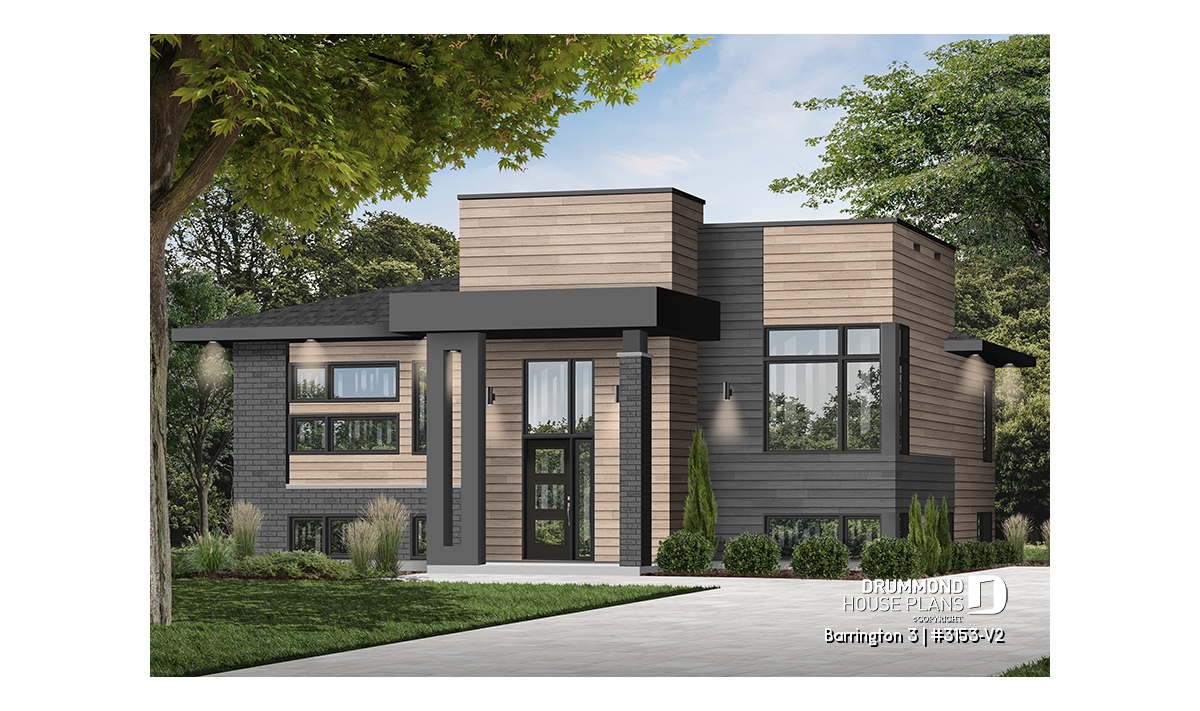

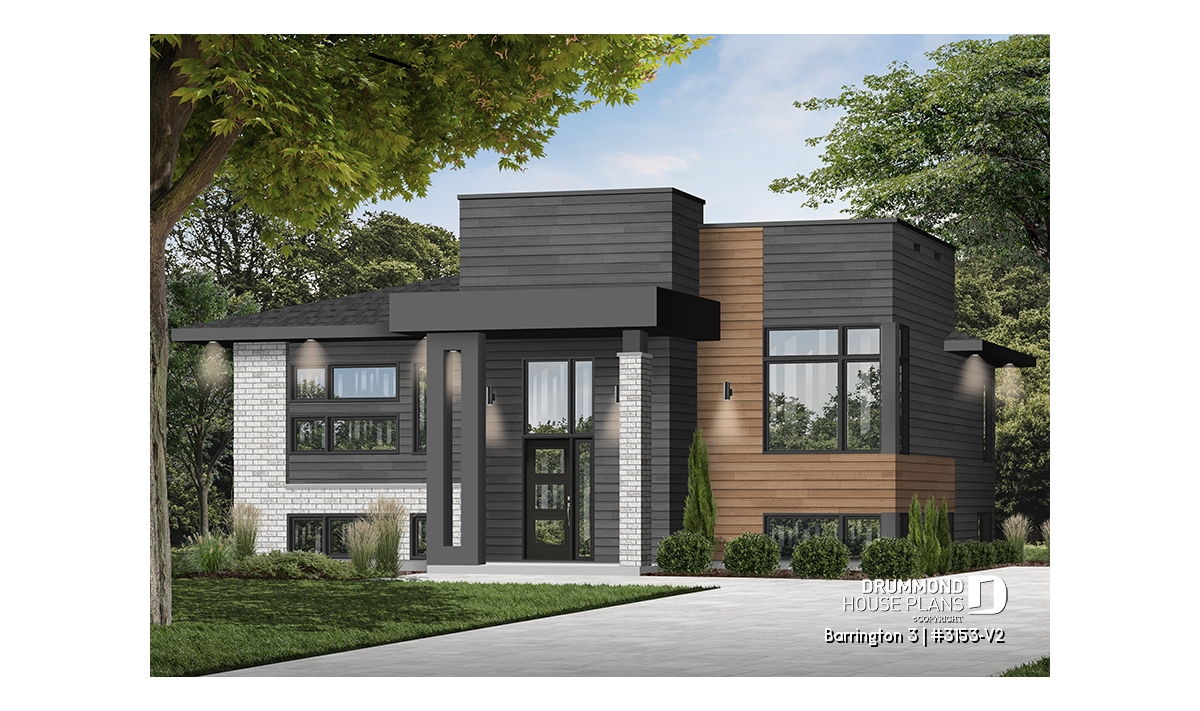

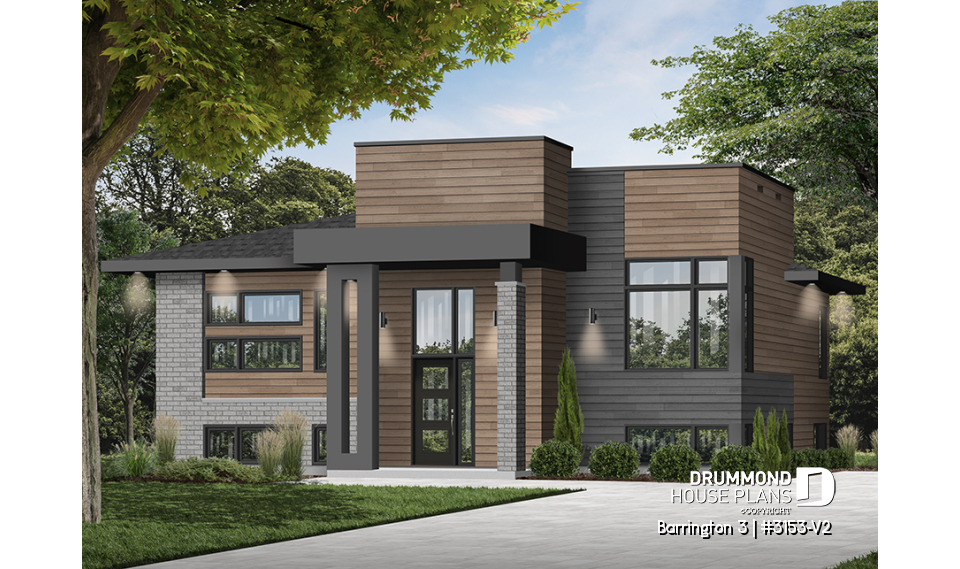

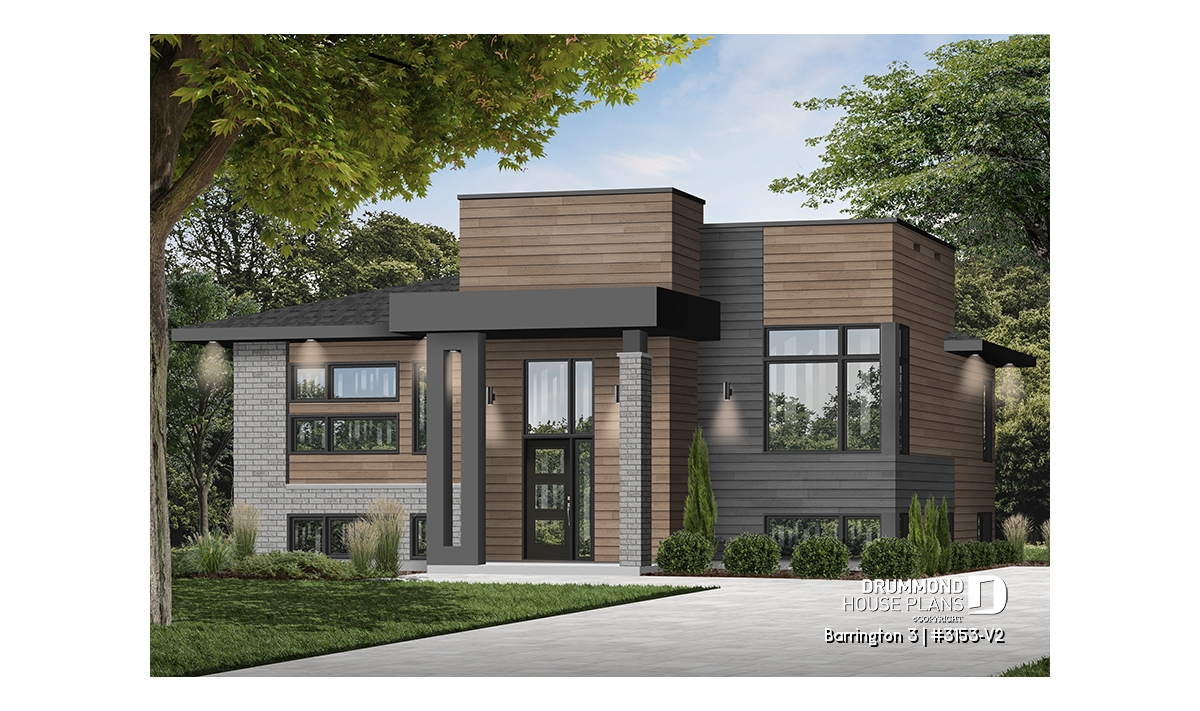

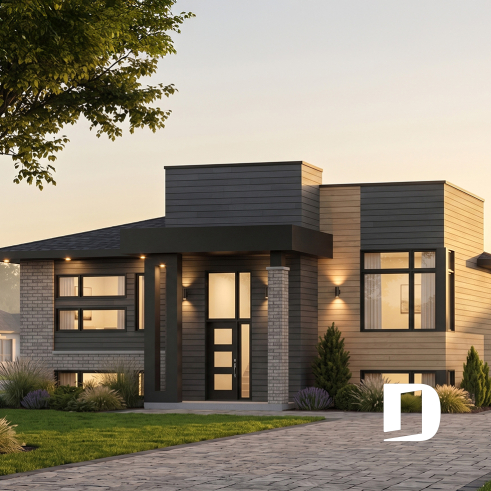

Barrington 3 (3153-V2)
Small Modern house plan, 2 beds, 10' ceiling in family room, large bathroom, kitchen island
View the size of the rooms and height of the ceilings

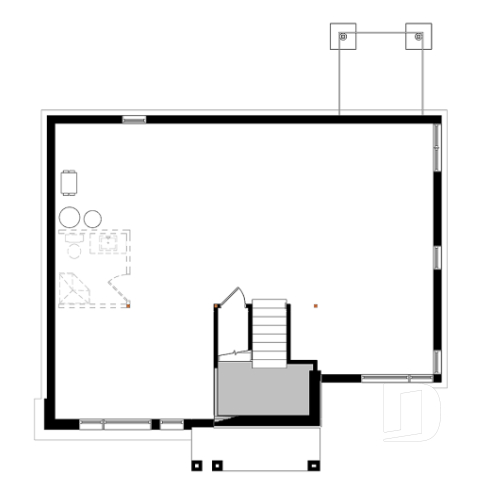

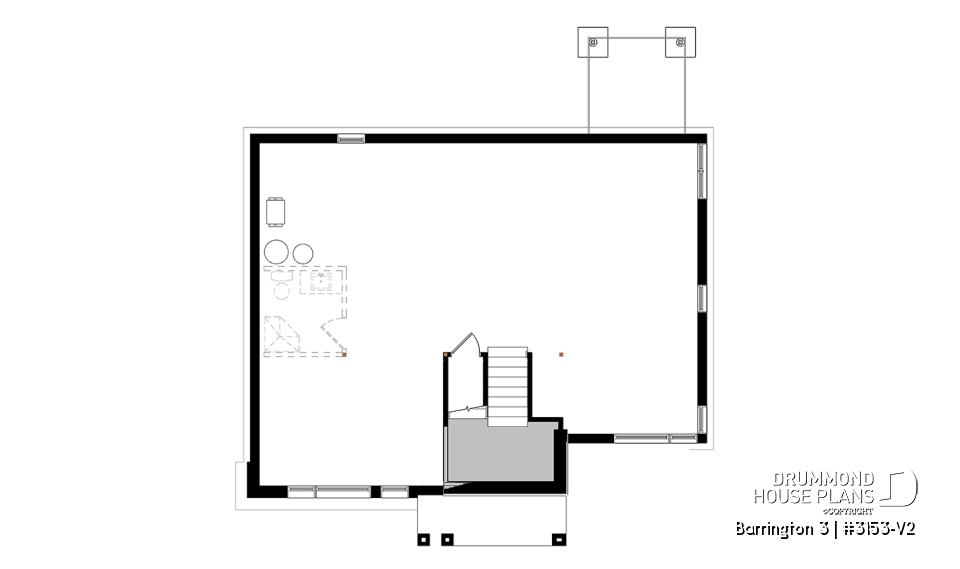

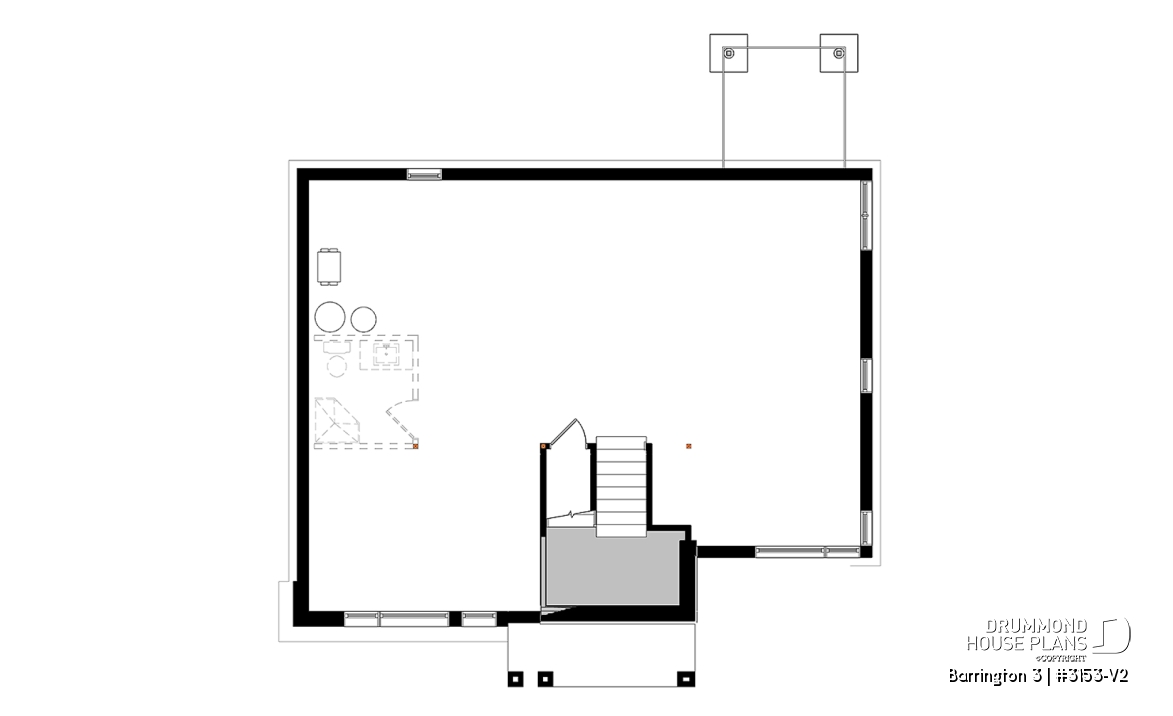

| Basement |
|---|

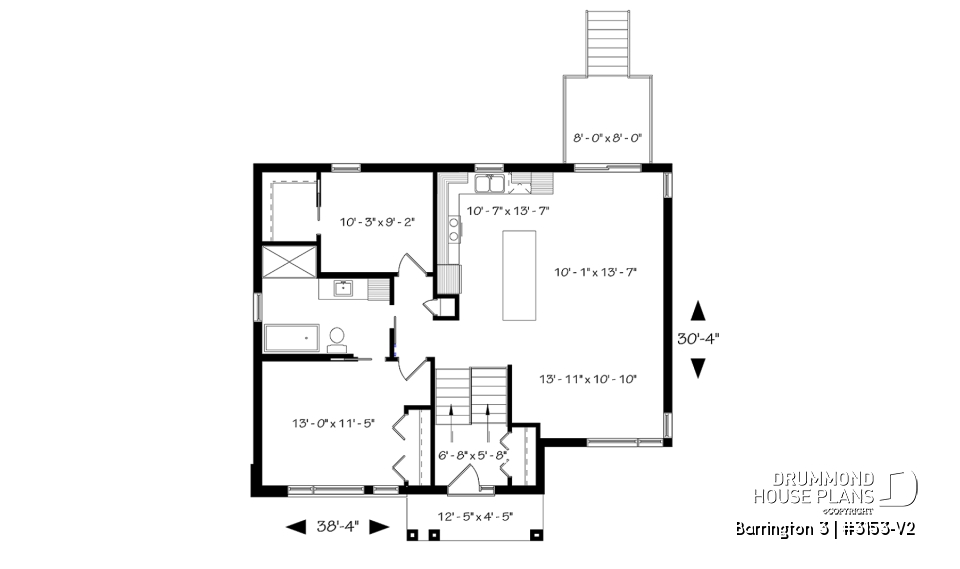

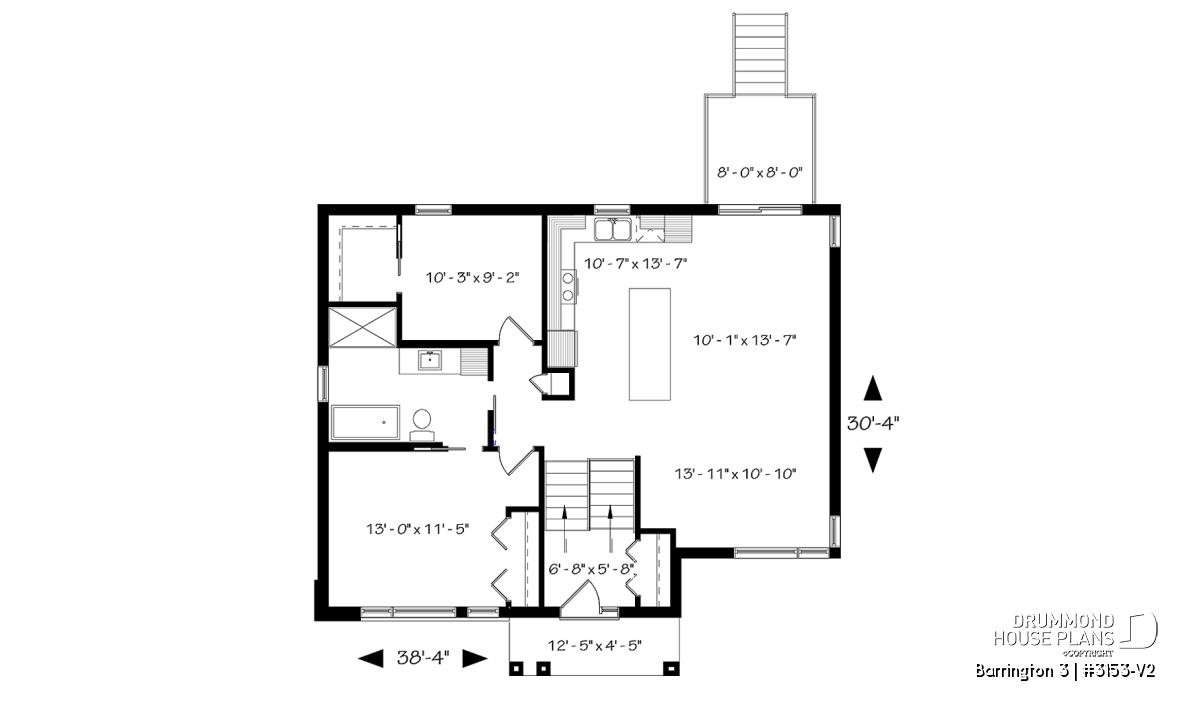

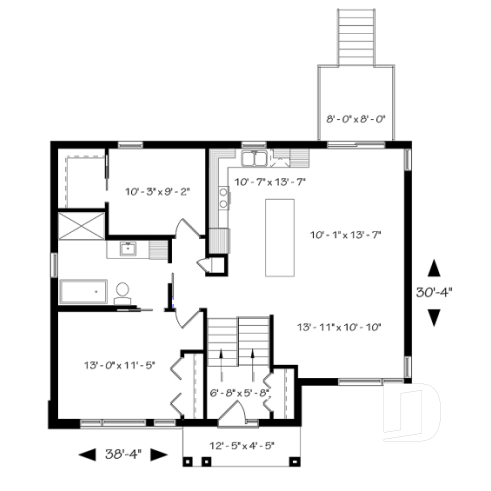

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 11'5" | ~ 8'0" |
| Closet | 2'0" x 7'0" | ~ 8'0" |
| Bedroom | 10'3" x 9'2" | ~ 8'0" |
| Walk-in closet | 5'0" x 6'3" | ~ 8'0" |
| Full bathroom | 11'8" x 6'11" | ~ 8'0" |
| Living room | 13'11" x 10'10" | ~ 10'0" |
| Kitchen | 10'8" x 13'7" | ~ 8'0" |
| Dining room | 10'1" x 13'7" | ~ 8'0" |
| Foyer | 6'8" x 5'8" | ~ 14'6" |
| Closet | 2'2" x 5'5" | ~ 14'6" |
| Linen | 1'8" x 1'8" | ~ 8'0" |
| Covered porch | 12'5" x 4'4" | N/A |
| Terrace | 8'0" x 8'0" | N/A |
General specifications
| Total living area | 1094 sq.ft. |
| Basement | 1094 sq.ft. |
| 1st level | 1094 sq.ft. |
| Width | 38'4" |
| Depth | 30'4" |
| Ridge height from top of foundation | 20'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan

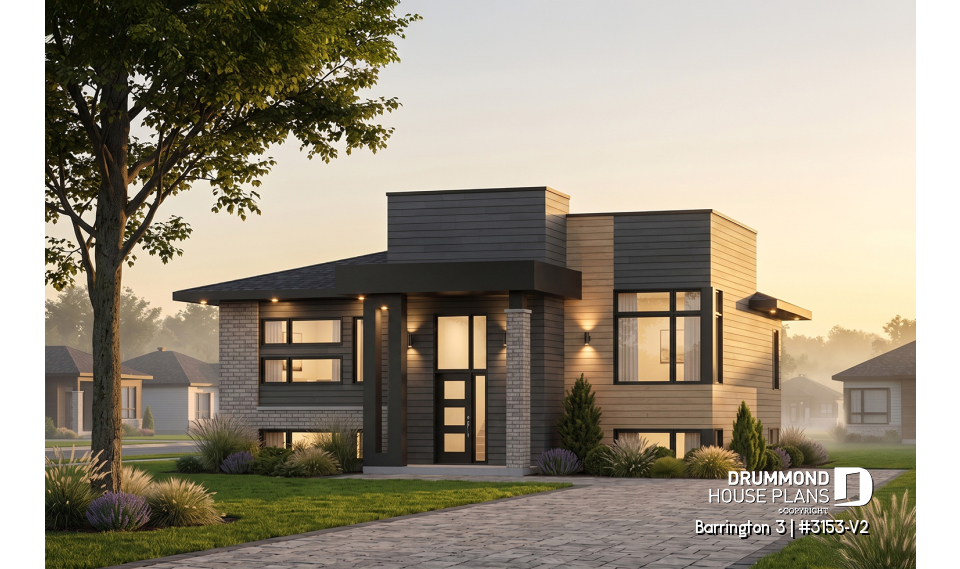

Modern cube-shaped house plan with great open floor plan concept.
.
Distinctive elements
Modern house plan with 2 beds.
Affordable cubic style home.
Lots of windows.
Split entry with coat closet.
10' ceiling in family room.
Walk-in closet in secondary bedroom.
Large master bedroom.
Full bathroom with large shower and separate bath tub.

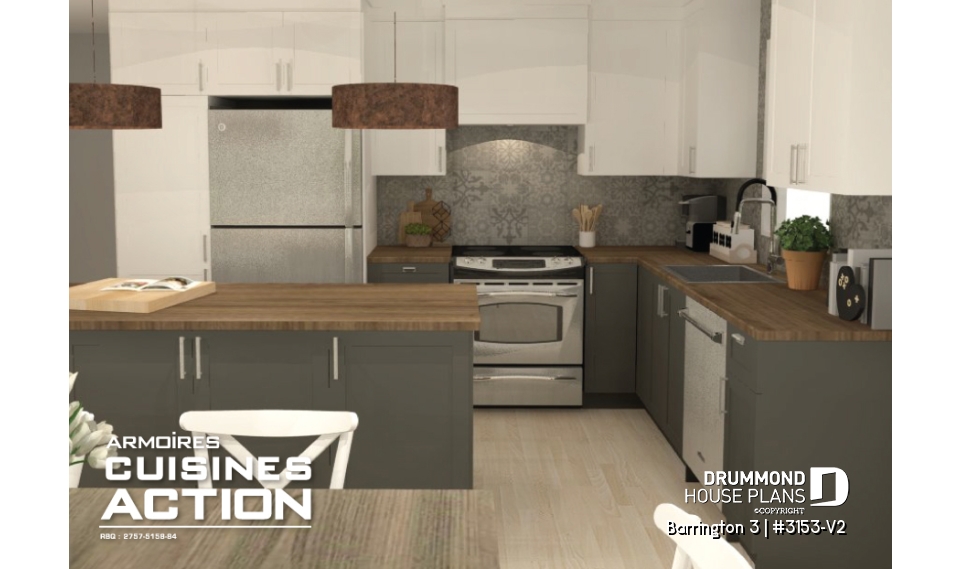

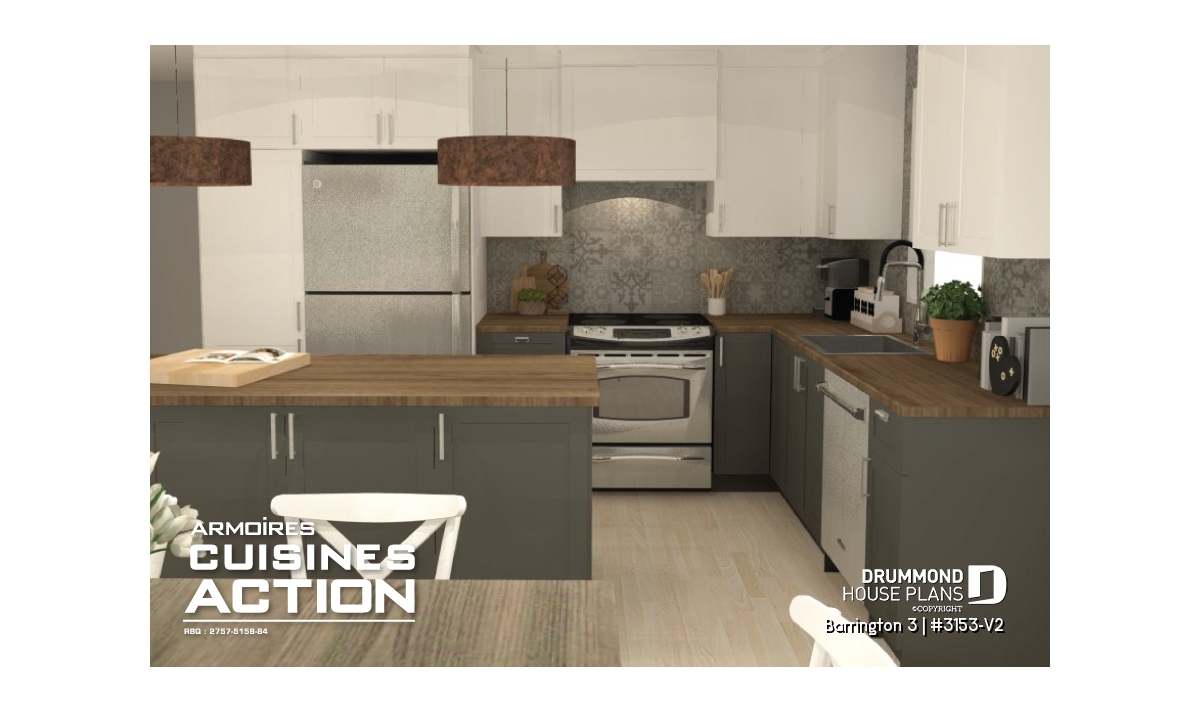

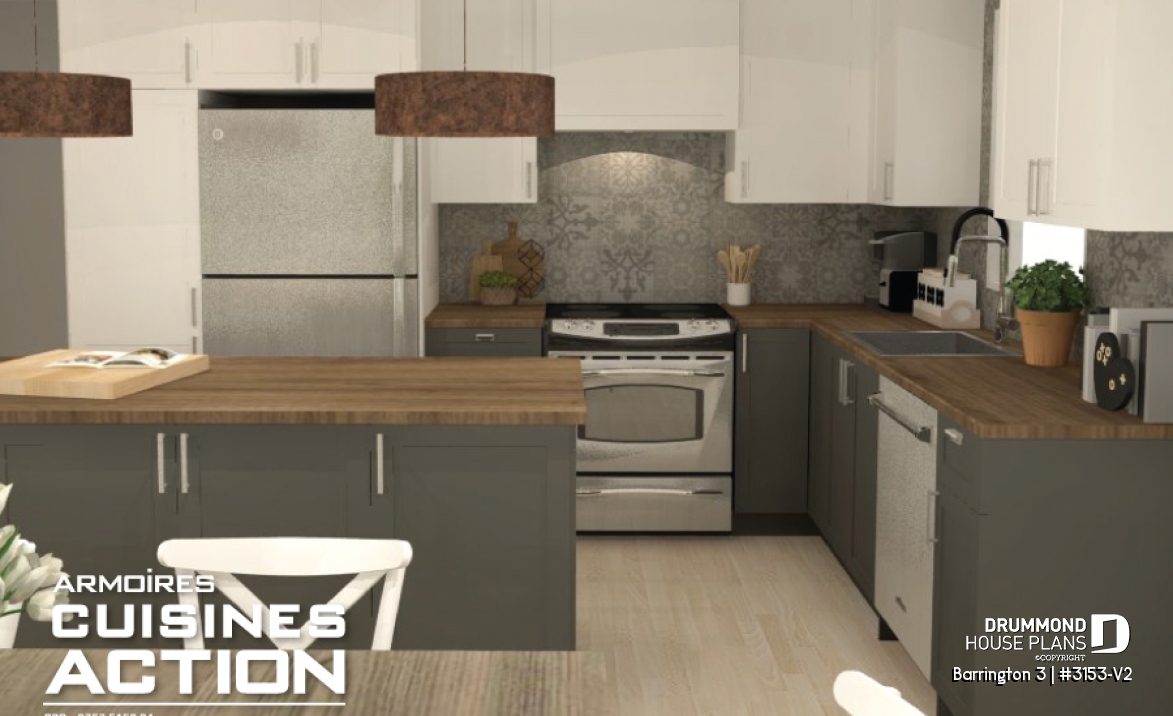

Kitchen with central island.

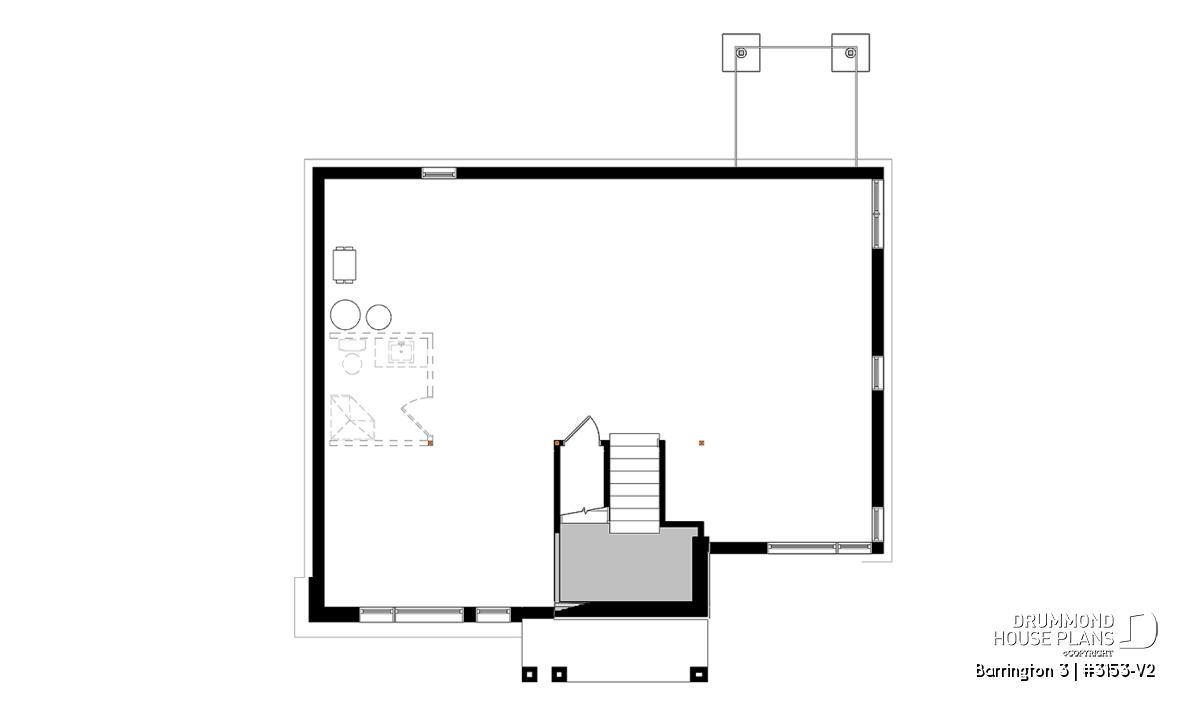

Unfinished daylight basement. Other foundation options available.
Plan feature(s)
Open floor layout, Island, Separate bath and shower, Ceiling over 8'
Plan architectural style(s)
