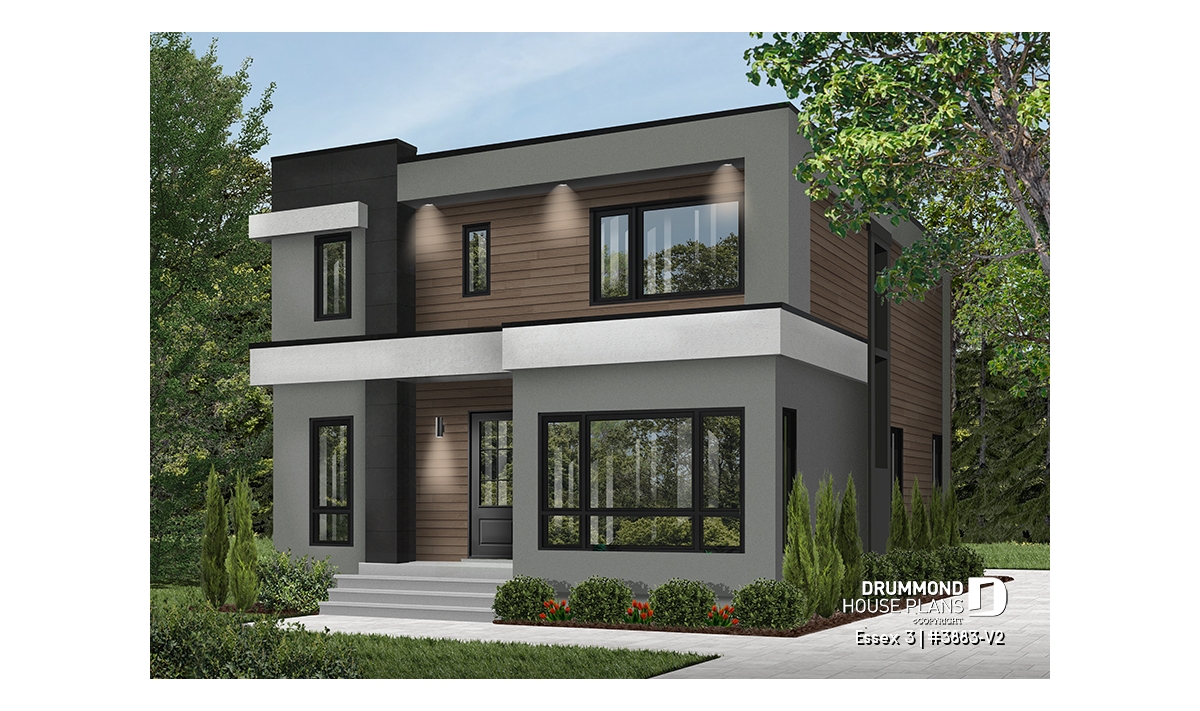

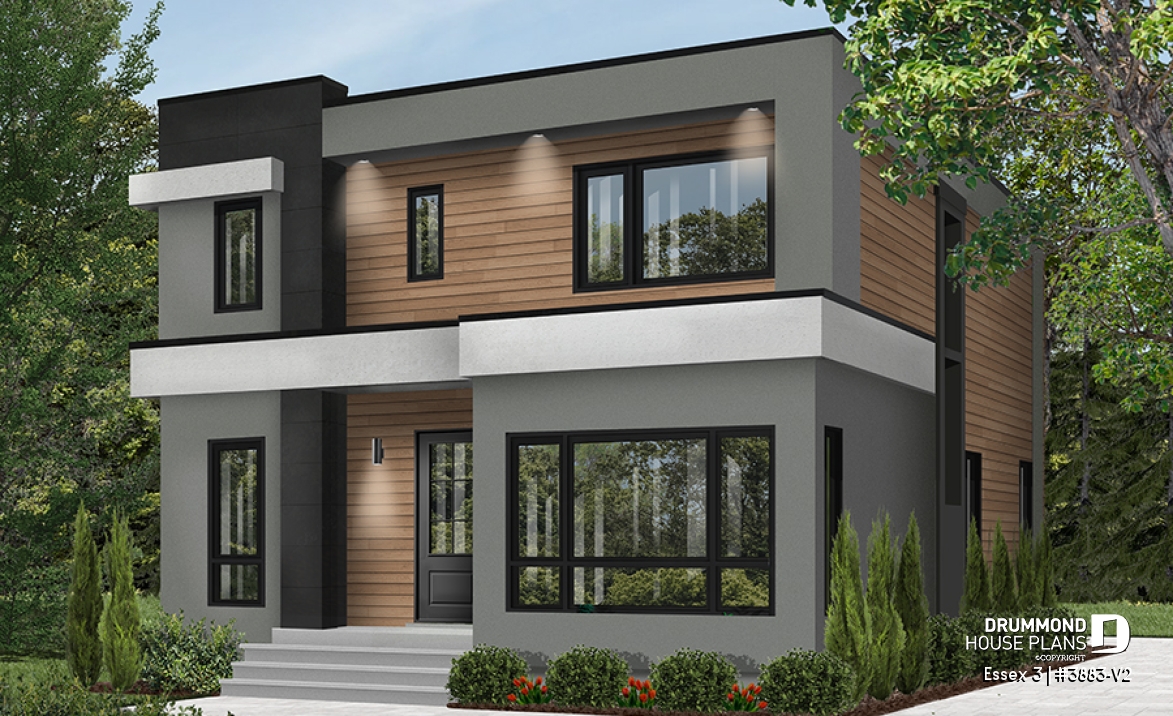

House plan Essex 3 (3883-V2)
Contemporary Modern home design, 3 bedrooms, pantry & kitchen island, home office, laundry room on main
View the size of the rooms and height of the ceilings

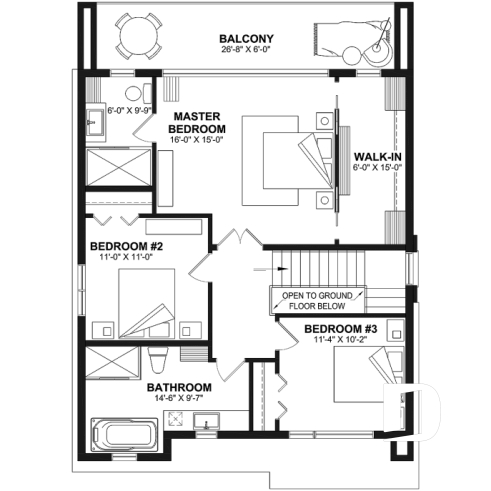

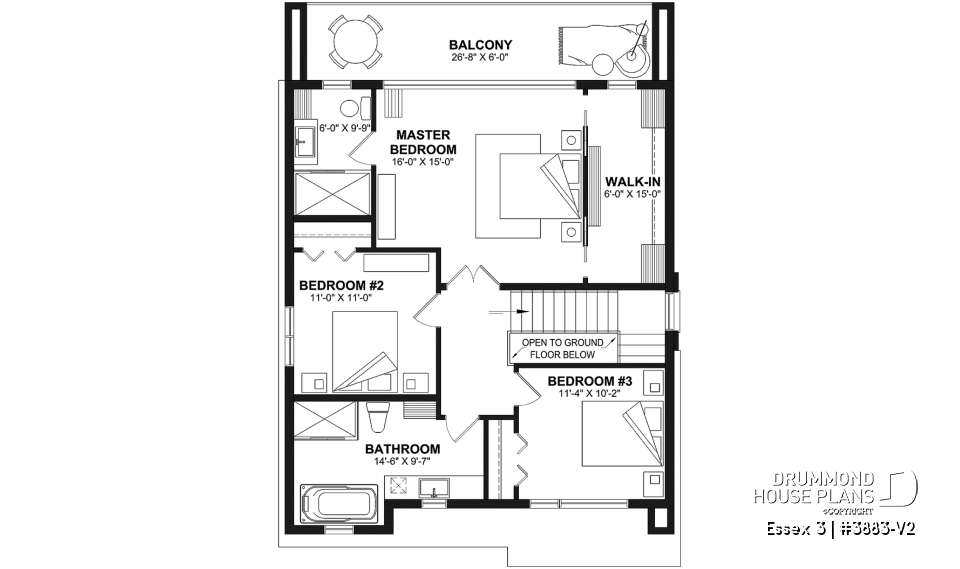

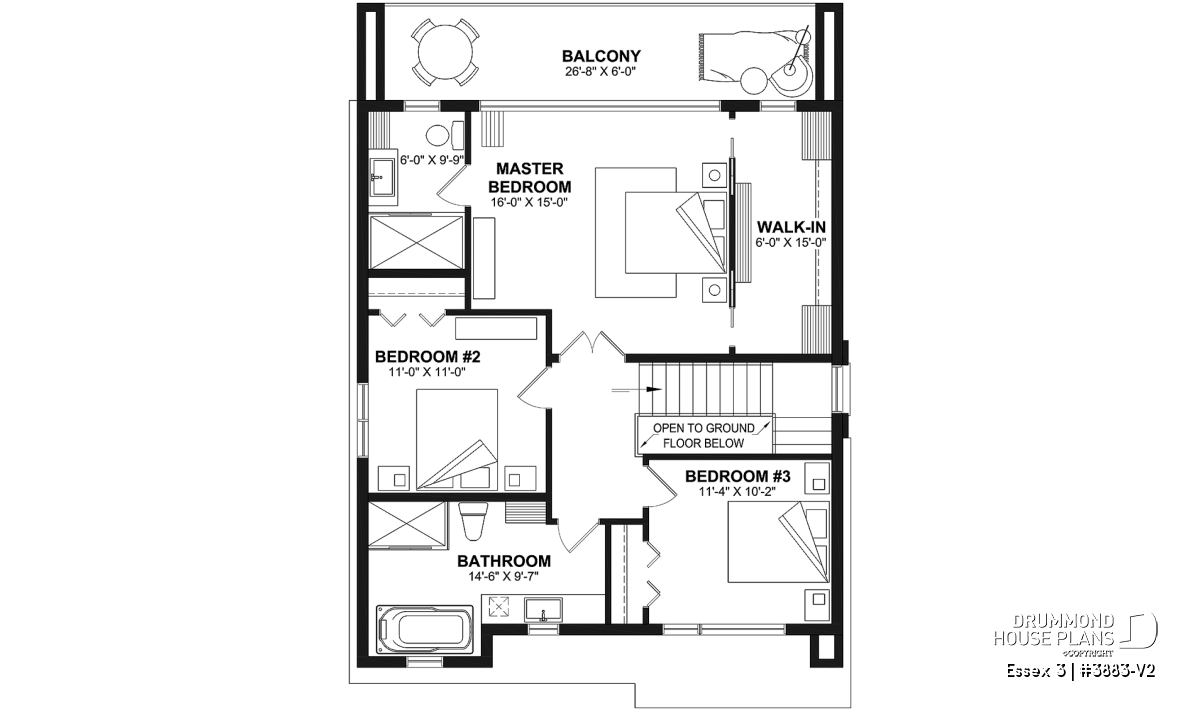

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 16'0" x 15'0" | ~ 8'0" |
| Walk-in closet | 6'0" x 15'0" | ~ 8'0" |
| Shower room or three quarter bath | 6'0" x 10'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Closet | 6'0" x 2'0" | ~ 8'0" |
| Bedroom | 11'4" x 10'2" | ~ 8'0" |
| Closet | 2'0" x 6'2" | ~ 8'0" |
| Balcony | 26'8" x 6'0" | N/A |
| Full bathroom | 14'8" x 7'8" | ~ 8'0" |

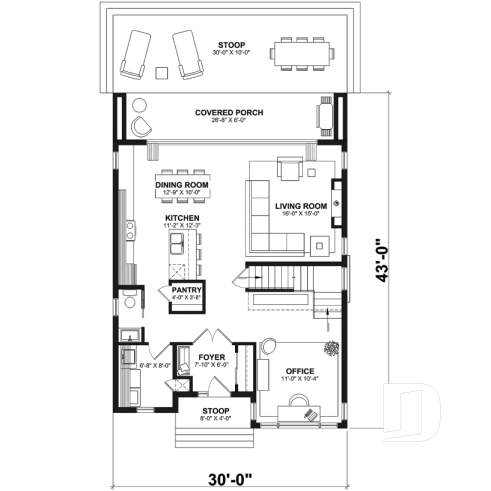

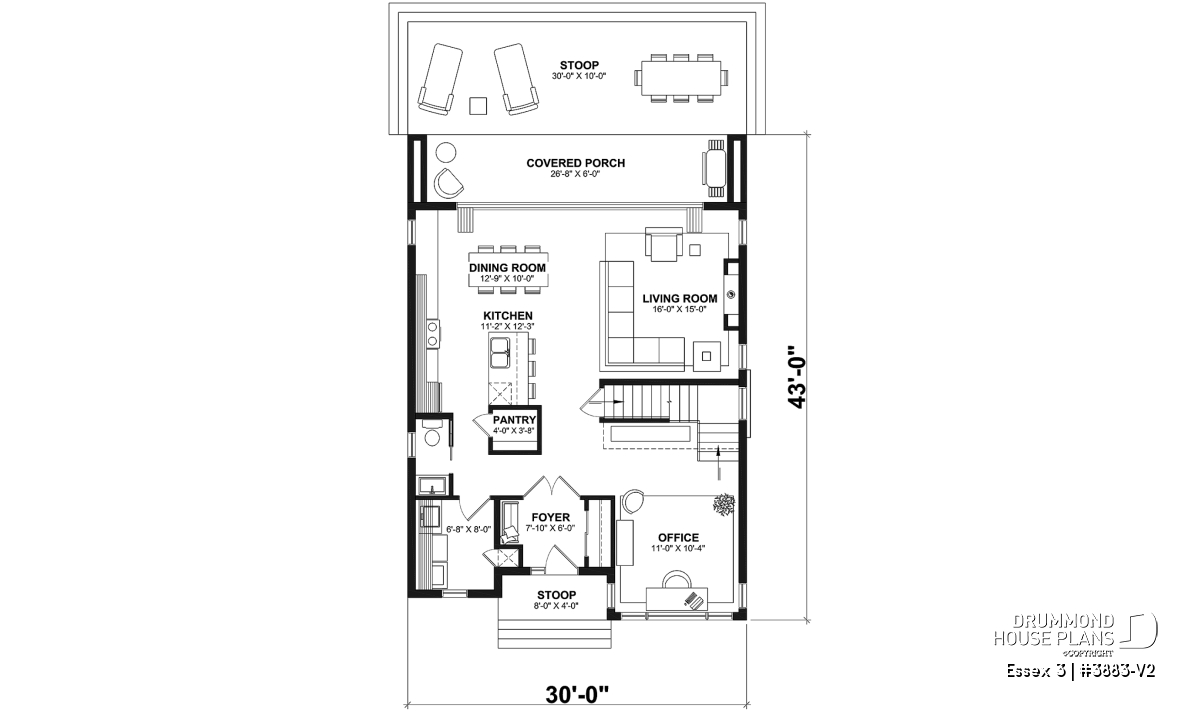

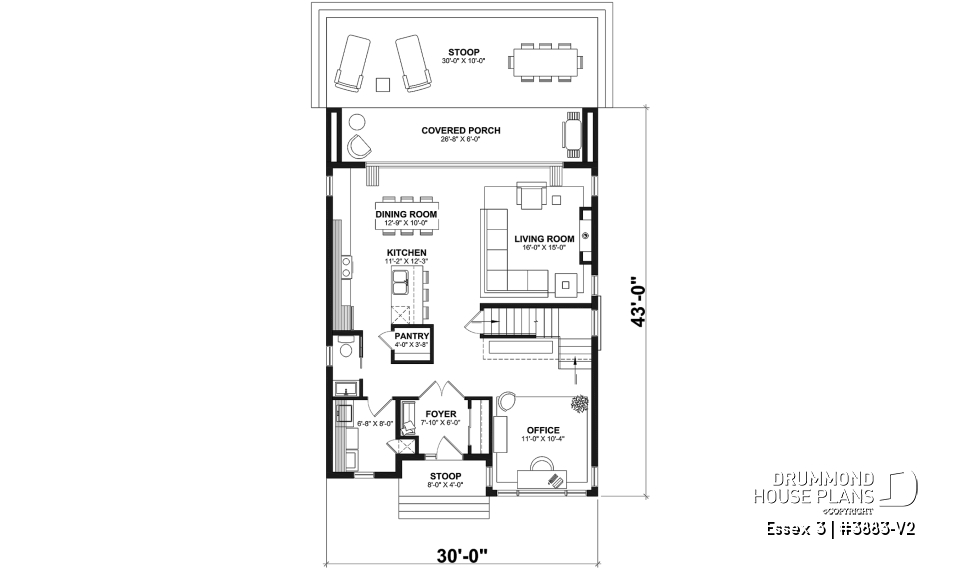

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 16'0" x 15'0" | ~ 9'0" |
| Home office | 11'1" x 10'0" | ~ 9'0" |
| Foyer | 7'7" x 6'0" | ~ 9'0" |
| Closet | 2'0" x 6'0" | ~ 9'0" |
| Laundry room | 7'1" x 8'0" | ~ 9'0" |
| Kitchen/dining room | 12'9" x 17'4" | ~ 9'0" |
| Covered porch | 26'8" x 6'0" | N/A |
| Covered porch | 9'4" x 4'0" | N/A |
| Powder room | 3'0" x 7'0" | ~ 9'0" |
| Pantry | 4'0" x 3'8" | ~ 9'0" |
| Terrace | 30'0" x 10'0" | N/A |
| Basement |
|---|
General specifications
| Total living area | 2063 sq.ft. |
| 2nd level | 1007 sq.ft. |
| 1st level | 1056 sq.ft. |
| Basement | 1056 sq.ft. |
| Width | 30'0" |
| Depth | 43'0" |
| Ridge height from top of foundation | 22'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Modern Cube Shaped House Plan with 3 to 4 bedrooms and lots of natural light!
The sleek style of this Modern house plan will appeal to our forward-thinking customers that seeks to distinguish themselves, while respecting a tight budget. Offering 3 to 4 bedrooms, including a master suite on the second level, this house floor plans will appeal to families with several children as well as blended families, with all its versatile rooms (on the main floor and with an unfinished basement).
There is a 9’ ceiling throughout the main floor. The entrance hall features a practical coat closet, perfect for rainy days! A home office is located near the main entrance of the house and could also be easily converted into a nursery, bedroom #4 or a playroom, depending on your needs. The master suite is conveniently situated on the second floor and will appeal to families with younger children. The master suite includes a private covered balcony and also a good size walk-in closet. The master bathroom features a vanity, a large shower stall and a toilet area.

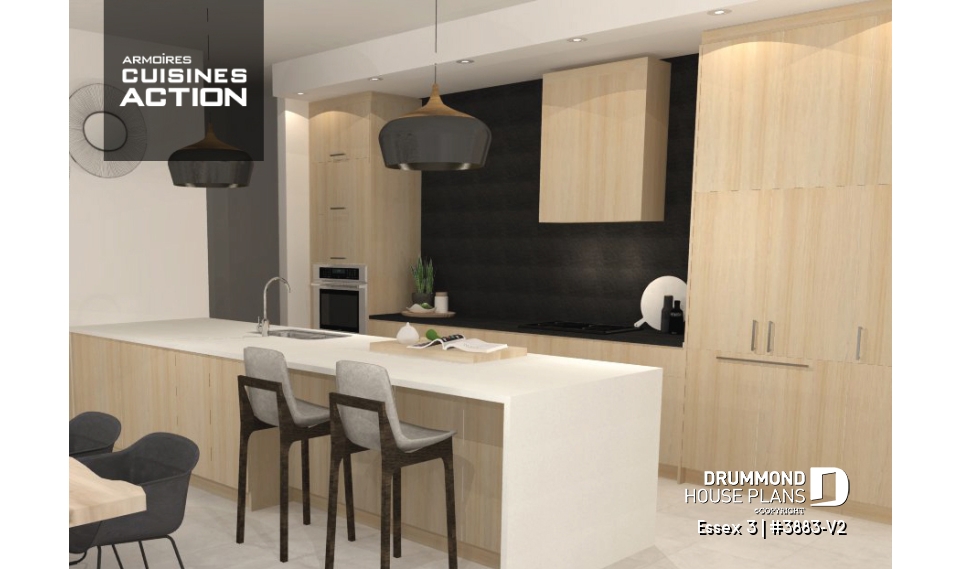

The kitchen offers plenty of counter space, a kitchen island and a practical pantry. The kitchen is also conveniently located near the half bath and the laundry room.

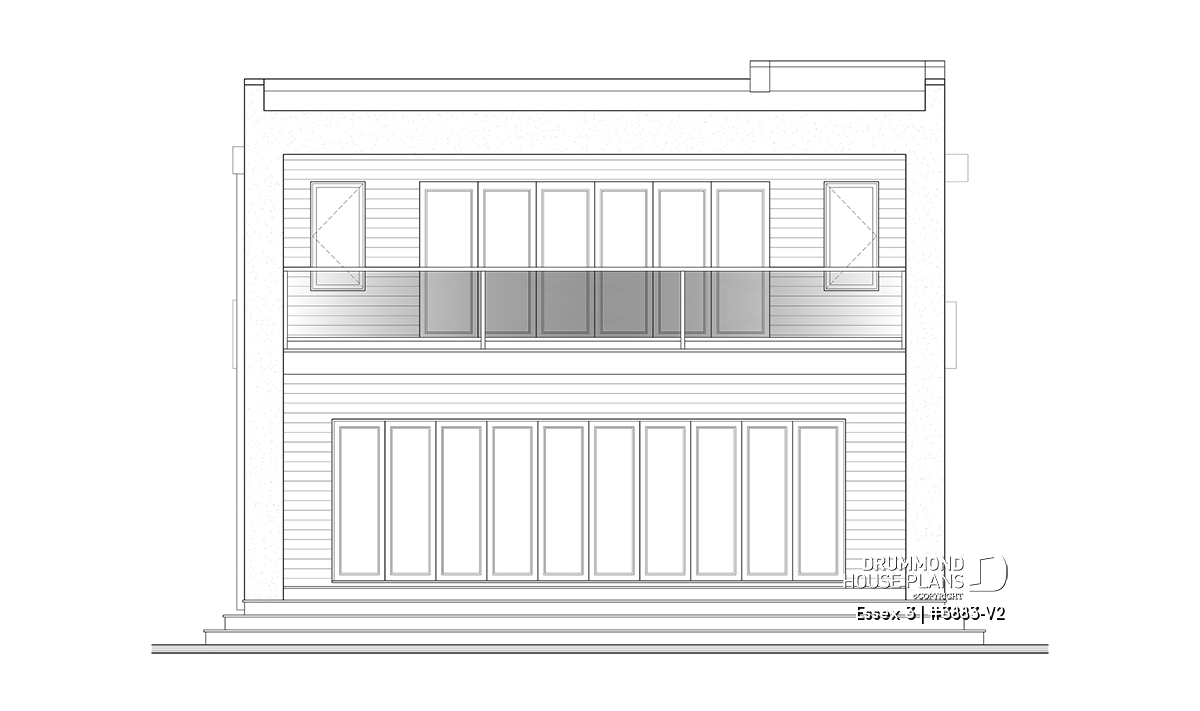

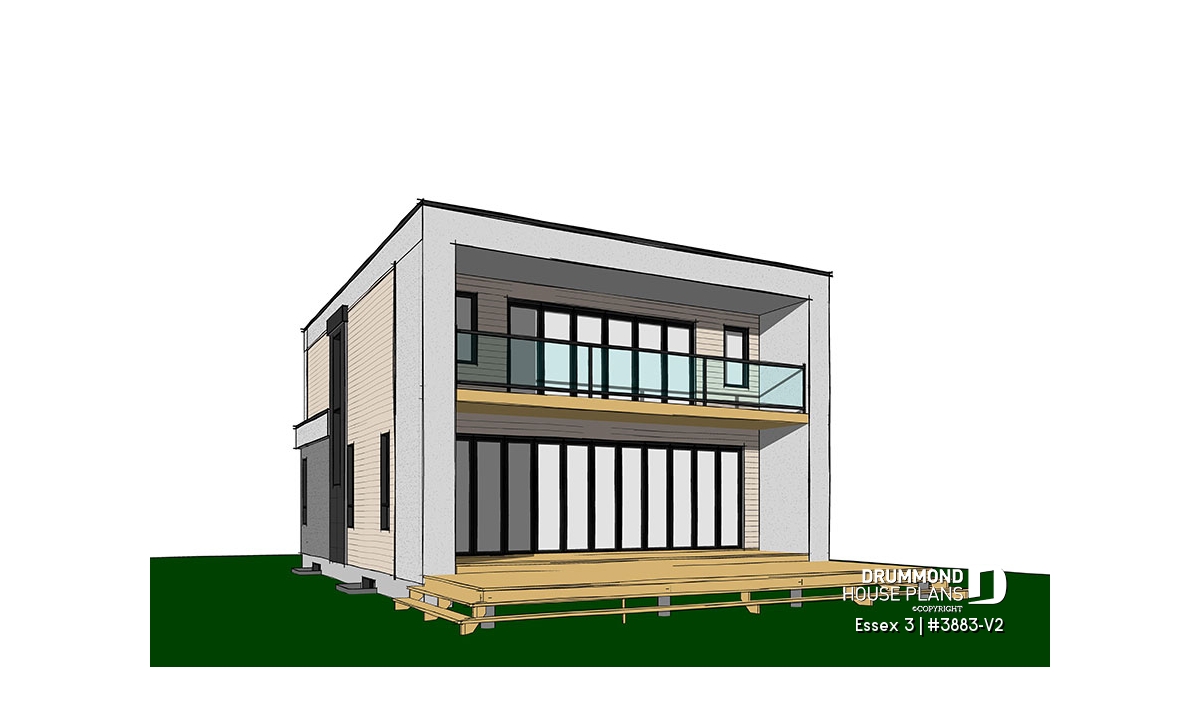

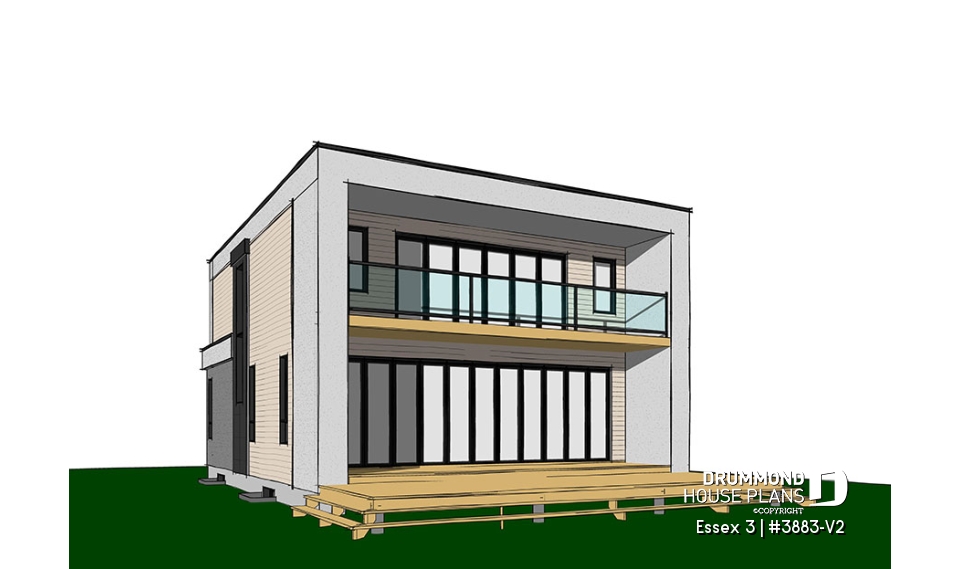

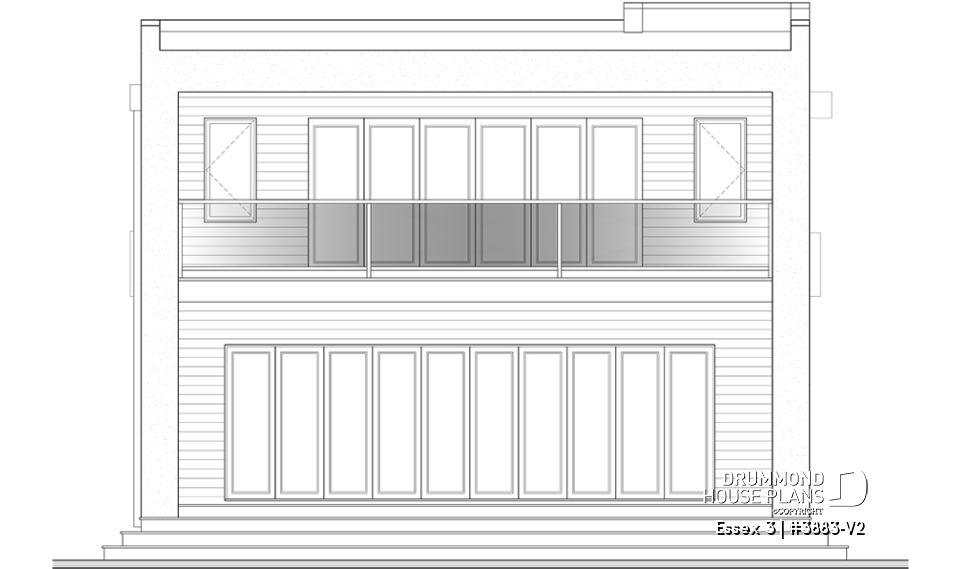

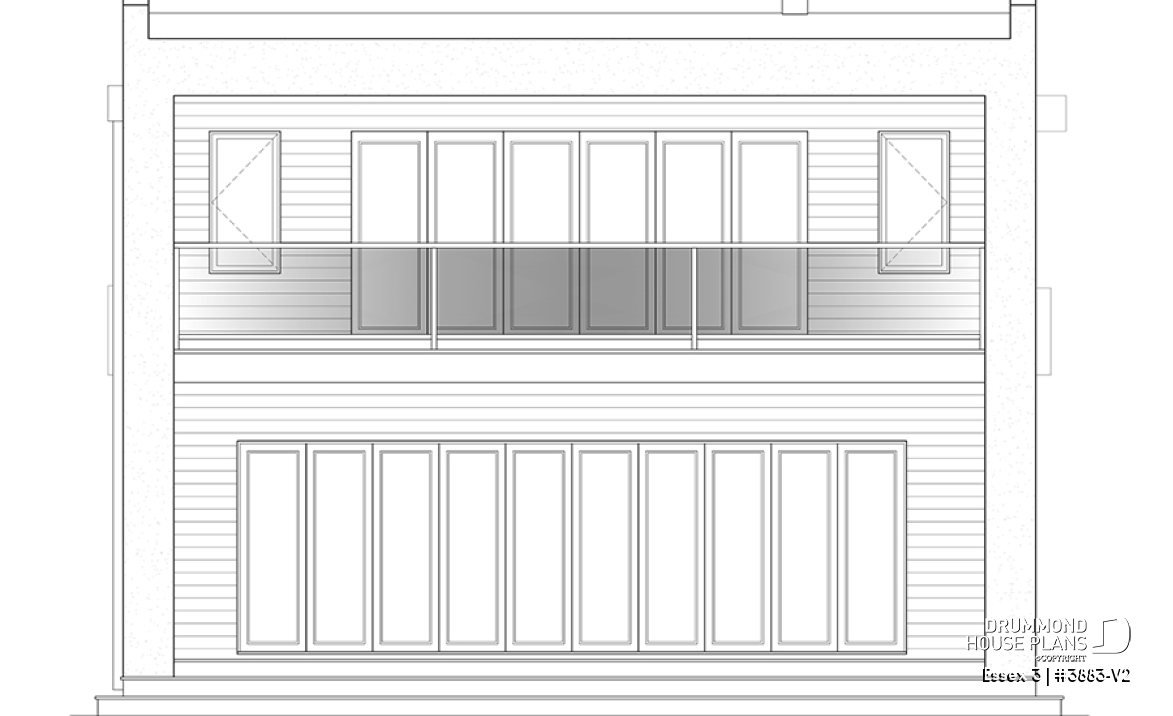

The family / living room has a fireplace and gets lots of natural light. In addition, a large covered terrace is accessible through retractable patio doors located in the dining room and family room area. The folding patio doors offer plenty of natural lights in the common areas.
On the second floor, two (2) good size bedrooms share a full bathroom with bathtub, shower, vanity, toilet and storage.
The unfinished basement will allow for extra bedrooms, storage, etc. in the future.
Two versions of this house plan are available with garage. Have a look at house plan # 3883 and # 3883-V1 if you would like to get this home with a garage.
Distinctive elements
Contemporary Cube shaped house plan with lots of natural light.
9 'ceiling throughout the main floor.
Closed foyer with coat closet.
Home office or bedroom #4 or nursery room on main floor.

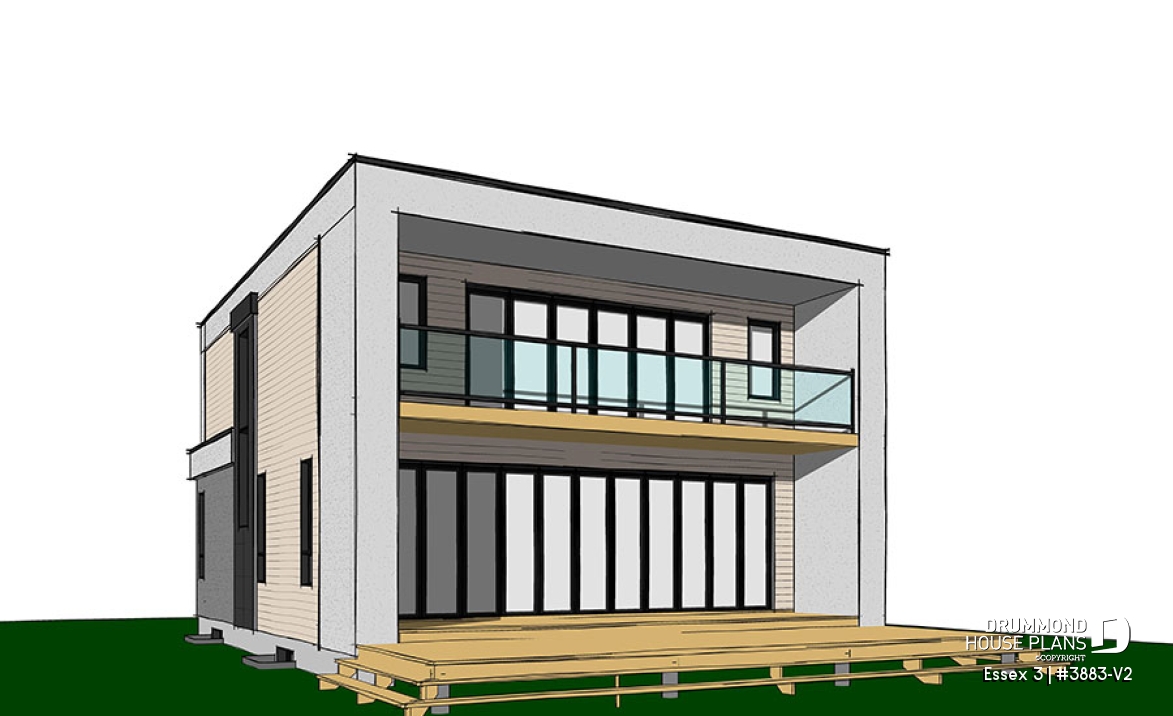

Master suite with private balcony and good size walk-in. Master bathroom with large shower stall.
Kitchen with lots of counter space, a kitchen island and a good size pantry. Living room with fireplace.
Folding patio doors in the dining and family room area, leading to a covered terrace at the rear of the house.
Half bathroom and laundry room located off the kitchen.
2 secondary good size bedrooms share a very large bathroom with separate shower and bathtub.
Unfinished basement can be easily finished for additional bedrooms, storage, home theater, etc.
Plan feature(s)
Gound floor laundry room, Laundry chute, Office / Study / Den, Fireplace, Island, Pantry, Ceiling over 8', Master suite upstairs, Narrow lot, Deck
