House plan Sequoia (3713)
Attractive & Affordable Small Contemporary home plan, 3 bedrooms with 2 family rooms, master with walk-in
View the size of the rooms and height of the ceilings

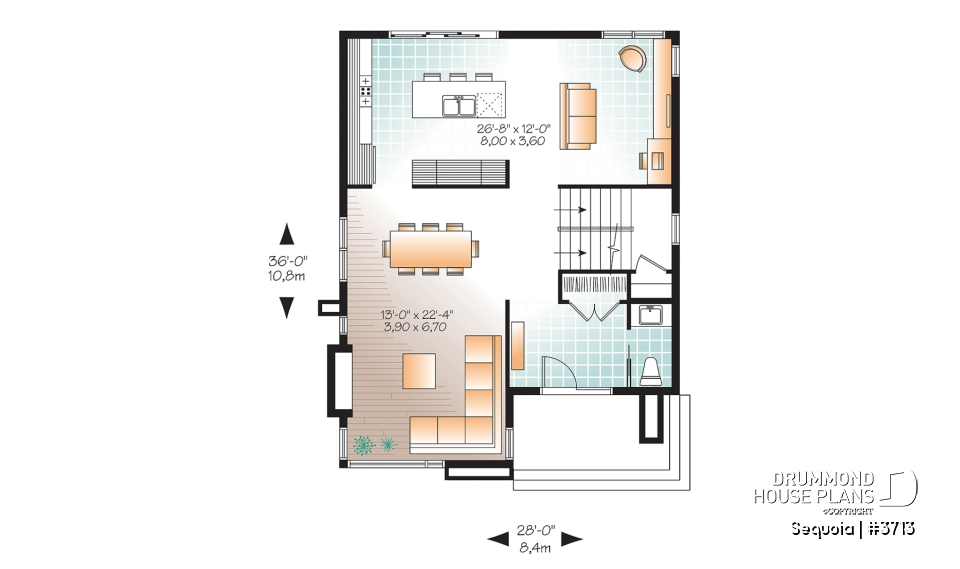

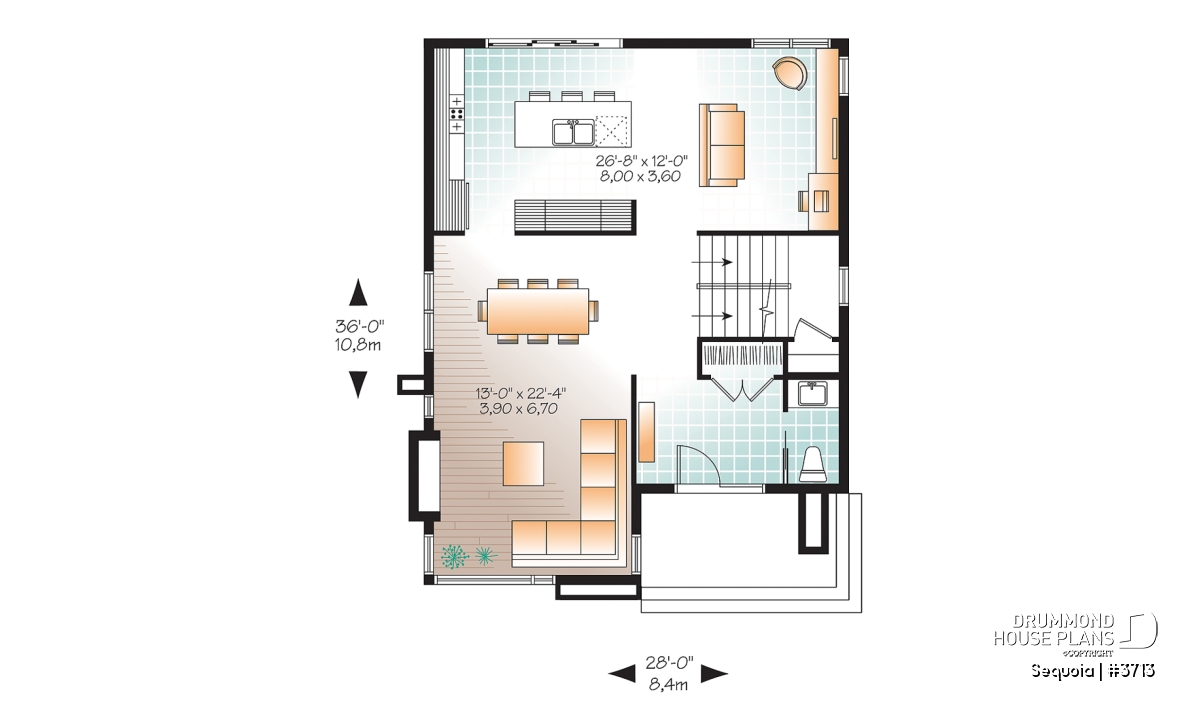

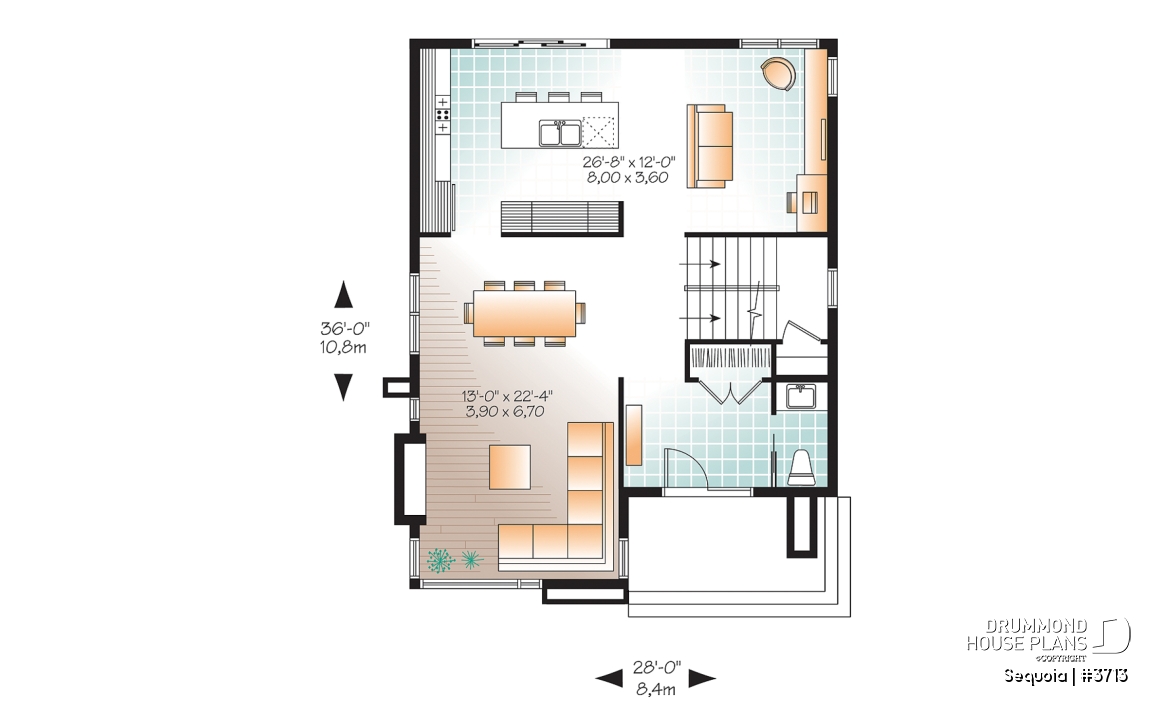

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 13'4" x 12'0" | ~ 9'0" |
| Pantry | 7'8" x 2'0" | N/A |
| Living room | 9'4" x 12'0" | ~ 9'0" |
| Living room/dining room | 13'0" x 22'4" | ~ 9'0" |
| Foyer | 9'8" x 6'10" | ~ 9'0" |
| Closet | 5'4" x 2'2" | ~ 9'0" |
| Half bath or powder room | 3'4" x 6'10" | ~ 9'0" |
| Storage | 3'4" x 2'0" | ~ 14'0" |
| Laundry room | 3'0" x 6'8" | ~ 9'0" |
| Porch | 12'10" x 6'2" | N/A |
| Deck | 16'0" x 12'0" | N/A |

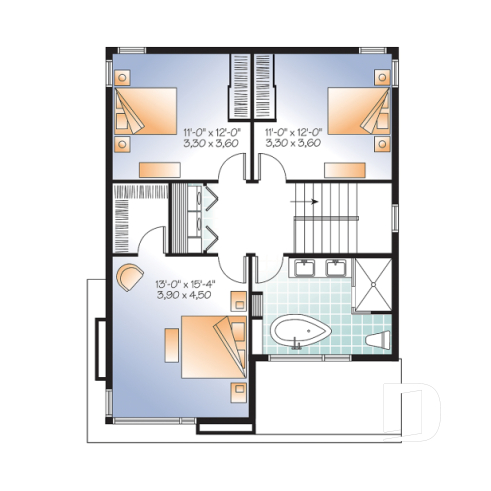

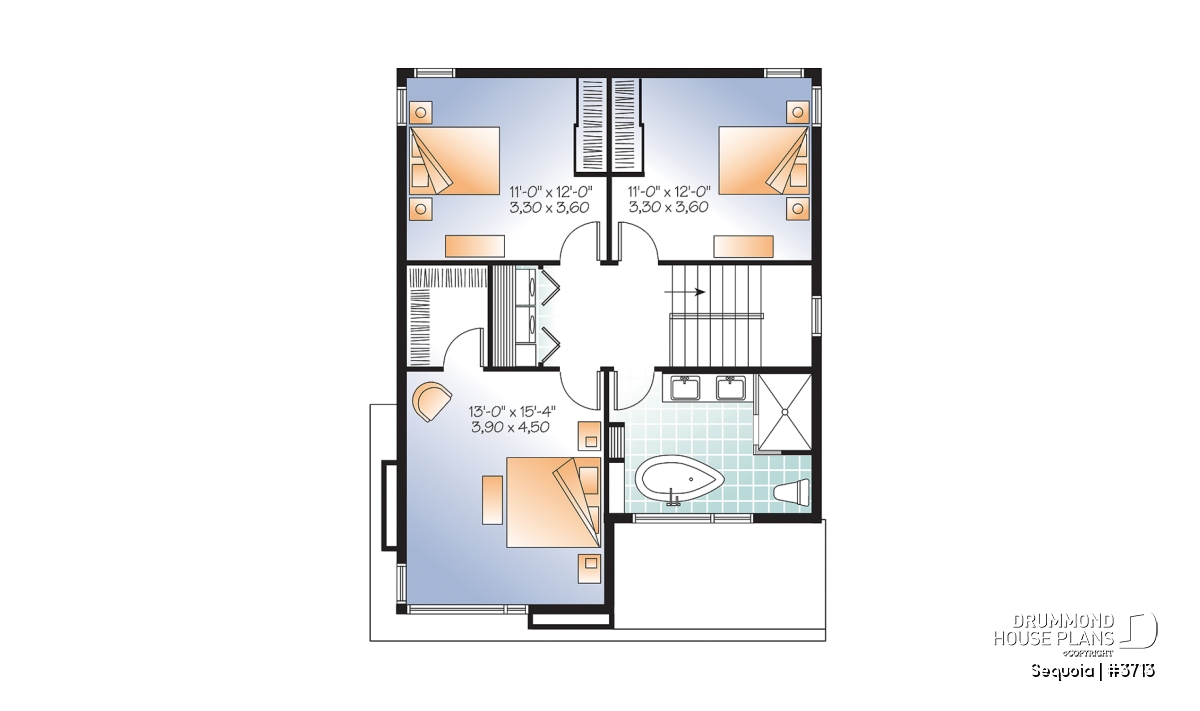

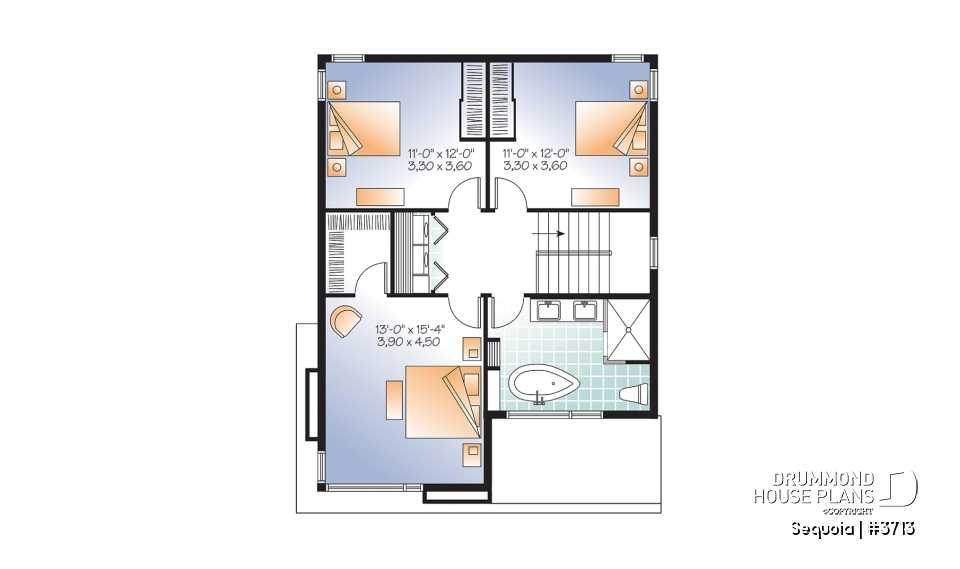

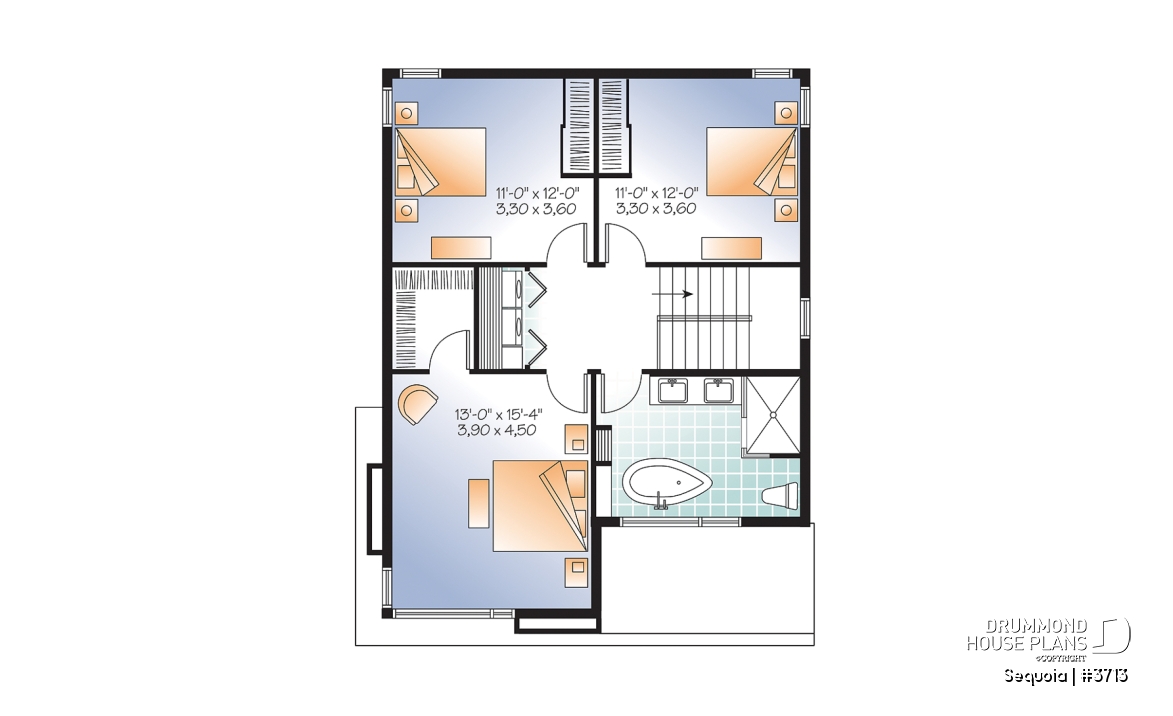

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 15'4" | ~ 8'0" |
| Walk-in closet | 5'4" x 6'8" | ~ 8'0" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 6'2" | ~ 8'0" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Closet | 2'0" x 6'2" | ~ 8'0" |
| Full bathroom | 13'4" x 9'2" | ~ 8'0" |
General specifications
| Total living area | 1852 sq.ft. |
| 1st level | 926 sq.ft. |
| 2nd level | 926 sq.ft. |
| Width | 28'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 26'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

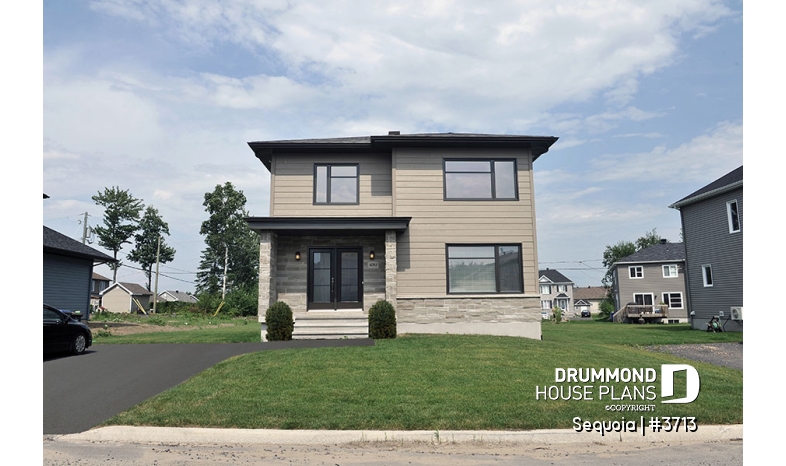

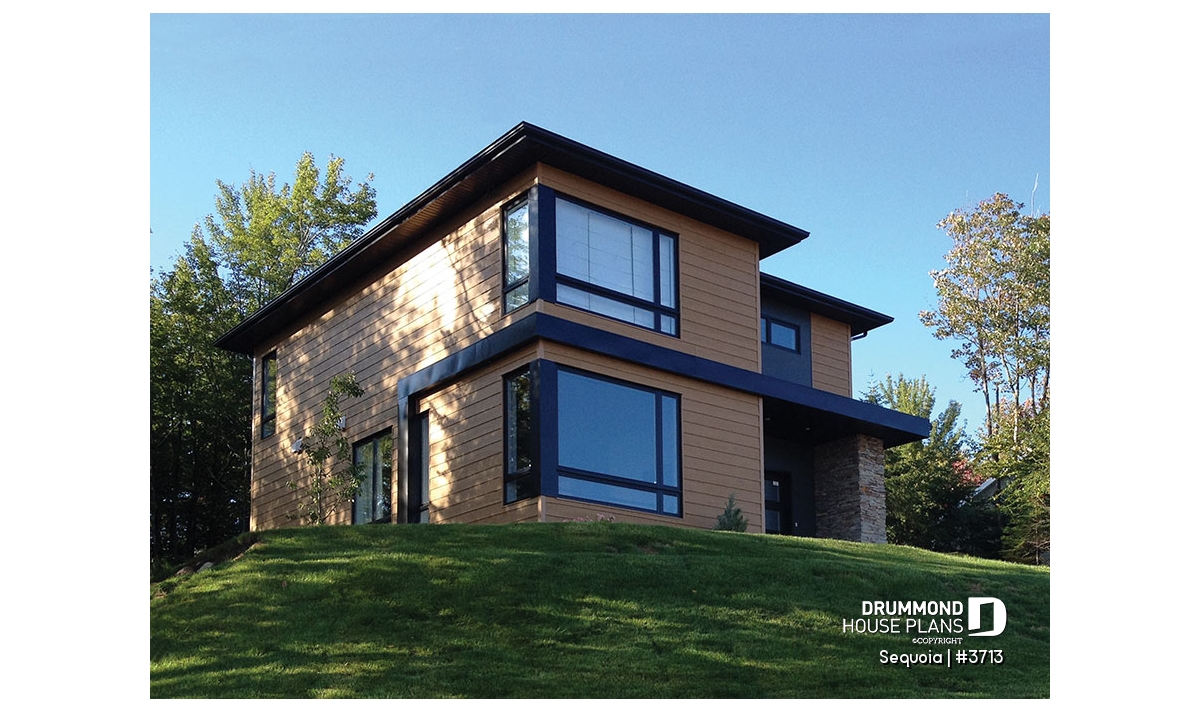

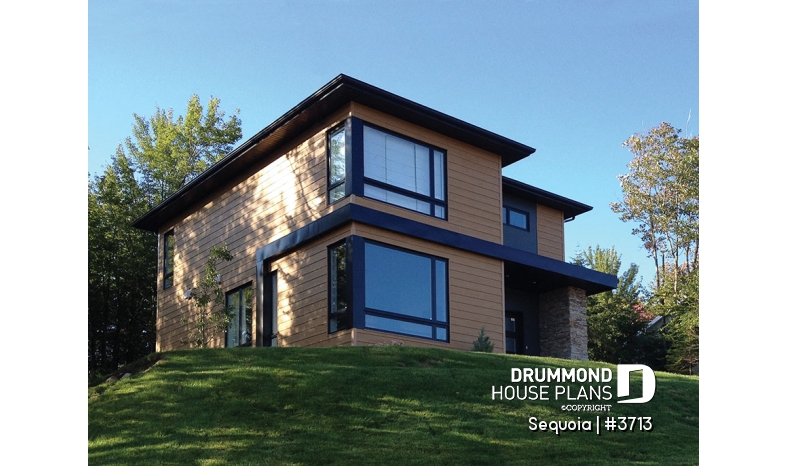

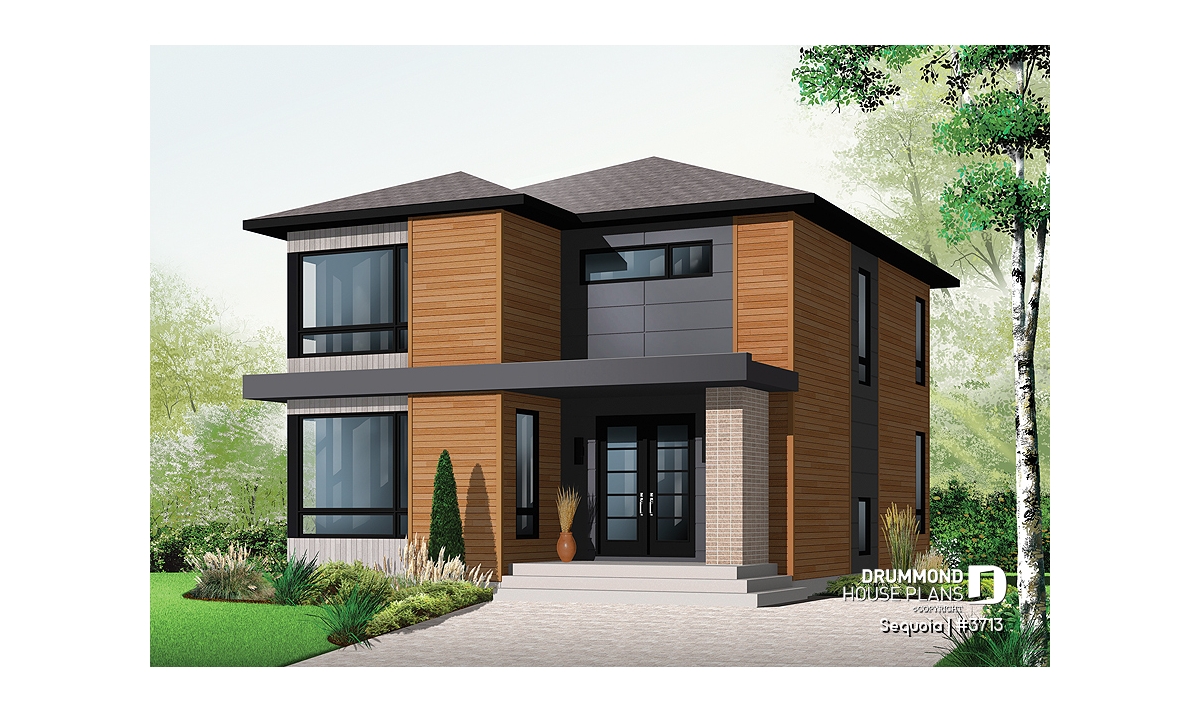

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

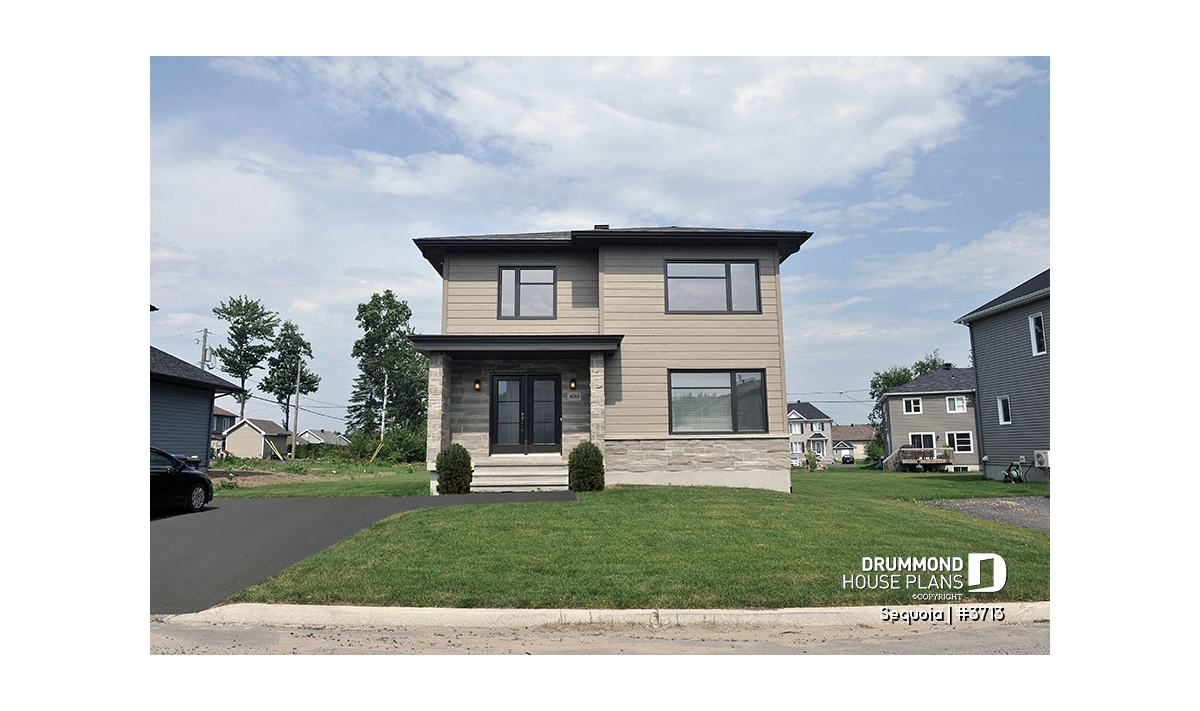

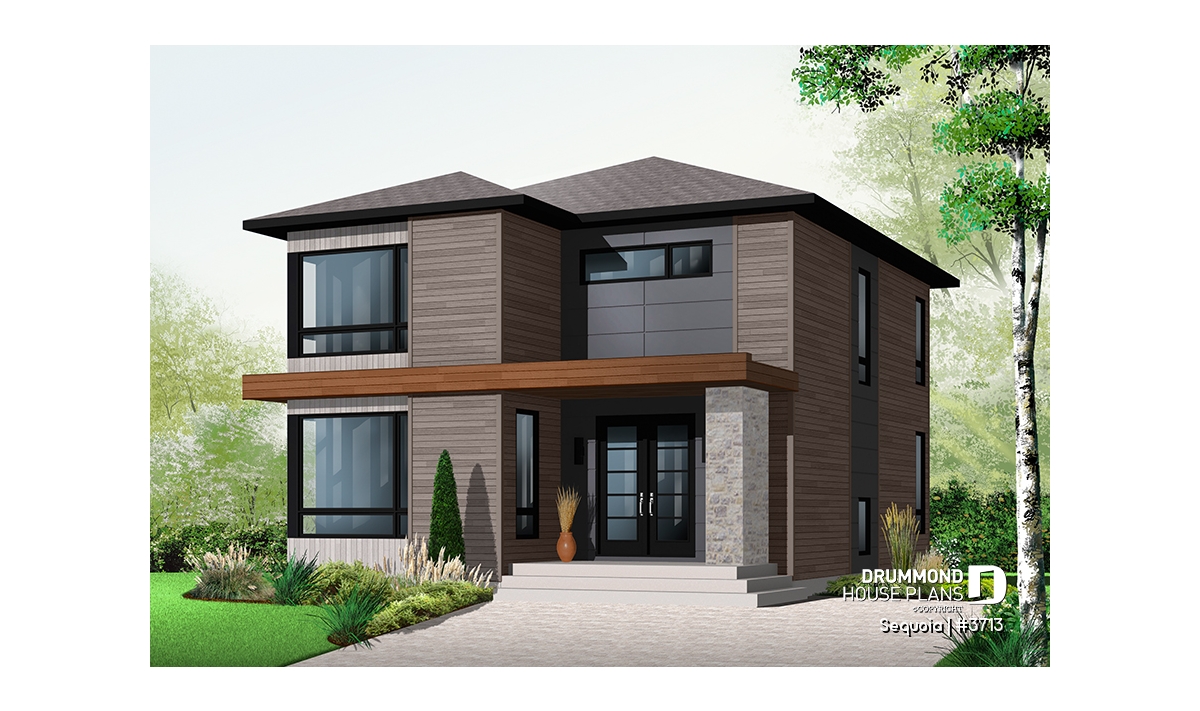

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

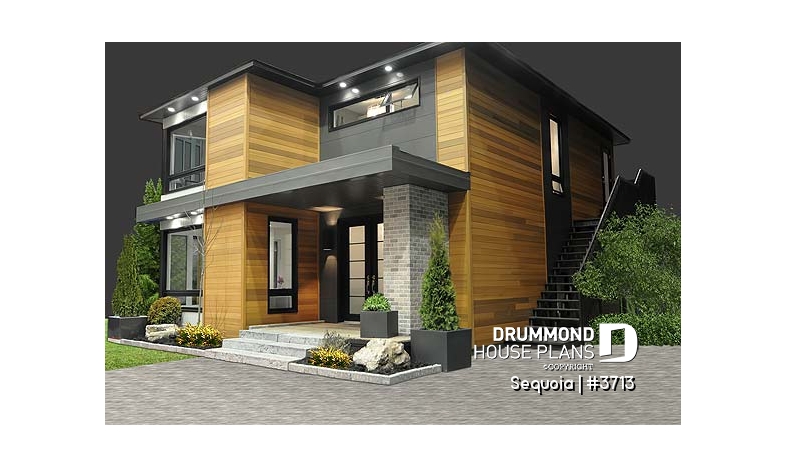

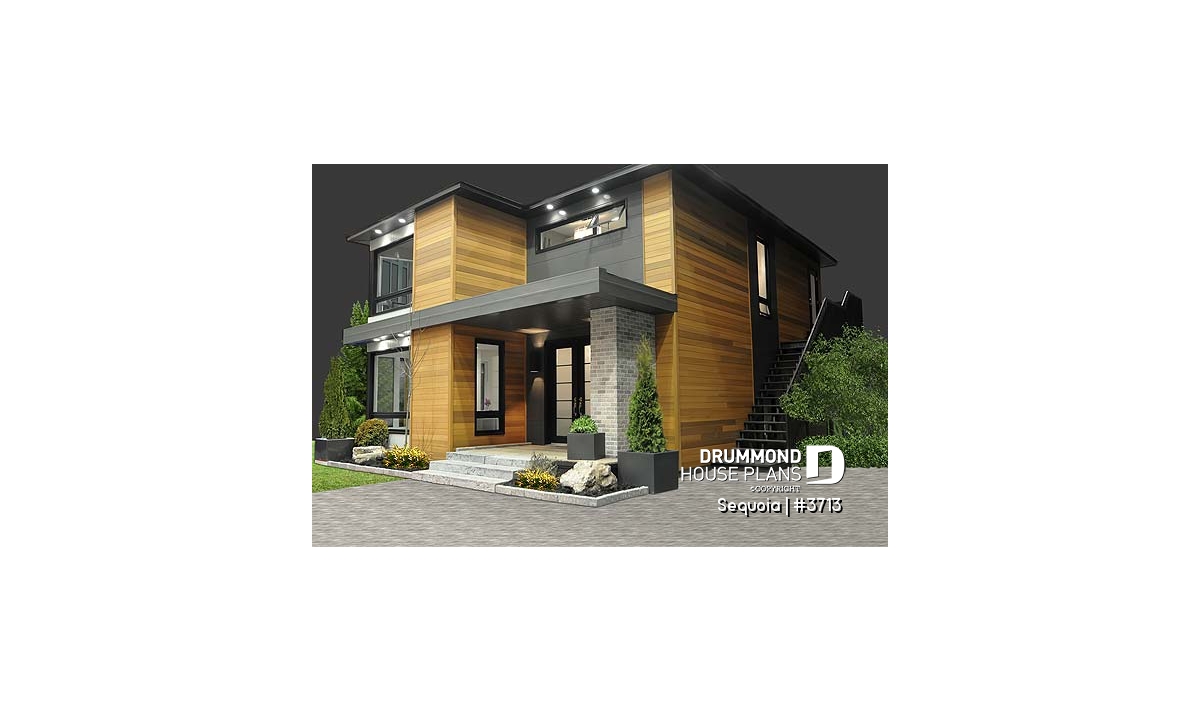

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

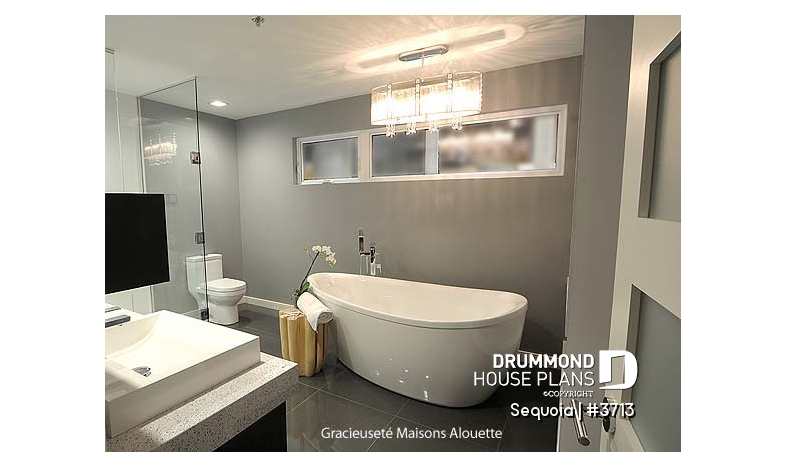

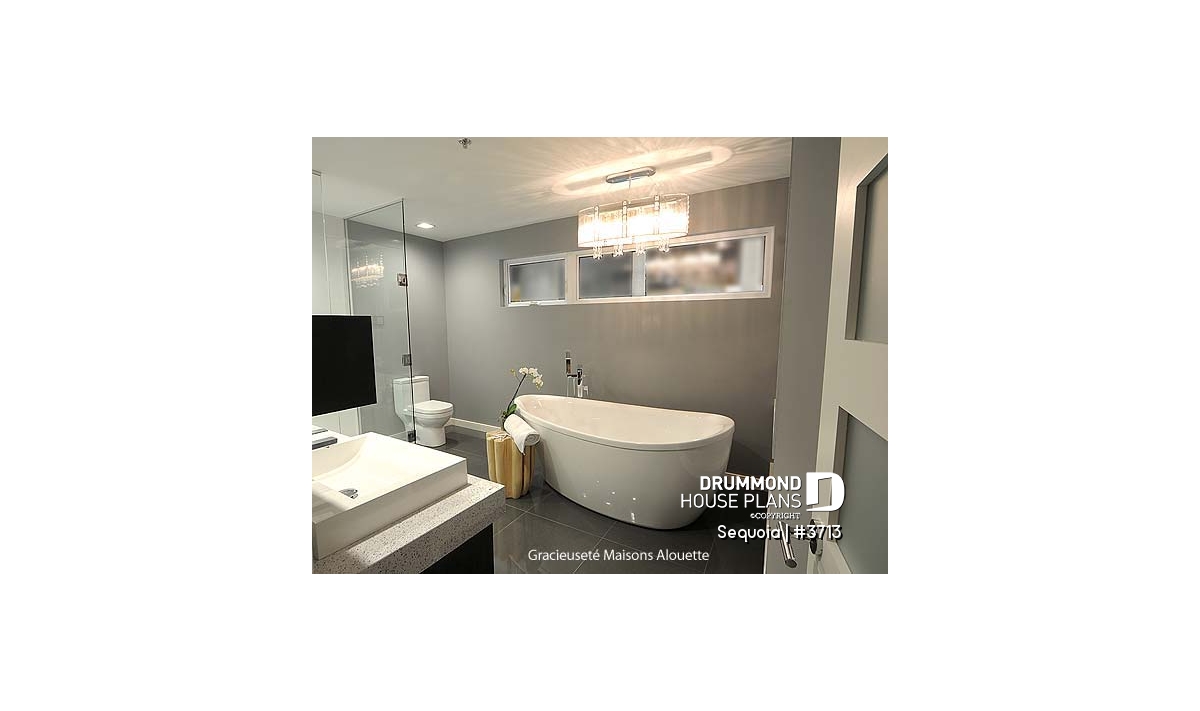

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

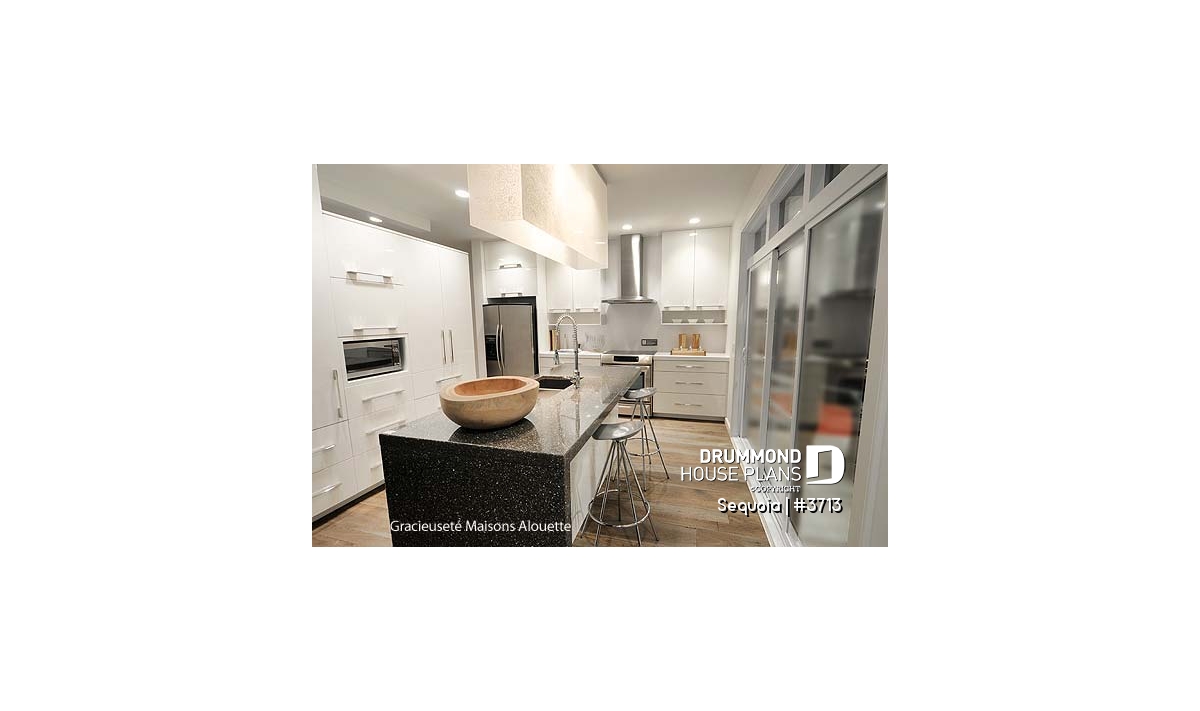

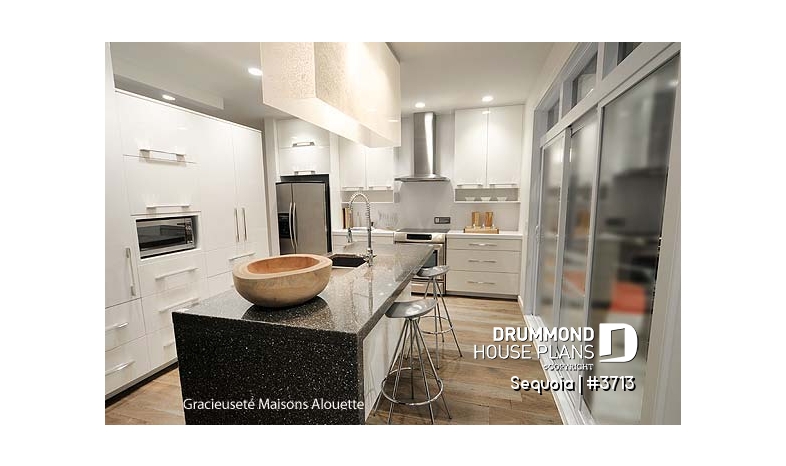

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

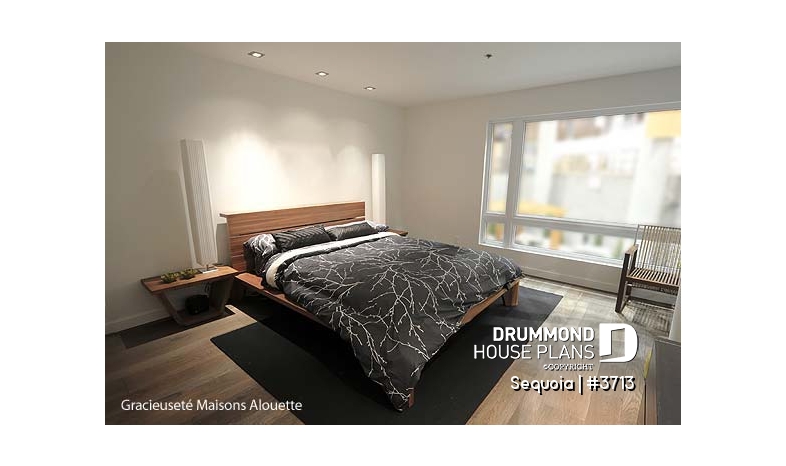

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

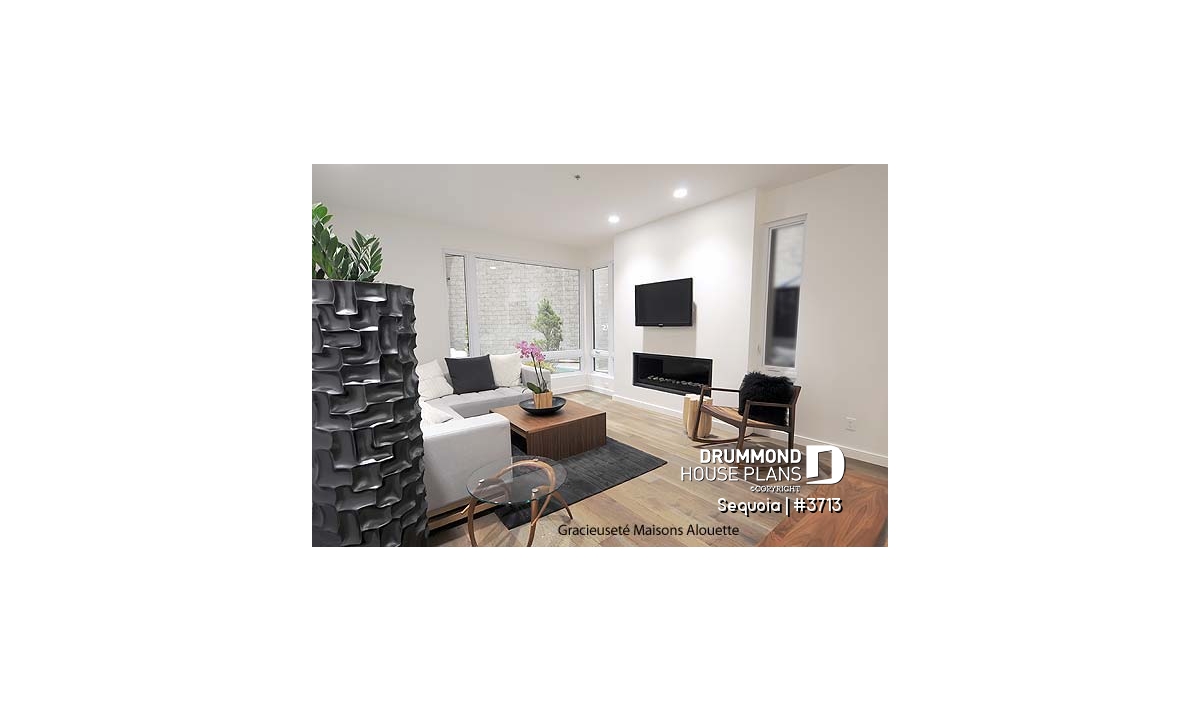

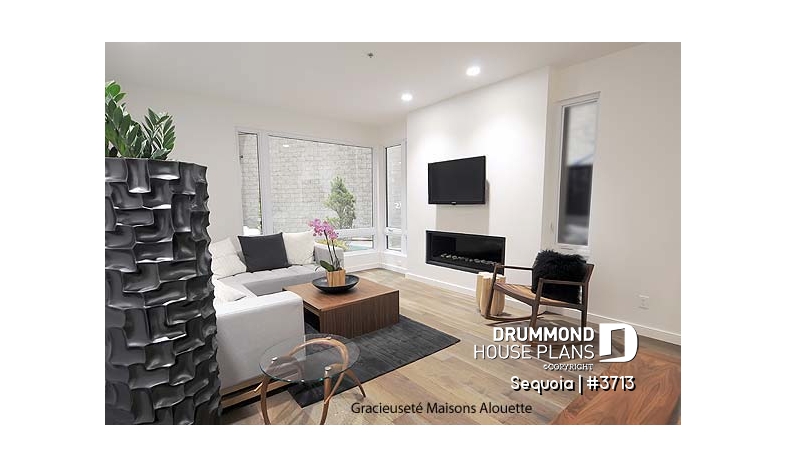

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Modern 3 bedroom house plan with 2 living rooms, laundry room on second floor

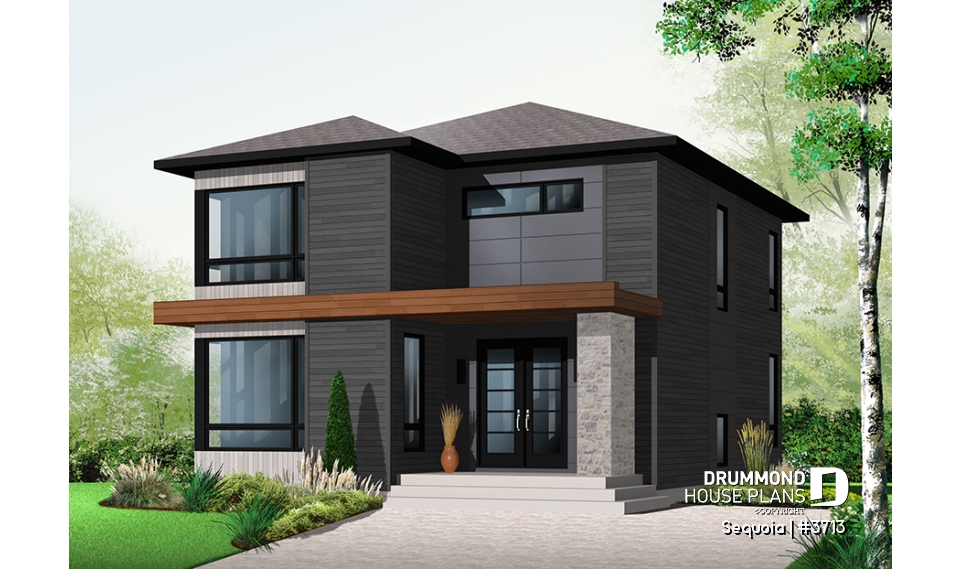

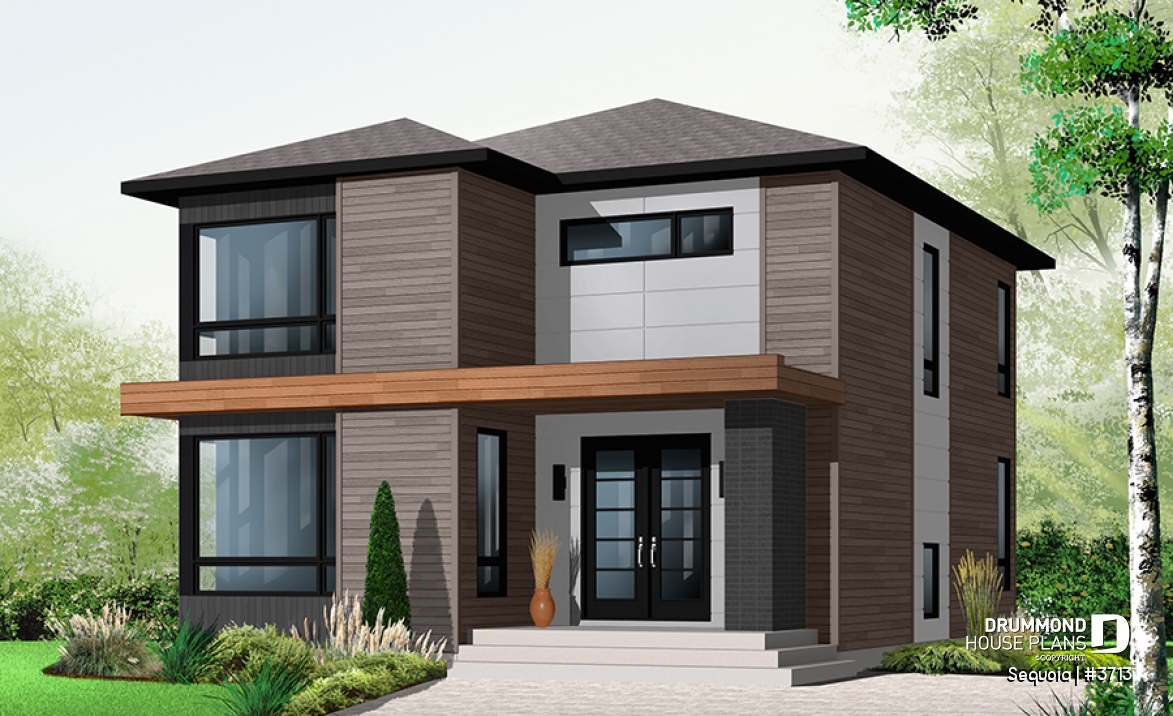

This stately modern design features strong geometric lines subtly enhanced by a blend of wood, brick and fiber cement panels.

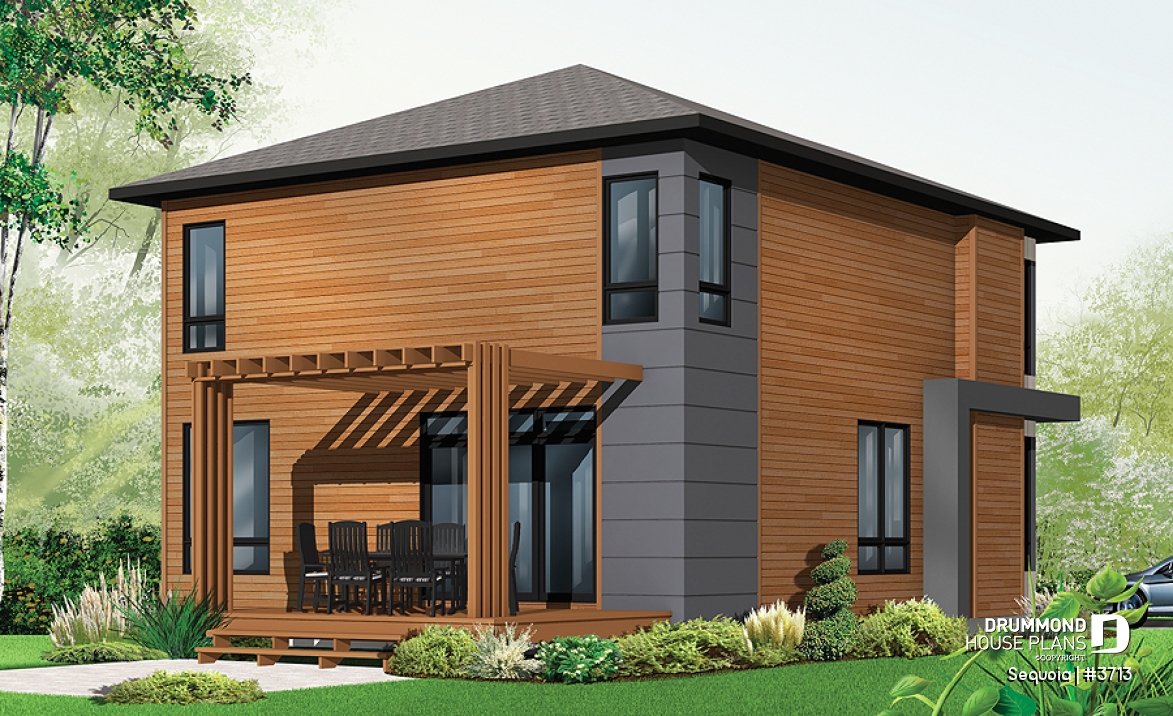

Once inside, modern conveniences abound – a spacious foyer, ample closet, and convenient powder room. Beyond the foyer, light intersects from living room, dining room and staircase windows ensuring well-lit spaces all day long. The back of the house features a kitchen with 8’x3’ island and patio access and an adjoining conversation room. The plan includes a proposed pergola off the back for architectural interest and protection from the sun.
Upstairs, there are three bedrooms all of appreciable size. The laundry is conveniently located on the sleeping floor where it is closest to the greatest need. The generous bathroom includes a double vanity, bath and 42”x60” shower.
This home is sure to become a landmark on any street.
Distinctive elements
9' ceiling throughout main floor. Fireplace in living room. Kitchen with 8'x3' island and adjoining conversation room. Good-sized bedrooms with closets and master bedroom includes walk-in closet. Generous bathroom with independant 42"x60" shower.
Plan feature(s)
Second floor laundry room, Walk-in master bed., Sitting area, Island, Fireplace, Ceiling over 8', Office / Study / Den, Panoramic view, Separate bath and shower, Double sinks, Builder, Self-Build
Plan architectural style(s)
. Contemporary, . Modern / Design, . Modern rustic, . Transitional
