House plan Tiago (3741)
Modern house plan 3 to 5 bedrooms, office, 2.5 baths, master suite upstairs, optional finished basement ($)
View the size of the rooms and height of the ceilings

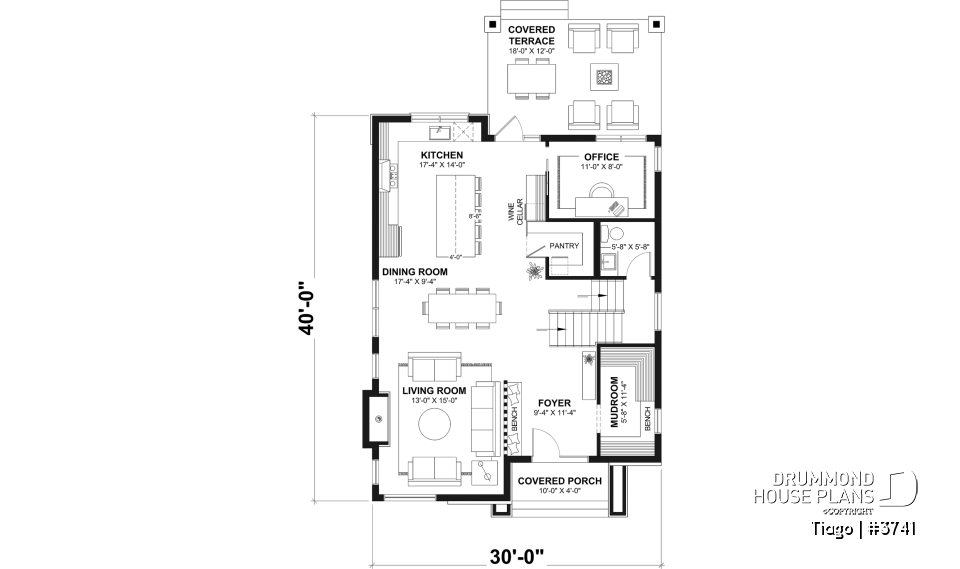

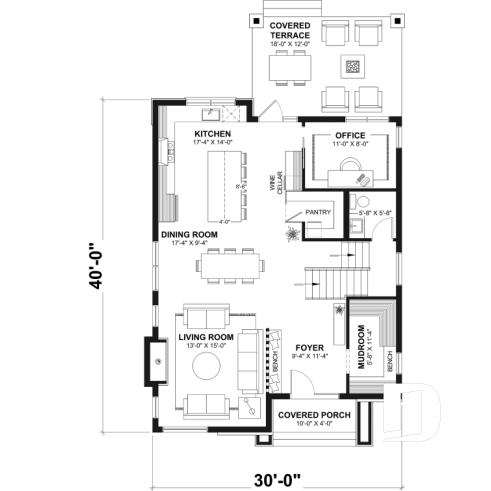

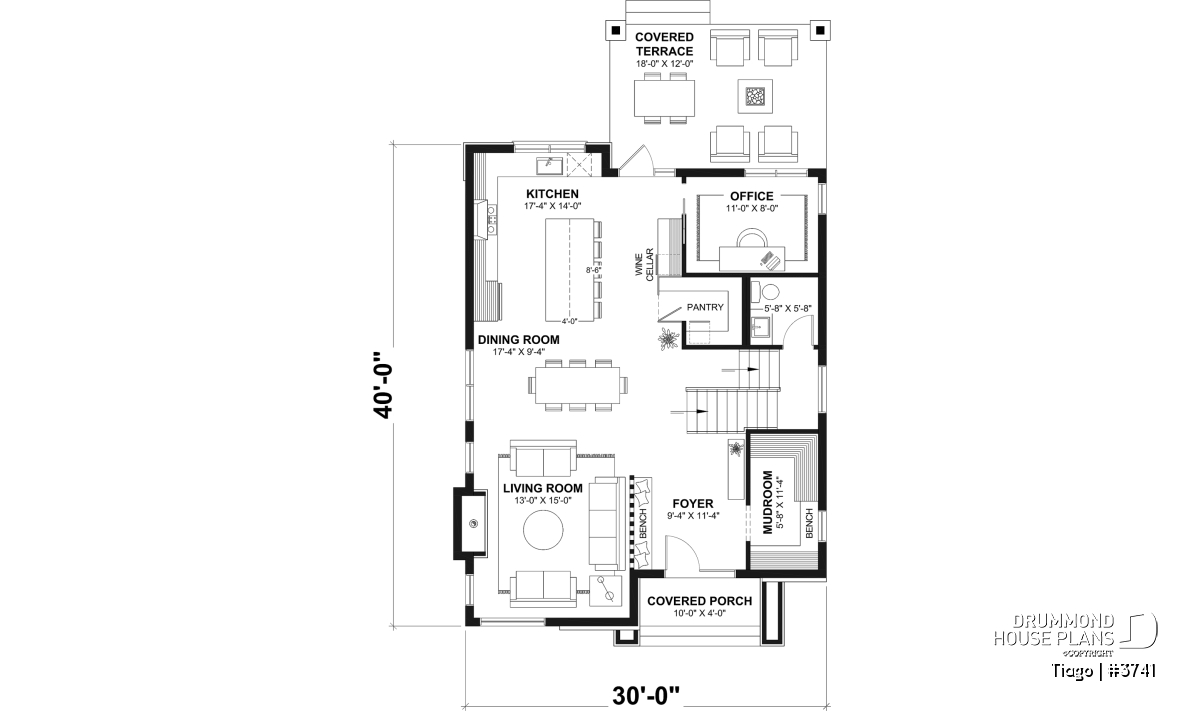

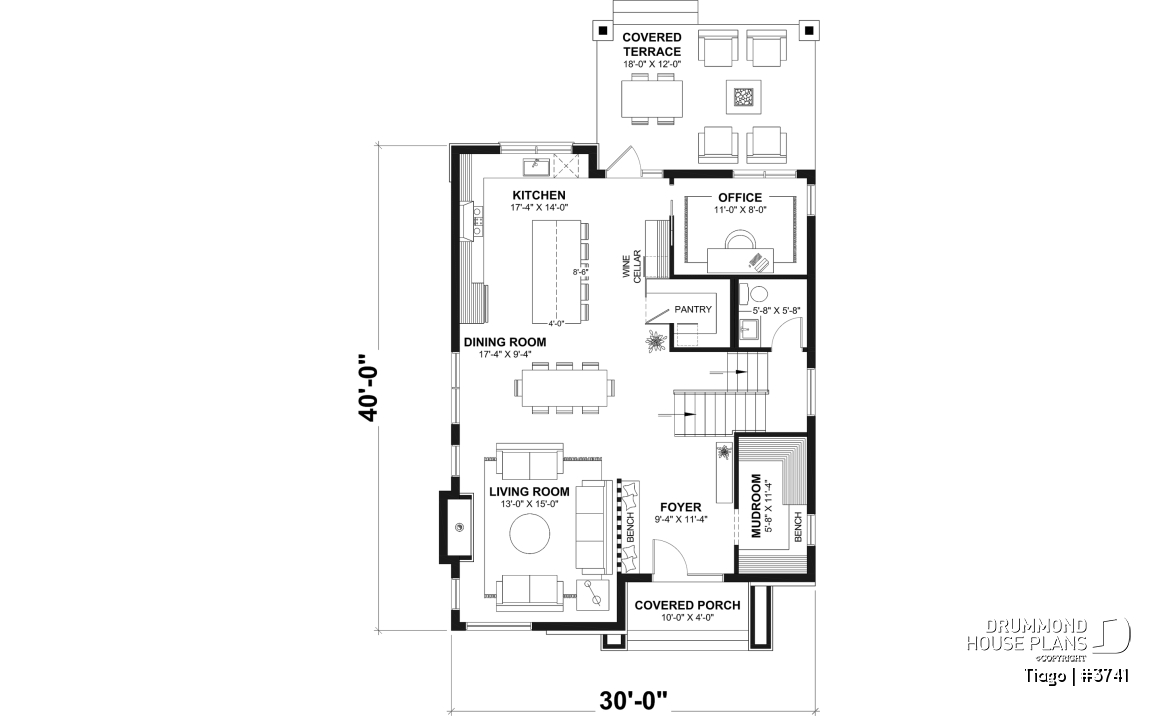

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 10'0" x 4'0" | ~ 9'0" |
| Covered deck | 18'0" x 12'0" | ~ 9'4" |
| Kitchen | 17'4" x 14'0" | ~ 9'0" |
| Kitchen island | 8'6" x 4'0" | N/A |
| Home office | 11'0" x 8'0" | ~ 9'0" |
| Powder room | 5'8" x 5'8" | ~ 9'0" |
| Dining room | 17'4" x 9'4" | ~ 9'0" |
| Pantry | 5'8" x 7'0" | ~ 9'0" |
| Living room | 13'0" x 15'0" | ~ 9'0" |
| Foyer | 9'4" x 11'4" | ~ 9'0" |
| Mud room | 11'4" x 5'8" | ~ 9'0" |

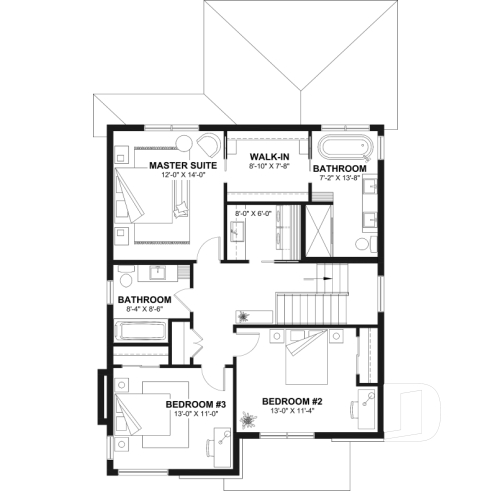

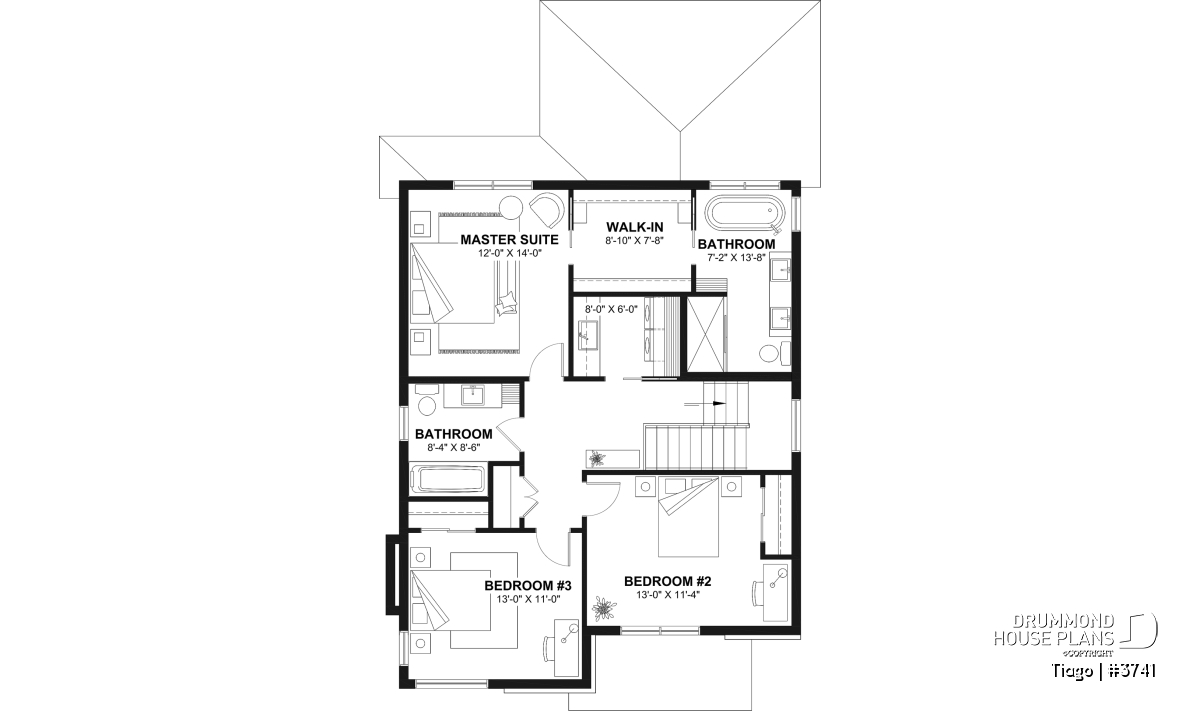

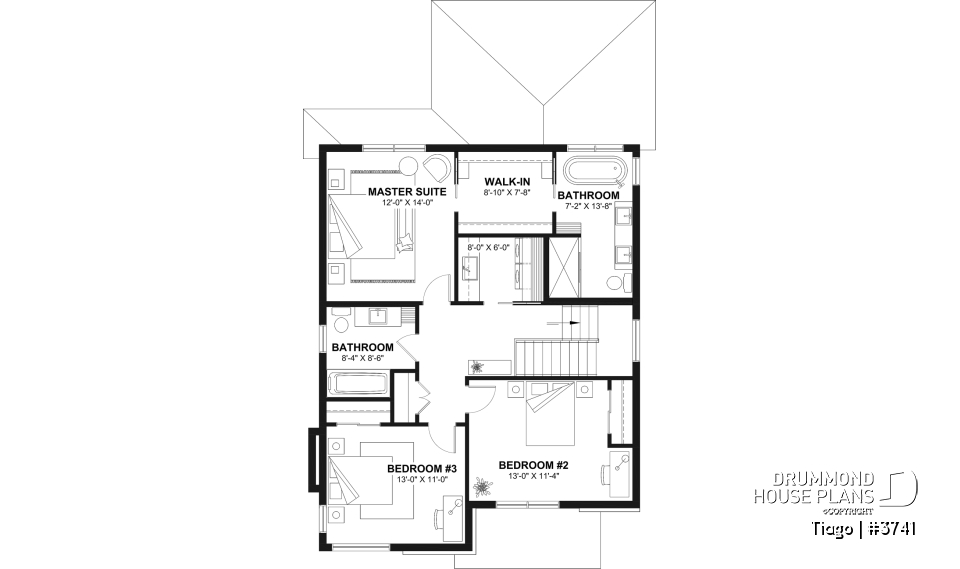

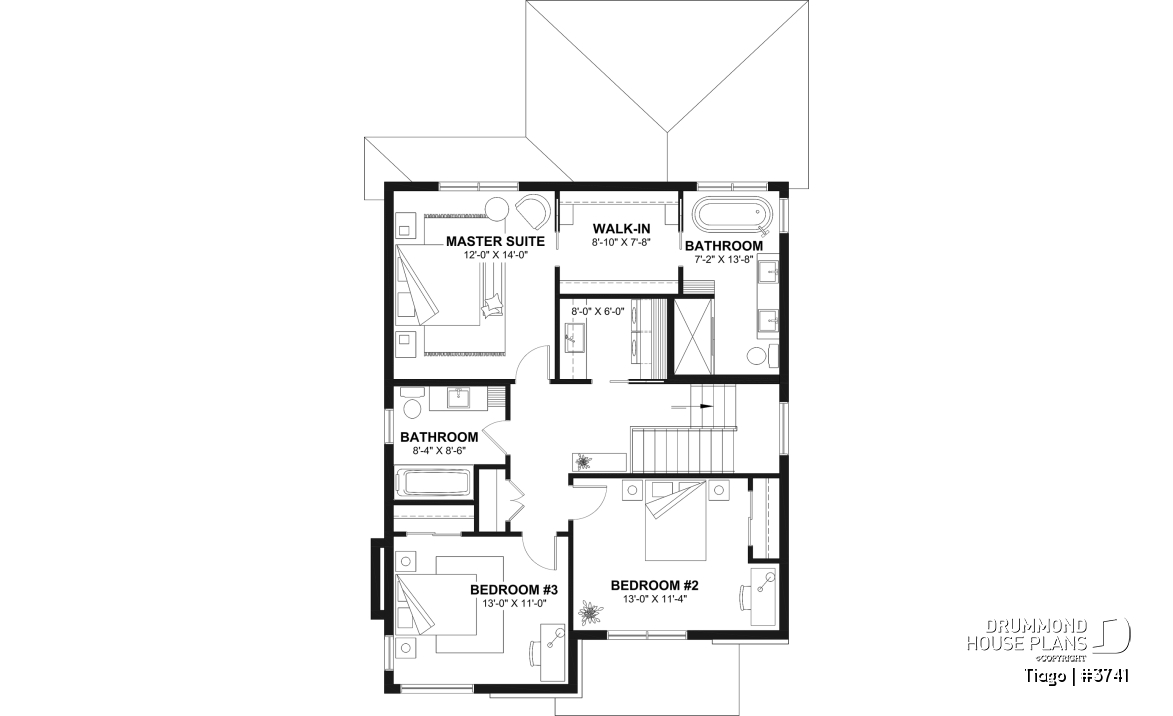

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 11'4" | ~ 9'0" |
| Closet | 6'0" x 2'0" | ~ 9'0" |
| Bedroom | 13'0" x 11'0" | ~ 9'0" |
| Closet | 6'0" x 2'0" | ~ 9'0" |
| Closet | 4'8" x 2'0" | ~ 9'0" |
| Bathroom | 8'4" x 8'6" | ~ 9'0" |
| Linen | 1'4" x 1'6" | N/A |
| Laundry room | 8'0" x 6'0" | ~ 9'0" |
| Master suite | 12'0" x 14'0" | ~ 9'0" |
| Walk-in closet | 8'10" x 7'8" | ~ 9'0" |
| Full bathroom | 7'2" x 13'8" | ~ 9'0" |
| Shower | 5'8" x 3'0" | N/A |
| Linen | 2'4" x 1'0" | N/A |

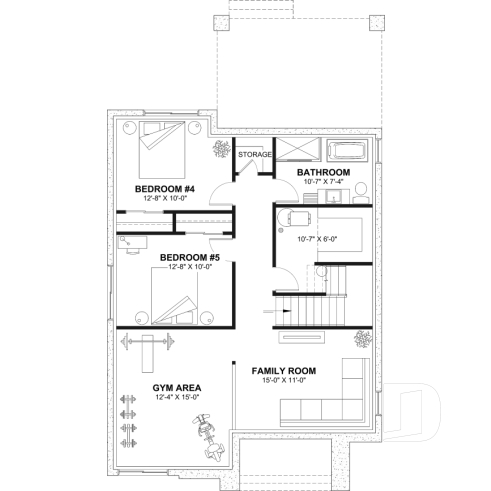

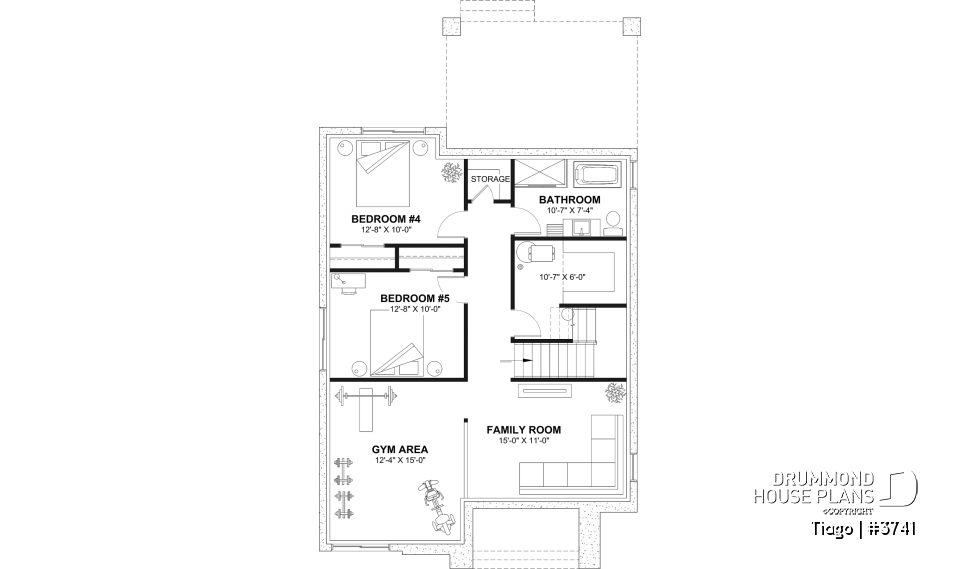

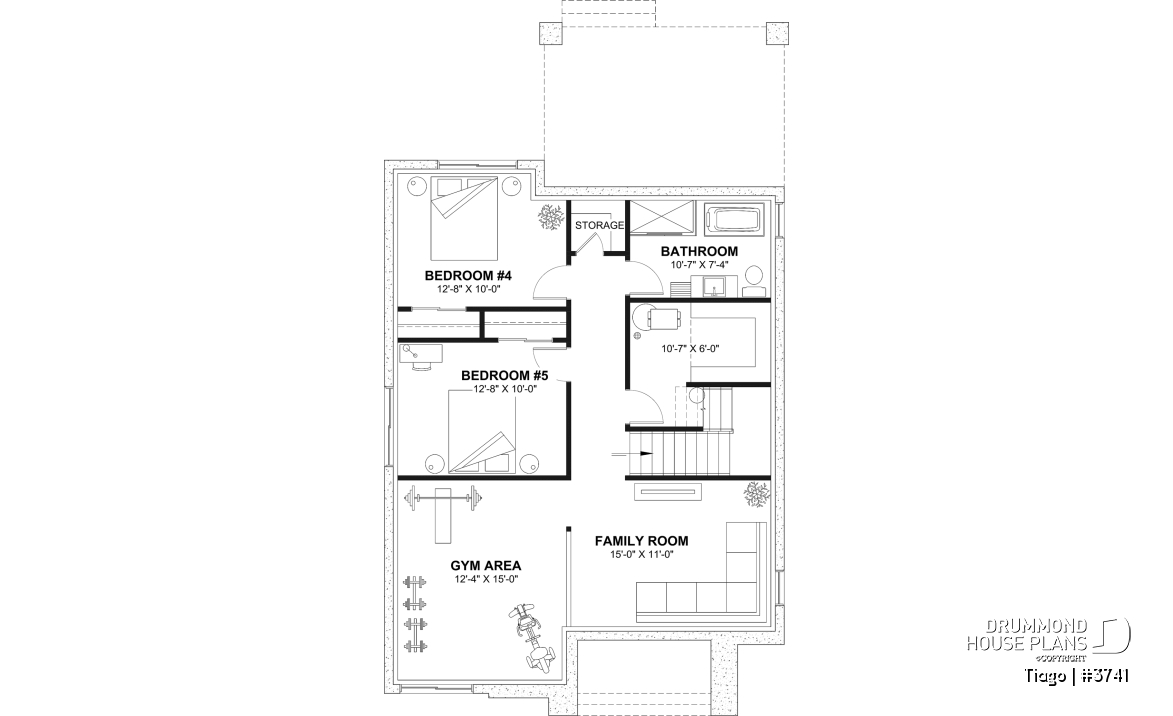

| Finished basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'8" x 10'0" | ~ 8'0" |
| Closet | 6'2" x 2'0" | ~ 8'0" |
| Storage | 4'0" x 3'10" | ~ 8'0" |
| Bathroom | 10'7" x 7'4" | ~ 8'0" |
| Linen | 1'6" x 1'2" | N/A |
| Shower | 5'8" x 2'8" | N/A |
| Bedroom | 12'8" x 10'0" | ~ 8'0" |
| Closet | 6'2" x 2'0" | ~ 8'0" |
| Mechanical room | 10'7" x 6'0" | ~ 5'0" |
| Great room or Family room | 15'0" x 11'0" | ~ 8'0" |
| Gym | 12'4" x 15'0" | ~ 8'0" |

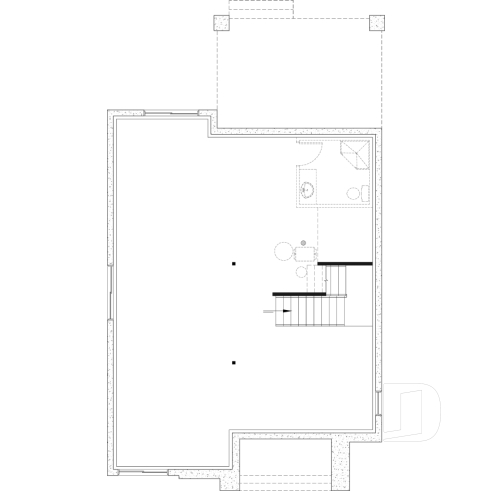

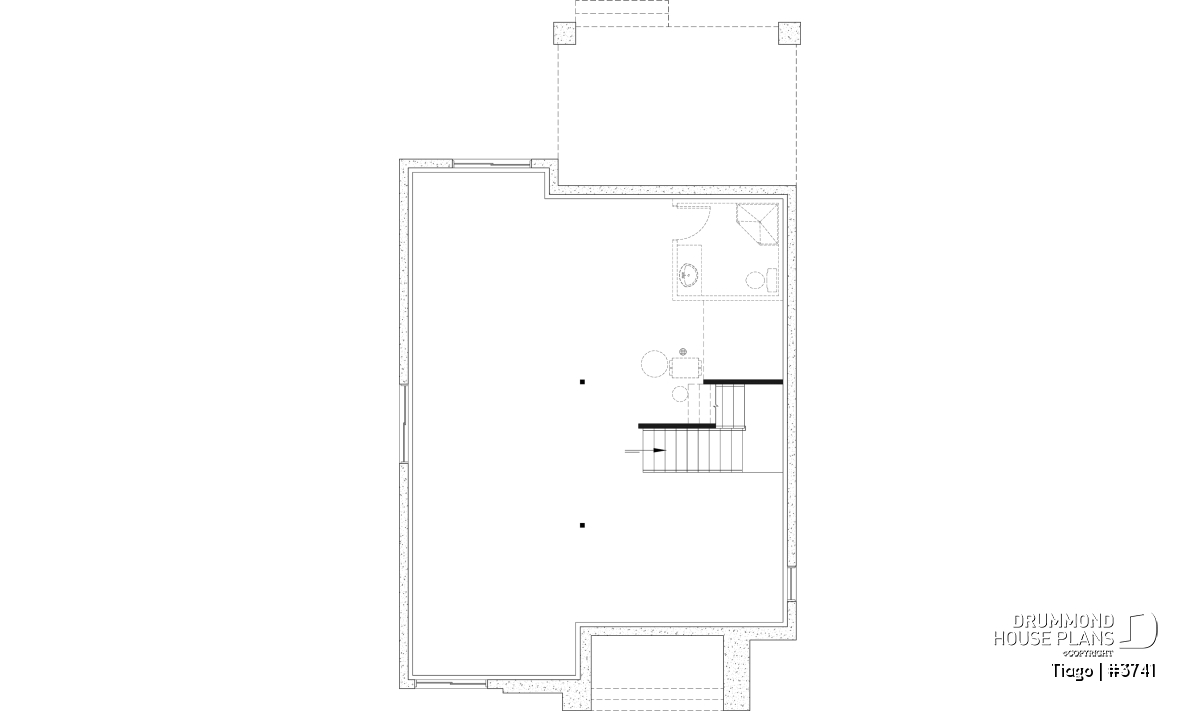

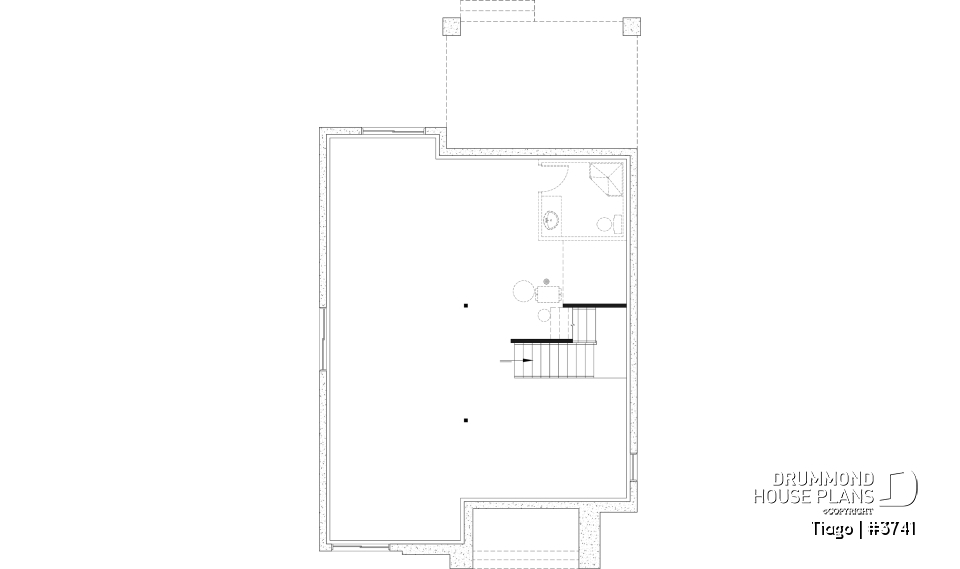

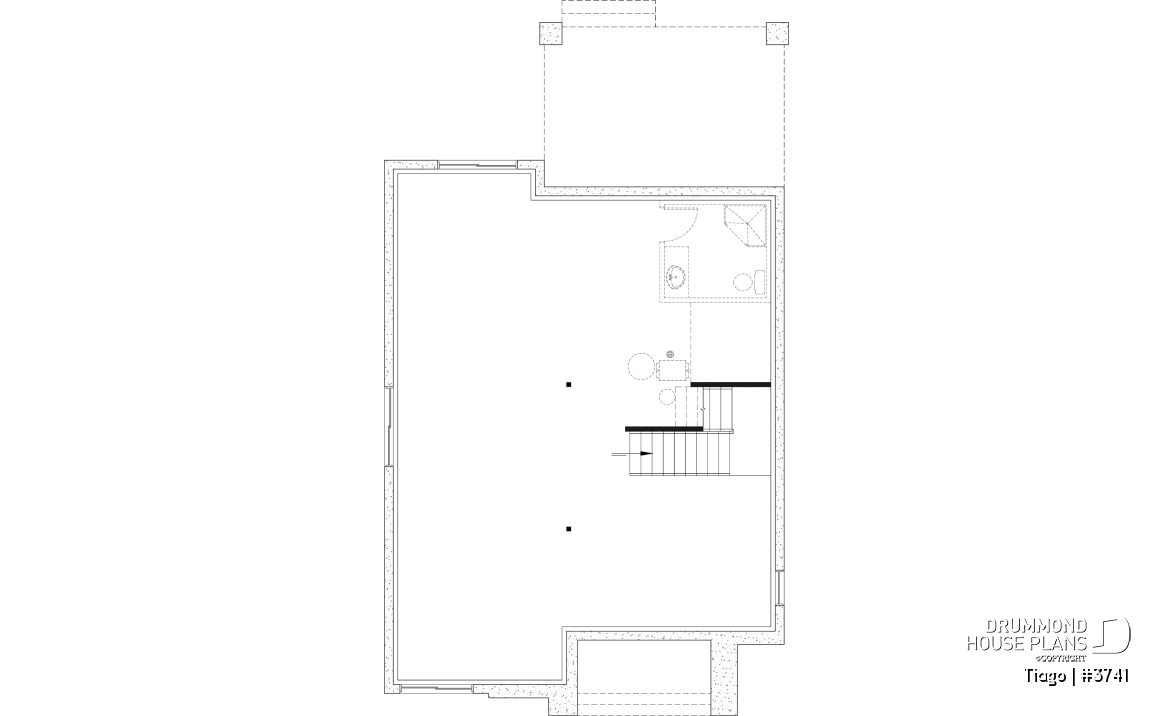

| Unfinished basement |
|---|
General specifications
| Total living area | 2184 sq.ft. |
| 1st level | 1107 sq.ft. |
| 2nd level | 1077 sq.ft. |
| Finished basement | 1101 sq.ft. |
| Unfinished basement | 1101 sq.ft. |
| Width | 30'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 28'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Finished basement, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

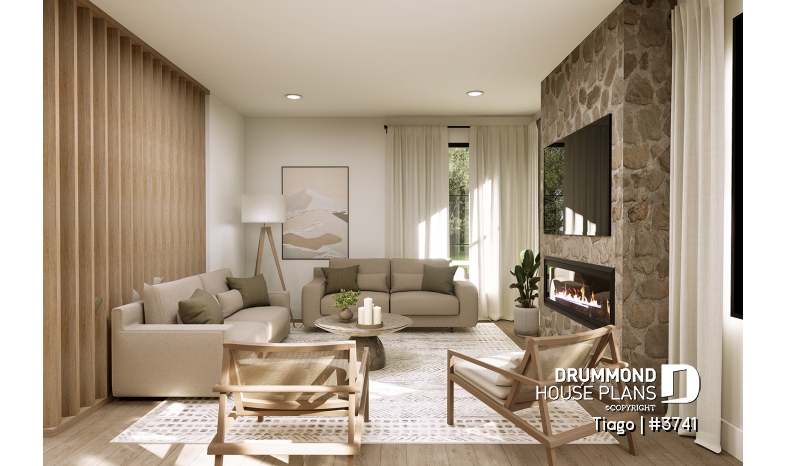

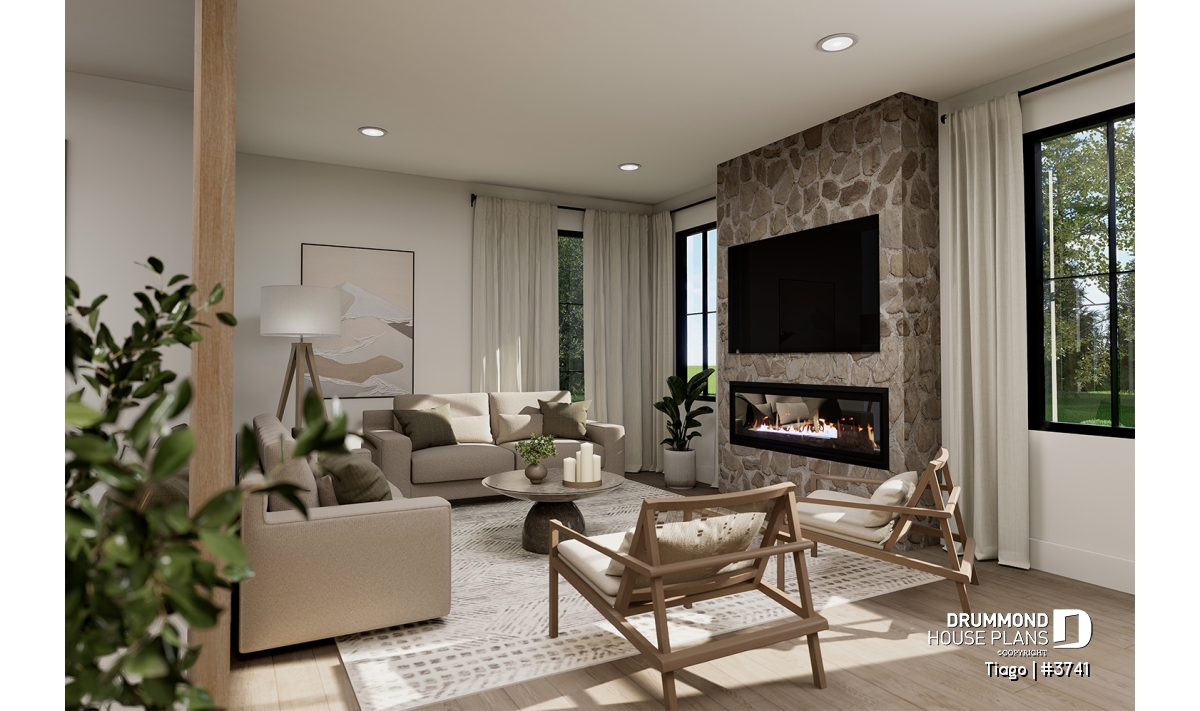

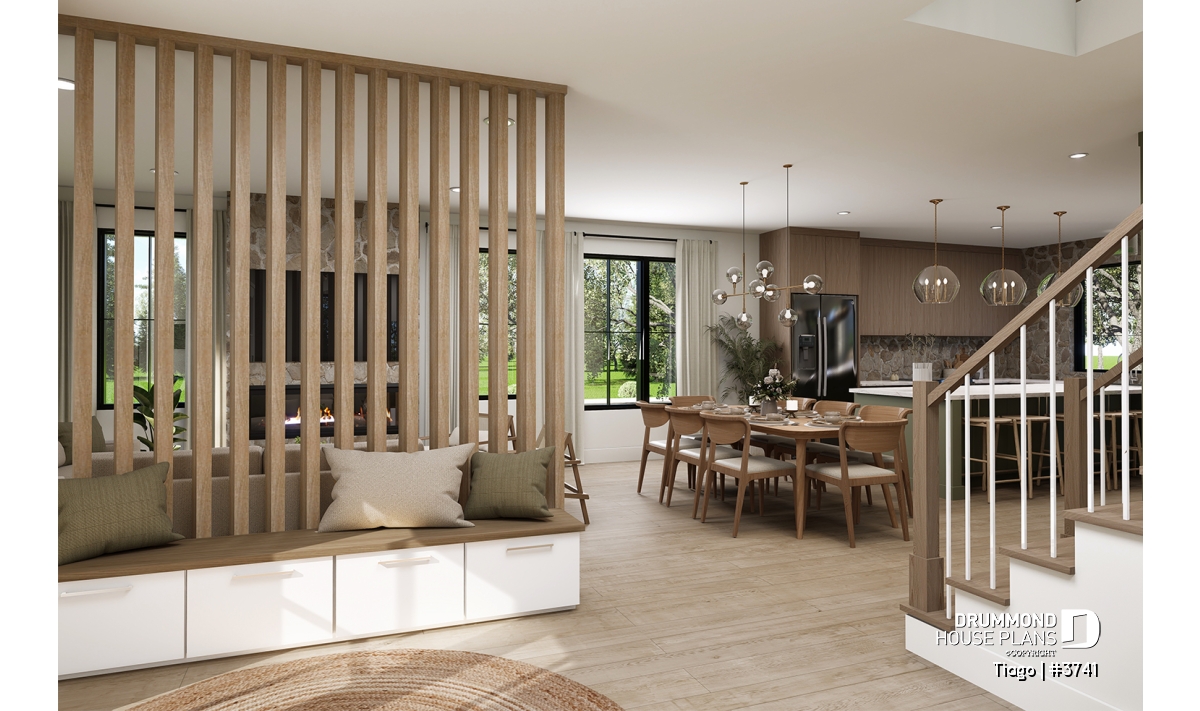

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

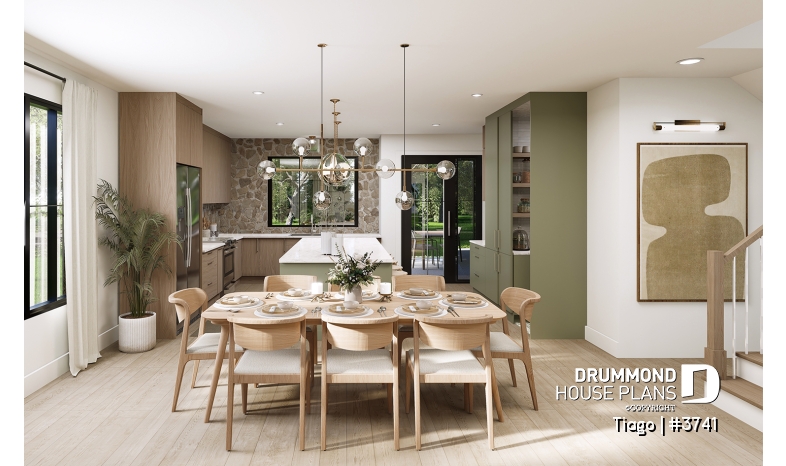

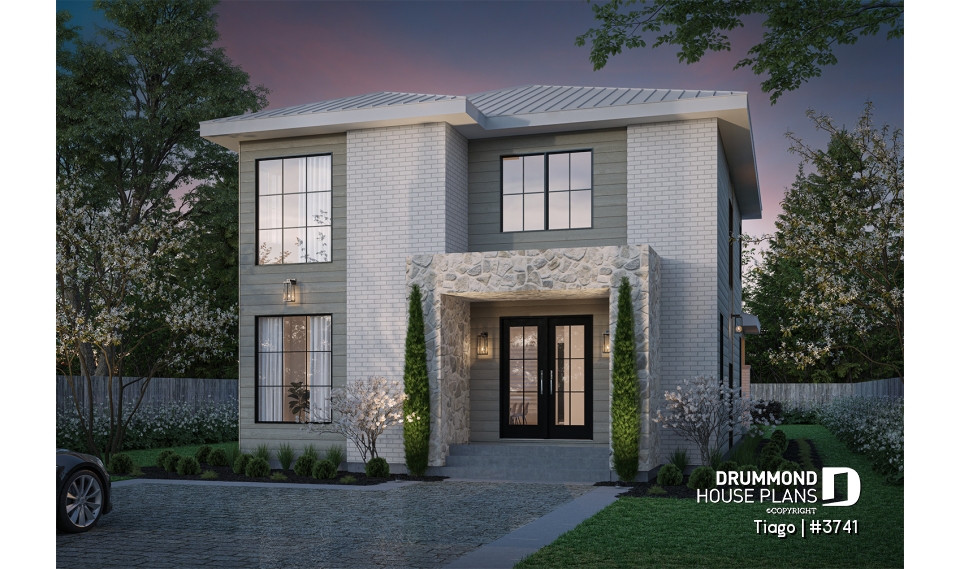

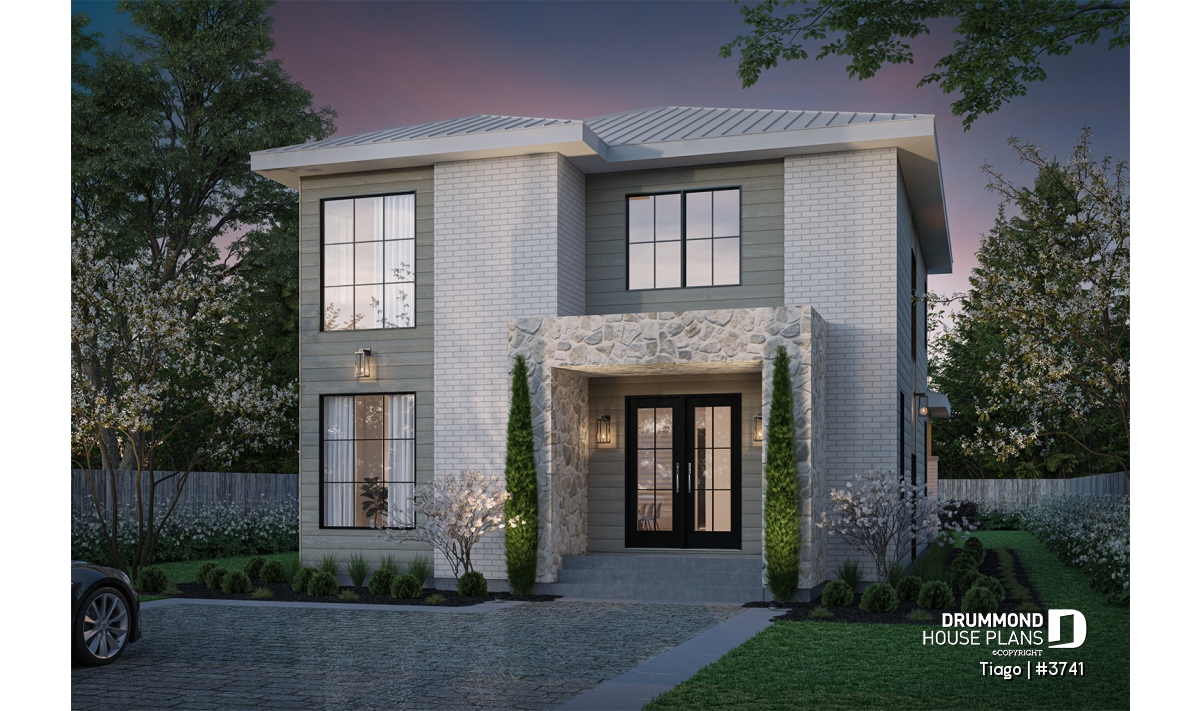

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

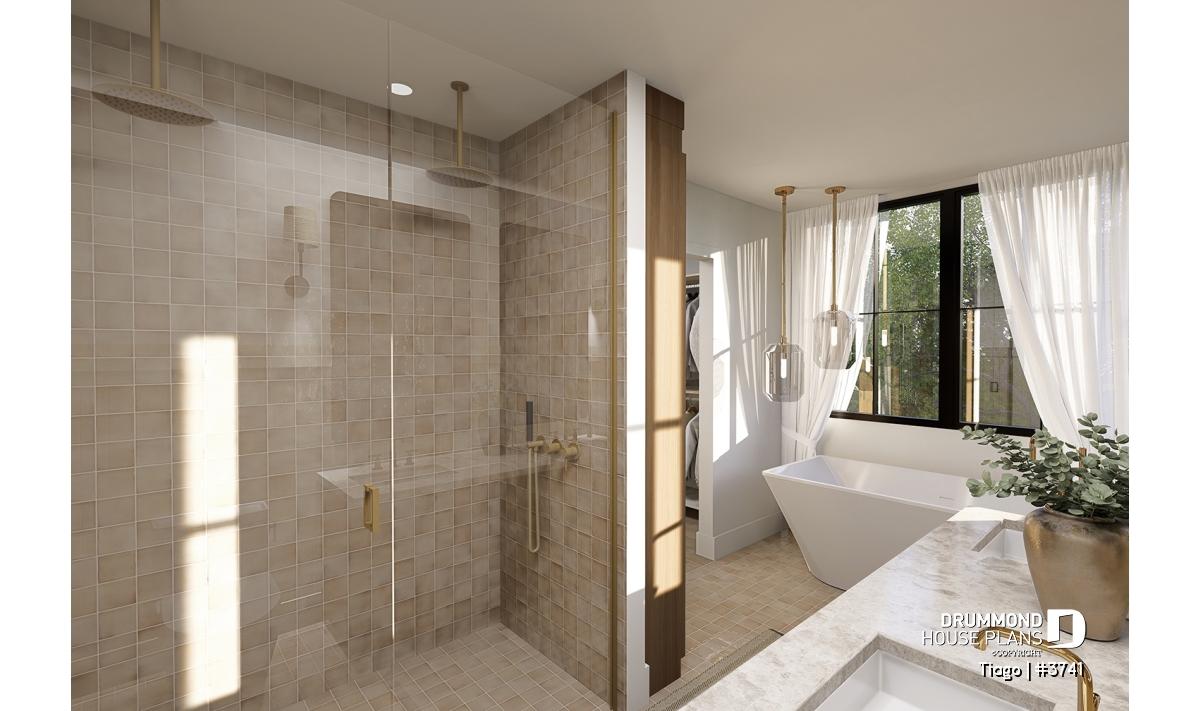

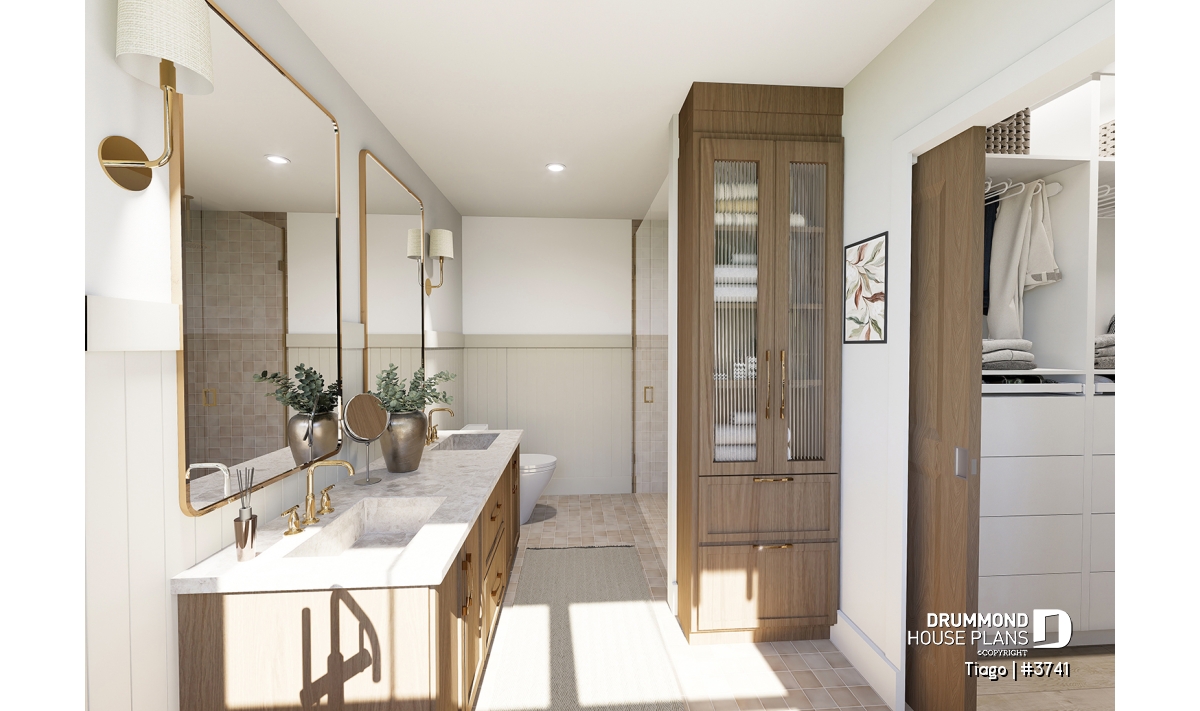

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

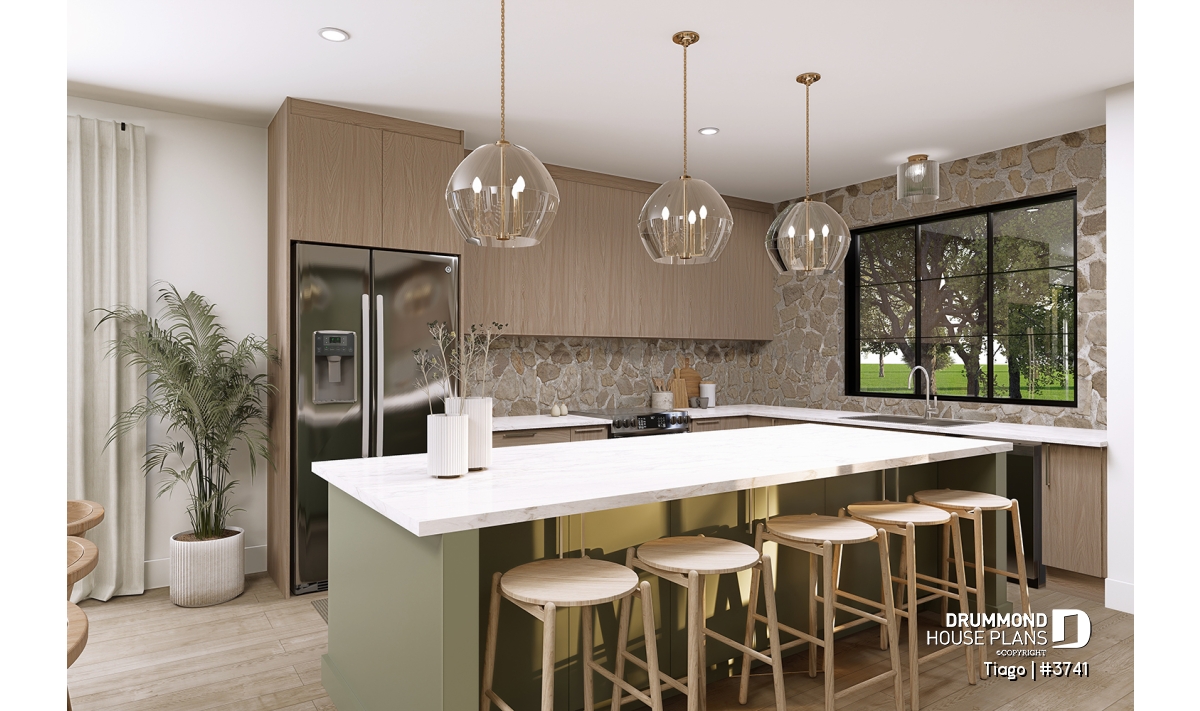

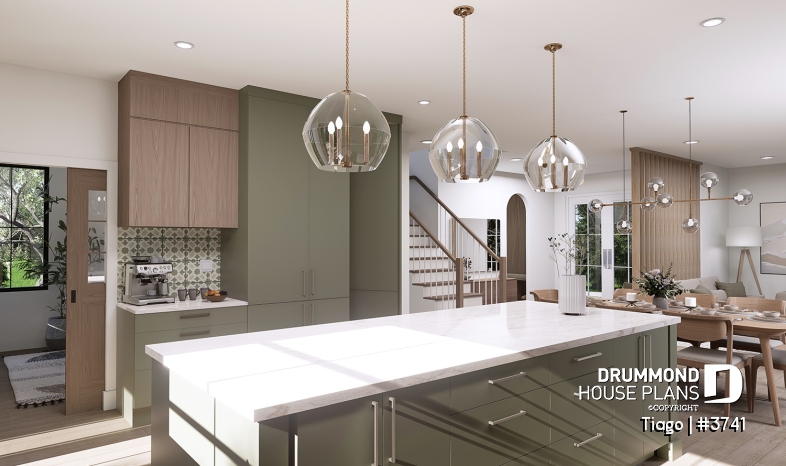

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Home office
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

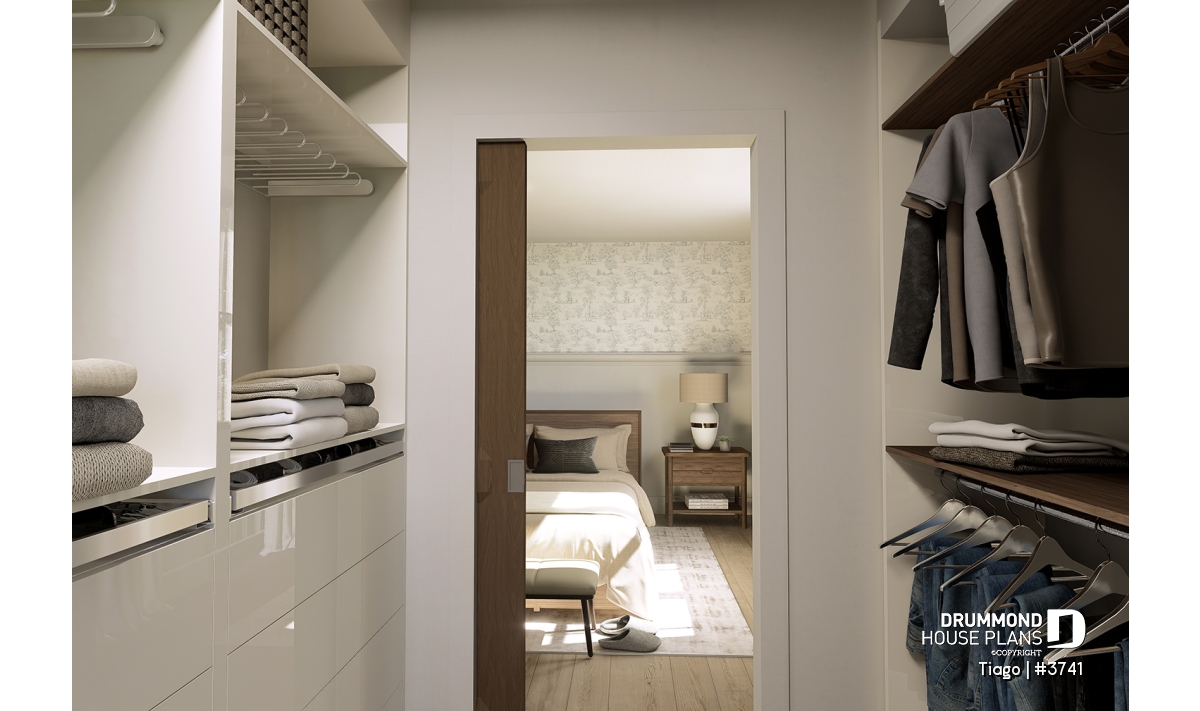

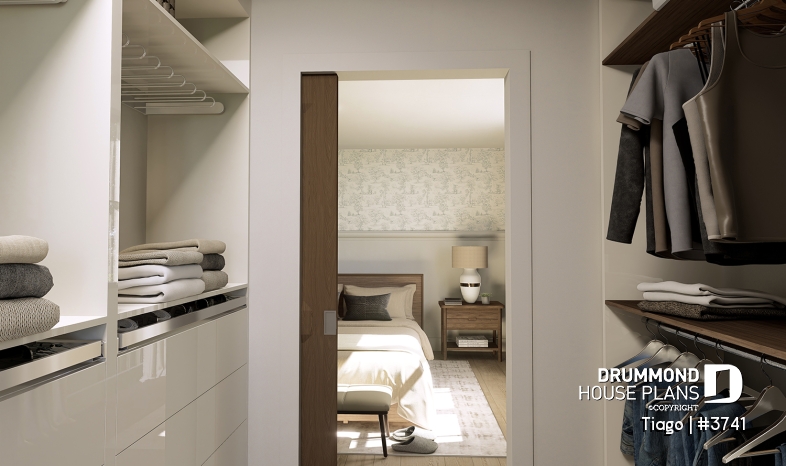

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

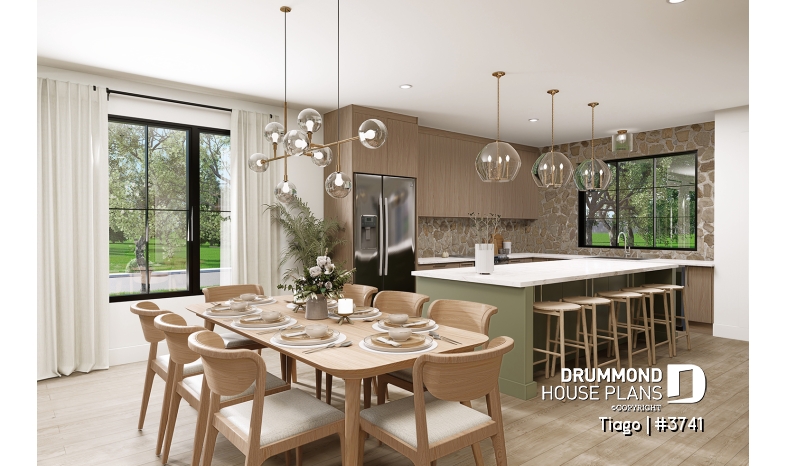

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

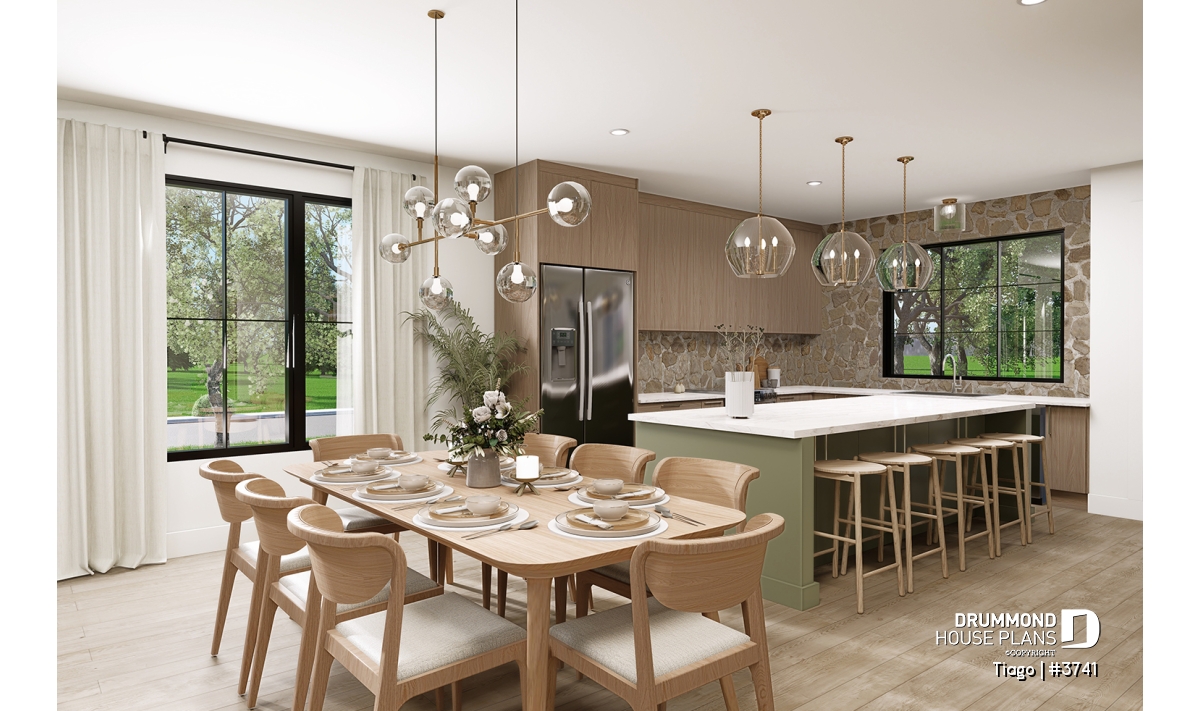

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

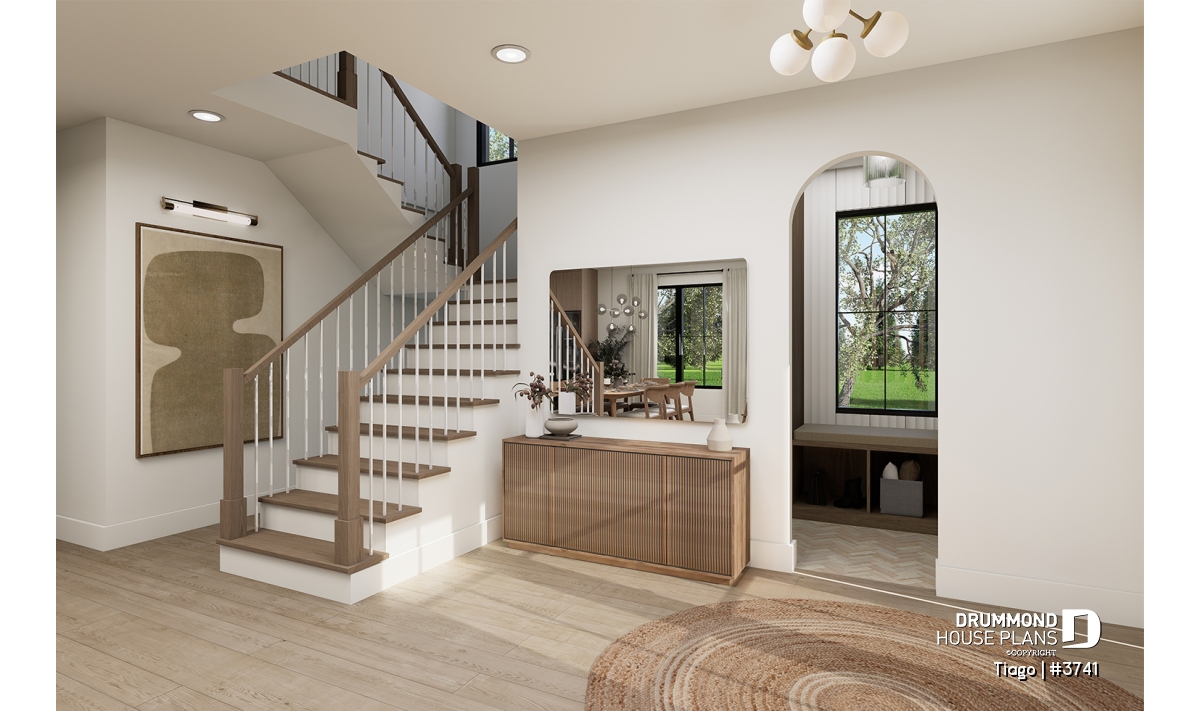

Stairs
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
A Timeless Home Designed to Stand the Test of Time
The TIAGO house plan (#3741) is sure to charm you with its refined exterior, blending raw materials with a natural aesthetic and sleek modern lines. Offering 2,184 sq. ft. spread across two floors, plus an *optional fully finished basement of 1,101 sq. ft., this home is both stylish and functional.
All ceilings on the main and upper floors are 9 feet high, creating a spacious and airy feel. A garage can be added, with access from either the staircase landing or directly through the mudroom entrance. This customization can be easily arranged through one of our offices across Quebec and Ontario, or online.
Thoughtfully Designed Living Spaces
Stepping through the front entrance, you'll find a spacious mudroom to the right and a built-in bench to the left. The living room, featuring a cozy fireplace, comfortably accommodates 6 to 7 people. The open-concept kitchen flows seamlessly into the dining area and highlights a sought-after trio: walk-in pantry, wine cellar, and oversized island—perfect for both everyday living and entertaining. Additionally, a dedicated office space in this area can easily be converted into a children’s playroom. A powder room, conveniently located on the landing leading to the basement, completes this floor.
A Luxurious Upper Level
Upstairs, the spacious primary bedroom boasts a generous walk-in closet and a private ensuite bathroom. With a soaking tub positioned beneath a large window, an expansive shower, and dual sinks, this space truly earns the title of a "dream bathroom." Two children’s bedrooms, a full bathroom, a laundry room, and a hallway closet complete the upper floor.
*Optional Finished Basement ($)
For those needing additional space, the finished basement offers:
Two additional bedrooms (for a total of five)
A large gym
A spacious family room
A full bathroom with a separate tub and shower
Ample storage space
The Perfect Home for Growing Families!
With 5 bedrooms, 2 living rooms, a dedicated games room, and 2.5 bathrooms, this home is designed to meet the needs of modern families.
Make TIAGO your dream home and enjoy a space built for comfort, style, and everyday living!
---
*If you wish to purchase the finished basement plan, as presented on this plan page, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
Distinctive elements
Transitional style two-story house offering 3 to 5 bedrooms.
9' ceilings on both floors.
Large front entrance with mudroom and bench seating area.
Fireplace in the living room.
Wine cellar, pantry and island in the kitchen.
Office/desk space (or games room) set back from the kitchen.
Powder room.
Parents' suite with walk-in closet and private bathroom.
Laundry room upstairs.
*Finished basement (optional $):
2 Bedrooms, family room, gym, bathroom and storage.
*If you wish to purchase the finished basement plan, as presented on this plan page, please select this option in the shopping cart, in the "Selection of foundation type" section. If you do not select this option, you will receive the unfinished full basement option, at no extra charge.
Plan feature(s)
Master suite upstairs, Office / Study / Den, Island, Pantry, Ceiling over 8', Second floor laundry room, Mud room, Walk-in master bed., Separate bath and shower, Double sinks, Deck, Bench seat(s), Open floor layout, Fireplace, Shelves, Built-ins, Wine cellar, Builder
Plan architectural style(s)
. Modern / Design, Trending, . Transitional, . Contemporary
