House plan Enclave 2 (3875-V1)
Large 4 to 5 bedroom Modern Home with garage, great master suite, game room on second floor
View the size of the rooms and height of the ceilings

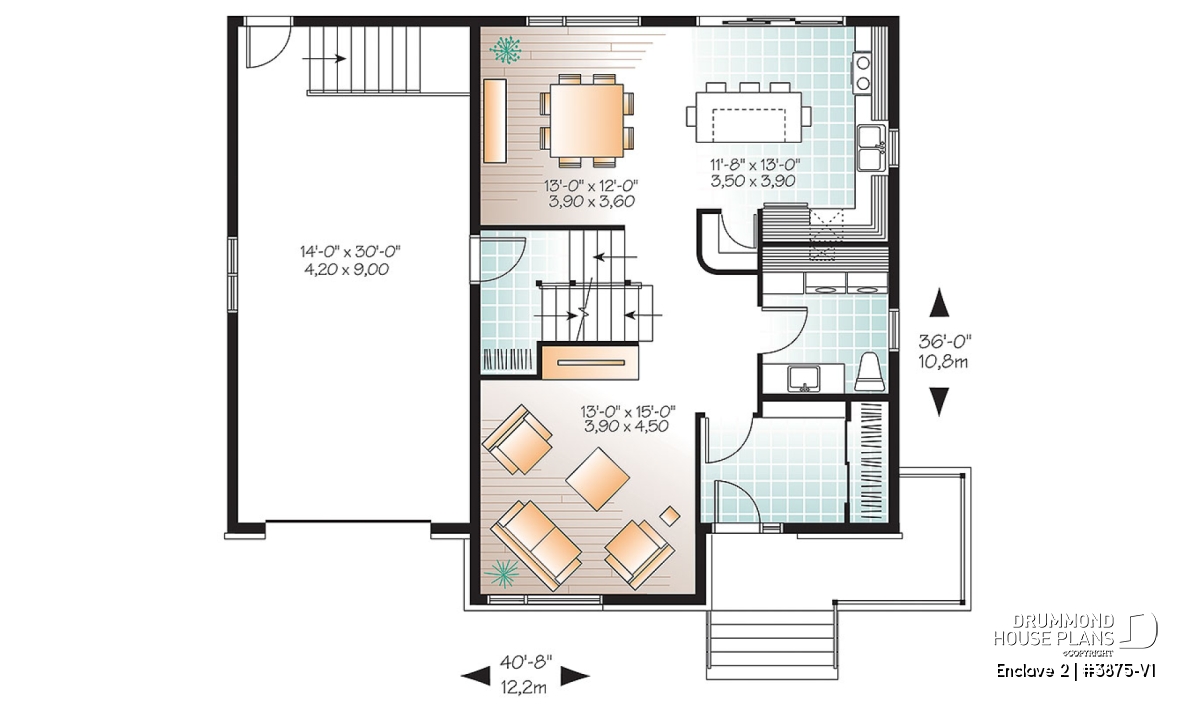

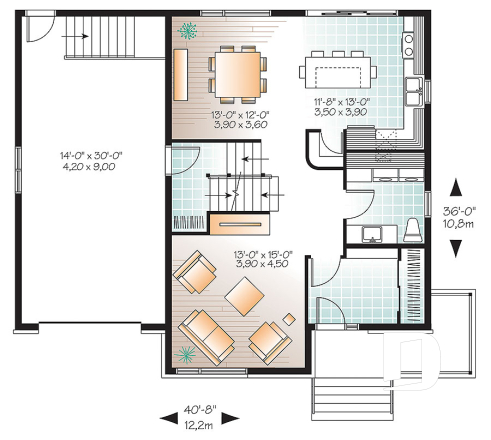

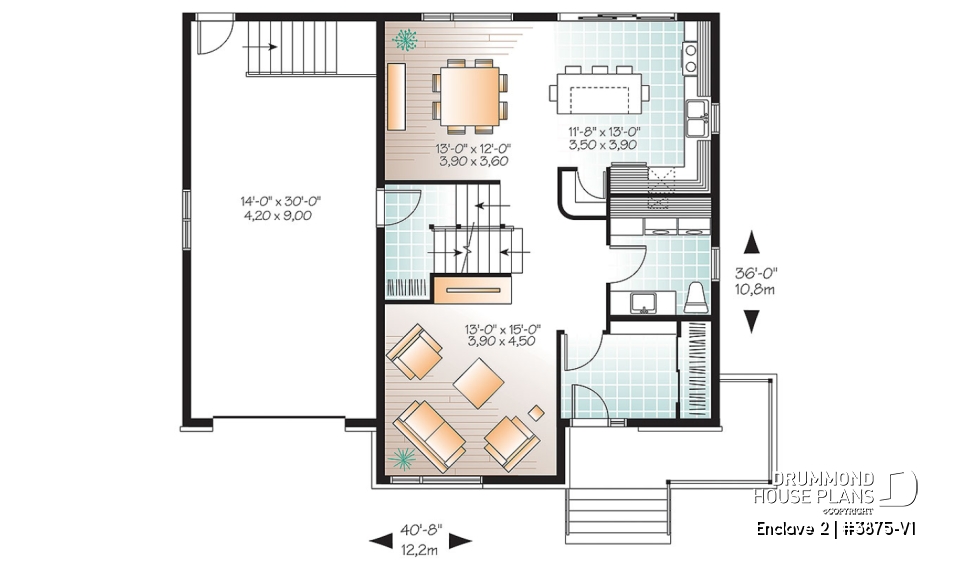

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Powder/laundry room | 7'8" x 8'8" | ~ 8'0" |
| Linen | 7'8" x 1'6" | N/A |
| Foyer | 8'8" x 7'4" | ~ 8'0" |
| Closet | 2'4" x 7'4" | ~ 8'0" |
| Kitchen/dinette | 11'8" x 13'0" | ~ 8'0" |
| Pantry | 3'4" x 3'4" | ~ 8'0" |
| Dining room | 13'0" x 12'0" | ~ 8'0" |
| Living room | 13'0" x 15'0" | ~ 8'0" |

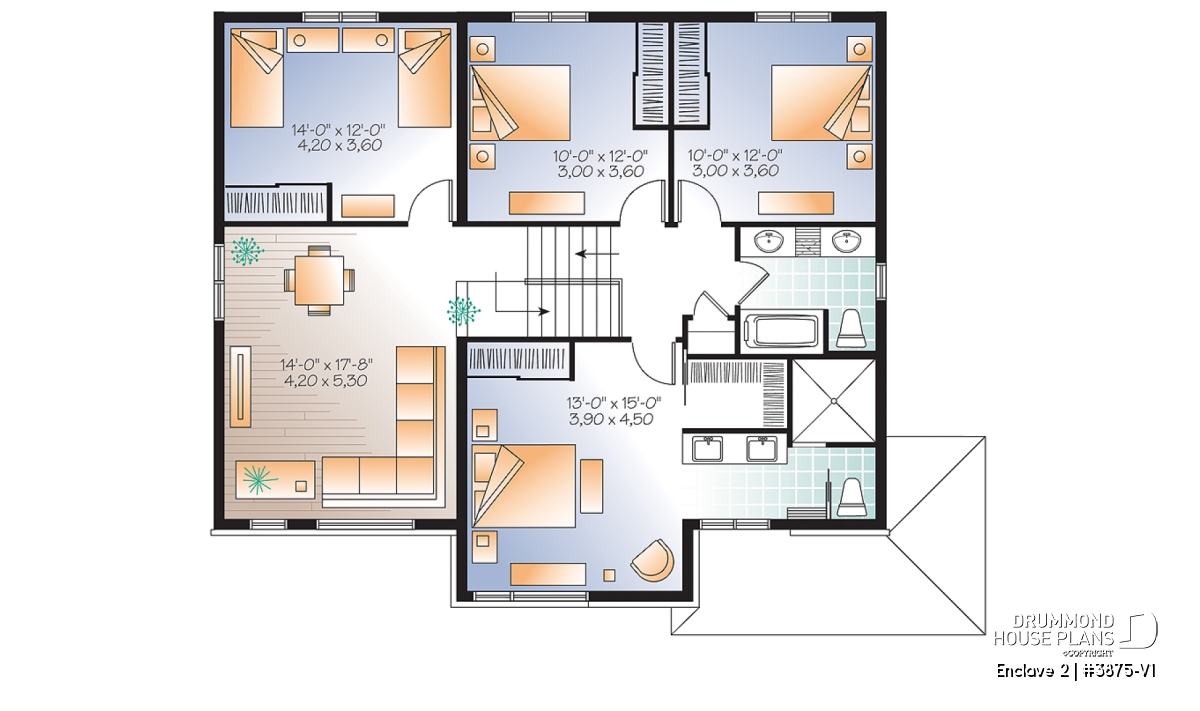

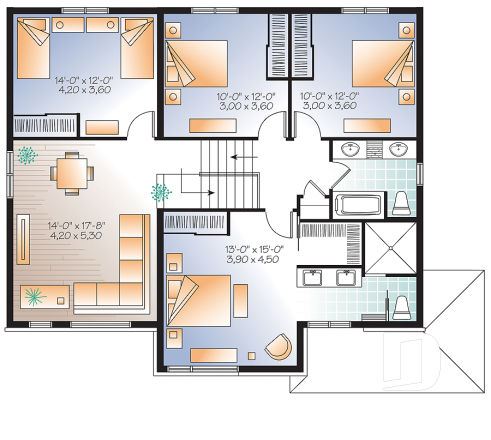

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 15'0" | ~ 8'0" |
| Closet | 6'2" x 2'0" | ~ 8'0" |
| Walk-in closet | 6'0" x 5'1" | ~ 8'0" |
| Shower | 5'0" x 5'0" | ~ 8'0" |
| Bedroom | 14'0" x 12'0" | ~ 8'6" |
| Closet | 6'2" x 2'0" | ~ 8'6" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Closet | 1'10" x 6'2" | ~ 8'0" |
| Bedroom | 10'0" x 12'0" | ~ 8'0" |
| Closet | 1'10" x 6'2" | ~ 8'0" |
| Great room or Family room | 14'0" x 17'8" | ~ 8'6" |
| Linen | 2'10" x 1'4" | ~ 8'0" |
| Bathroom | 8'2" x 7'6" | ~ 8'0" |
| Linen | 2'10" x 1'4" | ~ 8'0" |
General specifications
| Total living area | 2234 sq.ft. |
| 1st level | 887 sq.ft. |
| 2nd level | 1347 sq.ft. |
| Width | 40'8" |
| Depth | 36'0" |
| Ridge height from top of foundation | 28'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | F |
Rooms specifications
Other useful information on this plan
Four bedrooms and upstairs family room!
This contemporary cottage is derived from the popular plan 3875, and includes a space above the garage allowing the construction of an additional bedroom and family room - a bright and pleasing alternative to basement placement of a second family space.
On the ground floor, a spacious vestibule and generous closet says 'welcome' to all who arrive. The open floor plan provides flexibility in the main activities areas overlooking the rear of the house. The kitchen features plenty of storage opportunities, and expansive lunch island.
A small flight of stairs arrives at the space above the garage which we have proposed to be developed as a family room and fourth bedroom. The upper level includes two more bedrooms, family bathroom and master suite. Within the master suite, his and hers closets, a bathroom with double vanity, discreet toilet compartment and oversize shower are sure to please.

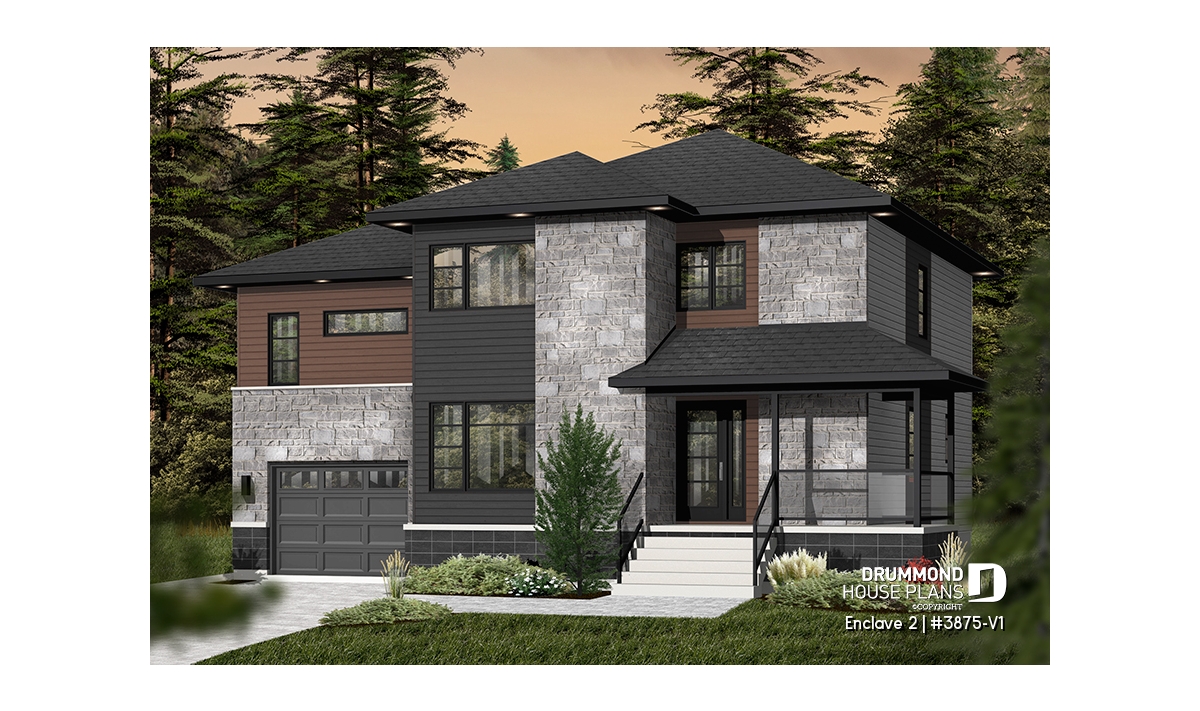

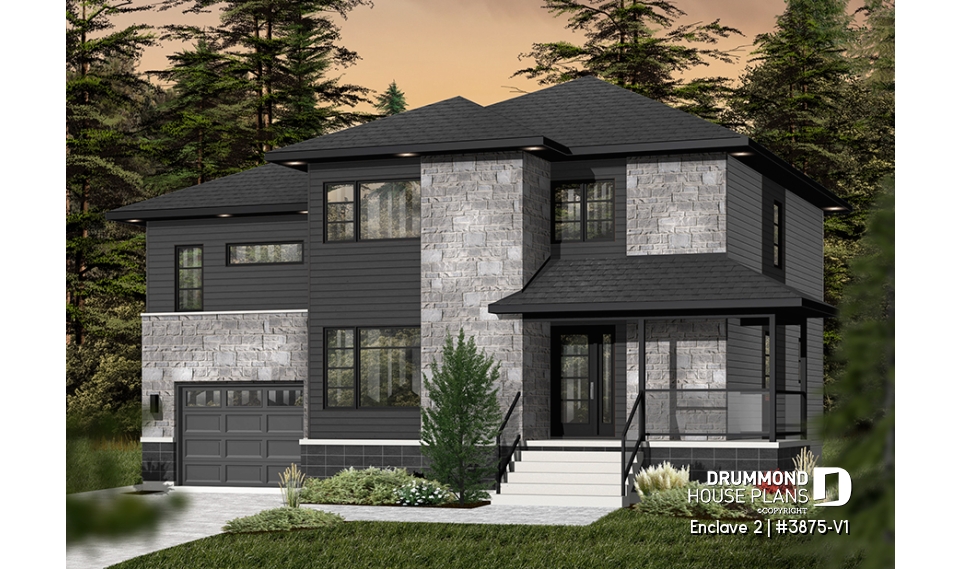

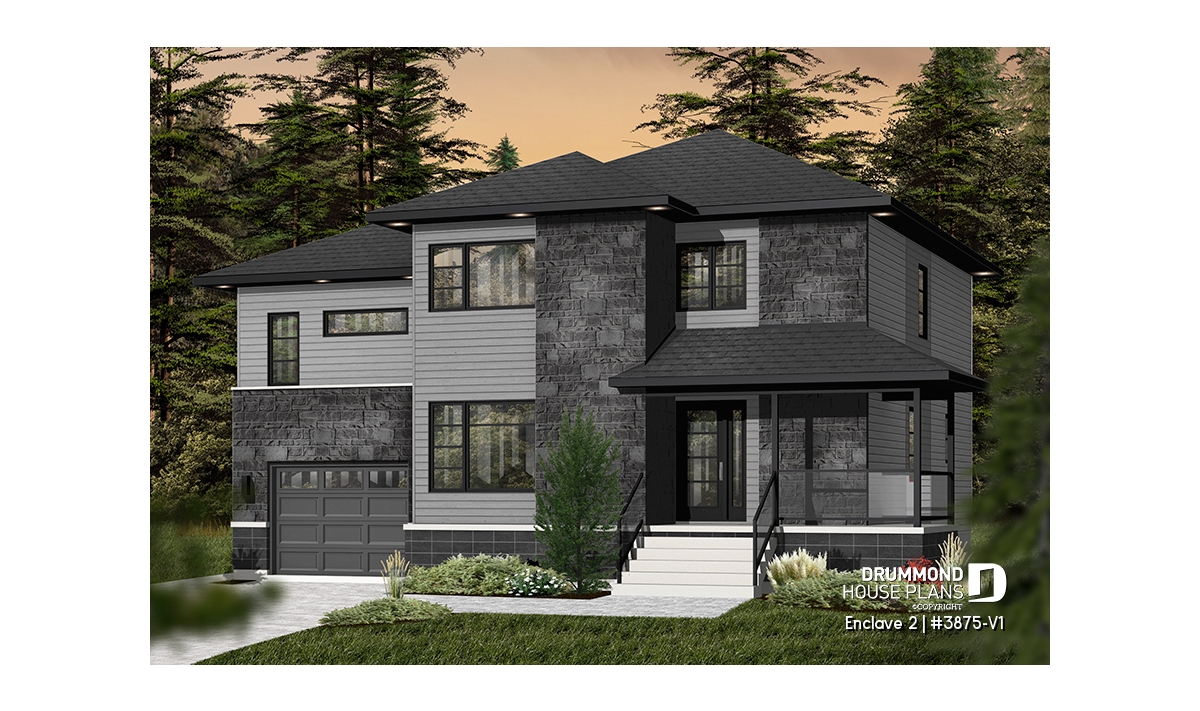

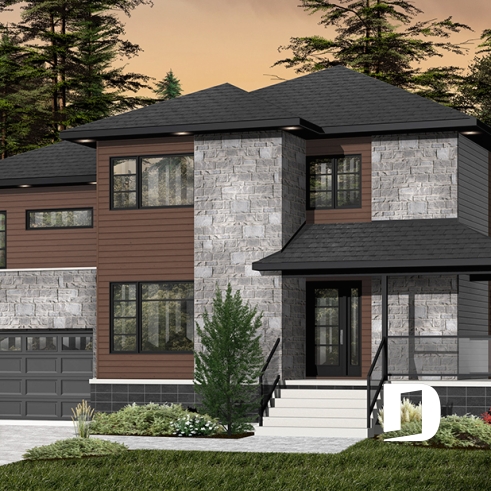

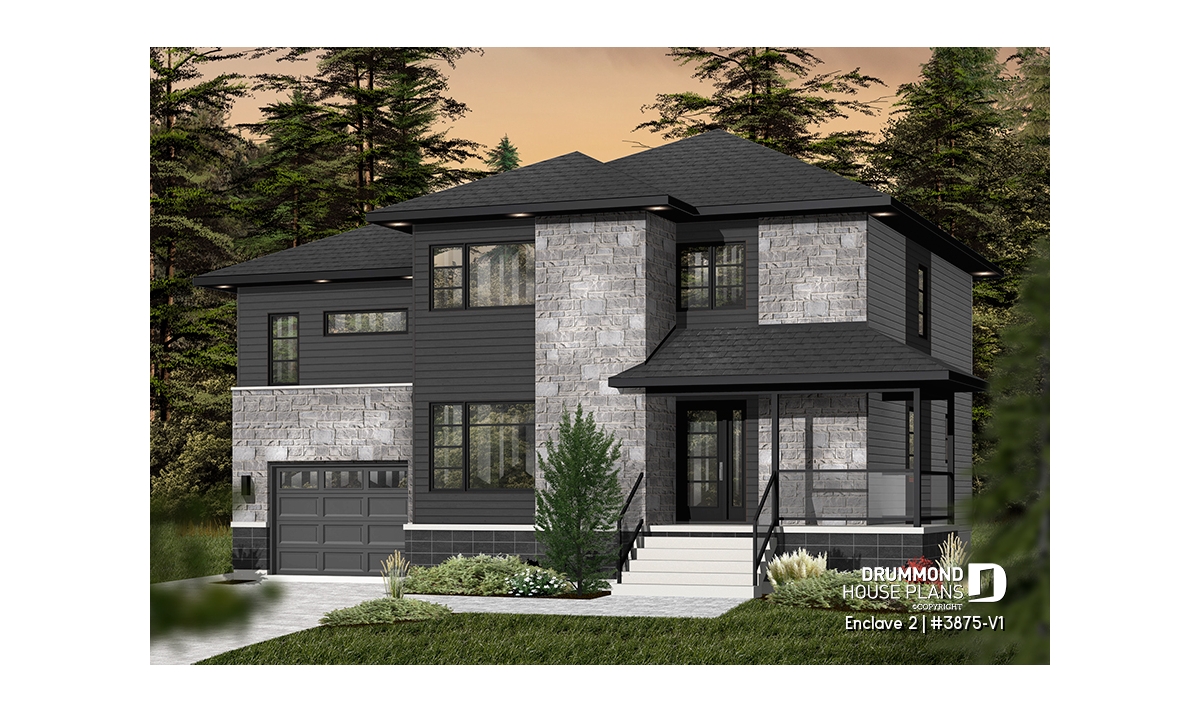

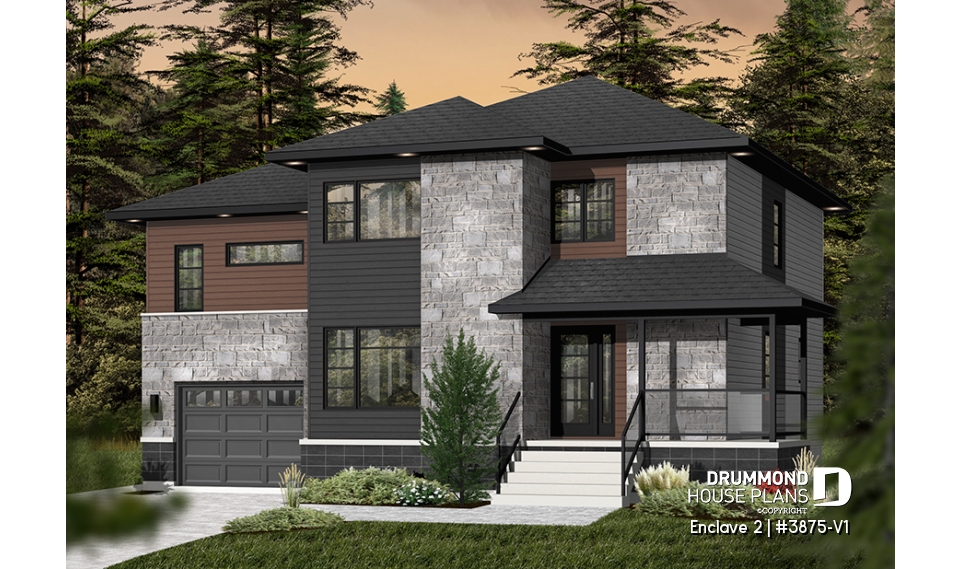

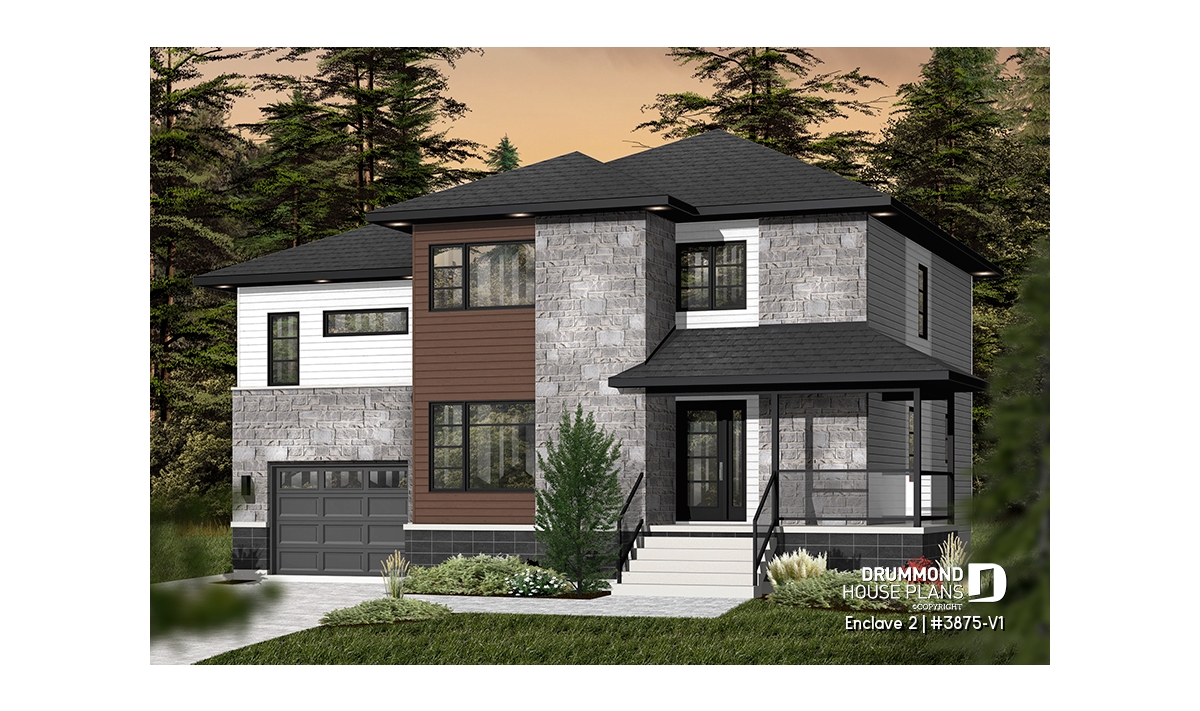

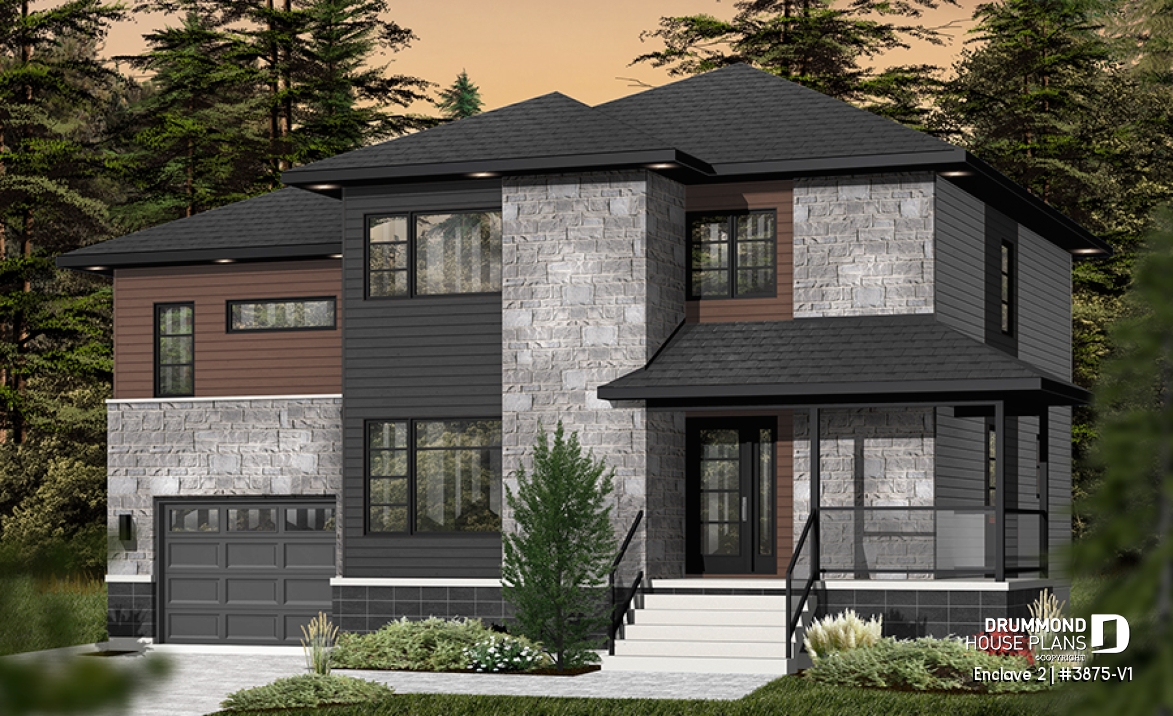

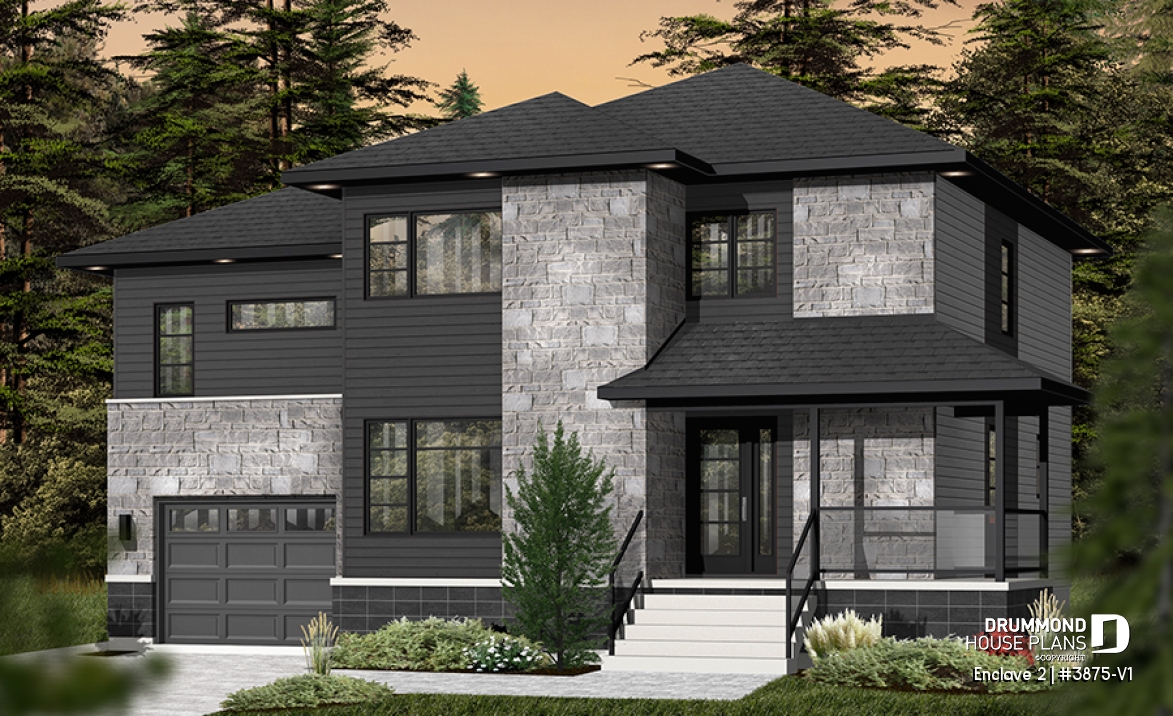

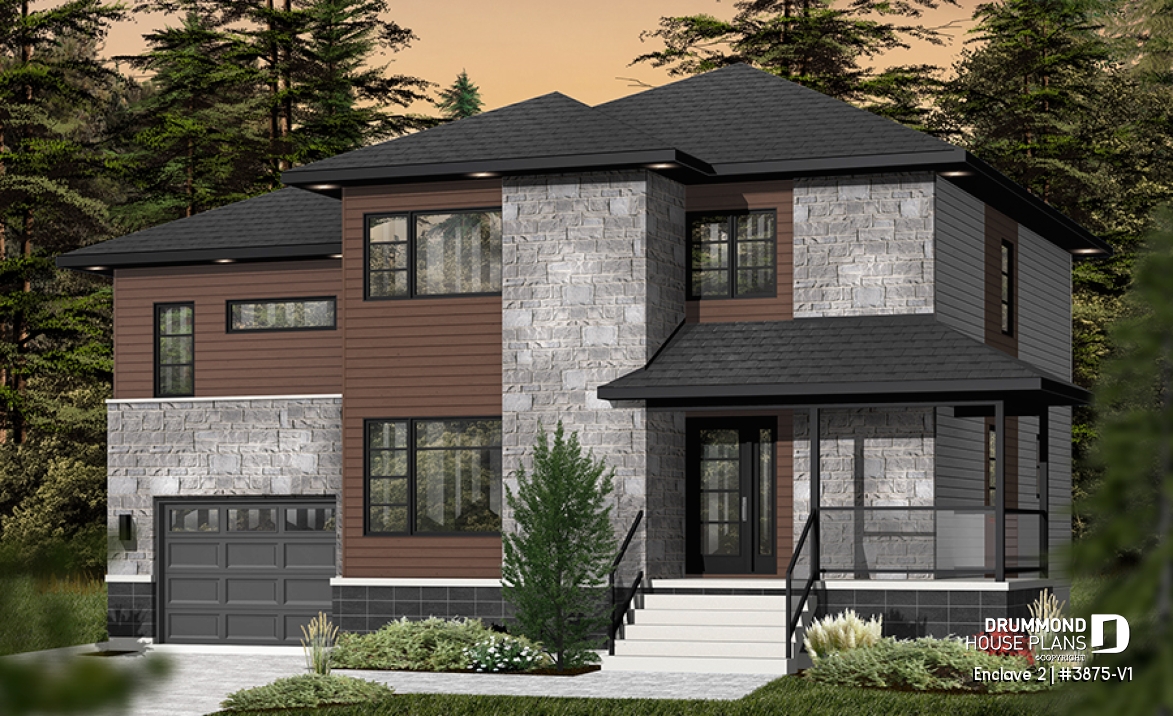

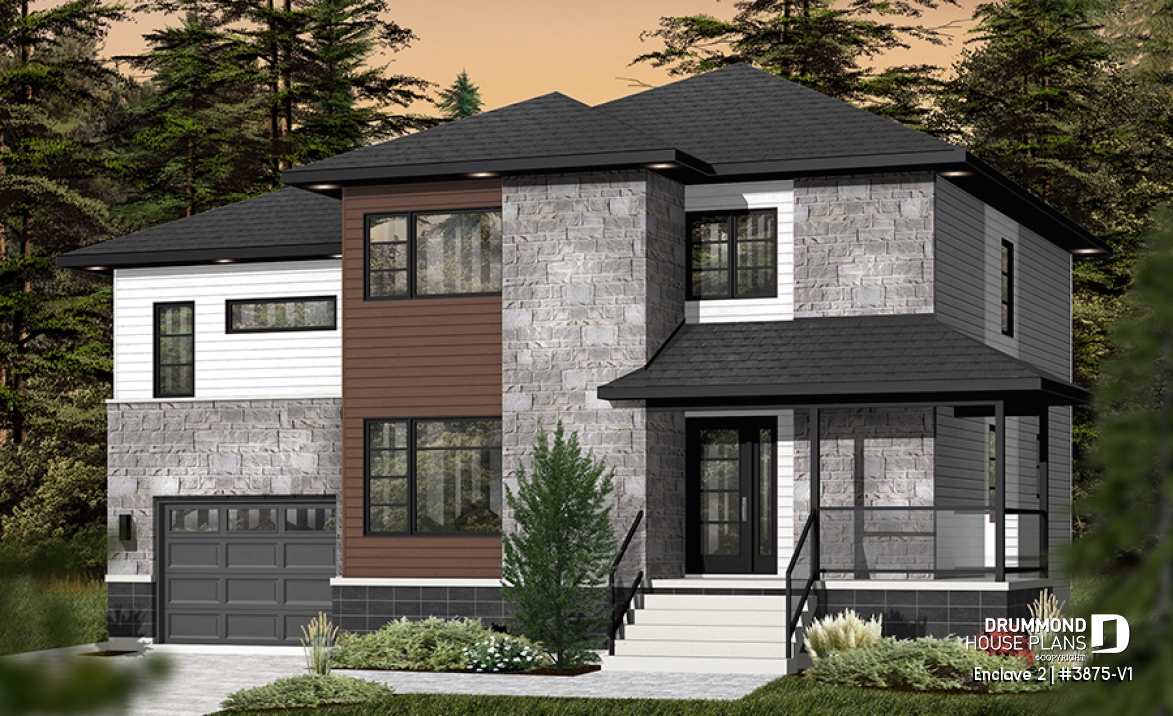

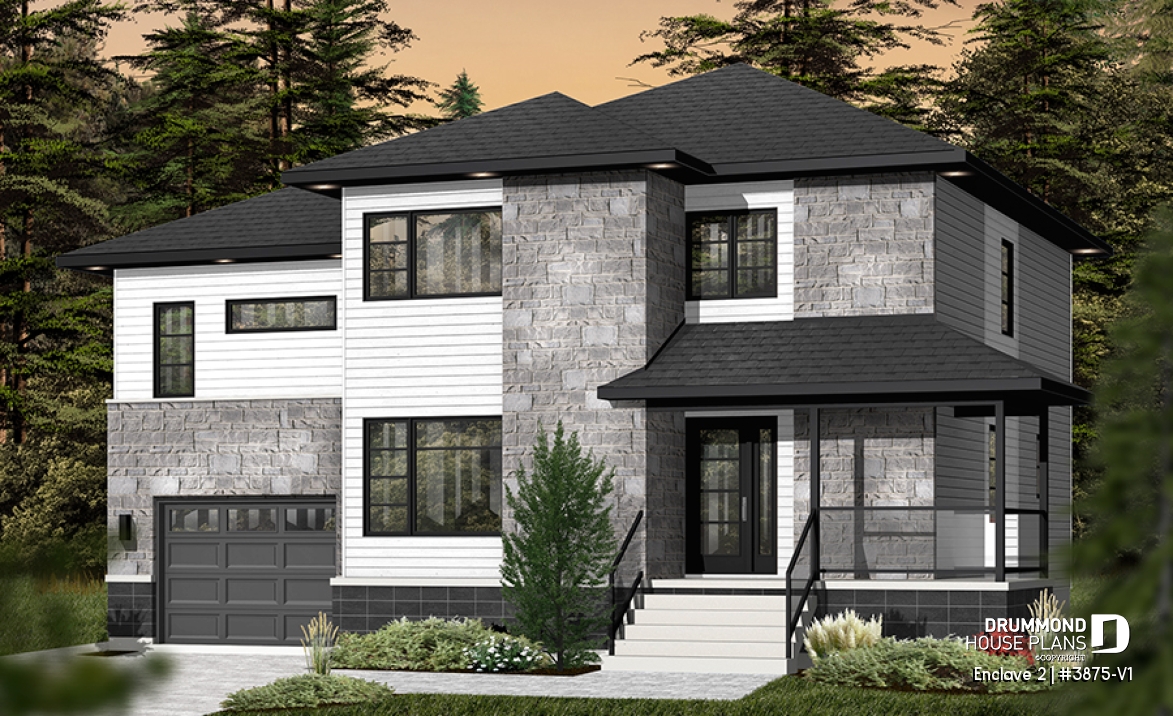

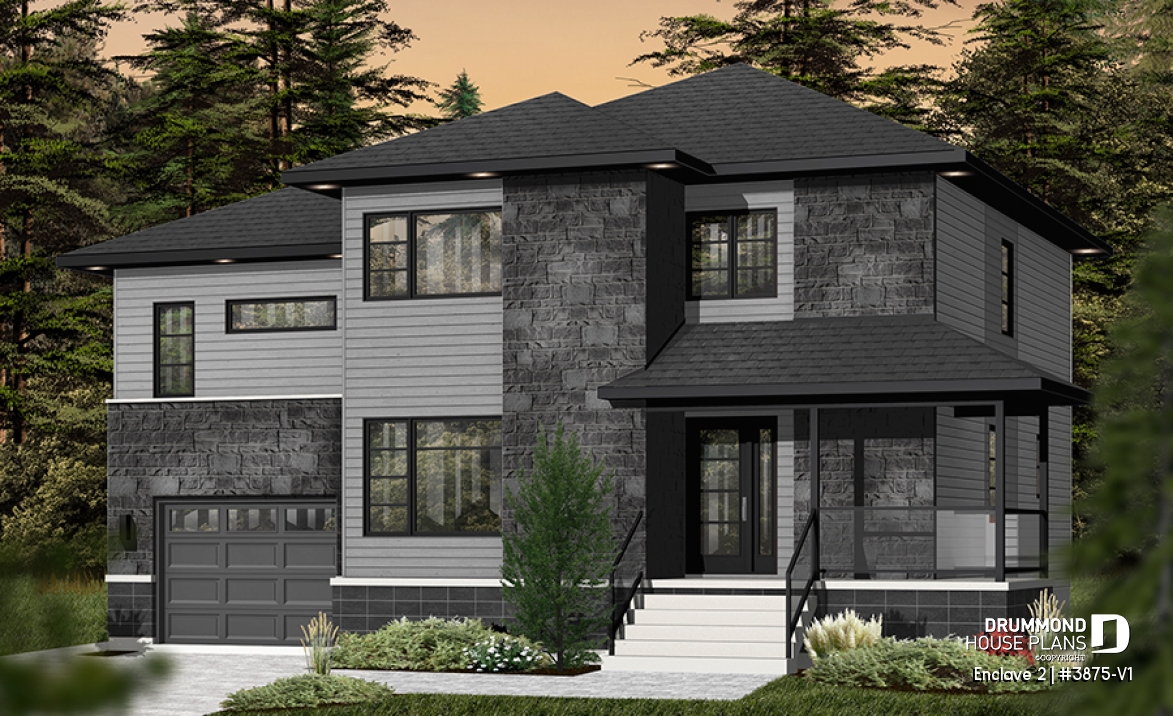

Of course, the exterior makes a bold statement with the use of mixed cladding materials and strong lines punctuated by symmetrical windows.
The plan includes an unfinished basement which could be developed to suit. Alternate foundations are available as well.
Distinctive elements
Four bedrooms upstairs. Master suite with walk-in shower room, a 5' x 5' shower and a separate toilet enclosure. Planned family room above the garage. Kitchen with excellent storage and a 76" x 36" central island. Garage with stairs to the basement.
Plan feature(s)
Pantry, Laundry chute, Island, Mud room, Gound floor laundry room, Basement access from garage, Master suite upstairs, Walk-in master bed., Game room, Separate bath and shower, Double sinks
Plan architectural style(s)
. Contemporary, . Transitional, . Mid-century, . Modern / Design
