3929-V1 (Rivendell 2)

Screened porch cottage house plan, walkout basement open floor plan, fireplace, sloped ceiling, master suite

Bedrooms

3

Bath(s)

2

Half B.

1

Living area

1356 sq.ft.

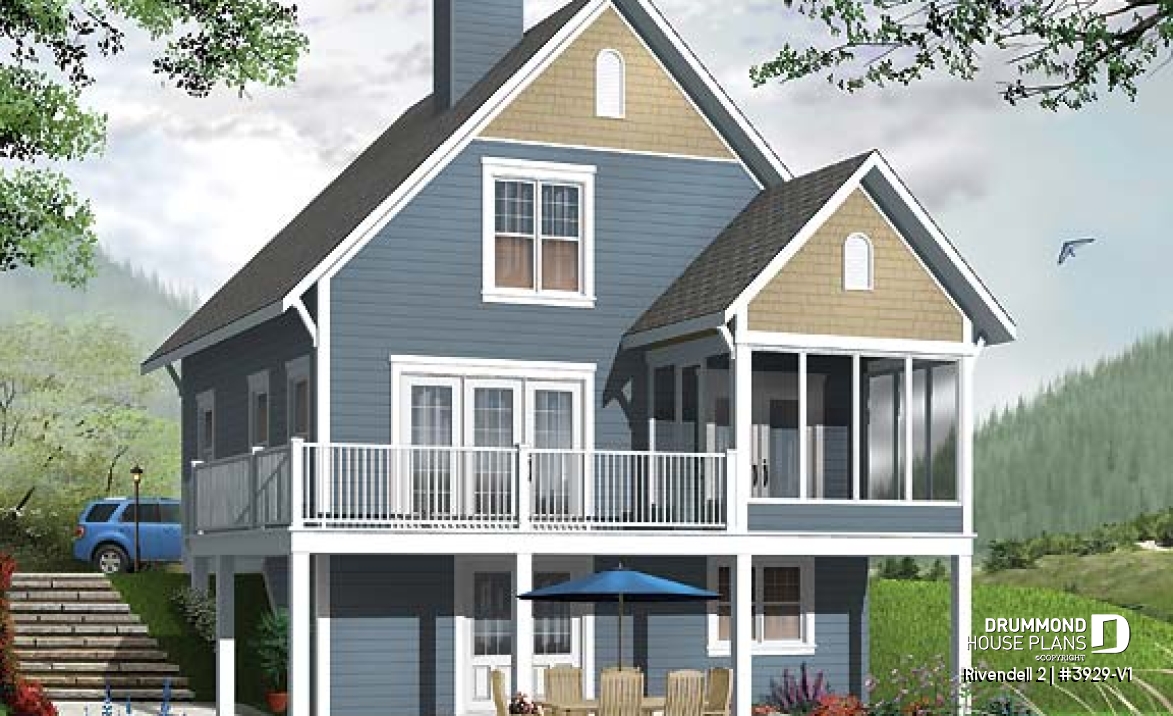

  • Rear view - BASE MODEL - Screened porch cottage house plan, walkout basement open floor plan, fireplace, sloped ceiling, master suite - Rivendell 2

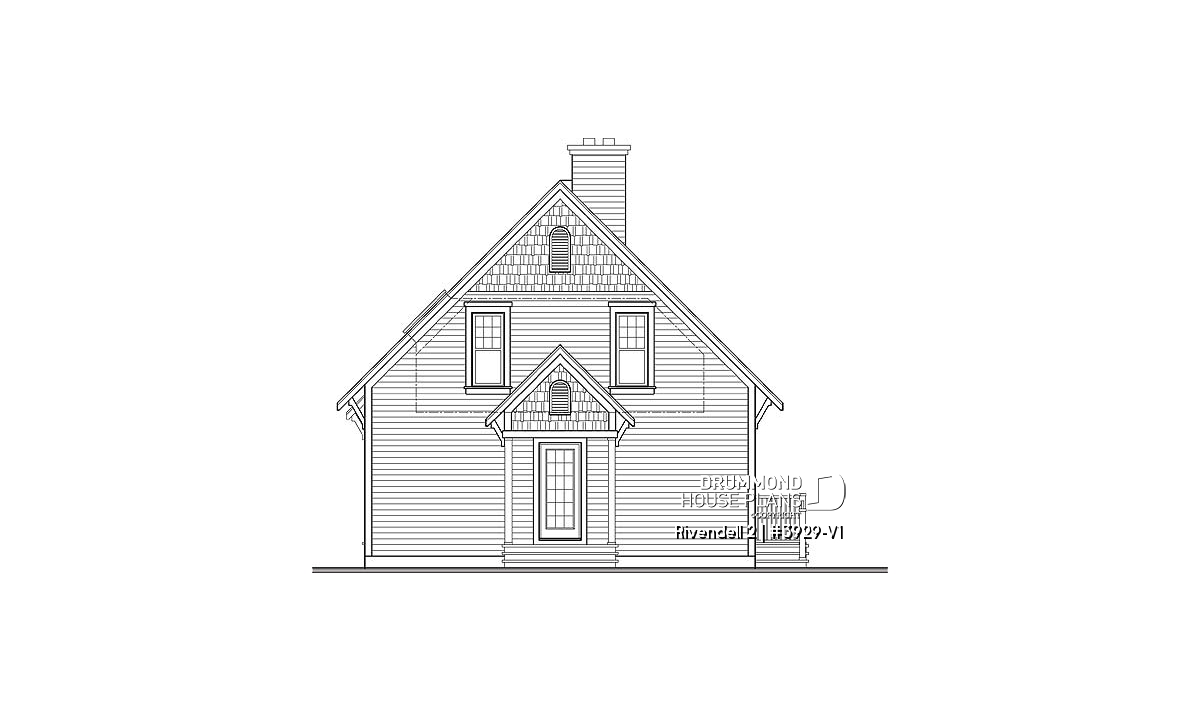

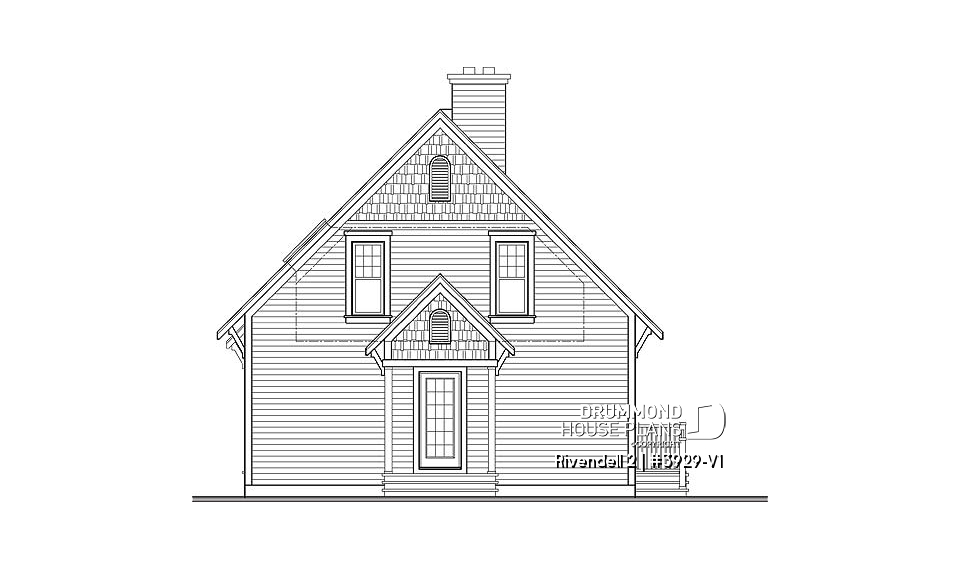

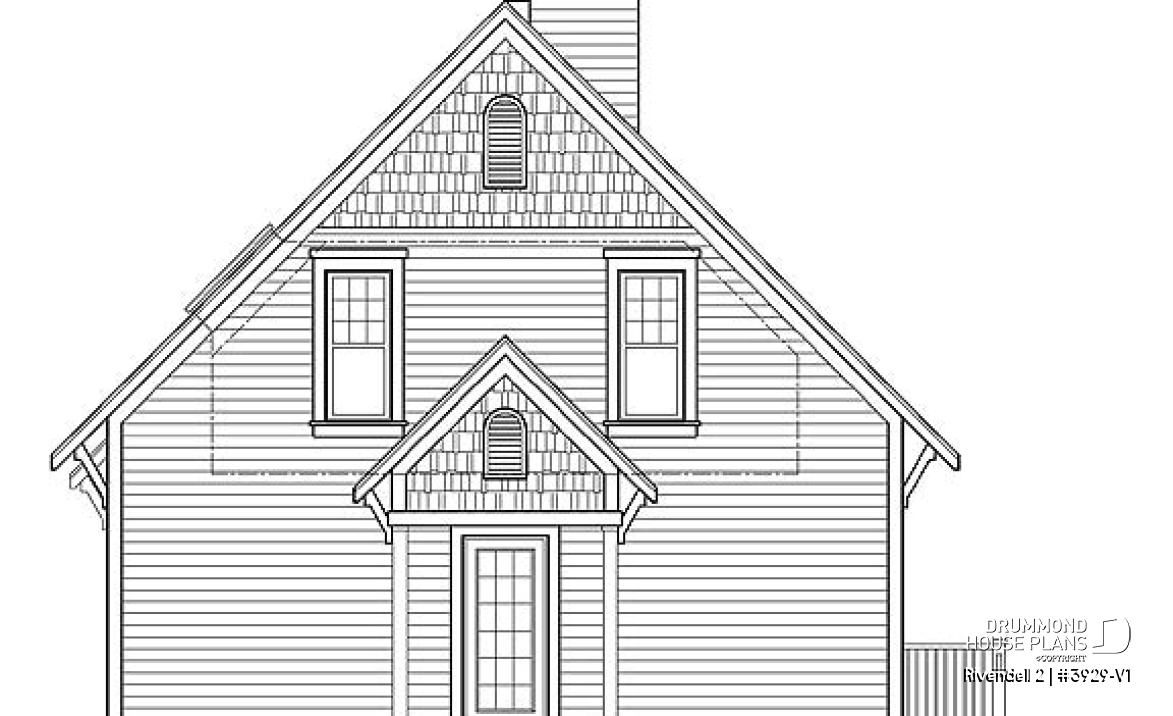

  • front - BASE MODEL - Rivendell 2

Rear view - BASE MODEL

front - BASE MODEL

Vignette Rear view - BASE MODEL - 3929-V1
Vignette front - BASE MODEL - 3929-V1

View by floor

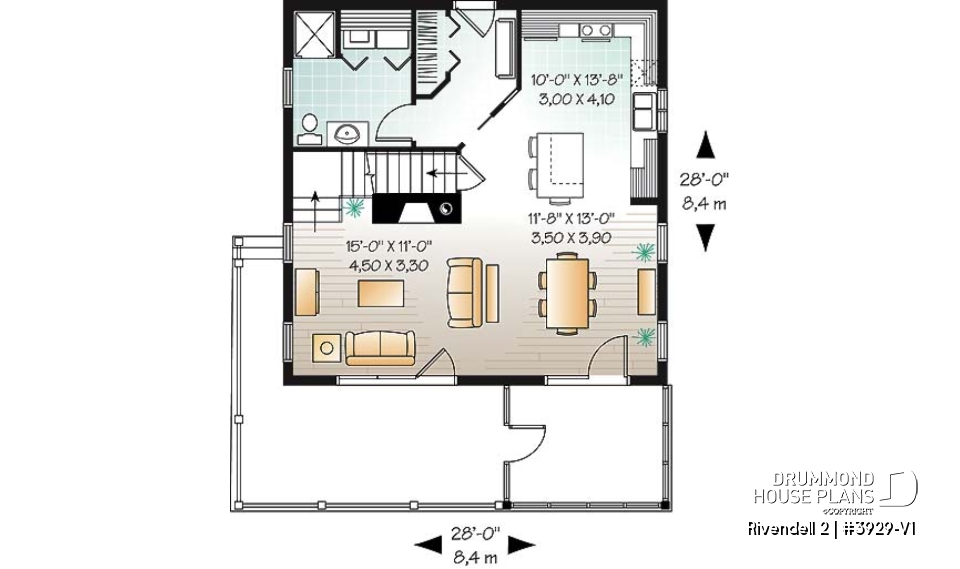

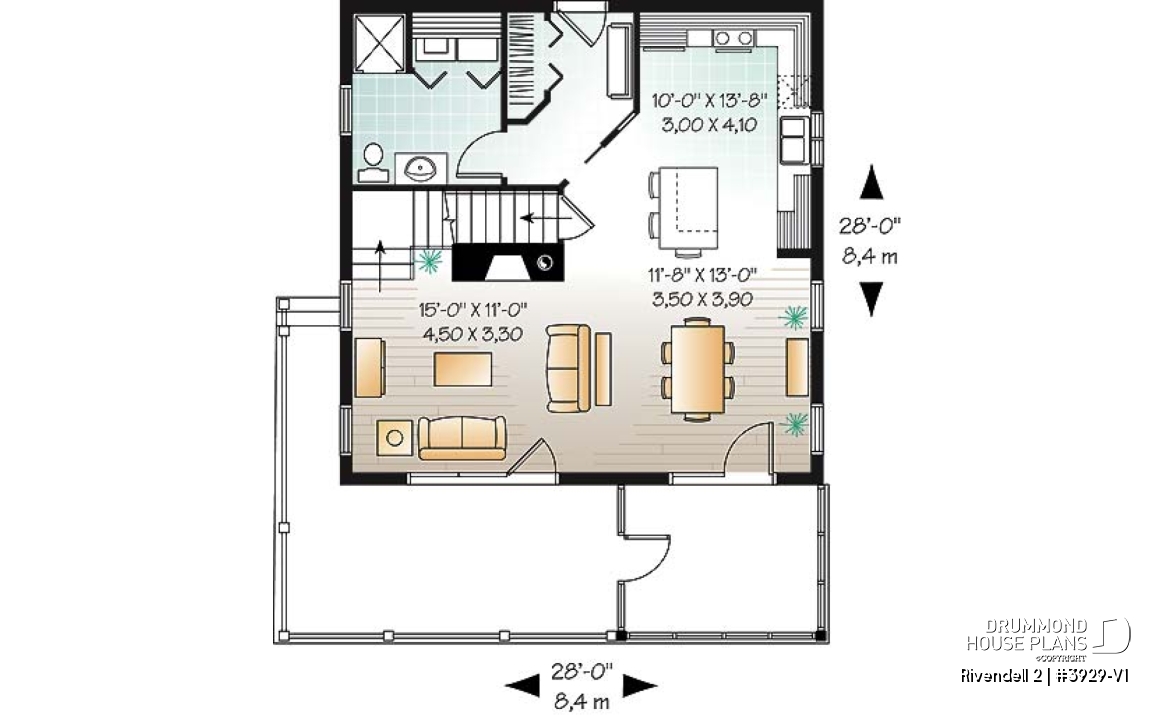

  • 1st level

    1st level - Screened porch cottage house plan, walkout basement open floor plan, fireplace, sloped ceiling, master suite - Rivendell 2

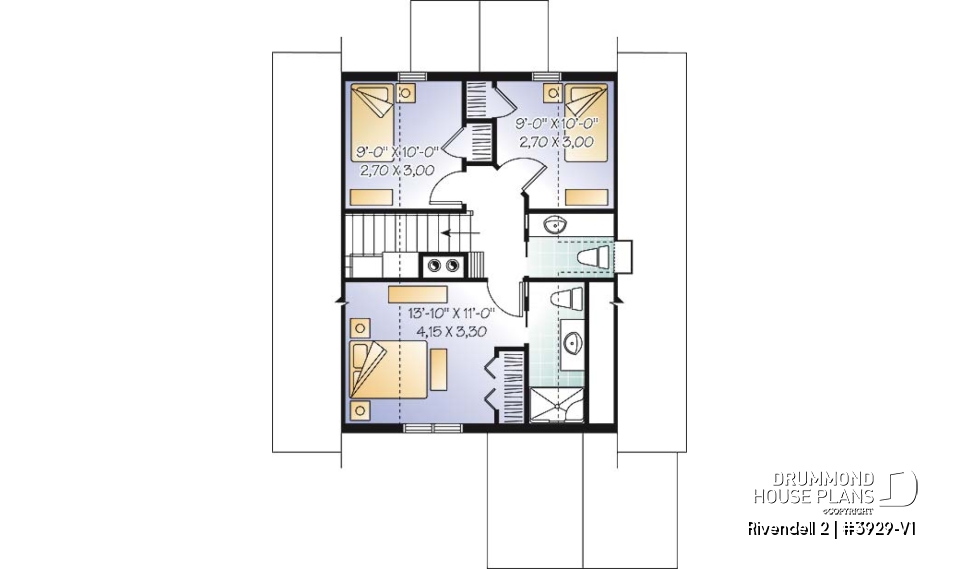

  • 2nd level

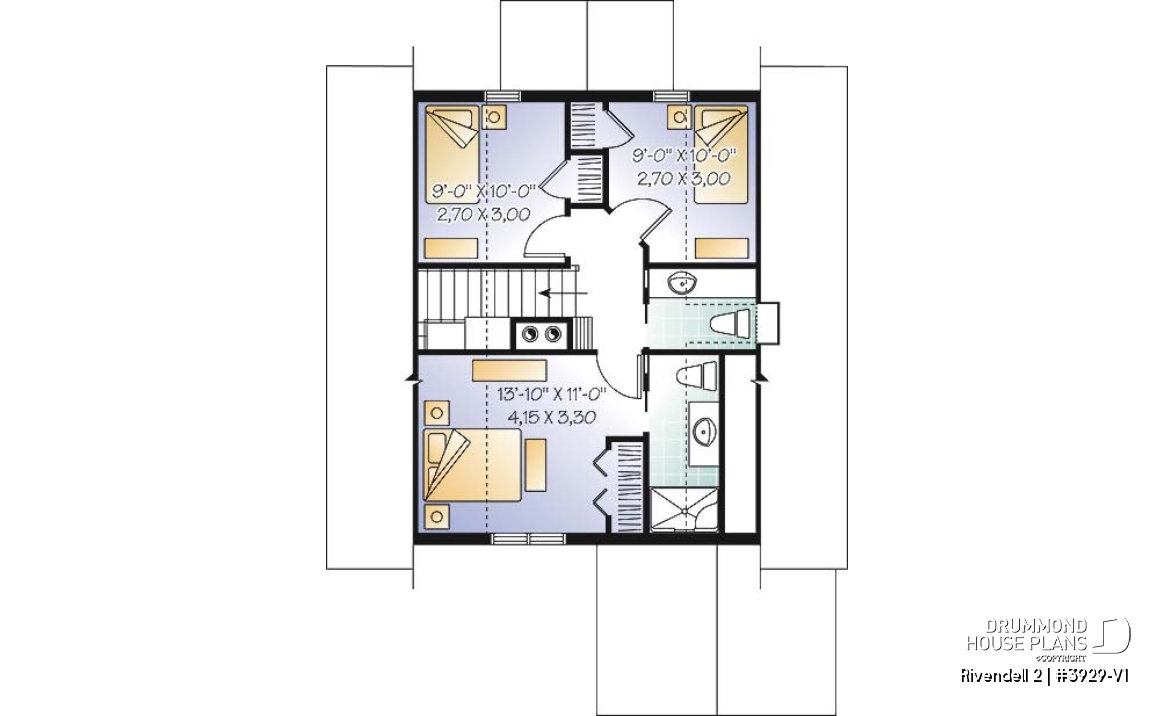

    2nd level - Screened porch cottage house plan, walkout basement open floor plan, fireplace, sloped ceiling, master suite - Rivendell 2
Vignette 1st level - 3929-V1
Vignette 2nd level - 3929-V1

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Kitchen 10'0" x 13'8" ~ 8'0"
Dining room 11'8" x 13'0" ~ 8'0"
Living room 15'0" x 11'0" ~ 8'0"
Foyer 4'10" x 5'8" ~ 8'0"
Master suite 13'10" x 11'0" ~ 8'0"
Shower room or three quarter bath 8'8" x 10'0" ~ 8'0"
Porch 8'0" x 4'0" ~ 0'0"
Deck 19'8" x 18'2" ~ 0'0"
Mosquito Shelter 11'0" x 8'6" ~ 0'0"
Kitchen/dinette 10'0" x 13'8" ~ 8'0"
2nd level
Rooms Sizes Ceiling
Master suite 13'10" x 11'0" ~ 8'0"
Bedroom 9'0" x 10'0" ~ 8'0"
Bedroom 9'0" x 10'0" ~ 8'0"
Half bath or powder room 6'6" x 5'0" ~ 8'0"
Linen 1'2" x 2'0" ~ 8'0"

General specifications

Total living area 1356 sq.ft.
1st level 784 sq.ft.
2nd level 572 sq.ft.
Width 28'0"
Depth 28'0"
Ridge height from top of foundation 34'3"
Exterior wall 2 X 6
Foundation type included in the plan Full basement with walkout
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code C

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths 1
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1356 sq.ft.
1st level 784 sq.ft.
2nd level 572 sq.ft.
Width 28'0"
Depth 28'0"
Ridge height from top of foundation 34'3"
Exterior wall 2 X 6
Foundation type included in the plan Full basement with walkout i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code C

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths 1
Garage type -
Living bonus space - i
Bonus storage - i

Buy this plan

From : 900$

Modify this plan

Get a quote

Description

First level: Foyer, shower/laundry room, kitchen-dinette, dining room and living room. 2nd level: Master bedroom, master bathroom, two additional bedrooms and powder room.

Other useful information on this plan

Affordable open floor plan cabin house plan, for all seasons! 3 beds, 3 baths

This quaint cottage would be perfectly at home on a sloping lot with water or hillside views.

An efficient square design of 28’ x 28’, this model was inspired by model 3929 with adjusted floor plan and entries. The main entry includes a vestibule with closet and space for seating. Adjoining this, one finds a conveniently located bathroom with shower and laundry – perfect for cleaning up after enjoying the outdoors!

The main living area includes an open plan with kitchen, island with raised eating bar, and living room – all bathed in light from windows on three sides. Chilly days are warmed by the central fireplace and garden doors beckon family and guests into the sheltered screen porch or onto the wraparound deck.

Upstairs, the master bedroom includes a master bathroom with generous shower. Two other bedrooms share a powder room for essential convenience.

An unfinished basement with walk-out is ready for your ideas now or in the future.

Distinctive elements

Entirely open activity area on main floor. Large main entrance foyer. Lunch island in the kitchen and fireplace in the living room. Screened porch, deck access and walk-out basement in back.

Plan feature(s)

Sloped ceiling, Screened porch, Shower room, Washer/dryer closet, Open floor layout, Fireplace, Island, Master suite

Other useful information on this plan

Full description

Affordable open floor plan cabin house plan, for all seasons! 3 beds, 3 baths

This quaint cottage would be perfectly at home on a sloping lot with water or hillside views.

An efficient square design of 28’ x 28’, this model was inspired by model 3929 with adjusted floor plan and entries. The main entry includes a vestibule with closet and space for seating. Adjoining this, one finds a conveniently located bathroom with shower and laundry – perfect for cleaning up after enjoying the outdoors!

The main living area includes an open plan with kitchen, island with raised eating bar, and living room – all bathed in light from windows on three sides. Chilly days are warmed by the central fireplace and garden doors beckon family and guests into the sheltered screen porch or onto the wraparound deck.

Upstairs, the master bedroom includes a master bathroom with generous shower. Two other bedrooms share a powder room for essential convenience.

An unfinished basement with walk-out is ready for your ideas now or in the future.

Distinctive elements

Entirely open activity area on main floor. Large main entrance foyer. Lunch island in the kitchen and fireplace in the living room. Screened porch, deck access and walk-out basement in back.

Plan feature(s)

Sloped ceiling, Screened porch, Shower room, Washer/dryer closet, Open floor layout, Fireplace, Island, Master suite

Questions and comments on this plan

October 23 2014

Carol Frey

Actually I'm inquiring about the distance between the two windows on each side of both the dining room and the living room. For example: if the distance or wall space between each window is 5', 6' or 7' in order to determine how much room there might be for a dining hutch in dining room and an entertainment console / tv stand in the living room area, if those furniture pieces are placed between the windows.

October 23 2014

Customer service

Good day Ms. Frey

The distance between the 2 windows is 4' 2" and we can potentially increase it to 5' 0"

Hope this helps
Regards
Deb

October 20 2014

Carol Frey

Wondering what the distance / measurement is between the 2 windows on each side of both the dining room area and living room area. Also if it would be possible to get this downstairs floorplan, minus the fireplace, with the upstairs floorplan of W3929 but with 2 master bedrooms instead of 3?

October 20 2014

Customer service

Good day Ms. Frey and thank you for your interest in this plan.

If you are inquiring about the width of the molding between the panes, this will depend on the windows that you choose so the manufacturer of the windows will be your best resource for this information.

The changes that you require to the floor plan are possible and we would be happy to send you a free estimate within two business days after receipt of this on line request

Please let me know if I can further assist you
Regards
Deb

August 12 2014

Carol Frey

How would the layout change if the fireplace was eliminated?

August 12 2014

Customer service

Good day Ms. Frey and thank you for taking the time to write.

Eliminating the fireplace would give more space in the living room and open up the stairwell upstairs.

Please let me know if I can further assist you
Regards
Deb

April 28 2014

fran

Does plan 3929,with walk-out basement. Is any excavating needed for this type of basement; or does a walk-out basement sits on top of the ground as it appears in the picture? this is a nice plan, will suit my needs. thank you

April 28 2014

Customer service

Good day and thank you for your interest in this plan.

Although the walk-out basement is usually designed for a lot that slopes from front to back it can be used on a relatively flat lot. Some digging would be required otherwise the front part of the home will be still under ground. This plan could however be ordered with a full basement that does not have a walk-out or on a slab or crawl space if that is a more convenient option.

Please let me know if you have any other questions or comments.

Questions and comments

October 23 2014

Carol Frey

Actually I'm inquiring about the distance between the two windows on each side of both the dining room and the living room. For example: if the distance or wall space between each window is 5', 6' or 7' in order to determine how much room there might be for a dining hutch in dining room and an entertainment console / tv stand in the living room area, if those furniture pieces are placed between the windows.

October 23 2014

Customer service

Good day Ms. Frey

The distance between the 2 windows is 4' 2" and we can potentially increase it to 5' 0"

Hope this helps
Regards
Deb

October 20 2014

Carol Frey

Wondering what the distance / measurement is between the 2 windows on each side of both the dining room area and living room area. Also if it would be possible to get this downstairs floorplan, minus the fireplace, with the upstairs floorplan of W3929 but with 2 master bedrooms instead of 3?

October 20 2014

Customer service

Good day Ms. Frey and thank you for your interest in this plan.

If you are inquiring about the width of the molding between the panes, this will depend on the windows that you choose so the manufacturer of the windows will be your best resource for this information.

The changes that you require to the floor plan are possible and we would be happy to send you a free estimate within two business days after receipt of this on line request

Please let me know if I can further assist you
Regards
Deb

August 12 2014

Carol Frey

How would the layout change if the fireplace was eliminated?

August 12 2014

Customer service

Good day Ms. Frey and thank you for taking the time to write.

Eliminating the fireplace would give more space in the living room and open up the stairwell upstairs.

Please let me know if I can further assist you
Regards
Deb

April 28 2014

fran

Does plan 3929,with walk-out basement. Is any excavating needed for this type of basement; or does a walk-out basement sits on top of the ground as it appears in the picture? this is a nice plan, will suit my needs. thank you

April 28 2014

Customer service

Good day and thank you for your interest in this plan.

Although the walk-out basement is usually designed for a lot that slopes from front to back it can be used on a relatively flat lot. Some digging would be required otherwise the front part of the home will be still under ground. This plan could however be ordered with a full basement that does not have a walk-out or on a slab or crawl space if that is a more convenient option.

Please let me know if you have any other questions or comments.
