House plan Vistas 3 (2939B)
Country cottage house plan, economical, walkout basement, large terrace, master on main
View the size of the rooms and height of the ceilings

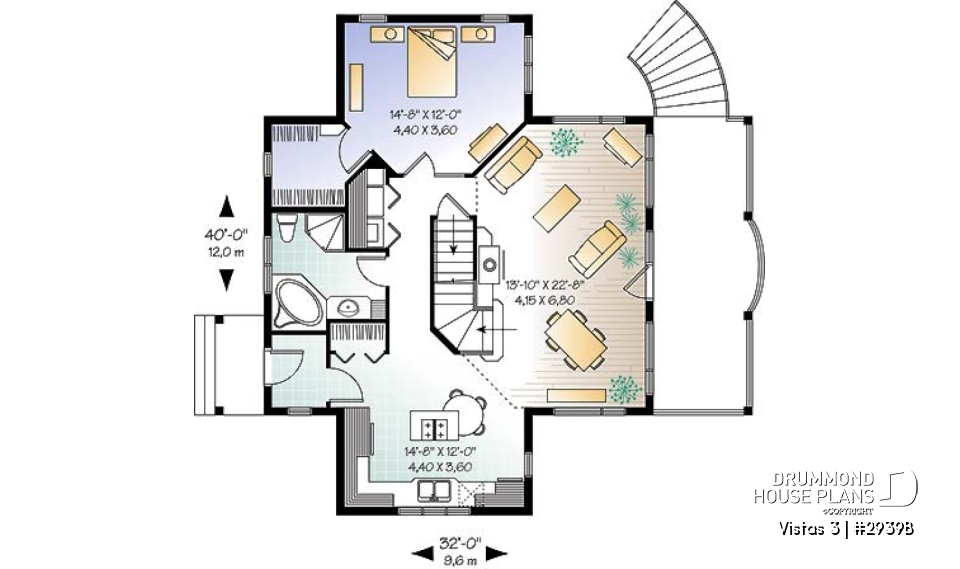

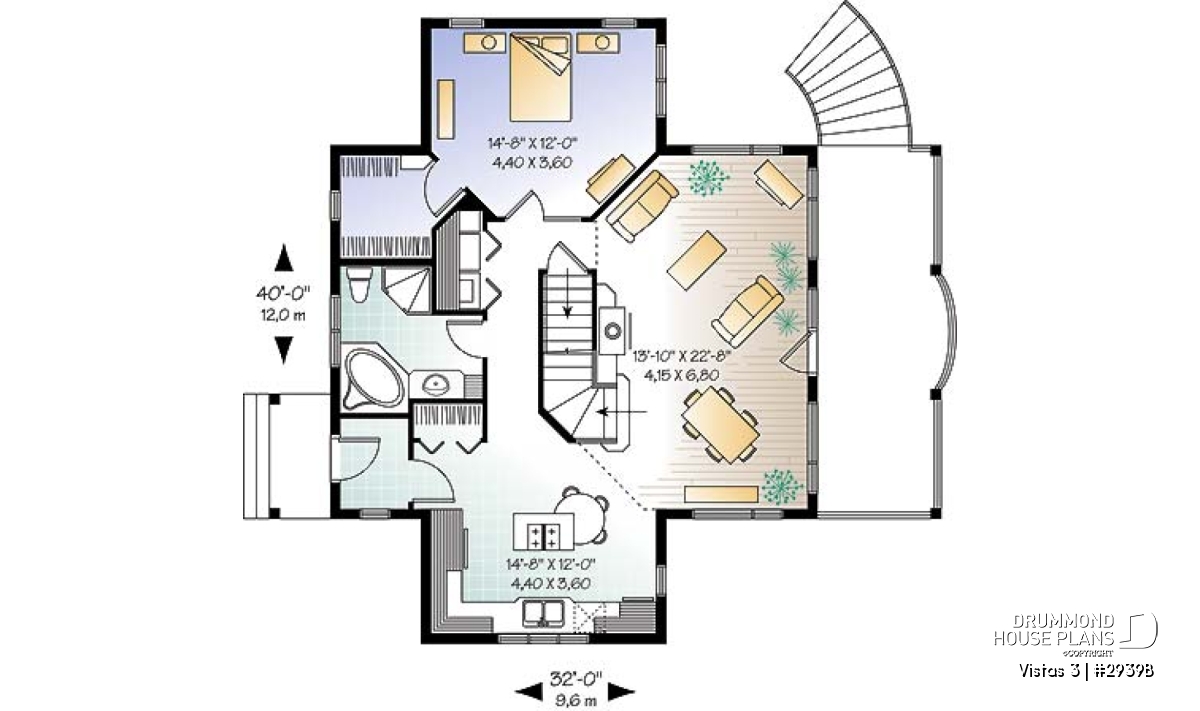

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'8" x 12'2" | ~ 8'0" |
| Living room | 13'10" x 22'8" | ~ 17'2" |
| Full bathroom | 9'4" x 9'5" | ~ 8'0" |
| Foyer | 4'6" x 5'9" | ~ 8'0" |
| Bedroom | 14'8" x 12'0" | ~ 8'0" |
| Laundry room | 3'0" x 6'4" | ~ 8'0" |
| Porch | 8'0" x 24'0" | N/A |
| Porch | 4'0" x 8'0" | N/A |

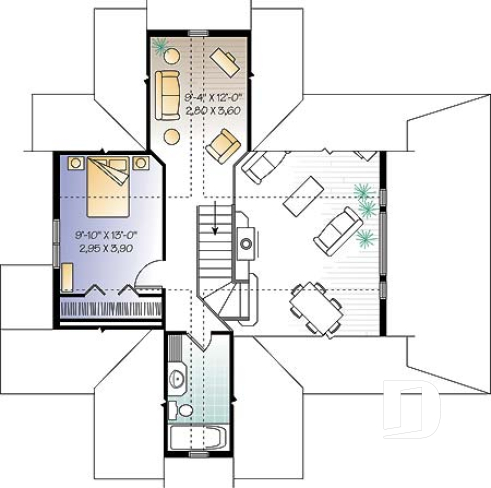

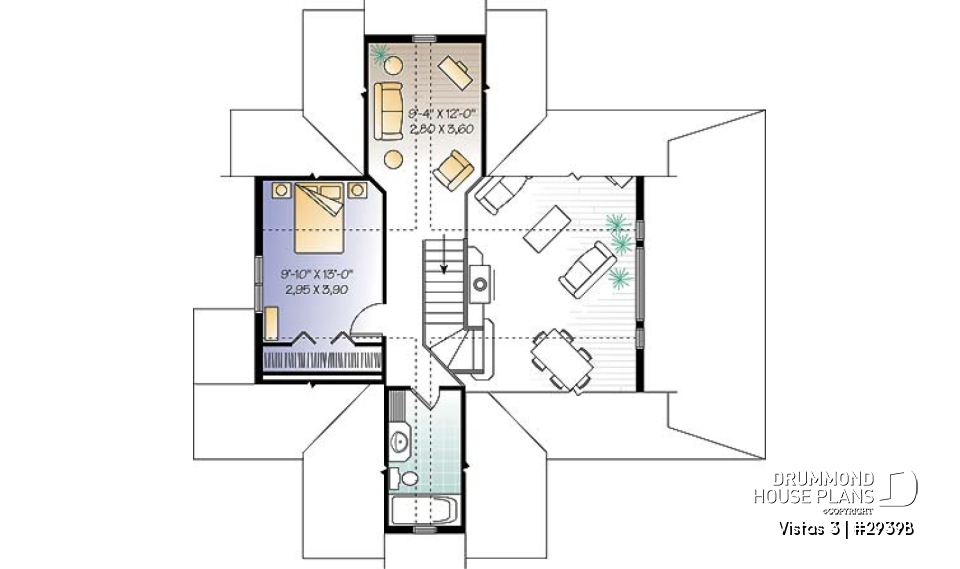

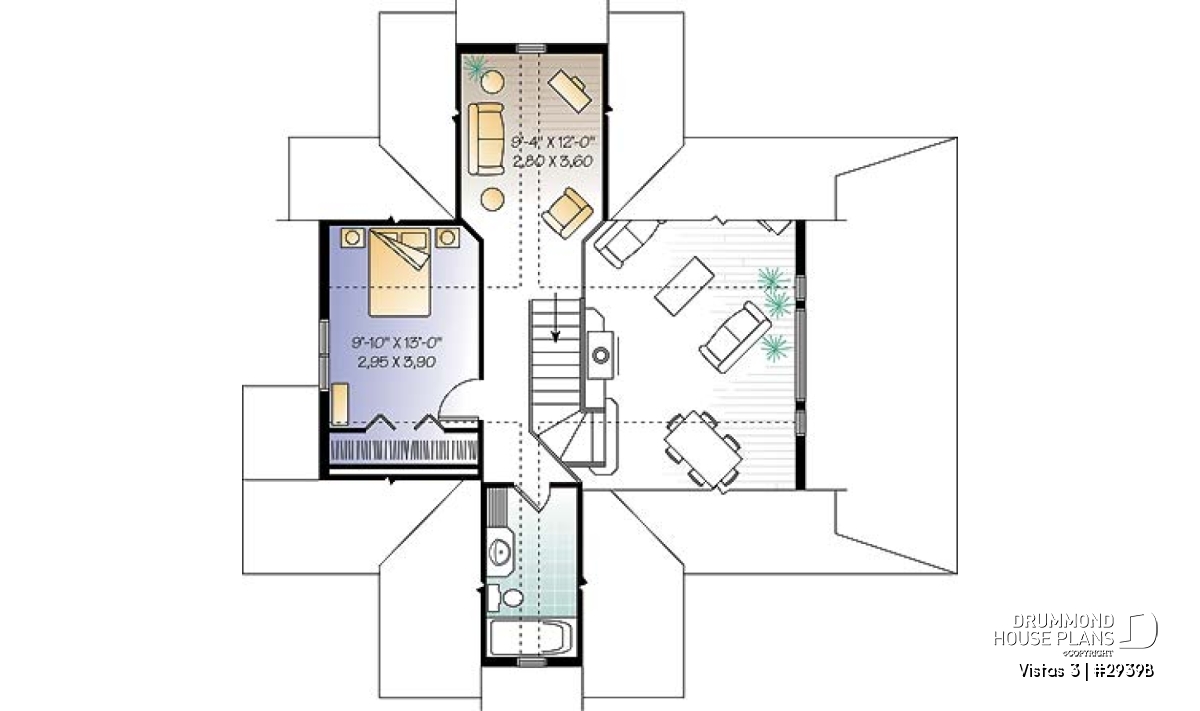

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'10" x 13'0" | ~ 8'0" |
| Full bathroom | 6'0" x 10'10" | ~ 8'0" |
| Den | 9'4" x 12'0" | ~ 8'0" |
General specifications
| Total living area | 1480 sq.ft. |
| 1st level | 1024 sq.ft. |
| 2nd level | 456 sq.ft. |
| Width | 40'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 24'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

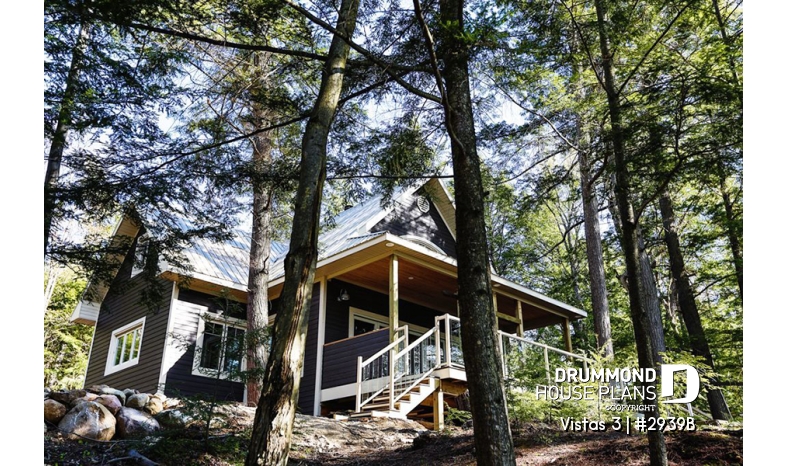

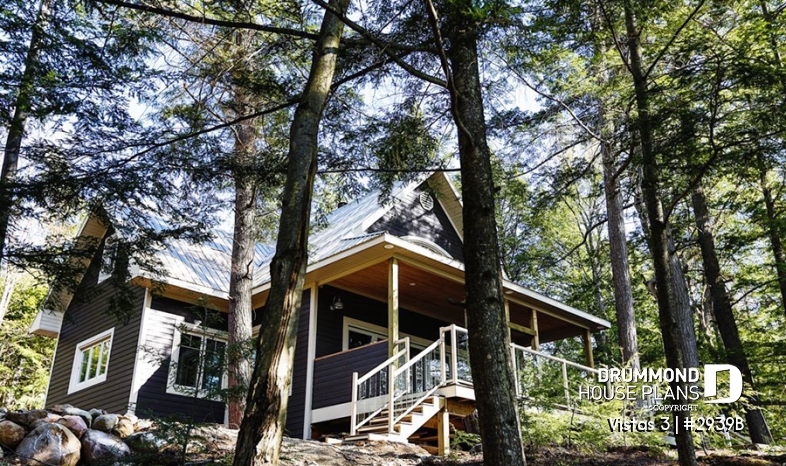

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

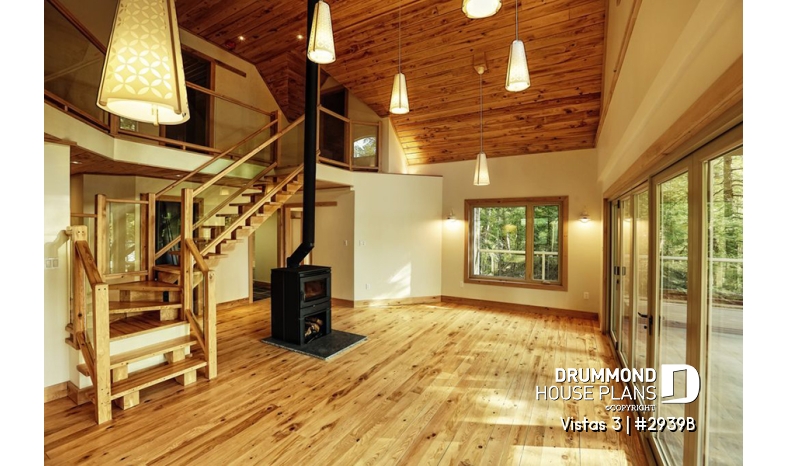

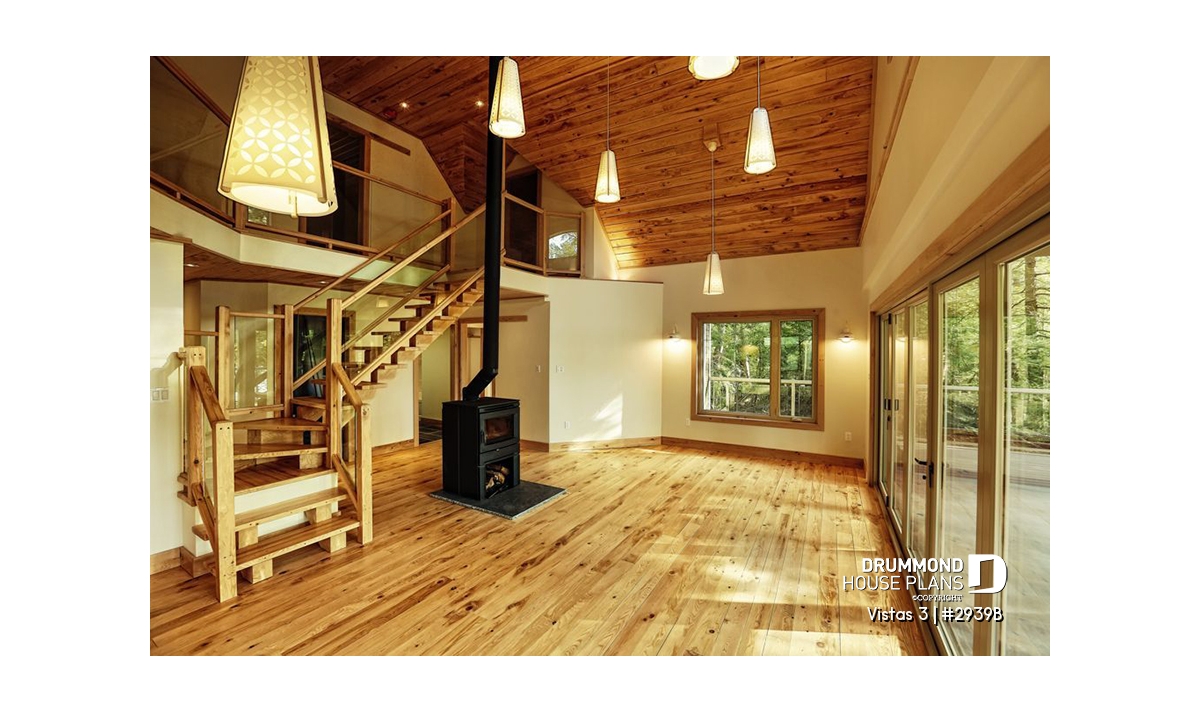

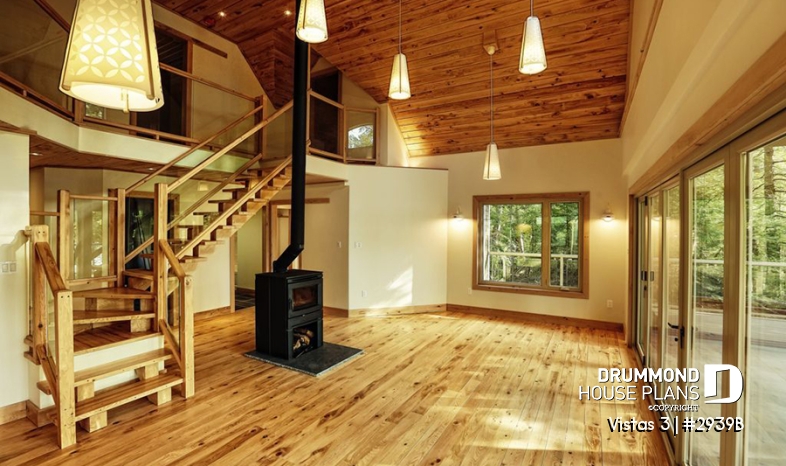

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Splendid country cottage house plan with lots of natural light
Here is one of the most sought after models by proud owners of a panoramic lot. Indeed, with several rooms offering a view on the panorama, this one fills the bill perfectly well.
Inside, whether we are in the kitchen, dining room or master bedroom, we can easily see views from anywhere on the main level. All these beautiful spaces offer something particular; attractive kitchen with central island, abundant windowing and a fireplace shared between the living and dining rooms and a beautiful master bedroom with large closet and discreet access to the full bathroom.
To this is added an interesting second level with a boudoir on the mezzanine to house friends and guests, a second bedroom and an accommodating bathroom.
Outside, a large sheltered balcony ensures as much comfort outside as inside. In areas where mosquitoes abound, screening can be installed on the perimeter of the balcony for peace and comfort while eating outside.
Distinctive elements
Charming and economical country cottage house plan.
Main-floor master suite.
Abundant fenestration in the rear of the house.
Fireplace and cathedral ceiling in the dining/living rooms.
Lovely covered rear porch.
Laundry on the ground floor.
Fireplace.
Unfinished walkout basement.
Plan feature(s)
Cathedral ceiling, Fireplace, Mezzanine, Access to basement from exterior, Open floor layout, Sitting area, Gound floor laundry room, Lunch counter, Panoramic view, Island, Deck, Walk-in master bed.
Plan architectural style(s)
. Country, . Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . American, . Cape Cod, . A-Frame, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
March 11
Kathleen
Can Plan no.W2939B Vistas 3 be reversed?
March 11
Customer service
Good day and thank you for your interest in this plan.
The right reading reverse option is available for all of our house plans and can be ordered for an additional $150. when you purchase your plans.
If you would like to get an idea of what it would look like, all you need to do is to click on the icon just above this text, to the right, with the two little circular arrows and the caption "revers this plan".
What you will see is a mirror image, that's why the dimensions are not easy to read but it will give you a good idea of the layout.
By ordering the right reading revers option you will receive plans that read from left to right.
Please let me know if I can further assist you.
Regards
Deborah
