House plan Vistas 2 (2939A)
A-Frame cottage house plan, 2 bedrooms + loft, cathedral ceiling, walkout basement
View the size of the rooms and height of the ceilings

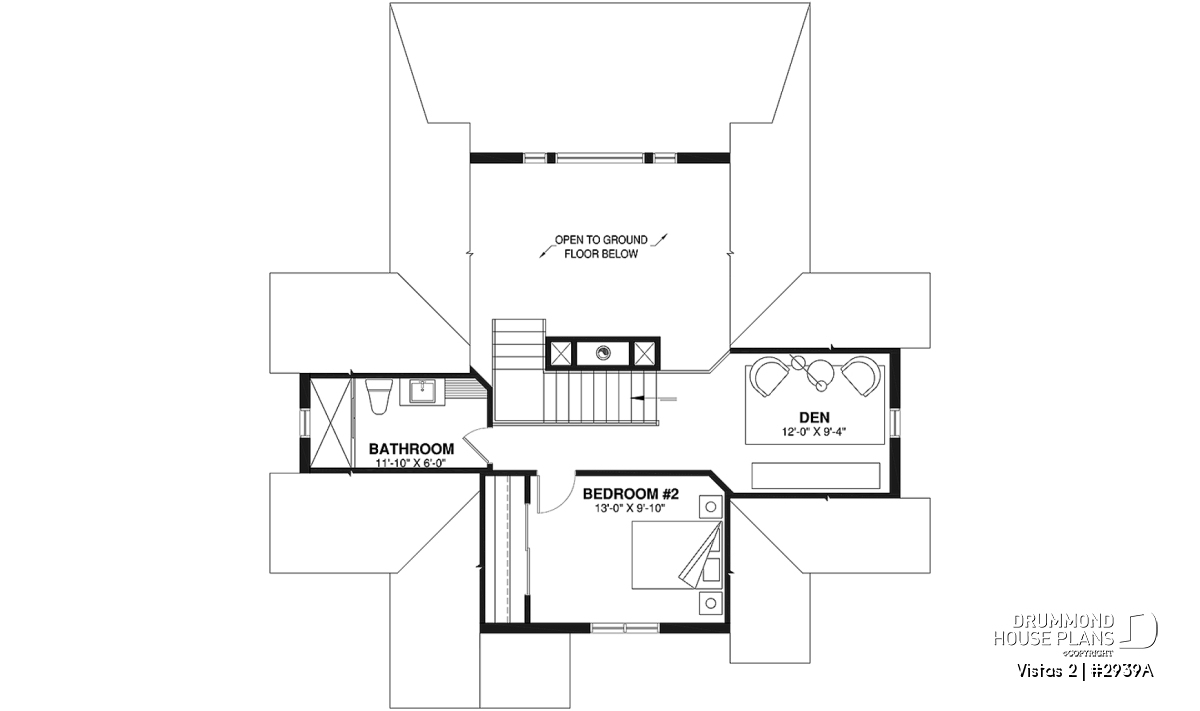

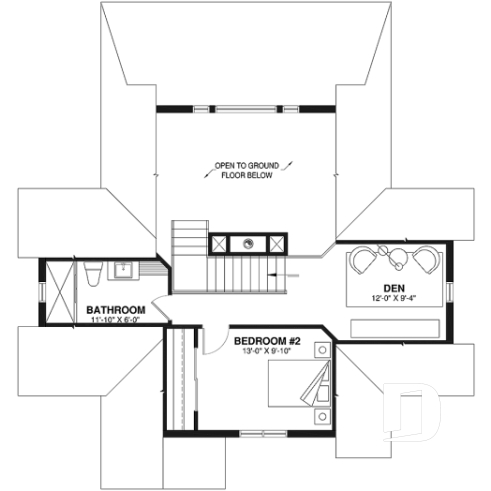

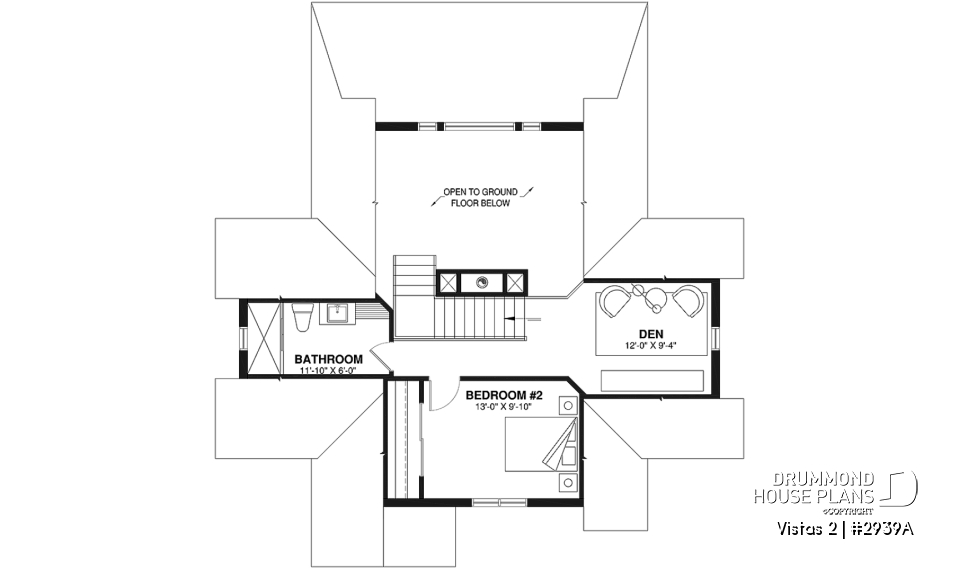

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 9'10" | ~ 8'0" |
| Den | 12'0" x 9'4" | ~ 8'0" |
| Bathroom | 11'10" x 6'0" | ~ 8'0" |

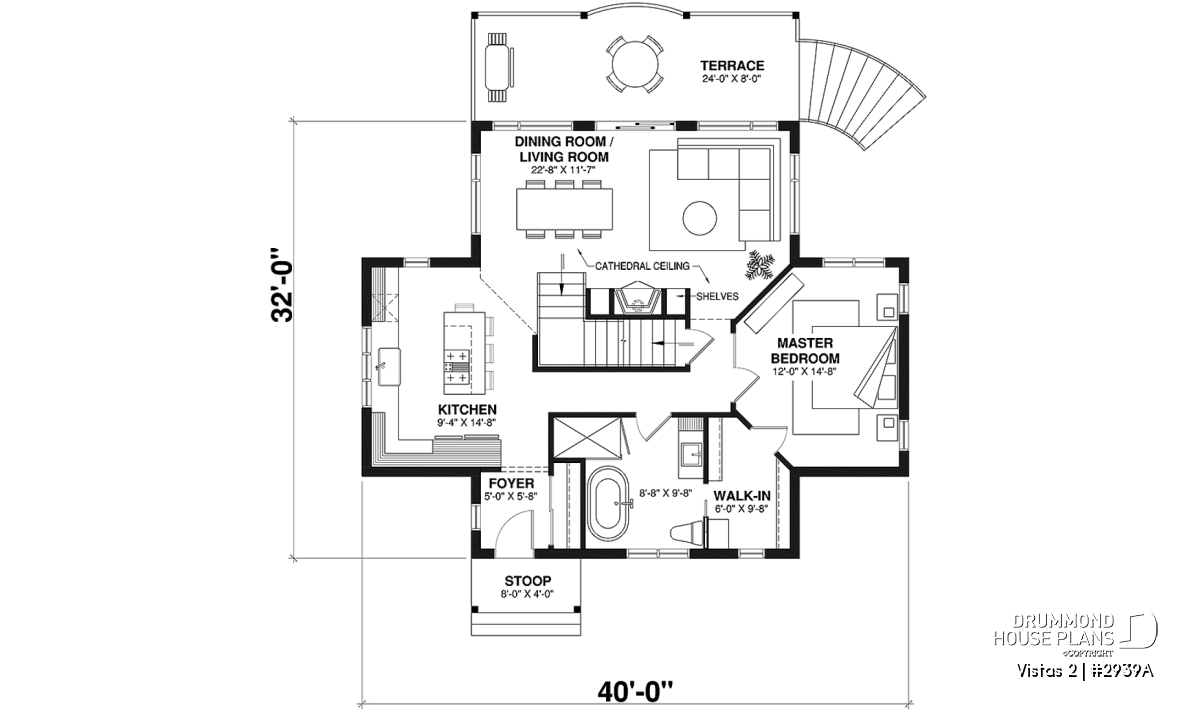

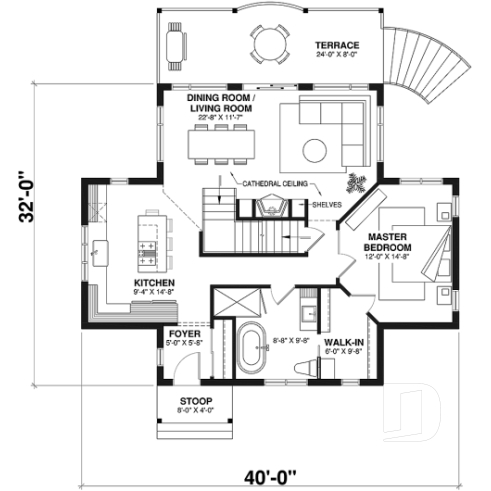

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 9'8" | ~ 8'0" |
| Foyer | 5'0" x 5'8" | ~ 8'0" |
| Kitchen | 9'4" x 14'8" | ~ 8'0" |
| Kitchen island | 3'0" x 6'0" | N/A |
| Porch | 8'0" x 4'0" | N/A |
| Master suite | 12'0" x 14'8" | ~ 8'0" |
| Walk-in closet | 6'0" x 9'8" | ~ 8'0" |
| Living room/dining room | 22'8" x 11'7" | ~ 17'2" |
| Deck | 24'0" x 8'0" | N/A |

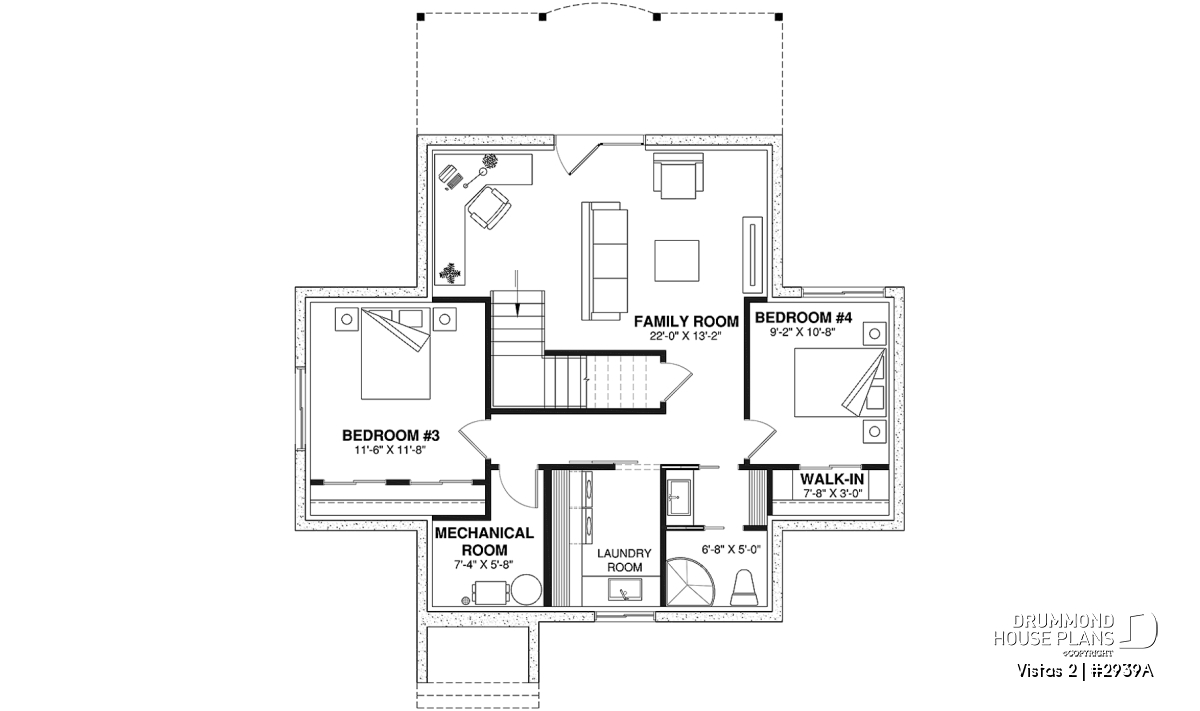

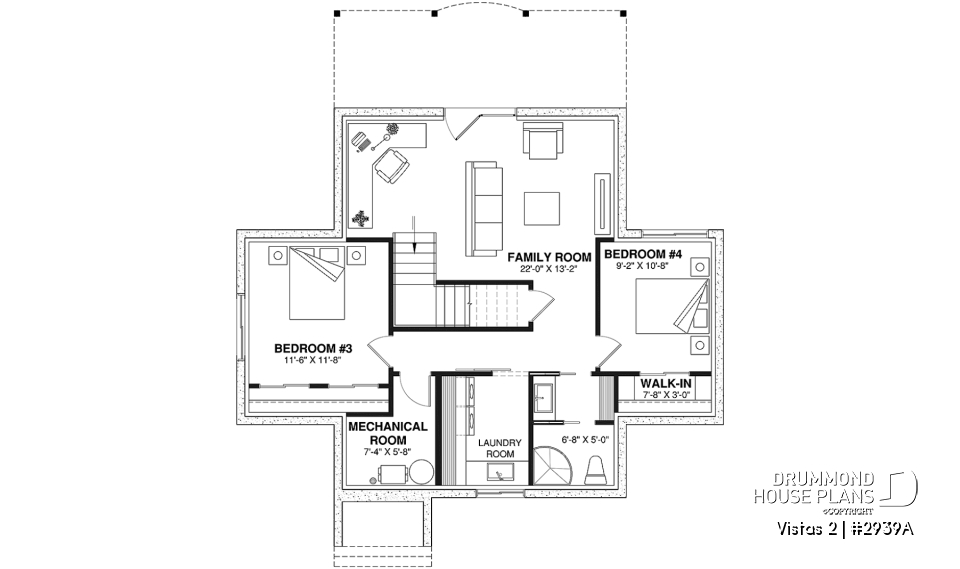

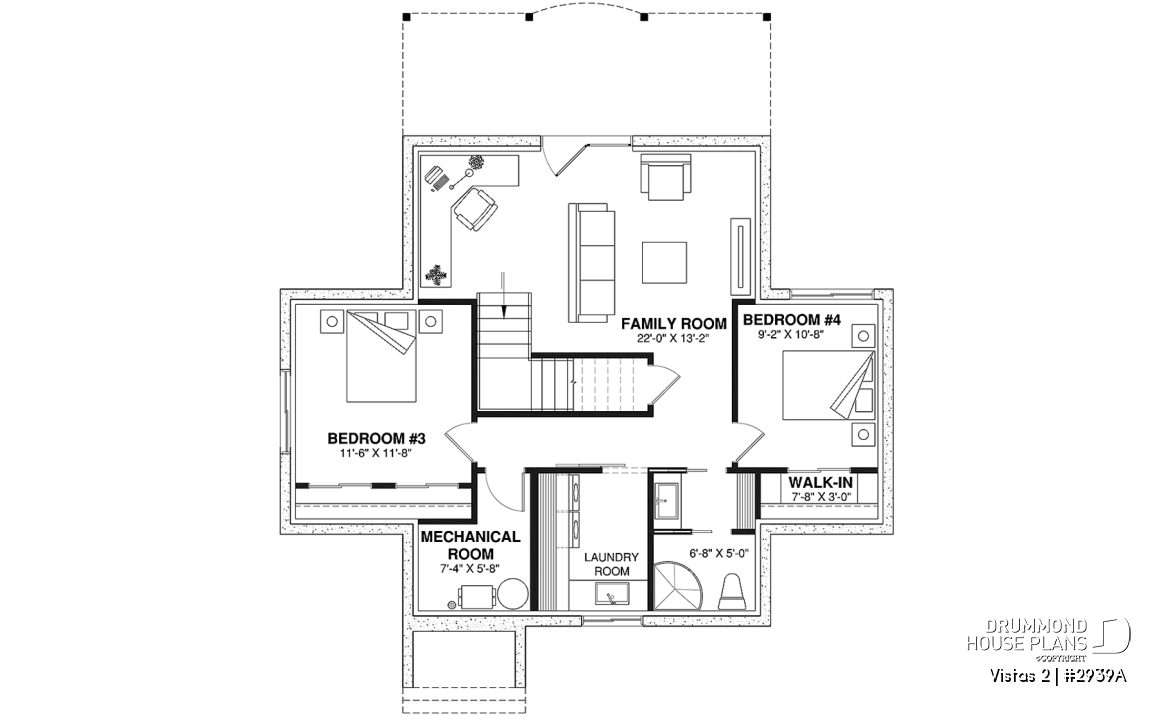

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Great room or Family room | 22'0" x 13'2" | ~ 8'0" |
| Bedroom | 9'2" x 10'8" | ~ 8'0" |
| Walk-in closet | 7'8" x 3'0" | ~ 8'0" |
| Bedroom | 11'6" x 11'8" | ~ 8'0" |
| Closet | 11'6" x 2'0" | ~ 8'0" |
| Mechanical room | 7'4" x 5'8" | ~ 8'0" |
| Laundry room | 7'2" x 9'0" | ~ 8'0" |
| Shower room or three quarter bath | 6'8" x 5'0" | ~ 8'0" |
General specifications
| Total living area | 2504 sq.ft. |
| 2nd level | 456 sq.ft. |
| 1st level | 1024 sq.ft. |
| Basement | 1024 sq.ft. |
| Width | 40'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 24'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications
back

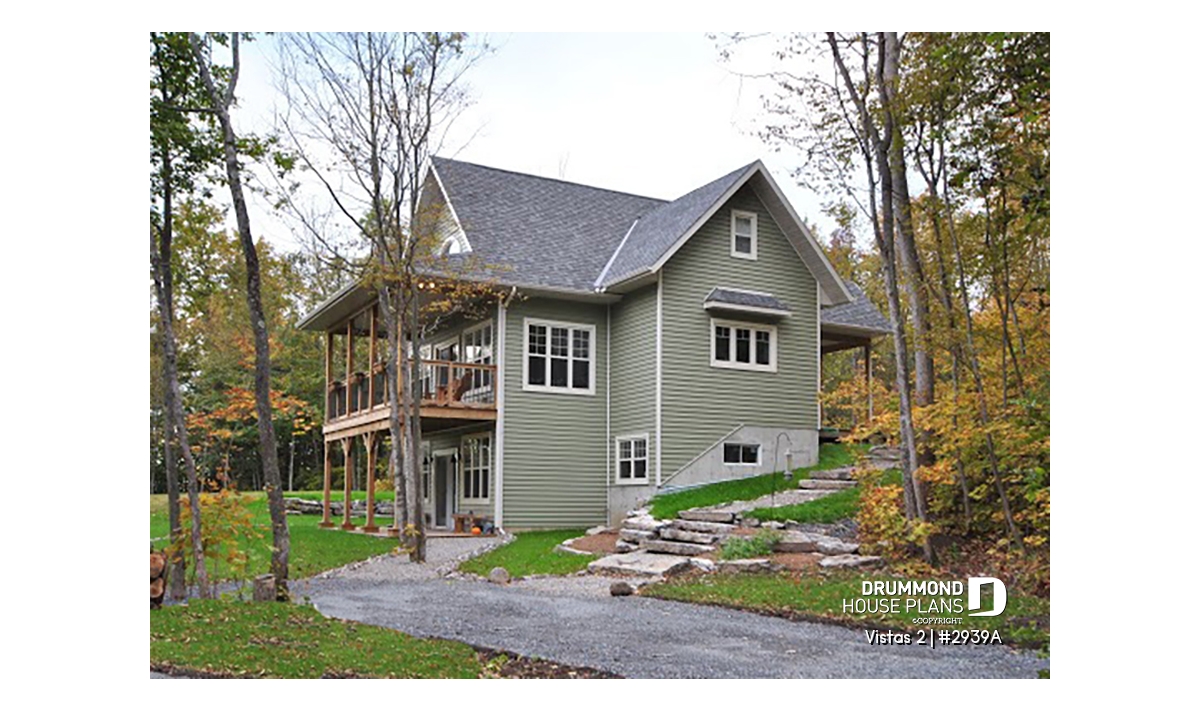

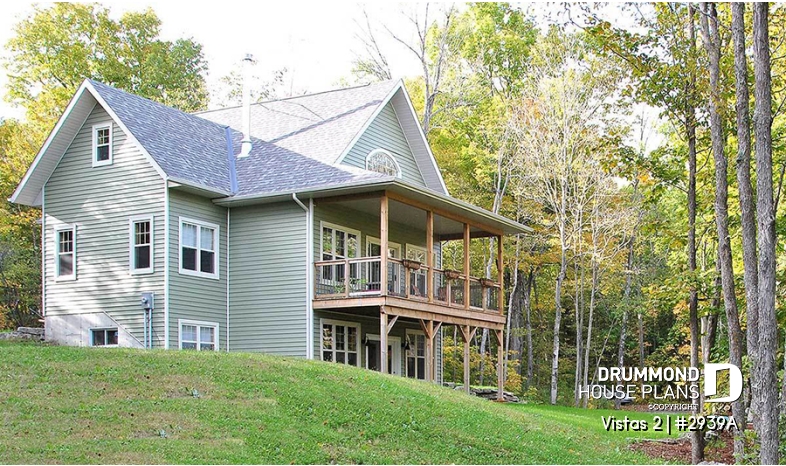

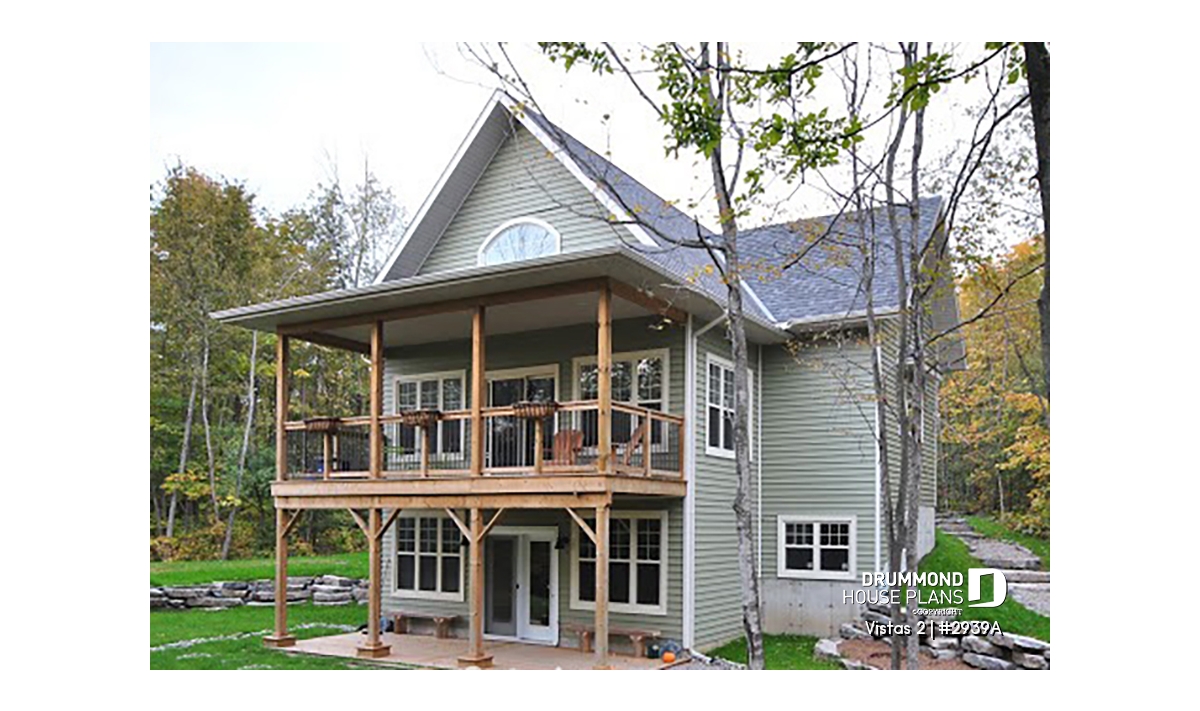

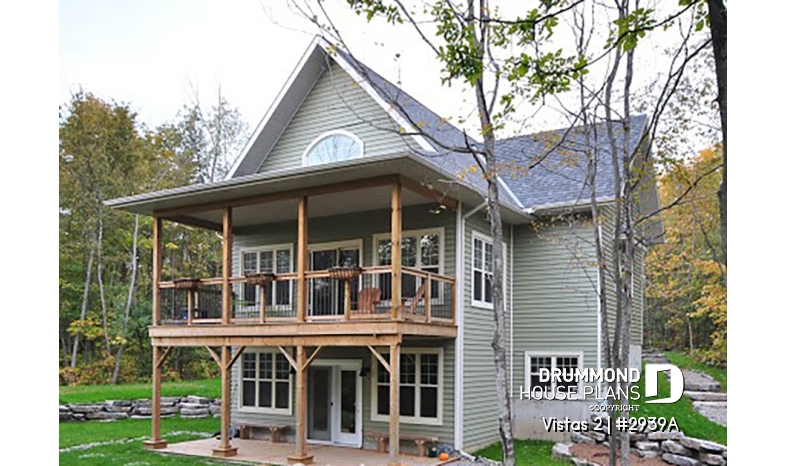

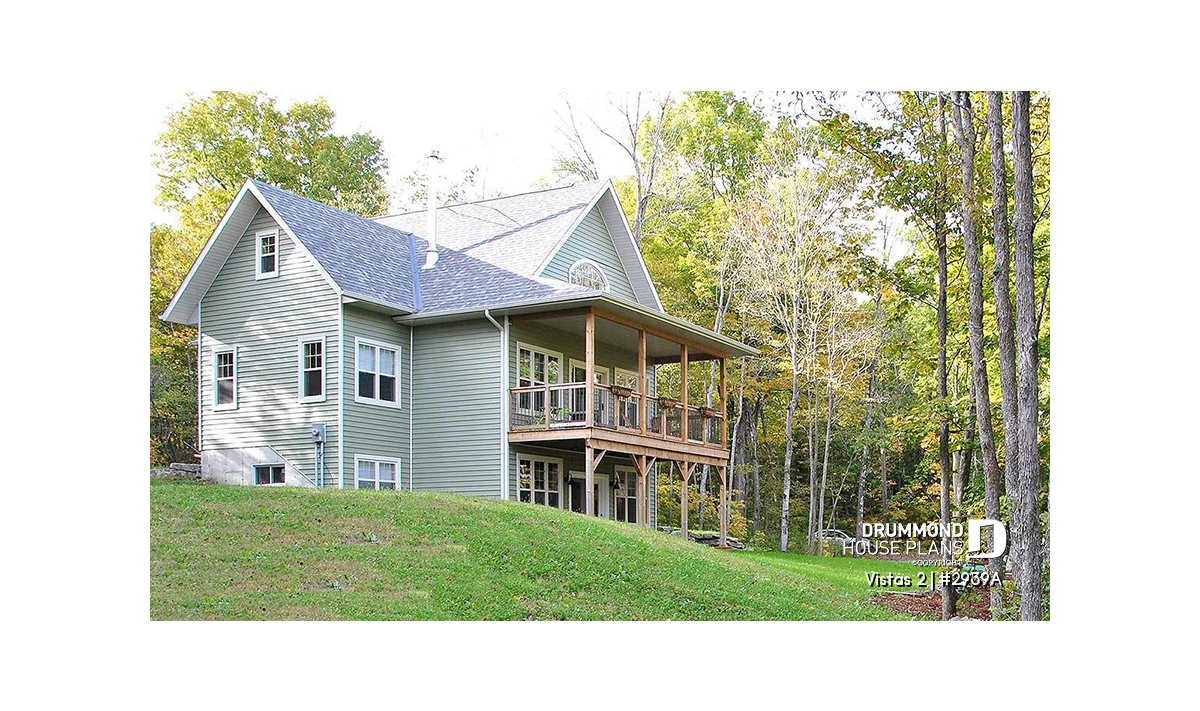

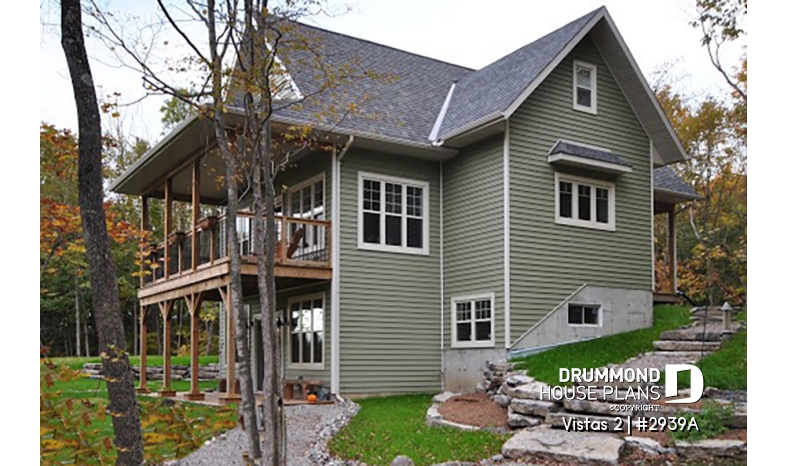

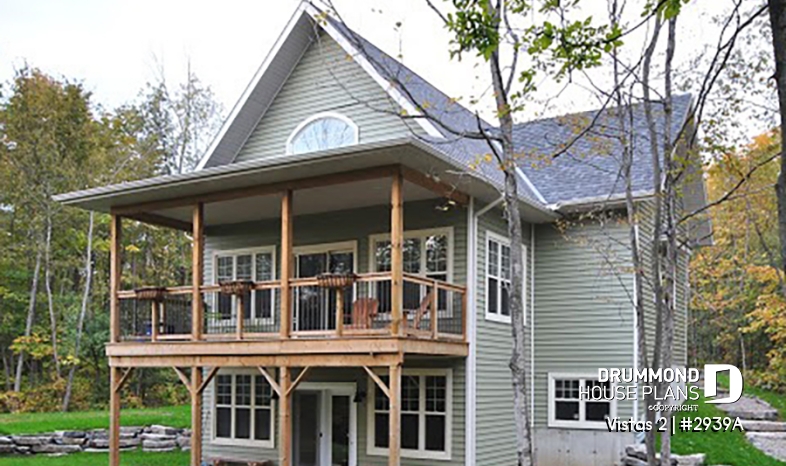

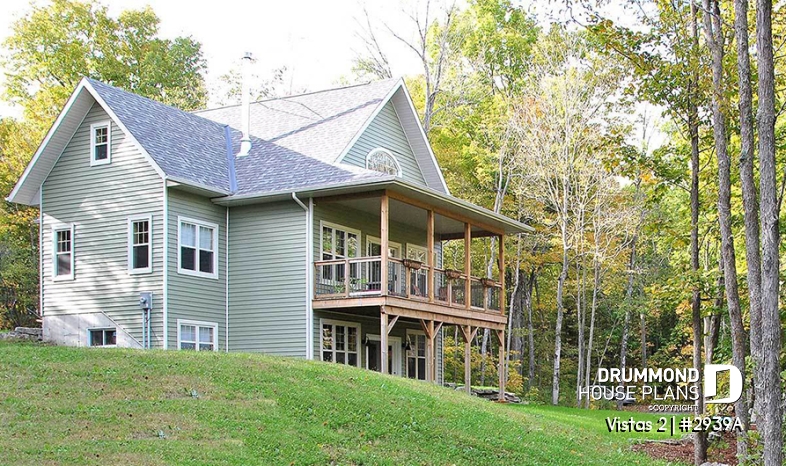

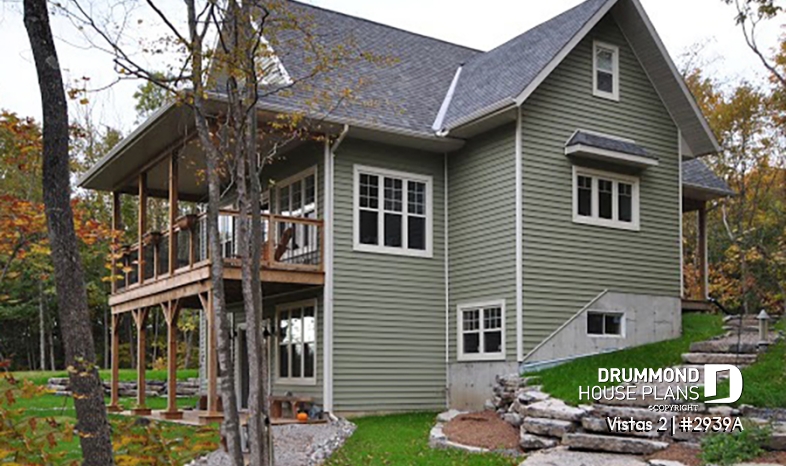

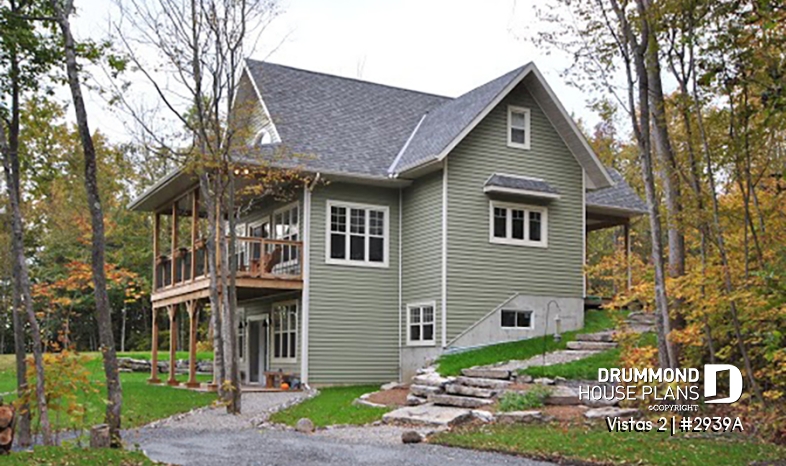

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back

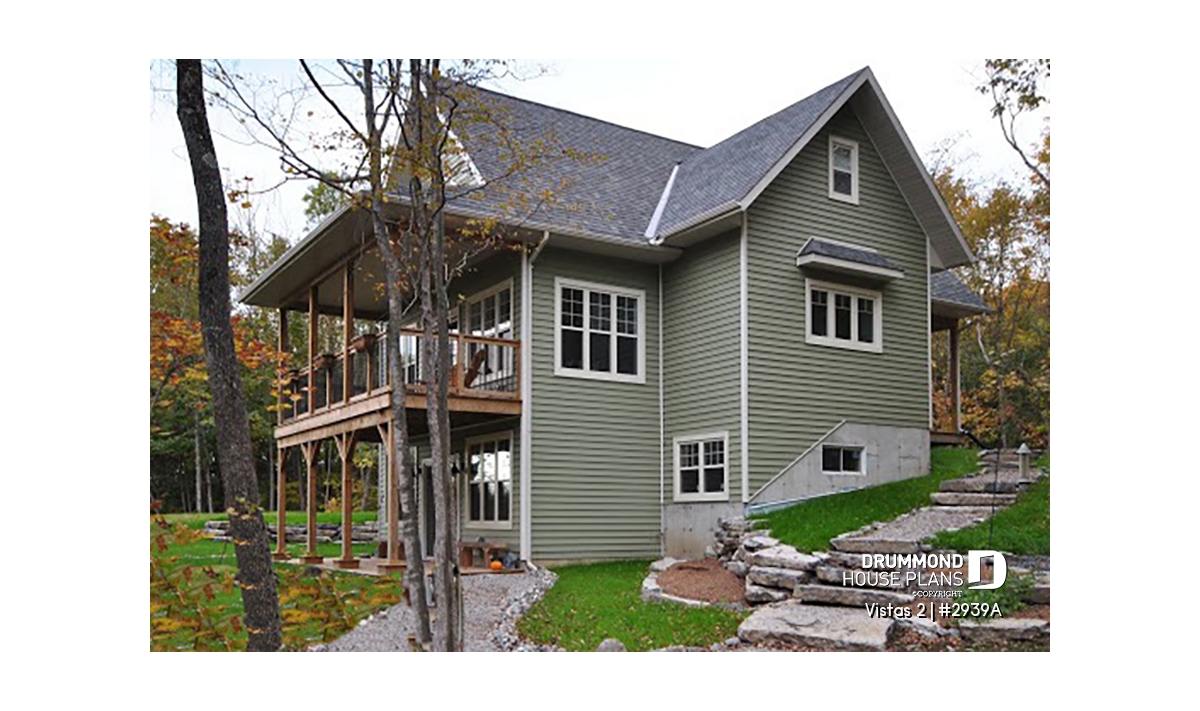

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back

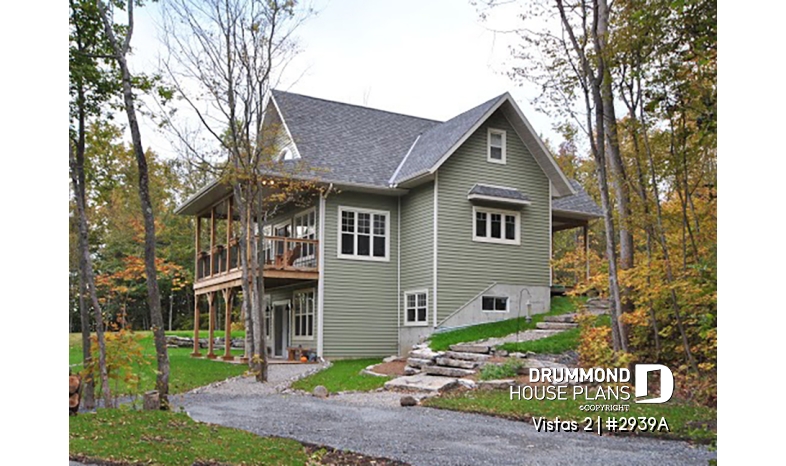

Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Sweeping Views and 2 bedrooms + loft
Here is one of the most sought-after models by owners of view lots. Ample windows and careful design ensure panoramic views from the kitchen, dining room and master bedroom. Each of these beautiful spaces offers something distinctive. The open kitchen includes a large central island. The living/dining room area shares a fireplace and abundant windows. The master bedroom includes a large walk-in closet and discreet access to the full bathroom.
The mezzanine boasts a guest room to house friends and guests, a cozy sitting area, and private bathroom.
Outside, a large covered balcony ensures as much comfort, enjoyment and sweeping views as the interior. An unfinished daylight basement can be finished to your needs. This is truly a home to celebrate the view from every level!
Distinctive elements
Beautiful and economial country cottage house plan.
2 bedrooms + loft.
Main-floor master suite.
Abundant windows in the rear of the house.
Fireplace and cathedral ceiling in the living/dining room.
Large rear covered porch.
Walkout basement.
Many floor plan layouts of this model are available.
Plan feature(s)
Fireplace, Cathedral ceiling, Mezzanine, Access to basement from exterior, Panoramic view, Walk-in master bed., Deck, Loft
Plan architectural style(s)
. Country, . Vacation and waterfront, . Ski chalets, . American, . A-Frame, . Traditional, . Mountain, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
January 23
Tim Dykstra
Can you get the prints to build this house without the second floor
January 27
Marie
Hello Mr. Dykstra,
Actually, yes it is possible but would have to go through our plan modification services for structural révision, etc.
However, Plan # 2939B-V1 is very similar and has no second floor. The walkout basement is finished but you don't need to finish it if you don't need it.
Here it is: drummondhouseplans.com/plan/vistas-4-cottage-chalet-cabin-1002919
Let us know if you have more question or are ready to order!
Have a great week,
DrummondHousePlans.com
[email protected]
Phone: 1-800-567-5267 ext.109
March 12
Kathleen
Can this plan be modified to enclude a washer dryer space on the main floor as in W2939B?
March 12
Customer service
Good day and thank you for your interest in this plan.
This plan can be modified to bring the washer and dryer to the main floor, all you need to do is to fill in our on line modification form for which I have attached the link below.
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1001777.html
We will be happy to return a free estimate for the changes within two business days after receipt of your request.
Please let me know if I can further assist you.
Regards
Deborah
