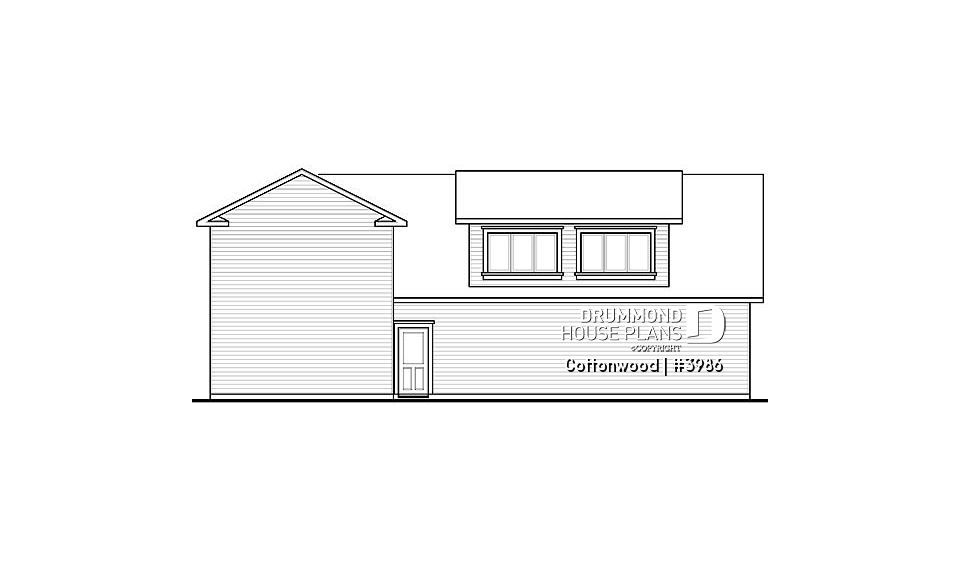

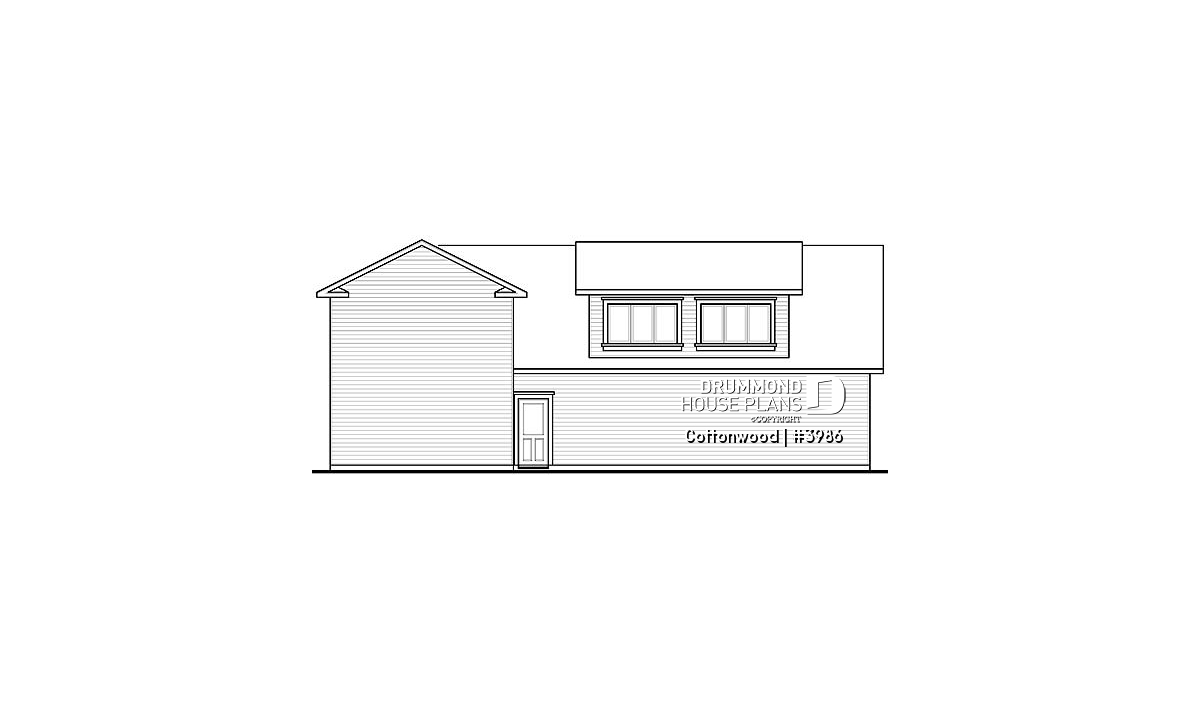

Garage plan Cottonwood (3986)
4-car garage for RV and regular vehicles + large second floor bonus storage or room
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

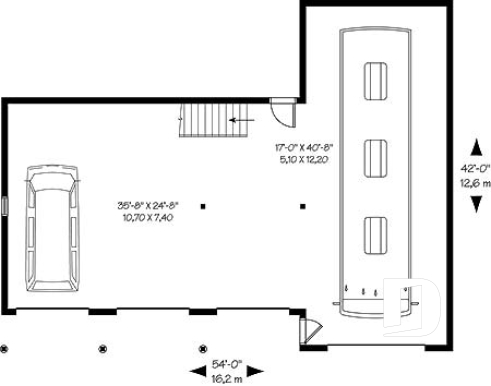

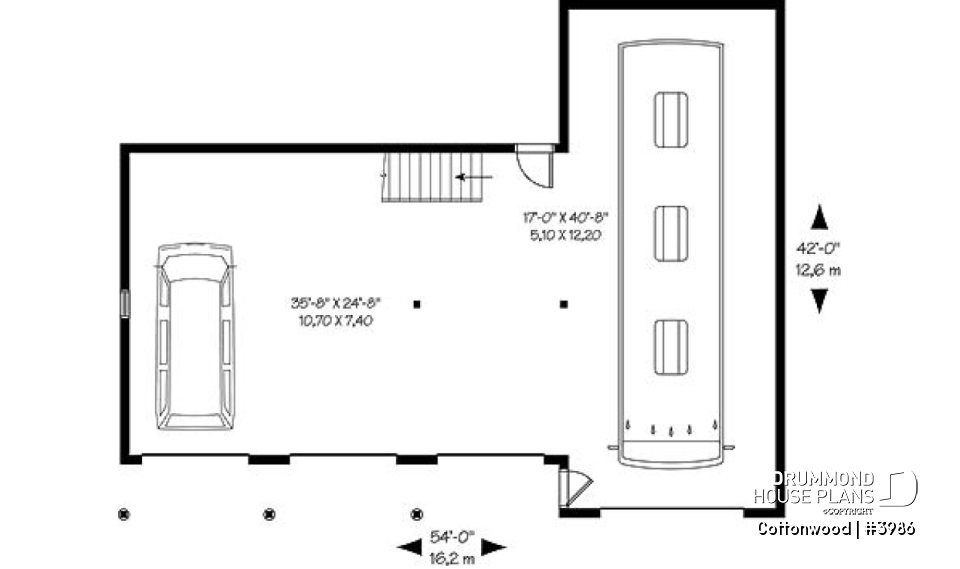

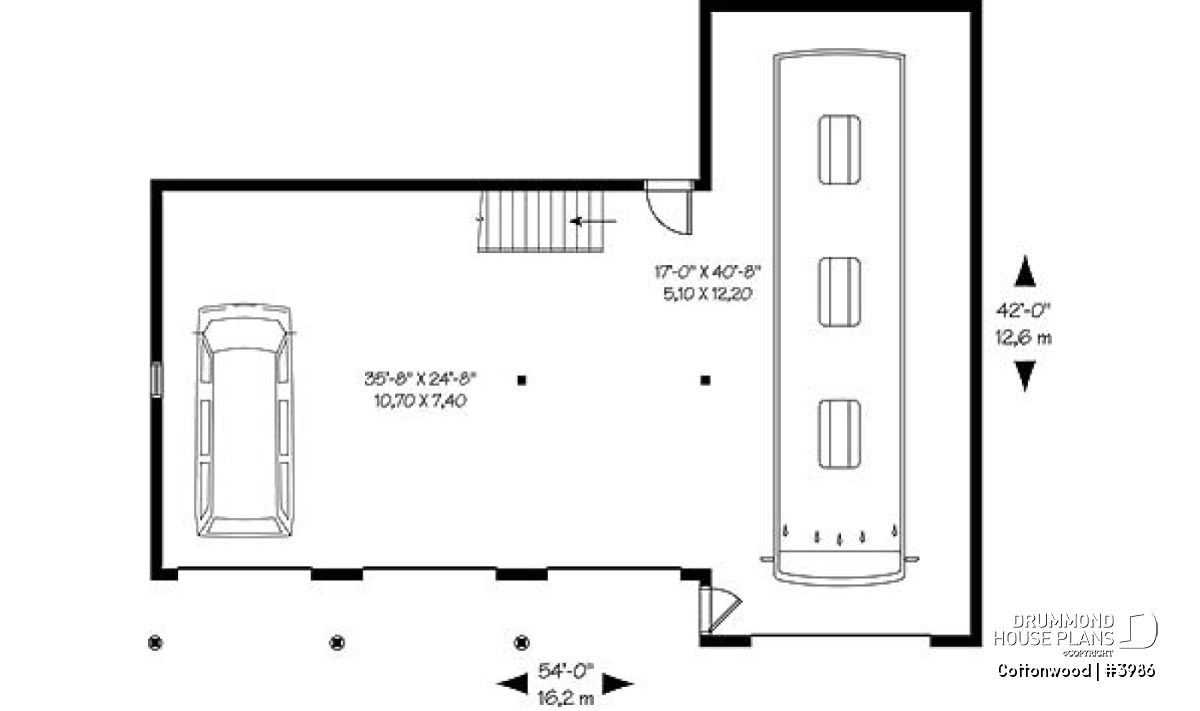

| Garage | 35'8" x 24'8" | ~ 9'6" |
| Garage | 17'4" x 40'8" | ~ 17'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

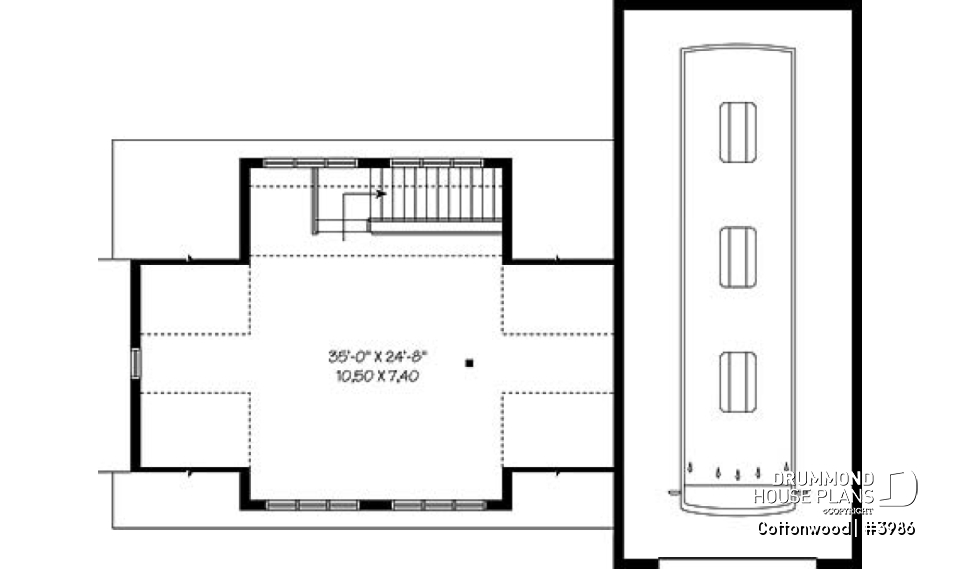

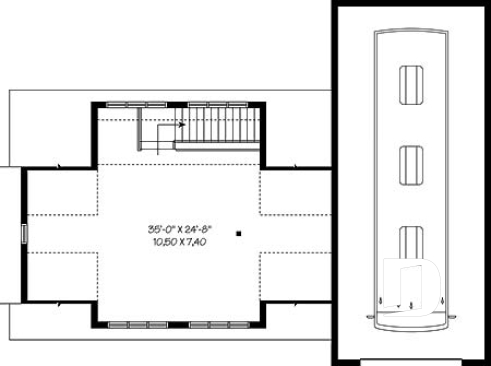

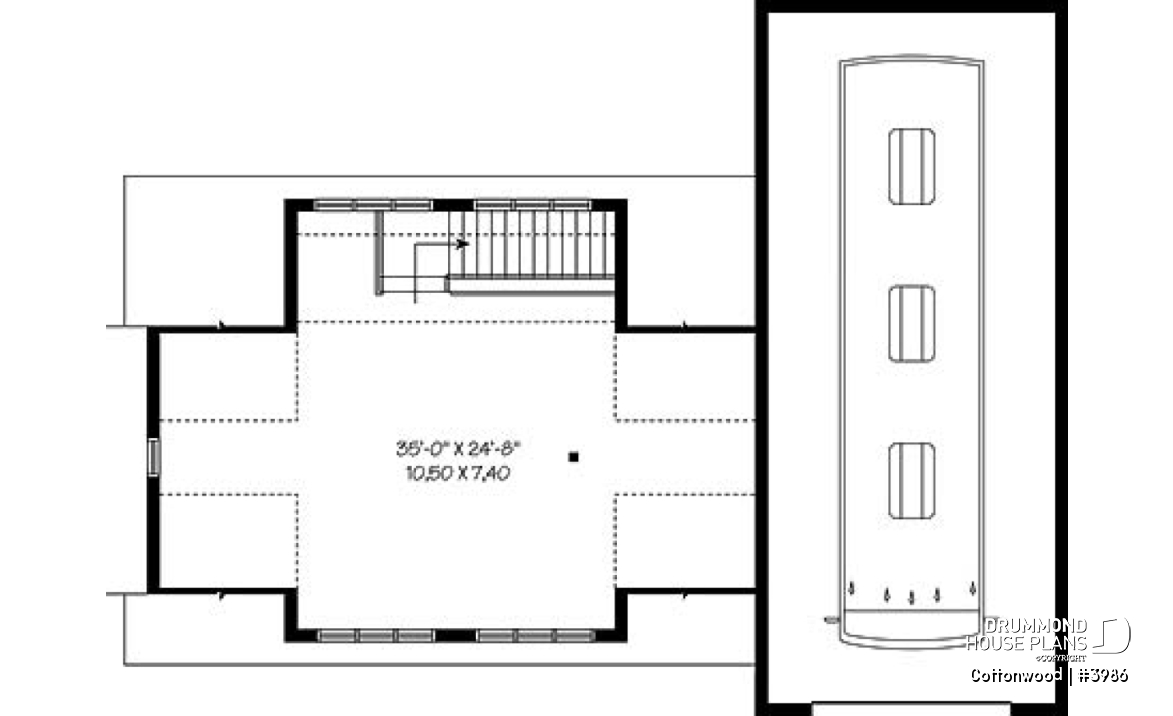

| Storage | 35'0" x 24'8" | ~ 8'0" |
General specifications
| Total living area | 2466 sq.ft. |
| 1st level | 1697 sq.ft. |
| 2nd level | 769 sq.ft. |
| Width | 54'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 22'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | GVR4 |
Rooms specifications
Other useful information on this plan

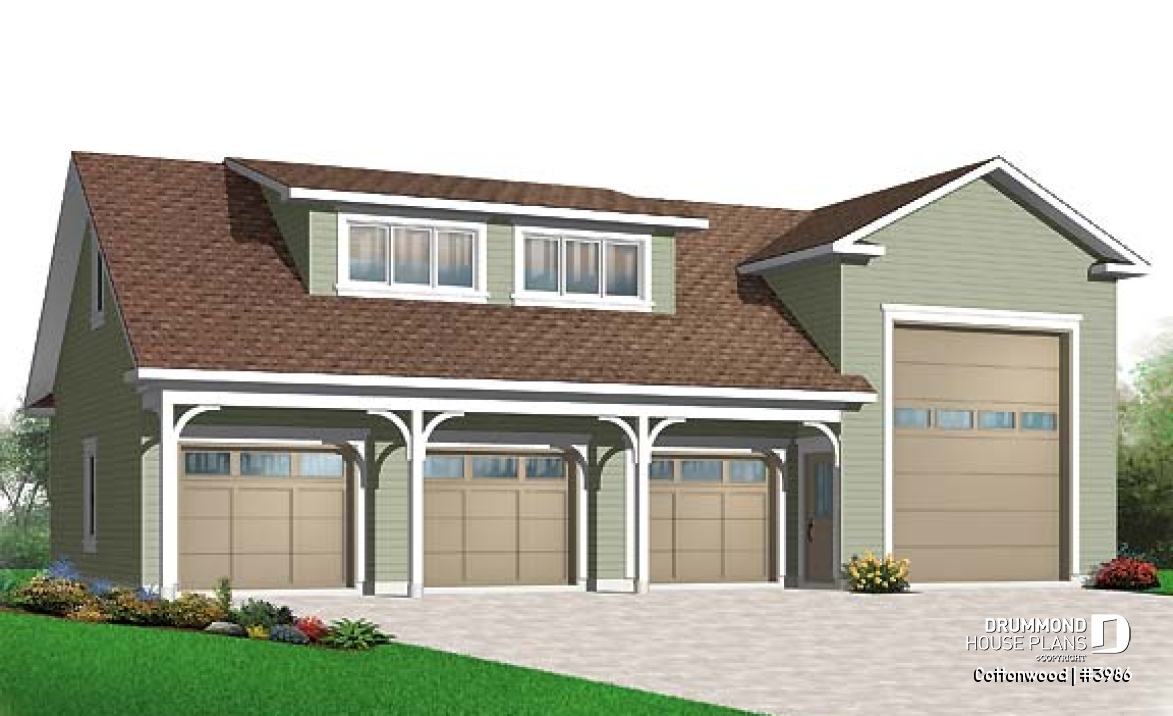

Fabulous Four-Bay + large bonus room above
Three deep auto bays plus an RV or truck bay will keep all of your favourite vehicles safe and dry. This RV garage plan features 1697 square feet on the main level and 751 square feet of storage above. An over-sized shed dormer provides light and openness to the upper level and could be modified to suit a business office or studio.
Distinctive elements
Large garage with space for a motorhome and easy to enlarge if more depth was required for the motorhome.
Dimension:
1st level: 54' x 42'
Quadruple garage including a space for a motorhome.
2nd level: Unfinished space to be converted according to owner's needs.
Foundation: floating slab.
Insulated walls.
Ceiling height: 9'6'' for the car area, 17' for the RV area, and 8' for the second floor, with sloping ceiling.
