Garage plan Cottonwood 2 (3986-V1)
RV garage plan with 2-car garage, or three-car garage plan, with bonus room on second floor
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

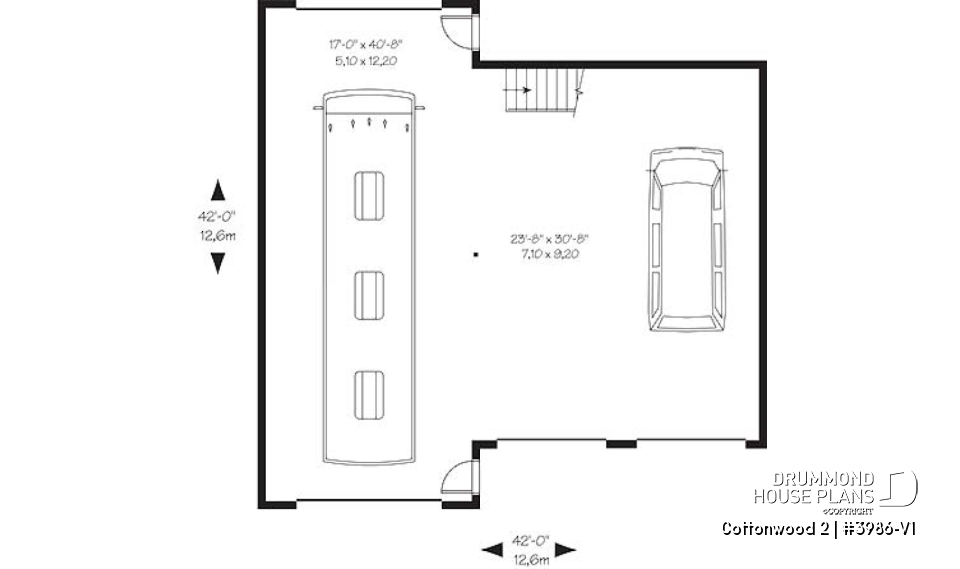

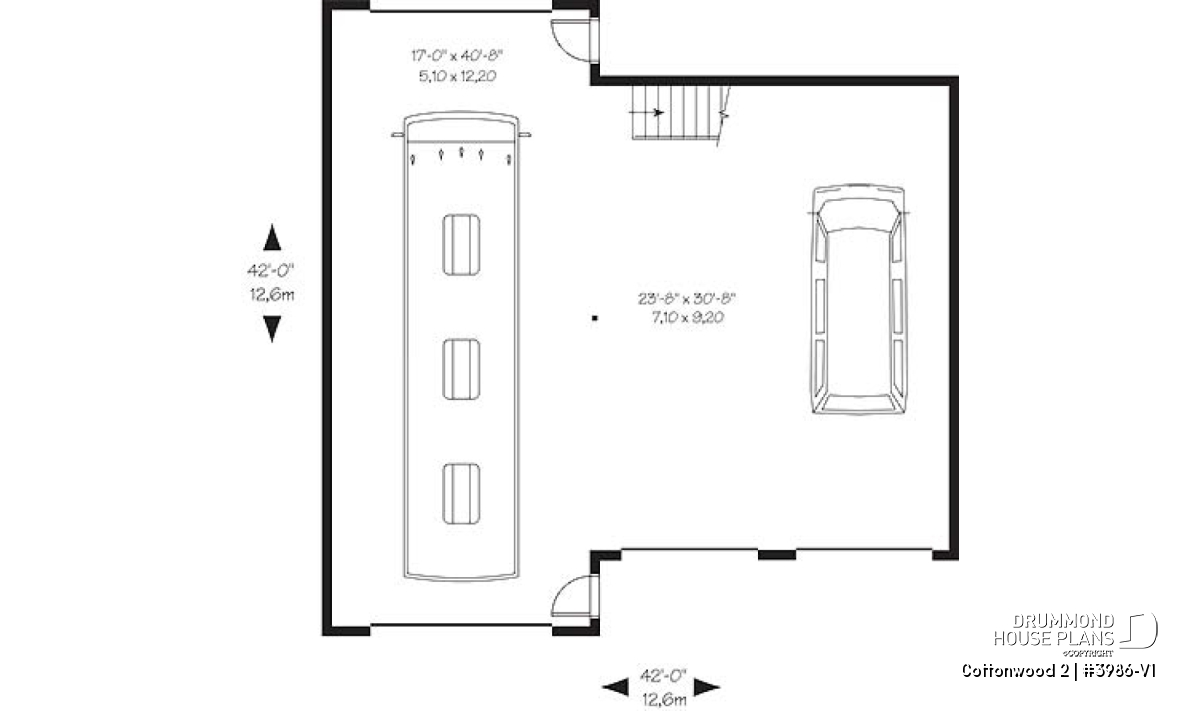

| Garage | 23'8" x 30'8" | ~ 9'2" |
| Garage | 17'0" x 40'8" | ~ 13'2" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

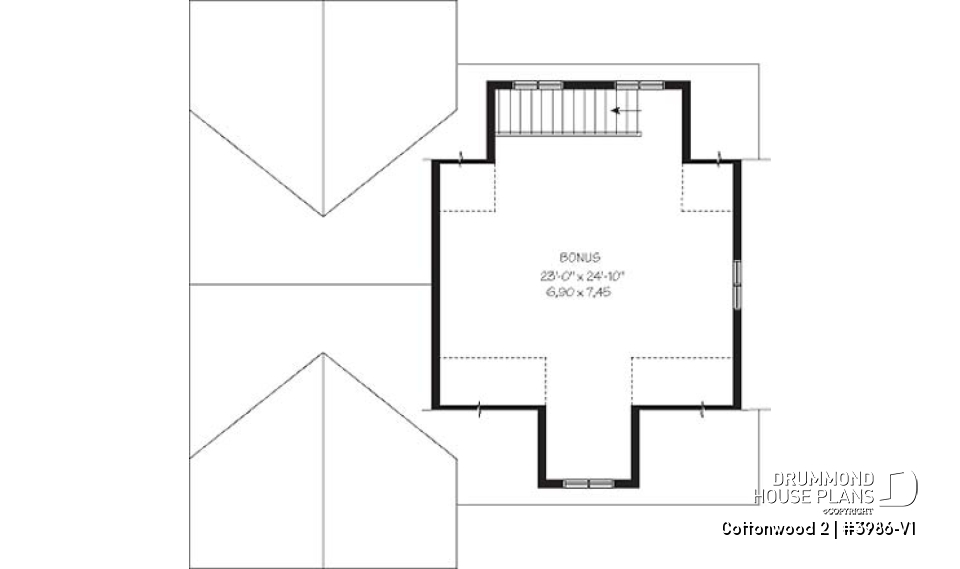

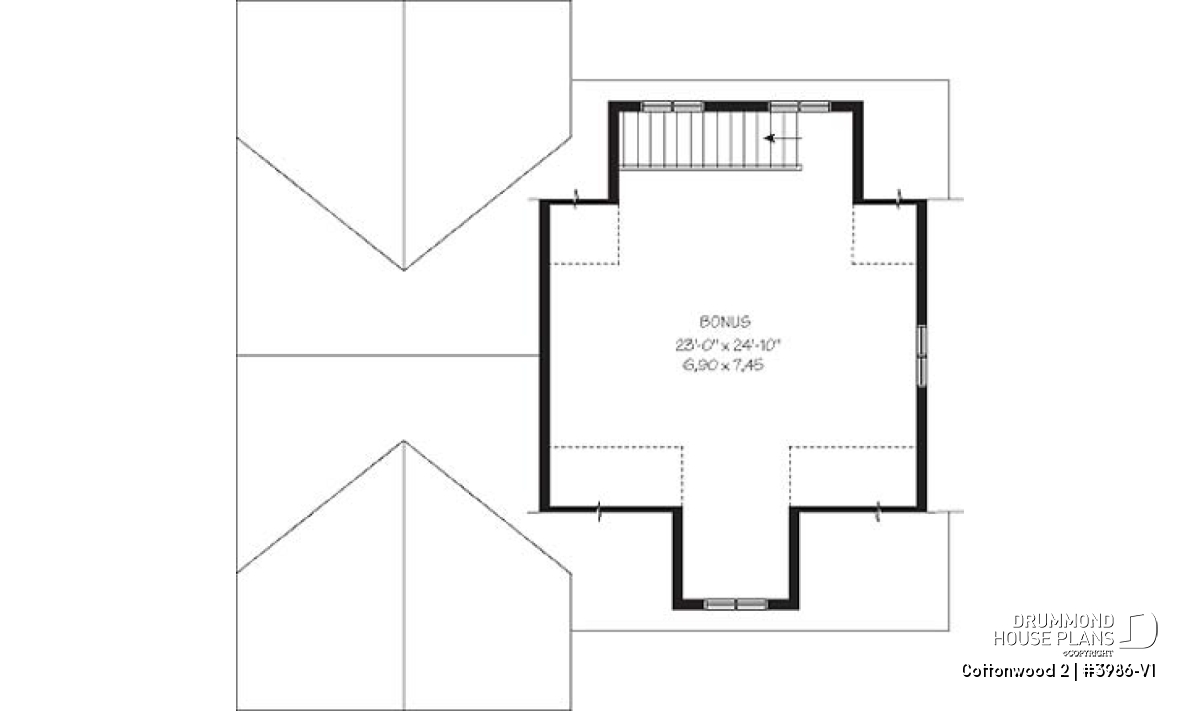

| Living bonus room | 23'0" x 24'10" | ~ 8'0" |
General specifications
| Total living area | 2154 sq.ft. |
| 1st level | 1527 sq.ft. |
| 2nd level | 627 sq.ft. |
| Width | 42'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 25'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | GVR3 |
Rooms specifications
Other useful information on this plan
3-car garage plan for cars and RV
Two deep auto bays plus an RV or truck bay will keep your favourite vehicles safe and dry. This RV garage plan features 1527 square feet on the main level and 627 square feet of bonus space above.
An over-sized shed dormer provides light and openness to the upper level which could be developed as a business office or studio.
Distinctive elements
Very roomy garage with space for RV or workshop. Easy to extend if more depth is required for the recreational vehicle portion.
Dimension: 42' x 42'
1st level floor: Triple Garage space which allows storage for a a recreational vehicle.
2nd floor: Flexible space convertible to the owner's needs.
Foundation: floating slab.
Insulated walls.
Ceiling height: 9'2'' for the car area, 13'2'' for the RV area, and 8' for the second floor, with sloping ceiling.
Plan feature(s)
Ceiling over 8', Living bonus space
Plan architectural style(s)
. Country, . American, . Traditional
