Garage plan Robertson (3985)
3-car garage for RV, and regular cars, two-storey and barn style!
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 29'8" x 26'4" | ~ 8'4" |
| Garage | 17'0" x 40'8" | ~ 16'5" |
| Living bonus room | 29'0" x 26'4" | ~ 8'0" |
| 2nd level |
|---|
General specifications
| Total living area | 2342 sq.ft. |
| 1st level | 1591 sq.ft. |
| 2nd level | 751 sq.ft. |
| Width | 48'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 23'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | GVR4 |
Rooms specifications
Other useful information on this plan
3-car 2-storey garage plan, barn style, including a large RV section
.
Distinctive elements
Large garage with space for a motorhome and easy to enlarge if more depth was required for the motorhome.
Dimension: 48' x 42'

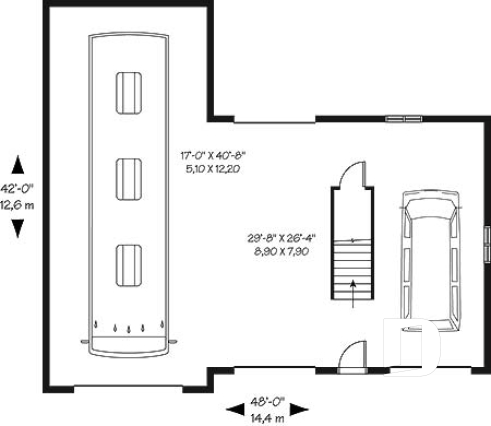

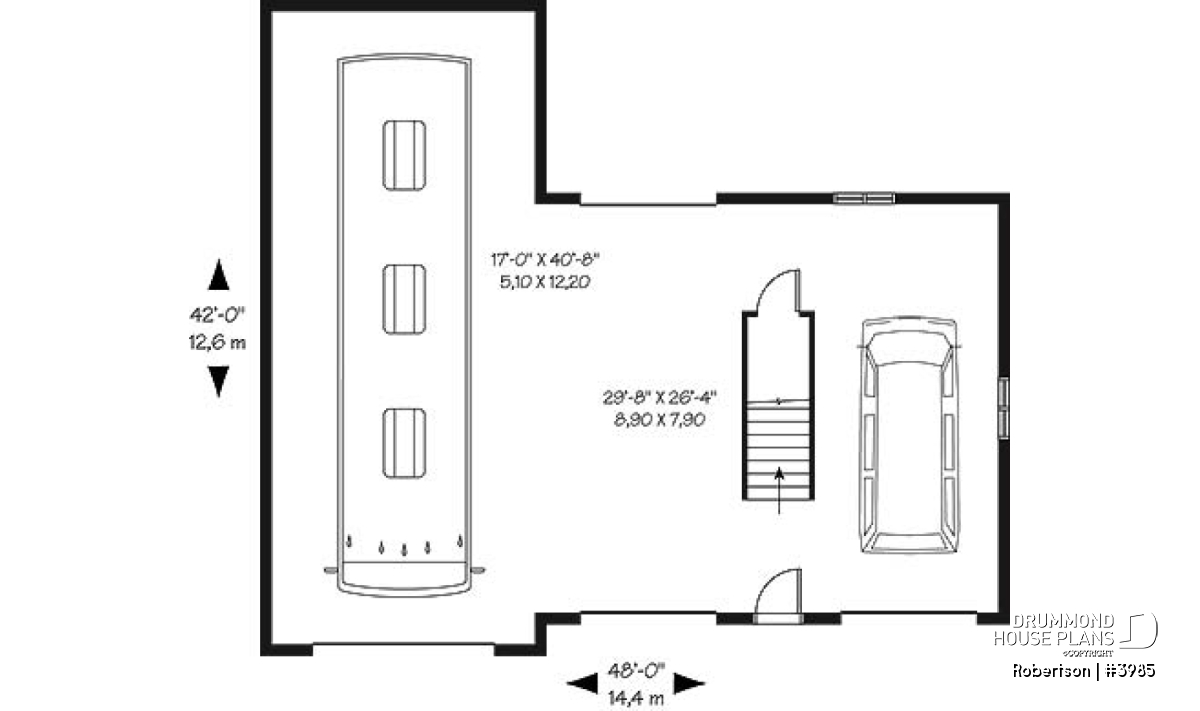

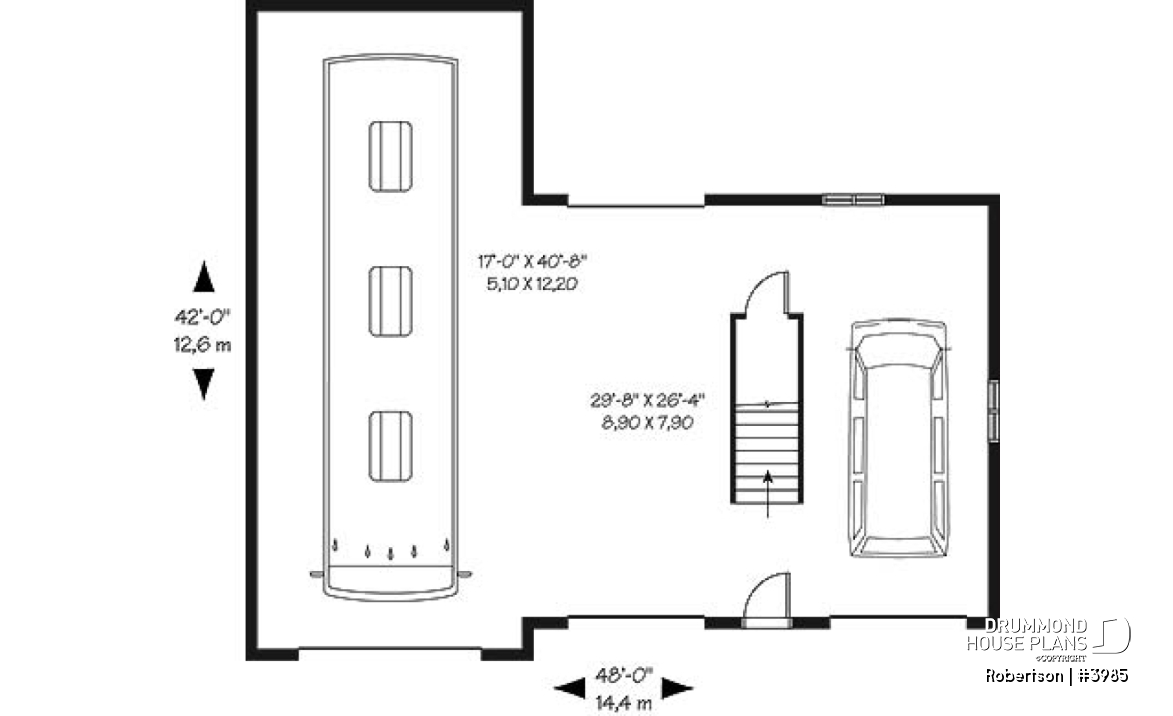

Main level:
3-door garage including a space for a motorhome.

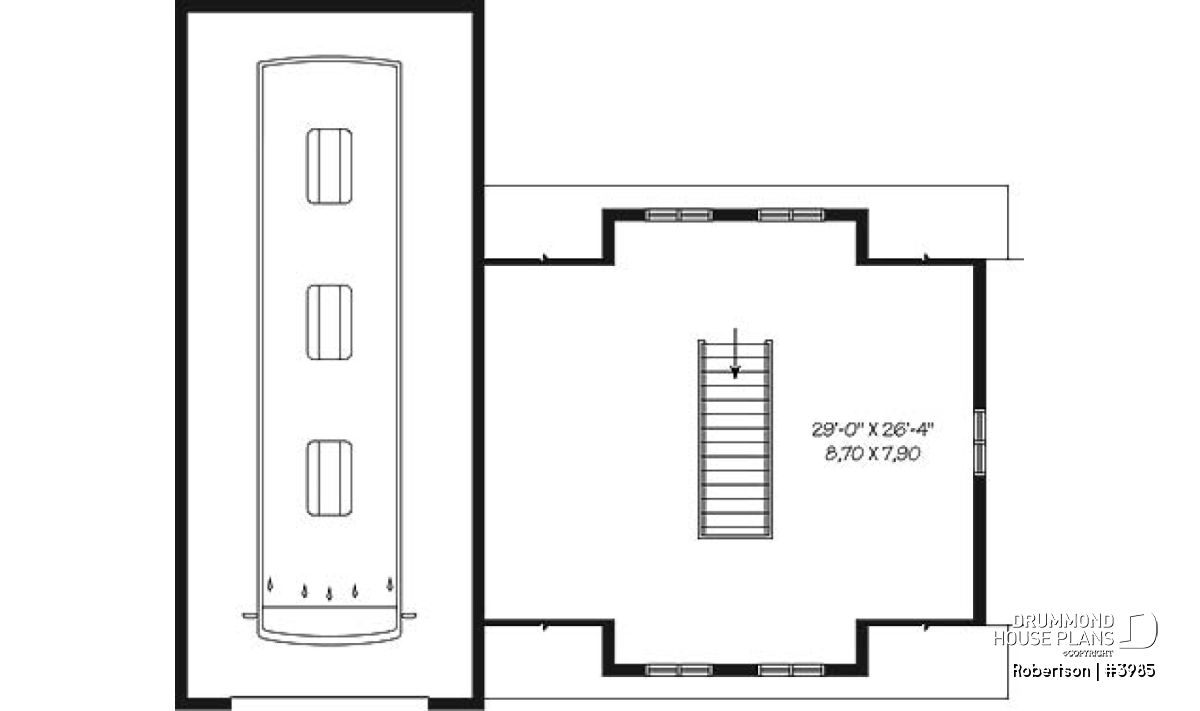

2nd level:
Unfinished space to be converted according to owner's needs.
Foundation: floating slab.
Insulated walls.
Ceiling height: 8'4'' for the car area, 16'5'' for the RV area, and 8' for the second floor, with sloping ceiling.
Plan feature(s)
Living bonus space, Oversized garage
Plan architectural style(s)
. Country, . American, . Farmhouse, . Traditional, . Rustic
