Garage plan Dutch Port (3984)

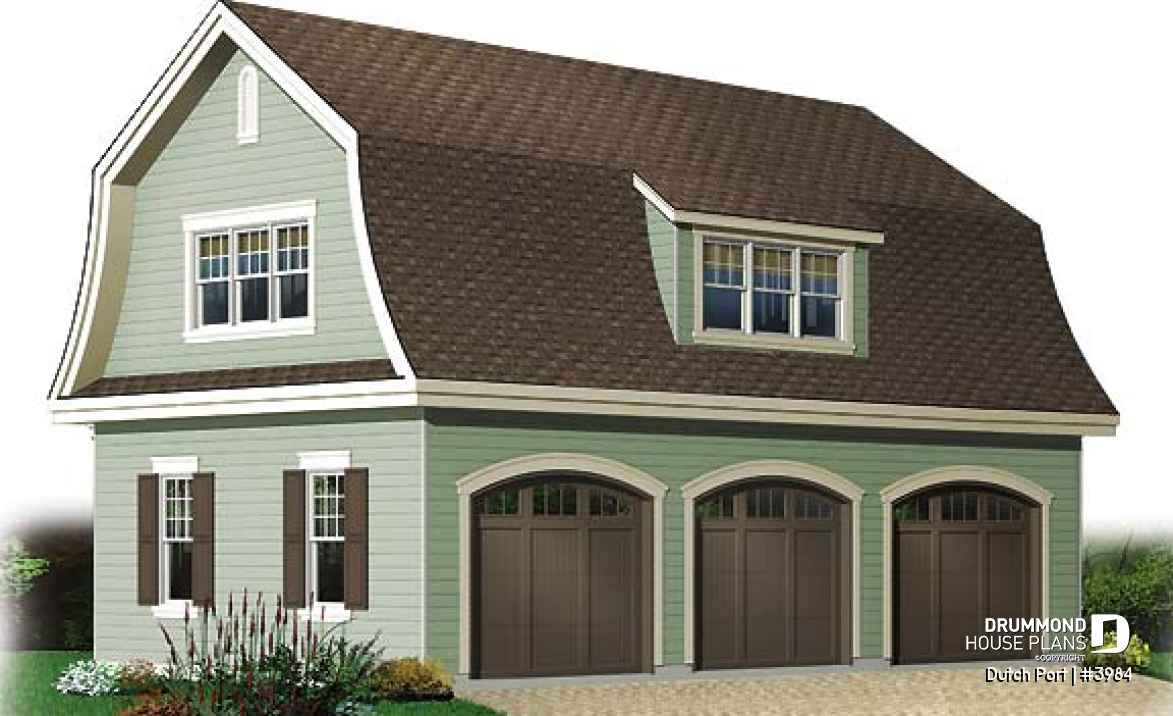

3-car garage with large bonus room above
View the size of the rooms and height of the ceilings

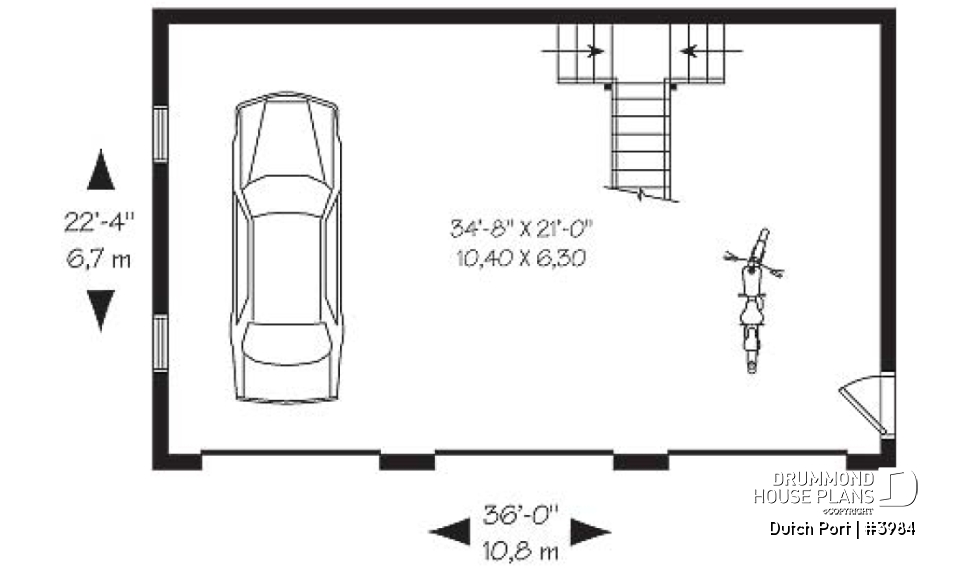

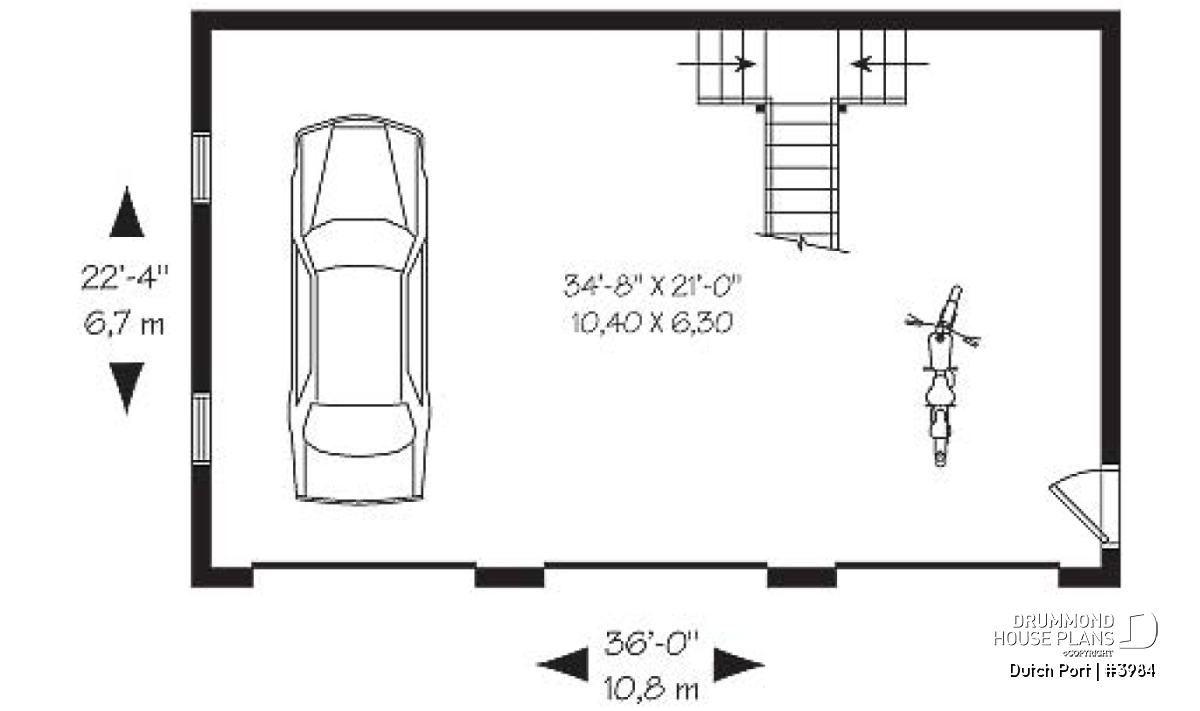

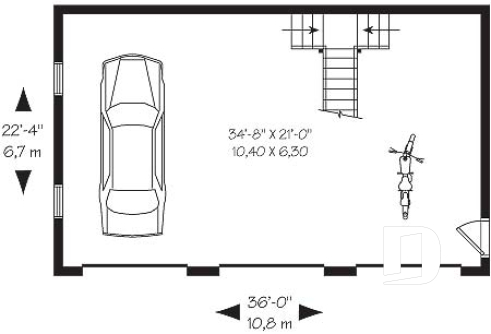

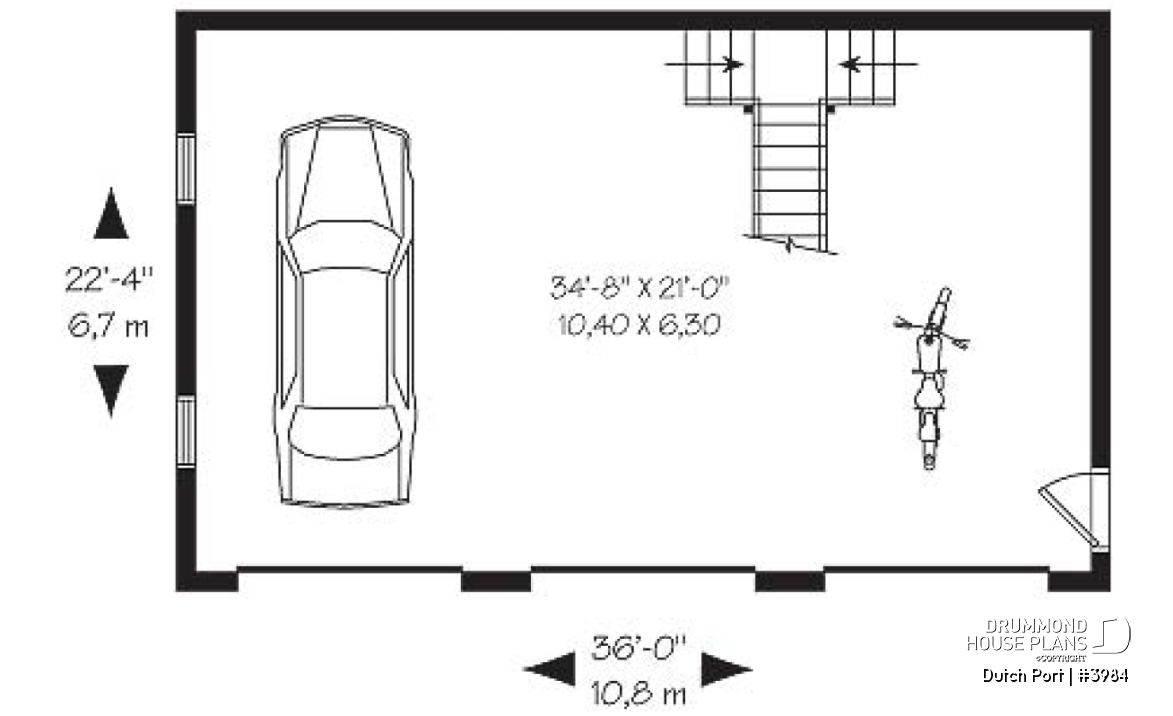

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 21'0" x 34'8" | ~ 9'6" |

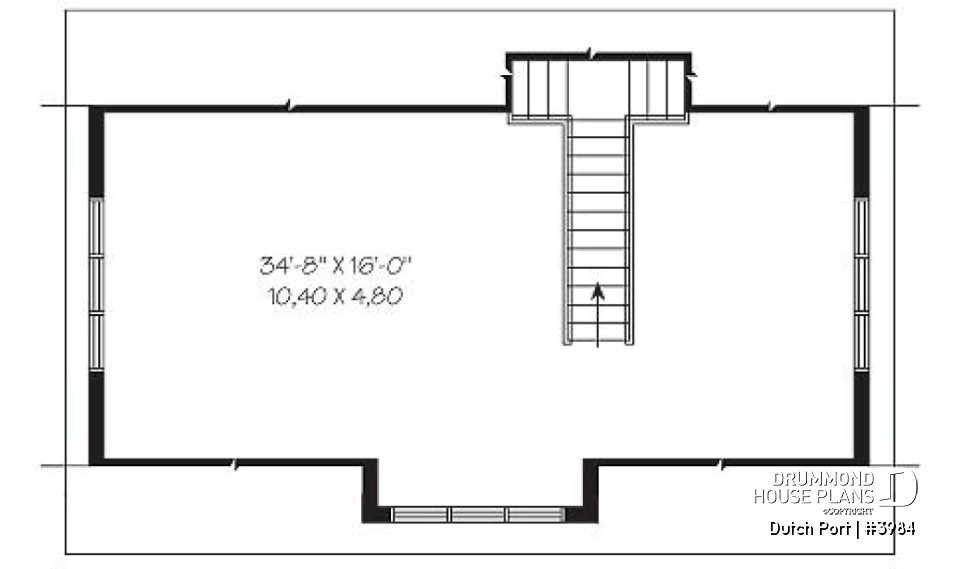

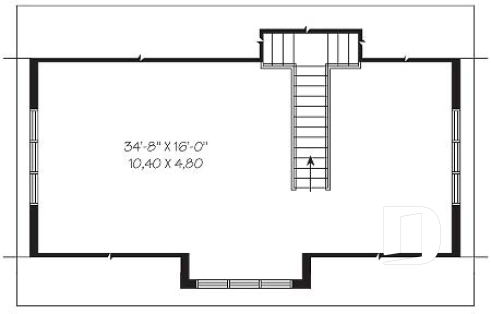

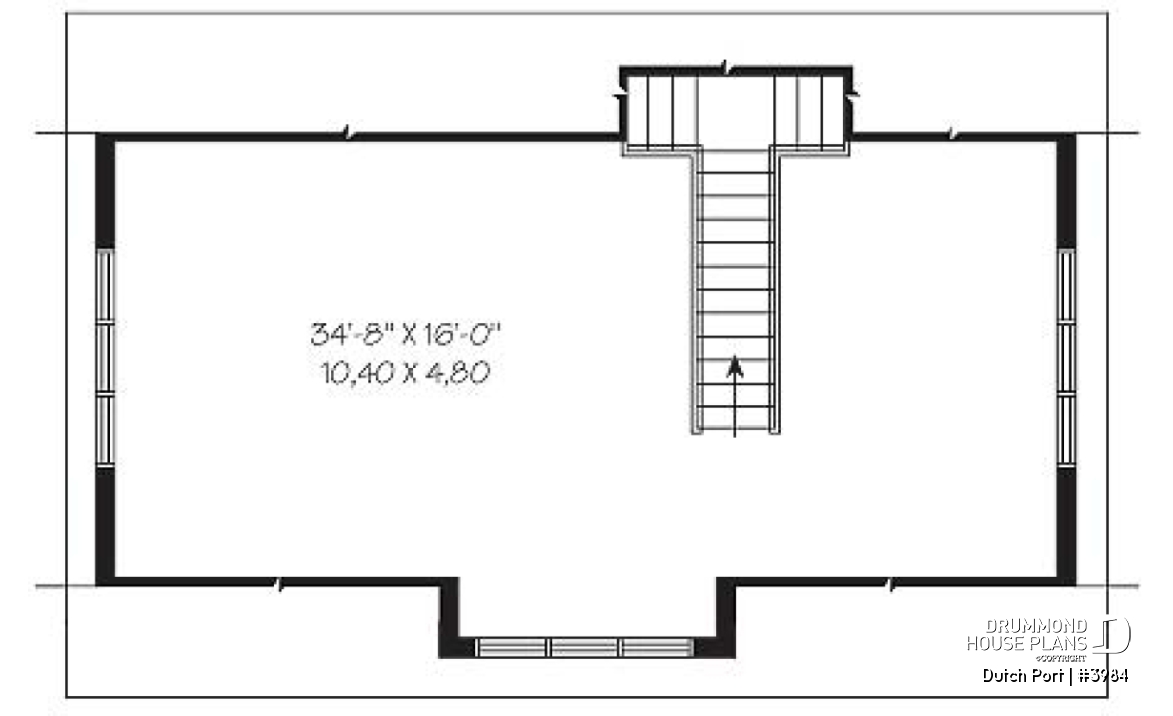

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 16'0" x 34'8" | ~ 8'6" |
General specifications
| Total living area | 1398 sq.ft. |
| 1st level | 804 sq.ft. |
| 2nd level | 594 sq.ft. |
| Width | 36'0" |
| Depth | 22'4" |
| Ridge height from top of foundation | 25'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G3C |
Rooms specifications
Other useful information on this plan
Gambrel style garage with bonus room above

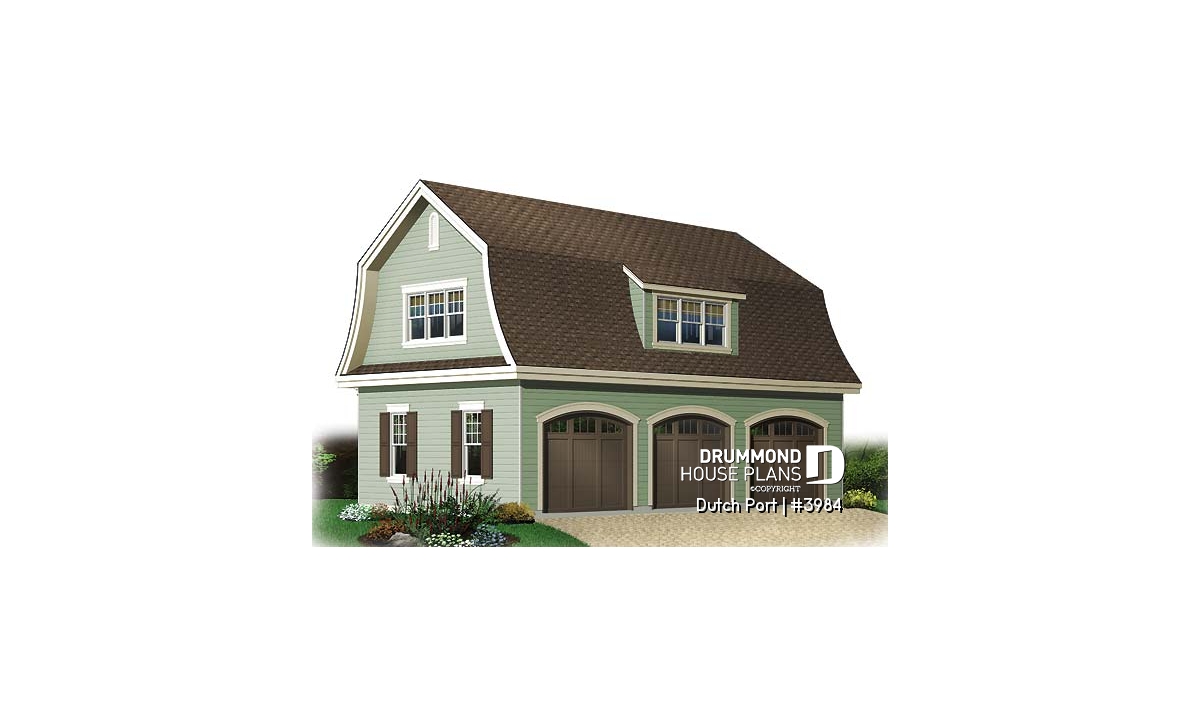

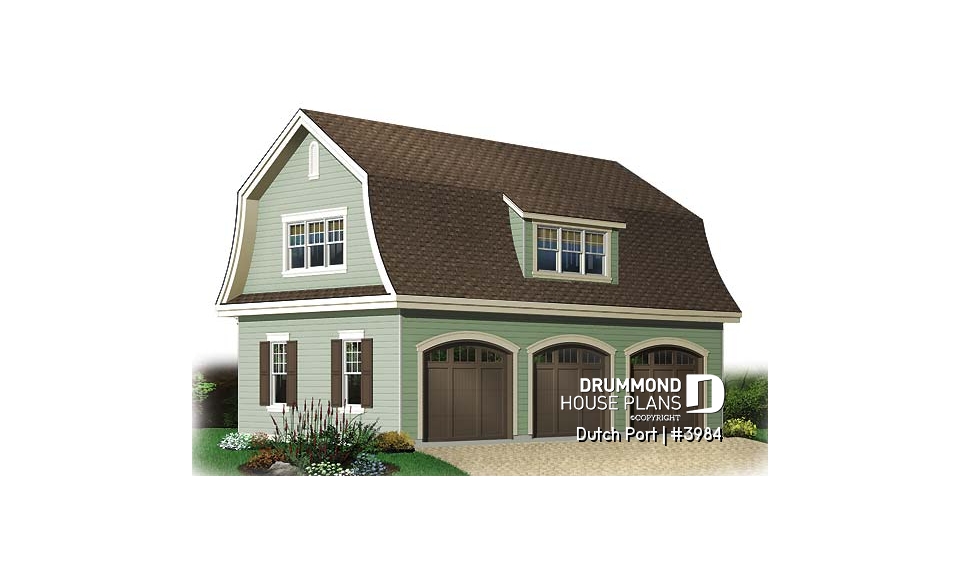

The gambrel roof of this 3-bay garage make it a popular model when a country feeling is being sought. Three bays with graceful arched doors are balanced by a shed dormer. 804 sq ft of garage and 594 sq. ft. of bonus space can be developed as desired.
Distinctive elements
Beautiful country style garage plan.
36' x 22'4'' double garage plan, two-storey.
Total of 1398 sq.ft, 804 sq.ft. on main floor and 594 sq.ft. on second floor for storage.
9'6'' ceiling height.
Insulated walls and on floating slab.
Side door and windows.
Plan feature(s)
Ceiling over 8', Living bonus space
