Garage plan Wisteria Way (2987)

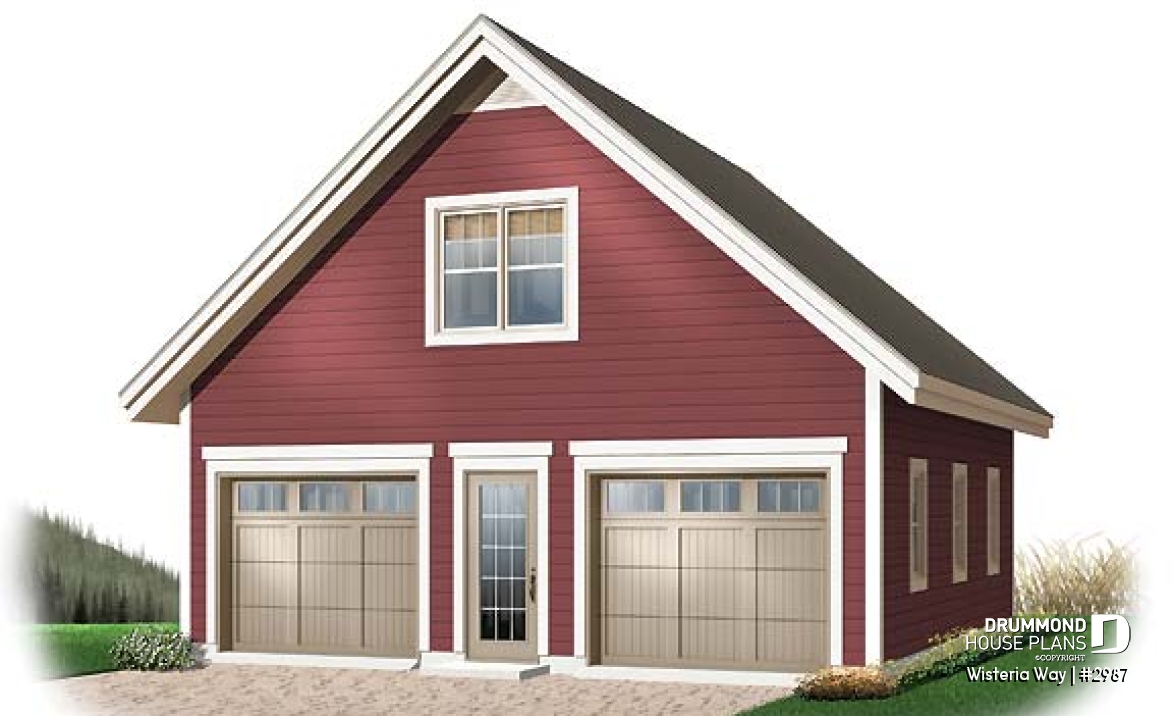

Double car garage with bonus space in attic.
View the size of the rooms and height of the ceilings

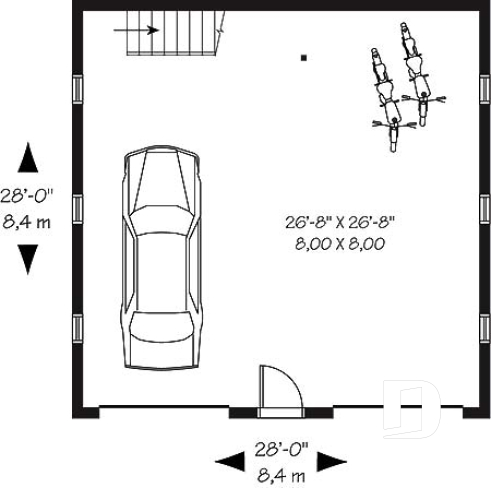

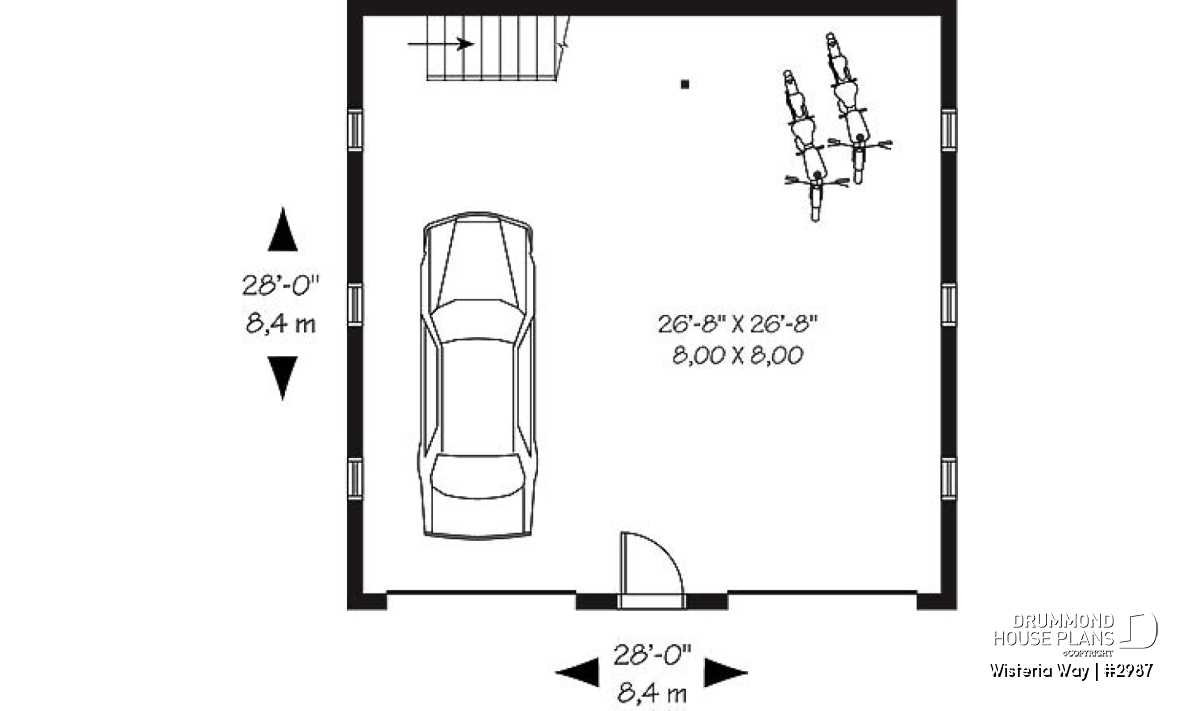

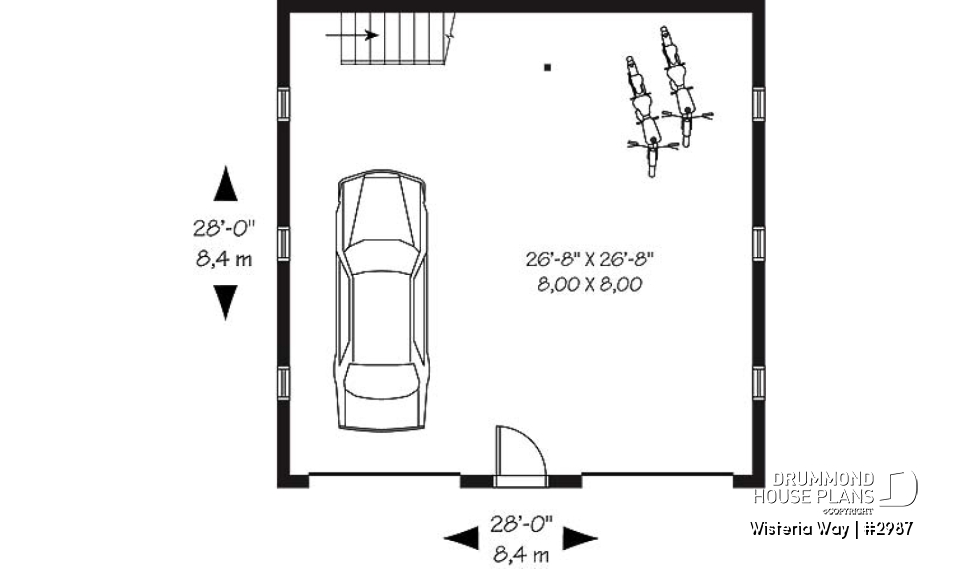

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 26'8" x 26'8" | ~ 8'4" |

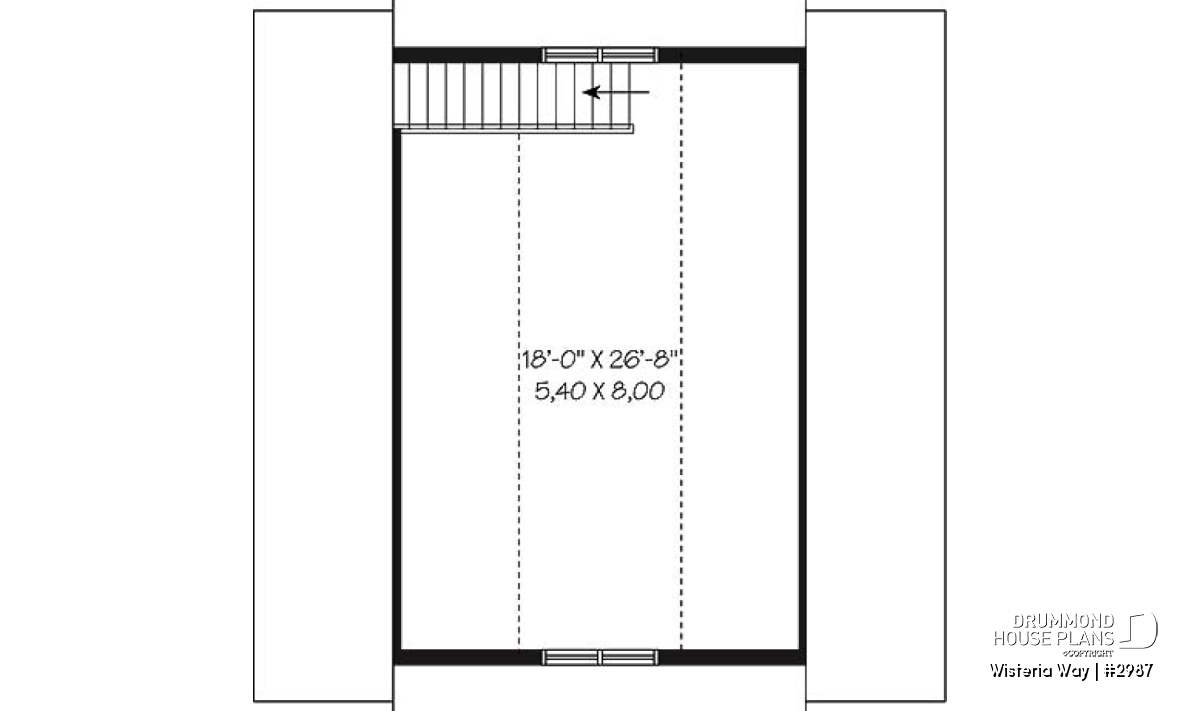

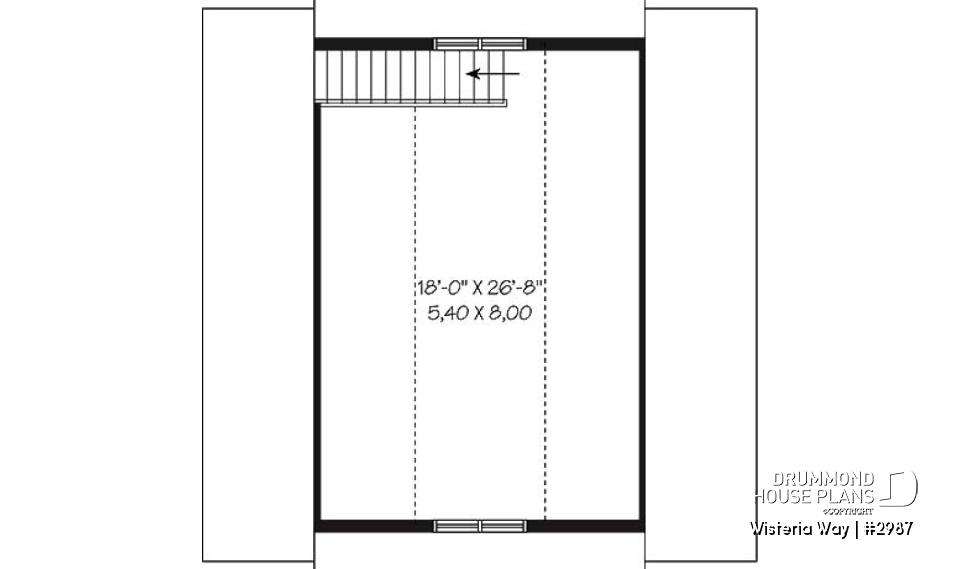

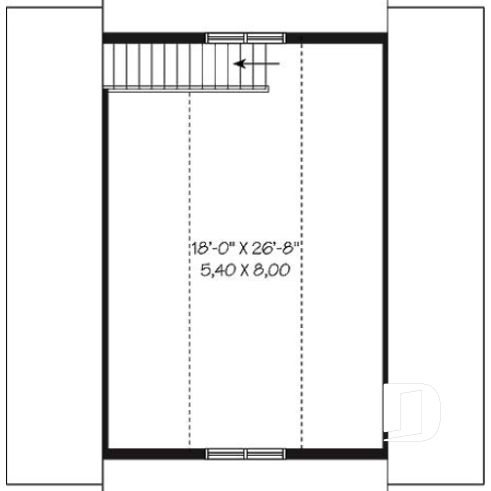

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 18'0" x 26'8" | ~ 8'0" |
General specifications
| Total living area | 1268 sq.ft. |
| 1st level | 784 sq.ft. |
| 2nd level | 484 sq.ft. |
| Width | 28'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 22'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2C |
Rooms specifications
Other useful information on this plan

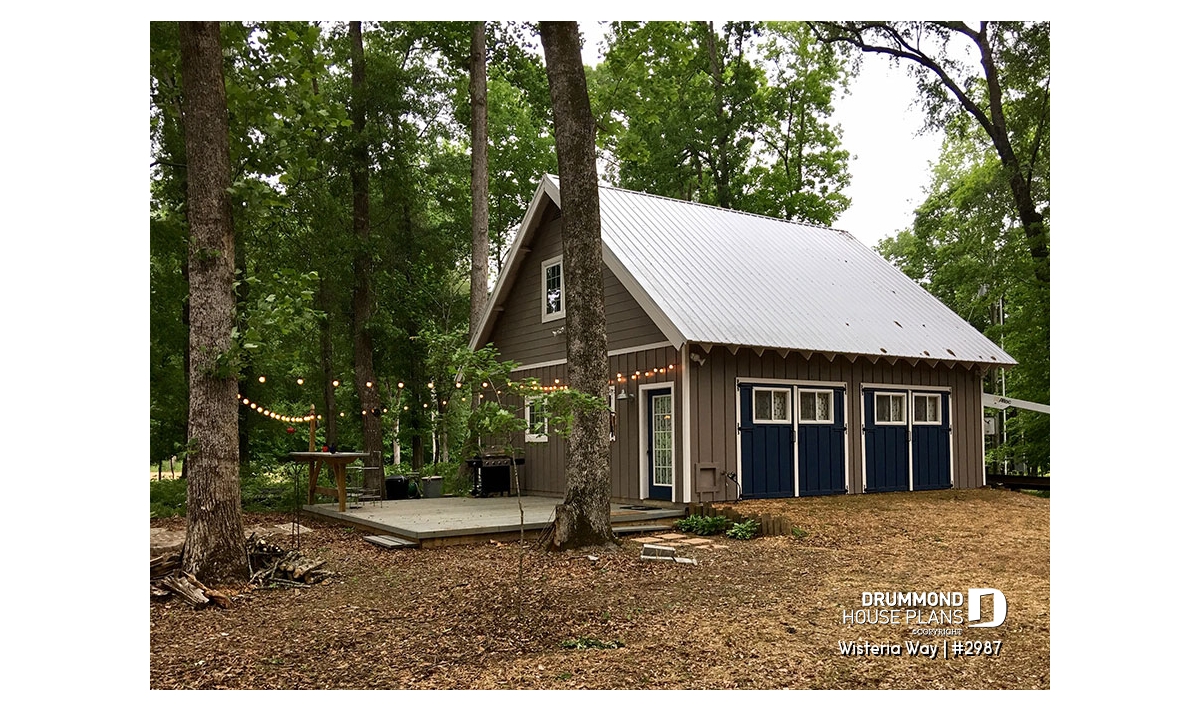

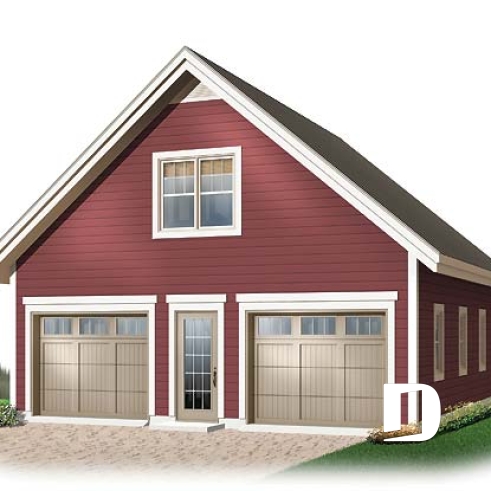

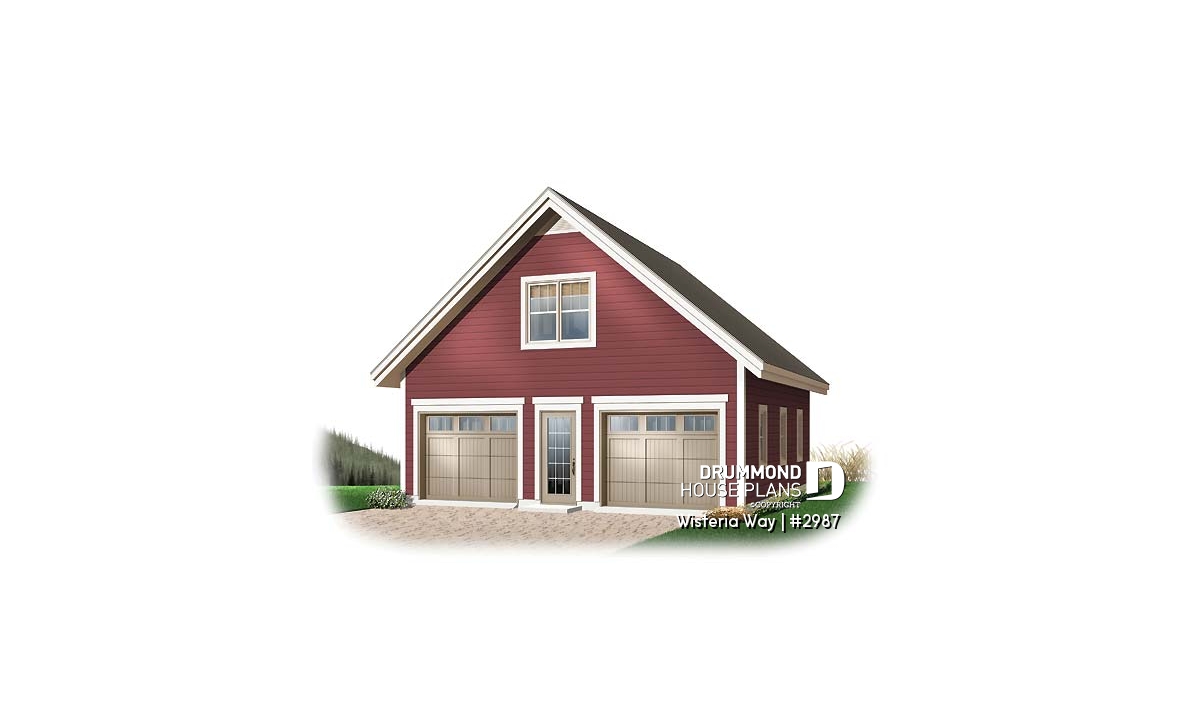

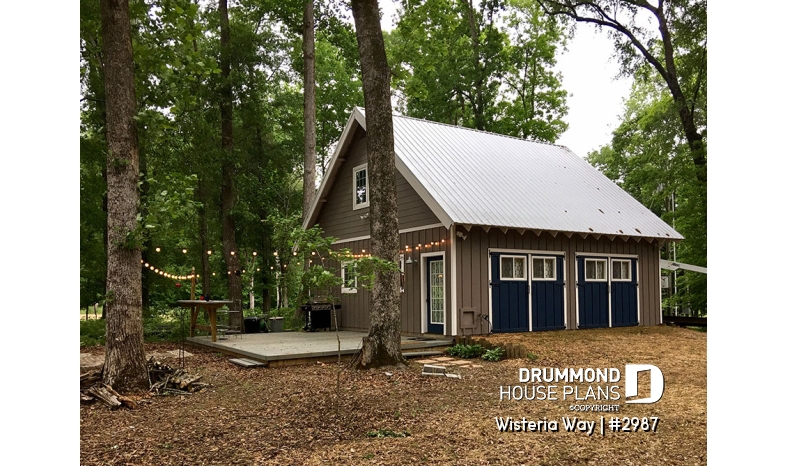

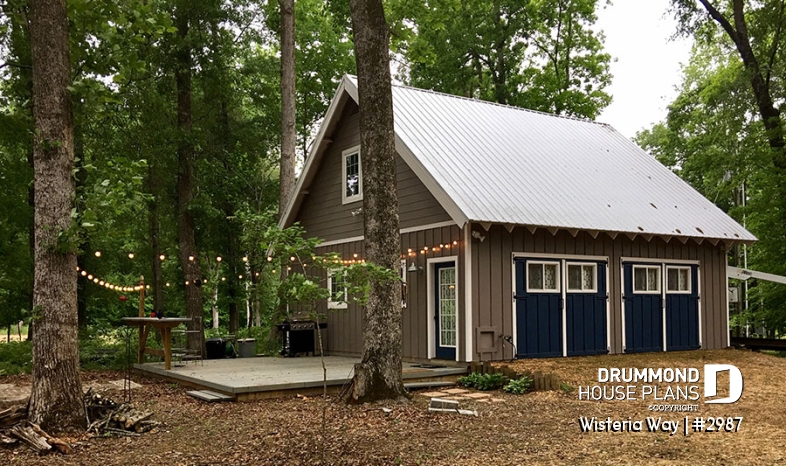

Sweet symmetry for this 2-story, 2-car garage
This pretty garage with bonus space is all about the symmetrical details. 28 feet wide and deep, but not at all boxy thanks to the balanced garage doors, central entrance and trio of windows on both sides. The upstairs includes 484 sq. ft. of bonus space, ideal for storage, a studio or the quintessential “man-cave”.
This garage is an ideal complement to house plan # 3937.
Distinctive elements
28' x 28' double garage plan
Total of 1268 sq.ft. including 784 sq.ft. on the ground floor and 484 sq.ft. upstairs for storage.
8'4" high ceiling on the ground floor
Insulated walls and on floating slab
One door at the front and many windows on the side walls.
Plan architectural style(s)
. Country, . American, . Farmhouse, . Craftsman / Northwest
Similar plans
Previously Viewed Plans
Questions and comments
April 08
Evan
What size are the garage and man doors in this plan?
What is the roof pitch?
thanks
April 08
Customer service
Good day and thank you for your interest in this plan.
The garage doors are 9' wide x 7' high, the roof pitch is 10/12 and the man door is 34" wide
Please let me know if you have any other questions or comments
Regards
Deb
February 26
Rick Vassallo
What is included in the kit# W2987?Are the foundation and the doors included in the price?
Quote #r139389969
Thanks for any info
February 26
Customer service
Good day Mr. Vassallo and thank you for taking the time to write.
We sell only the plans and other documents required to help you accomplish your project, we do not sell ready to build kits.
You will need to consult local contractors and materials suppliers in order to obtain actual pricing for your area.
Regards
Deborah
