House plan Wellbury 2 (3413-V1)
European style home plan with 3 bedroom, mezzanine and garage
View the size of the rooms and height of the ceilings

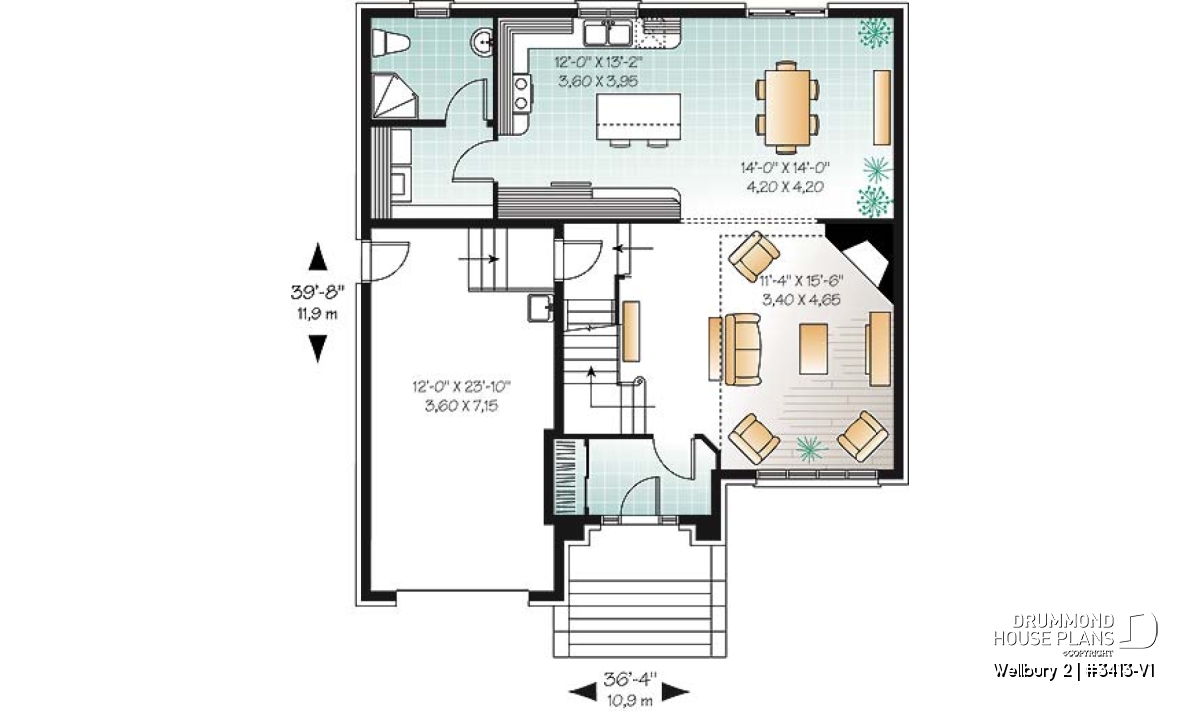

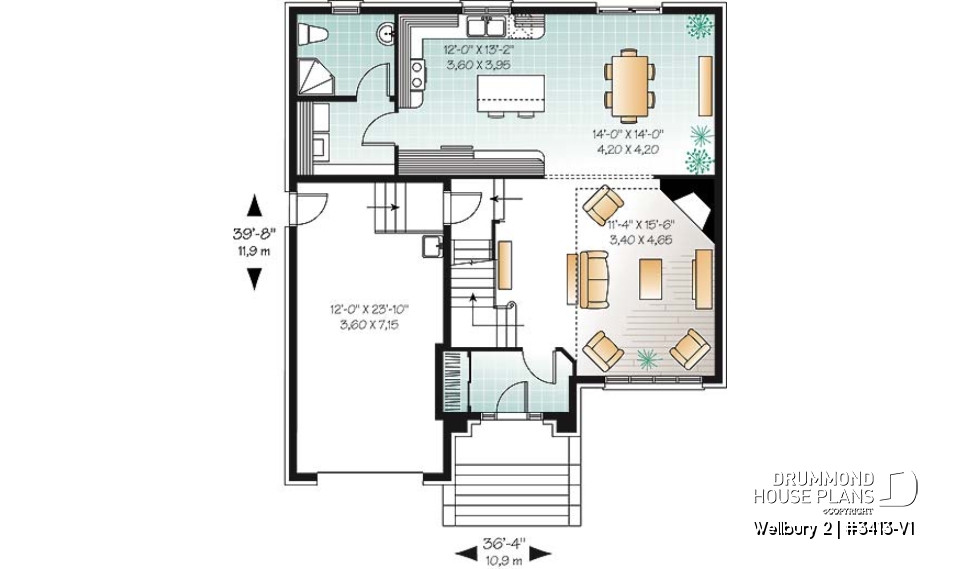

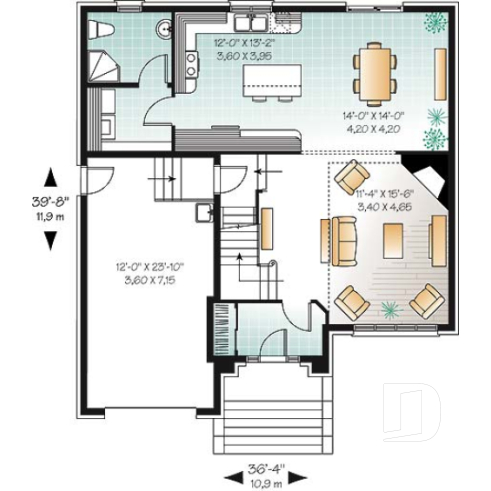

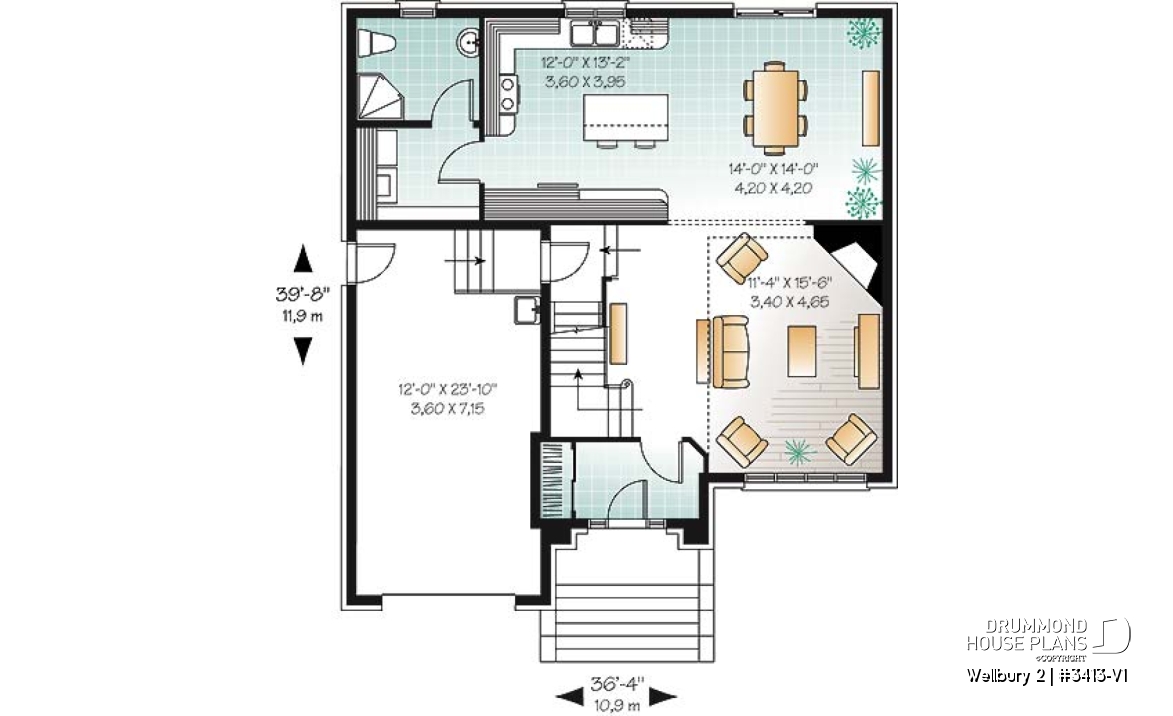

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'0" x 13'2" | ~ 9'0" |
| Pantry | 3'6" x 2'0" | N/A |
| Dining room | 14'0" x 13'2" | ~ 9'0" |
| Living room | 12'0" x 16'2" | ~ 18'0" |
| Foyer | 8'0" x 5'0" | ~ 9'0" |
| Closet | 2'0" x 5'0" | ~ 9'0" |
| Shower room or three quarter bath | 8'0" x 6'4" | ~ 9'0" |
| Laundry room | 8'0" x 6'4" | ~ 9'0" |
| Garage | 12'0" x 23'10" | ~ 18'0" |
| Porch | 9'4" x 3'4" | N/A |
| Deck | 8'0" x 4'0" | N/A |

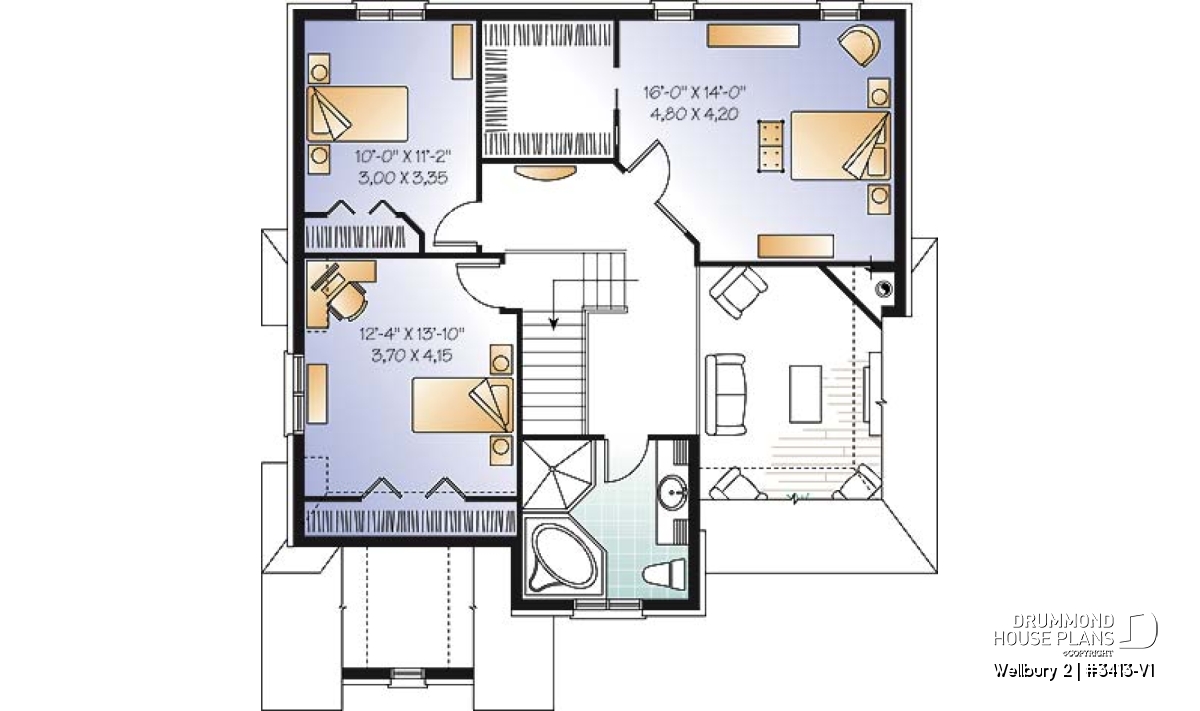

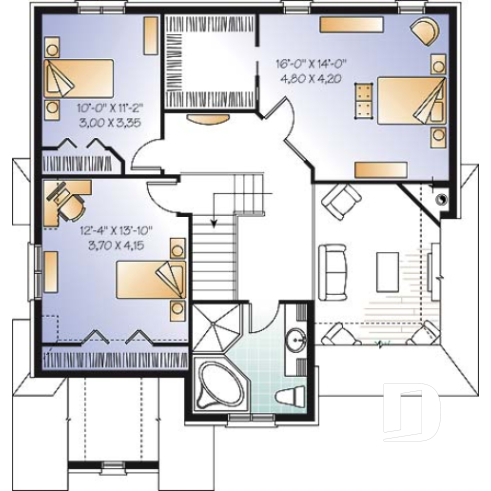

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 16'0" x 14'0" | ~ 8'0" |
| Walk-in closet | 7'8" x 8'0" | ~ 8'0" |
| Bedroom | 12'4" x 14'2" | ~ 8'0" |
| Closet | 12'4" x 2'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'10" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Full bathroom | 9'8" x 9'4" | ~ 8'0" |
General specifications
| Total living area | 1965 sq.ft. |
| 1st level | 970 sq.ft. |
| 2nd level | 995 sq.ft. |
| Width | 36'4" |
| Depth | 39'8" |
| Ridge height from top of foundation | 37'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Popular Cottage Revisited

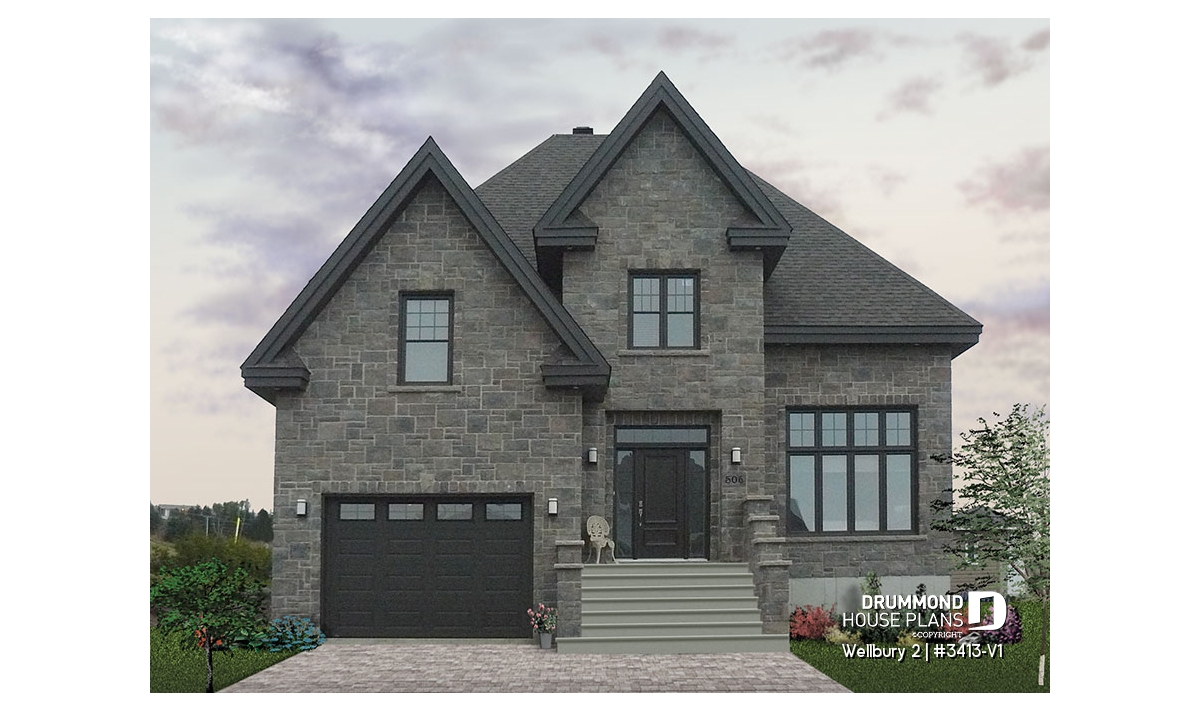

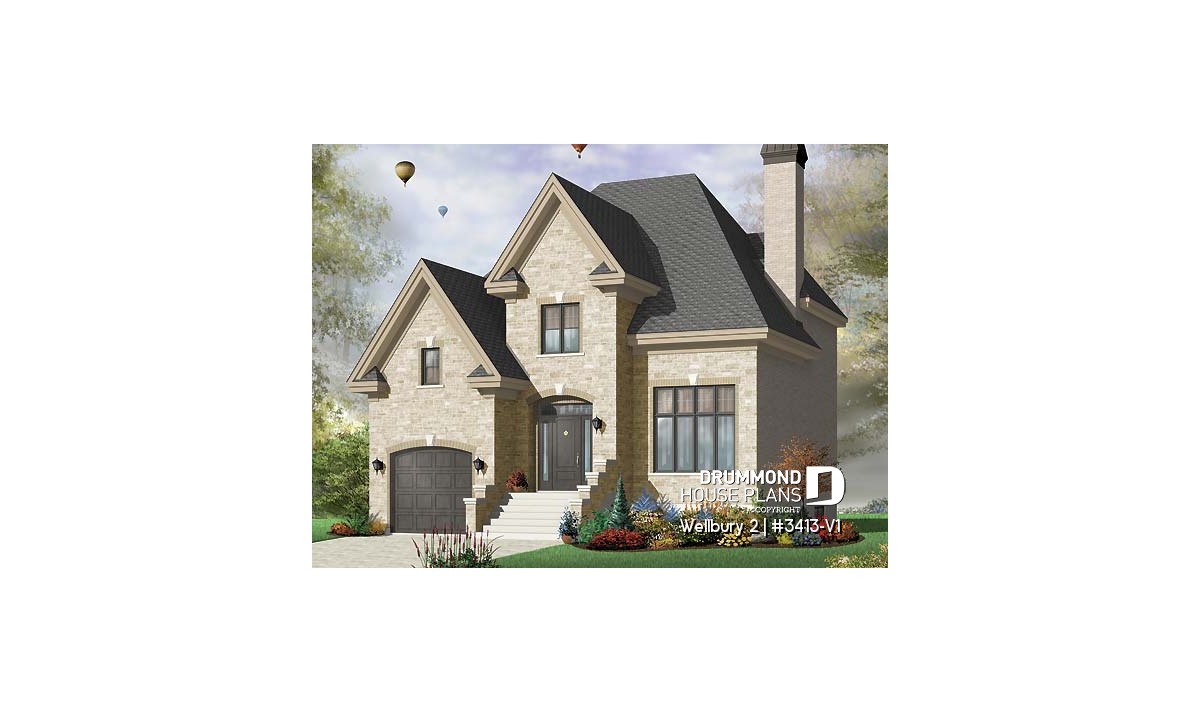

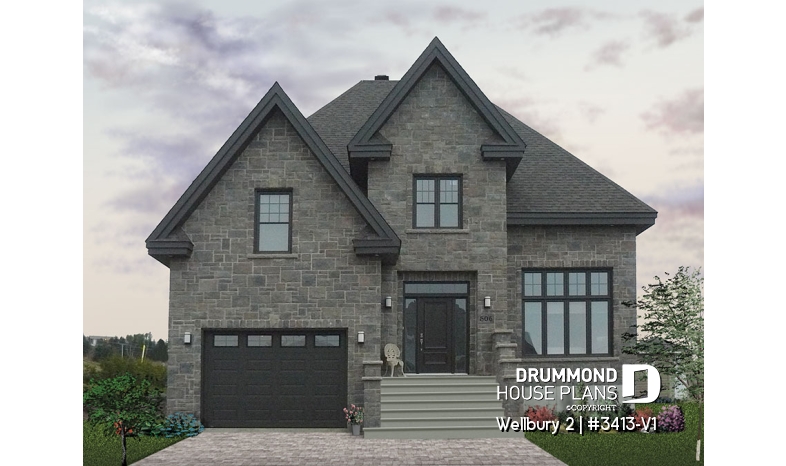

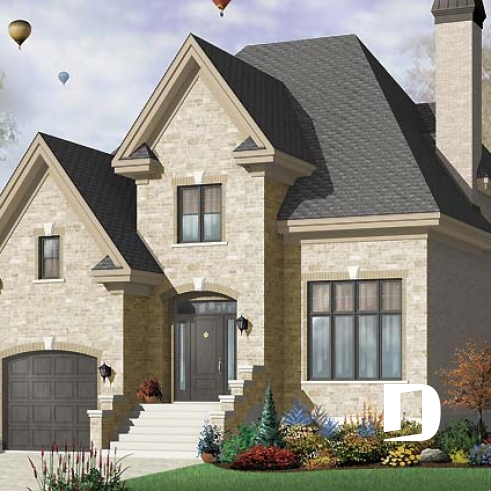

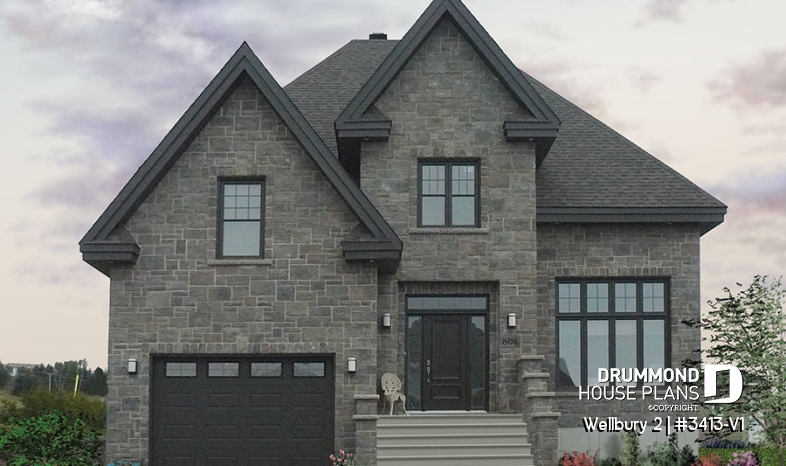

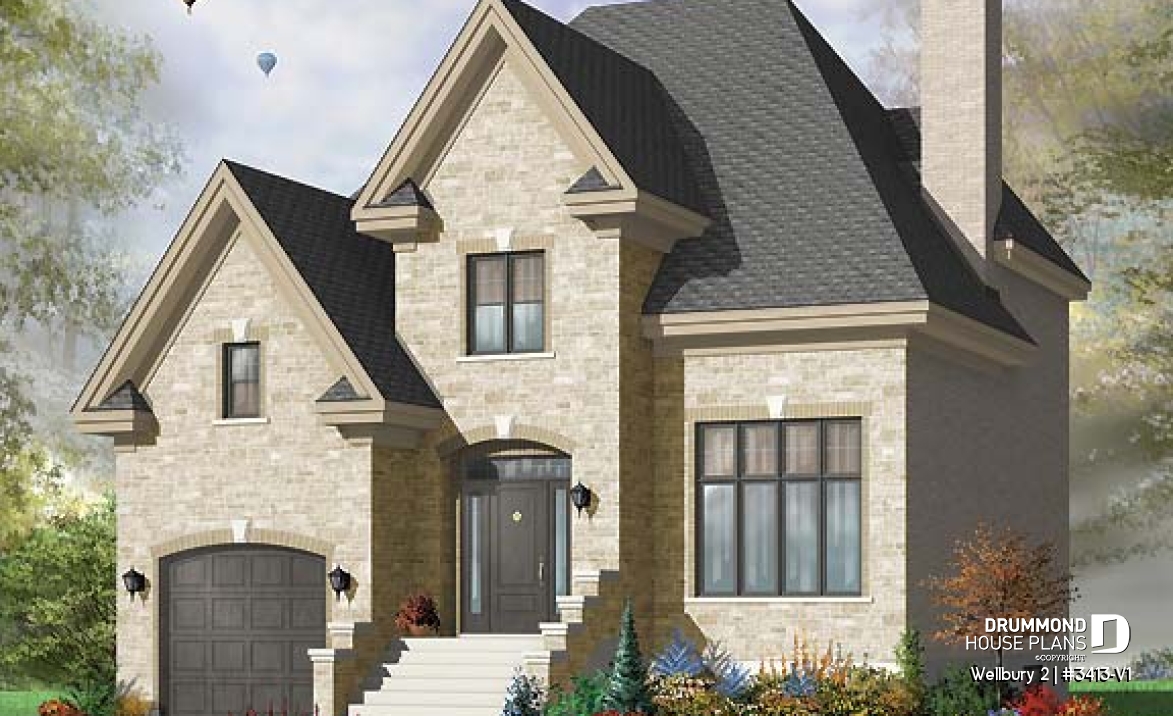

This was realized with the idea of simplifying the exterior volumes and adding living square footage to the original version of 3413, which you may view at www.drummondhouseplans.com. It even has more room with close to an additional 250 sq. ft. and is substantially better built with brick on all four elevations. Also, bricks/stones cover the main façade and regular brick covers the balance, replacing the acrylic coating on the original 3413.
On the ground floor, the enlargement gives even more comfort to the dining room, therefore giving more storage space to the kitchen. Note that the living room keeps its original format which is both distinctive and impressive with its 18 foot ceiling. The fireplace, initially planned on the party wall of the living room and the dining room, is relocated in a corner in order to enlarge the opening between the two rooms. This also has the purpose of giving more lighting in the activity area.
Distinctive elements
9'ceiling on 1st level and 18' in the living room which includes a fireplace and abundant windows. Nice size kitchen with lots of counters and a central lunch-island. Adequate size bedrooms, especially the master bedroom which includes a walk-in closet.
Plan feature(s)
Fireplace, Mezzanine, Island, Gound floor laundry room, Entrance hall, Walk-in master bed., Separate bath and shower
Plan architectural style(s)
. European, . Manors and small castles, . English
