House plan Wellbury 4 (3413-V3)
4 bedroom house plan, master suite, large laundry room, great kitchen island, double garage
View the size of the rooms and height of the ceilings

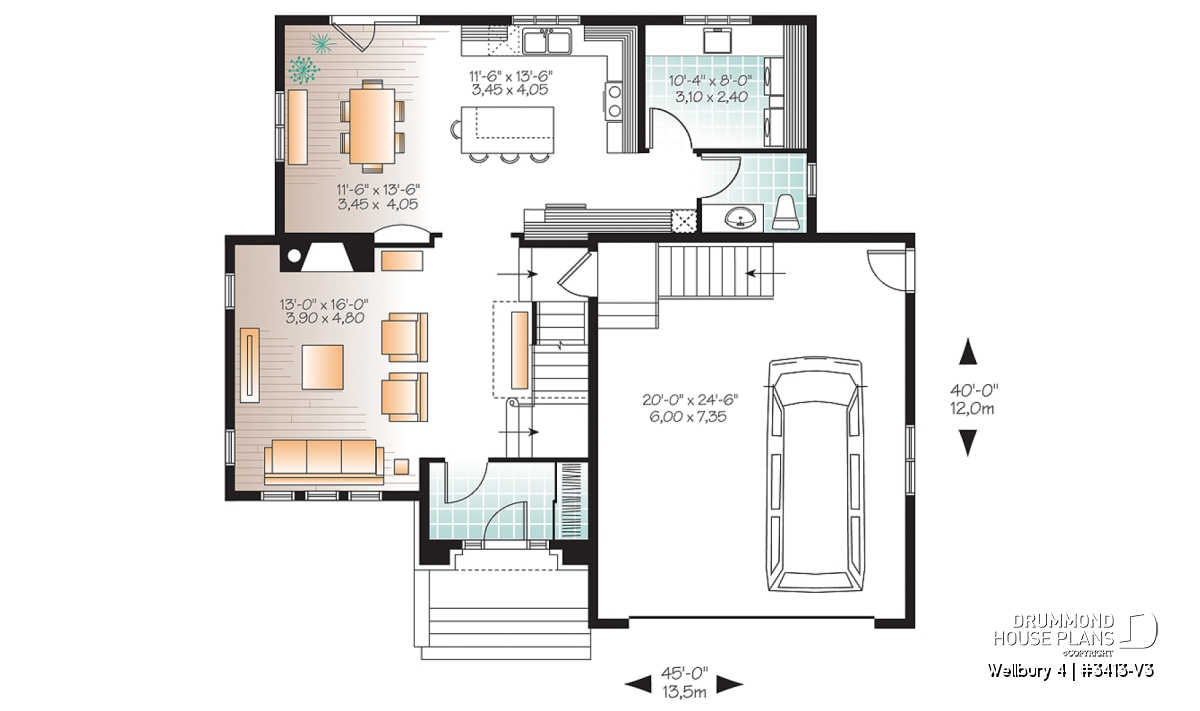

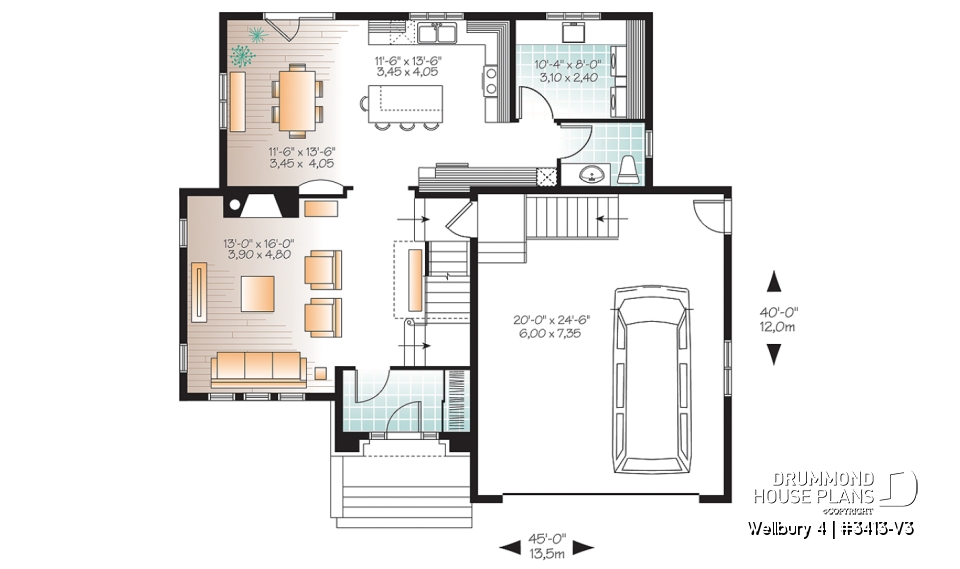

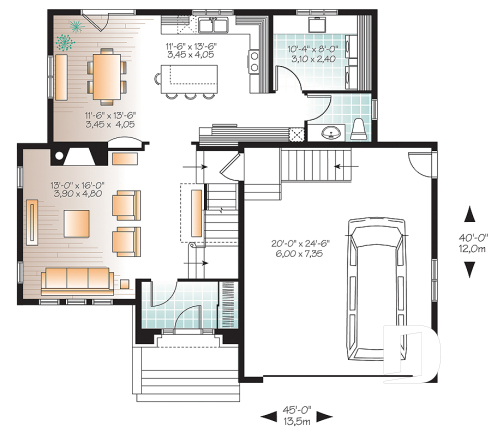

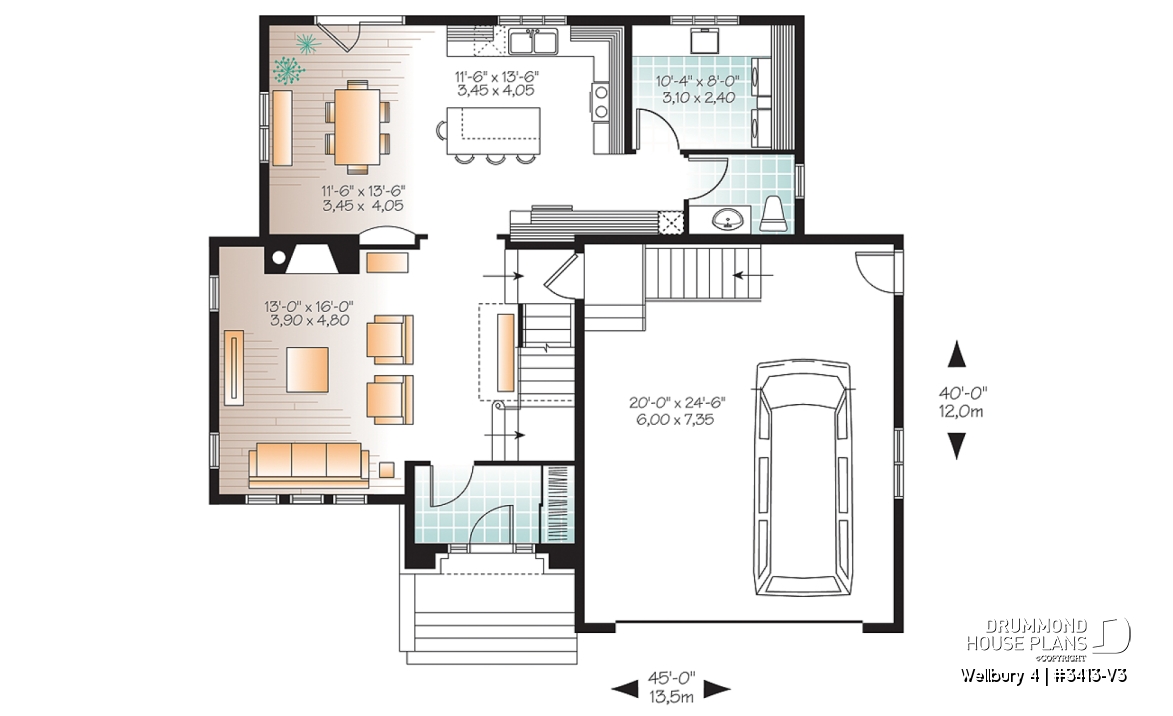

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Laundry room | 10'6" x 8'0" | ~ 9'0" |
| Half bath or powder room | 6'10" x 5'2" | ~ 9'0" |
| Kitchen/dinette | 11'6" x 13'6" | ~ 9'0" |
| Dining room | 11'6" x 13'6" | ~ 9'0" |
| Living room | 13'0" x 16'0" | ~ 18'0" |
| Foyer | 8'0" x 5'2" | ~ 9'0" |
| Closet | 2'0" x 5'0" | ~ 9'0" |
| Garage | 20'0" x 24'6" | ~ 9'4" |

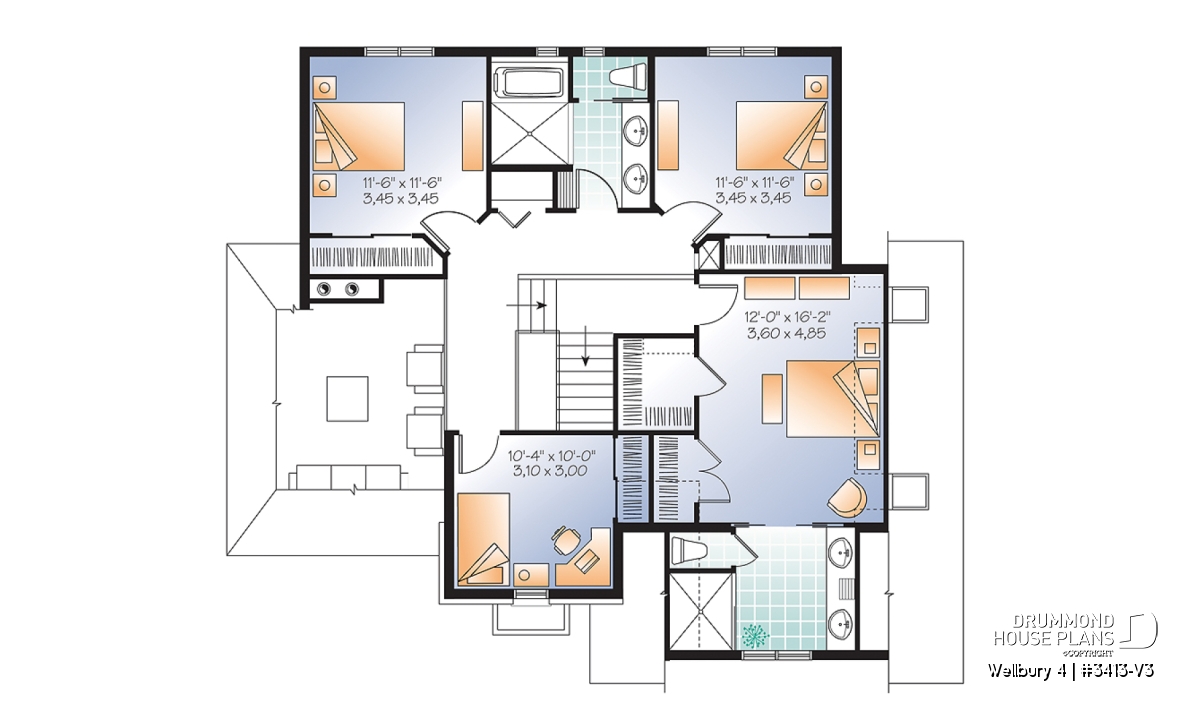

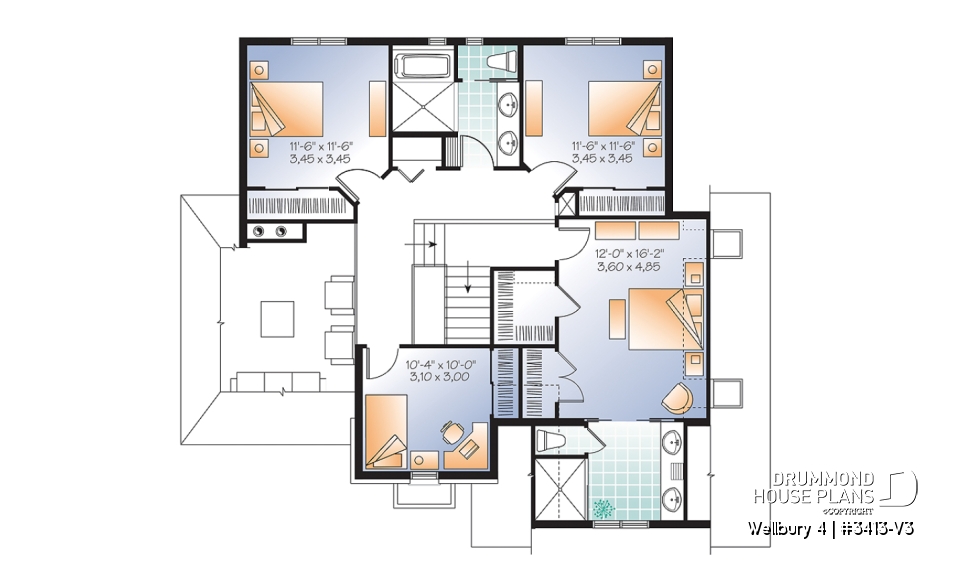

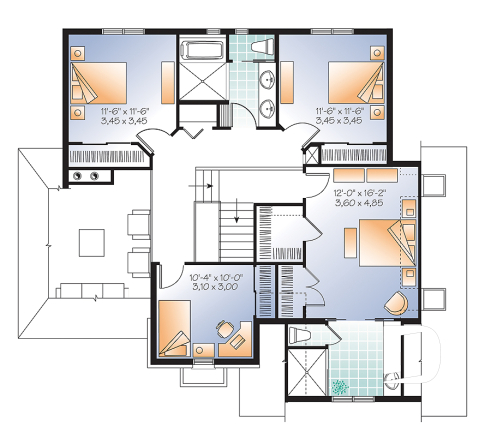

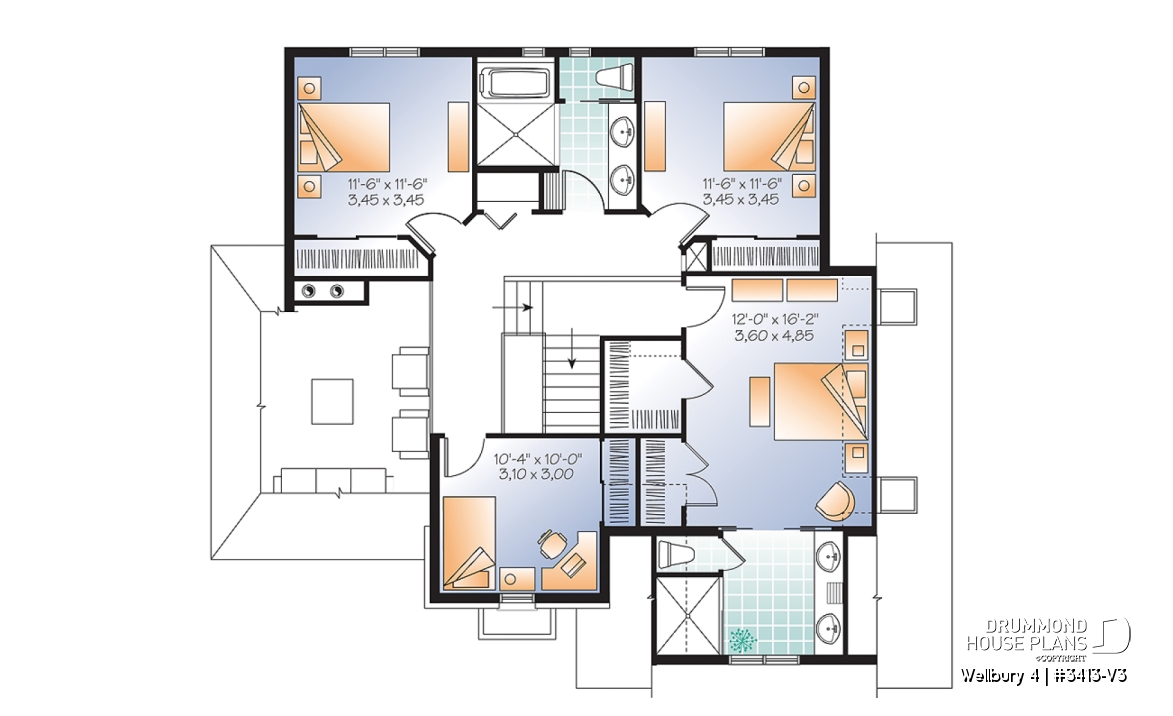

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 12'0" x 16'2" | ~ 9'0" |
| Walk-in closet | 5'0" x 6'0" | ~ 9'0" |
| Closet | 2'8" x 5'8" | ~ 9'0" |
| Shower room or three quarter bath | 12'0" x 8'0" | ~ 9'0" |
| Bedroom | 11'6" x 11'6" | ~ 8'0" |
| Closet | 8'8" x 2'4" | ~ 8'0" |
| Bedroom | 11'6" x 11'6" | ~ 8'0" |
| Closet | 7'0" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'0" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Full bathroom | 10'4" x 9'10" | ~ 8'0" |
| Linen | 4'0" x 2'4" | ~ 8'0" |
General specifications
| Total living area | 2146 sq.ft. |
| 1st level | 983 sq.ft. |
| 2nd level | 1163 sq.ft. |
| Width | 45'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 36'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
4 Bedroom Traditional House with Grace and Space!
Stone detail and stately rooflines will make you proud to call this home.
An enclosed vestibule opens to a large living room featuring a fireplace and soaring vaulted ceiling. There’s plenty of room for gourmet entertaining and visiting in a large kitchen with central island and loads of storage. The adjoining dining room enjoys backyard views. Rounding off the main floor amenities are a spacious laundry room and discreet powder room. Access to the double garage is perfectly located, close to the kitchen for easy grocery trips.
Meander up the open staircase to a semi-private master suite which boasts his and hers closets and a fabulous ensuite bathroom with double vanity and oversize shower. Further up the stairs, you’ll appreciate three additional bedrooms which share a five-piece bathroom.
The plan includes an undeveloped basement, ideal to be finished to suit your family's recreation needs.
Distinctive elements
Living room with fireplace and 18' ceiling. 9' ceiling for the rest of first floor and the master suite.
Kitchen with island and abundant storage. Large laundry room on the ground floor.
Four bedrooms upstairs, three of which can easily accommodate a double bed. Master suite with 9 ceiling, private shower room with 4'x5' shower, and two closets including a walk-in.
Plan feature(s)
Entrance hall, Mezzanine, Cathedral ceiling, Basement access from garage, Gound floor laundry room, Master suite upstairs, Separate bath and shower, Double sinks, Walk-in master bed., Laundry chute
Plan architectural style(s)
. European, . Manors and small castles, . Traditional, . English
