House plan Wellbury 3 (3413-V2)
European style home with large master bedroom, open kitchen / dining concept, mezzanine overlooking the living
View the size of the rooms and height of the ceilings

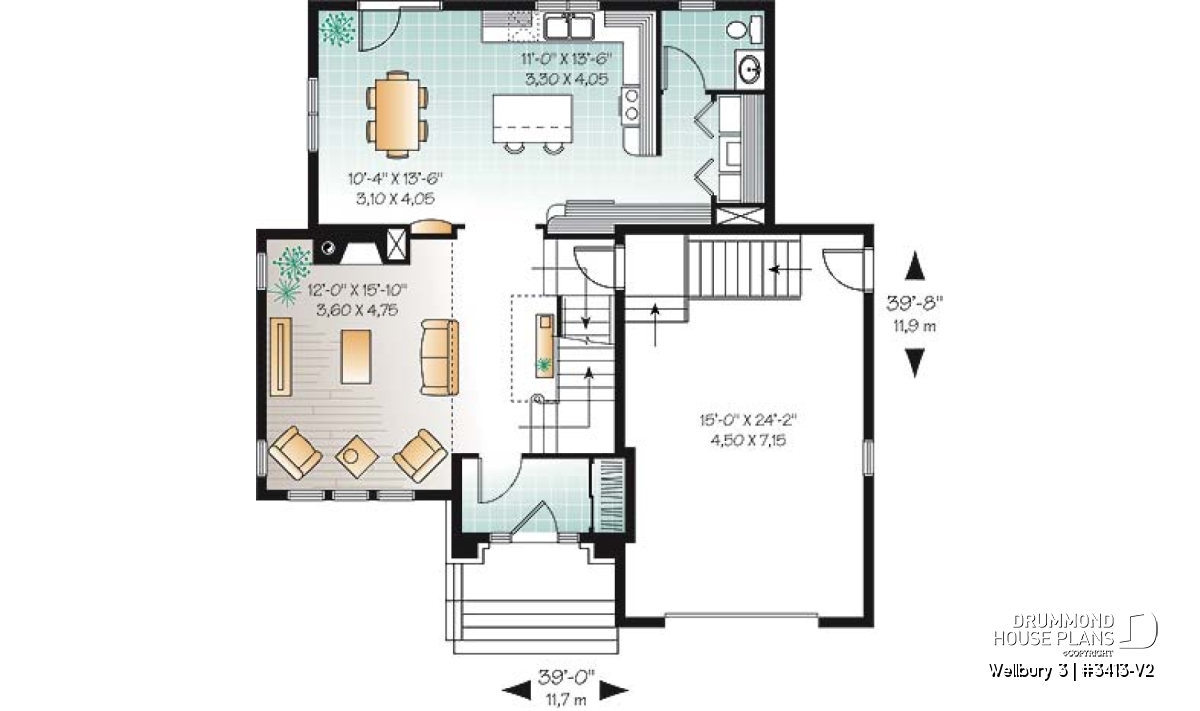

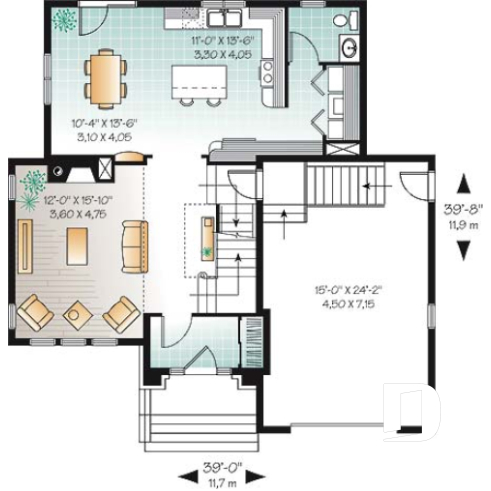

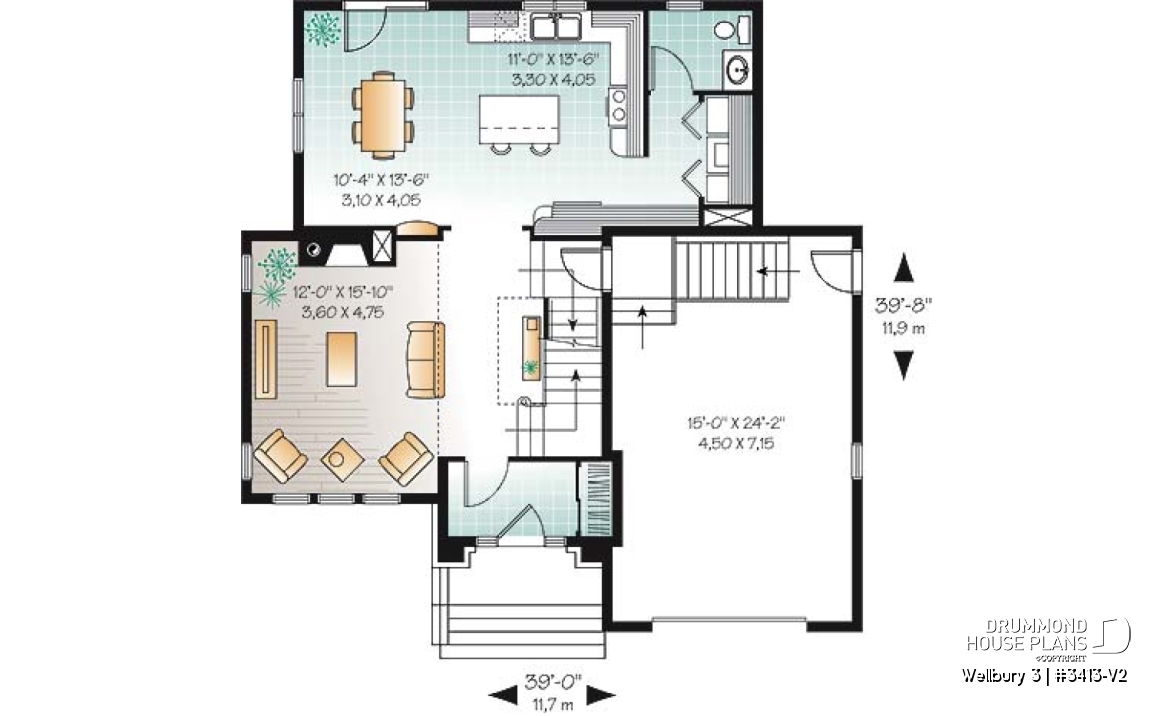

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 13'6" | ~ 9'0" |
| Dining room | 10'4" x 13'6" | ~ 9'0" |
| Living room | 12'0" x 15'10" | ~ 13'2" |
| Foyer | 8'0" x 4'8" | ~ 9'0" |
| Half bath or powder room | 6'6" x 5'0" | ~ 9'0" |
| Laundry room | 3'0" x 6'10" | ~ 9'0" |
| Garage | 15'0" x 24'2" | ~ 9'0" |
| Porch | 9'4" x 3'4" | N/A |
| Porch | 12'4" x 6'0" | N/A |

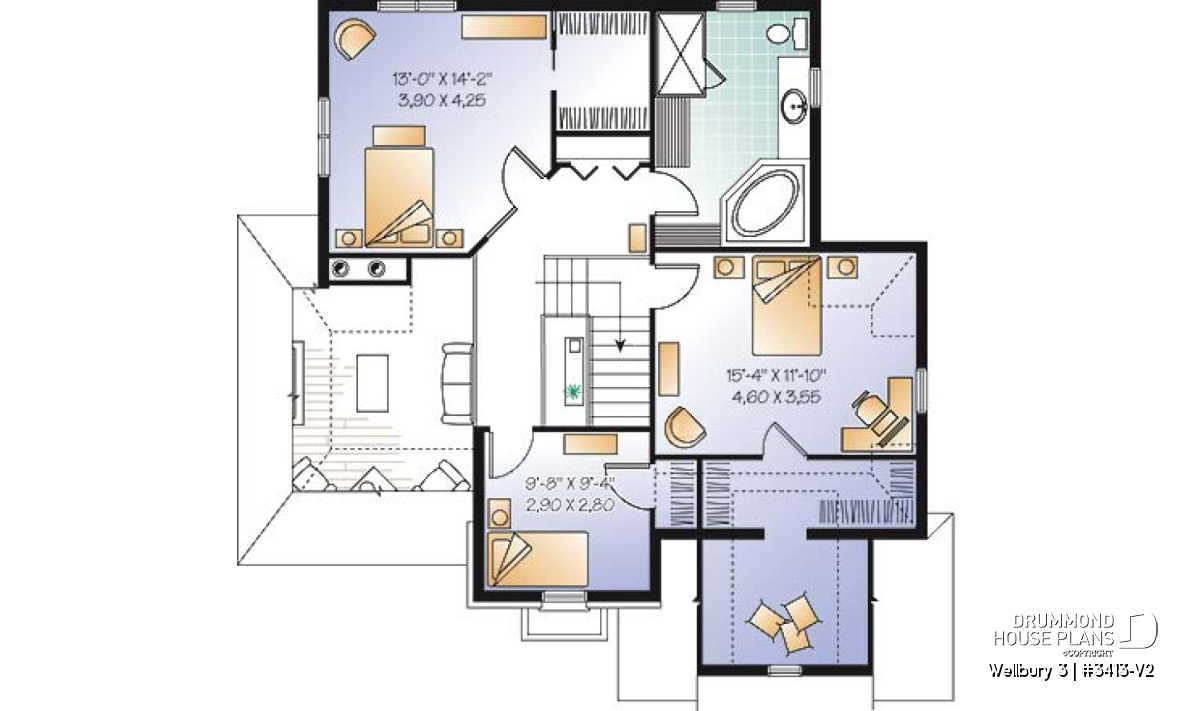

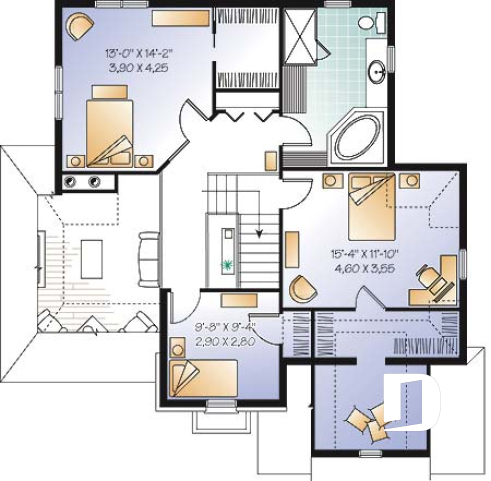

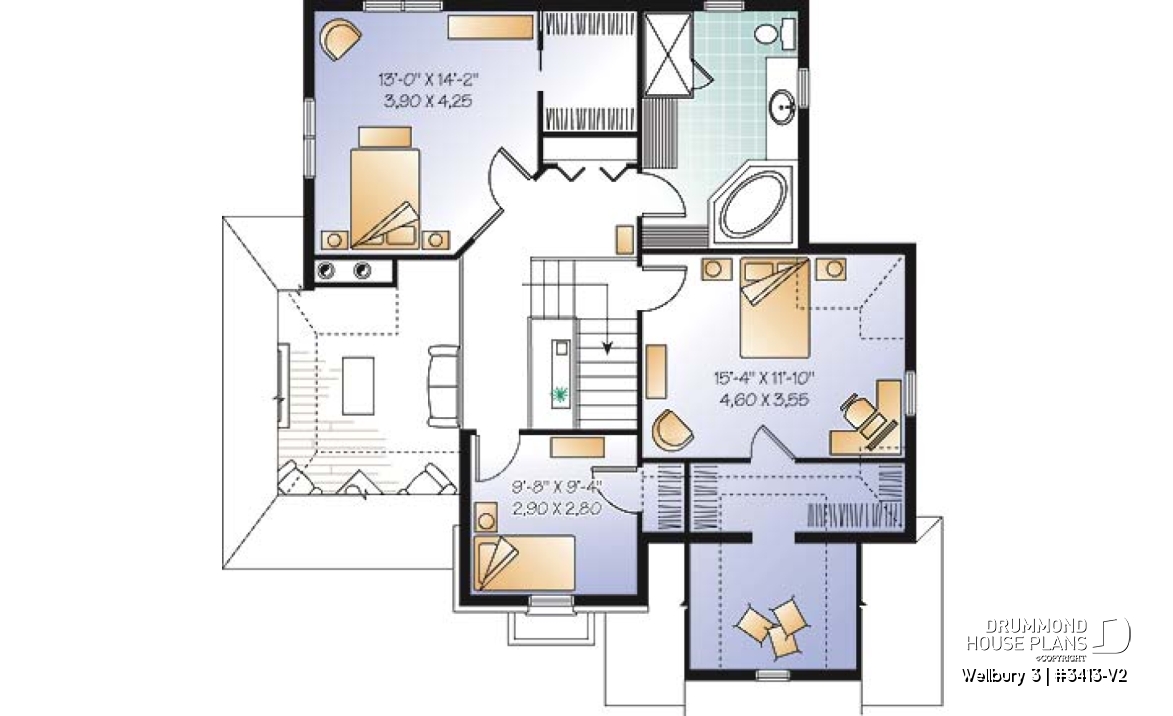

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 14'2" | ~ 8'0" |
| Bedroom | 15'4" x 11'10" | ~ 9'0" |
| Bedroom | 9'8" x 9'4" | ~ 8'0" |
| Linen | 5'5" x 1'6" | ~ 8'0" |
| Storage | 9'8" x 7'4" | ~ 8'0" |
| Full bathroom | 9'1" x 13'10" | ~ 8'0" |
General specifications
| Total living area | 1877 sq.ft. |
| 1st level | 874 sq.ft. |
| 2nd level | 1003 sq.ft. |
| Width | 39'0" |
| Depth | 39'8" |
| Ridge height from top of foundation | 36'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | E |
Rooms specifications

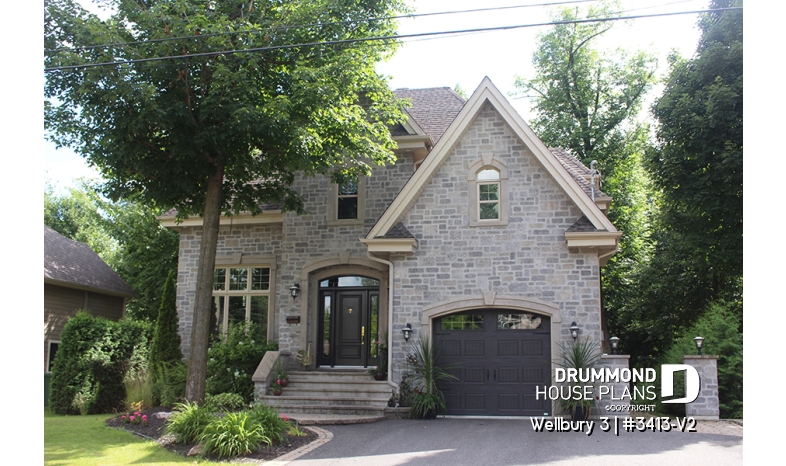

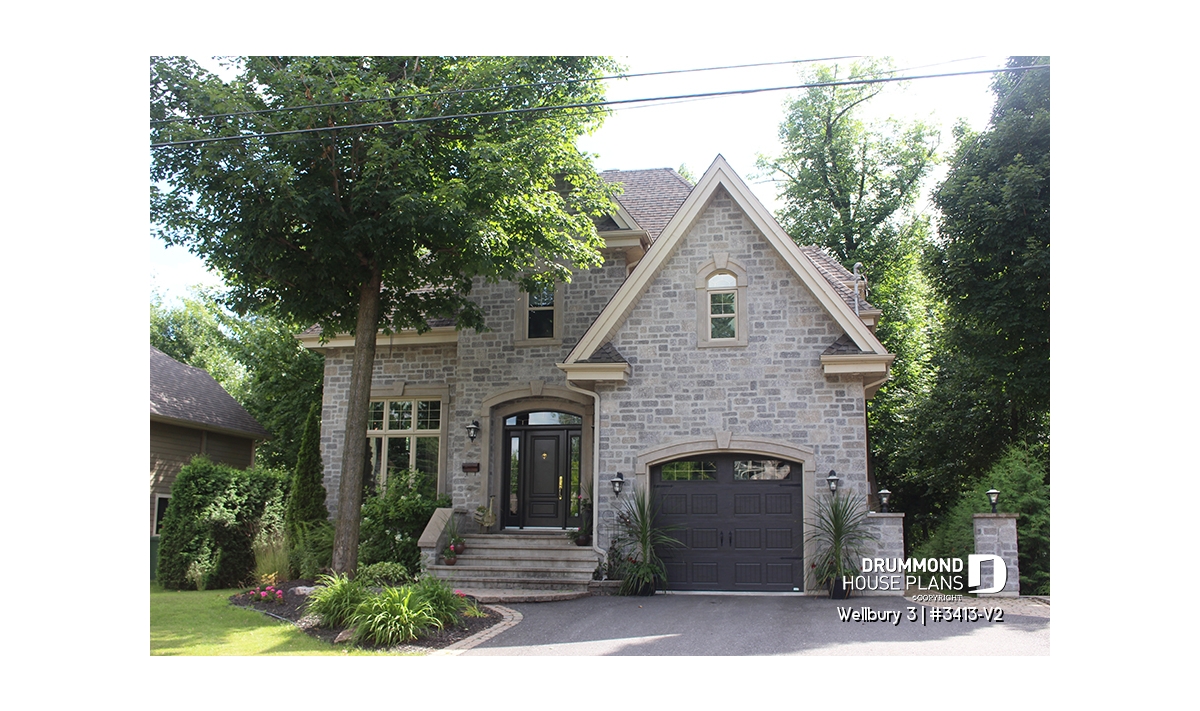

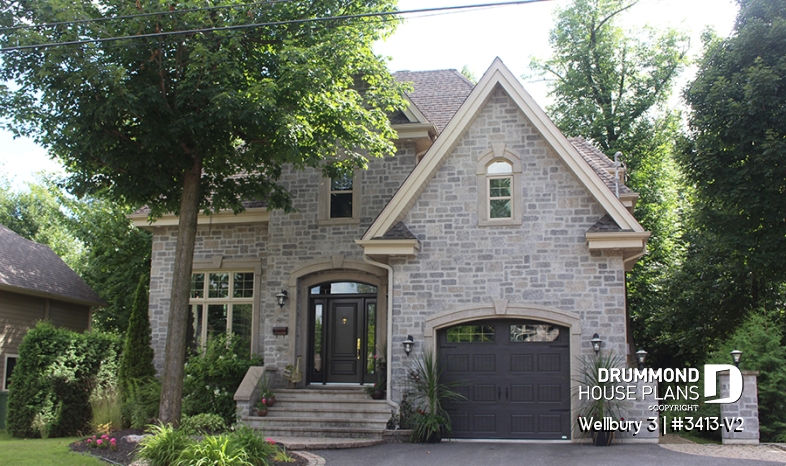

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

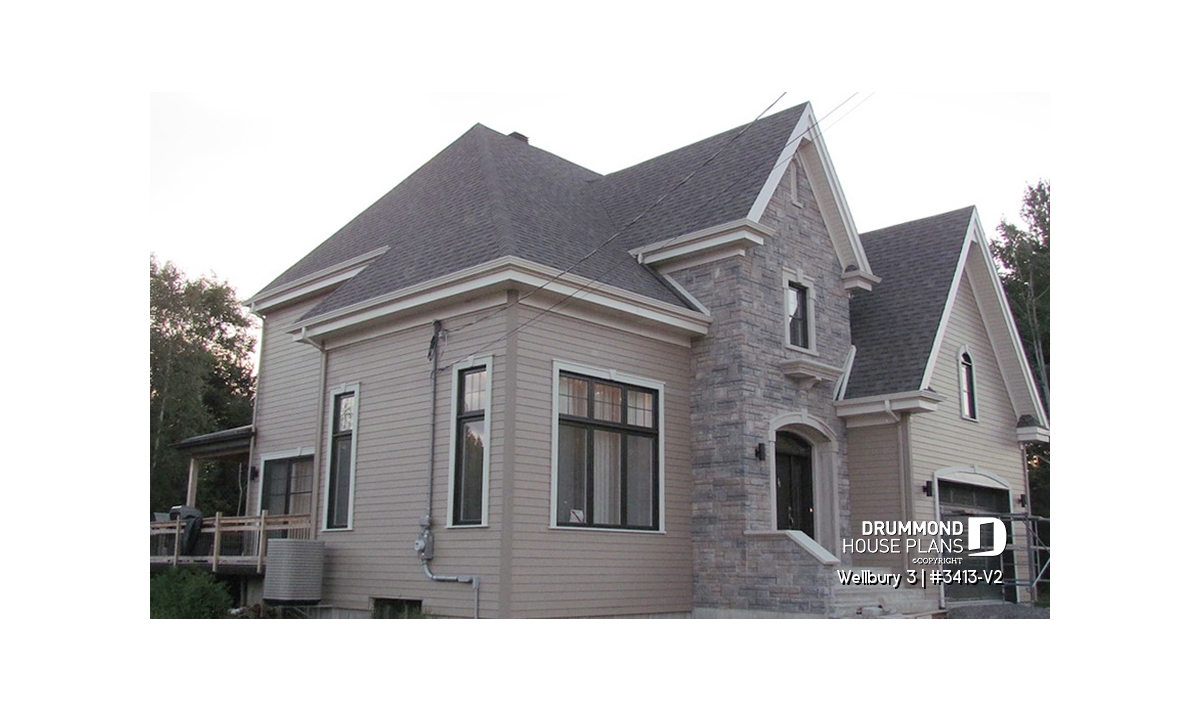

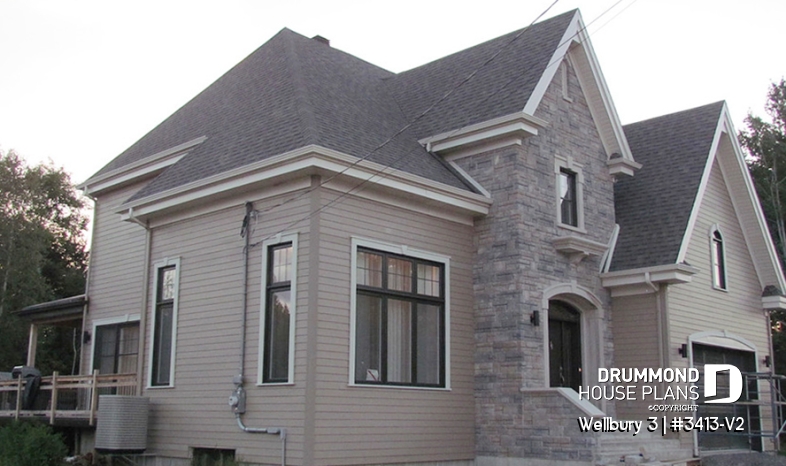

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Distinctive elements
9' ceiling on main level and 18' in the living room. Kitchen with central lunch island and abundant windows on two sides in the dining room. Fireplace and mezzanine in the living room. Walk-in closet in master bedroom. Remarquable bedroom #2 with large storage space above the garage. Bathroom with corner bath, plenty of storage space and 60" x 36" shower.
Plan feature(s)
Basement access from garage, Mezzanine, Entrance hall, Fireplace, Island, Gound floor laundry room, Laundry chute, Ceiling over 8'
Plan architectural style(s)
. European, . Manors and small castles, . Country, . Traditional, . English
